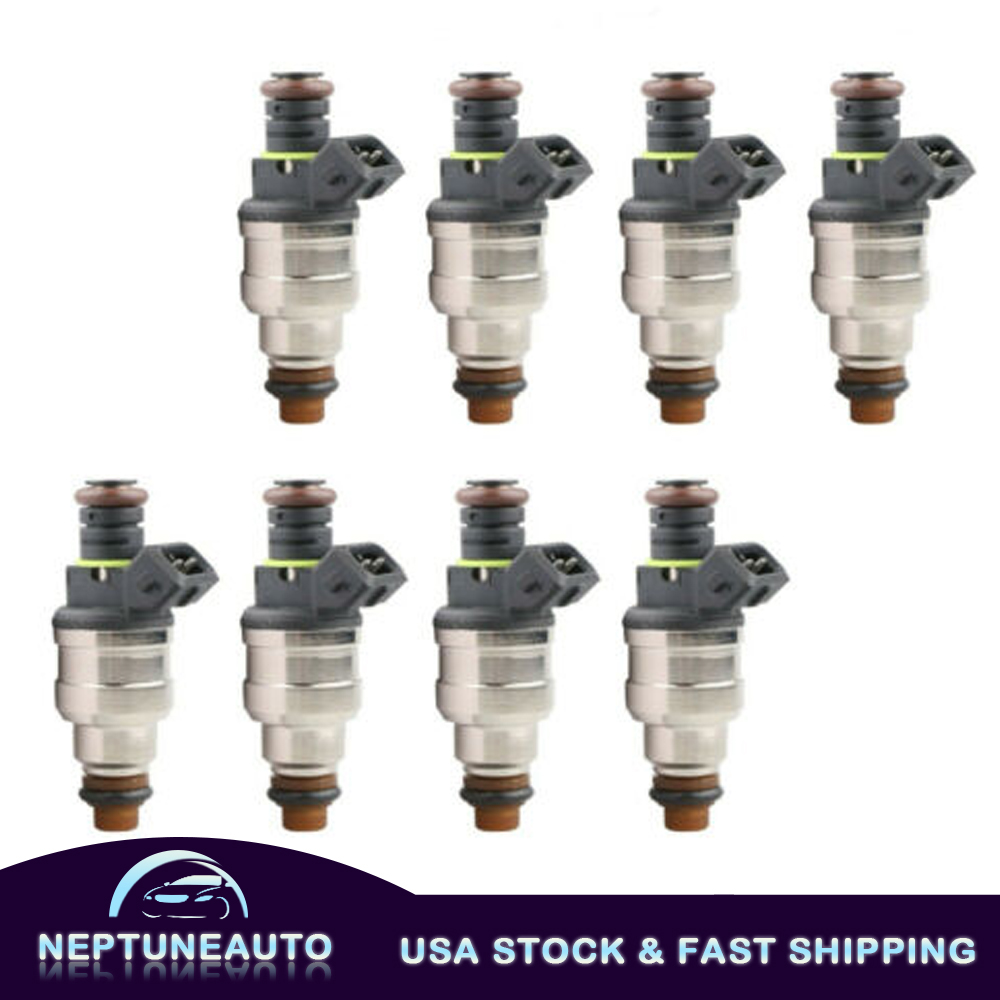

8x 24LB High Impedance Fuel Injectors For Chevy Ford Dodge LS1 LT1 4.6L 5.7L V8
PRODUCT DESCRIPTION
TWO YEARS WARRANTY
These fuel injectors are not made by the original equipment manufacturers(OEM)(BOSCH & VDO etc.)They have been 100% tested and exactly match the internal coil resistance and fuel flow rate of OEM fuel injectors.The individual flow characteristics and fuel atomization of above fuel injectors are almost same to or superior to the OEM and will help accelerate response time , save gasoline and improve MPG.
Note: Some models require ECU Tunning, would you pls verify your stock injectors flow rate.
Features:
Quantity: 8 Fuel Injectors
Condition: 100% BRAND NEW
Design: Bosch GEN III EV1 Style Fuel Injector
O-Rings Included: Yes, preinstalled
Injector Design: Metal & composite plastic
Orifice Type: 4 holes Disc
Connector Type: EV1
Filter Design: Basket filter design at inlet
Spray Pattern: 15 Degree Spray Cone
Quantity: 8 Fuel Injectors
Condition: 100% BRAND NEW
Design: Bosch GEN III EV1 Style Fuel Injector
O-Rings Included: Yes, preinstalled
Injector Design: Metal & composite plastic
Orifice Type: 4 holes Disc
Connector Type: EV1
Filter Design: Basket filter design at inlet
Spray Pattern: 15 Degree Spray Cone
Technical Data:
Coil Resistance: 14.5 Ohms / High Impedance
Static Flow Rate: 24 lb/hr = 250 cc/min @ 43.5PSI ( 300kPa )
Gain: 0.12ms/MG
Offset: 0.055ms
Turn on time @ 14VDC: 1.14ms
Turn off time: 0.85ms @ 300KPa
Amperage: 1.0 Amps
Pressure: Min 30PSIG/ Max 100PSIG
Accuracy:2%
Dimension:
Length: 3" (74mm)
O-Ring Diameter: 14.5mm
Length: 3" (74mm)
O-Ring Diameter: 14.5mm
Application:
These high performance injectors will fit all of the following models:
1985-2002 Chevrolet Camaro
1994-1996 Chevrolet Caprice
1985-2004 Chevrolet Corvette
1994-1996 Chevrolet Impala
1994-1997 Ford F250 7.5L
1994-1997 Ford F350 7.5L
1994-1997 Ford Super Duty 7.5L
2003-2004 Ford Crown Victoria
2000-2005 Ford Excursion
2000-2004 Ford F250 Super Duty 5.4L
2000-2004 Ford F350 Super Duty 5.4L
1986-1995 Ford Mustang GT, Lx and Cobra 5.0L
1996-2004 Ford Mustang GT
1999/2001 Ford Mustang Cobra (Must change injector plugs,we will include EV1 plugs for free after receiving the extra message)
2003-2004 Ford Mustang Cobra ((Must change injector plugs,we will include EV1 plugs for free after receiving the extra message)
1985-2002 Pontiac Firebird
2004-2006 Pontiac GTO
1985-2002 Pontiac TransAm
1985-2002 Chevrolet Camaro
1994-1996 Chevrolet Caprice
1985-2004 Chevrolet Corvette
1994-1996 Chevrolet Impala
1994-1997 Ford F250 7.5L
1994-1997 Ford F350 7.5L
1994-1997 Ford Super Duty 7.5L
2003-2004 Ford Crown Victoria
2000-2005 Ford Excursion
2000-2004 Ford F250 Super Duty 5.4L
2000-2004 Ford F350 Super Duty 5.4L
1986-1995 Ford Mustang GT, Lx and Cobra 5.0L
1996-2004 Ford Mustang GT
1999/2001 Ford Mustang Cobra (Must change injector plugs,we will include EV1 plugs for free after receiving the extra message)
2003-2004 Ford Mustang Cobra ((Must change injector plugs,we will include EV1 plugs for free after receiving the extra message)
1985-2002 Pontiac Firebird
2004-2006 Pontiac GTO
1985-2002 Pontiac TransAm
