HDMI+DVI+VGA+Audio Control Board for 12.1inch 1280x800 LCD HV121WX6-110 HX121WX1-101 HV121WX6-111
The drive board can be used to light up the screen below::
| HX121WX1-100 | HT121WX2-210 | HV121WX5-113 | HV121WX6-110 |
| HX121WX1-101 | HV121WX6-111 | ||
| HX121WX1-110 | HV121WX6-112 | ||
| HX121WX1-111 |

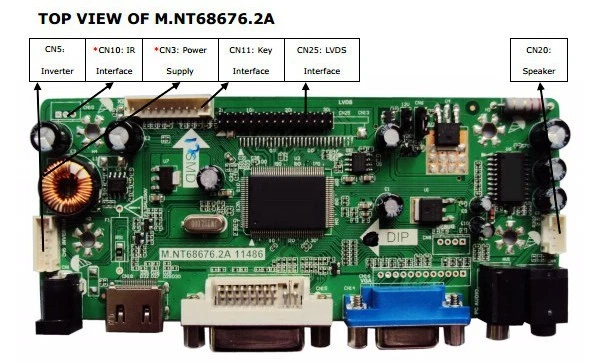

Interface function description on the driver board:
The power adapter for the board:
- DC +12V 3.0A~5.0A

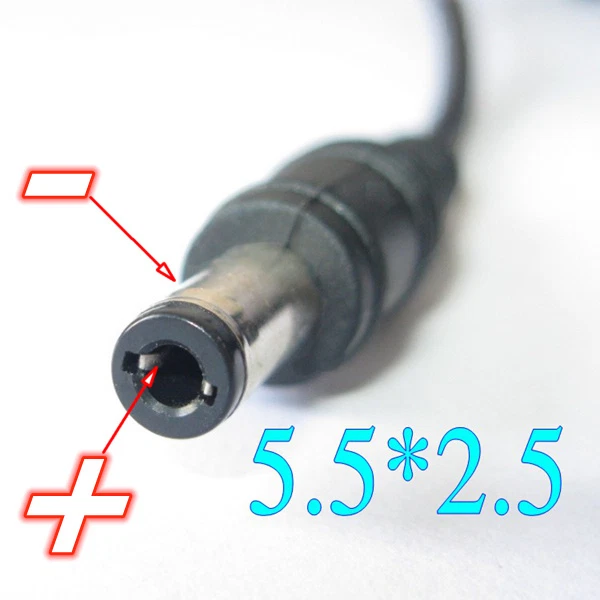

- with 5.5x2.5 male connector
- The plug of the power cord is American standard
- https://www.ebay.com/itm/402243169332
Package includes:
- 1× HDMI VGA DVI LCD Controller Board M.NT68676
- 1× Keyboard
- 1× LVDS Cable
