HDMI Board for 17.3" 1600x900 LP173WD1-TLA1 -TLC1 -TLP6 -TLG1 -TLE1 LTN173KT02
Functional description of the drive board interface:
 |
|||
| 1 | Power in (DC 12V: 5.5x2.5) | 5 | LVDS out |
| 2 | HDMI in(from 640x480 to 1920x1200) | 6 | BL VCC out |
| 3 | Key in / IC in |
7 | DC in |
| 4 | IIC in / ISP in |
||
| Board size | LxWxH=73.4x52.2x14(mm) | ||
Compatible LCD Models:
| B173RW01 V0 | LP173WD1‑TLH6 | LTN173KT01 | N173FGE‑L11 |
| B173RW01 V1 | LP173WD1‑TLH5 | LTN173KT02 | N173FGE‑L12 |
| B173RW01 V2 HW5A | LP173WD1‑TLH4 | LTN173KT03 | N173FGE‑L13 |
| B173RW01 V2 HW6A | LP173WD1‑TLF1 | ||
| B173RW01 V2 HW7A | LP173WD1‑TLG1 | N173FGE‑L21 | |
| B173RW01 V2 HW9A | LP173WD1‑TLG2 | N173FGE‑L23 | |
| B173RW01 V3 | LP173WD1‑TLE1 | ||
| B173RW01 V4 | LP173WD1‑TLH2 | N173FGE‑L63 | |
| B173RW01 V5 | LP173WD1‑TLD4 | ||
| LP173WD1‑TLA4 | N173FGE‑LA3 | ||
| LP173WD1‑TLD2 | |||
| LP173WD1‑TLP6 | N173O6‑L01 | ||
| LP173WD1‑TLP2 | N173O6‑L02 | ||
| LP173WD1‑TLPS | N173O6‑L03 | ||
| LP173WD1‑TLP4 | N173O6‑L04 | ||
| LP173WD1‑TLC4 | N173O6‑L06 | ||
| LP173WD1‑TLP3 | |||
| LP173WD1‑TLP1 | |||
| LP173WD1‑TLN4 | |||
| LP173WD1‑TLN2 | |||
| LP173WD1‑TLN1 | |||
| LP173WD1‑TLD3 | |||
| LP173WD1‑TLC3 | |||
| LP173WD1‑TLB2 | |||
| LP173WD1‑TLA3 | |||
| LP173WD1‑TLA2 | |||
| LP173WD1‑TLD1 | |||
| LP173WD1‑TLC2 | |||
| LP173WD1‑TLC1 | |||
| LP173WD1‑TLA1 | |||
| LP173WD1‑A1 |
The power adapter for the board:
- Input: AC 100 - 240V ~ 1.0A 50/60Hz
- Output: DC 12V 3.0A
- The plug of the power cord is American standard
- https://www.ebay.com/itm/402243169332
Package includes:

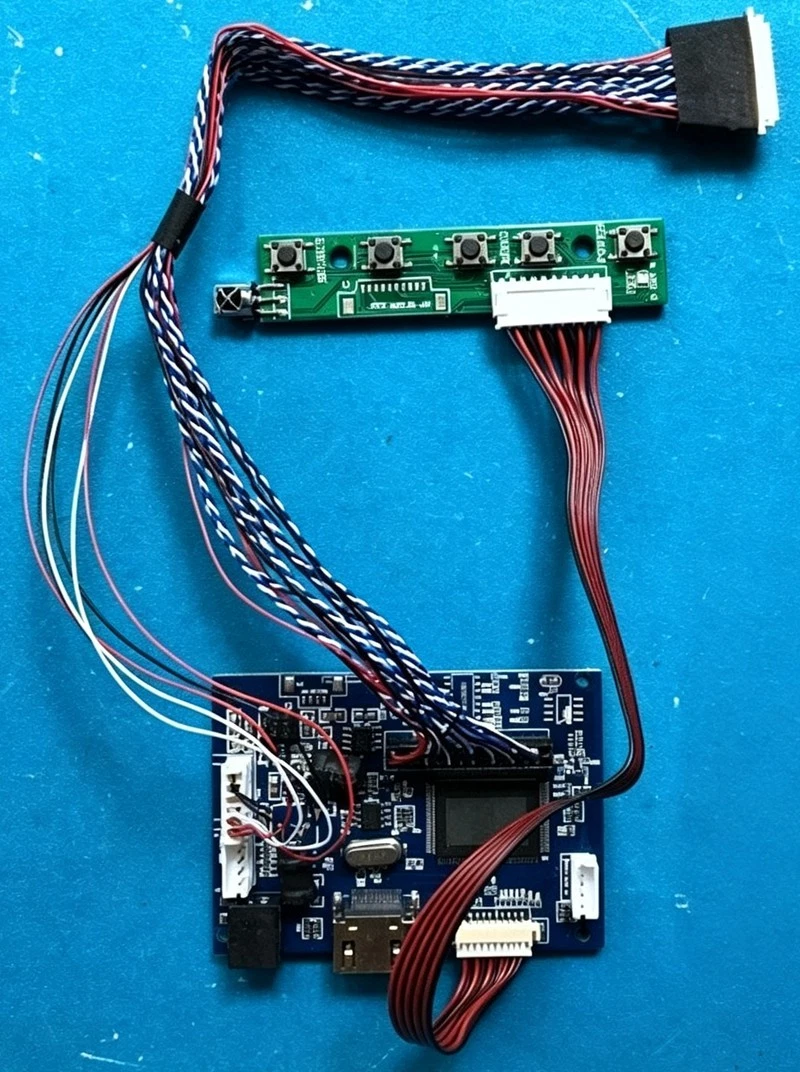

- 1× HDMI Audio Controller Board
- 1× 2ch 6bit 40pin LVDS cable
- 1× Keyboard With Cable
