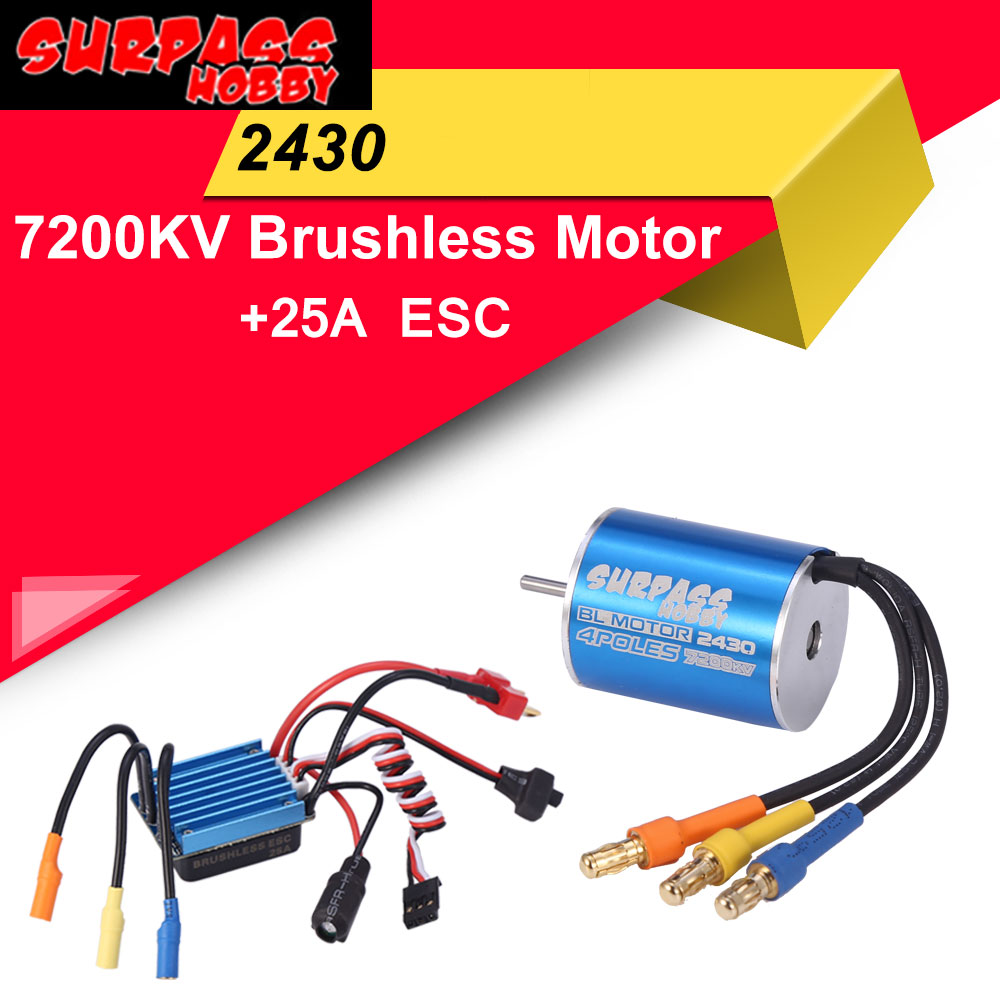

SURPASS HOBBY 2430 7200KV Sensorless Brushless Motor 25A ESC For RC Car 1/18

PRODUCT DESCRIPTION

Features Motor:
1.4 poles Hi-torque motor design.
2.CNC machined 6061 T6 billet alumium heatsink can.
3.High purity copper windings maximizes efficiency. High RPM ABEC5 oversized bearings.
4.Precision engineered for maximum energy conversion.
5.Universal fits 1/16 1/18 brushless cars-multi-mounting system for M2.5 screws.
6.Precision balanced rotor, smoothness for best reliability and maximum RPM.
7.Stator - Super Thin (0.35mm) laminations.

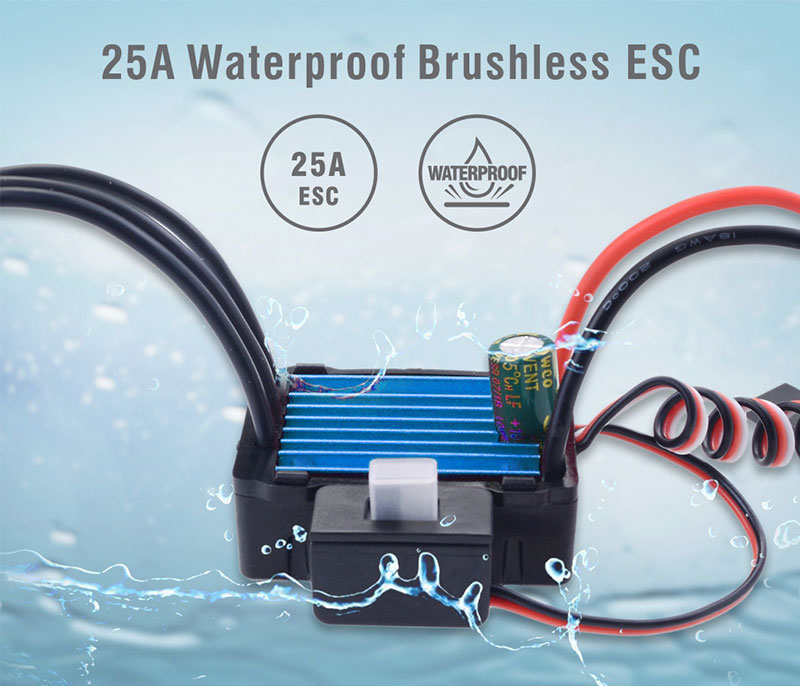

Features ESC:
1.Compatible with sensorless brushless motors.
2.High anti-interference capability.
3.Using advanced software interface to set up or update the software.
4.Super smooth and accurate throttle linearity.
5.Fast response to throttle input.
6.Mutiple protection features: low voltage cut-off protection, over-heat protection and throttle signal loss protection.

Description:

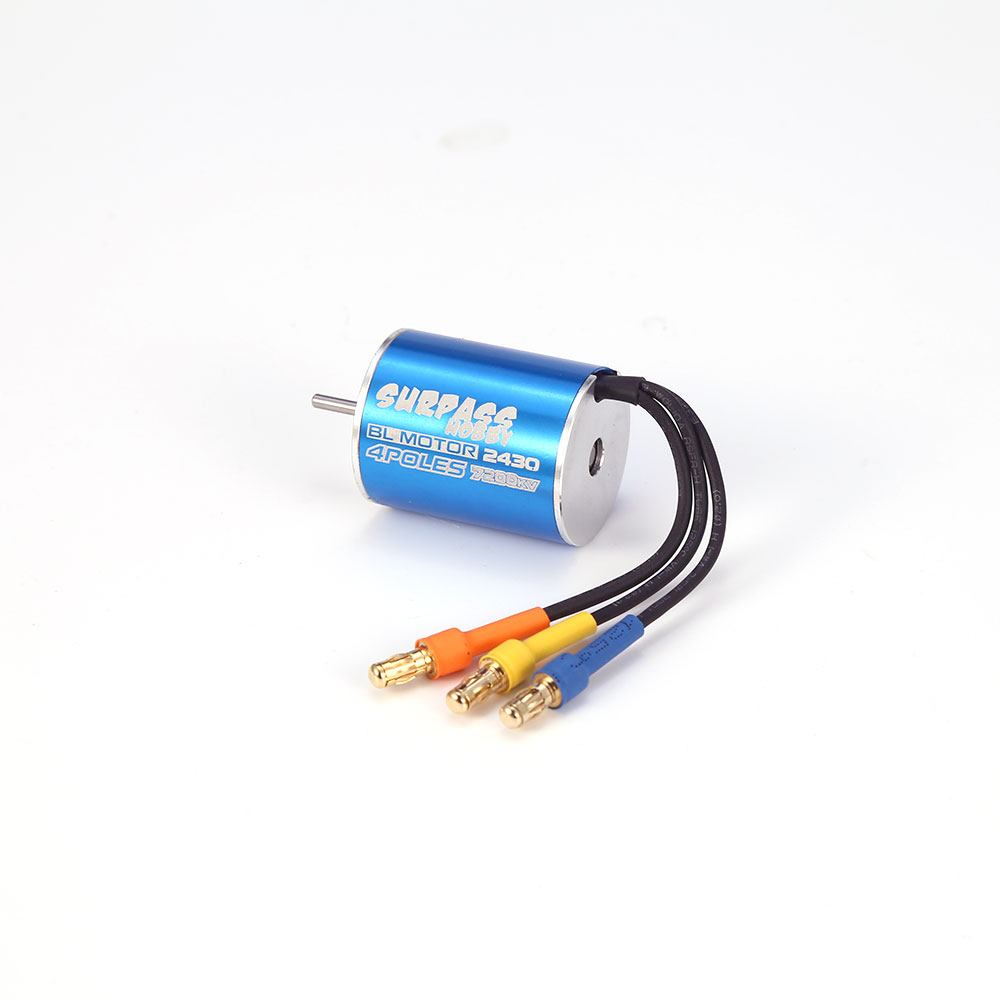

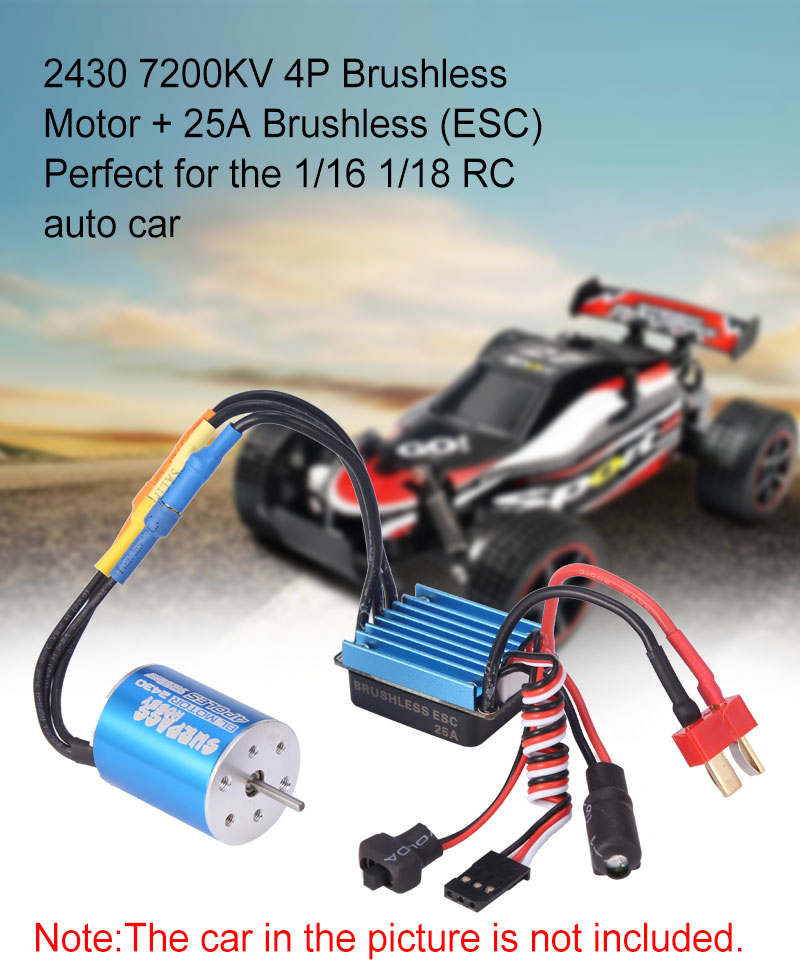

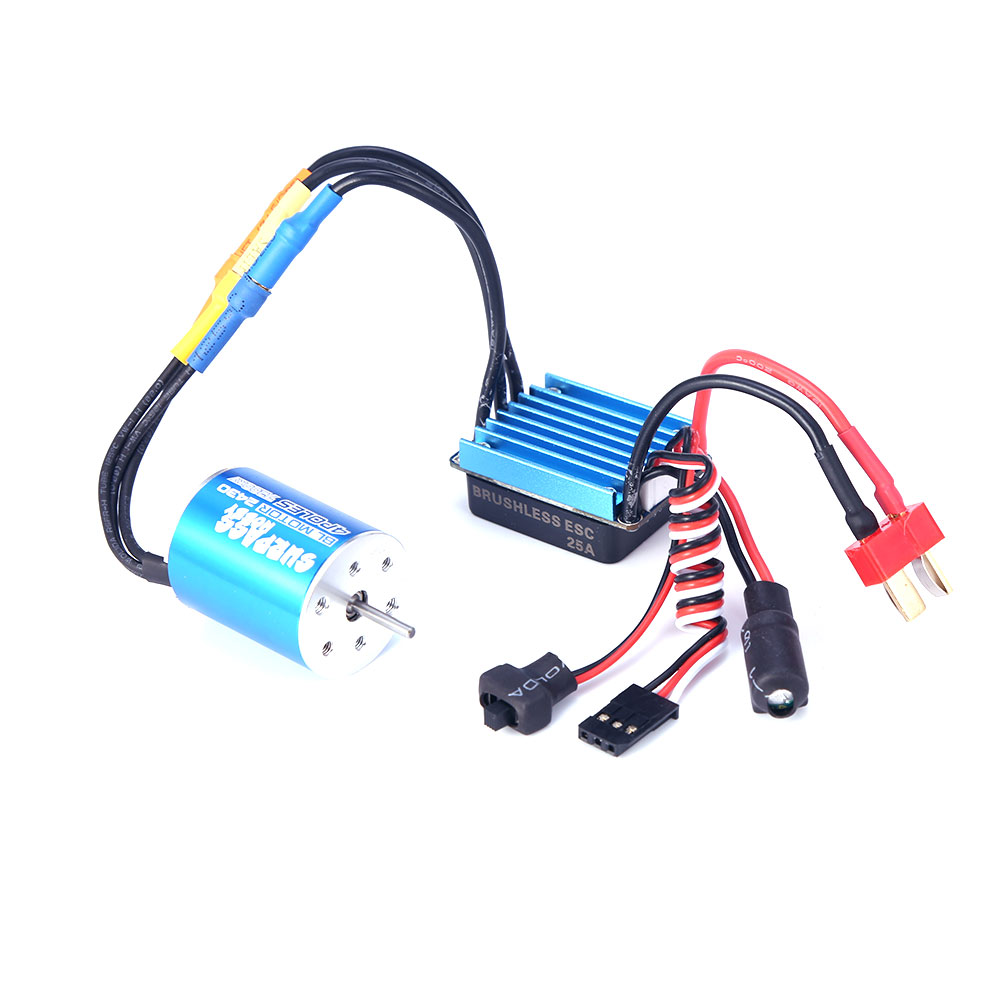

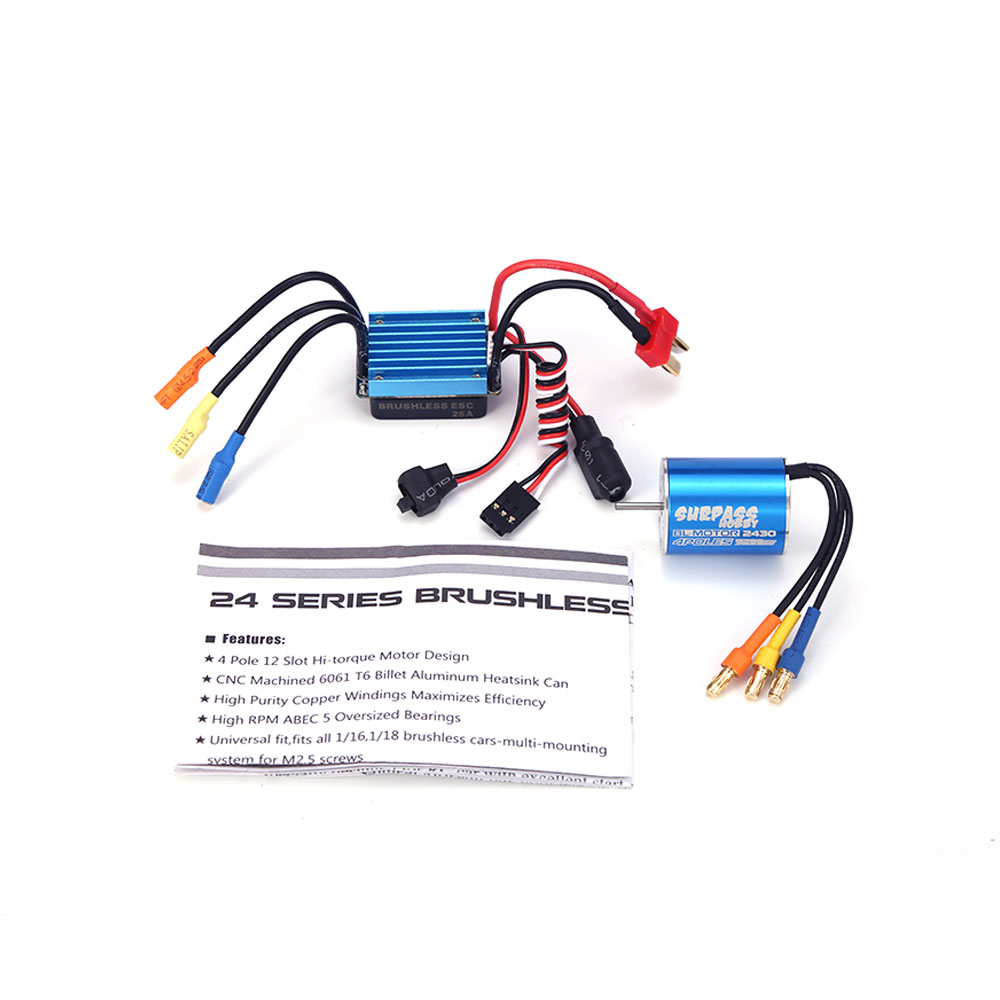

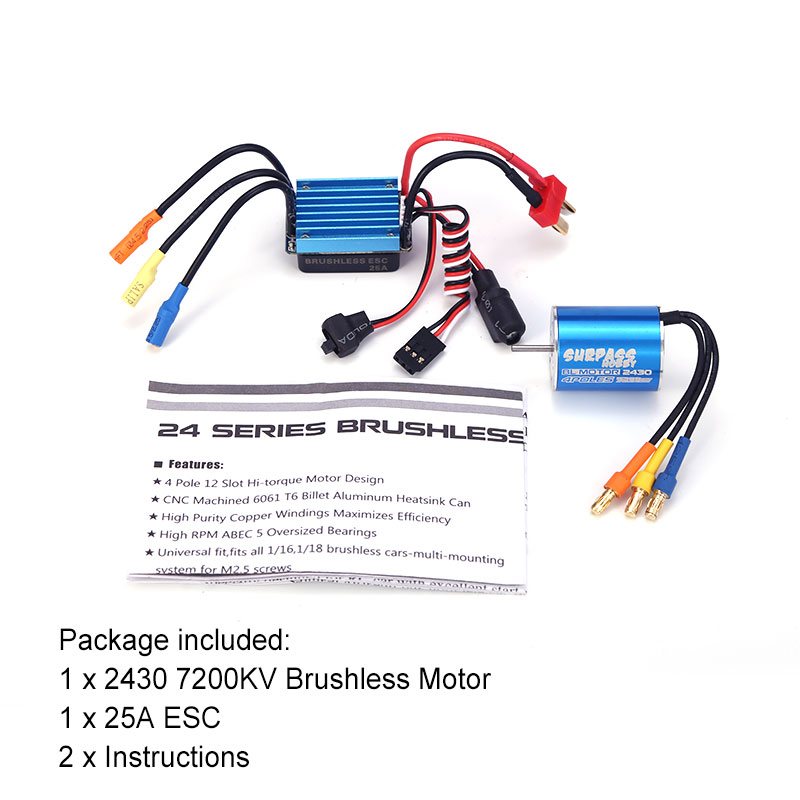

The set includes a 2430 7200KV 4P Brushless Motor and a 25A brushless Electric Speed Controller(ESC), which is perfect for the 1/16 1/18 RC auto car on road. This 2430 Brushless Motor is built from the best materials available, and is designed to provide both quality and performance at an affordable price. And it's with high quality aluminum alloy parts that are produced on the latest CNC milling machines. Additionally, the 25A brushless ESC features enhanced throttle response,excellent acceleration, strong breaks and throttle linearity.









Specifications:
Item brand: SURPASS HOBBY
Item name: brushless Motor+ESC
Moter:
RPM: 7200KV
Max Current: 24A
Max Watts: 200W
Max voltage: 7.4V(2S)

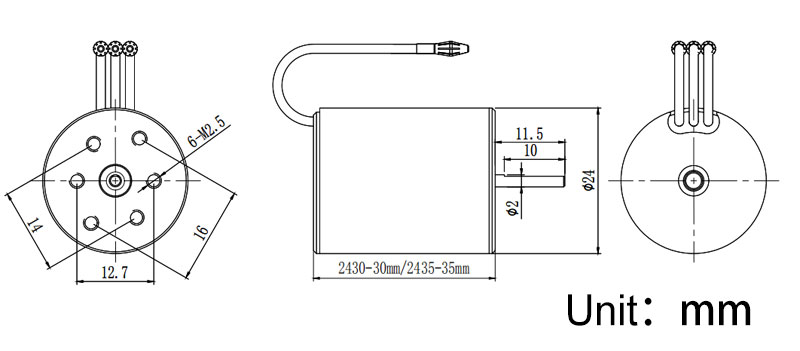

Can Size: 2430
IO:2.3A
Resistance:0.007Ω
Sensored: No
Can Diameter: 24mm
Can Length: 30mm
Shaft Diameter: 2mm
Shaft Length: 12mm

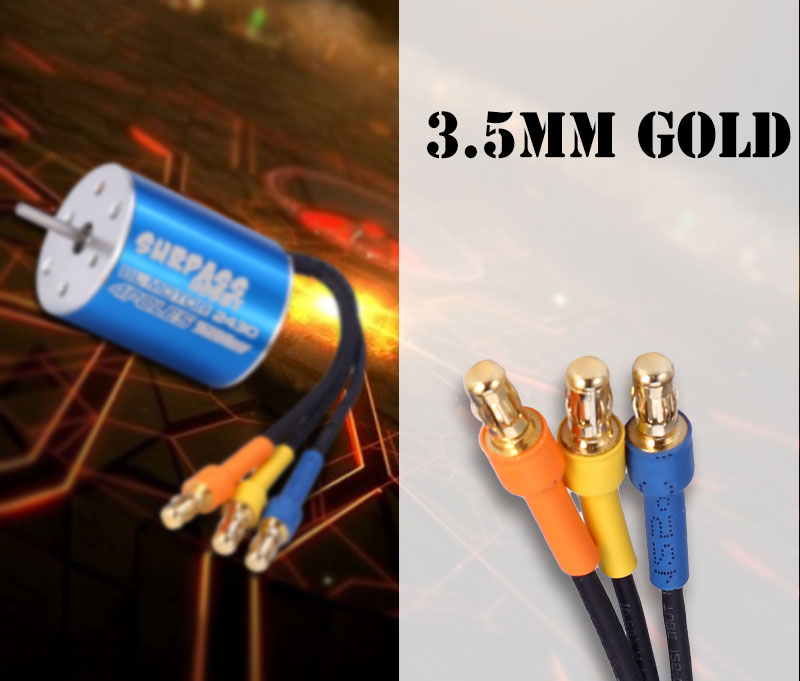

Bullet Connector: 3.5mm gold
Weight: 45.5g/1.6oz

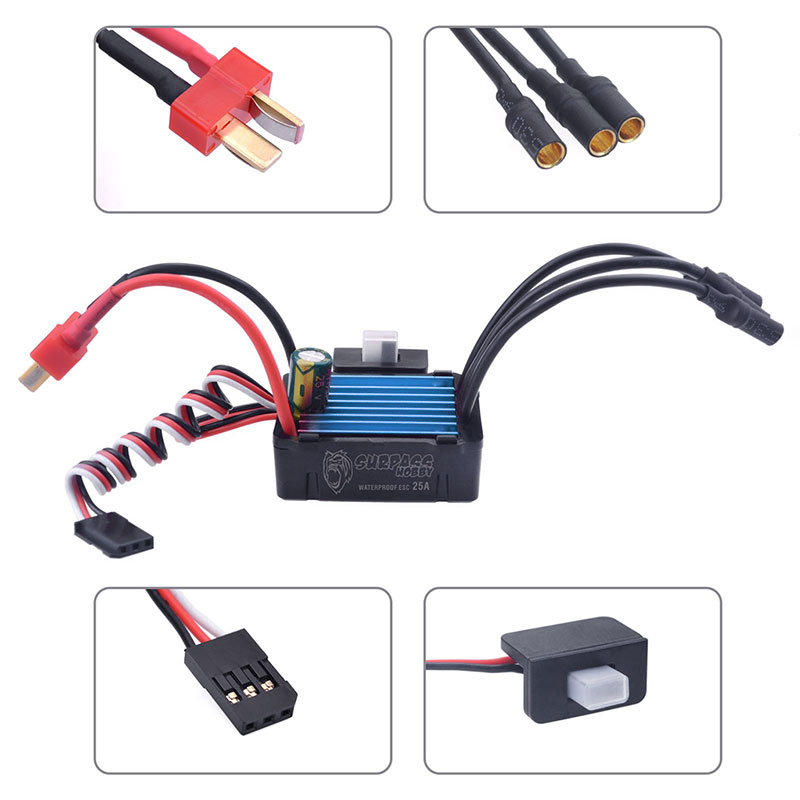

ESC:
Cont. Current: 25A
Burst Current: 100A/10sec
Battery: 2 Cells Lipo / 4-6 Cells NiMh
BEC: Yes
BEC Output: 5V/2A(analog mode)
Power Supply Plugs: T Male
Motor Plugs: Female 3.5mm Bullet Connector

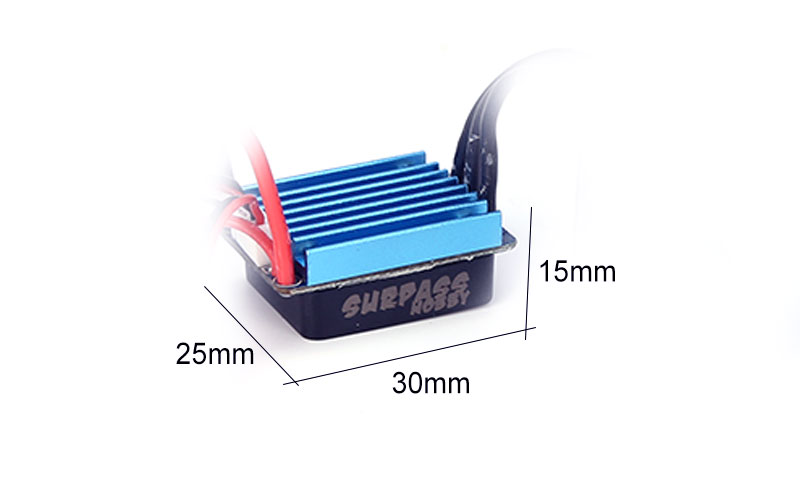

Size: 30*25*15mm
Weight: 29g

Package information:
Package size: 11.3*6.8*4cm
Package weight: 115g
Brand box package




Note:
Please allow error due to manual measurement, make sure you do not mind before you bid.
