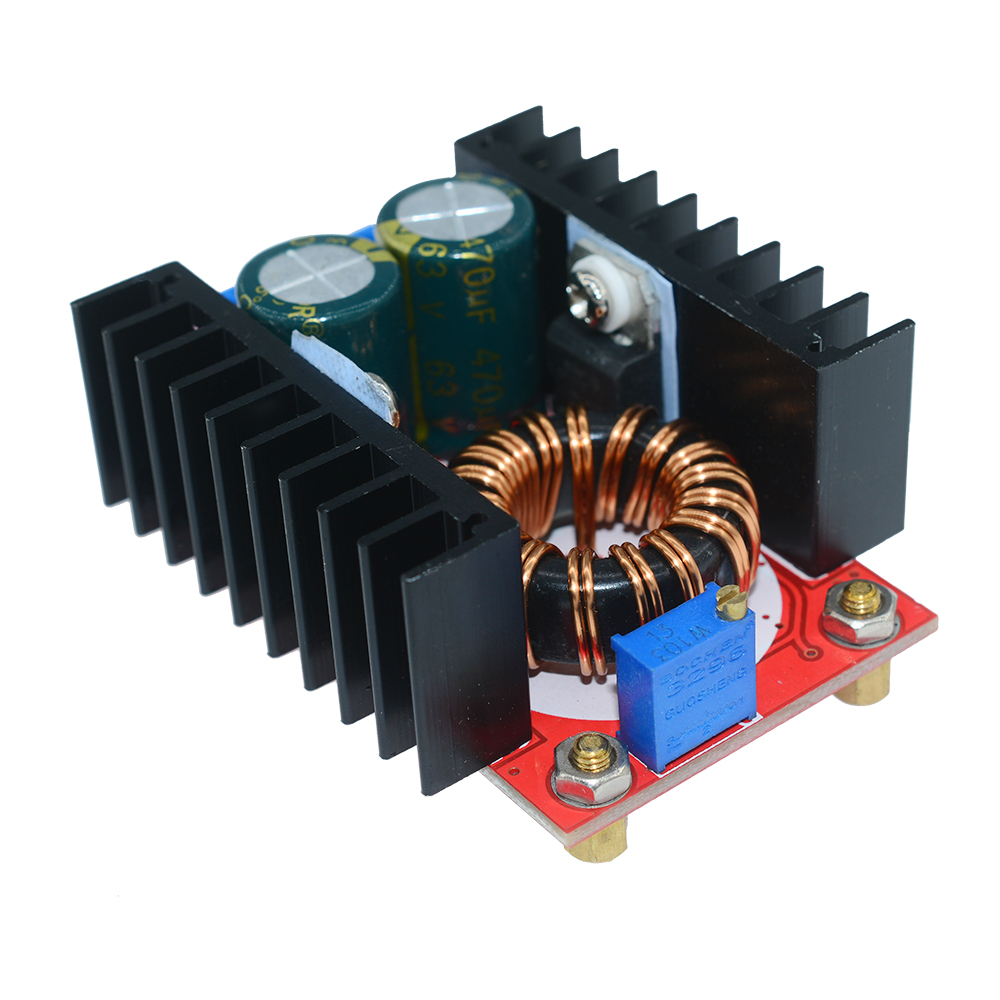

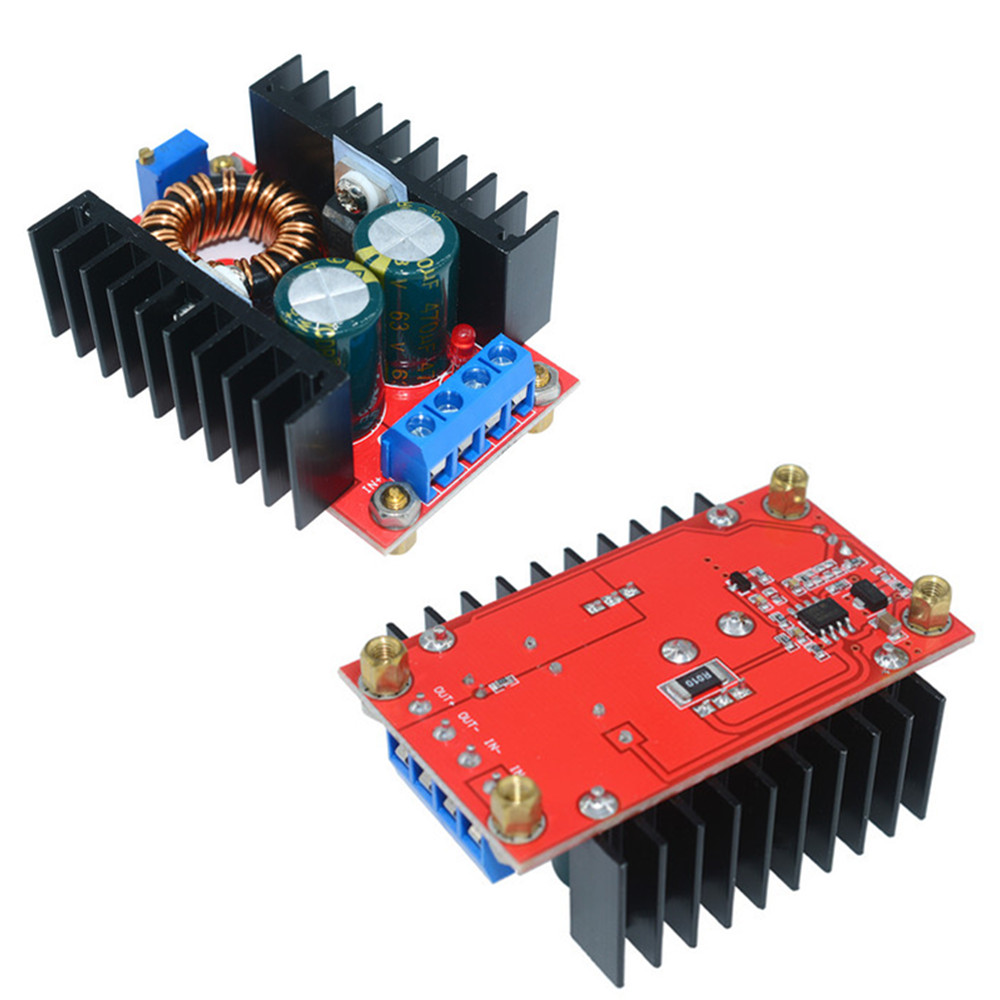

100W 120W 150W DC-DC Boost Converter 10V-32V to 12V-60V Step Up Power Supply

Description:

150W 6A step up

Input voltage: DC 10V-32V.
Output voltage: DC12V-35V(adjustable).
Output current: 10A (MAX).
Input current ：16A (MAX) (more than 10A please strengthen heatsink).
Output power: natural cooling 100W (MAX), strengthening cooling 150W (MAX) real power.
Conversion efficiency: 94% (when Input 19V 2.5A Output 16V, Reference).
Output ripple: 2% (MAX).
Working temperature: industrial (- 40 ° c to +85 °c) ( environmental temperature, more than 40 degrees, please
reduce power to use, or - enhance cooling).
Full-Load temperature: 45 degrees.
No-load current: 25mA typical.
Voltage regulation: ± 0.5%.
Load regulation: ± 0.5%.
Dynamic response speed: 200uS 5%.
Short circuit protection: No (Please installs the fuse or protection circuit at input parts).
Input Reverse protection: No (please comply with a reverse protection or connect a diode at input parts.)
Package Included:1 x 150W DC-DC Boost Converter 10-32V to 12-35V Step Up Power Supply Module

120W step up

Module Properties: Non-isolated step-up module (BOOST) Input Voltage: DC 10-32 V
Output Voltage: DC 35-60 V (adjustable)
Maximum Input Current: 16 A (Higher than 10A need cooling)
Maximum output Current: 5 A
Power: 80W(MAX,Natural cooling),Strengthen cooling 120W(MAX,Actual power)
Efficiency: typical 90 %(For reference)
Output ripple: 2%(max) 20M bandwidth
Operating Temperature: Industrial (-40 ℃ to +85 ℃)，( environmental temperature, more than 40 degrees, please reduce power to use, or enhance cooling)
Full Load temperature rise: 45 ℃
No-load Current: Typical 25mA
Switching Frequency: 100KHz
Load Regulation: ± 0.5%
Voltage Regulation rate: ± 0.5%
Dynamic response speed: 5% 200uS
Short-circuit Protection : None (Please install fuses or protection circuits at input port if you need.)
Input Reverse Protection: None (Please Series diode at the input port.)
Net weight:67g
Size: 65(L) x 47(W) x 27(H) mm
Application:
Adjustable Output Car Power Boost Charger
Power for your electronic equipment
Solar battery charger for electric vehicles
Package included：1 x  120W DC-DC Boost Converter 10-32V to 35-60V Step Up Power supply module

100W step up

Module Properties: non-isolated step-up module (BOOST)
Input voltage :10-32V
Output voltage: continuously adjustable (60-97V)
Output Current: 2A (MAX)
Input Current: 16A (MAX) (over 10A please enhance heat dissipation)
Output power: natural cooling 70W (MAX), the actual power to enhance heat dissipation 100W (MAX)
Conversion efficiency: 85%
Operating temperature: Industrial grade (-40 ? to +85 ?)
(ambient temperature exceeds 40 degrees, lower power use, or to enhance heat dissipation)
Full load temperature rise: 45 ° C
No-load current: typical 35mA
Load Regulation: ± 0.5%
Voltage Regulation: ± 0.5%
Dynamic response speed: 5% 200uS
Short-circuit protection: None (Please Install fuses and protection circuits at Input port.)
Input reverse polarity protection: None (Please put diode at the input port.)
Connection mode: solderless, terminal
Weight: 70 g
Package Included:1 x  DC-DC Converter Boost Power Supply Module 10-32V Step up to 60-97V 100W Voltage
