OMRON  Electronic ComponentsOMRON  Electronic Components  -is the world's leading supplier of sensors and relays and they offer a wide variety of technologically-advanced versions for virtually any relay requirement. Omron switches work hand-in-hand with their relays in consumer electronics, appliances, computer peripherals, office automation products, and telecom applications. Choose from general and special purpose snap-action, tactile key, miniature, sub-miniature, thumbwheel, and DIP.

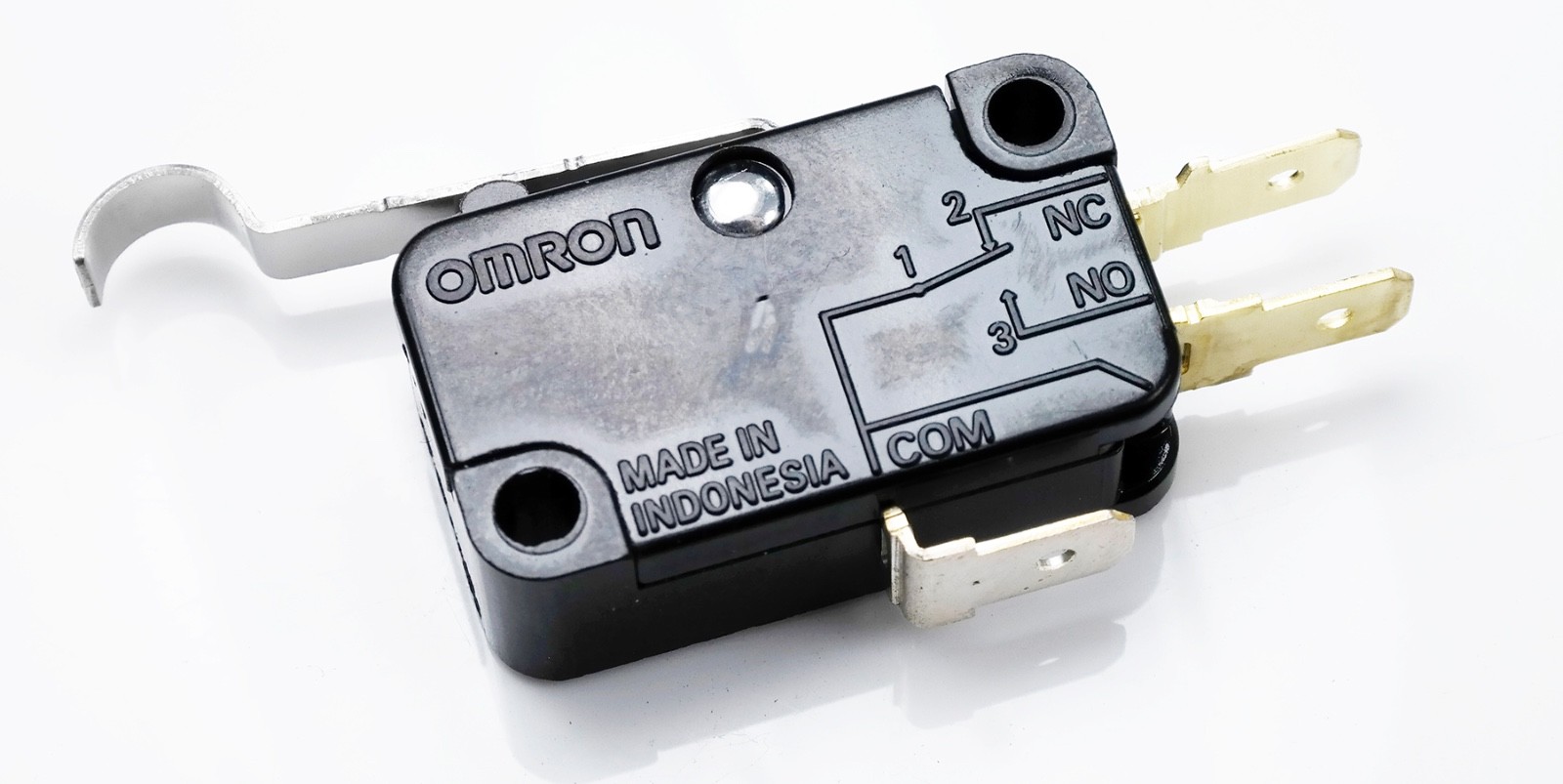

Omron V-10G4-1C24-K By  Microswitch, Quick Connect, Screw Mount

  • Brand new Omron Relay
  • Contact Form: SPDT
  • Switch Function: ON - (OFF), OFF - (ON)
  • Actuator: Simulated Roller Lever
  • Current Rating: 10 A
  • Voltage Rating AC: 250 VAC
  • Voltage Rating DC: 250 VDC
  • Operating Force: 0.6 N
  • Termination Style: Quick Connect
  • IP Rating: IP40  Series: V
  • Product Type: Snap Action Switches
  • Operating Temperature Range: - 25 C to + 105 C

What's Included:

  • Qty 1 10A Micro Switch
  • Manufacture by Omron

Replacement:

  • Replaces OEM Part #: 1014807, 1014805, 4240, 4240A, 832719

Specification:

ManufacturerOmron Electronics Inc-EMC Div
SeriesV Series
PackagingSame Day Shipping
Part StatusActive
CircuitSPDT
Switch FunctionOn-Mom
Current Rating10A (AC), 100mA (DC)
Voltage Rating - AC250V
Voltage Rating - DC125V
Actuator TypeLever, Simulated Roller
Mounting TypeChassis Mount
Termination StyleQuick Connect - 0.187" (4.7mm)
Ingress ProtectionIP40
Features-
Operating Force60gf
Release Force6.118gf
Pretravel0.157" (4.0mm)
Differential Travel0.060" (1.5mm)
Overtravel0.062" (1.6mm)
Operating Temperature-25°C ~ 80°C
Operating Position0.738" (18.7mm)
Electrical Life300,000 Cycles
Mechanical Life50,000,000 Cycles
