Descrition:
The ADS1115 also has an input multiplexer (MUX) that provides two differential comparator inputs or four single-ended inputs.
The ADS1115 also has an input multiplexer (MUX) that provides two differential comparator inputs or four single-ended inputs.
The portable instrumentation is automatically fed after a conversion and considerably reduces the current consumption during rest
ADC Bit rate: 16 Bit
Interface type: I2C
Channels: 4 Channels AN0 AN1 AN2 AN3 or 2 differential inputs
Input voltage: 2.0-5.5 v
Voltage input channel: 0-VDD
Continuous mode: Only 150μA
Single-Shot Mode: Auto Power Off-Pads
PROGRAMMABLE DATA RATE: 8sps-860sps
Programmed input control range, 7 types of input ranges:
-0.256 v ~ + 0.256 v, -0.512 v ~ + 0.512 v, -1.024 v ~ + 1.024 v,
-2.048 v ~ + 2.048 v, -4.096 v ~ + 4.096 v, -6.144 v ~ + 6.144 v
I2C 7-bit addresses between 0x48-0x4B
Consumer Goods periods. The ad1113 / 4/5 is specified from -40 ° C
Battery control up to + 125 ° C.
Size: 18mm * 28mm
Battery control up to + 125 ° C.
Size: 18mm * 28mm
Applications:
Portable instrumentation
Consumer goods
Battery monitoring
Temperature measurement
Factory automation and control process
Single Shot mode or mode
Consumer goods
Battery monitoring
Temperature measurement
Factory automation and control process
Single Shot mode or mode

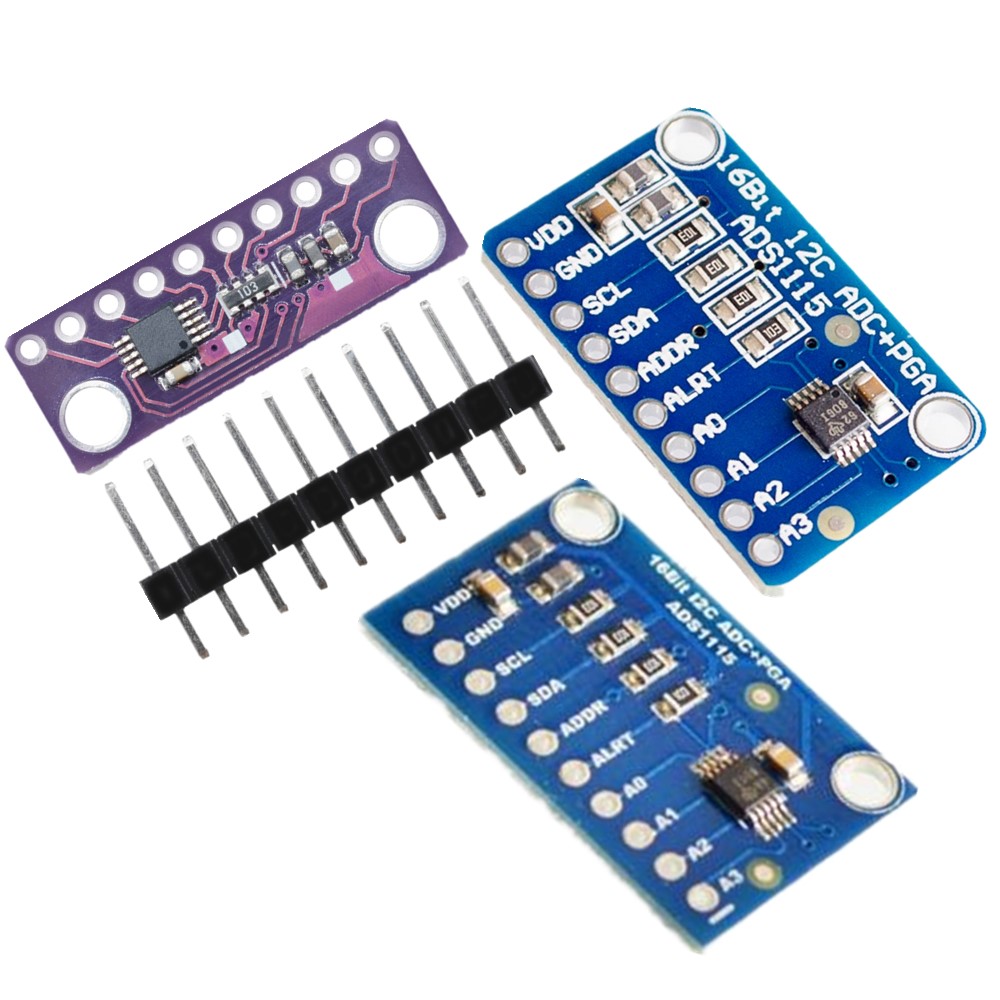

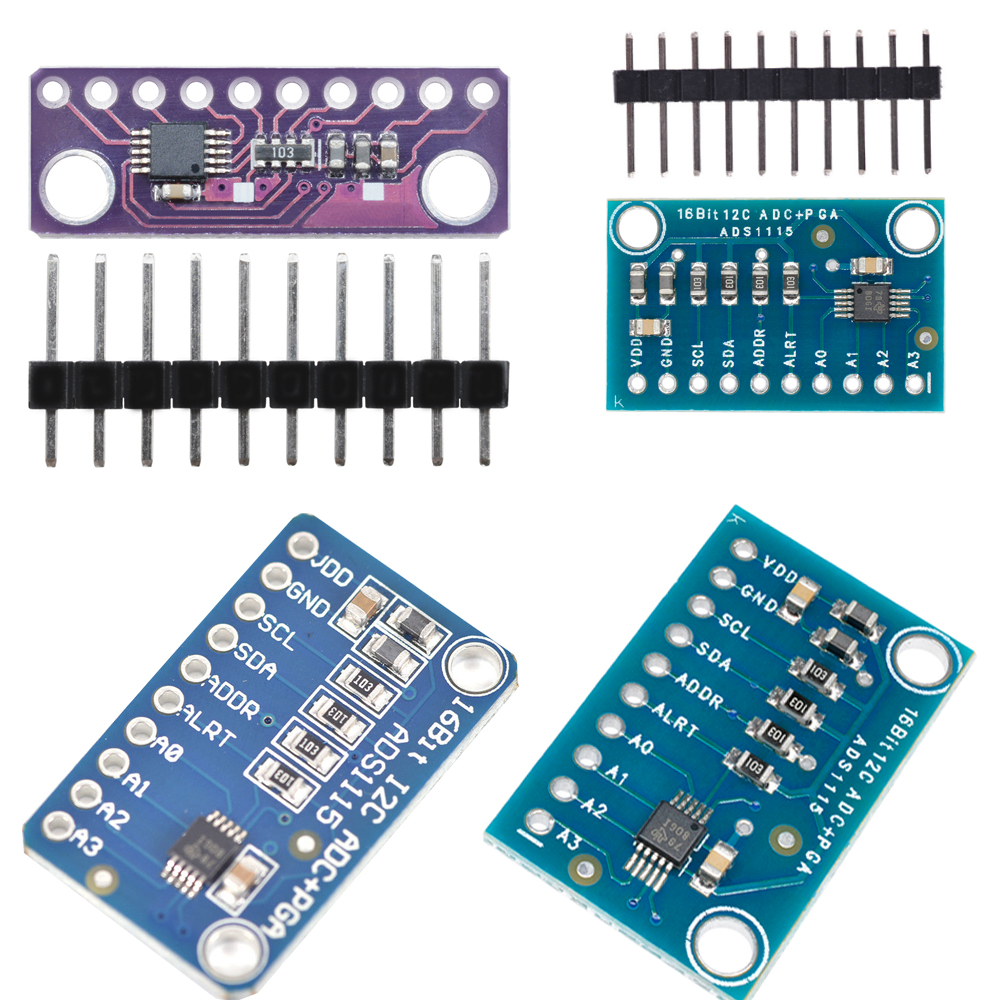

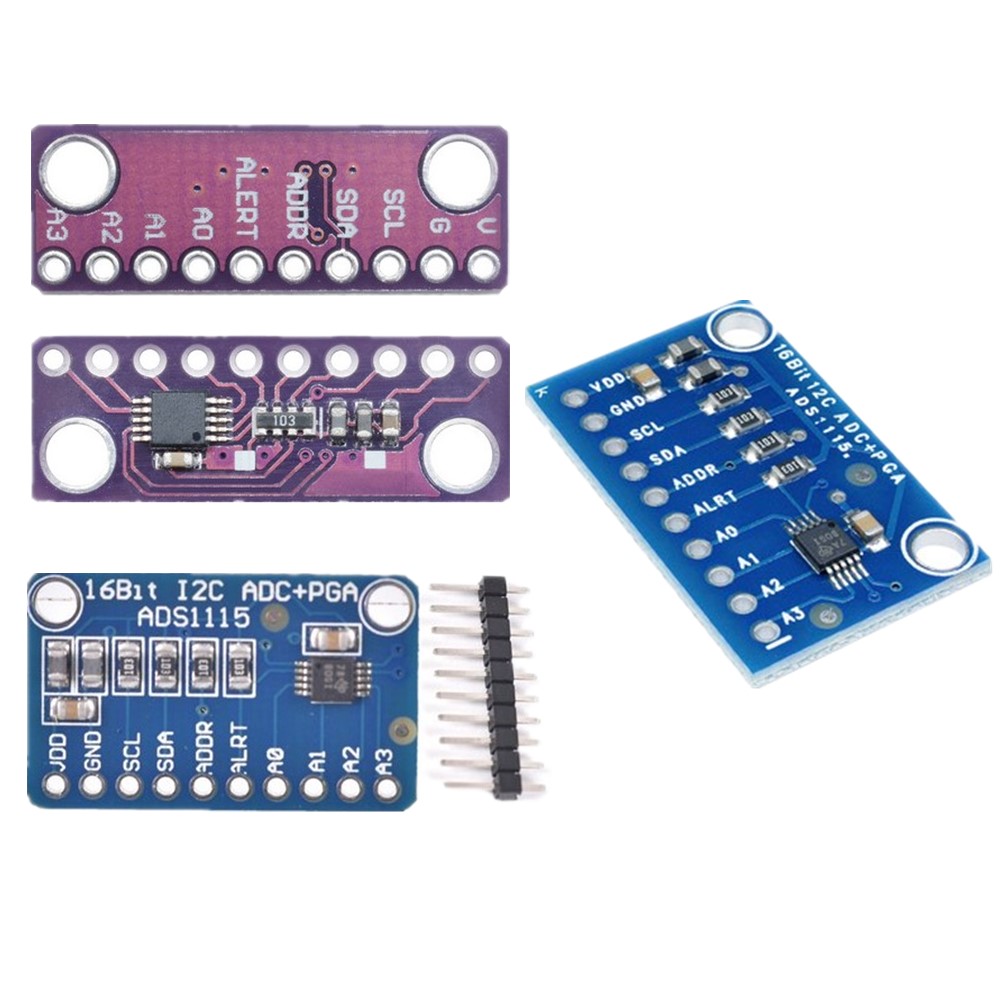

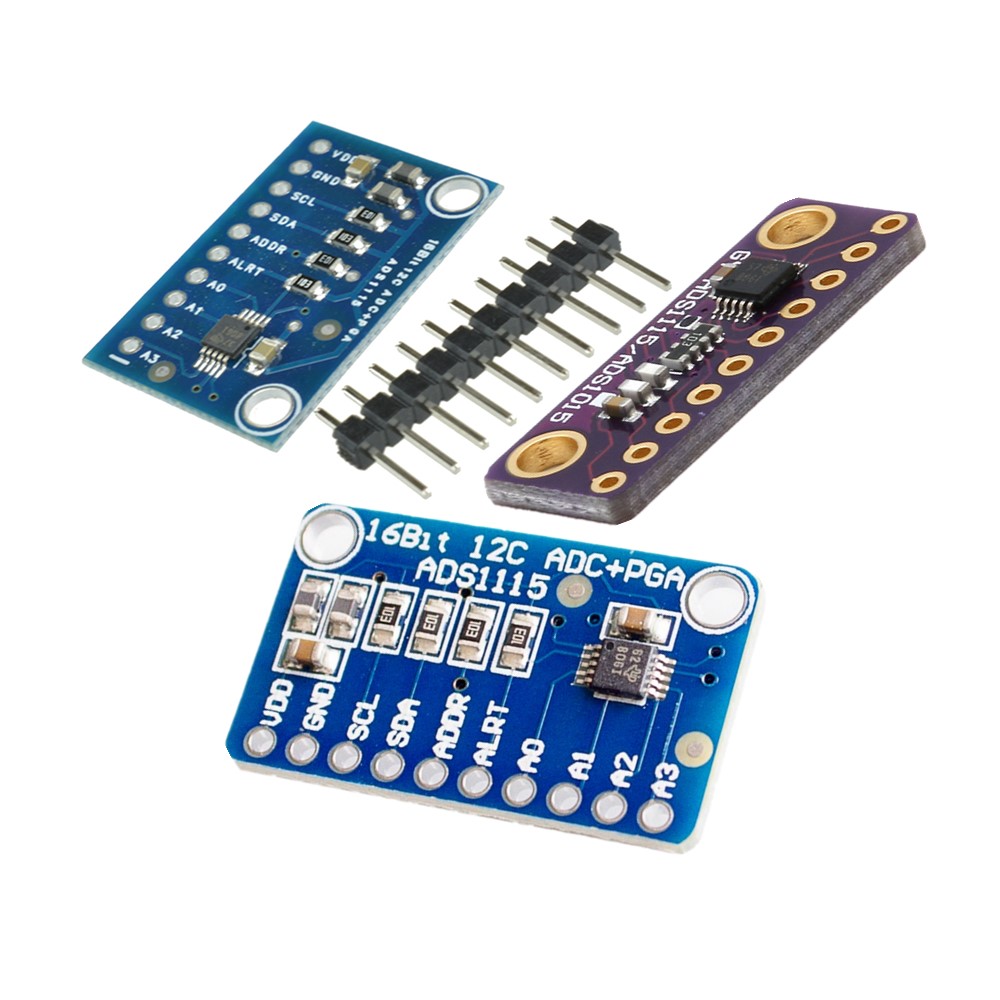

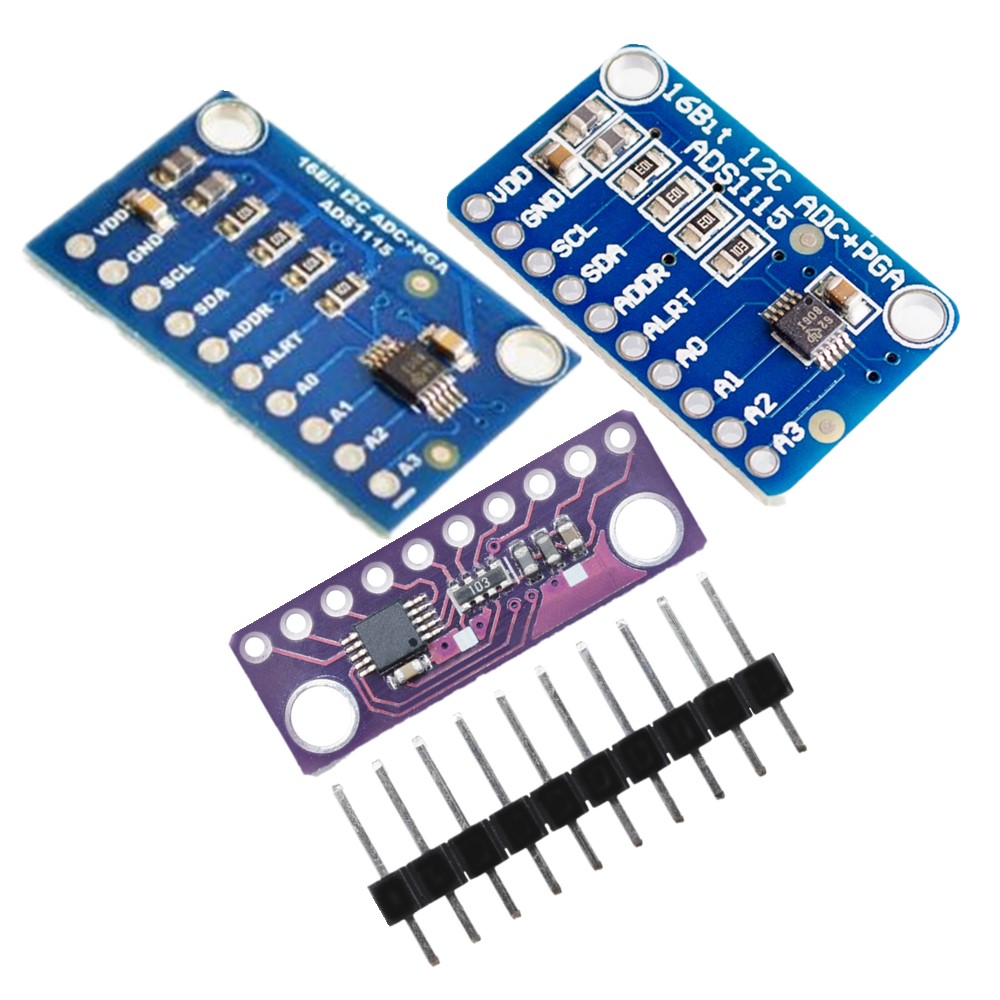

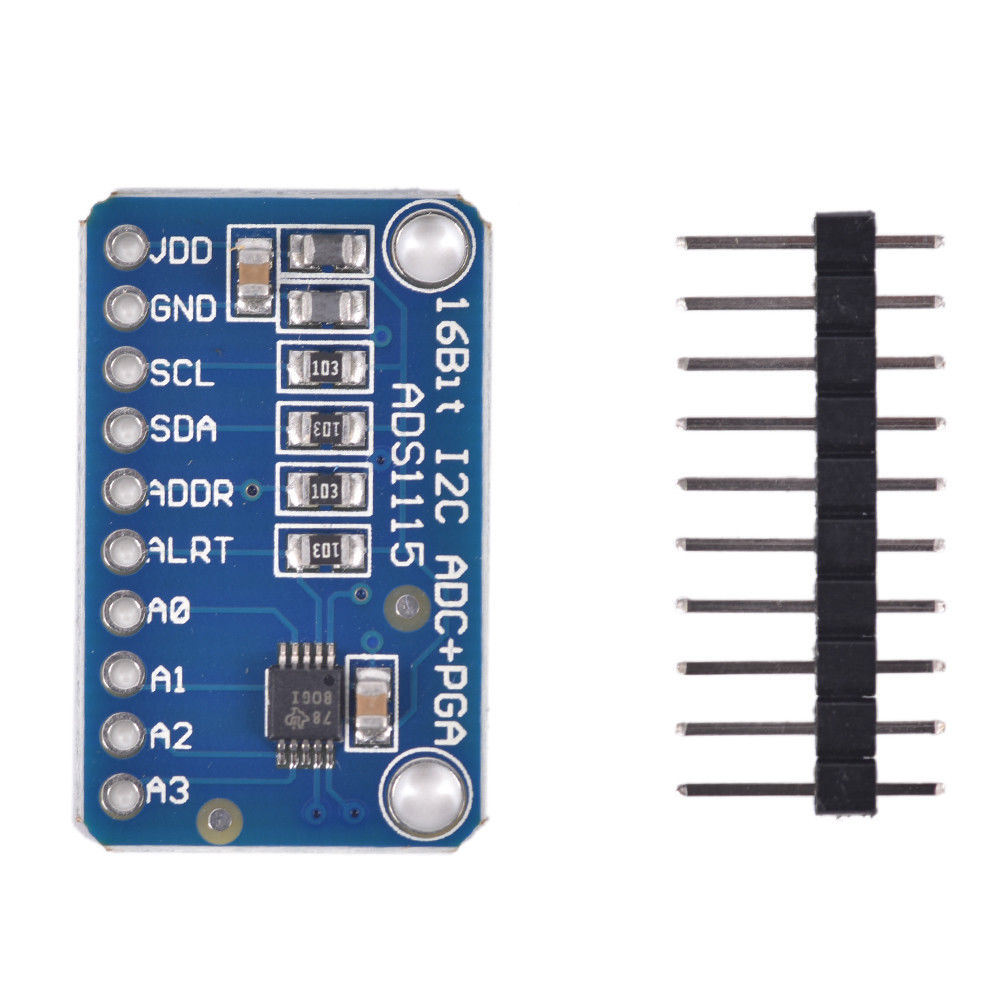

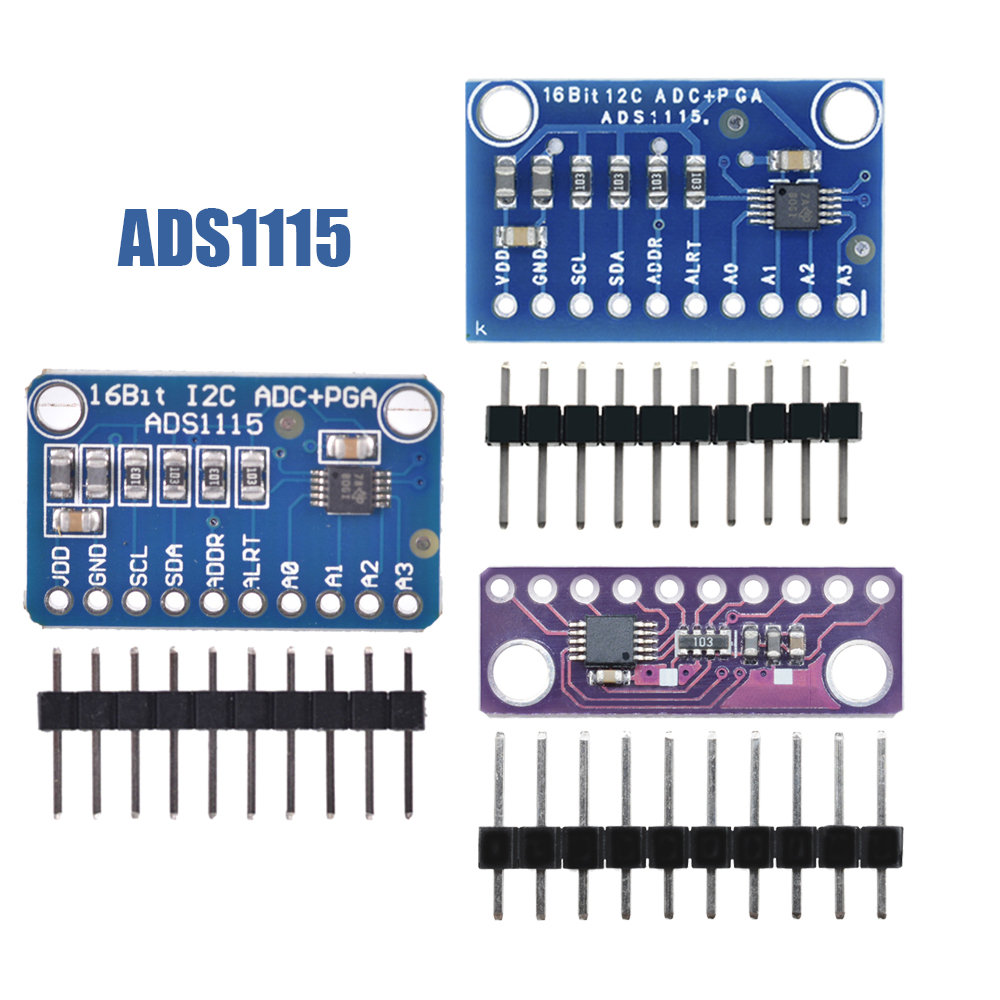

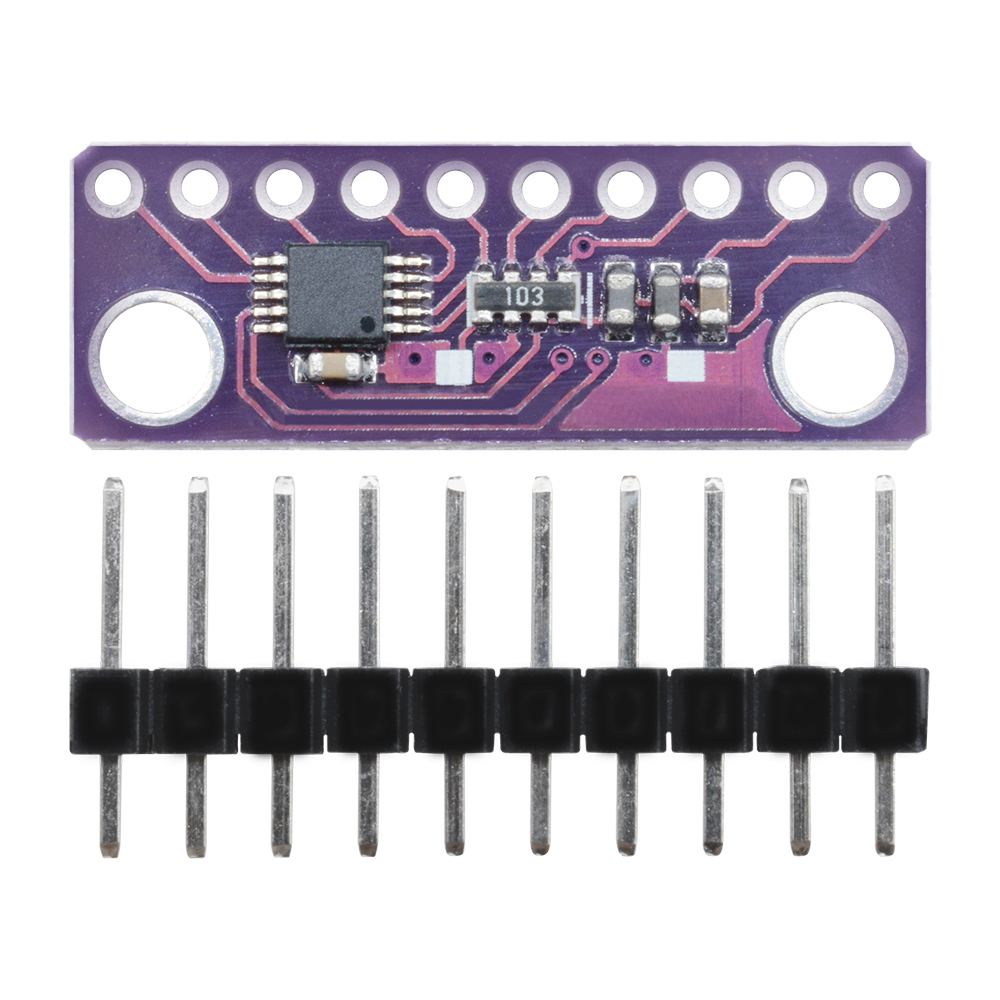

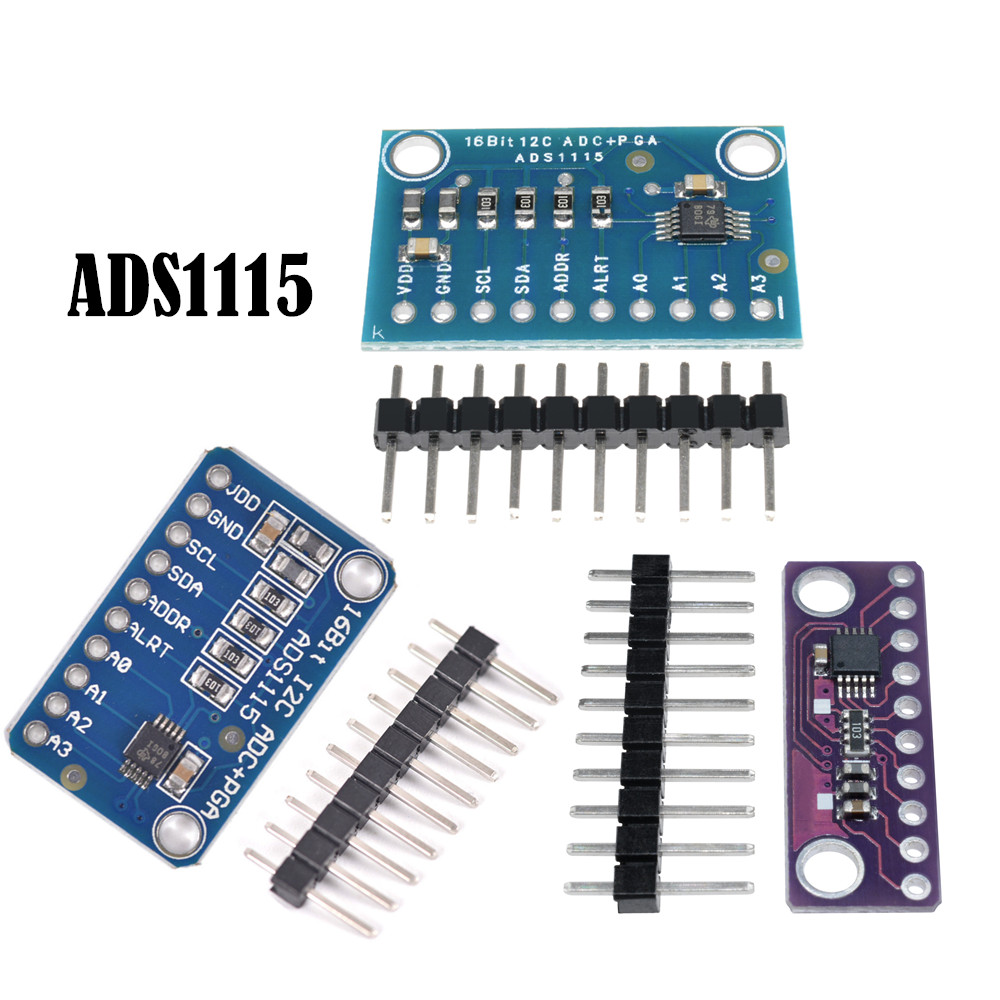

Package Included: ADS1115 4 Channel 16 Bit I2C ADC Module with Pro Gain Amplifier
Type 3
Product description:
For microcontrollers without an analog-to-digital converter or when you want a higher-precision ADC,
the ADS1115 provides 16-bit precision at 860 samples second over I2C.
The chip can be configured as 4 single-ended input channels, or two differential channels.
As a nice bonus, it even includes a programmable gain amplifier, up to x16,
to help boost up smaller single/differential signals to the full range.
We like this ADC because it can run from 2V to 5V power/logic,
can measure a large range of signals and its super easy to use.
It is a great general purpose 16 bit converter.
The chip's fairly small so it comes on a breakout board with ferrites to keep the AVDD and AGND quiet.
Interfacing is done via I2C.
The address can be changed to one of four options (see the datasheet table 5)
so you can have up to 4 ADS1115's connected on a single 2-wire I2C bus for 16 single ended inputs.
specification：
For microcontrollers without an analog-to-digital converter or when you want a higher-precision ADC,
the ADS1115 provides 16-bit precision at 860 samples second over I2C.
The chip can be configured as 4 single-ended input channels, or two differential channels.
As a nice bonus, it even includes a programmable gain amplifier, up to x16,
to help boost up smaller single/differential signals to the full range.
We like this ADC because it can run from 2V to 5V power/logic,
can measure a large range of signals and its super easy to use.
It is a great general purpose 16 bit converter.
The chip's fairly small so it comes on a breakout board with ferrites to keep the AVDD and AGND quiet.
Interfacing is done via I2C.
The address can be changed to one of four options (see the datasheet table 5)
so you can have up to 4 ADS1115's connected on a single 2-wire I2C bus for 16 single ended inputs.
specification：
Wide supply range: 2.0V to 5.5V
Continuous Mode: Only 150μA
Single-Shot Mode: Auto Shut-Down
Programmable data rate: 8SPS to 860SPS
Internal low-drift voltage reference
Internal oscillator
Internal PGA
I2C interface: Pin-Selectable Addresses
Four single-ended or two differential inputs
Programmable comparator
This board chip uses I2C 7-bit addresses between 0x48-0x4B
PCB size:(L*W)2.55*0.90cm/1.00"*0.35"
Continuous Mode: Only 150μA
Single-Shot Mode: Auto Shut-Down
Programmable data rate: 8SPS to 860SPS
Internal low-drift voltage reference
Internal oscillator
Internal PGA
I2C interface: Pin-Selectable Addresses
Four single-ended or two differential inputs
Programmable comparator
This board chip uses I2C 7-bit addresses between 0x48-0x4B
PCB size:(L*W)2.55*0.90cm/1.00"*0.35"
Package Included:
1PCS * 16 Bit I2C 4 Channel ADS1115 Module ADC with Pro Gain Amplifier For Arduino New
