Ideal Industries Lever-Nuts 2,3,4 Conductor Cage Clamp Terminal Block 12-20 AWG,600V

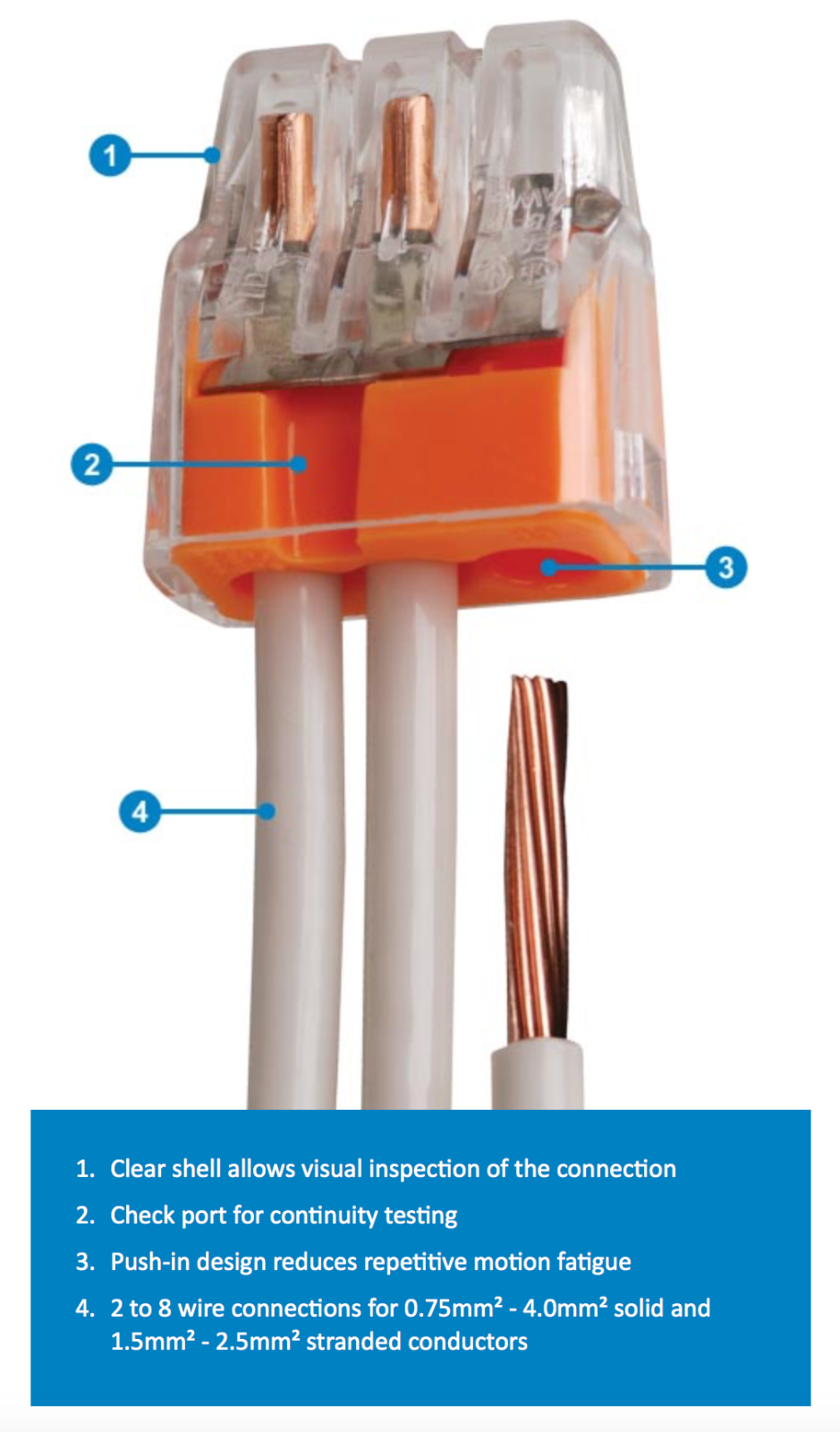

Click Image to EnlargerOverview: The In-Sure Push-In wire connector is perfect for residential, light commercial, lighting retrofit and pre-fab wiring systems. A low insertion force makes them the fastest, easiest, no-twist push-in connector on the market. It's compact size make installation easy and its clear shell gives a visual inspection of the connection.

Ideal Industries  Series Highlight:

-Color-coded for easy identification

-Tin-plated copper bus system

-Stainless steel inserts restrict pull-out

-Check port for continuity testing

-Visual verification of connection

-Maintenance-free connection

-Made in USA

Features & Benefits

  • Push-in wire connector to join and insulate 3 wires
  • No-twist design reduces repetitive motion fatigue
  • Minimum capacity of  #20 wires
  • Maximum capacity of #12 wires
  • Stranded wire range: #16 - #12 AWG (≤ 19 strand) and #18 AWG (≤ 7 strand)
  • Tin bonded stranded wire range: #18 - #14 AWG (≤ 19 strand)
  • Rated to 600-Volt maximum
  • UL 94V-2 flame-retardant shell rated at 221°F
  • UL listed to 486C and CSA certified to C22.2 #188
  • UL 467 listed for grounding and bonding applications
  • CSA certified to C22.2 #188
Size 2 Conductor:
 Depth (in.): 0.38"
 Height (in.): 0.77"
 Width (in.): 0.52"

Size 3 Conductor:
 Depth (in.): 0.38"
 Height (in.): 0.77"
 Width (in.): 0.69"

Size 4 Conductor:
 Depth (in.): 0.38"
 Height (in.): 0.77"
 Width (in.): 0.82"

Packaging Content:

  • Qty: 5 Pieces Ideal Industries (2 Conductor)
  • Qty: 5 Pieces Ideal Industries (3 Conductor)
  • Qty: 5 Pieces Ideal Industries (4 Conductor)
Please Note: In order to received Factory Sealed box buyer must order 100 pack / Box for 2, 3, 4 Conductor,


Specification:
Rate Voltage :600 V (1000 V Sign & sutures)
Nominal Current :30A
Solid Conductor:
12-20 AWG1
Stranded Conductor:12-20 AWG
Flexible Conductor :12-20 AWG L
Strip Length :3/8" to 1/2" STRIP
Maximum Operating Temperature :105 C
