Product Details

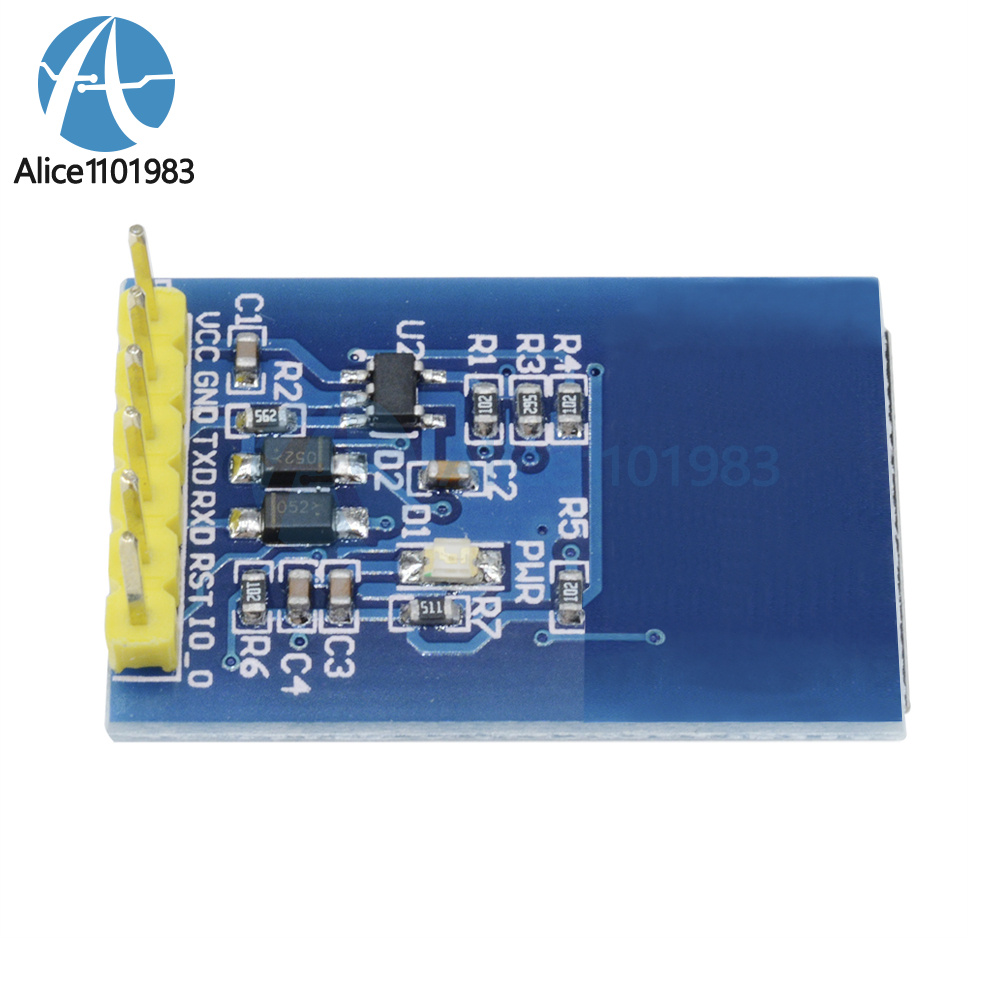

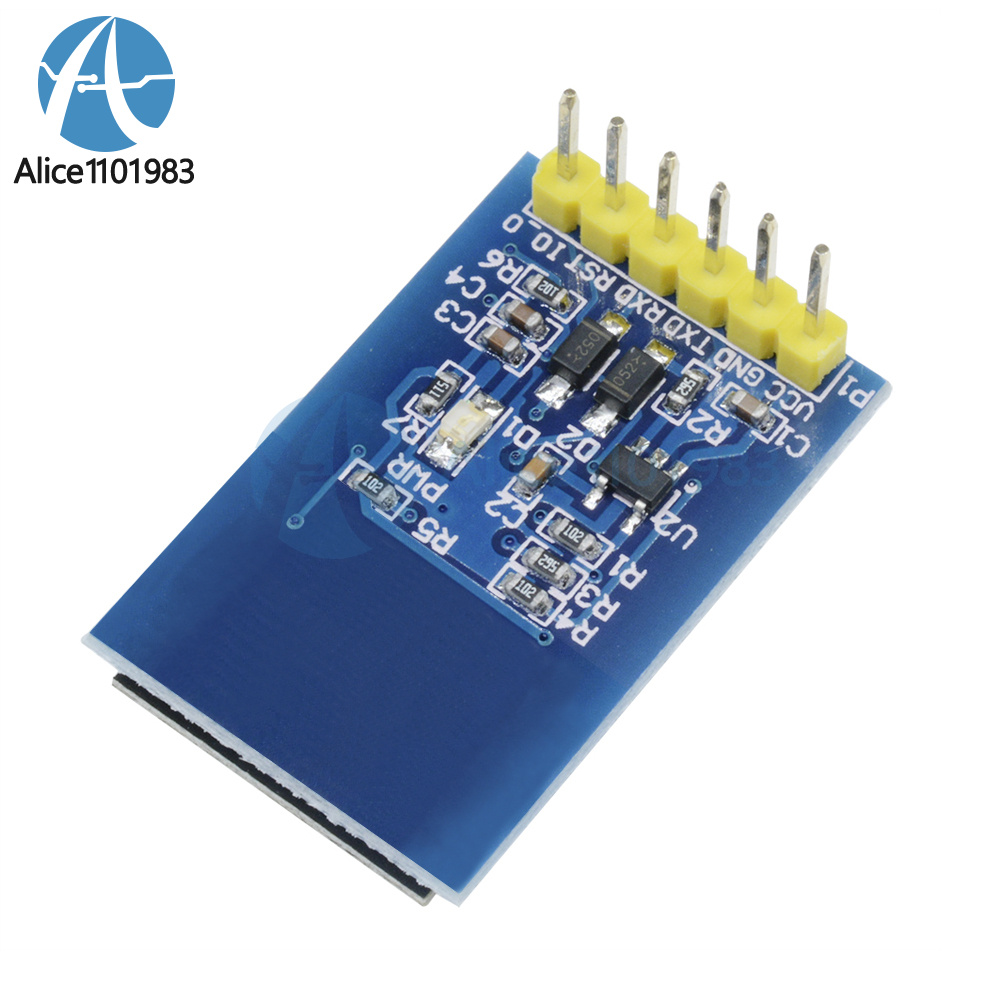

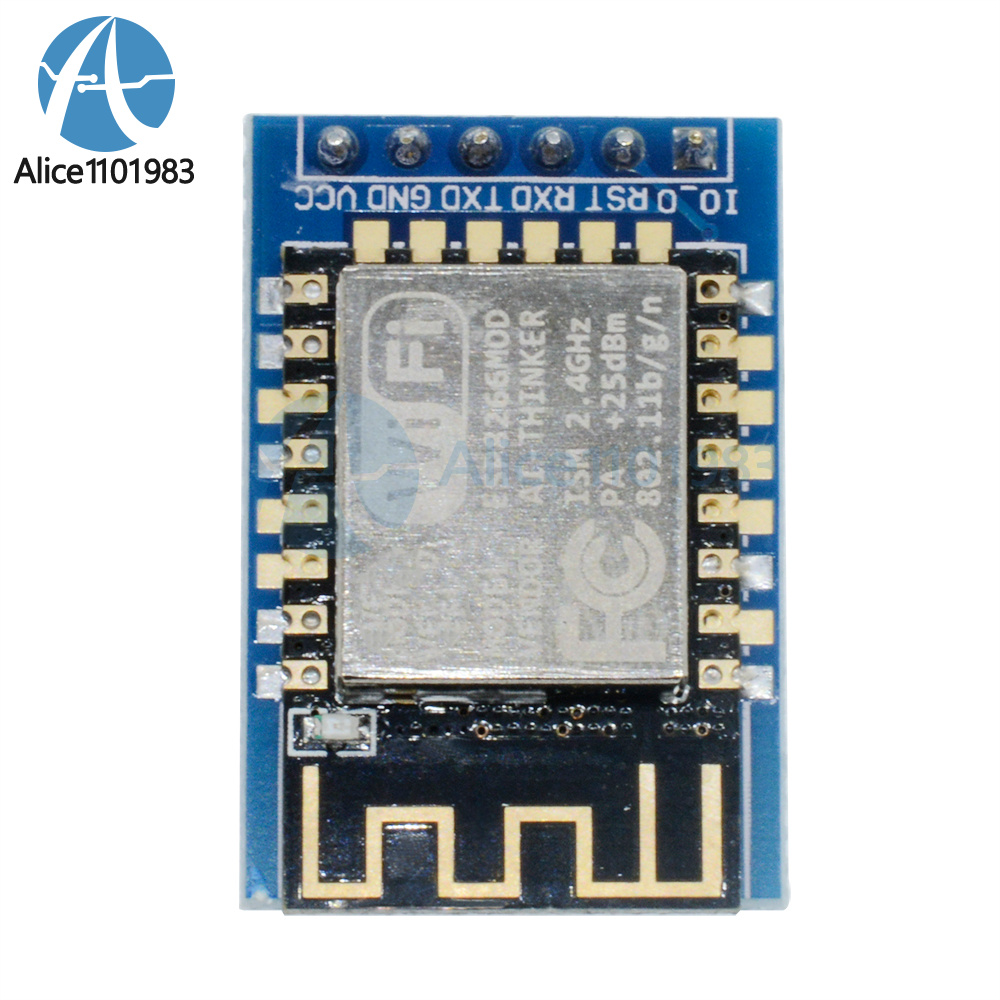

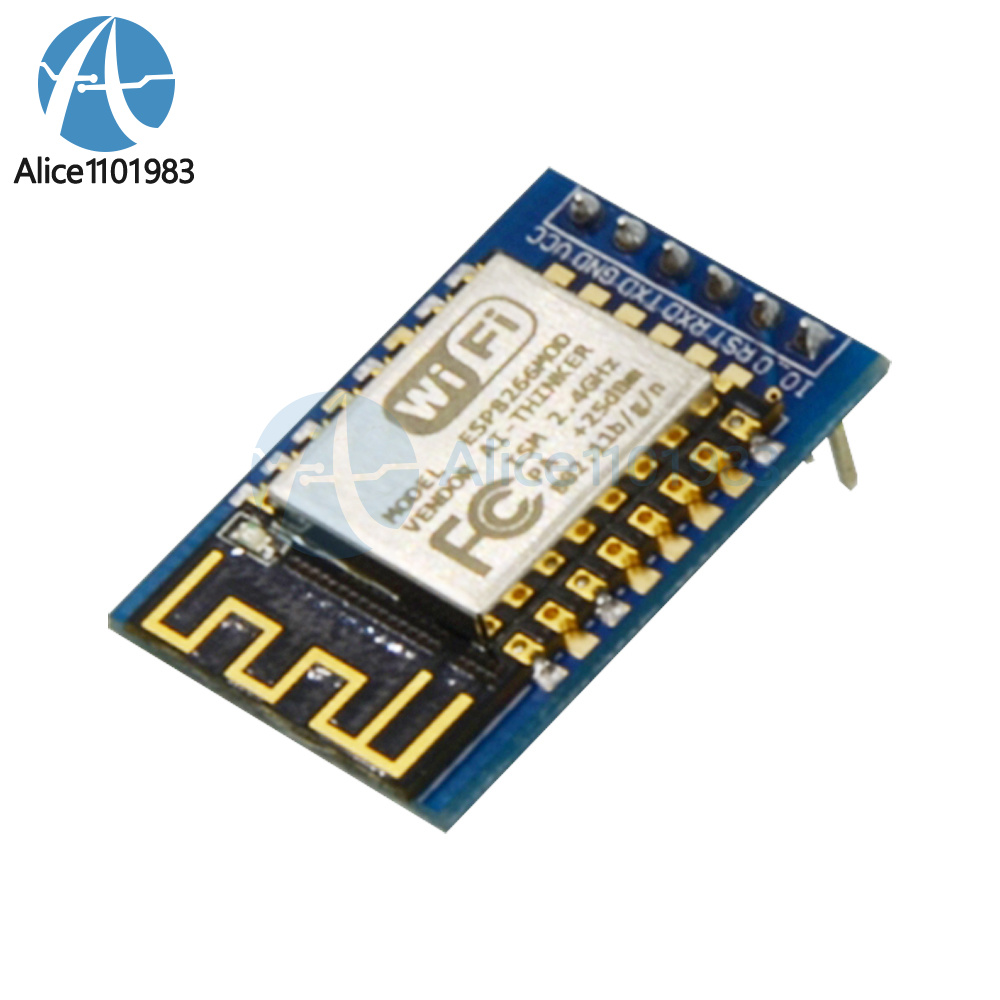

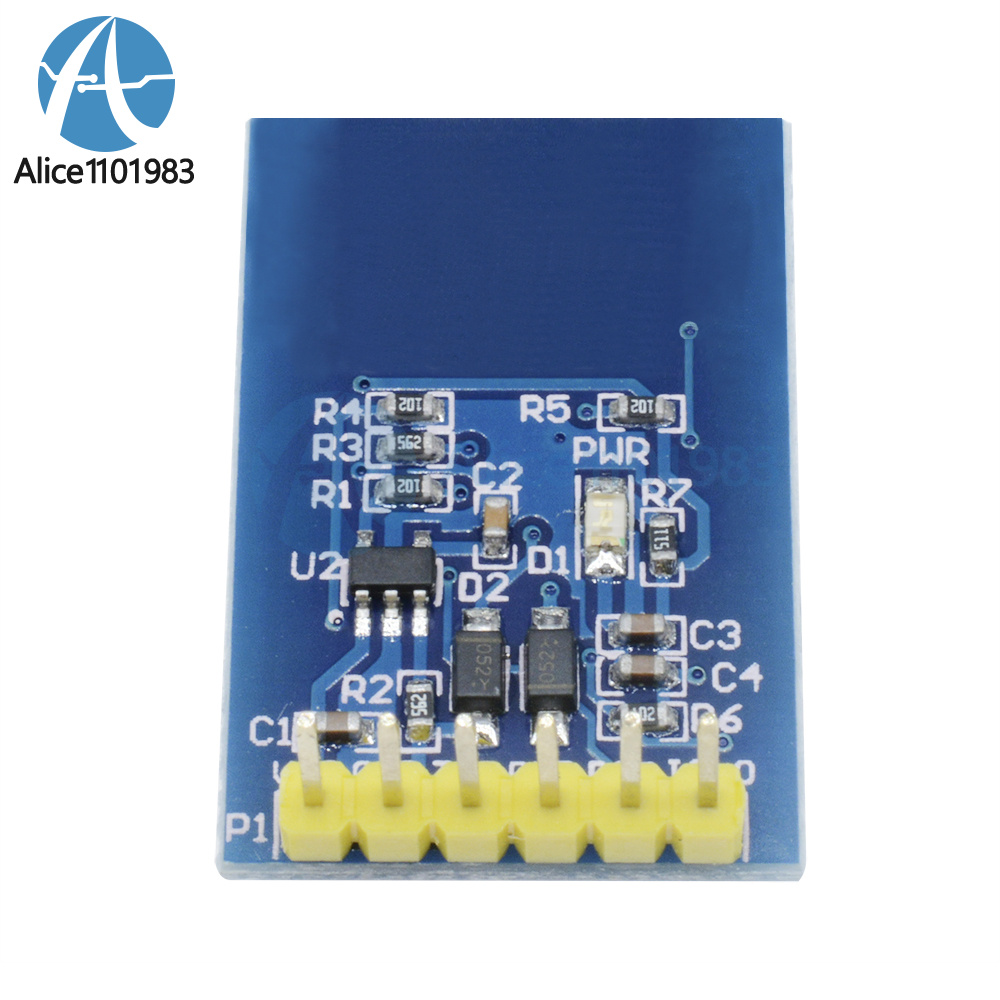

The ATK-ESP8266 is UART-WiFi (Serial - wireless) module
ATK-ESP8266 serial module adopt (LVTTL) and MCU (or other serial device) communication, built-in TCP / IP Protocol stack, it is possible to convert between the serial port and WIFI
By ATK-ESP8266 module, the traditional serial devices just need a simple serial port configuration, then can over a network to acheive (WIFI) transmit their data
ATK-ESP8266 module supports LVTTL serial port, compatible with 3.3V and 5V SCM system
The module supports Serial to WIFI STA, serial-to-AP and WIFI STA + WIFI AP mode
Features:
Wireless standards: IEEE 802.11b、IEEE802.11g、IEEE802.11n
Frequency range: 2.412GHz-2.484GHz
Data interface: UART / HSPI / I2C / I2S / Ir Remote Contorl GPIO / PWM
Operating voltage: 3.0 ~ 5V
Operating temperature: -40 ° ~ 125 °
Transmit power: 11 ~ 18dbm
Communication Interface: TTL
Antenna level: on-board PCB antenna
Humidity: 10% ~ 90% RH
Dimensions: 19mm * 29mm
TCP Client: 5
Baud rate: 110-921600 bps (default baud rate 115200)
WIFI mode
WIFI STA
WIFI AP
WIFI STA + WIFI AP
Download:
http://www.uctronics.com/download/U4642.zip
Package included:
1 X ESP8266 UART to WIFI STA / AP/ STA+AP Mode Wireless Module
