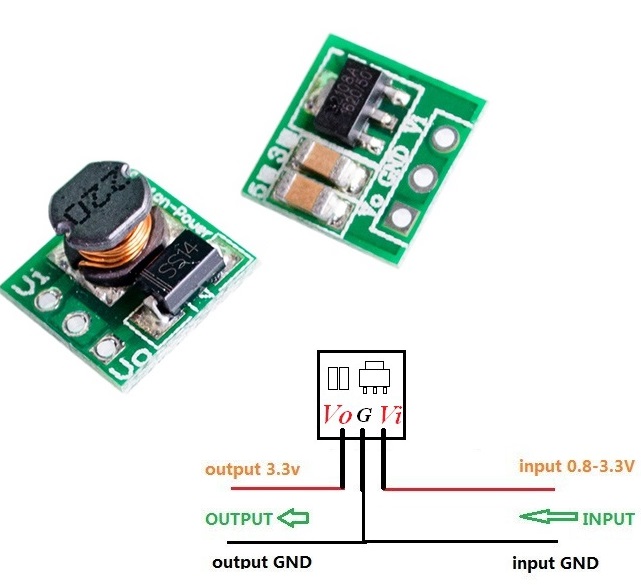

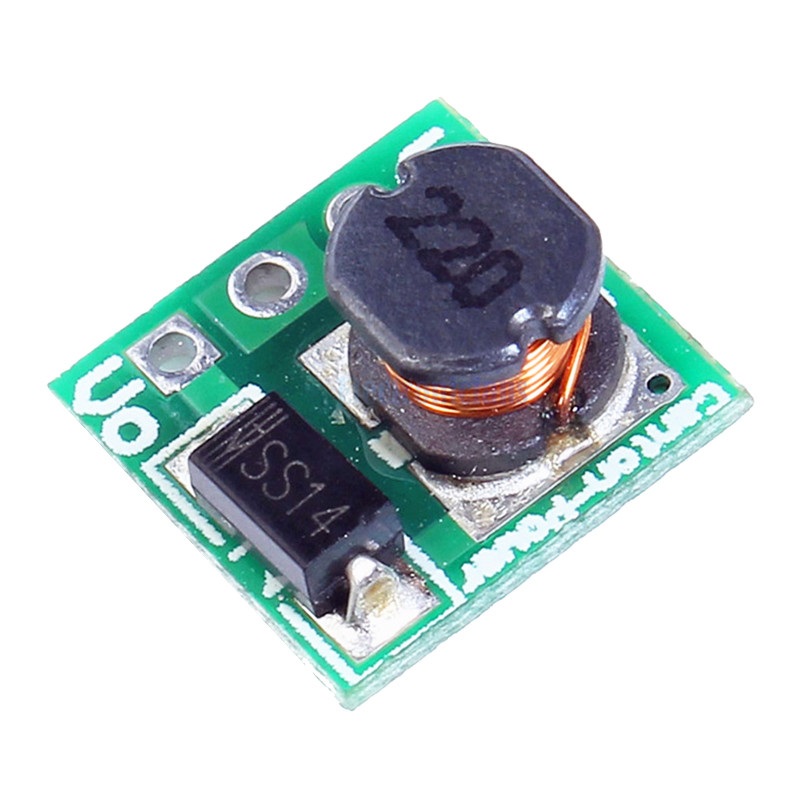

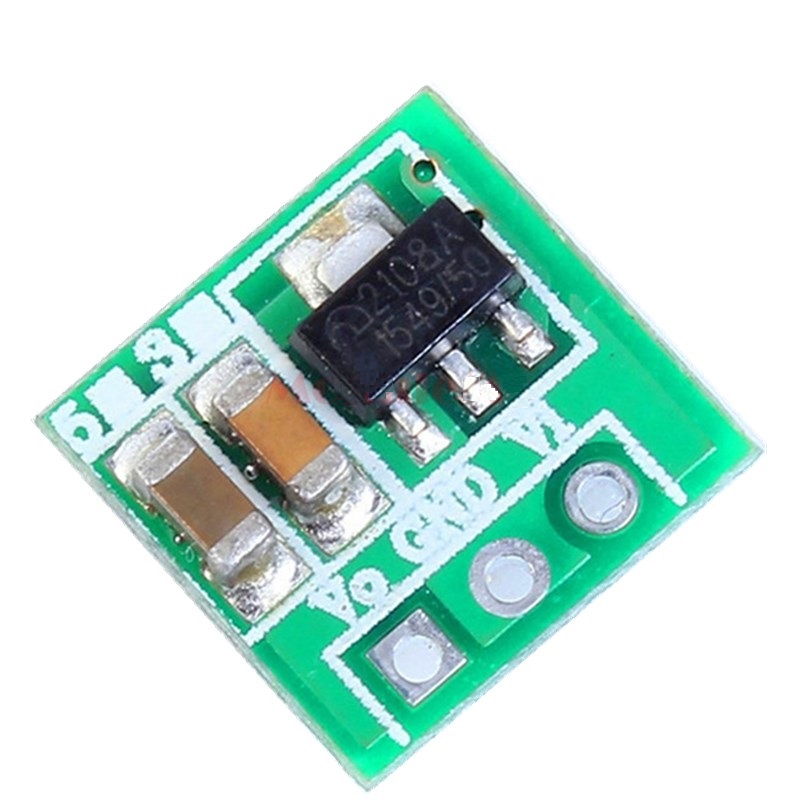

5PCS DC-DC 1V 1.5V 1.8V 2.5V 3V to DC 3.3V Step-UP Boost Power Supply Converter
Description:

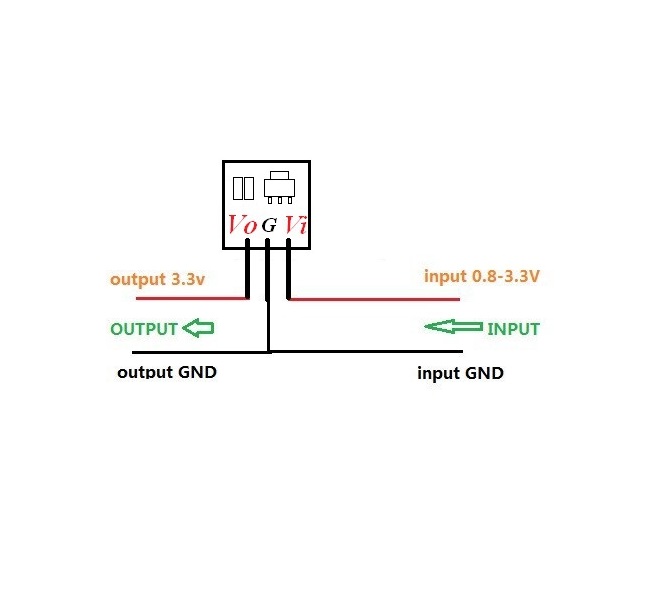

Input voltage 0.8 ~ 3.3V,output 3.3V
Maximum output current: 500 MA,
Start Voltage 0.8V, Output Current 10MA
INPUT 1-1.5V,     OUTPUT 3.3V 50-110MA;
INPUT 1.5-2V,      OUTPUT 3.3V 110-160MA;
INPUT 2-3V,         OUTPUT 3.3V 160-400MA;
INPUT above 3V,  OUTPUT 3.3V 400-500MA;
DC-DC Boost module working frequency 150KHZ. efficiency is normal 85% .
2.54mm pin pitch, Arduiuo Breadboard friendly.
Excluding Pin Size 11mm x 10.5mm x 7.5mm(Very small)
Weight : about 1.2g( Very light)

Applications:

Battery powered equipment
Wirels Module,NRF24L01 CC1101 CC2500 etc.
Development Board,FPGA/CPLD  STM32
Ardiuno_uno mega2560  Breadboard Raspberry Pi
VCR
PDA
LED Lighting
Wireless communication equipment
MP3/MP4 player
Audio equipment

Attention :

This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself


Package included:

5  X  DC-DC Converter 1V 1.2V 1.5V 1.8V 2.5V 3V to DC 3.3V Step-UP Boost Power Supply
