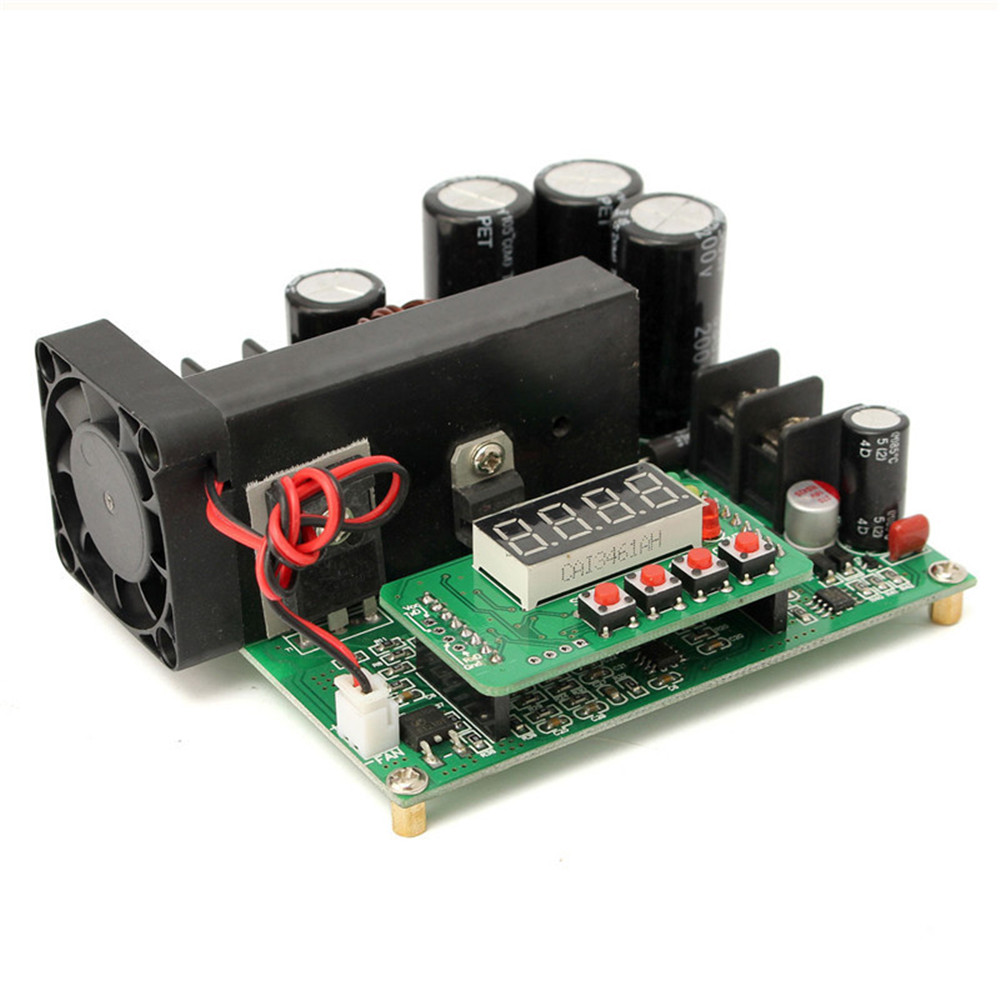

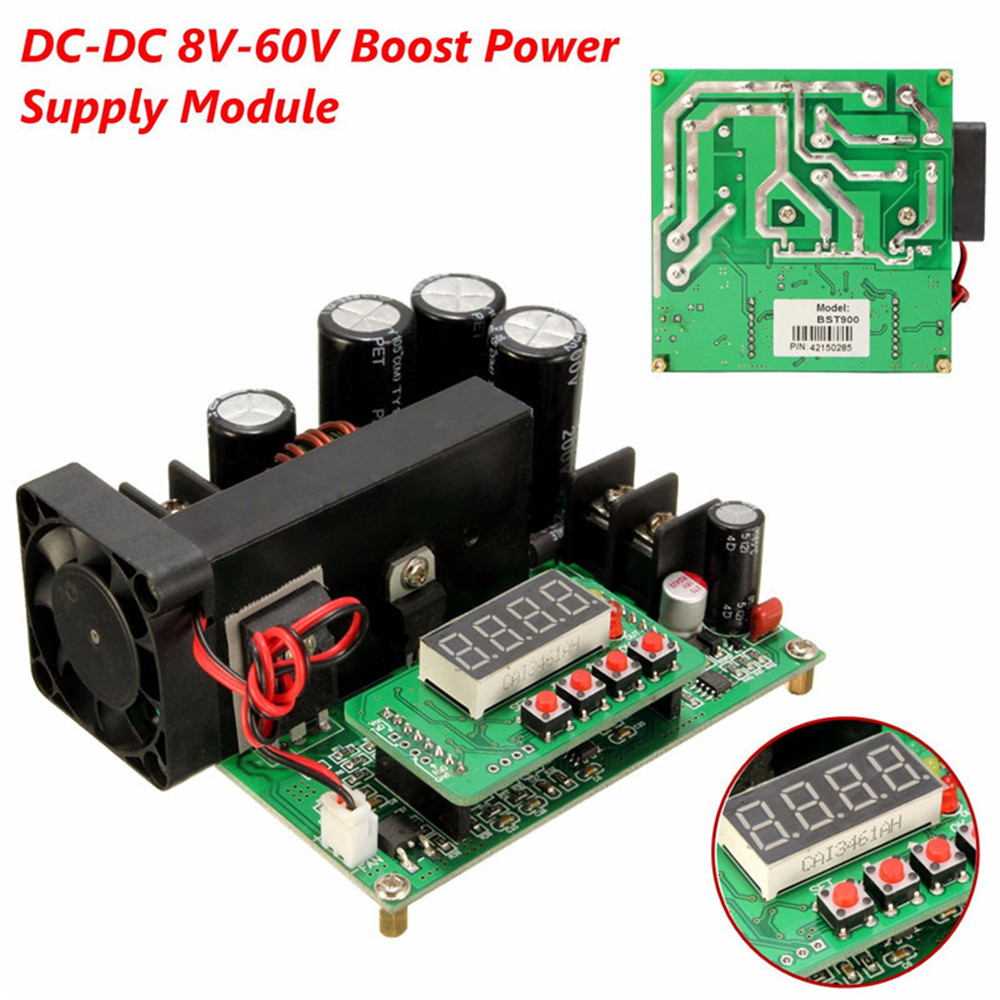

Product Details
Features:
Wide voltage range: 8-60V input can be boosted to 10-120V, output current 0-15A.
Uses advanced microprocessor, can precisely regulate output voltage and current.
With fan cooling, good for long-term and stable work.
With memory save function, can store 10 groups parameters, and can freely store or recall.
With an input voltage protection.
Has a constant voltage, constant current status.
Uses four LED to display the output voltage, current, power and capacity and other parameters in real time.
Auto / manual switch to display voltage, current, power, capacity and other parameters.

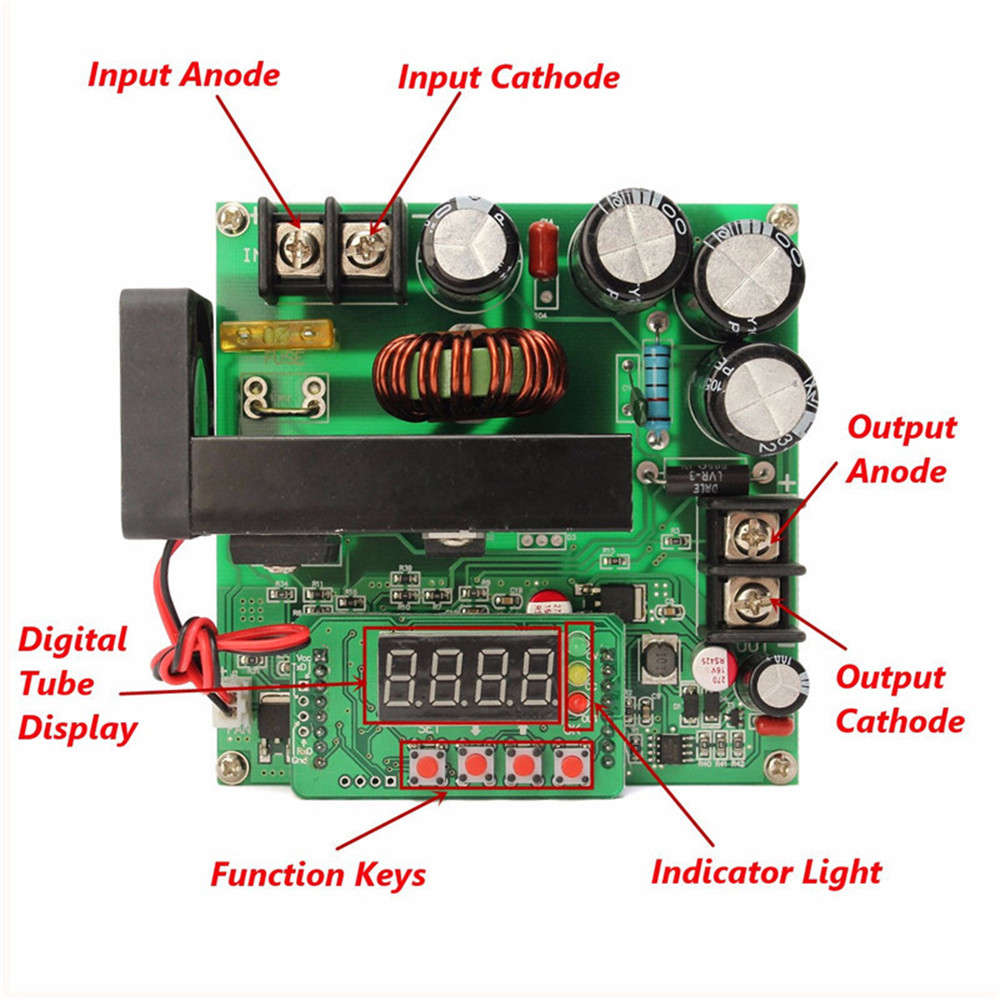

Has an output (OUT), constant voltage (CV), constant current (CC) indicator, you can view real-time working status.
You can set whether to automatically output after power-on.
Can press a key to save the current/voltage values you set.
Specifications:
Input Voltage: 8V-60V
Output Current: 0-15A
Output Voltage: 10-120V
Conversion Efficiency: 85%
Operating Frequency: 150KHz
Short Circuit Protection: 20A Fuse
Operating Temperature: -40°C to +85°C
Control Method: Digital Control + LED Display
Voltage Regulator / Display Resolution: <100V/0.01V; >100V/0.1V
Power Display Minimum Resolution: 0.001W
Current Regulation / Display Resolution: <10A/0.01A; >10A/0.1A
Capacity Display Minimum Resolution: 0.001AH
Output Ripple: ≤50mV
Weight: 238g / 8.42oz
Dimensions: 110 * 100 * 40mm / 4.33 * 3.94 * 1.57in
Package Weight: 294g / 10.38oz
Package Size: 160 * 130 * 50mm / 6.3 * 5.12 * 1.97in
Package Included
1 * 900W Digital Boost Module
