You are bidding on a Brand New Wilwood Premium Big Brake Superlite Bolt-On Front Hub & 12.19" Disc Brake Kit (Part #140-12613-D) for Both Front Wheels.

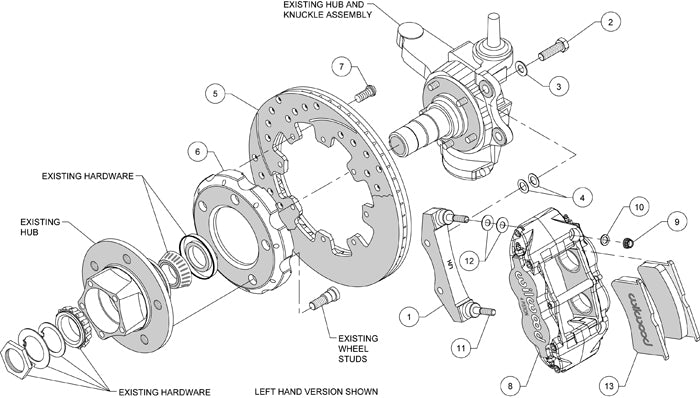

Only one side pictured.  See the list, the diagram, & the assembly booklet below for a detail of the parts included.

Features Drilled & Slotted Rotors and Powder-Coated Black Calipers.

Fits:

  • Jeep CJ Series (CJ5 and CJ7):
    • 1981 models with 5 bolt drive flange hubs; This kit won't work with 6 bolt drive flange hubs
    • 1982-1986, all

Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications.

The unsurpassed braking capacity of the Forged Narrow Superlite 4R four-piston caliper serves as the base of this 12.19" big rotor kit for the popular Jeep CJ vehicles, Kit fitment starts with 1981 models originally equipped with 5 bolt drive flange rotors and fitment continues to all 82-86 year vehicles. SL4R kits are engineered application specific to these vehicles, providing simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits offer increased brake capacity and complimentary style with wheel, tire, and suspension upgrades.

These Big Brake kits require at least 16" diameter wheels.

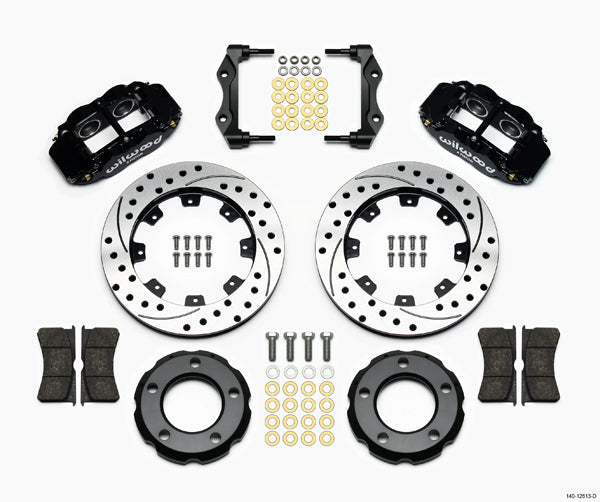

Kit includes parts for both front wheels:

  • Drilled & Slotted, 1.10" Thick x 12.19" O.D. Rotors
  • Narrow Superlite 4 Piston Radial Mount Calipers - Black
  • Caliper Mounting Brackets
  • BP-10 Smart Compound Brake Pads
  • Brake Hats
  • Bolts, washers, & shims to install the braking system on both front wheels

Complete kit weighs approximately 48 lbs.

You can view and download the complete assembly instruction booklet for this kit here.

In our Ebay store, we have this series of kit with Black or Red Calipers with either standard or drilled & slotted rotors.  Click here to see all the kits in this series.

Click here for all the Wilwood Disc Brake Kits that are available in our Ebay store.

We also have thousands of other High Performance Parts in our store.
