Labgear 305m CAT6 Outdoor Ethernet Cable UTP Solid Copper 23AWG 10Gbps

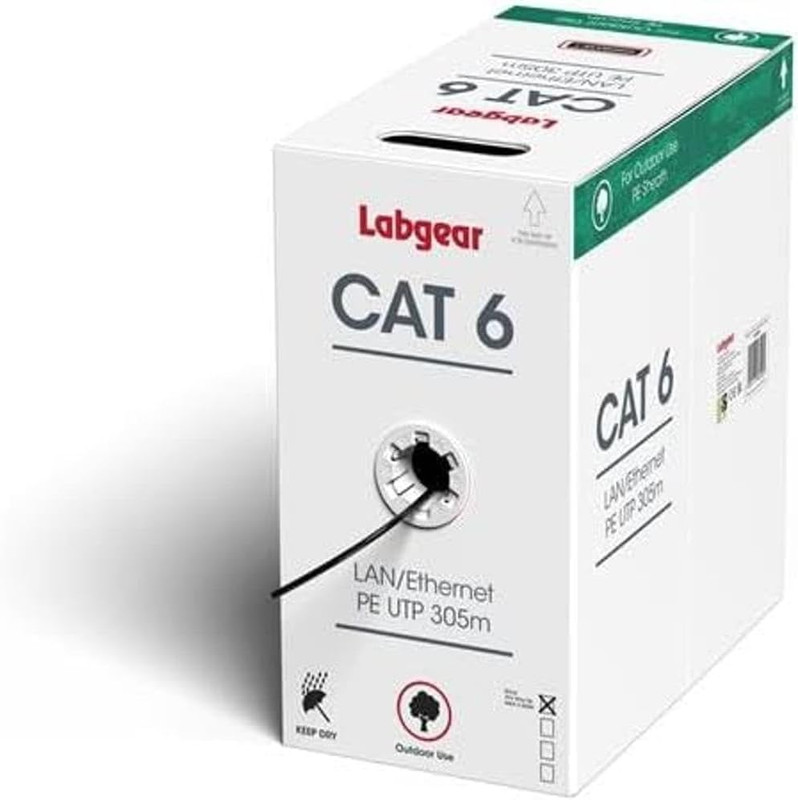

Labgear 305m CAT6 Outdoor LAN / Ethernet Cable
The Labgear 70400PE 305m CAT6 LAN/Ethernet Cable is designed for reliable, high-performance network installations where long cable runs are required.
Constructed using 23AWG solid copper conductors arranged as four twisted pairs, this CAT6 UTP cable provides stable signal transmission and is rated for 1000BASE-T Gigabit Ethernet, with support for data speeds of up to 10Gbps and frequencies up to 250MHz.
The cable features HDPE insulation, a PE separator and a durable PE outer sheath designed for outdoor use, making it suitable for residential, commercial, CCTV and structured network installations.
Supplied in a generous 305m bulk length, it is ideal for installers and larger cabling projects where cable can be cut and terminated to the required length.
Features
- 305m CAT6 UTP Ethernet cable for larger network installations
- 23AWG x 4 twisted pairs
- Solid copper conductors for reliable signal transmission
- PE sheath for outdoor use
- UTP unshielded construction
- 1000BASE-T Gigabit Ethernet rated
- Supports data transmission speeds of up to 10Gbps
- Supports frequencies up to 250MHz
- HDPE conductor insulation
- Integrated PE separator
- Suitable for residential, commercial, CCTV and structured network cabling
- Supplied as a practical 305m bulk cable
- Complies with applicable ANSI/TIA and ISO/IEC standards
Specifications
| Brand | Labgear |
| Part Number / MPN | 70400PE |
| Product Type | CAT6 LAN / Ethernet Cable |
| Cable Length | 305m |
| Cable Category | CAT6 |
| Cable Construction | UTP - Unshielded Twisted Pair |
| Conductors | 23AWG x 4 Twisted Pairs |
| Conductor Material | Solid Bare Copper |
| Conductor Diameter | 0.510 ± 0.005mm |
| Insulation Material | HDPE |
| Insulation Diameter | 0.89 ± 0.05mm |
| Separator | PE |
| Sheath Material | PE |
| Sheath Thickness | 0.55 ± 0.05mm |
| Overall Cable Diameter | 5.8 ± 0.3mm |
| Ethernet Rating | 1000BASE-T Gigabit Ethernet |
| Maximum Supported Data Rate | Up to 10Gbps |
| Bandwidth | Up to 250MHz |
| Conductor Resistance | ≤9.5 Ω / 100m |
| Electrical Resistance Unbalance | ≤2.5% |
| Insulation Resistance | >5000 MΩ·km |
| Mutual Capacitance | ≤5.6nF / 100m |
| Working Temperature | -20°C to 60°C |
| Storage Temperature | 0°C to 40°C |
| EAN / Barcode | 5050171085905 |
| Packaging Dimensions | 44 x 44 x 23cm |
| Packaged Weight | 11.54kg |
Package Contents
1 x Labgear 70400PE 305m CAT6 LAN / Ethernet Cable
