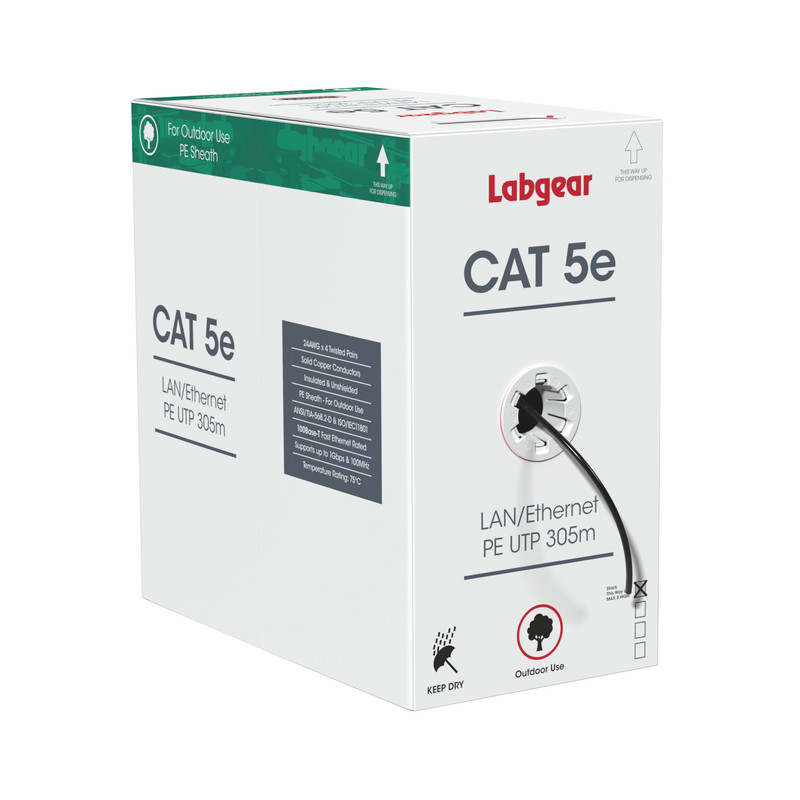

Labgear 305m CAT5e Outdoor Ethernet Cable UTP Solid Copper 24AWG Black
Labgear 305m CAT5e Outdoor LAN / Ethernet Cable
The Labgear 70399PE 305m CAT5e Ethernet Cable is designed for reliable network installations where long cable runs are required.
Constructed using 24AWG solid bare copper conductors arranged as four twisted pairs, the cable provides stable signal transmission and supports data speeds of up to 1000Mbps.
The durable black PE outer sheath makes the cable suitable for outdoor network installations, while the generous 305m length is ideal for larger residential, commercial, CCTV and structured network cabling projects.
Features
- 305m CAT5e UTP Ethernet cable for larger network installations
- Solid bare copper conductors for reliable signal transmission
- 24AWG x 4 twisted pair construction
- Supports data transmission speeds of up to 1000Mbps
- Black PE outer sheath suitable for outdoor installations
- Unshielded twisted pair UTP construction
- Eight colour-coded conductors arranged as four twisted pairs
- Suitable for residential, commercial and professional network installations
- Supplied as a practical 305m bulk cable
- Tested to applicable ANSI/TIA, ISO/IEC, IEC and BS EN standards
Specifications
| Brand | Labgear |
| Part Number / MPN | 70399PE |
| Product Type | CAT5e LAN / Ethernet Cable |
| Cable Length | 305m |
| Cable Category | CAT5e |
| Cable Construction | UTP - Unshielded Twisted Pair |
| Conductors | 24AWG x 4 Twisted Pairs |
| Conductor Material | Solid Bare Copper |
| Conductor Diameter | 0.480 ± 0.005mm |
| Insulation Material | HDPE |
| Insulation Diameter | 0.84 ± 0.05mm |
| Sheath Material | PE |
| Sheath Thickness | 0.55 ± 0.05mm |
| Overall Cable Diameter | 4.8 ± 0.3mm |
| Colour | Black |
| Maximum Data Rate | Up to 1000Mbps |
| Conductor Resistance | ≤10.0 Ω / 100m |
| Insulation Resistance | >5000 MΩ·km |
| Working Temperature | -20°C to 60°C |
| Storage Temperature | 0°C to 40°C |
| EAN / Barcode | 5050171085707 |
| Packaging Dimensions | 38 x 38 x 23cm |
| Packaged Weight | 8.8kg |
