Fluke ESA620 115 VAC Electrical Safety Analyzer Medical Equipment Tester ESA-620

This product data sheet is originally written in English.

Quality Assurance

State & Local Government Ordering

Full Warranty & Support

When purchasing from AAATesters you will be eligible for Future Discounts

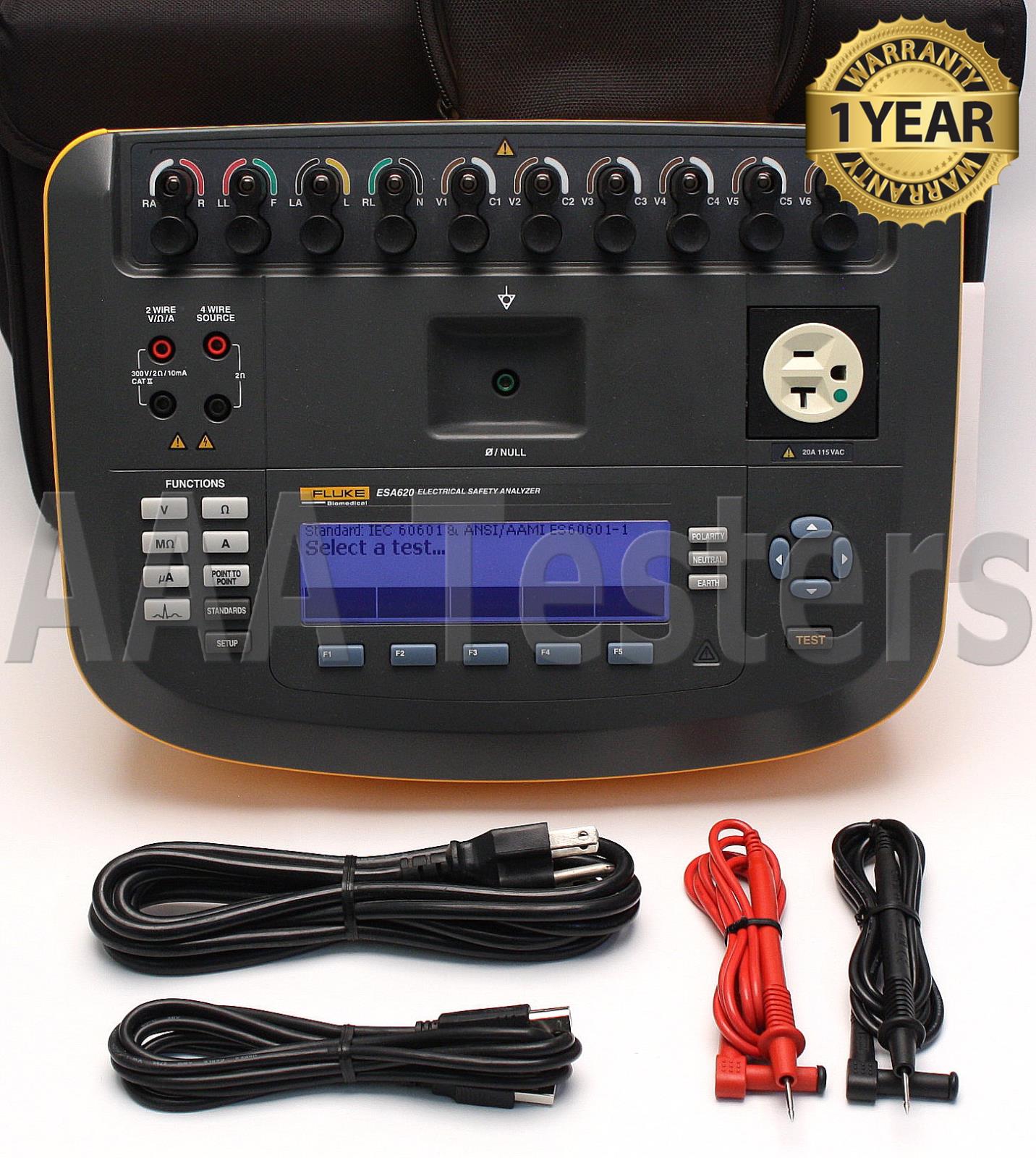

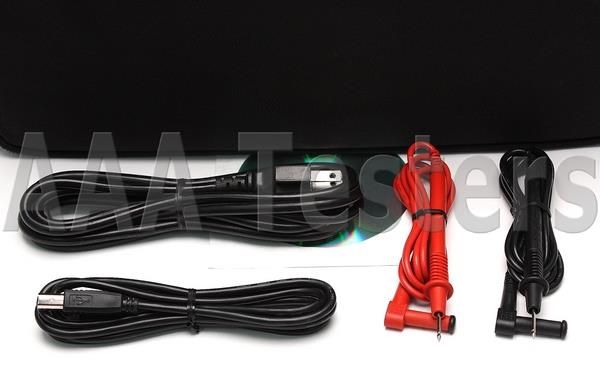

The Following Items Are Included:

Fluke ESA620 115 VAC Electrical Safety Analyzer (BC# 26234-L/T*)
(2) 1000 Hard Point Test Leads
Power Cord
USB PC Interface Cable
User Manual On CD-ROM
Carrying Case (G)

BE SURE TO CHECK OUR EBAY STORE FOR OTHER ITEMS!

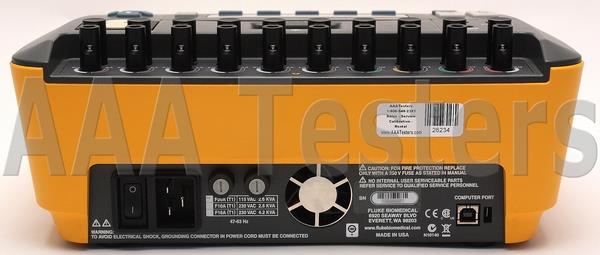

Fluke ESA620 115 VAC Electrical Safety Analyzer

With selections of three test loads, two protective earth test currents and two insulation test voltages, this versatile device performs all primary electrical safety tests as well as several additional leakage tests for premium standards compliance worldwide

Superior compliance with multiple standards: IEC60601:2005, EN62353, VDE 751, ANSI/AAMI ES1:1993, NFPA-99, AN/NZS 3551, IEC61010

Includes Carrying Case & Accessories As listed Above!

Working Condition: Excellent
Condition: Refurbished
Warranty: 1 YEAR WARRANTY

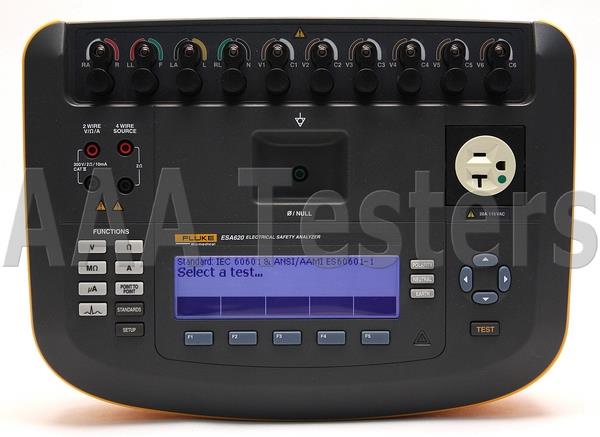

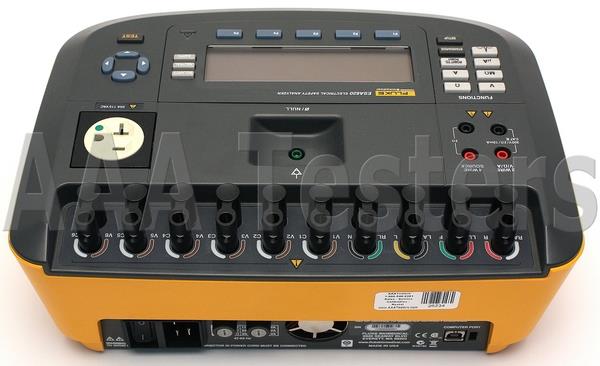

Fluke ESA620 Electrical Safety Analzyer
The ESA620 Electrical Safety Analyzer, featuring smart technology to enhance productivity under any standard, represents the next generation in portable electrical safety testers. With selections of three test loads, two protective earth test currents and two insulation test voltages, this versatile device performs all primary electrical safety tests as well as several additional leakage tests for premium standards compliance worldwide.

A convenient 20 A device receptacle broadens the range of equipment that can be tested using the ESA620. Standard 2-wire and optional 4-wire protective earth measurement capabilities offer first-rate time savings, while new DSP technology offers better accuracy of leakage measurements throughout specified ranges.

Equipped with ten unique safety-enhanced ECG posts, the ESA620 offers simulation of ECG and performance waveforms so both electrical safety and basic tests on patient monitors can be performed with a single connection. When combined with optional Ansur computer-based software, the ESA620 allows for test procedure automation, the capture of results and comparison to standard limits, printed reports, and total digital data management.

Features:

Superior compliance with multiple standards: IEC60601:2005, EN62353, VDE 751, ANSI/AAMI ES1:1993, NFPA-99, AN/NZS 3551, IEC61010
Three test loads
Expanded leakage ranges through 10,000 µA
Dual-lead resistance, leakage, and voltage tests
AC only, dc only and true-rms leakage readings
100 % and 110 % mains voltage for mains on applied part (lead isolation) test
200 mA and 25 A ac PE test current
DSP filter technology for improved accuracy in leakage measurements
20 A equipment current
More applied parts selections
ECG and performance waveforms
Intuitive user interface
Easy-to-use applied parts (ECG) connections
Insulation posts on applied parts connections
Five different insulation tests
Varying insulation test voltage 500 V dc and 250 V dc
USB connection
CE, C-TICK and CSA for USA and Canada
RoHS compliance
Designed, tested, and built to incomparable Fluke quality standards

Specifications:

Voltage
Range (mains voltage)	90 V to 132 V ac rms 180 V to 264 V ac rms
Range (accessible voltage)	0 V to 300 V ac rms
Accuracy	± (2 % of reading +2 LSD)

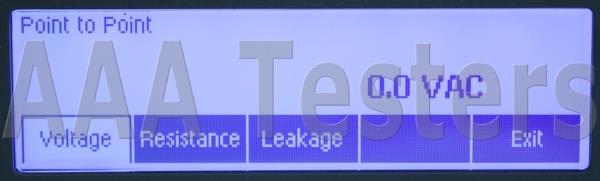

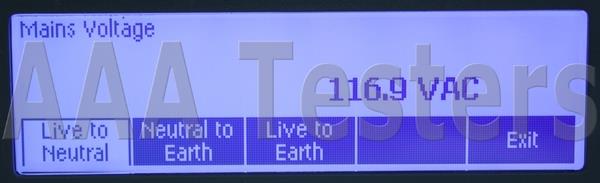

Voltage tests	Mains, accessible, and point-to-point
Earth resistance

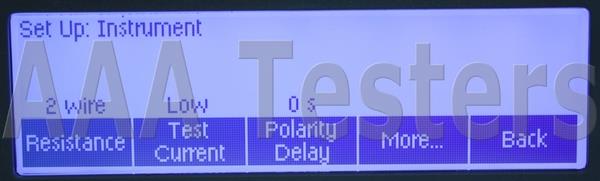

Two-terminal mode test current/range and accuracy	> 200 mA ac	0.0 to 2.0 Ω ± (2 % of reading + 0.015 Ω)
	10 A to 25 A ac	0.0 to 0.2 Ω ± (2 % of reading + 0.015 Ω) 0.2 to 2.0 Ω ± (5 % of reading + 0.015 Ω)
Four-terminal mode test current/range and accuracy	> 200 mA ac	0.0 to 2.0 Ω ± (2 % of reading + 0.005 Ω)
	10 A to 25 A ac	0.0 to 0.2 Ω ± (2 % of reading + 0.005 Ω) 0.2 to 2.0 Ω ± (5 % of reading + 0.005 Ω)
Resistance tests	Earth resistance and point-to-point
Equipment current
Mode	AC rms
Range/accuracy	0 A to 20 A	± 5 % of reading ± (2 counts or .2 A, whichever is greater)
Duty cycle	15 A to 20 A, 5 min on/5 min off 10 A to 15 A, 7 min on/3 min off 0 A to 10 A continuous

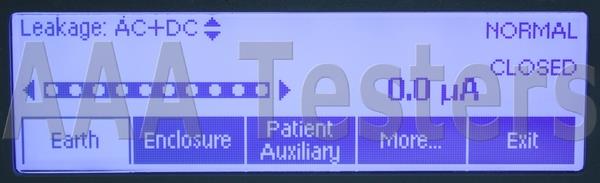

Leakage current
Modes	AC + DC (True-rms) AC only DC only
Patient load selection (input impedance)	AAMI ES1-1993 IEC 60601 IEC 61010
Crest factor	≤ 3
Ranges	0 µA to 199.9 µA 200 µA to 1999 µA 2 mA to 10 mA
Frequency response/accuracy	DC to 1 kHz 1 kHz to 100 kHz 100 kHz to 1 MHz	± (1 % of reading + 1 µA) ± (2 % of reading + 1 µA) ± (5 % of reading + 1 µA)
Leakage tests	Earth (ground wire) Chassis (enclosure) Patient (lead to ground) Patient auxiliary (lead to lead) Mains on applied part (lead isolation) Direct equipment Direct applied part Alternative equipment Alternative applied part Accessible Point to point
Mains on applied part test voltage	110 % of mains at 230 V for IEC 60601 100 % of mains for AAMI at 115 V per AAMI 100 % of mains at 230 V per 62353
Differential leakage
Ranges	10 µA to 199 µA 200 µA to 1999 µA 2 mA to 20 mA
Accuracy	± 10 % of reading ± (2 counts or 20 µA, whichever is greater)
Insulation resistance
Ranges/accuracy	0.5 MΩ to 20 MΩ	± (2 % of reading + 2 counts)
	20 MΩ to 100 MΩ	± (7.5 % of reading + 2 counts)
Source test voltage	500 V dc 250 V dc
Insulation resistance tests	Mains-PE, AP-PE, Mains- PE, Mains-NE (non-earthed accessible conductive part) and AP- NE (non-earthed accessible conductive part)
Mamimum load capacitance	1 µF

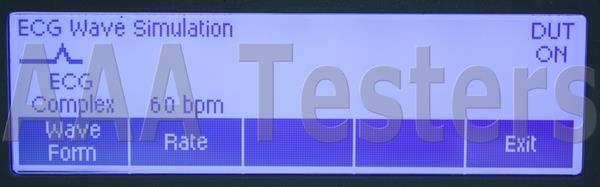

ECG performance waveforms
Accuracy	± 2 % ± 5 % for amplitude of 2 Hz square wave only, fixed at 1 mV Lead II configuration
Waveforms	ECG complex (BPM)	30, 60, 120, 180, and 240
	Ventricular fibrillation
	Square wave (50 % duty cycle) (Hz)	0.125 and 2
	Sine wave (Hz)	10, 40, 50, 60, and 100
	Triangle wave (Hz)	2
	Pulse (63 ms pulse width)	30 and 60
Power ratings
Mains voltage outlet	120 V ac	230 V ac
Mains voltage inlet power range	90 to 132 V ac rms	180 to 264 V ac rms
Maximum current	20 A	16 A
Hz	50 or 60	50 or 60
Physical case
Dimensions (L x W x H)	31 cm x 23 cm x 10 cm (12.2 in x 9 in x 2.9 in)
Weight	4.7 kg (10.25 lb)
Environmental specifications
Operating temperature	10 °C to 40 °C
Storage temperature	-20 °C to 60 °C
Operating humidity	10 % to 90 % non-condensing
Altitude	To 2,000 meters

For full Fluke ESA620 product specifications, please click here: Fluke ESA620
