For TB42, TB45, TD45, this manifold may also fit; as far as we know, the port configurations are the same. Please double check the dimensions with us before buying.

Exhaust Inlet Flange: T3 4 bolt Flange
Exhaust Outlet Flange: V-Band Flange (ID/OD: 2.5"/3.1")

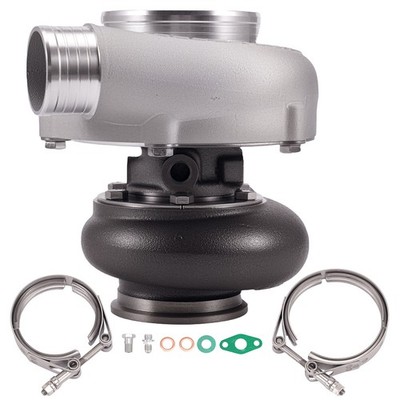

Turbine Side:
Turbine Trim: 74.2
Turbine A/R: 0.63
Turbine Inducer: 64.8mm
Turbine Exducer: 55.8mm
Turbine exhaust outlet : 79mm
Turbine exhaust inlet: 44.7mm (length) /85.8mm (width)

Compressor Side:
Compressor Trim: 48.1
Compressor A/R: 0.5
Compressor Inducer: 52.7mm
Compressor Exducer: 76mm
Compressor outlet:78 mm
Compressor inlet:51.5 mm

Oil Inlet: M12*1.25 & 2*M8*1.25
Oil Outlet: 2*M8*1.25
Bearing: Journal Bearing
Cooling Type: Oil Cooled
Wastegate: w/  Wastegate
Thrust Bearings: 270 Degrees
Horsepower: Up to 420 HP、

Manifold Specifics：

Turbo Flange : T3 flange

 Mount Type:  top mount / high mount

 External Wastegate:  38mm. You can plate it off if intending to use internally wastegated Turbo (The blocking plate is included as shown in the picture)

Oil Line Specifics：

 - 100% Brand New
 - Specific design to increase the volumetric efficiency of the engine, resulting in a gain in power output.
 - Improve Exhaust Gas Flow and Increase Turbo Spool up and Reduces Turbo Lag
 - Manufactured from high quality cast iron for Thermally Stable usage
 - Continuous tests under extreme conditions to withstand high temperature
 - Special surface treatment to resist corrosion.
 - Accurate dimensions with exquisite workmanship
 - Tubes sized and shaped to match cylinder-head exhaust port

note: Please feel free to Reach for whatever we can help
