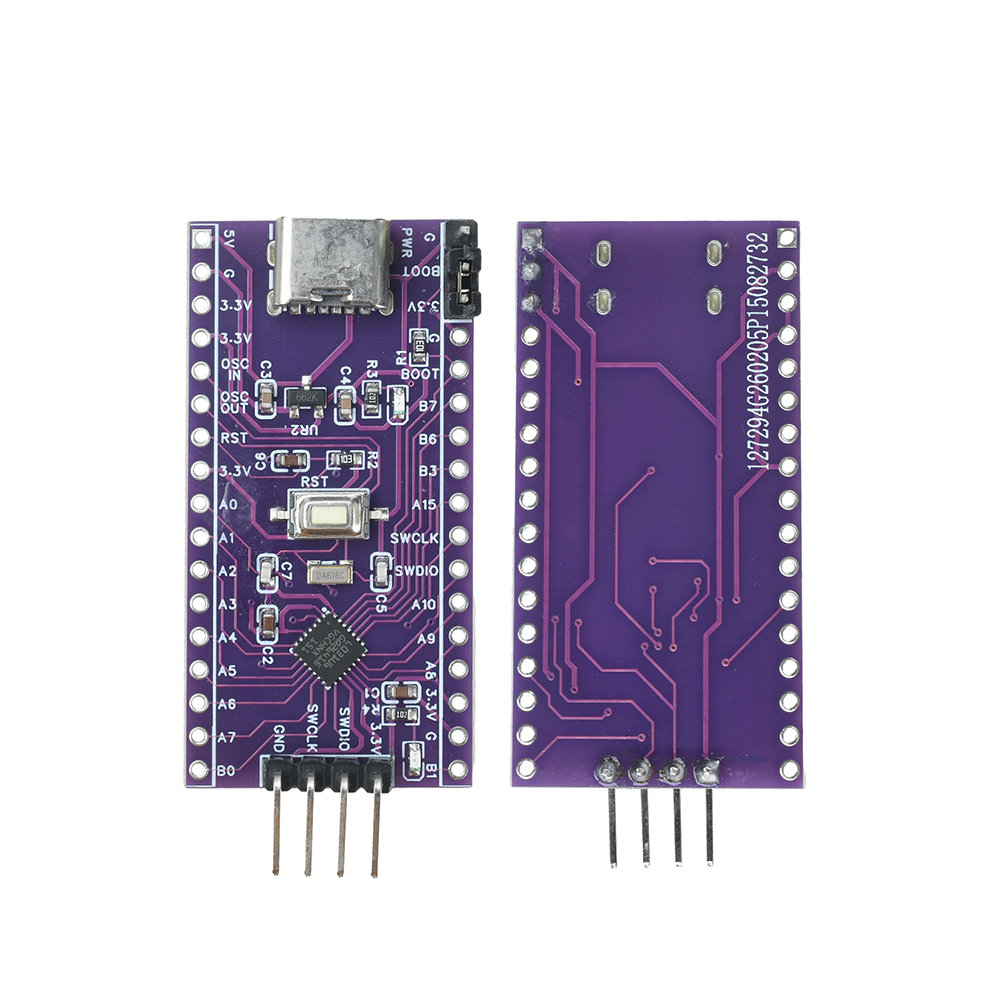

STM32L031G6U6 Development Board ARM Cortex-M0 Core Board STM32L031 Type C
Product Features:

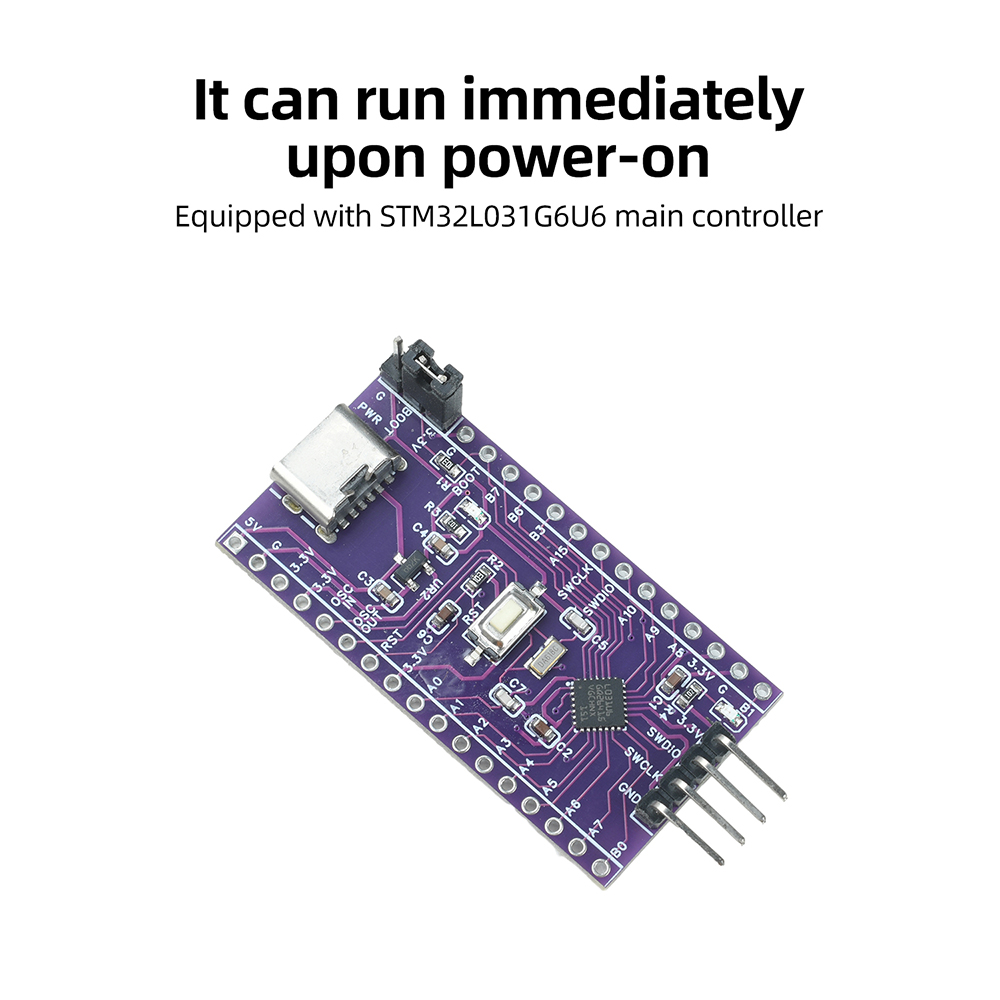

1. Equipped with an STM32L031G6U6 microcontroller, it is ready to run as soon as power is applied.
2. The reset pin is exposed, fully utilizing the chip’s hardware resources.
3. Multiple power supply modes are available, with flexible power sourcing via terminals.

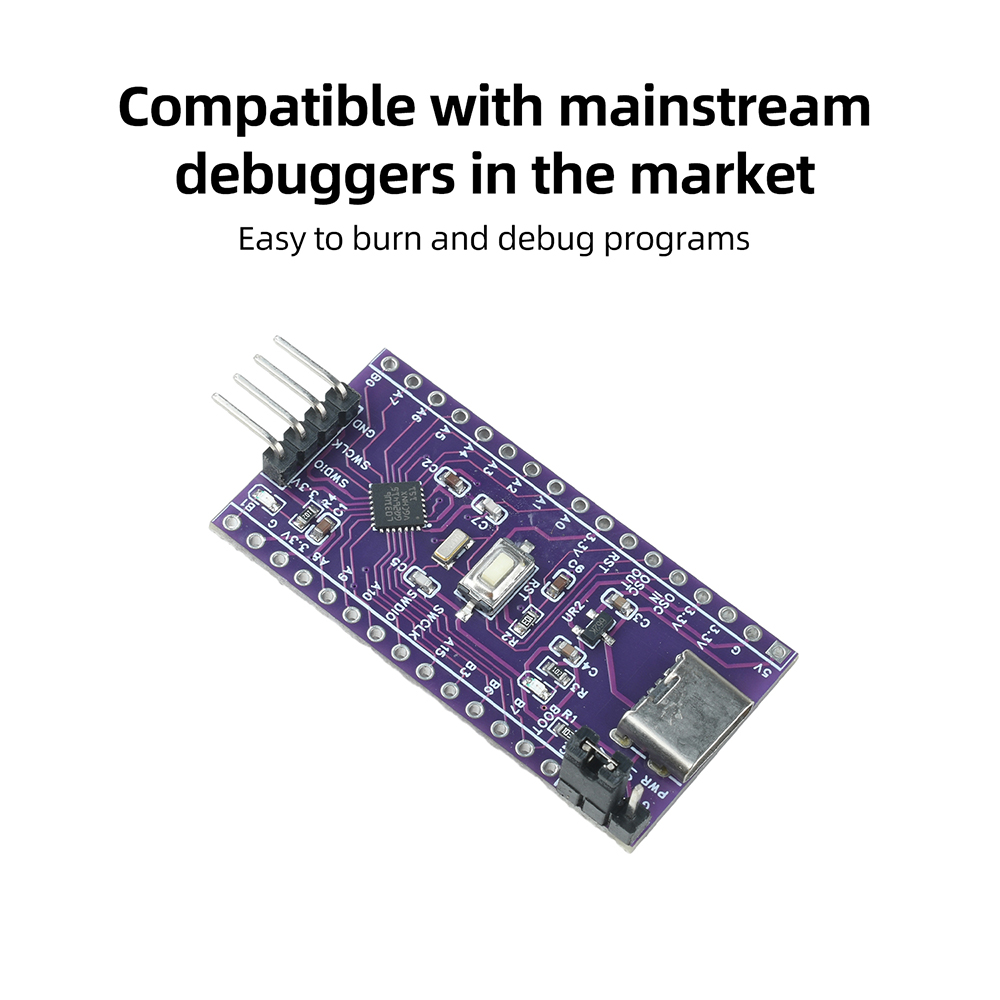

4. Compatible with mainstream debuggers on the market, facilitating program flashing and debugging.

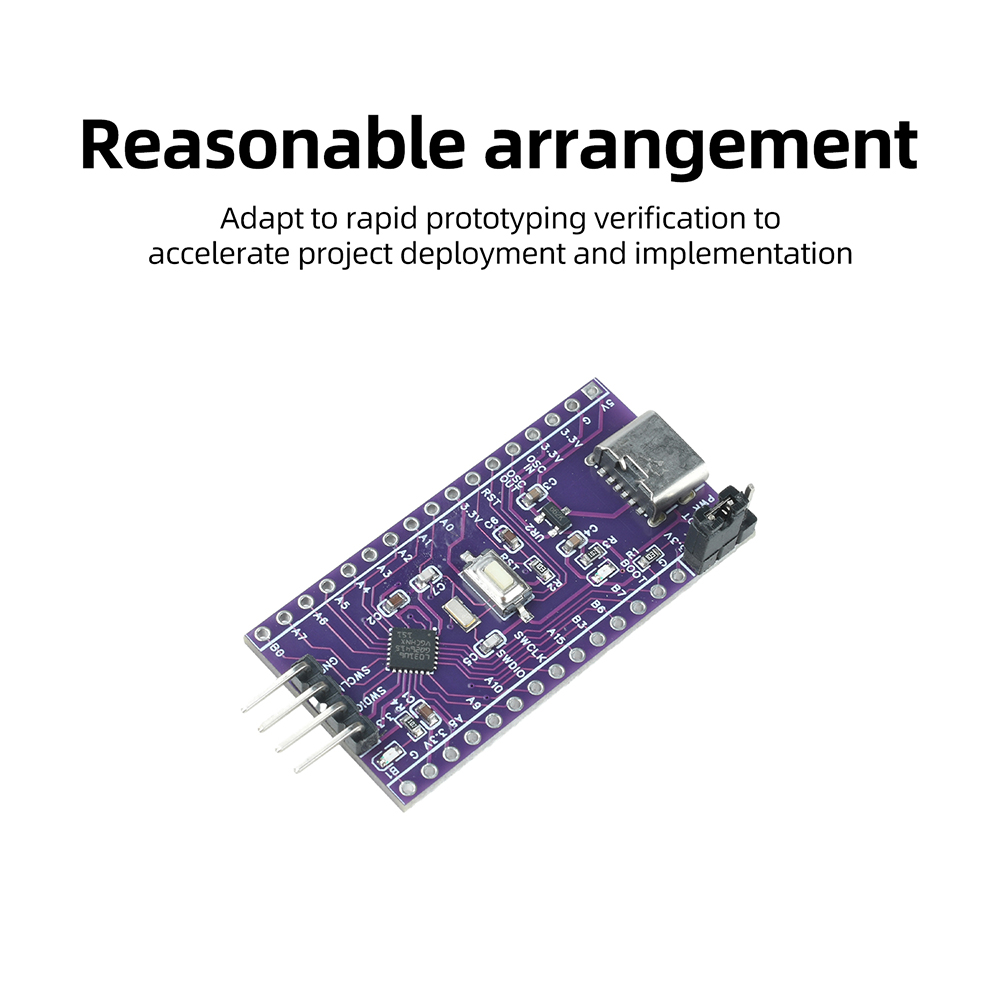

5. Rational layout, suitable for rapid prototyping, accelerating project implementation and deployment.

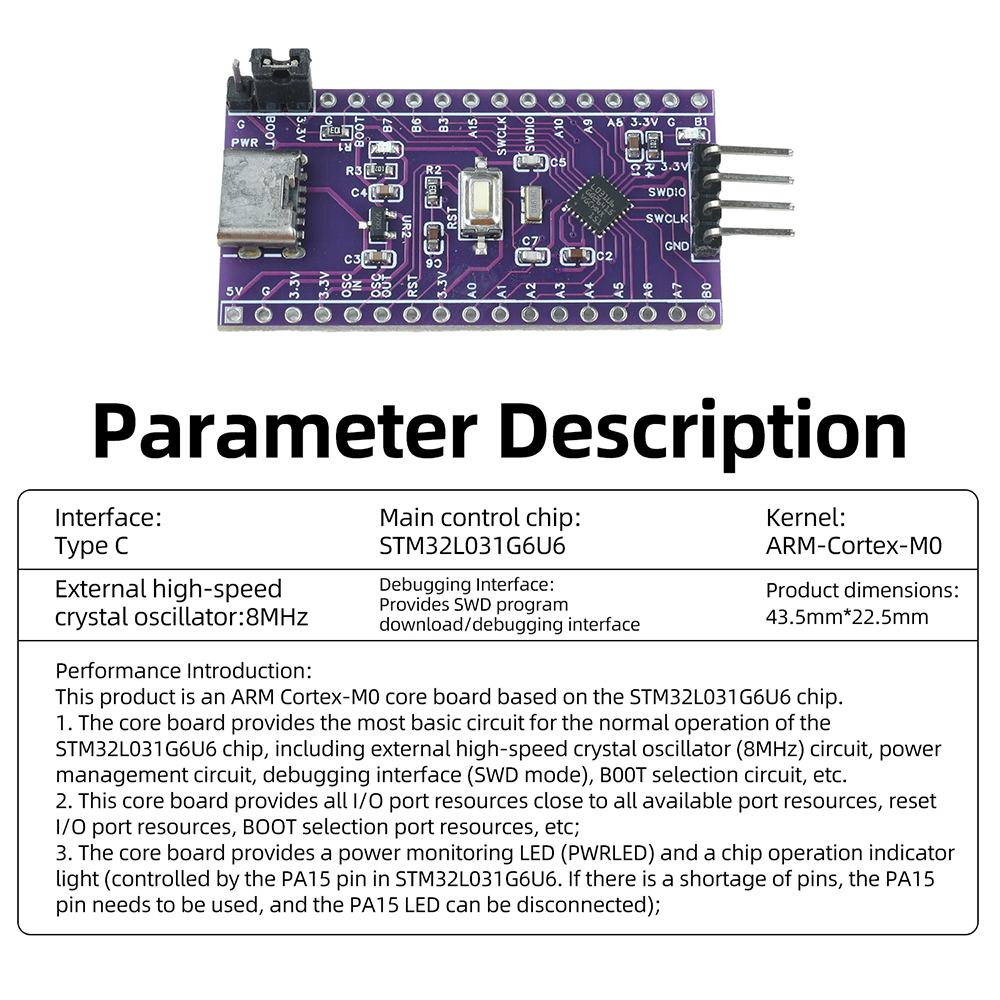

Specifications:
Interface: Type-C
Microcontroller: STM32L031G6U6
Core: ARM Cortex-M0
External High-Speed Crystal Oscillator: 8 MHz
Debug Interface: Provides SWD interface for program download and debugging

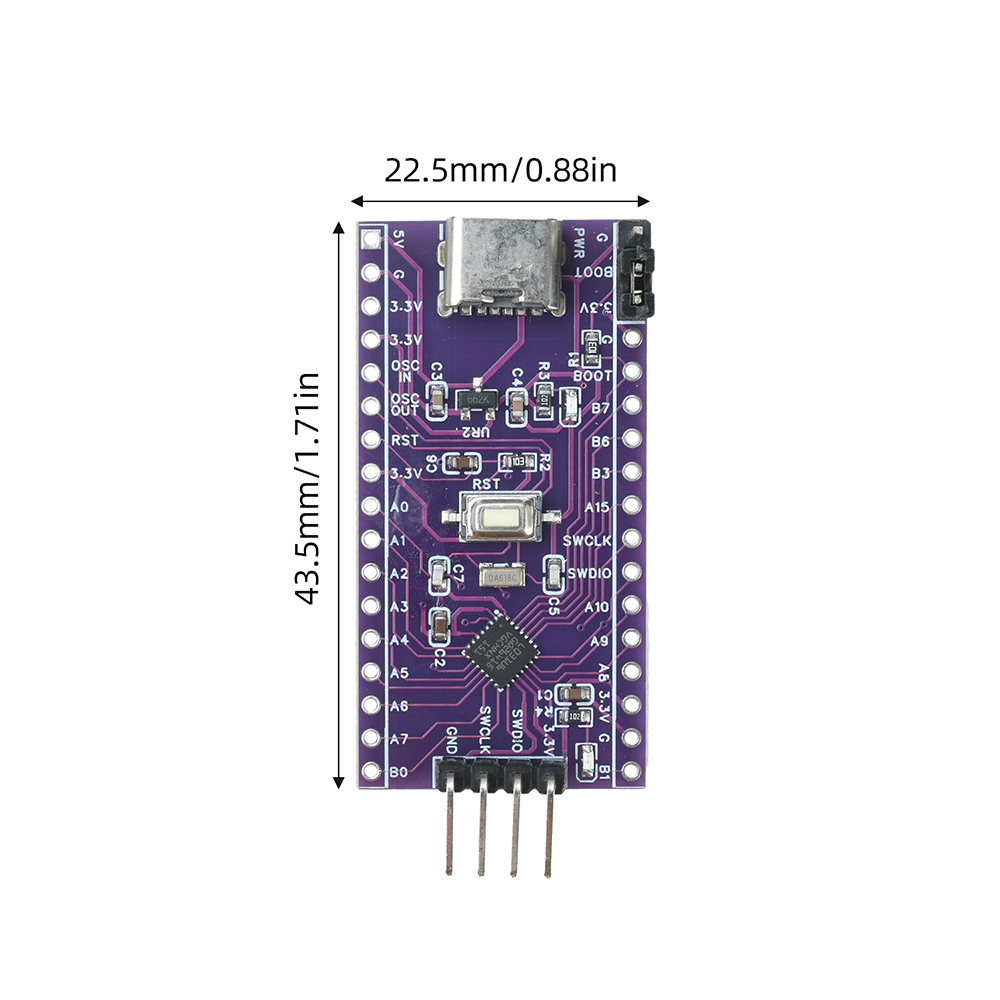

Product Dimensions: 43.5 mm × 22.5 mm
Performance Overview:
This product is an ARM Cortex-M0 core board based on the STM32L031G6U6 chip.
1. The core board provides the most basic circuitry required for the normal operation of the STM32L031G6U6 chip, specifically including an external high-speed crystal oscillator (8 MHz) circuit, power management circuit, debug interface (SWD mode), and BOOT selection circuit.
2. This core board provides access to nearly all available I/O port resources, reset I/O port resources, and BOOT selection port resources;
3. The core board features a power monitoring LED (PWRLED) and a chip operation indicator (controlled by the PA15 pin on the STM32L031G6U6; if the PA15 pin is needed for other purposes, simply disconnect the PA15 LED);

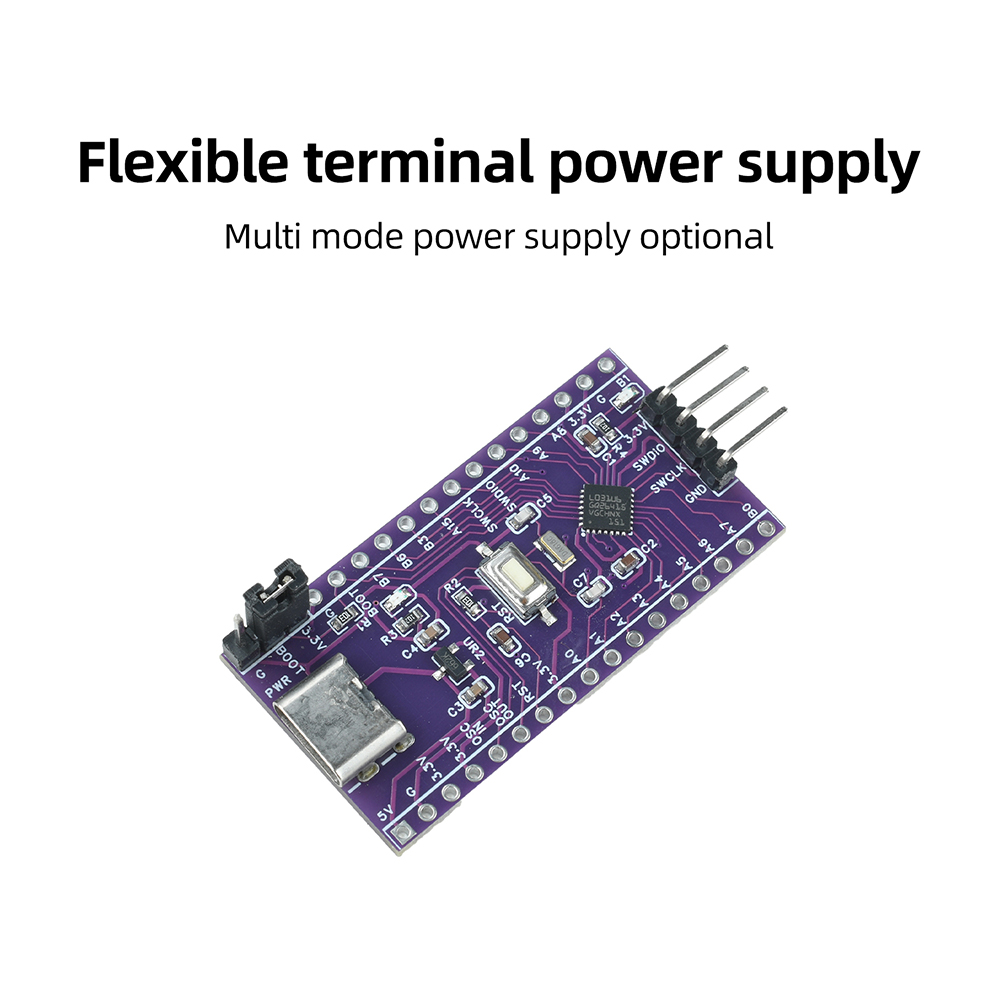

4. Power Supply Methods:
(1) Power can be supplied via the on-board USB Type-C interface on the core board;
(2) Power can be supplied via a debugger connected to the SWD interface (2.7V–3.6V);
(3) Power can be supplied via an external power source connected to the port labeled “5V” (5V–12V);
4. Using multiple power supply methods simultaneously is not recommended; cross-powering can easily cause a short circuit and damage the core board or debugger!
5. To save space on the core board, it provides an SWD interface for program download and debugging, supporting SW mode on common debuggers for debugging and program download;

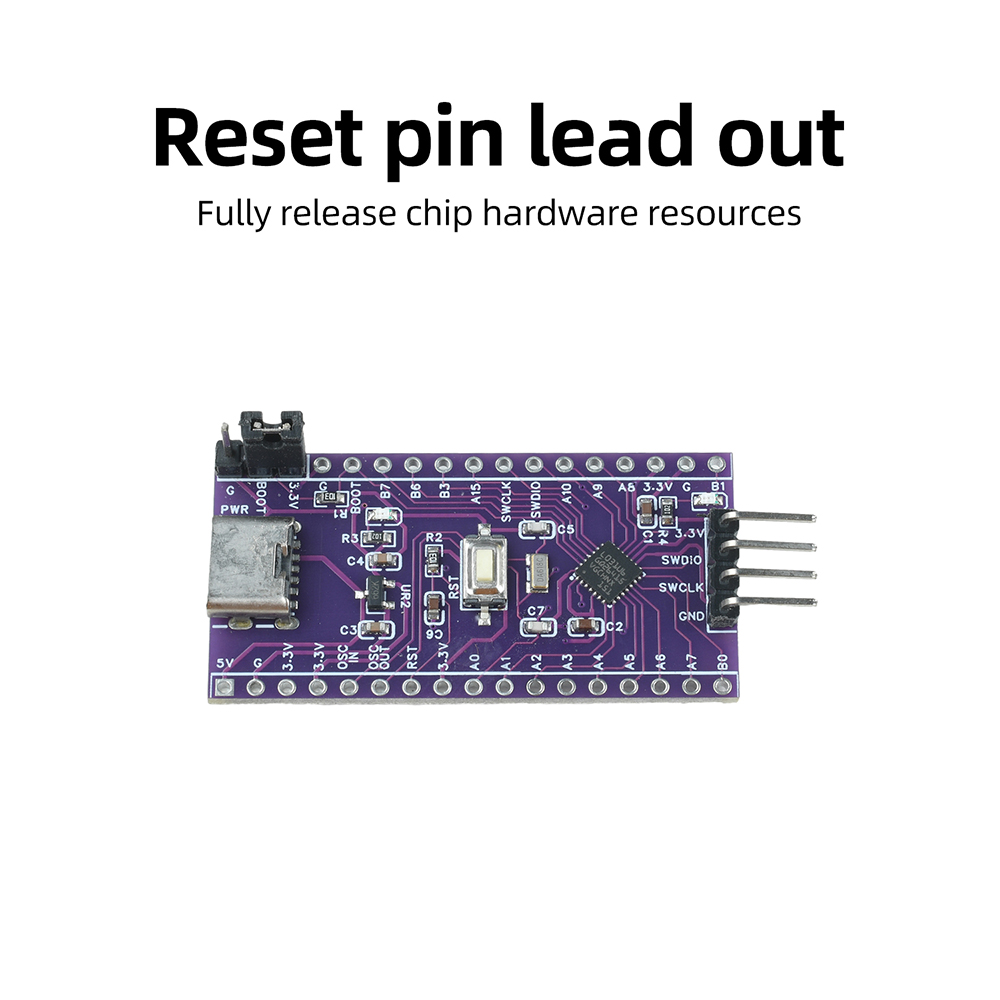

6. The core board features a reset button, allowing users to conveniently reset the device during debugging (the reset pin is also exposed; the pin corresponds to the “R” mark on the core board’s silkscreen).
7. The core board’s key advantage lies in meeting users’ needs for rapid project deployment while providing as many internal chip resources as possible.

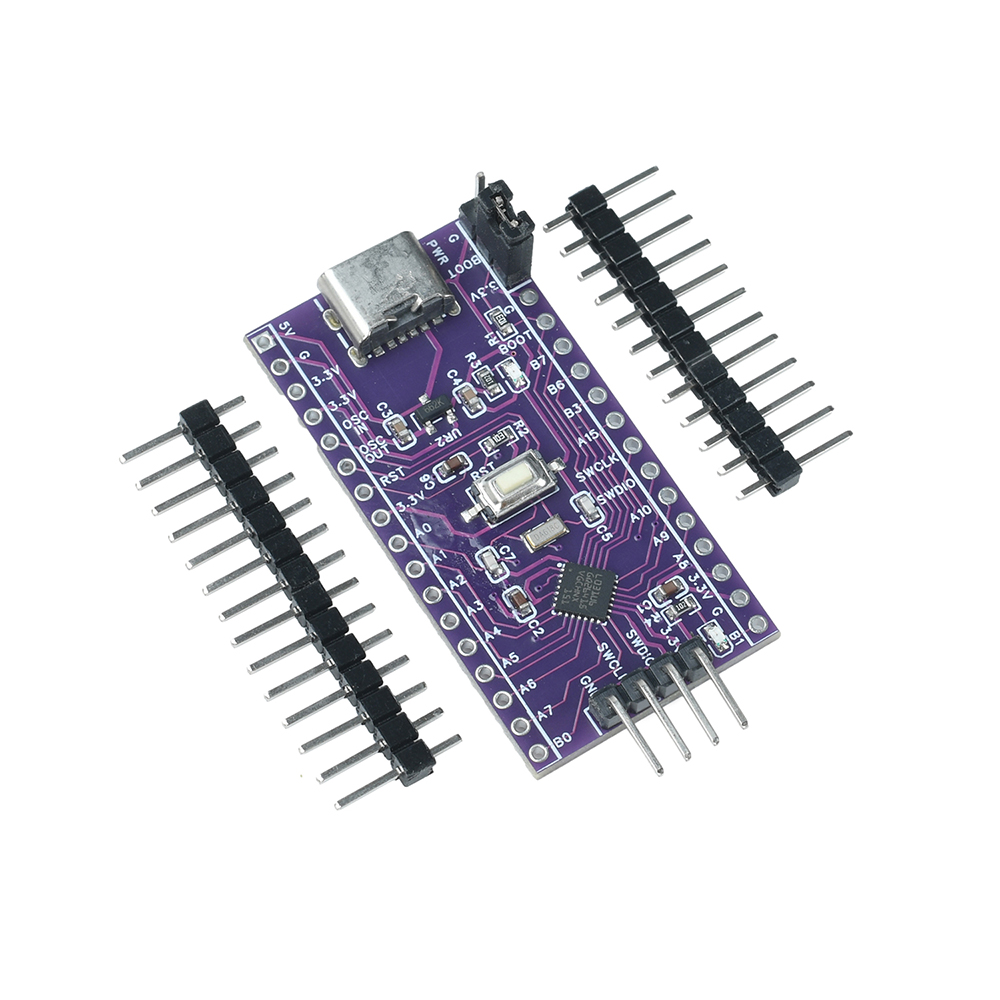

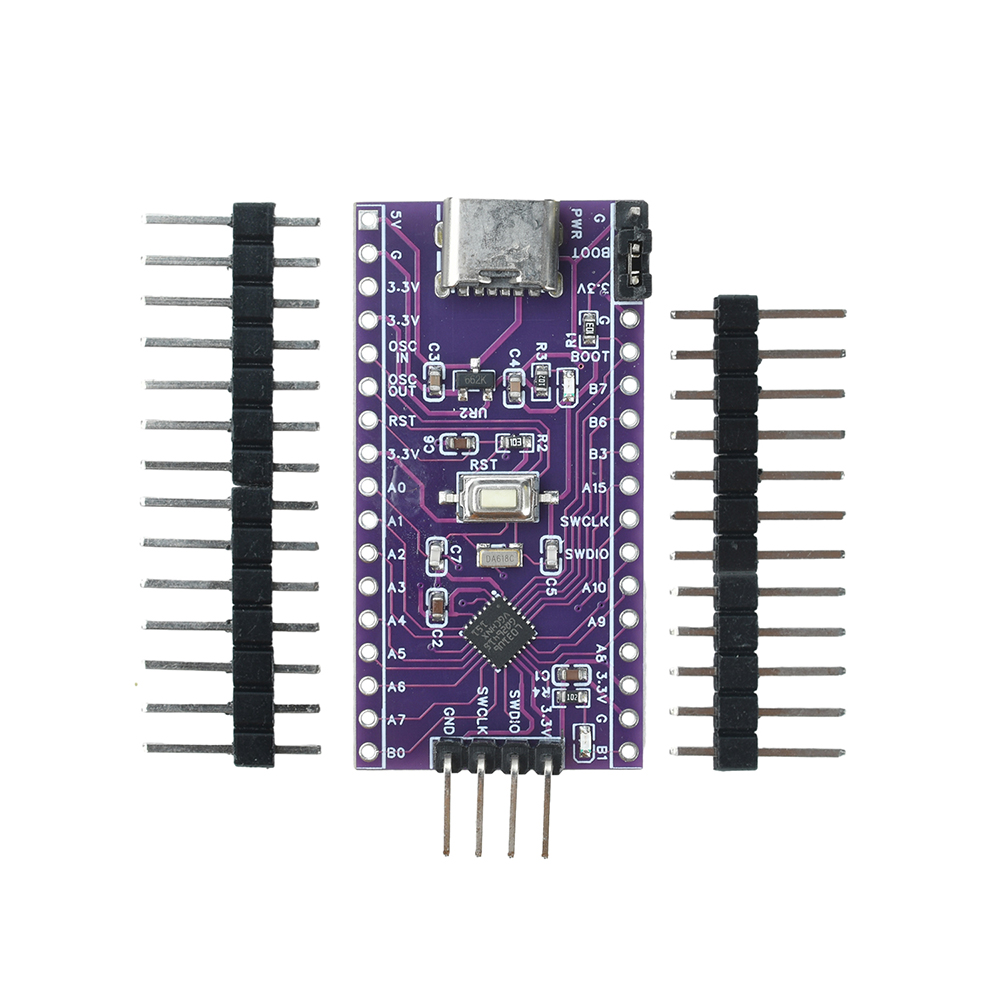

Product List:
1× Development Board
2× Pin Header
