JAM Precision Sine Bar – 100 mm

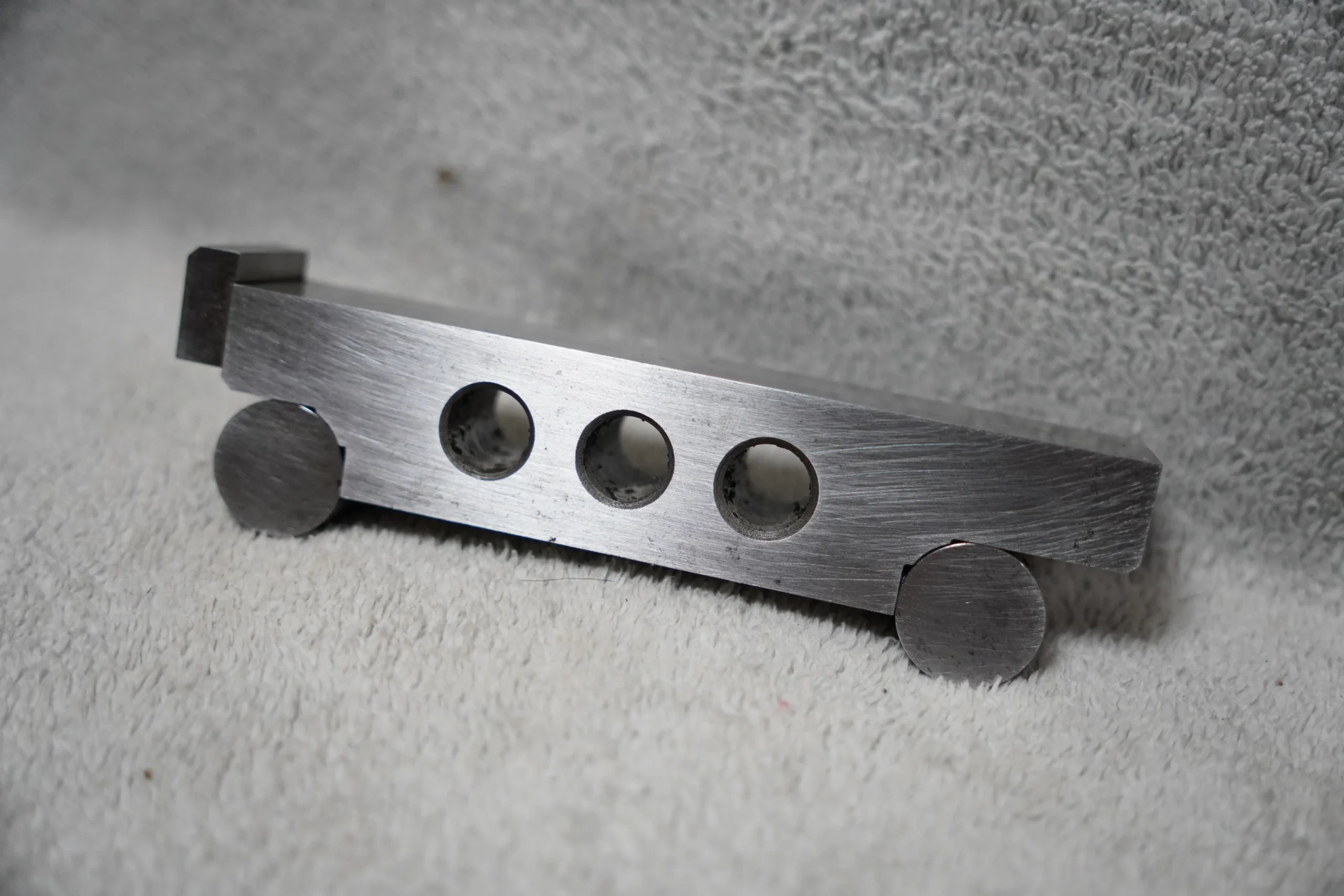

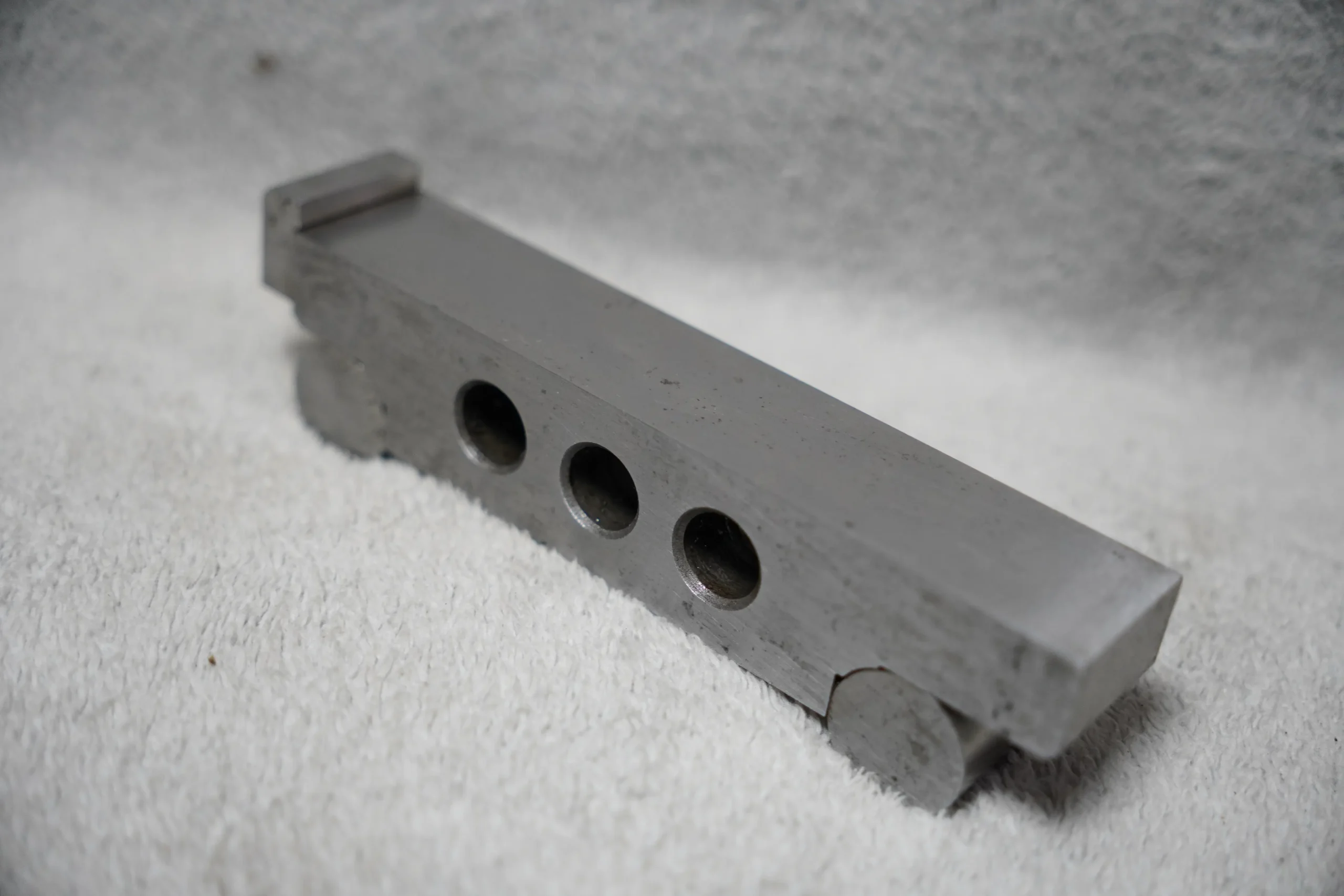

This JAM Precision Sine Bar is designed for accurate angular setup using gauge blocks. The hardened steel body and precision‑ground faces provide stable, repeatable geometry for grinding, inspection, jig building, and toolmaking.
The compact 100 mm length makes it ideal for tight setups, small fixtures, and surface‑grinder work where a full‑size sine bar is too large. JAM is known for producing reliable Japanese metrology tools with consistent accuracy and workshop durability.
Brand Information
JAM (Japan) A respected manufacturer of precision measuring tools used in machining, toolmaking, and inspection environments.
Features and Performance
- 100 mm sine length — Compact and ideal for small setups.
- Precision‑ground reference faces — Ensures accurate angle calculation.
- Hardened steel construction — Stable, rigid, and wear‑resistant.
- Cylindrical rolls — Accurate spacing for gauge‑block stacking.
- Japanese build quality — Reliable and workshop‑ready.
Included
• 1 × JAM Precision Sine Bar
• No storage case
Specifications
| Feature | Specification |
|---|---|
| Brand | JAM |
| Type | Precision Sine Bar |

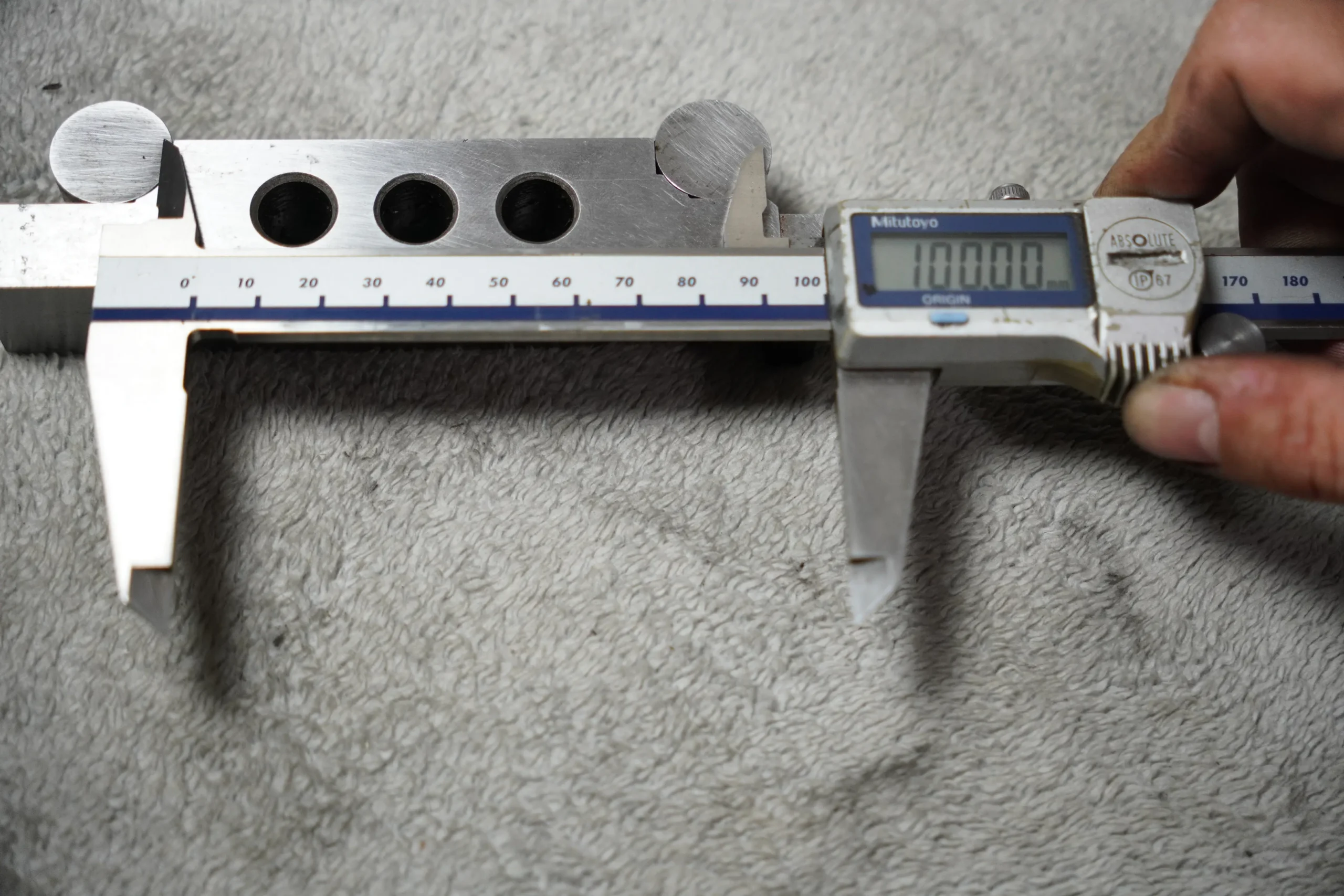

| Sine Length | 100 mm |
| Roll Diameter | ~20 mm |

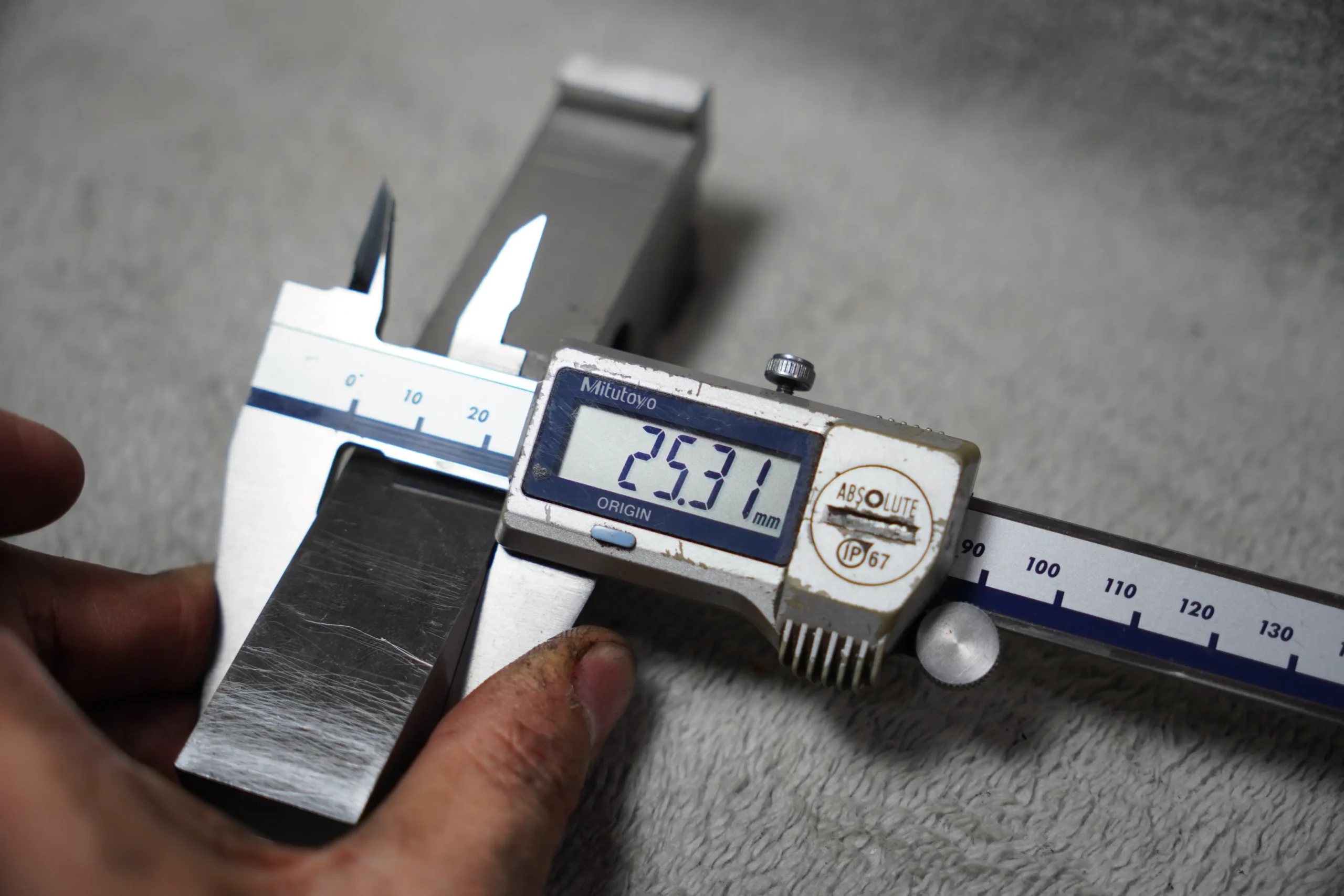

| Width | 25.31 mm (measured) |

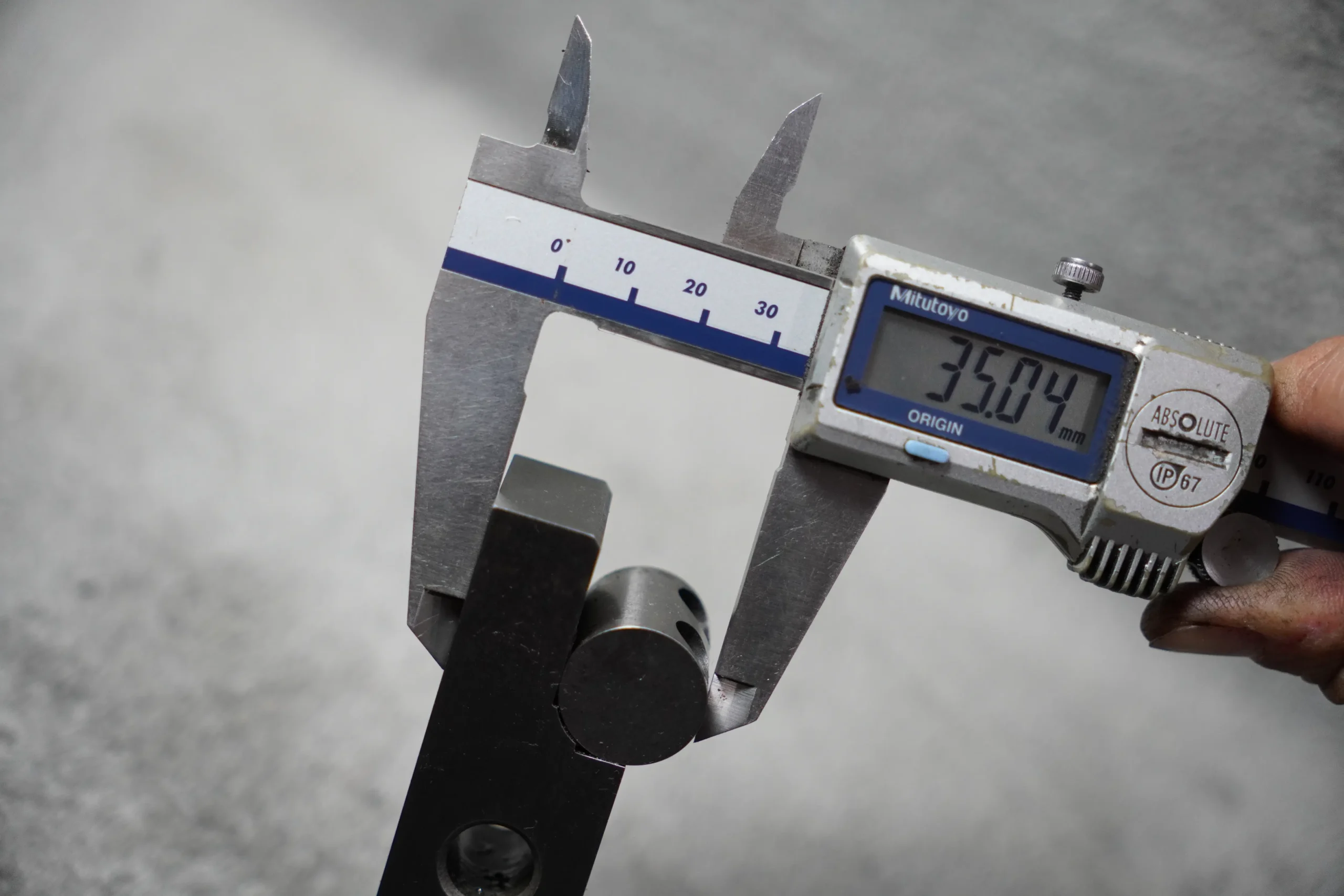

| Height | ~35 mm (body only) |
| Construction | Hardened steel |
| Included Items | Sine bar + case (if shown) |
| Country of Origin | Japan |
