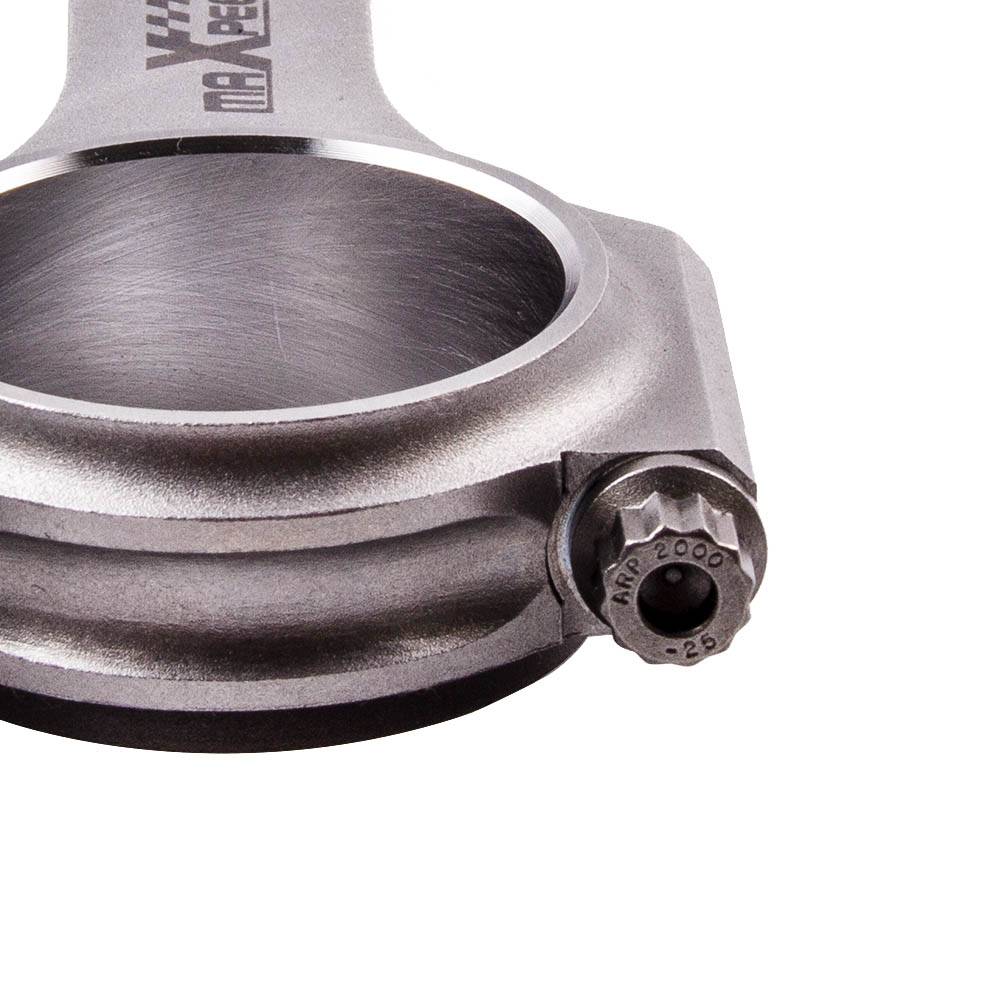

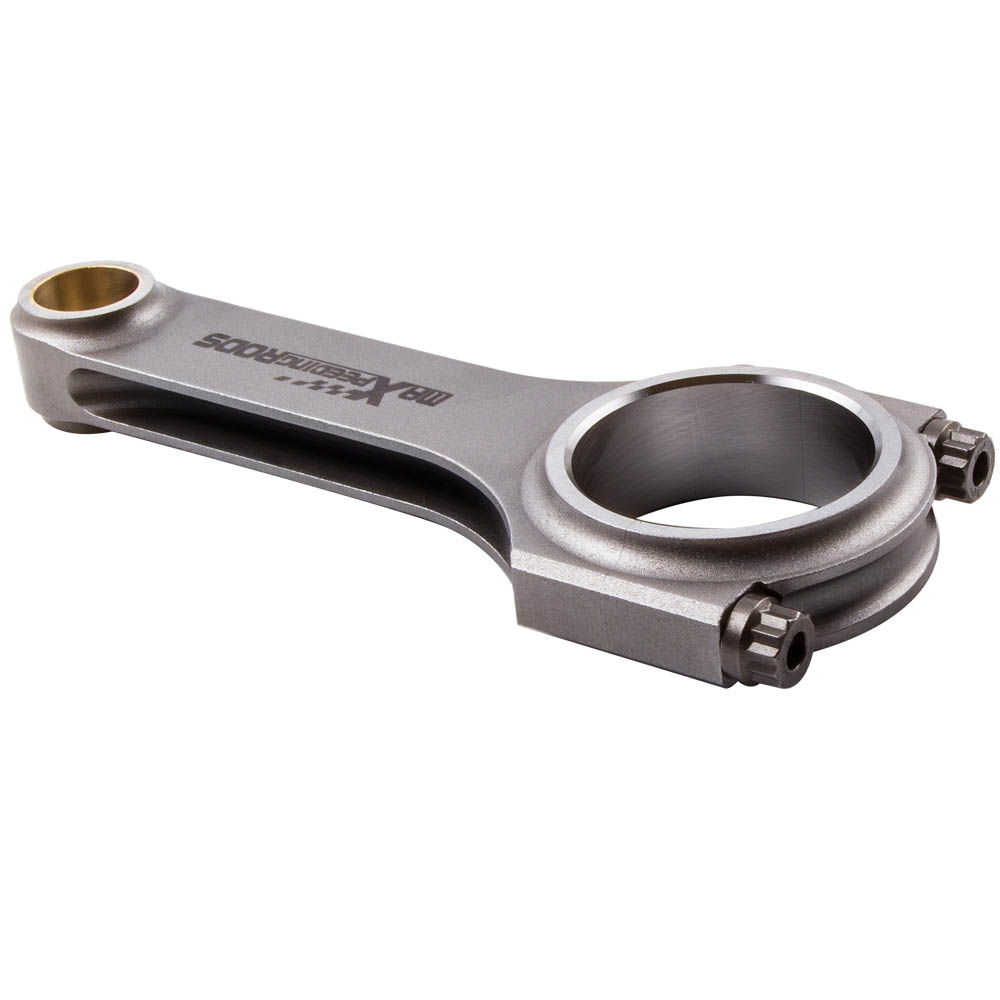

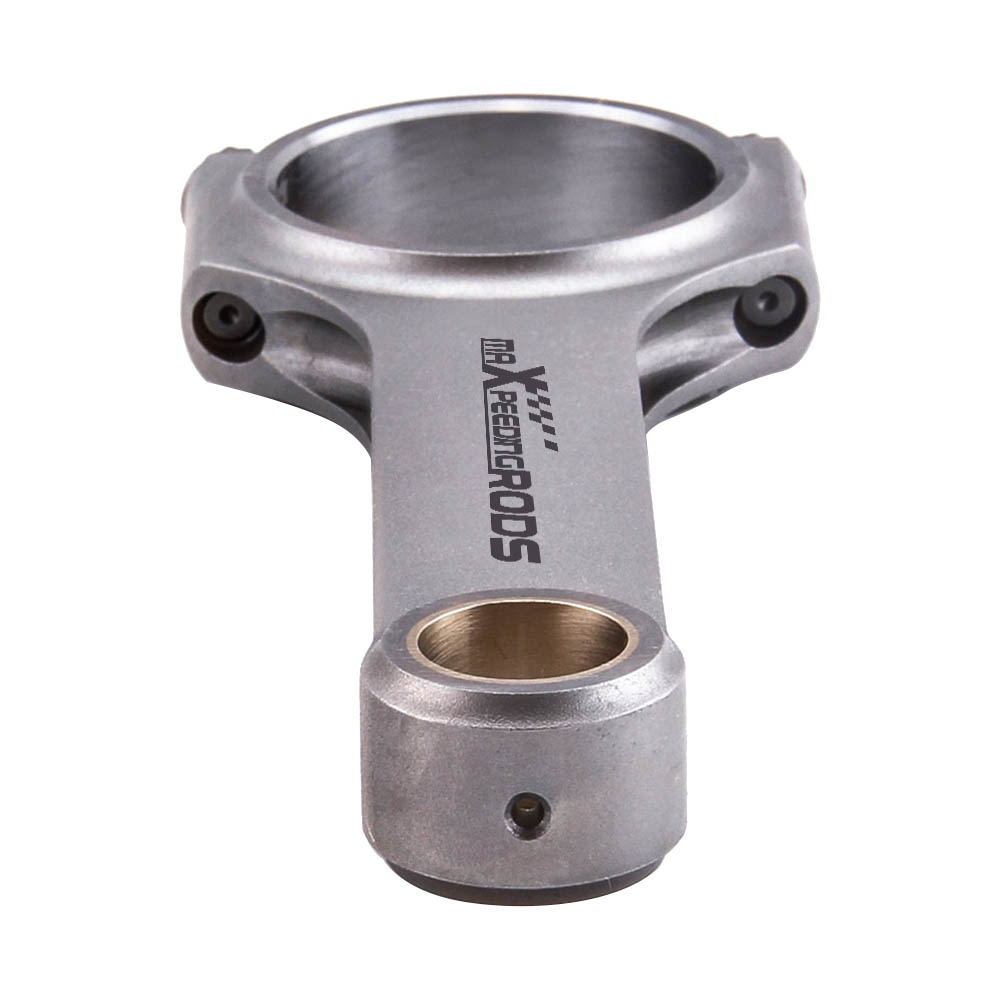

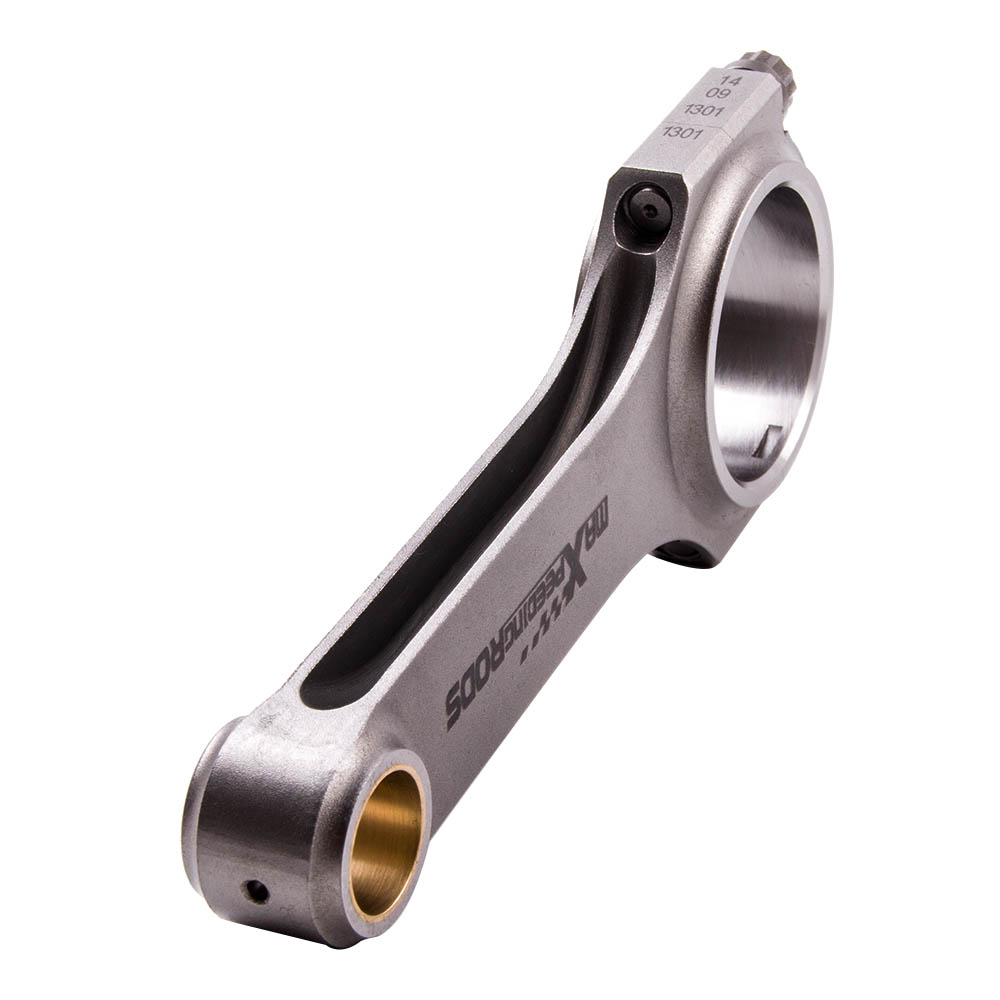

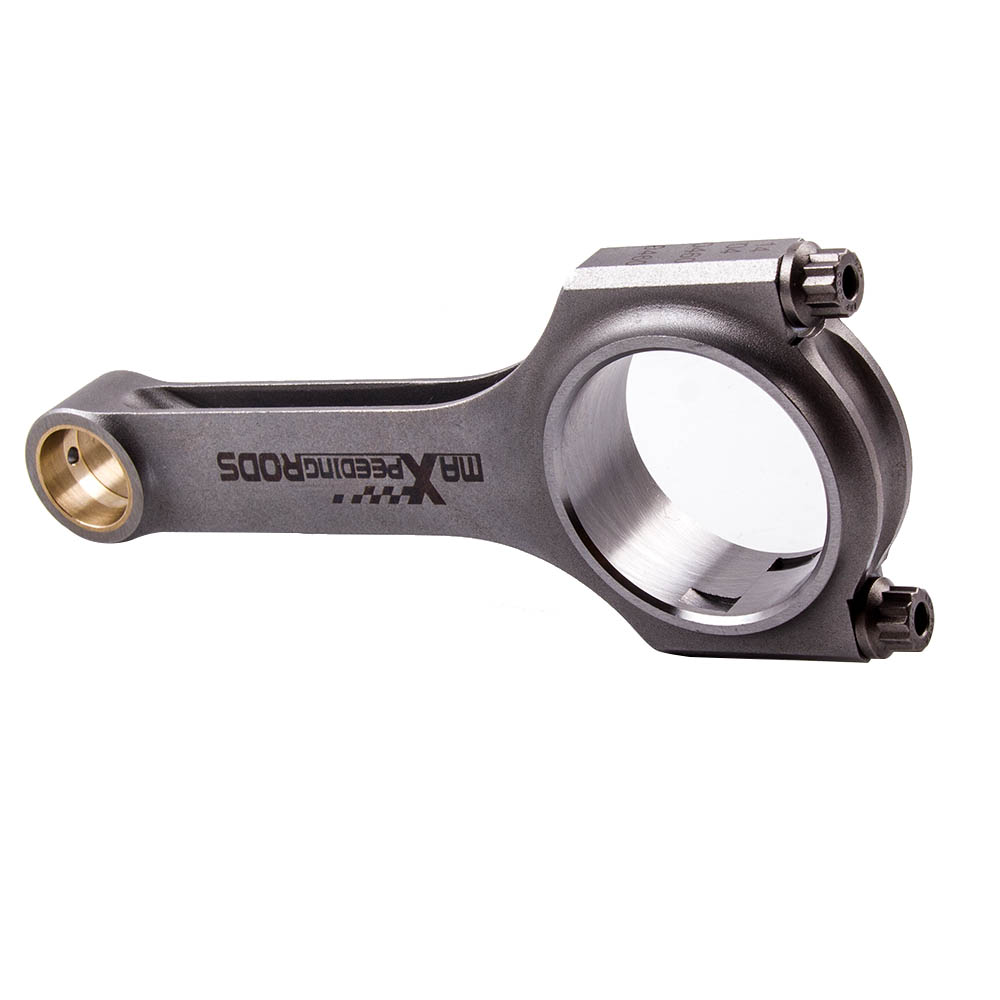

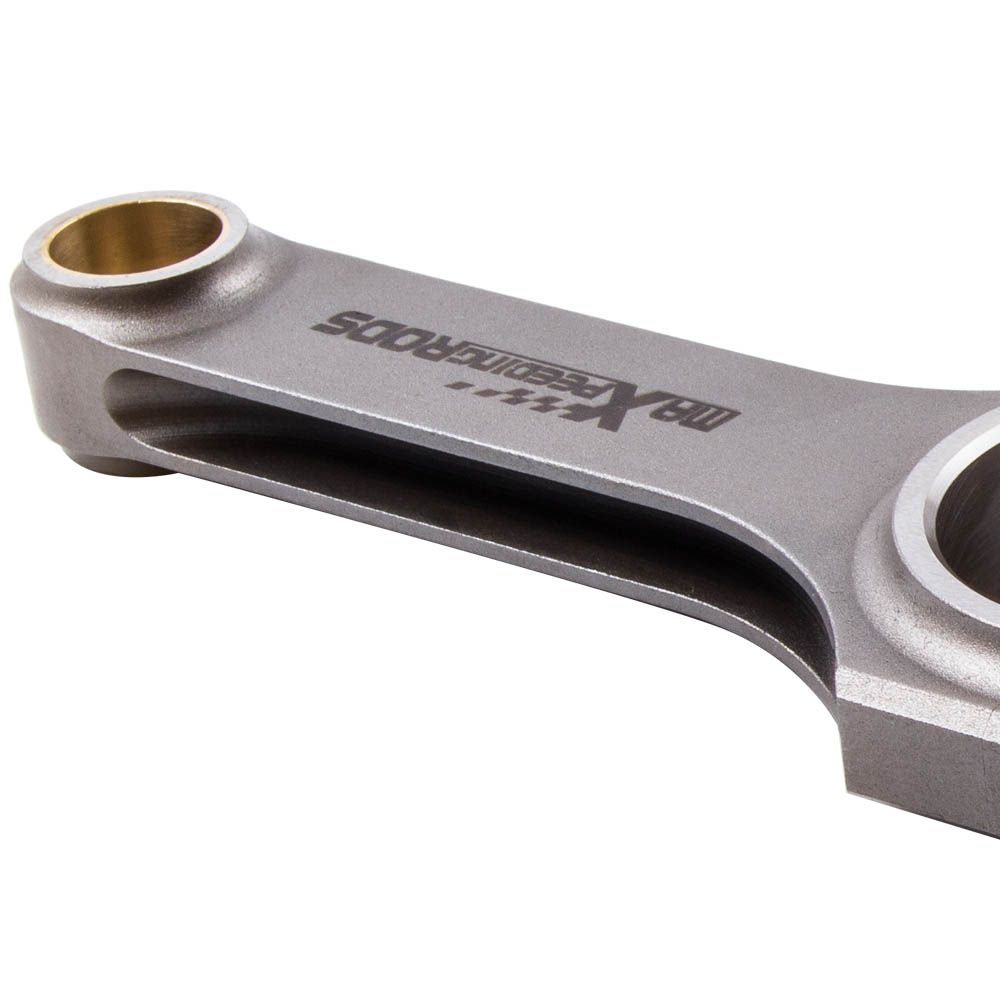

H-Beam Connecting Rods for Honda Accord 92-01 Prelude H22 DOHC 2.2L 143mm New

Images

H-Beam Connecting Rods for Honda Accord 92-01 Prelude H22 DOHC 2.2L 143mm New H-Beam Connecting Rods for Honda Accord 92-01 Prelude H22 DOHC 2.2L 143mm New H-Beam Connecting Rods for Honda Accord 92-01 Prelude H22 DOHC 2.2L 143mm New H-Beam Connecting Rods for Honda Accord 92-01 Prelude H22 DOHC 2.2L 143mm New H-Beam Connecting Rods for Honda Accord 92-01 Prelude H22 DOHC 2.2L 143mm New H-Beam Connecting Rods for Honda Accord 92-01 Prelude H22 DOHC 2.2L 143mm New



All modifications must be installed by licensed mechanics and in compliance with your local modification regulations

​​​​​​​

Application

For Honda Prelude (1992-2001) – Fits H22A/H22A1 2.2L DOHC VTEC engine
For Honda Accord 2.2L (1990-2002) – Fits H22A/H22A1 2.2L DOHC VTEC engine
For Honda Accord 2.3L (1990-2002) – Fits F-series engine (F22/F23), not H22 series
Pin Type: Floating Pin Piston





Specification

Beam Style: H-beam Street/Strip
Material: 4340 Chromoly Steel
Finish: Shot-peened
Wrist Pin Style: Floating
Clearanced for Stroker: Yes
Cap Retention Style: Through-bolt
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 3/8"
Connecting Rod Bolt Material: Alloy Steel
Fastener Yield Strength (psi): 220,000 psi (ARP 2000)
Connecting Rod Bolt Head Style: 12-point
CNC Machined: High Precision
Rod Cap Alignment: Precision dowels
Bore Tolerance: ±0.005 mm
Balancing: ±1 gram per rod
Weight Matched Set: Yes
Remanufactured: No
Testing: Magnafluxed, X-rayed, Ultrasonically tested
Heat Treated: Yes





Dimension

Connecting Rod Length Center to Center: 143.00mm/5.630in
Approximate Connecting Rod Weight:563g
Big End Bore Diameter: 51.00mm/2.008in
Pin End Bore Diameter: 22.00mm/0.866in
Big End Width：23.75mm/0.935in
Small End Width: 23.75mm/0.935in





Performance Ratings

Advertised Horsepower Rating: 200HP/piece
Advertised RPM Rating: 9000rpm





Packaging

Quantity: Sold as a set of 4
Package Size: 28CM*20CM*10CM



Other items you might also like

  • Cooling System Water Pump for Mercedes CLA45 C117 2014-2019 0005001986 Cooling System Water Pump for Mercedes CLA45 C117 2014-2019 0005001986

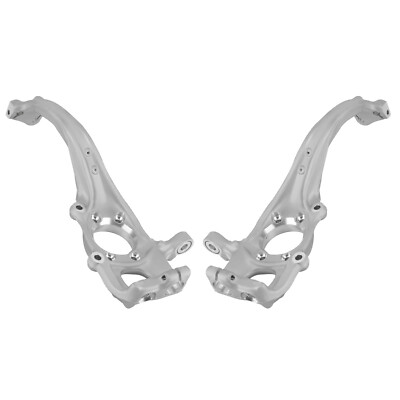

  • Front Axle Steering Knuckle for Audi A4 B8 Quattro 2008-2009 8K0407254R Pair Front Axle Steering Knuckle for Audi A4 B8 Quattro 2008-2009 8K0407254R Pair
  • Front Air Spring Bag Strut For Mercedes ML / GL-Class W164 X164 1643205913 UK Front Air Spring Bag Strut For Mercedes ML / GL-Class W164 X164 1643205913 UK
  • Front Height Level Sensor For Land Rover Range Rover L322 MK3 3.6 4.2 4.4 02-12 Front Height Level Sensor For Land Rover Range Rover L322 MK3 3.6 4.2 4.4 02-12
  • 3pc Stubby Ratchet Handle Set 72T 1/4 3/8 1/2 Drive for Car Maintenance 3pc Stubby Ratchet Handle Set 72T 1/4 3/8 1/2 Drive for Car Maintenance

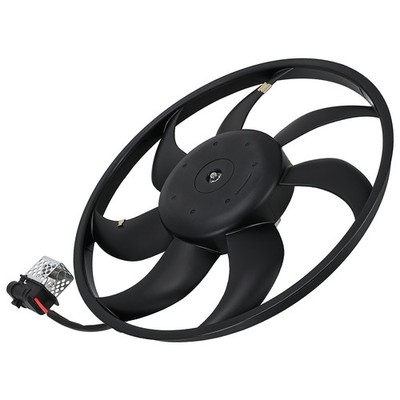

  • Cooling Fan Assembly for Opel Astra Classic Stufenheck 13205947 Cooling Fan Assembly for Opel Astra Classic Stufenheck 13205947
