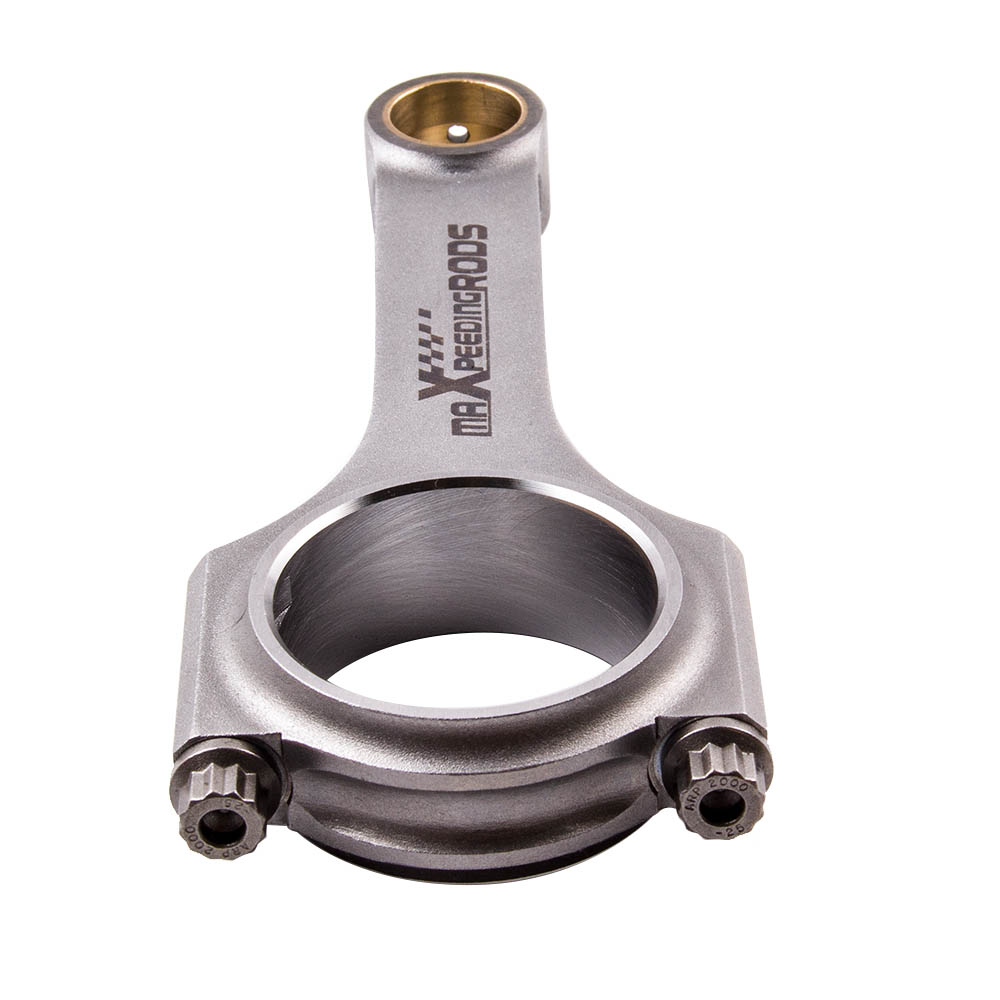

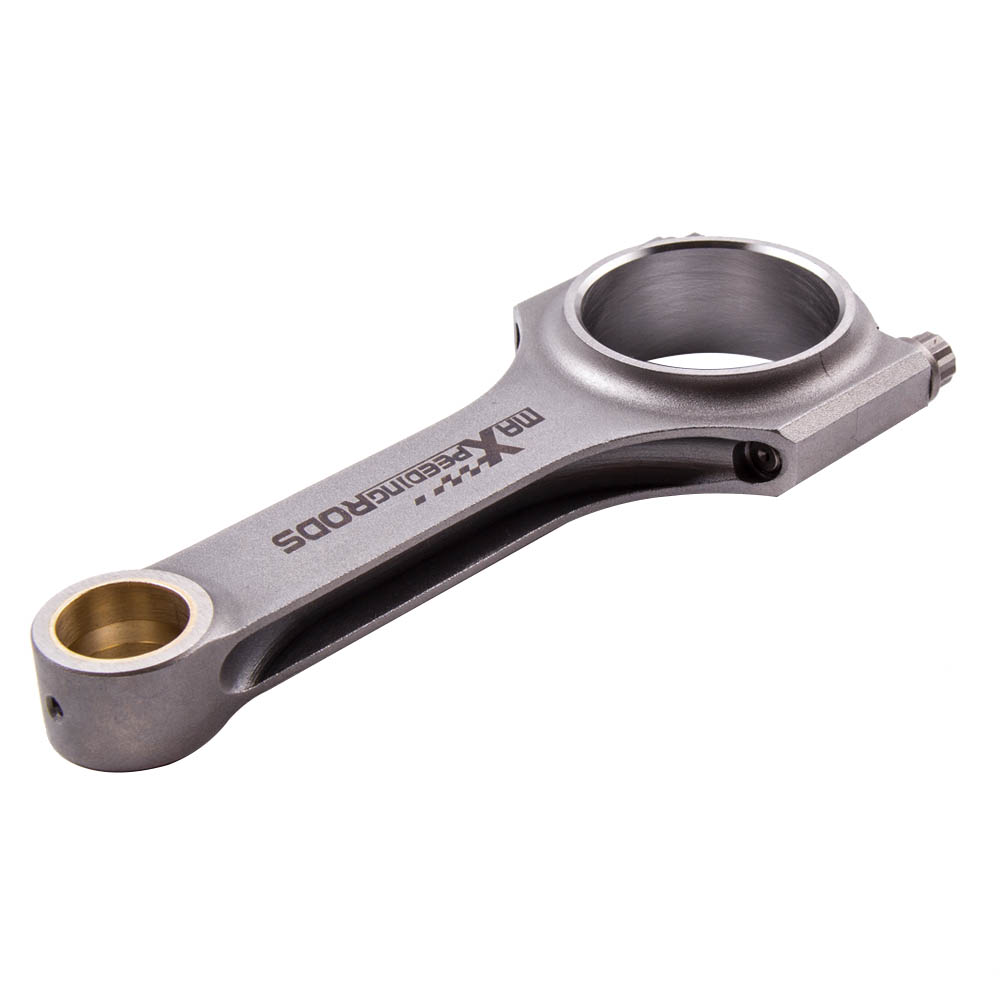

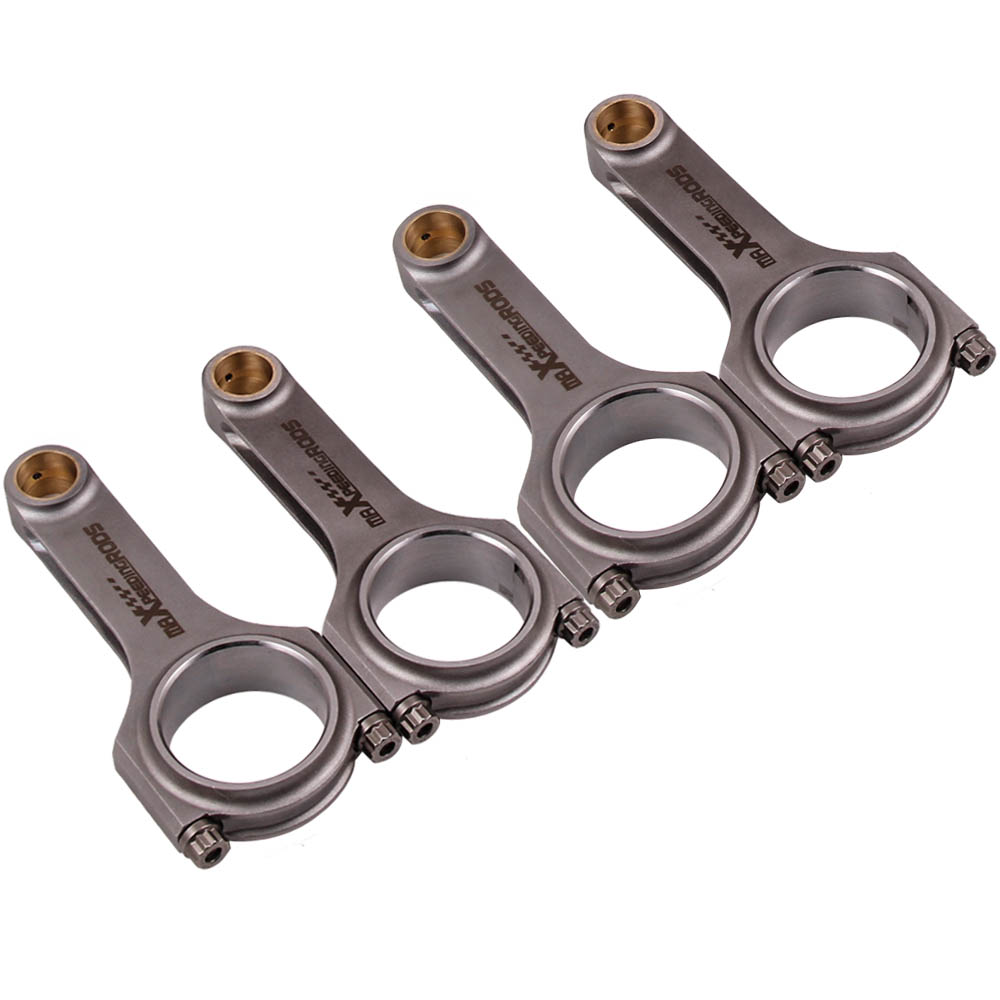

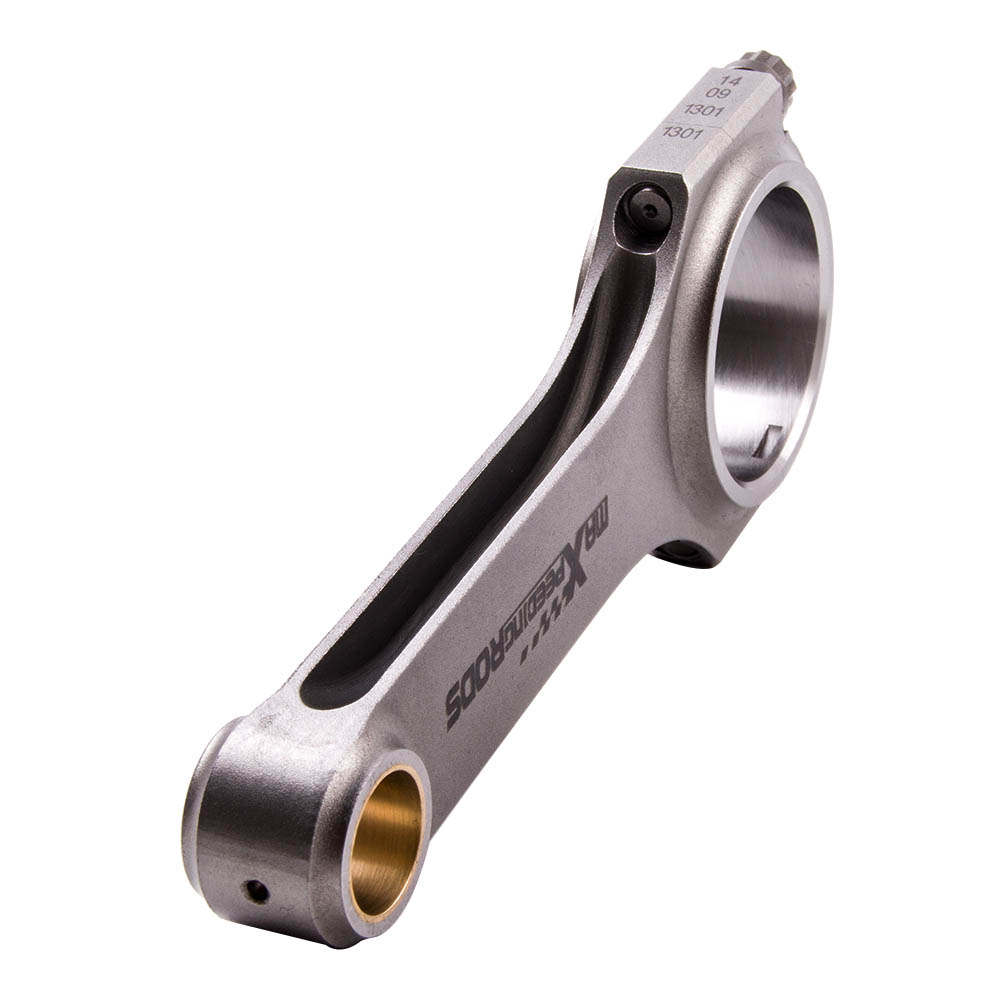

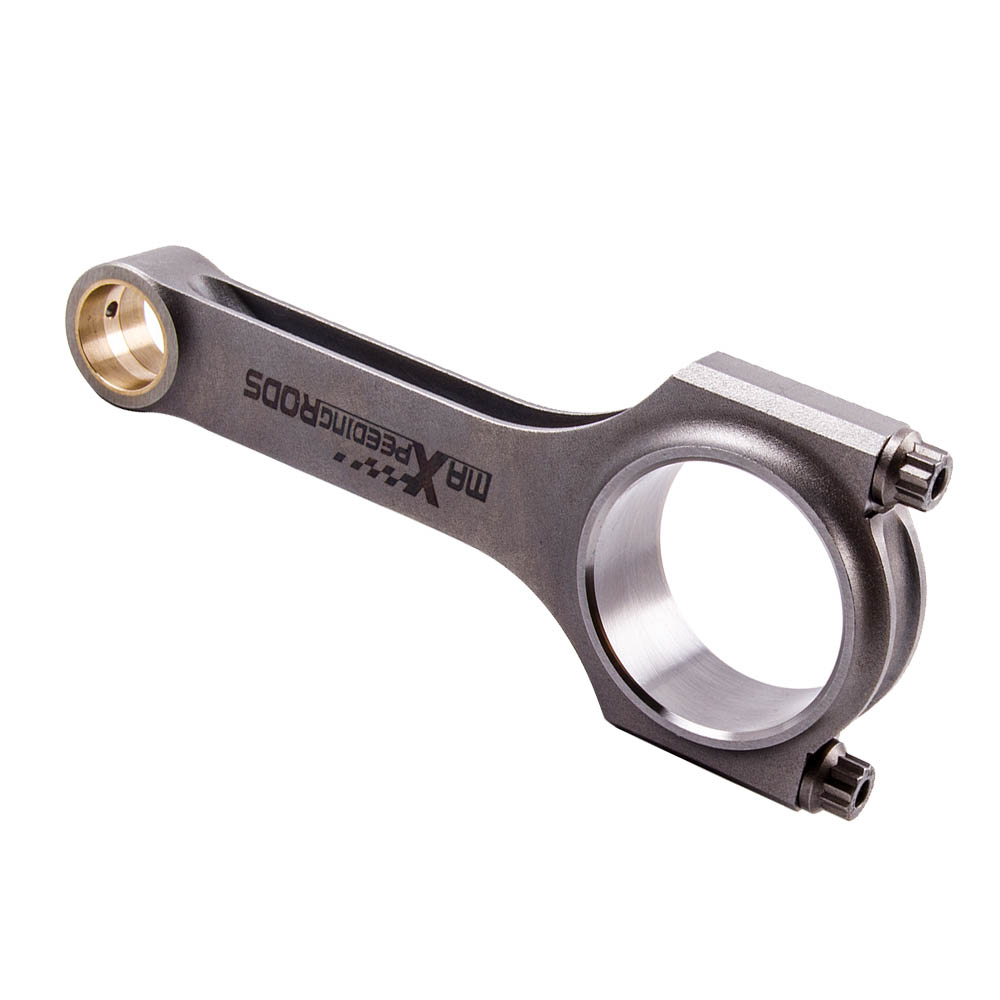

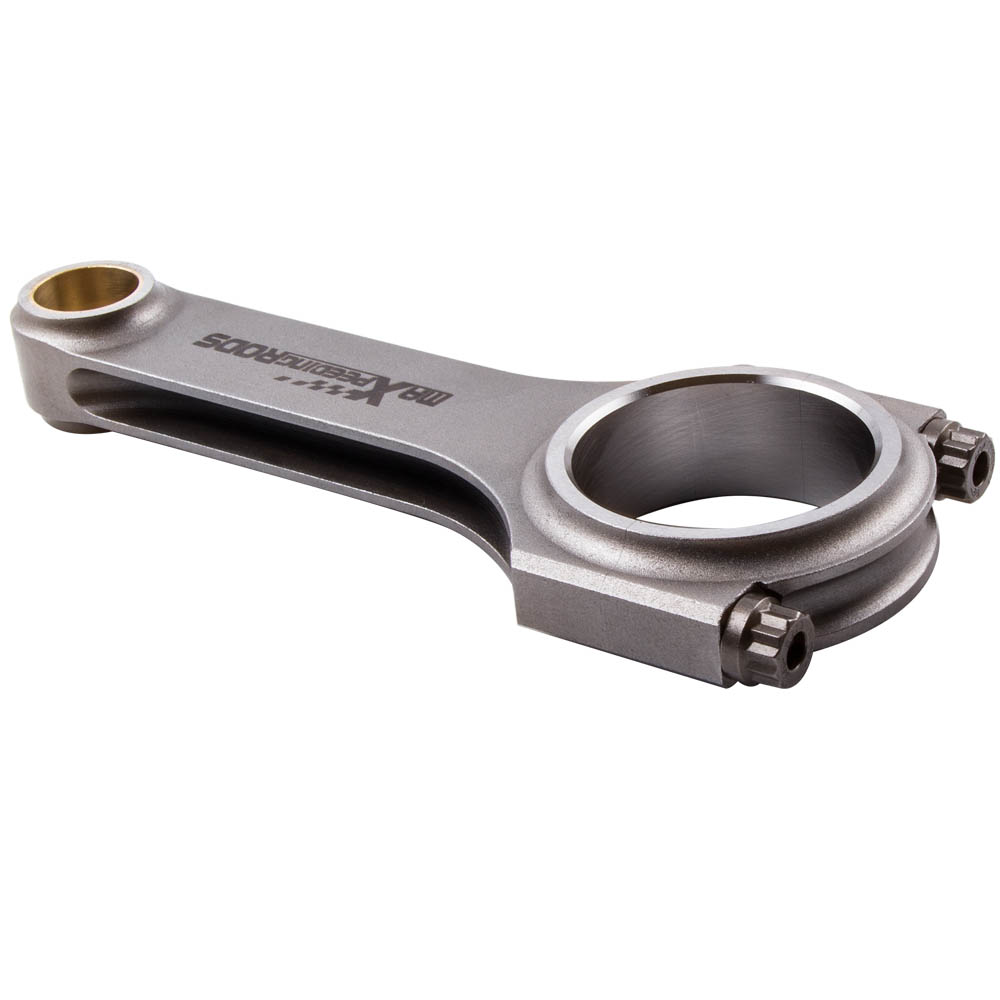

Connecting Rods for Ford Sierra Escort RS Cosworth YB Series 2.0 H Beam Conrods
Images
All modifications must be installed by licensed mechanics and in compliance with your local modification regulations
Please Carefully check the Size of the Rods in Specific and Description
Specification
TüV Certification Con Rods
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800hp per set
Strength of the fastening (PSI): 220.000/230.000 PSI
Torque: 48ft ≈ 65 NM
Top speed: 9000rpm
Quantity: 4 Pieces a set
Bolts: Including 3/8" ARP 2000 bolts (Note: Extra cost for upgrading to ARP L19 bolts)
Material: Forged 4340 aircraft chrome moly quality steel for racing
Weight Tolerance: Balanced to +/- 1 gram in set
Application
for Ford Sierra Escort RS Cosworth YB
Dimensions
Center to center length: 133.58mm
Big end diameter:55mm
Small end diameter: 24mm
Big end width: 25.9mm
Small end width: 25.9mm
NOTE
* Professional installation is highly recommended (Instruction Included. (If not, we could offer you the E-book version. ))
