Application:

For Small engine snowmobiles Quads Rhino Motorcycle ATV 500-600ccm  100HP，
For Suzuki ALTO Works with YA1 F6AT Engine，
For Suzuki  ALTO Works with 21R707-0011-G1 Engine

Turbo Modele: VZ21

Engine: YA1, F6AT, for Isuzu 4TNA，21R707-0011-G1 Engine

Numéro de pièce & OEM:

VZ21, RHB31
VE110069

13900-62D51, 1390062D51
1390062D50, 13900-62D50

Specification:
Cooled Type：Water and oil cooled
Bearing Type: Journal Bearing
fit for ：500 cc to about 1000cc
Internal-wastegate ：15psi
Horse Power: 23-100HP

Compressor Wheel
major diameter(outlet exducer):37.1mm
Compressor Inducer :24.2 mm
Trim(comp):42.5

Turbine Wheel
major diameter(inlet inducer):35mm
Turbine Exducer Diameter:26.7mm
Trim(exhaust):58.2
Comp A/R:0.7

Quantity:

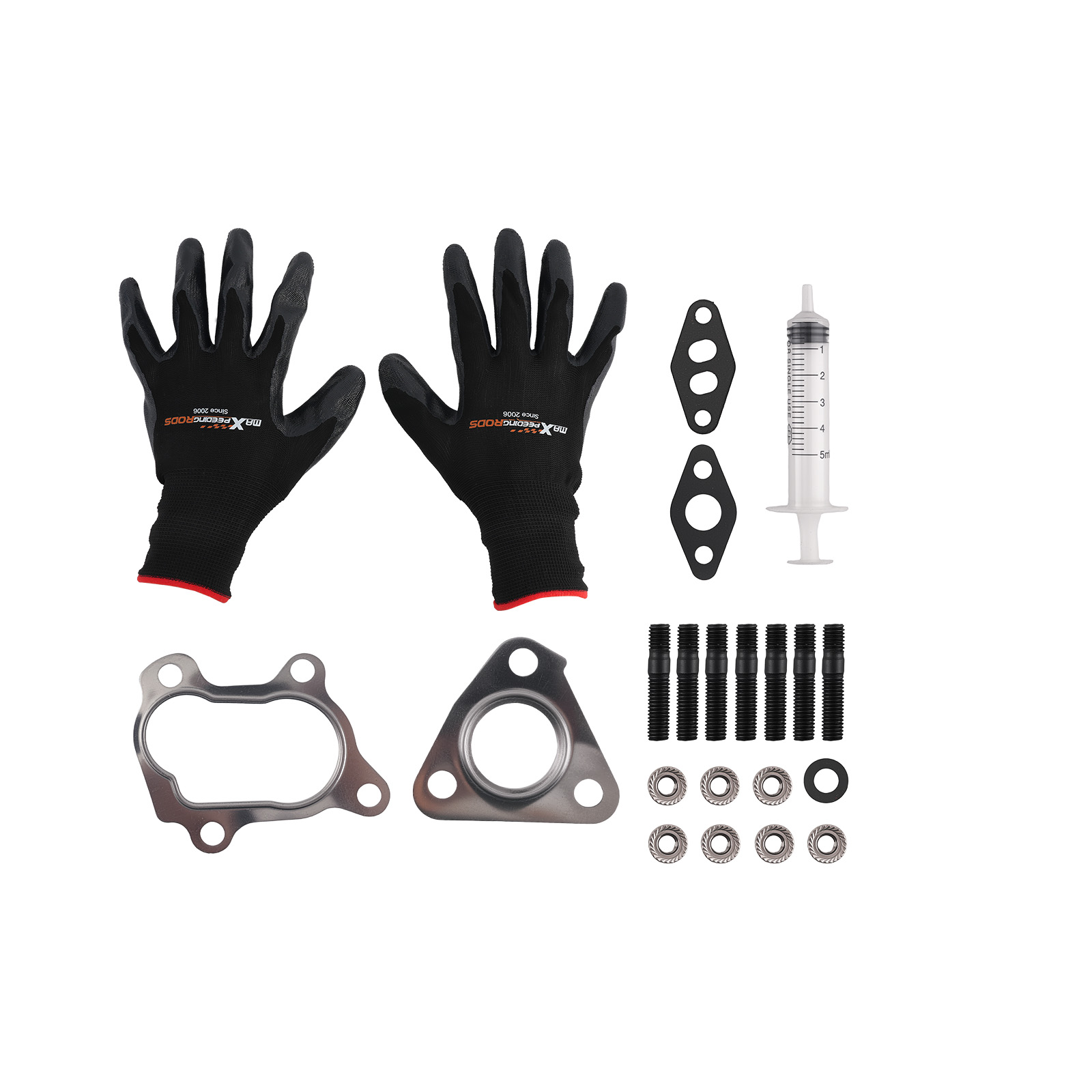

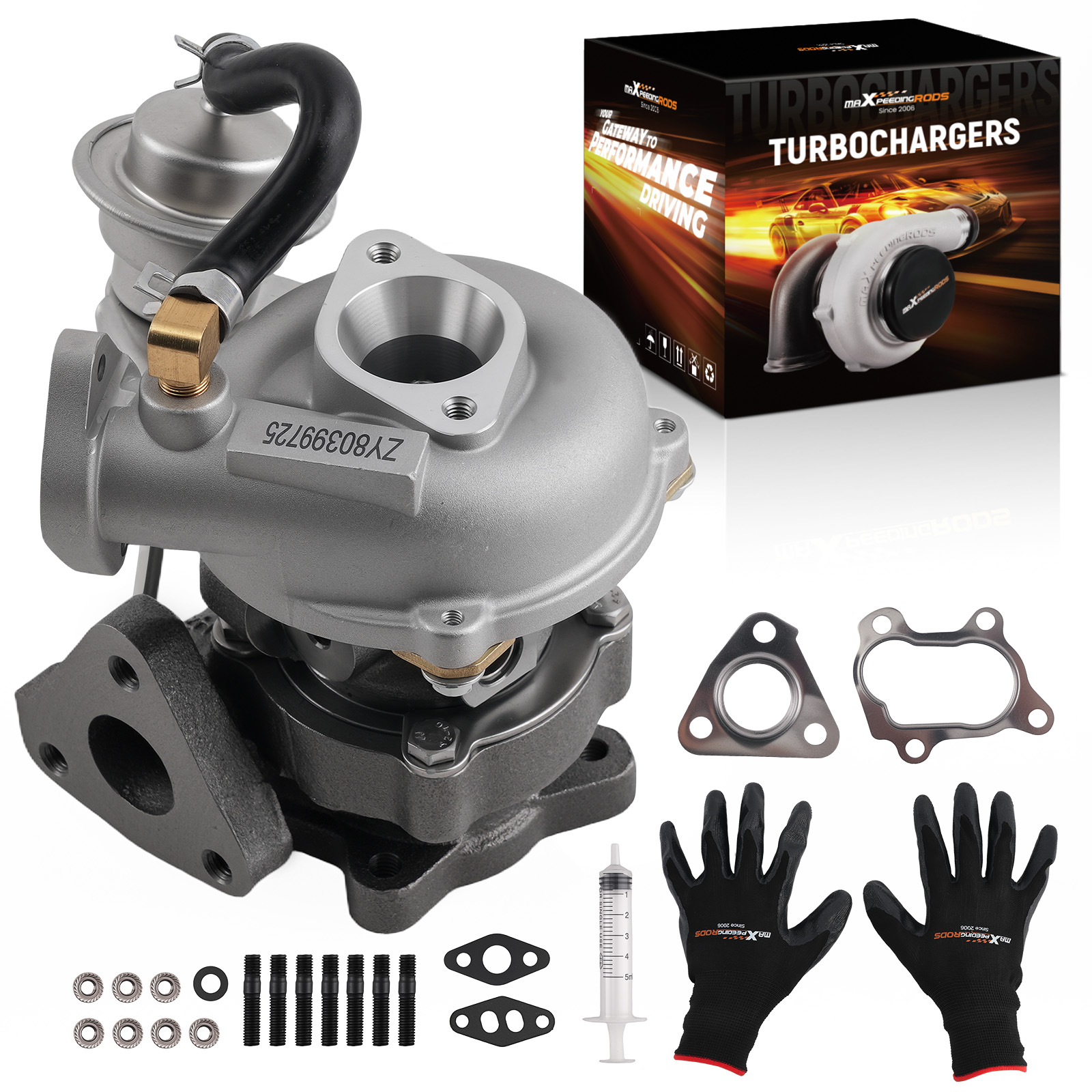

1 set as picture shows ( you will get exactly as picture shows)

Advantage:

Product Material：
1. Turbine housing ：Ductile iron QT450-10 shell with high-temperature resistance up to 700 degrees Celsius
2. Steel Turbine Wheel：Made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 degrees Celsius
3. Compressor housing：ZL104 aluminum with lightweight
4. compressor wheel/blades：Cast aluminium with good gas tightness and corrosion resistance

Product  ：
1. OEM-quality and size with little modification
2. Rich Experience In Turbo Production And Own Factory
3. Quality Assurance
4. High Rotor
5. High-Speed Oil Seal Ring
6. Strict Quality Inspection
7. Precision Clearance
8. High-speed Accessories


REMARQUE:

-Instruction Ne sont pas inclus.installation professionnelle est recommandée

-Accessoires: Vous pouvez obtenir exactement montrant dans l'image

Note:

1. 100% balancing Test by TURBOTECHNICS  VSR3

2. G3-min-Flow VNT Turbo testing

3. Please confirm your old turbo part number matches up with one of the part numbers above

4. Professional installation is highly recommended (No Instruction Included)
