All modifications must be installed by licensed mechanics and in compliance with your local modification regulations

Application

Compatible for Toyota Supra 2JZ 2JZ-GE/GTE Engine
Compatible for Toyota Altezza AS300/Compatible for Lexus IS300 1991-2004 3.0L
Compatible for Toyota Aristo/Compatible for Lexus GS300 1998-2005 3.0L
Compatible for Toyota Crown/Compatible for Toyota Crown Majesta S140 S150 1991-2004 3.0L
Compatible for Toyota Mark II X90 1992–1996 3.0L
Compatible for Toyota Mark II X100 1996–2000 3.0L
Compatible for Toyota Chaser X90; 1992–1996 3.0L
Compatible for Toyota Chaser X100; 1996–2001 3.0L
Compatible for Toyota Cresta X90 series 1992–1996 3.0L
Compatible for Toyota Progres Z30 series 1991–2000 3.0L
Compatible for Toyota Soarer / Compatible for Lexus SC300 Z30 1991-2000
Compatible for Toyota Supra A80 1993–2002 2,997 cc
Compatible for Toyota Aristo 3.0V JZS147 (Japan-only)
Compatible for Toyota Aristo V300 JZS161 (Japan-only)
Compatible for Toyota Supra RZ/Turbo JZA80
--
Pin Type: Floating Pin Piston

Specification

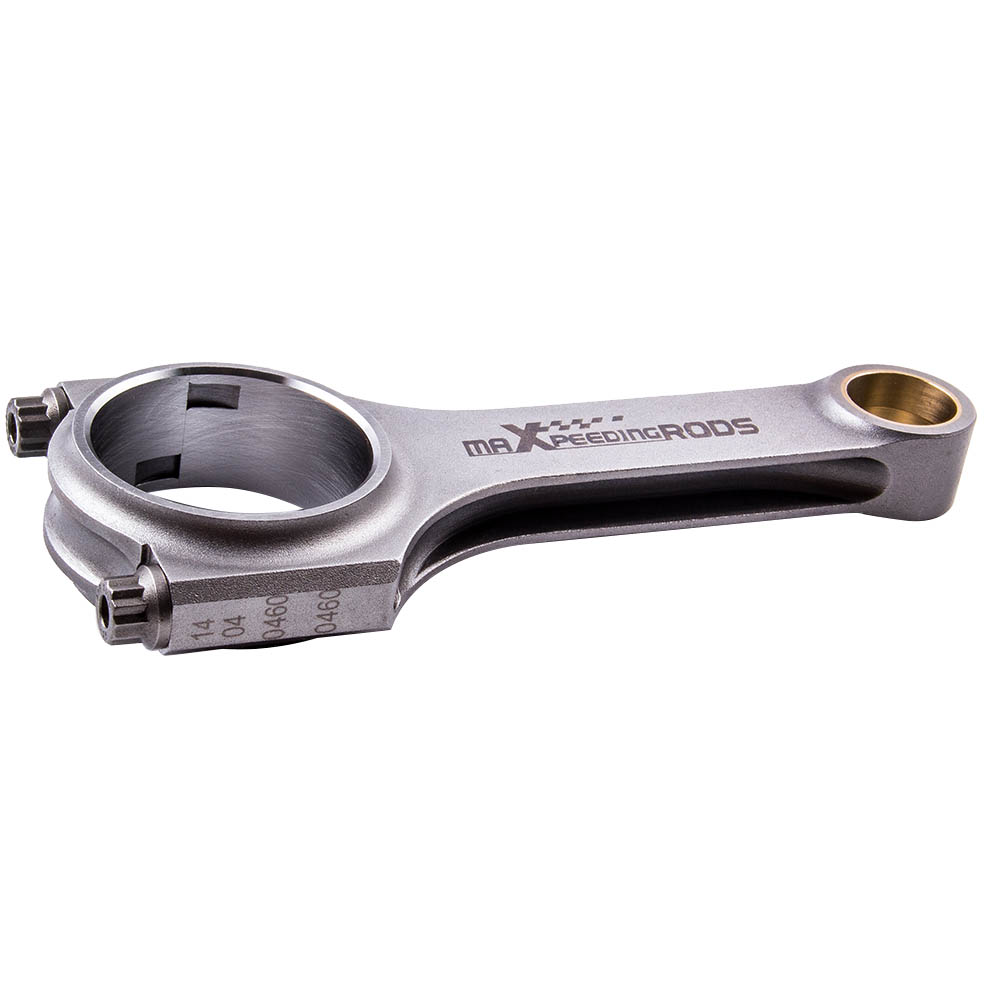

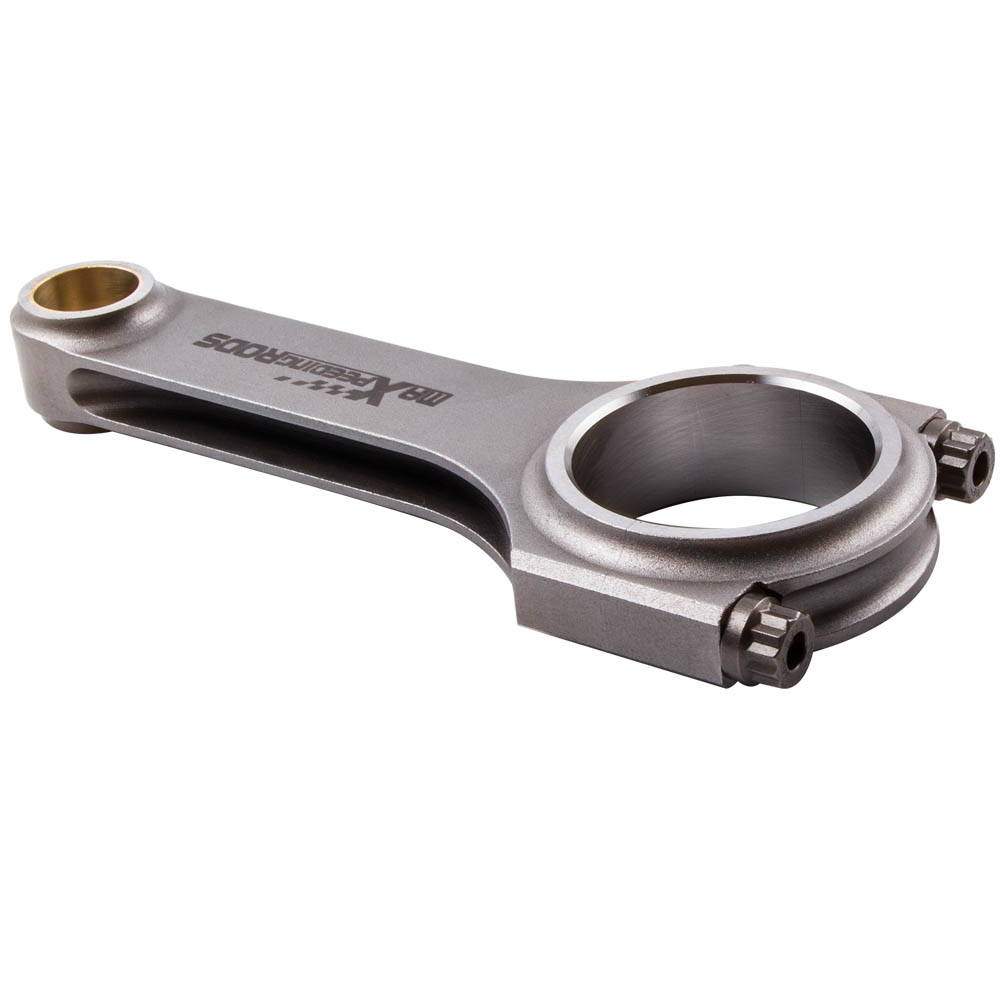

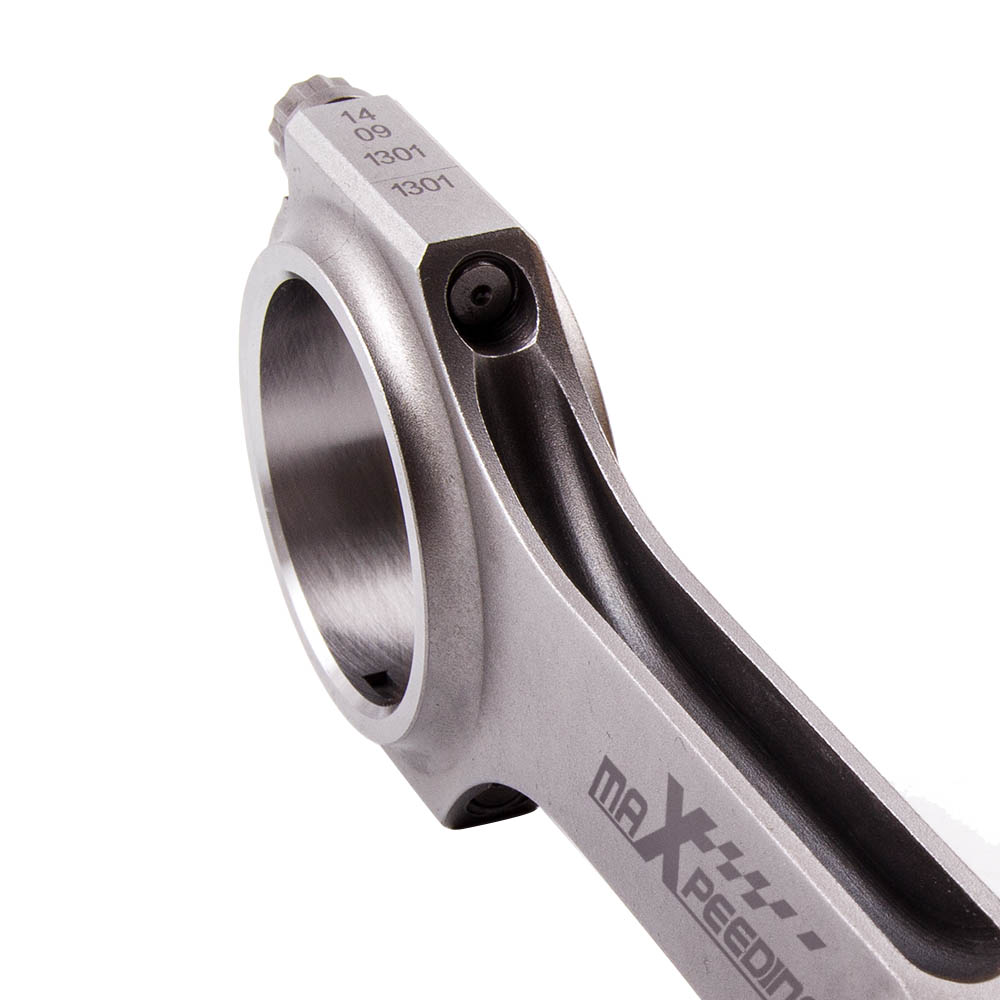

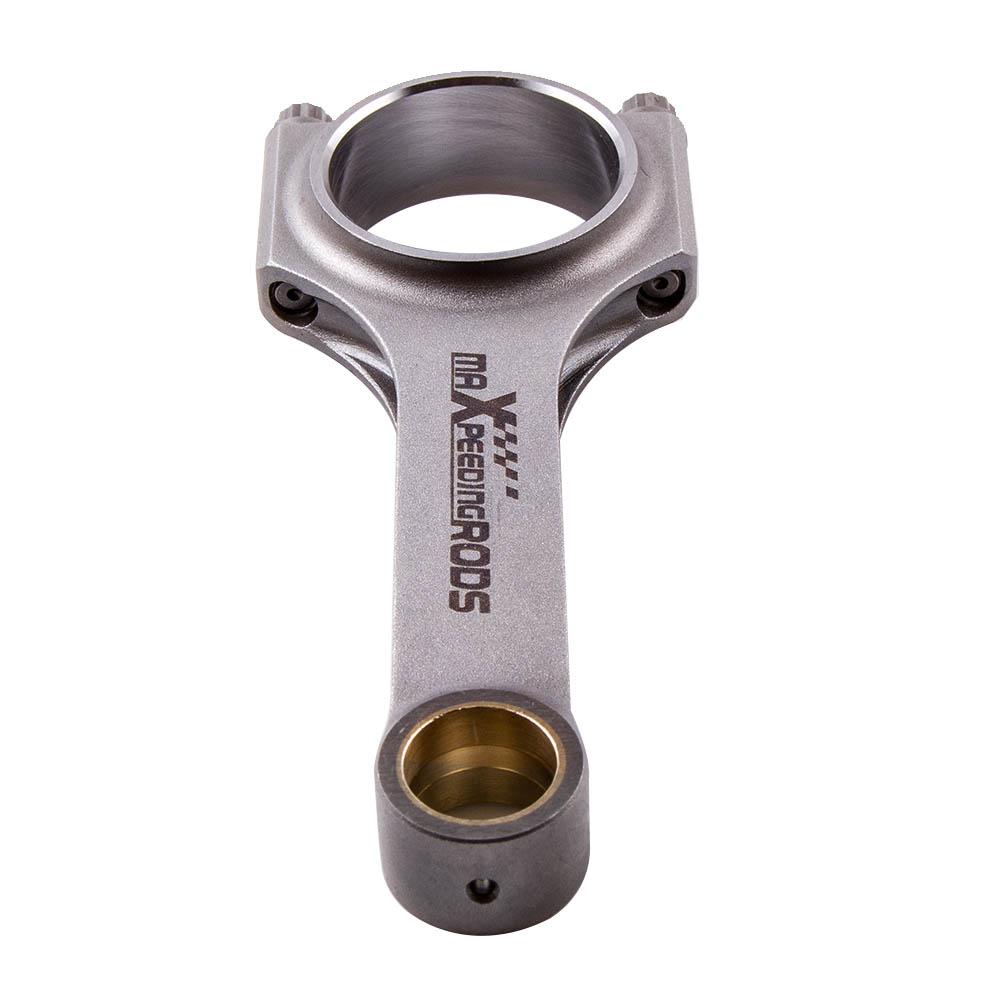

*Type: Forged 4340 aircraft chrome moly quality steel for racing

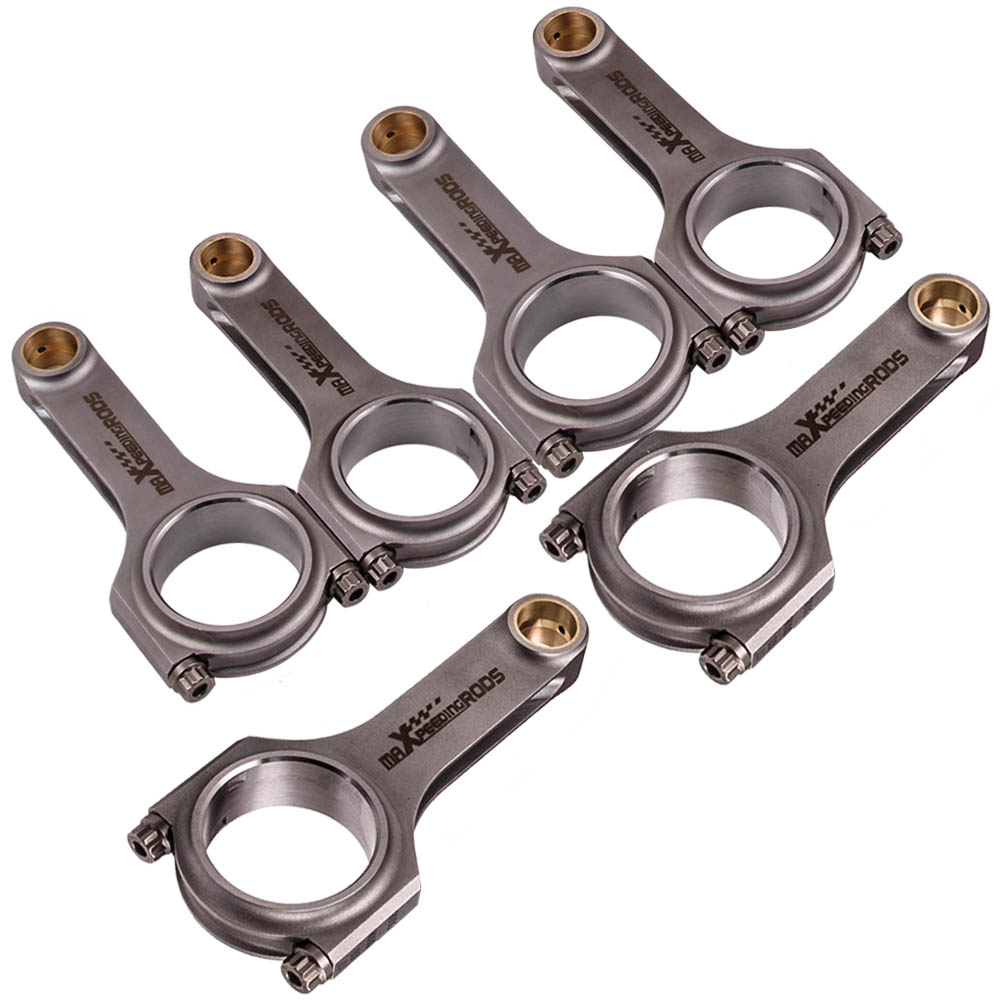

*H-beam Conrods Quantity: 6 Pieces as showing in picture
*Bolts: Including ARP 2000 3/8" bolts  (Note: Extra cost for upgrading to ARP L19 bolts)
*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
*Advertised Horsepower Rating:200HP/piece
*Top acceleration: 9000rpm
*package size：28CM*21CM*14CM

Dimension

Center to center length:142mm/5.591"
Big end diameter:55mm/2.165"
Small end diameter:22mm/0.866"
Big end width:26mm/1.024"
Small end width:26mm/1.024"

Feature

1. TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED；
2. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；
3. ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade；
4. H-Beam design reduces weight without compromising strength；
5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；
6.High precision CNC machined,Precision rod cap alignment dowels；
7.Bores finished to +/- .01 mm；
8.Balanced to within +/- 1 g per rod；
9. Each rod is magnetic particle tested to ensure free of flaws；
10.Use X-rayed, sonic tested；
11.Custom Service.

Note

*Professional installation is highly recommended ；
*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
