The Following Items Are Included:

  • KrautKramer USN52 Ultrasonic Flaw Detector (BC# -L/T*)


BE SURE TO CHECK OUR EBAY STORE FOR OTHER ITEMS!

Calibrated

This Item Has A Current Calibration!

 Calibrated

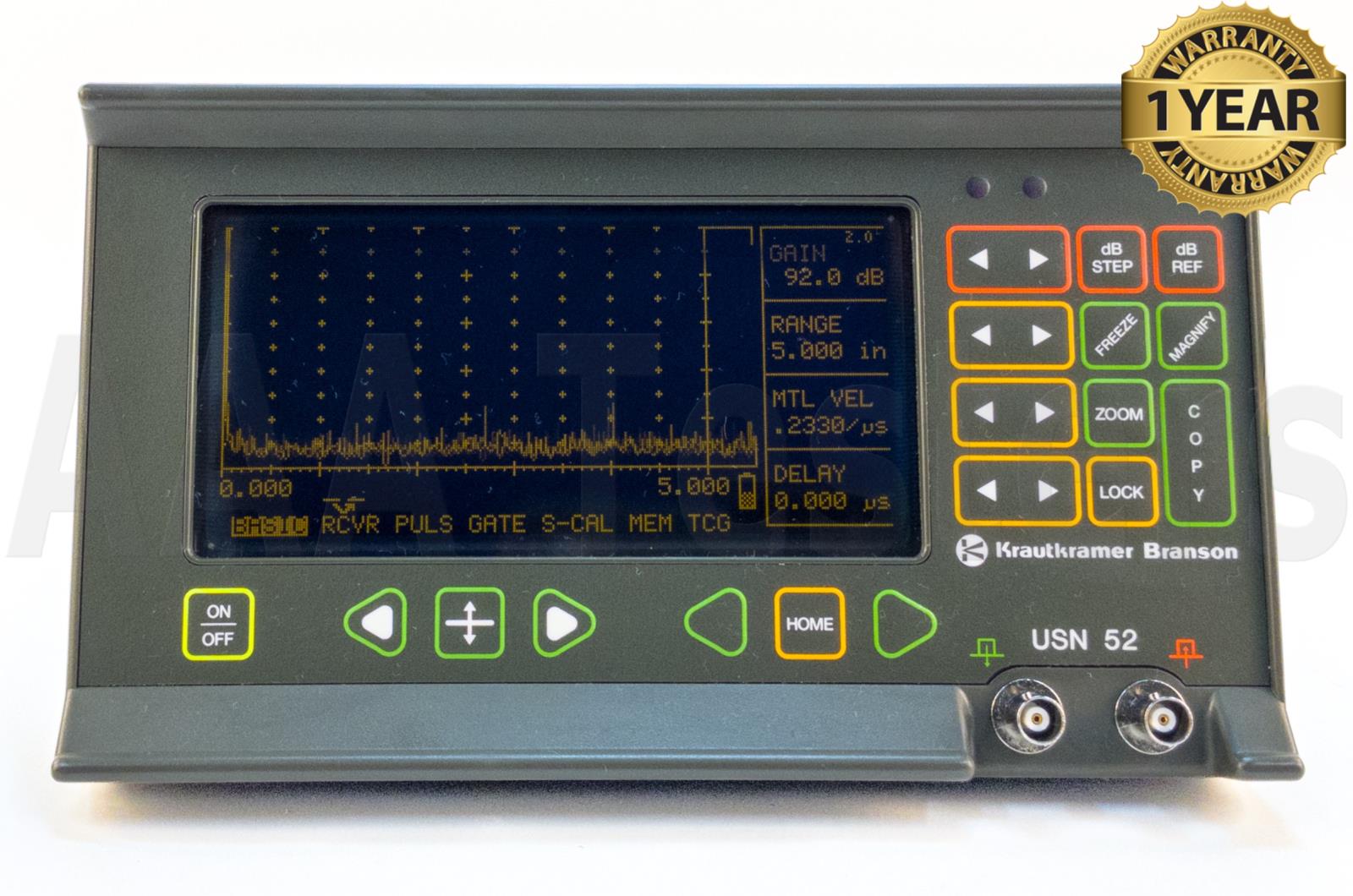

KrautKramer USN52 Ultrasonic Flaw Detector Thickness Gauge



The USN52 is a full featured portable flaw detector with capabilities to address composite material and coarse grain material inspection as well as crack tip detection and sizing.





Working Condition: Excellent
Condition: Refurbished
Calibrated: Yes
Warranty: 1 YEAR WARRANTY




KrautKramer USN52 Ultrasonic Flaw Detector

The USN52 includes all of the features, operating characteristics and the lightweight design of the innovative USN50 which revolutionized ultrasonic testing and set a new standard for portable flaw detectors. The USN52 is a new addition to our line of portable instruments - a product based on additional features evolving from the USN50.


The USN52 is a full featured portable flaw detector with capabilities to address composite material and coarse grain material inspection as well as crack tip detection and sizing. In addition, features are provided for optimal signal-to-noise display and transducer matching for a broader range of materials. The USN50 will continue to be offered as Krautkramer's basic portable flaw detector.





Specifications:

Display type electroluminescent
Size 146 x 67
A-scan size 130 x 53
Range 5 - 5000
Pulse shift -20 - 735* (-20 - 91)
Probe delay 0 - 785
Damping 50, 75, 150, 1000
PRF 56 - 905
Narrow-band ranges 0.25 - 4.9, 2.3 - 10.8
Broadband ranges 0.4 - 10.2, 1.7 - 8.2
Gain 110 dB
Steps 0.5, 1, 2, 6, 24
Echo presentation fullwave, pos. halfewave, neg. halvewave, RF
Supression 0 - 80
DAC max. 9
Dynamic 40
Slope 3
Logic coincidence,anticoincidence
Display LED
Sound path meas. yes
Trigger flank, peak
Modes Sound path, sound path differences gates B-A. Reduced projection distance, depth for angle beam testing.
Units of measurement mm, inch
Data memory 30 (70)
Data logger 2500 (in 99 sets)
RS232 Output Yes
Gates output Yes (TTL)
Languages German, English, French, Spanish, Italian, Portuguese
Power supply external
Battery type 6 AIMn or NiCd
Operating time 5 hours
Operating temperature -5 to +55 C
Dimensions 146 x 248 x 133
