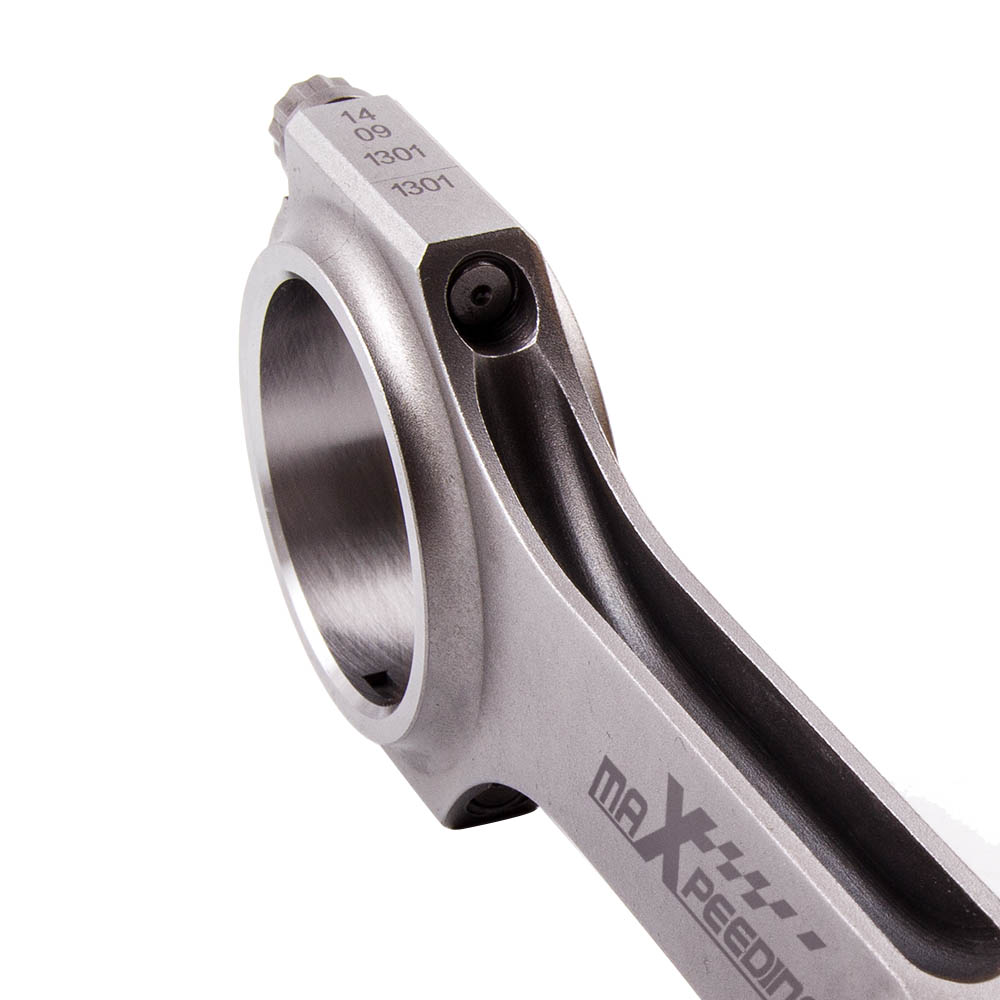

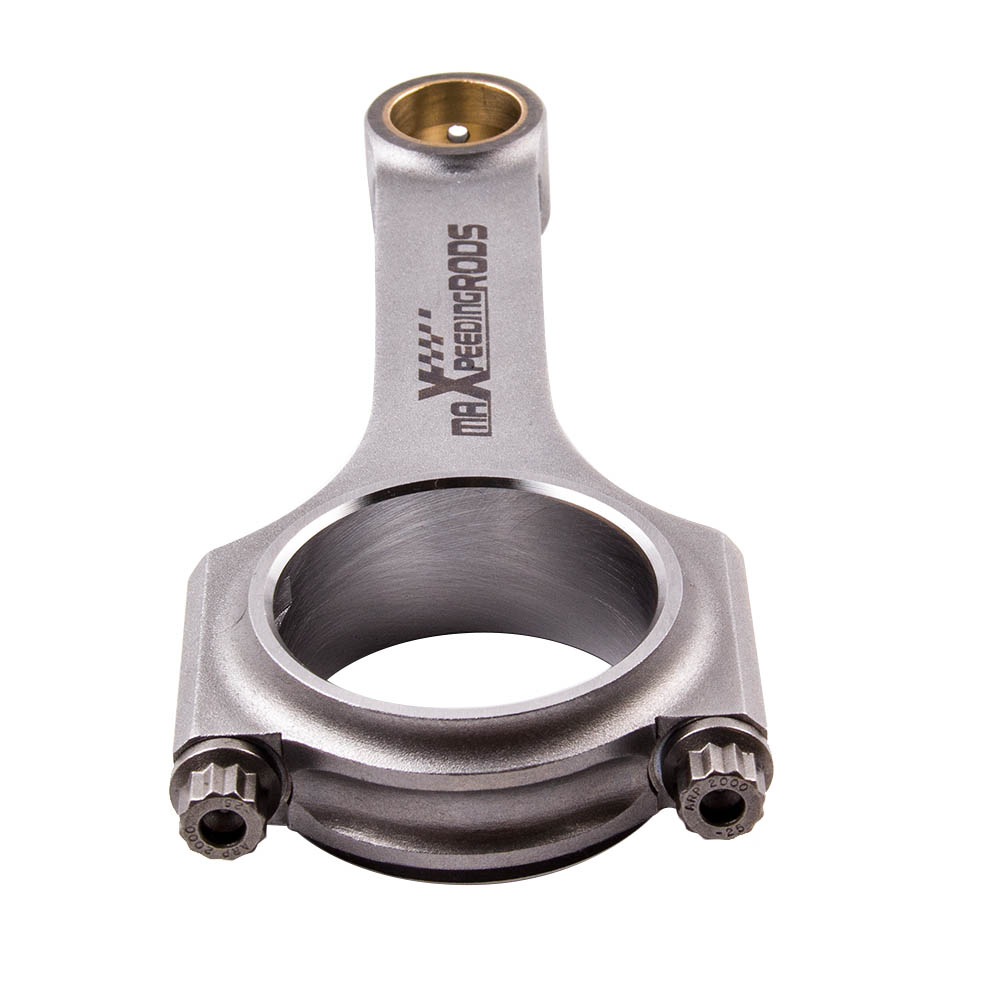

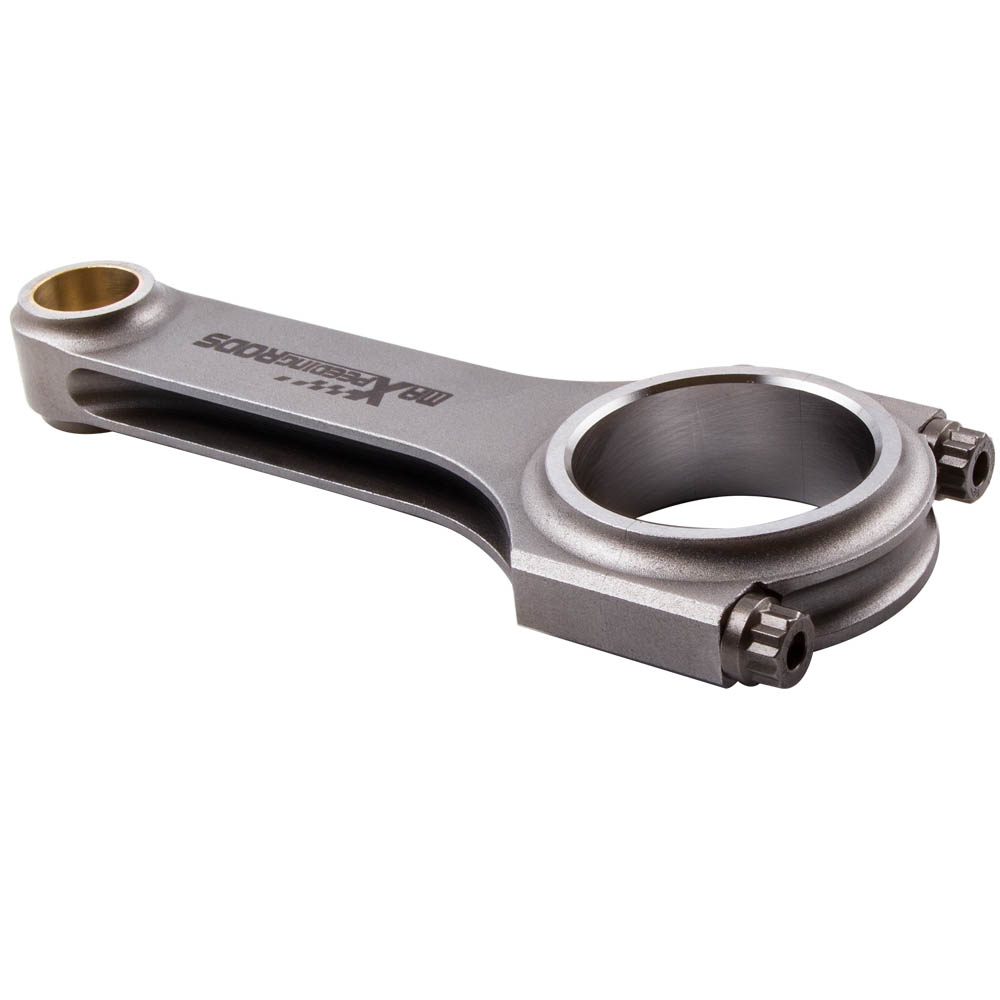

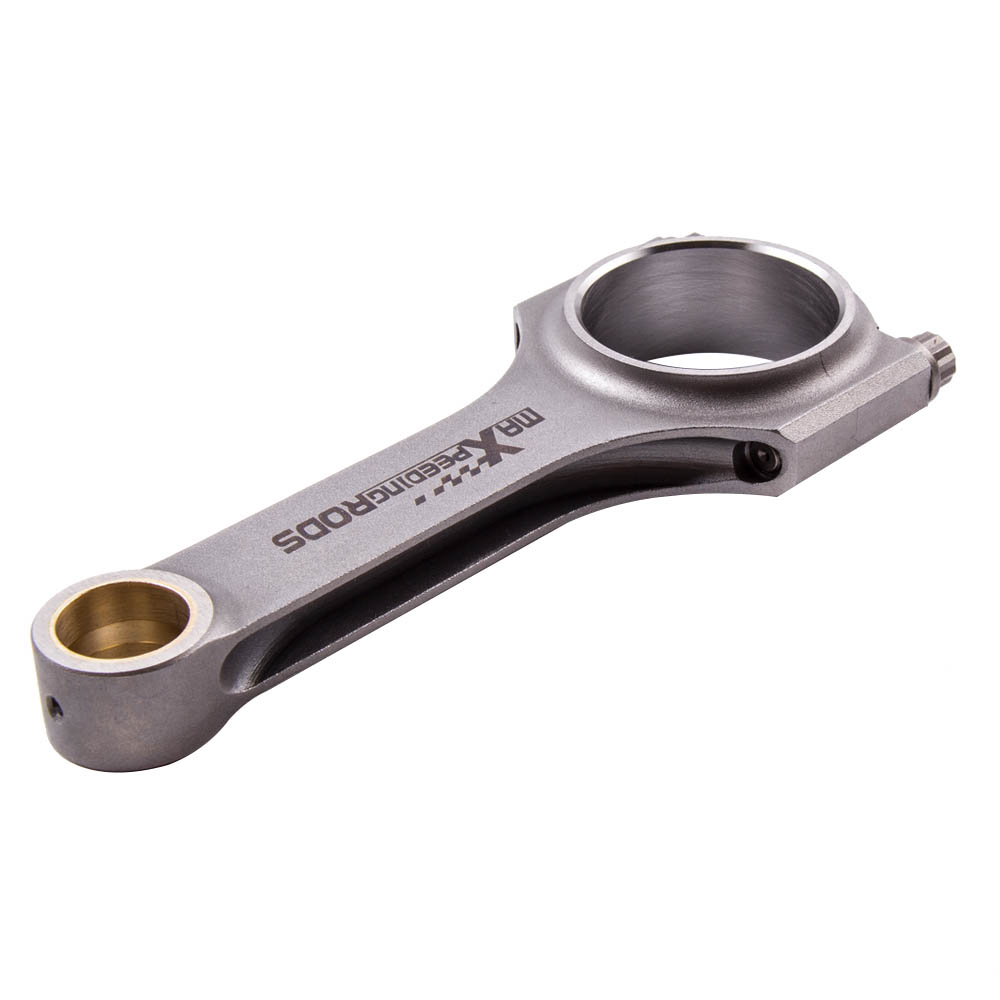

*Type: Forged 4340 aircraft chrome moly quality steel for racing
*H-beam Conrods Quantity: 4 Pieces as showing in picture

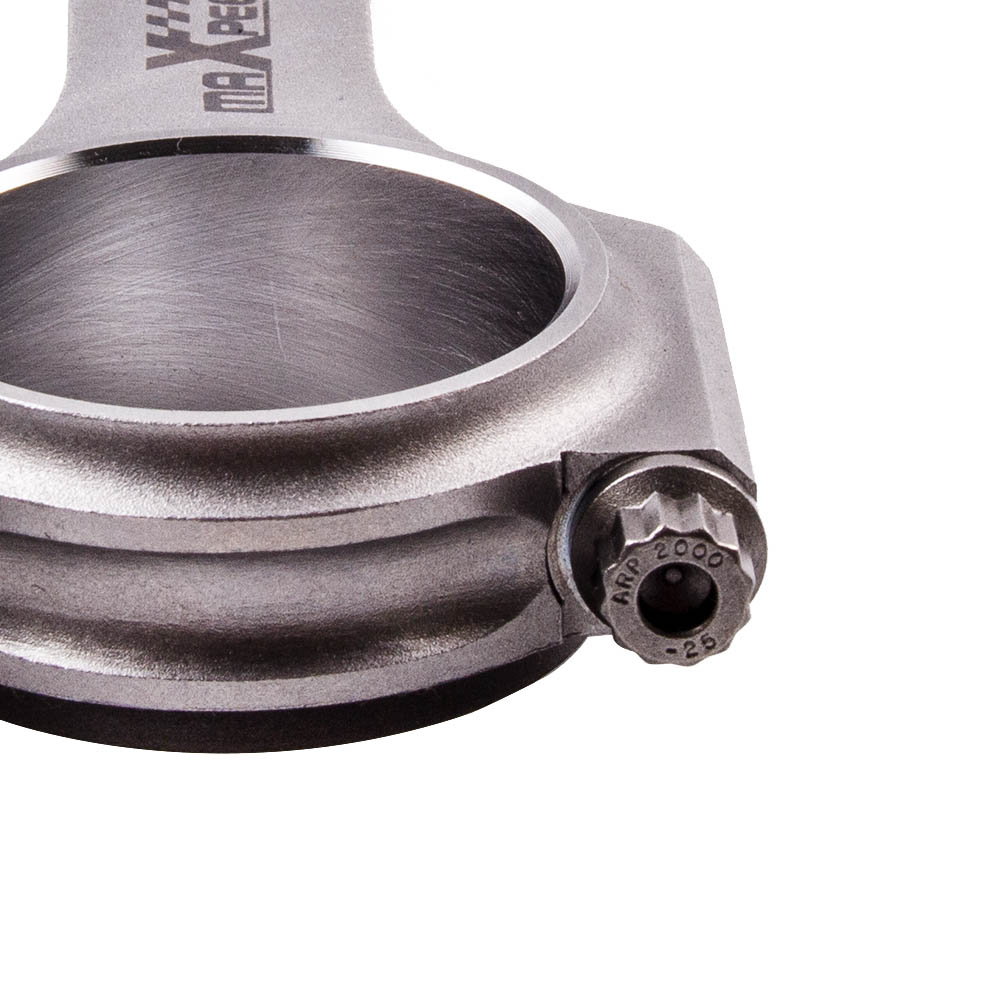

*Bolts: Including ARP 2000 3/8" bolts  (Note: Extra cost for upgrading to ARP L19 bolts)
*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
*Advertised Horsepower Rating:200HP/piece
*Top acceleration: 9000rpm
*package size：28CM*21CM*10CM

Application

For Ford 2.3L Duratec Engine
For Mazda MZR 2.3 Engine


Pin Type: Floating Pin Piston


-------
Notice: This product Not Fit 2.3 DISI with 22mm or 22.5mm Small End.
There are compatible products for Mazda 2.3 DISI（SE 22.5mm）.

Dimensions

Center to center length:154.8mm/6.094"
Big end diameter:53mm/2.087"
Small end diameter:21mm/0.827"
Big end width:21.8mm/0.858"
Small end width:18mm/0.709"

Feature

1. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；
2. ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade；
3. H-Beam design reduces weight without compromising strength；
4.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；
5.High precision CNC machined,Precision rod cap alignment dowels；
6.Bores finished to +/- .01 mm；
7.Balanced to within +/- 1 g per rod；
8. Each rod is magnetic particle tested to ensure free of flaws；
9.Use X-rayed, sonic tested；
10.Custom Service.

Note

*Professional installation is highly recommended ；
*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
