Manual R-Axis Rotary Stage Precision Micro-Adjustment Turntable Work Platform
Product Description

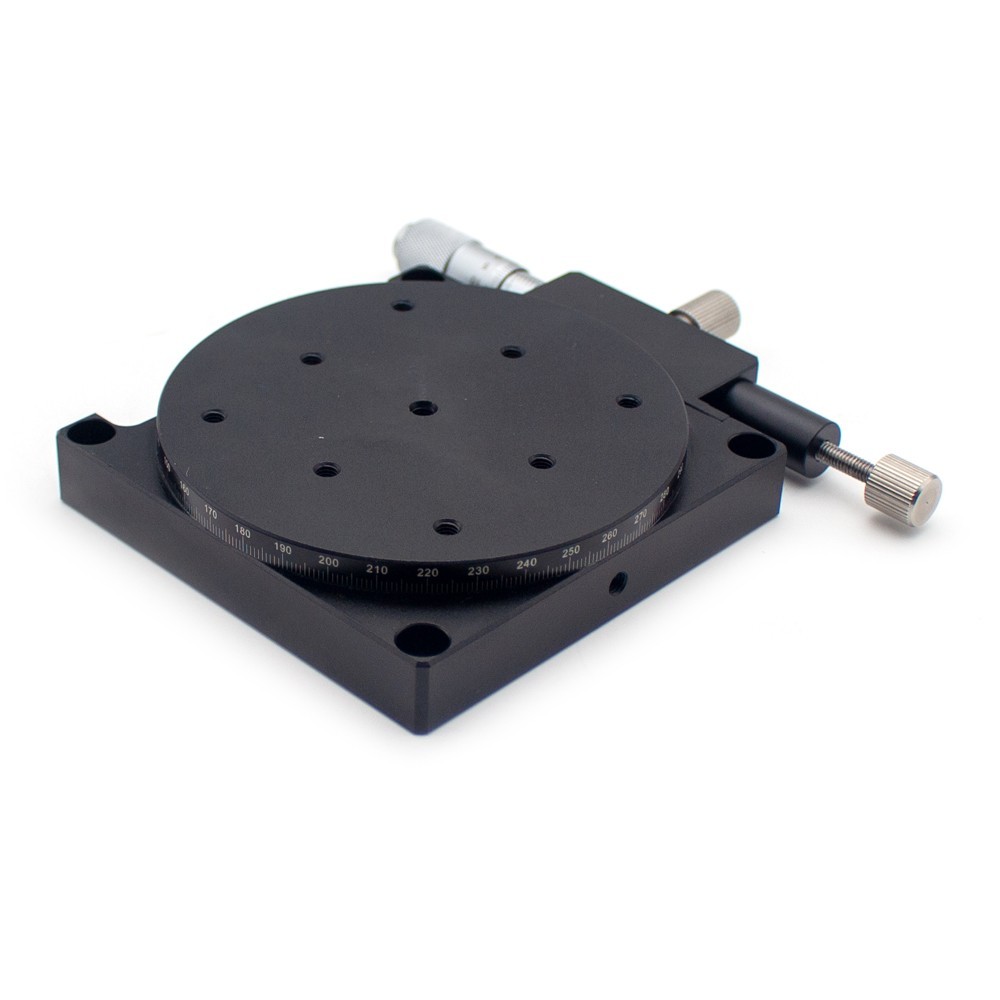

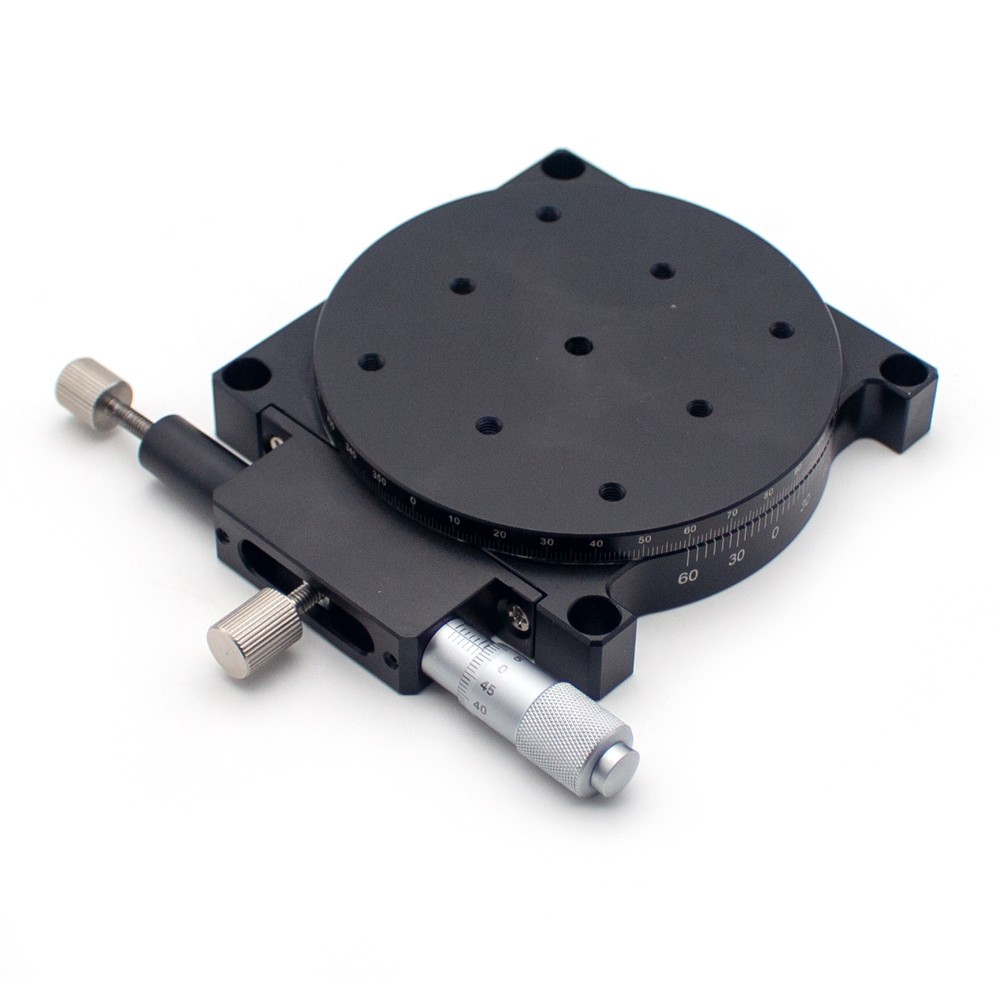

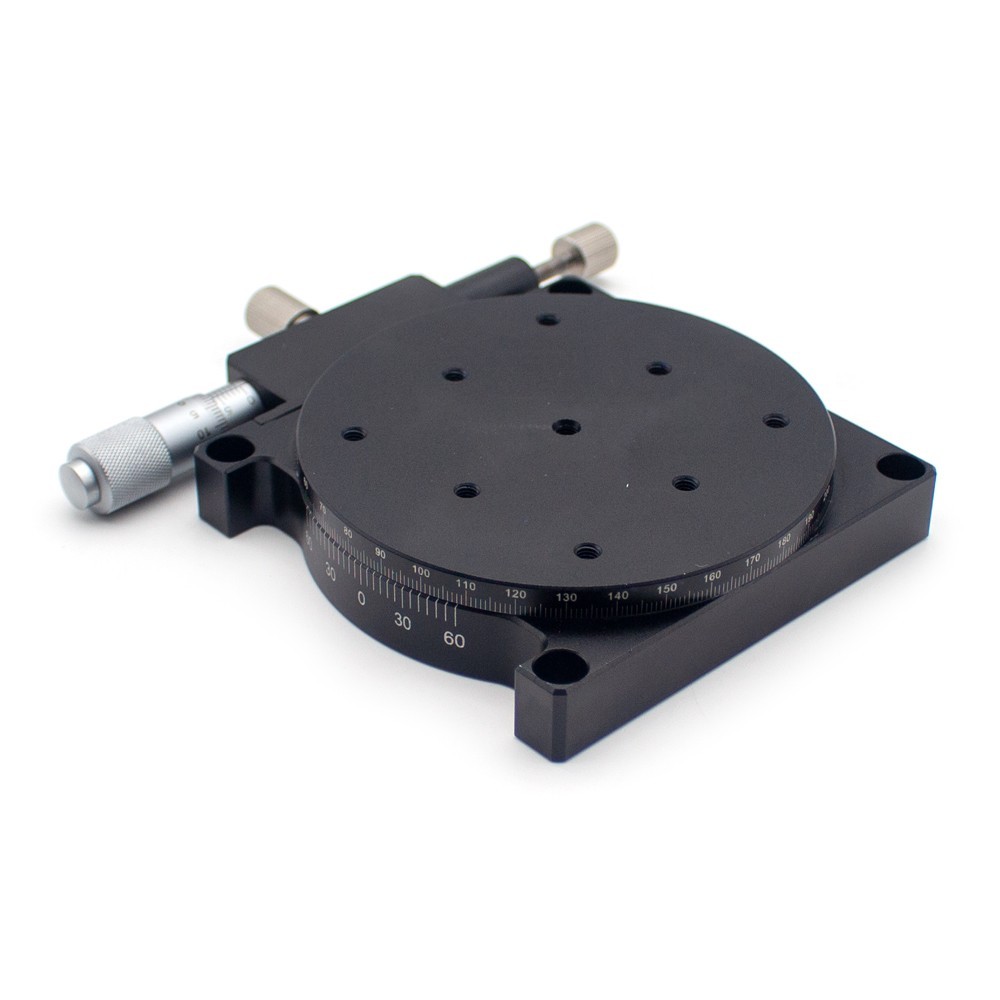

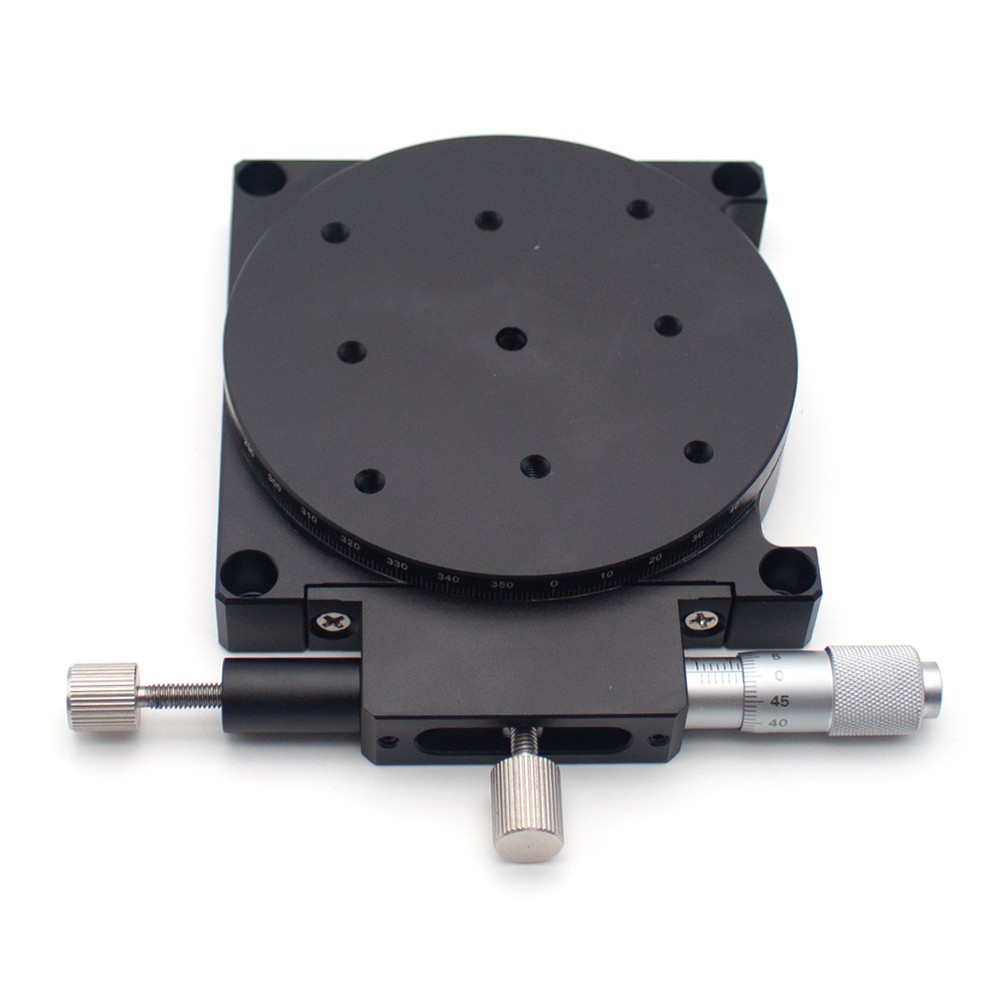

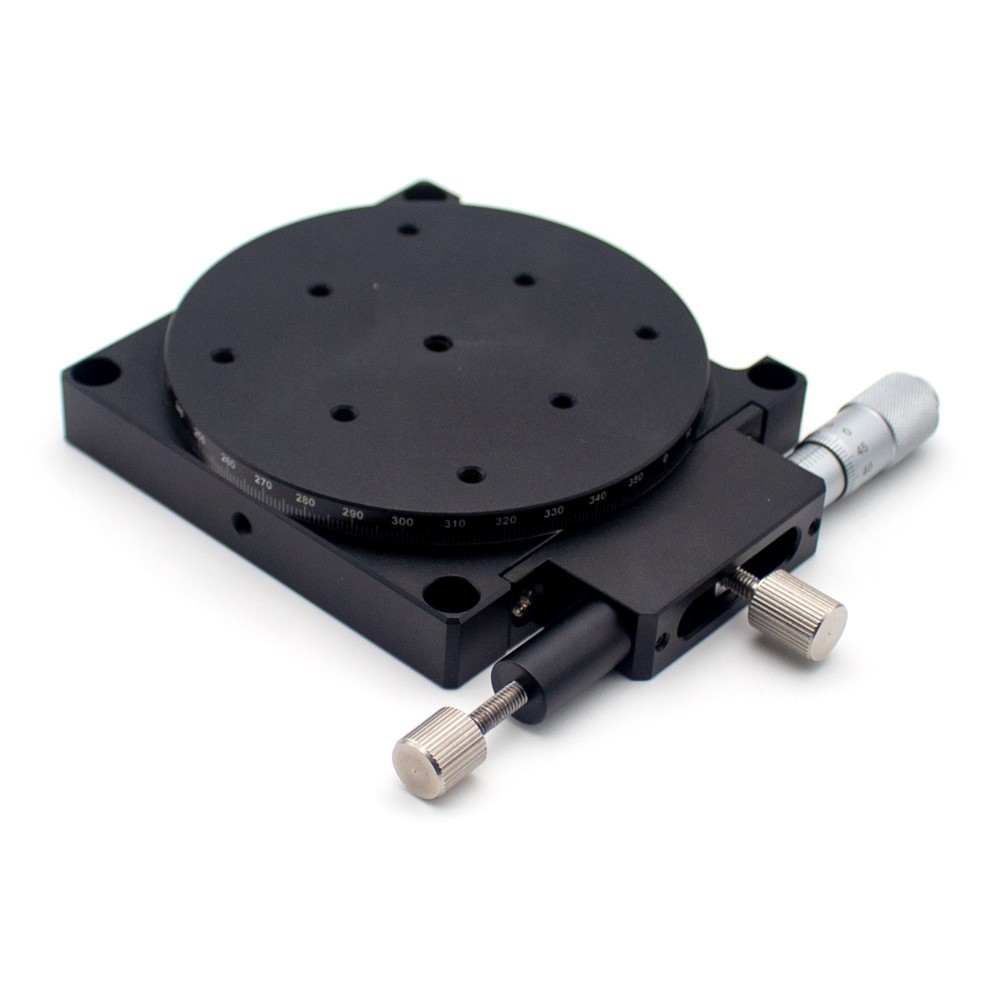

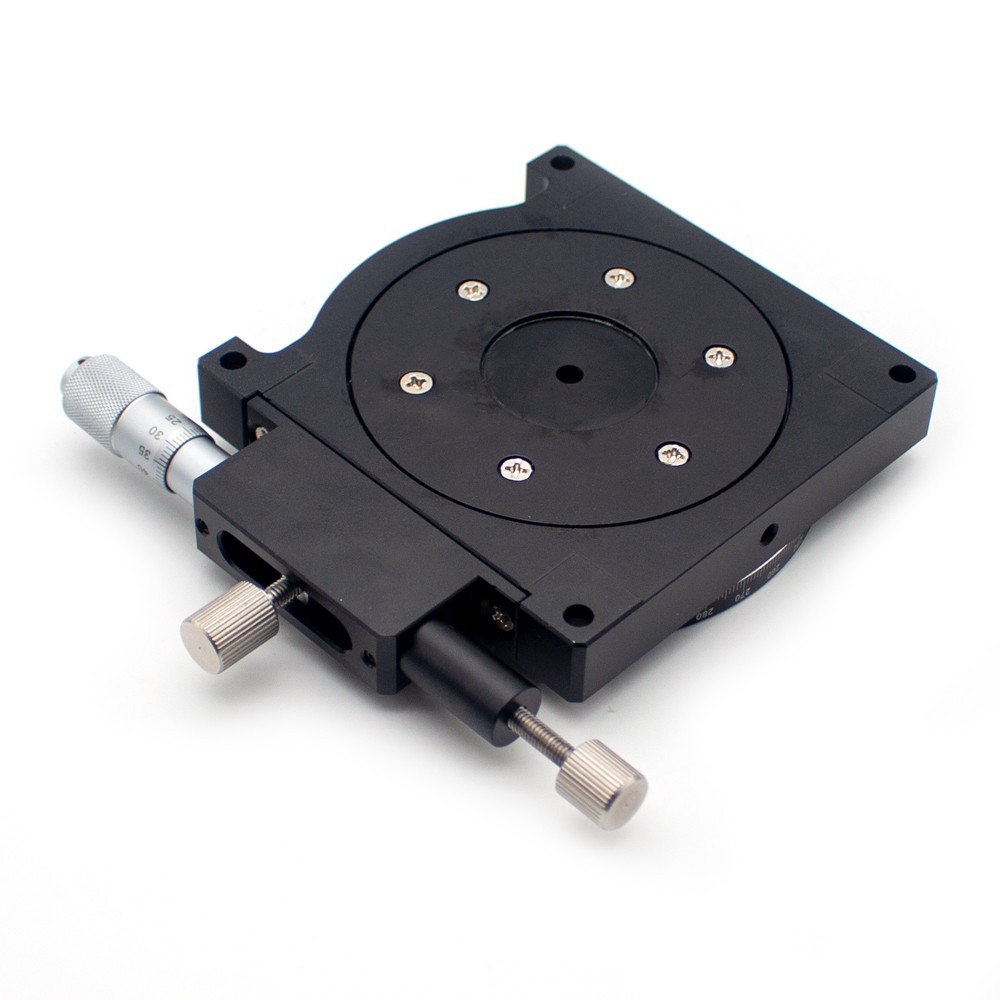

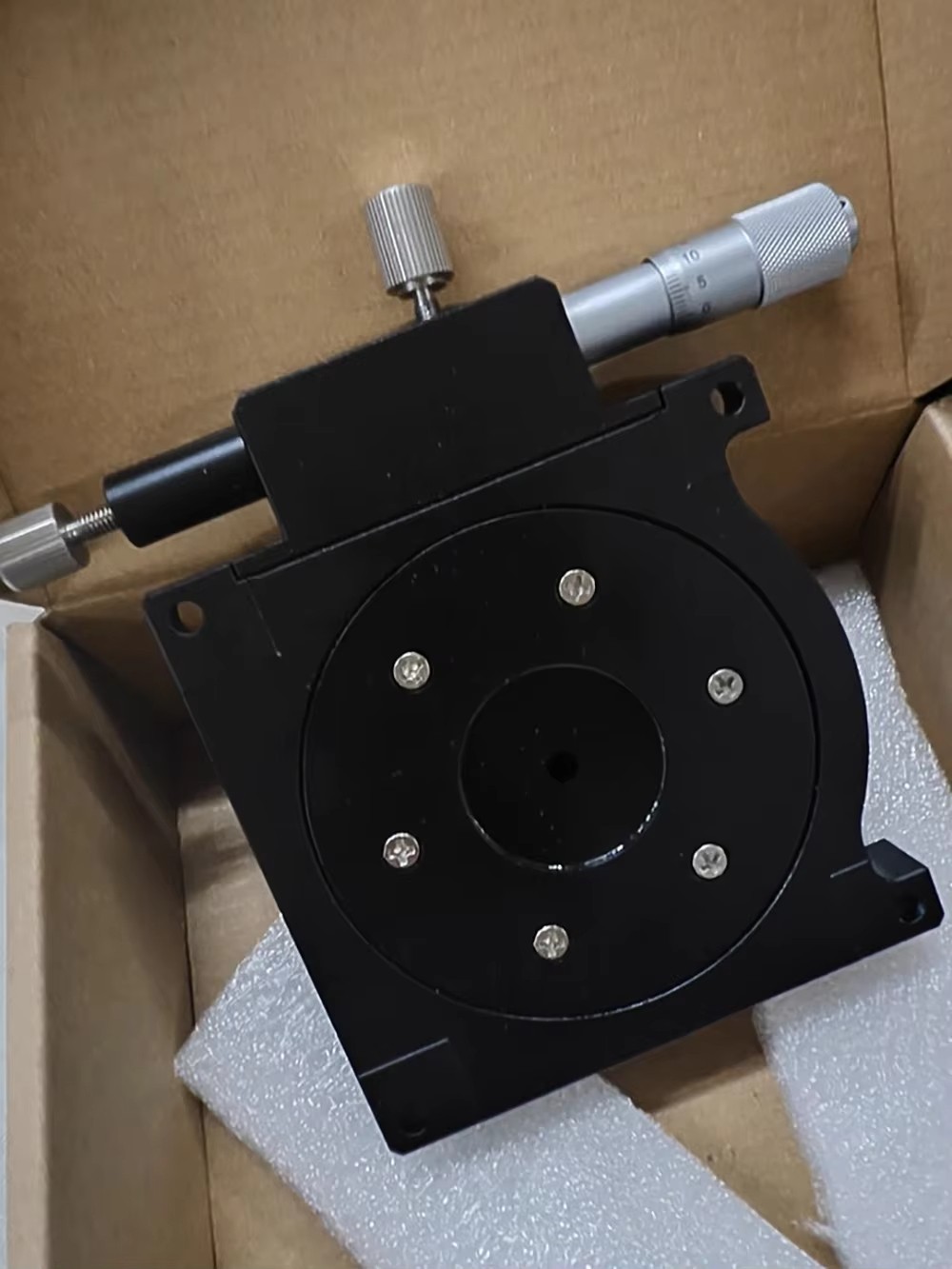

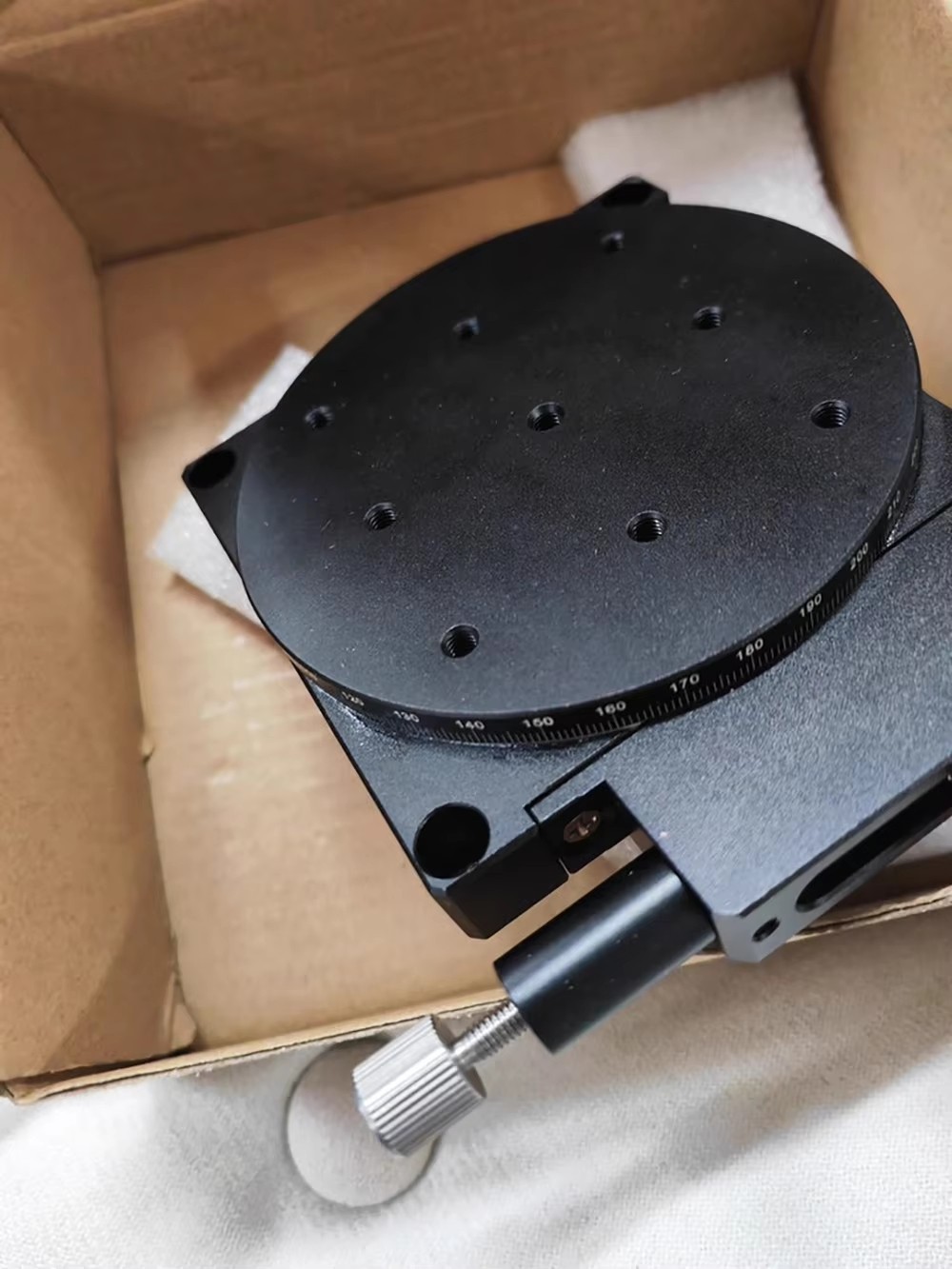

RS90-L Manual R-Axis Rotary Stage Precision Micro-Adjustment Turntable Work Platform

Features:
This manual R-axis rotary stage is designed for precise angular positioning in applications requiring fine adjustment
The platform allows 360° coarse rotation, after which a locking screw secures the position for micro-adjustment via the micrometer head
Constructed from aluminum alloy with an anodized finish, the stage ensures durability, key internal components are made of brass for smooth operation and long-term accuracy
The integrated rolling bearing provides stable and repeatable rotation with minimal friction
Ideal for optical alignment, laboratory setups, precision assembly, and small-scale machining, this rotary table offers reliable performance with high concentricity and parallelism accuracy

Specifications:
Name: Manual R-Axis Rotary Stage
Model: RS90-L
Material: Aluminum alloy
Surface treatment: Anodized
Drive method: Micrometer head

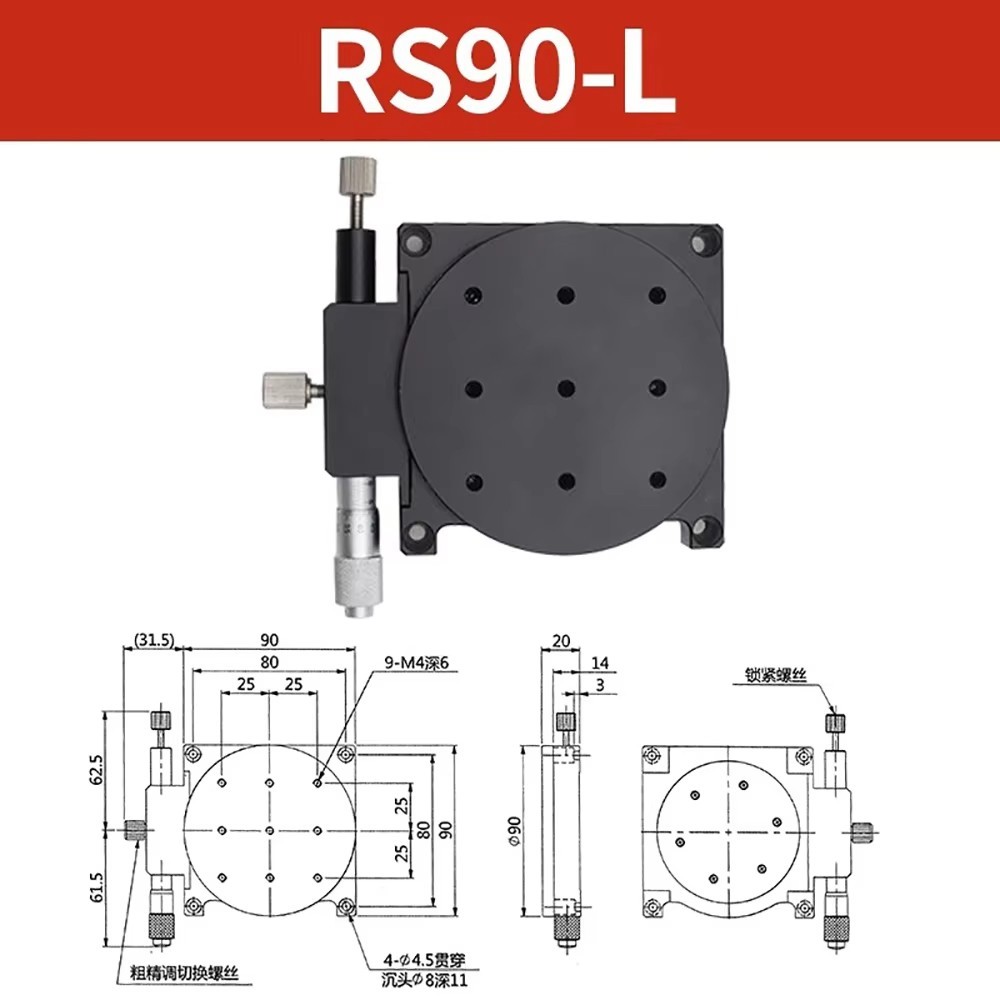

Table diameter: 90mm
Table thickness: 20mm

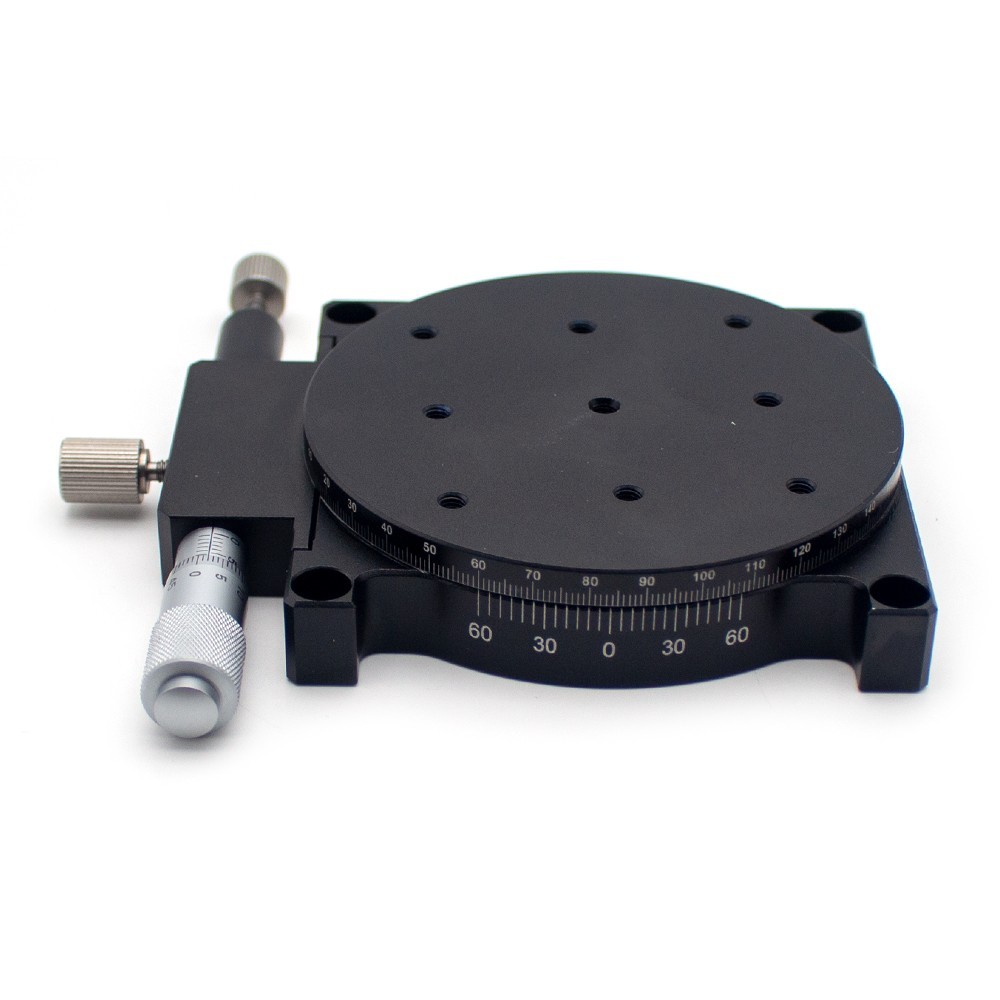

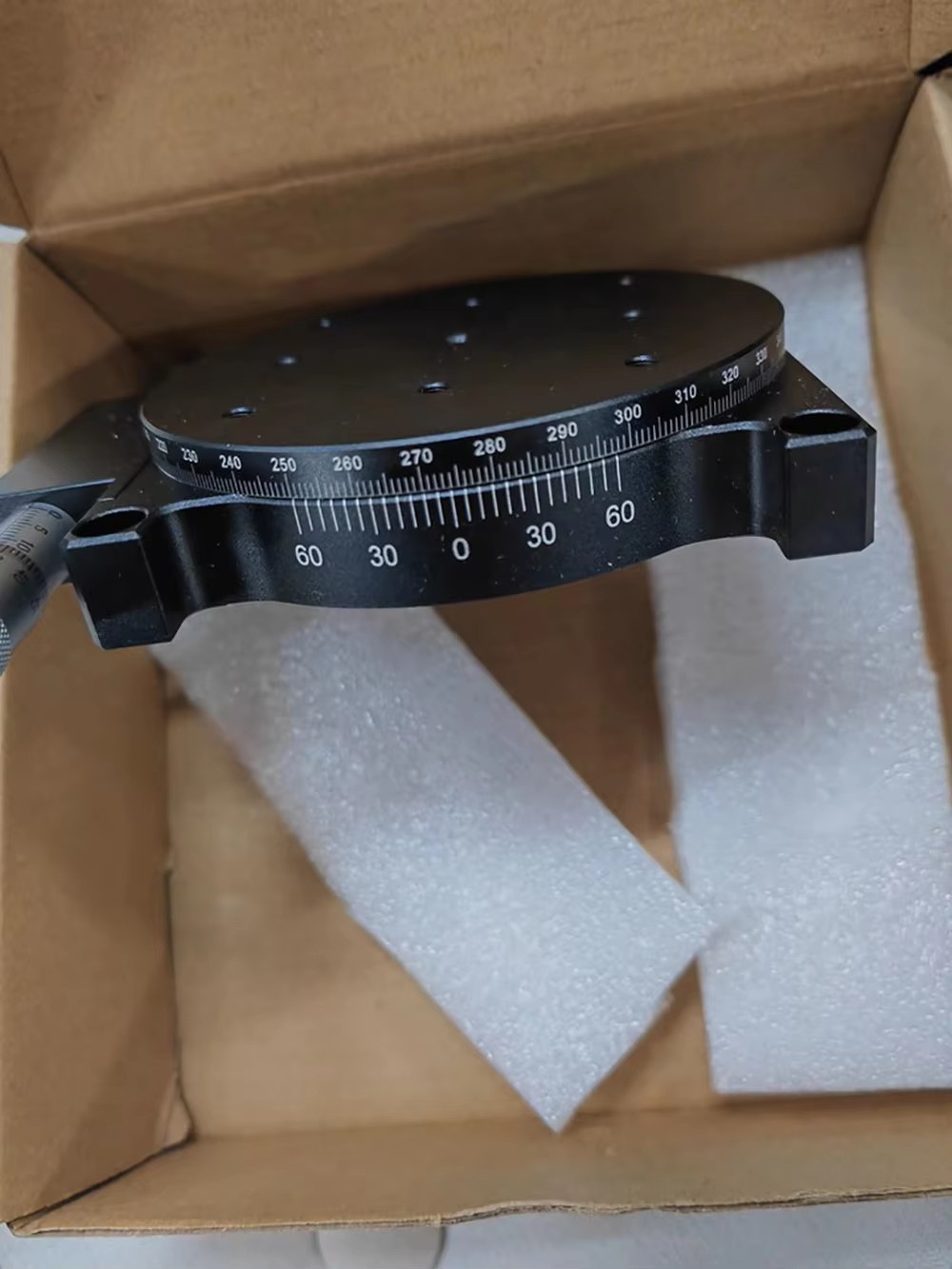

Rotation range: 360° coarse adjustment, ±5° fine adjustment
Load capacity: 29.4N (approx. 3kg)
Minimum scale (micrometer): 0.6 arc-minutes per division
Concentricity: ≤0.03mm
Parallelism: ≤0.04mm
Weight: 0.5kg

Package includes:

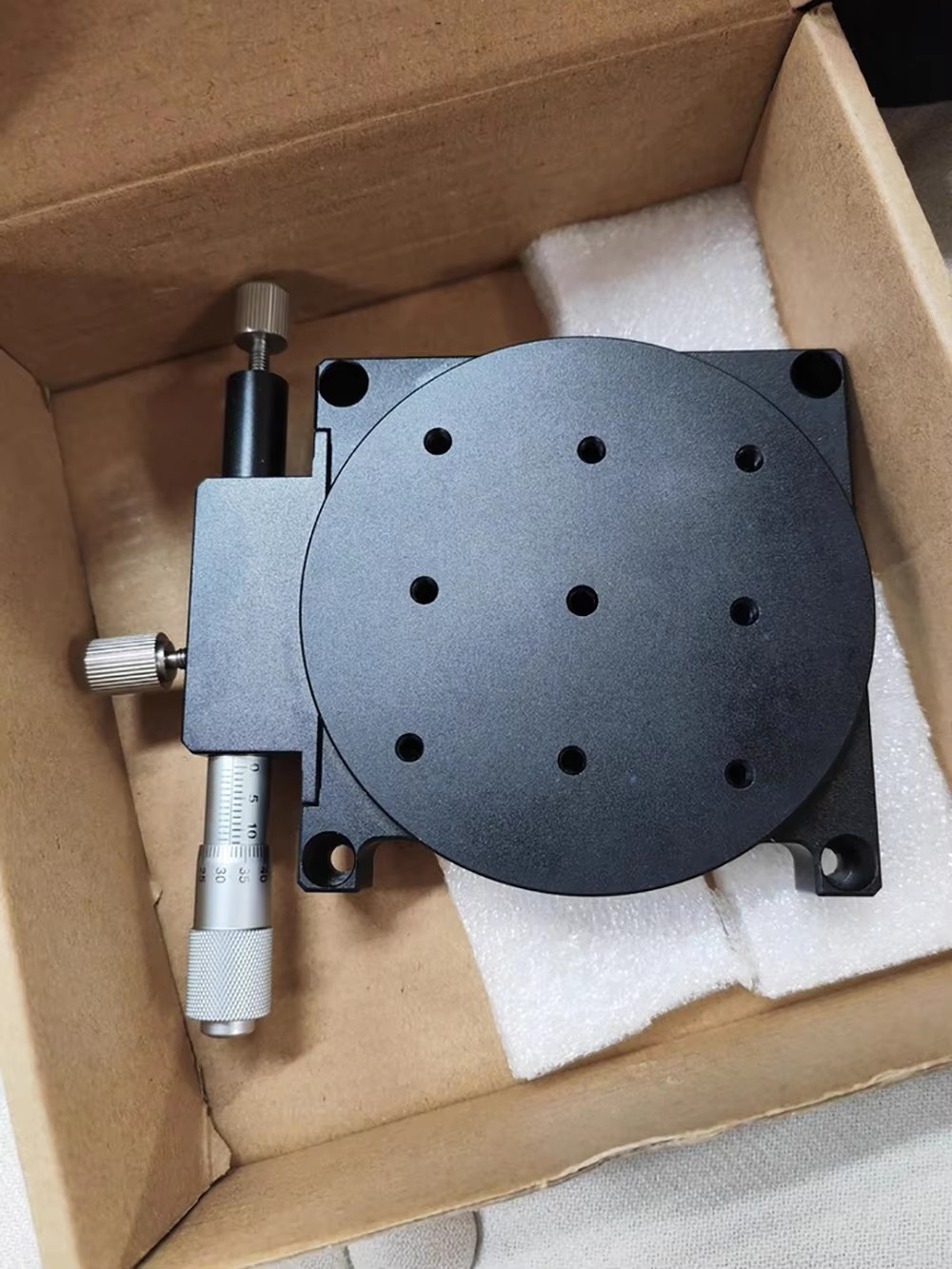

1 x RS90-L Manual R-Axis Rotary Stage
