MAPH-148-92 High Load Pitch & Yaw Mounting Platform ±2° Adjustment
Product Description

MAPH-148-92 High Load Pitch & Yaw Mounting Platform ±2° Adjustment

Descriptions:
The MAPH-148-92 Pitch & Yaw Mounting Platform is a robust and precise positioning stage designed for optical, photonic, and mechanical alignment applications. Manufactured from high-quality aluminium alloy and finished with a black anodized surface, it offers excellent durability, corrosion resistance, and low reflectance.

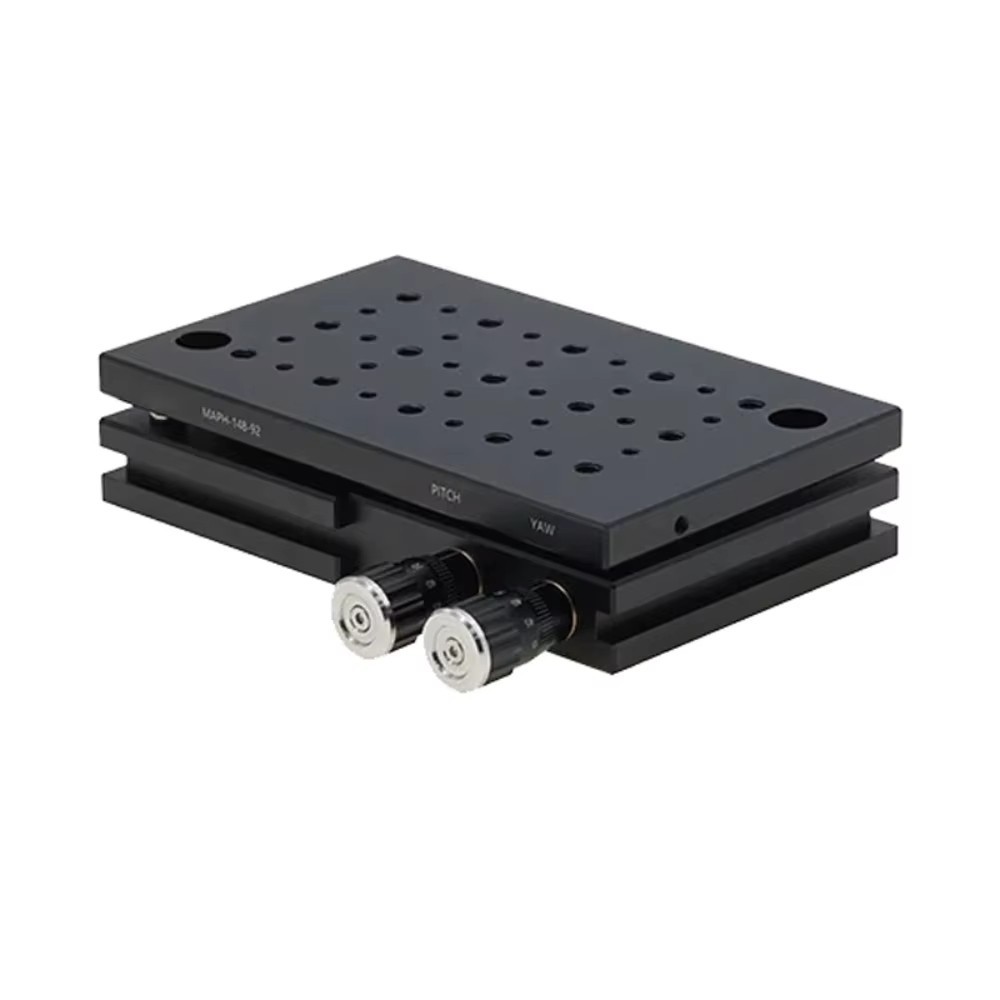

Two precision micrometers are placed side by side, allowing easy and independent control of both pitch and yaw axes. Each axis provides ±2° of adjustment, enabling fine angular alignment of components such as mirrors, prisms, beamsplitters, sensors, or compact assemblies.

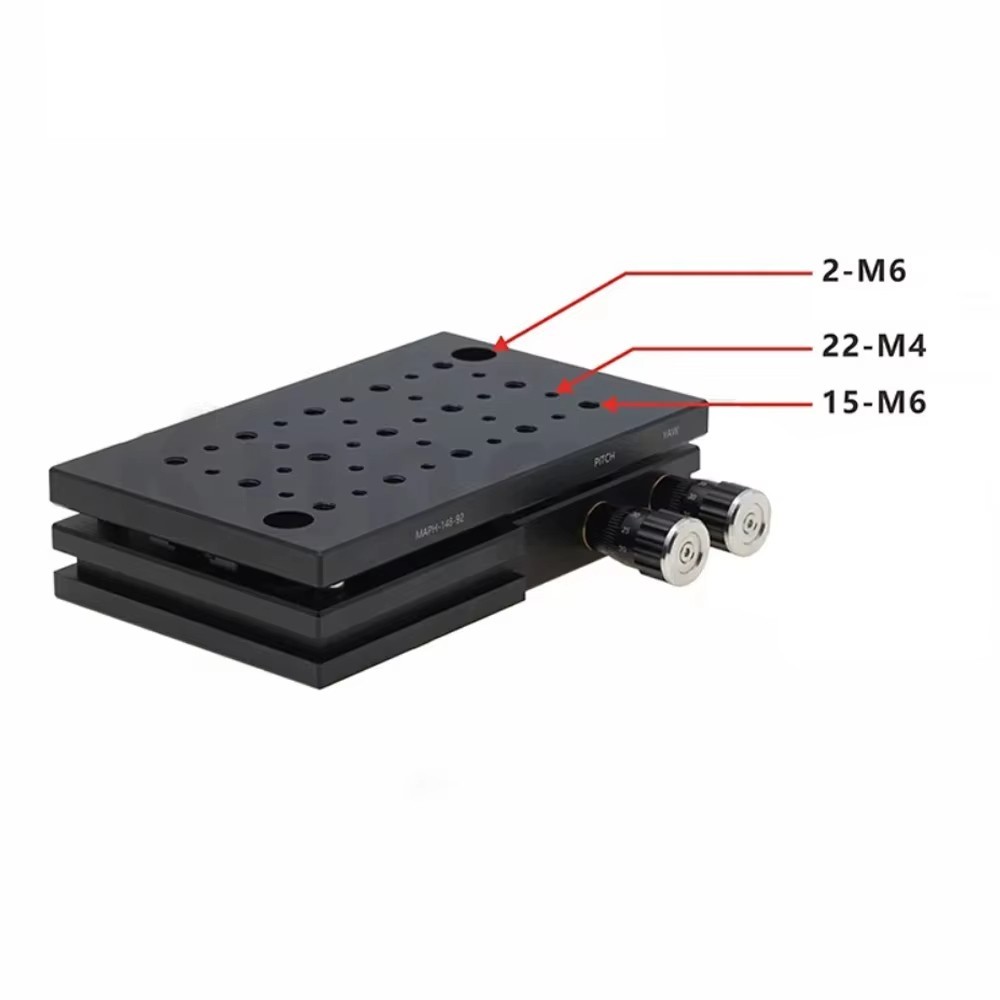

The platform top is equipped with a versatile hole pattern including M4 and M6 threaded holes at 25mm spacing, giving you flexible mounting options for different components. For system integration, the base includes M6 counterbored holes and clamping slots, making it compatible with standard optical tables and breadboards. With its 148x92mm table area and low-profile 35mm height, this platform delivers stable support while saving valuable workspace.

Features:
Precision pitch and yaw adjustment platform made from aluminium alloy with black anodized finish
Two precision micrometer heads arranged side by side for convenient independent adjustment
Provides ±2° pitch (tilt) and ±2° yaw (rotation) adjustment range
Table top features multiple M4 and M6 threaded mounting holes on a 25mm grid spacing

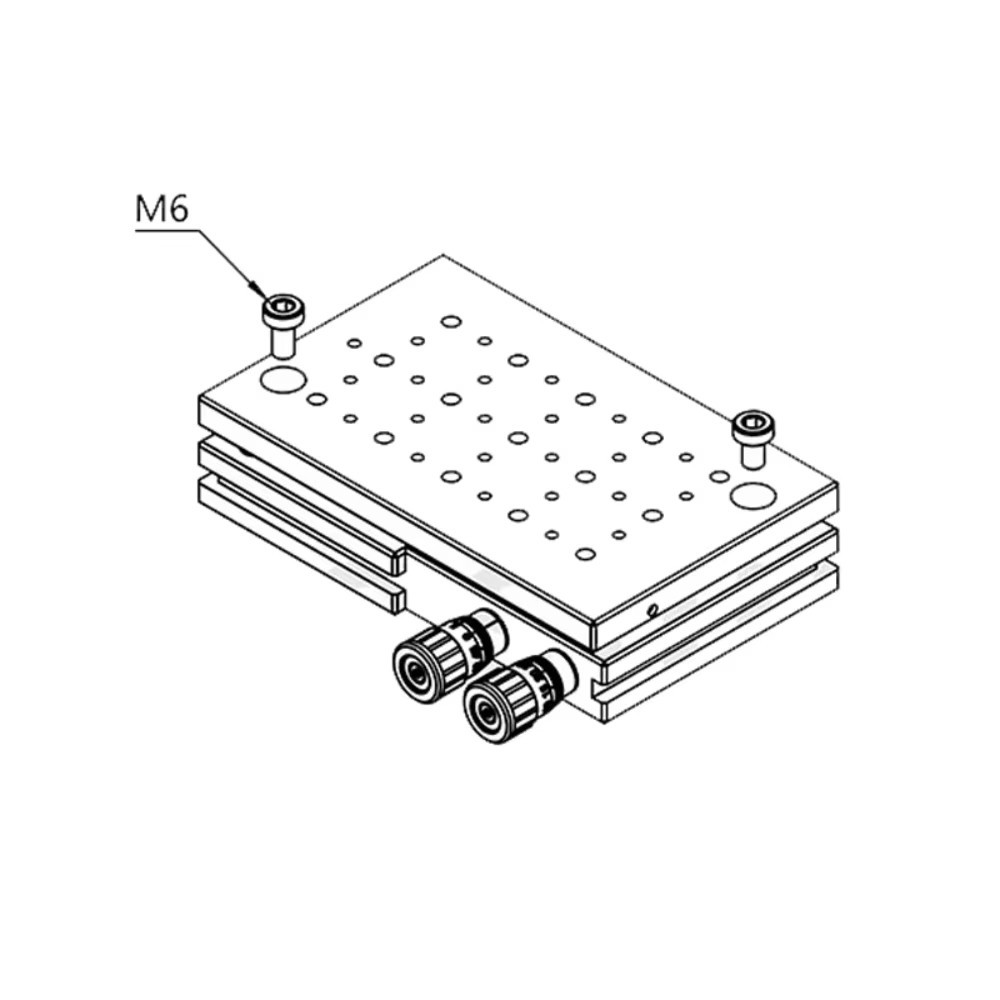

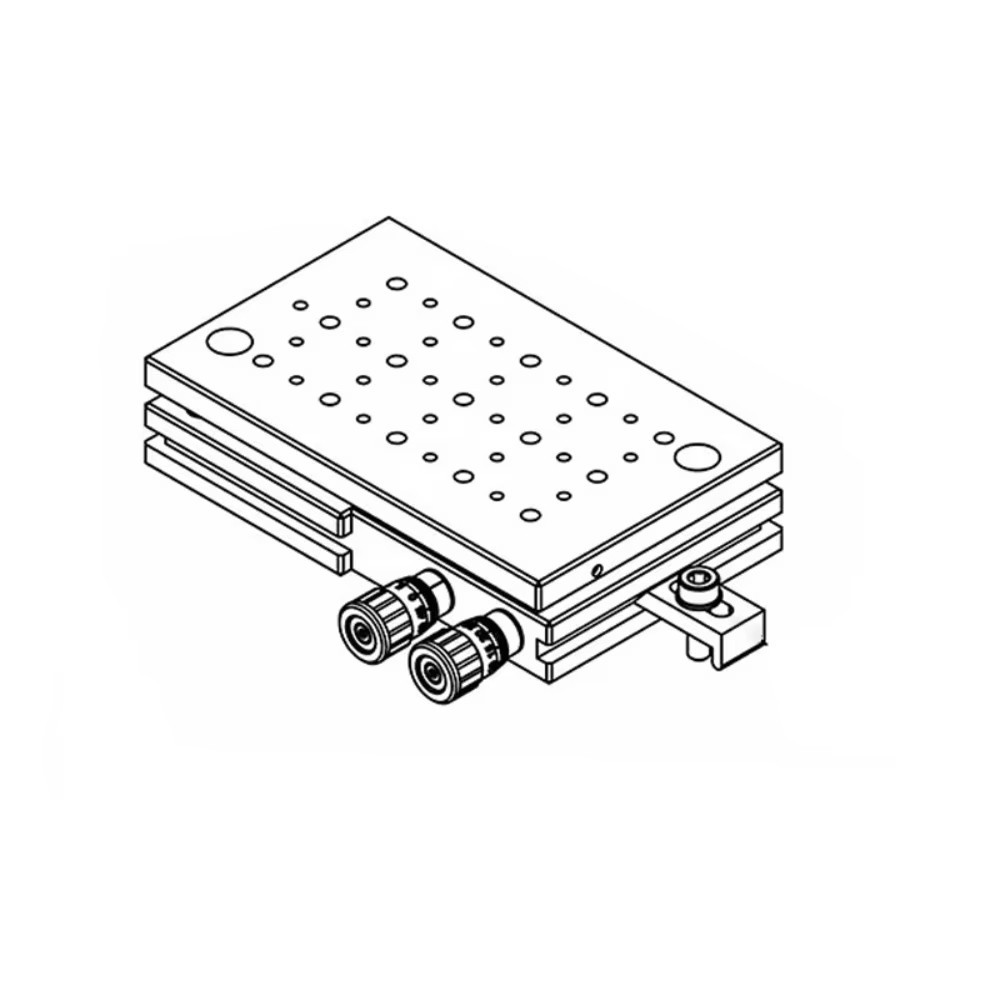

Can be mounted onto optical tables or breadboards using M6 counterbored holes or table clamps
Compact and rigid design suitable for moderate to high-load optical and mechanical setups

Specifications:
Name: Pitch & Yaw Mounting Platform
Model: MAPH-148-92
Material: Aluminium Alloy
Surface Treatment: Black Anodized

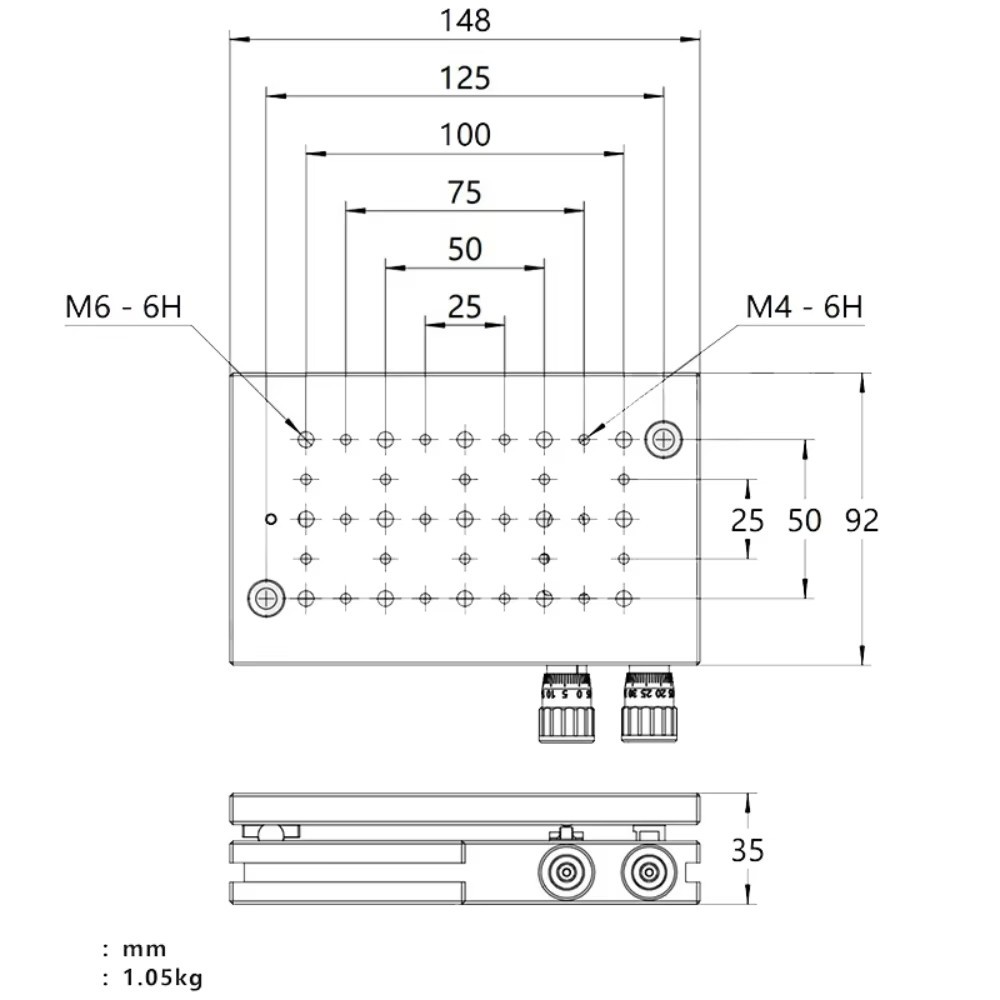

Table Size: 148x92mm
Overall Dimensions: 148x92x35mm
Weight: 1.05kg
Pitch Adjustment Range: ±2°
Yaw Adjustment Range: ±2°
Mounting Hole Pattern: M4 & M6 threaded holes on 25mm centres
