EXCAVATORFACTORY

MINI SKID STEER LOADER

COMPACT TRACKED POWER • MULTI-ATTACHMENT READY

COMPACT • TRACKED • VERSATILE

One Compact Machine. Multiple Attachments. More Ways to Work.

PRODUCT OVERVIEW

COMPACT POWER. MULTIPLE APPLICATIONS.

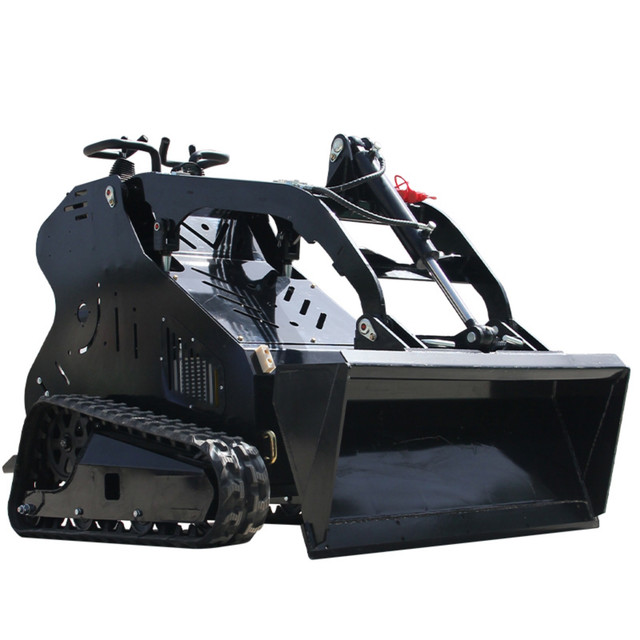

This Mini Skid Steer Loader combines a compact tracked design with practical working capability. Its 1998 × 1150 × 1361 mm dimensions make it well suited for tight work areas, landscaping, property maintenance, farming and general material handling.

Powered by a RATO R420 420cc gasoline engine, it delivers 8.6 kW of maximum power. The tracked undercarriage and 25% gradeability provide a stable platform for everyday work on uneven terrain.

The loader can be equipped with a variety of attachments, allowing one compact machine to handle digging, loading, lifting, grading, cleanup and other jobs.

KEY FEATURES

COMPACT, CAPABLE & READY FOR MULTIPLE JOBS

RATO R420 420cc GASOLINE ENGINE

Powered by a RATO R420 420cc single-cylinder gasoline engine with 8.6 kW maximum power at 3,600 rpm. The air-cooled engine provides practical power for loading, material handling, landscaping and property maintenance.

COMPACT DESIGN FOR TIGHT WORK AREAS

Measuring approximately 78.7" long, 45.3" wide and 53.6" high, this compact loader is designed to work where larger equipment may be difficult to access. Its small footprint makes it practical for yards, farms, landscaping projects and confined job sites.

TRACKED UNDERCARRIAGE FOR STABLE OPERATION

The tracked undercarriage provides a stable working platform and helps the machine move across uneven ground. With 25% gradeability, it is suited for everyday work on slopes, dirt, gravel and other common jobsite surfaces.

0.15 m³ BUCKET WITH 45.3" WORKING WIDTH

The 1150 mm bucket provides a practical balance between working capacity and compact access. With a 0.15 m³ bucket capacity, it is well suited for moving soil, gravel, mulch, debris and other loose materials.

7.4 FT MAXIMUM LOADING HEIGHT

With a maximum loading height of 2259 mm, the loader can raise the bucket high enough for practical loading and material transfer. The 1553 mm maximum unloading height also supports efficient placement of materials during everyday work.

READY FOR MULTIPLE ATTACHMENTS

More than a bucket loader, this machine can be equipped with a variety of compatible attachments. Depending on the attachment, it can handle digging, lifting, grading, cleanup, landscaping and material-handling tasks with one compact power unit.

BUILT FOR EVERYDAY PROPERTY & JOBSITE WORK

Designed for farms, landscaping, property maintenance, construction and general material handling, this compact skid steer combines easy access, tracked mobility and attachment versatility in one practical machine.

SPECIFICATIONS

MACHINE SPECIFICATIONS AT A GLANCE

MACHINE DIMENSIONS

Overall Dimensions	1998 × 1150 × 1361 mm
Ground Clearance	129 mm
Track Specifications	180 × 72 × 37 mm

WORKING PERFORMANCE

Bucket Width	1150 mm / 45.3 in
Bucket Capacity	0.15 m³ / 5.3 cu. ft.
Bucket Loading Mass	122 kg / 269 lb
Maximum Loading Height	2259 mm / 7.4 ft
Maximum Unloading Height	1553 mm / 5.1 ft
Gradeability	25%

ENGINE

Engine Model	RATO R420
Maximum Power	8.6 kW
Rated Speed	3600 rpm
Displacement	420 cc
Number of Cylinders	Single Cylinder
Cooling Method	Air Cooling
Fuel Type	Gasoline

FLUIDS & CAPACITIES

Hydraulic Oil Tank Capacity	18 L / 4.8 gal
Engine Oil Capacity	0.94 L / 1.0 qt
Fuel Tank Capacity	5 L / 1.3 gal

APPLICATIONS

ONE MACHINE FOR A WIDE RANGE OF JOBS

LANDSCAPING

Move soil, mulch and gravel, prepare planting areas, clear debris and handle general landscape maintenance.

FARM & RANCH

Handle feed, soil, bedding, supplies and general property maintenance around farms, ranches and small agricultural operations.

PROPERTY MAINTENANCE

Clear brush, move materials, clean up yards and maintain driveways, grounds and other outdoor areas.

CONSTRUCTION

Support light-duty site preparation, material handling, cleanup, grading and other routine construction tasks.

MATERIAL HANDLING

Use compatible buckets, forks and other attachments to move soil, gravel, pallets, logs, brush and jobsite materials.

TIGHT & UNEVEN AREAS

The compact tracked design makes the loader practical for narrow access areas, uneven ground, yards and confined work spaces.

PACKAGE INCLUDES

WHAT'S INCLUDED

1 × Mini Skid Steer Loader

1 × Tool Kit

1 × Operator's Manual
