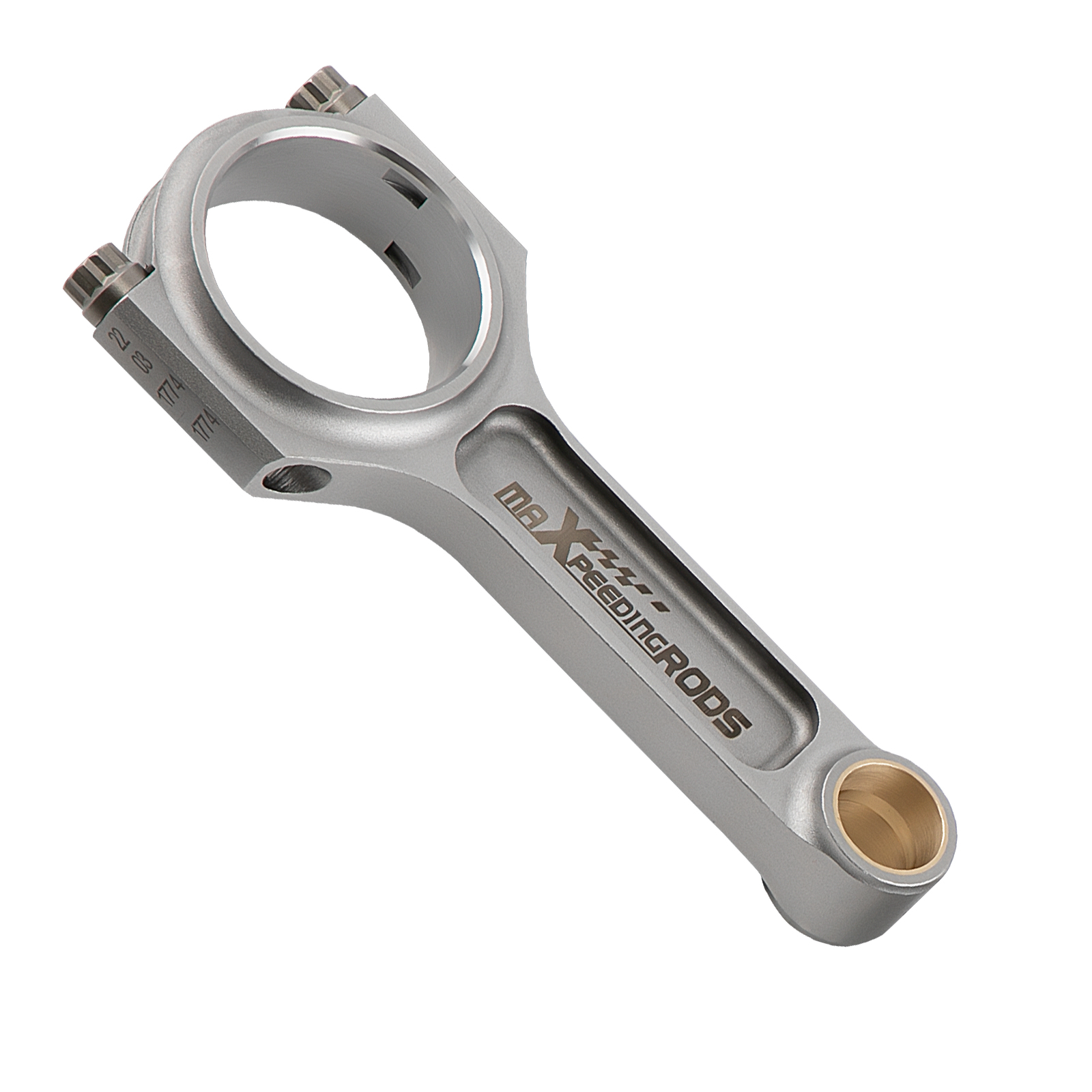

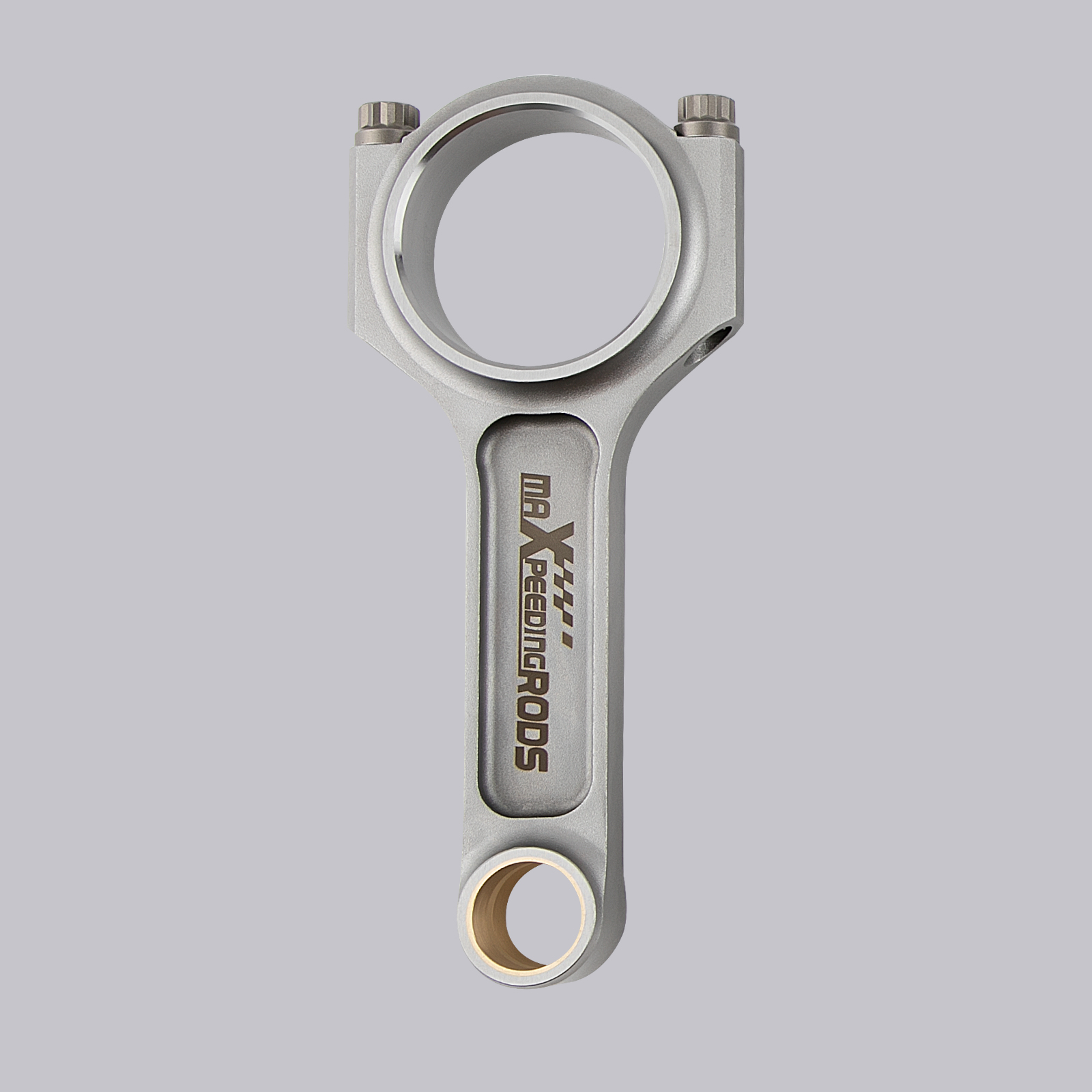

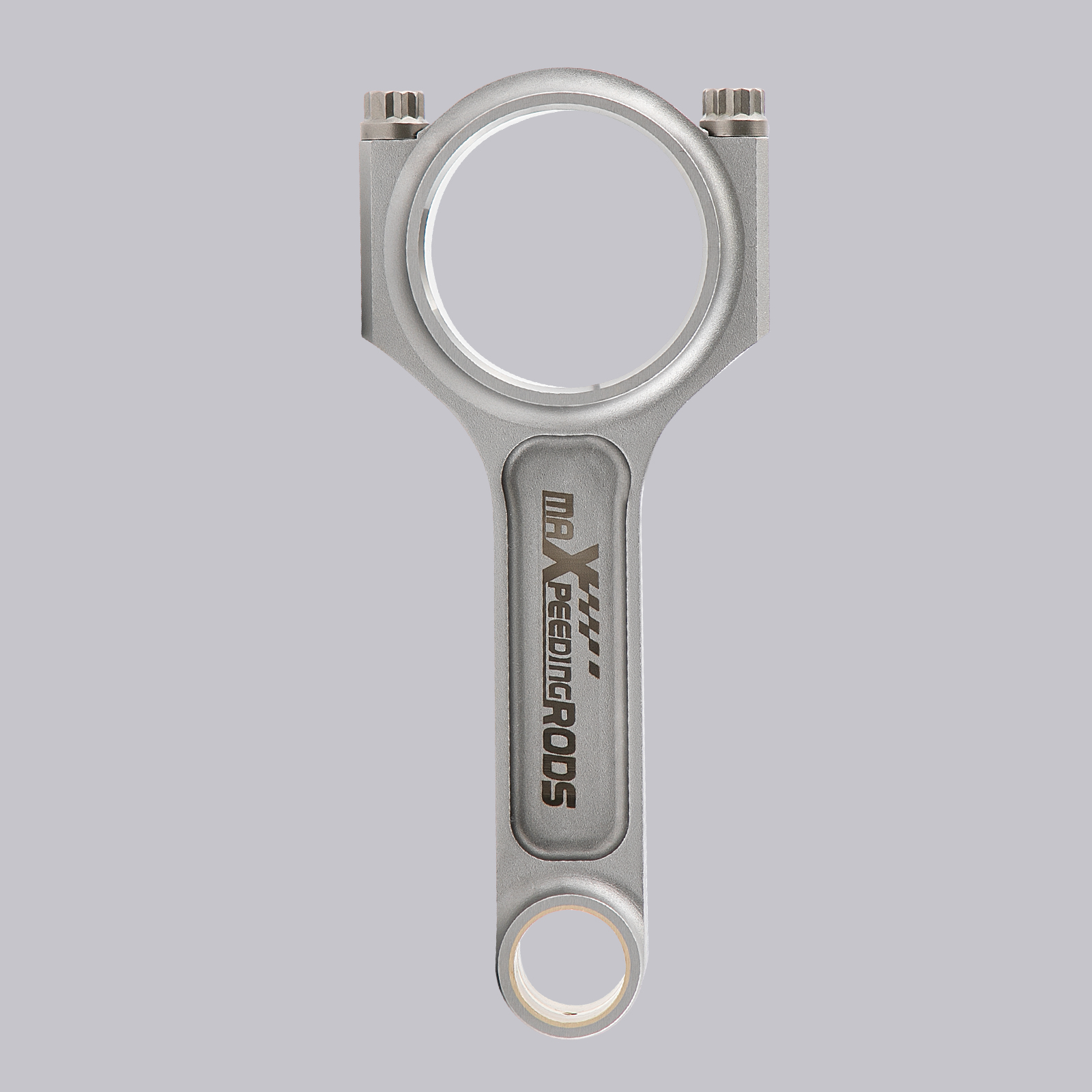

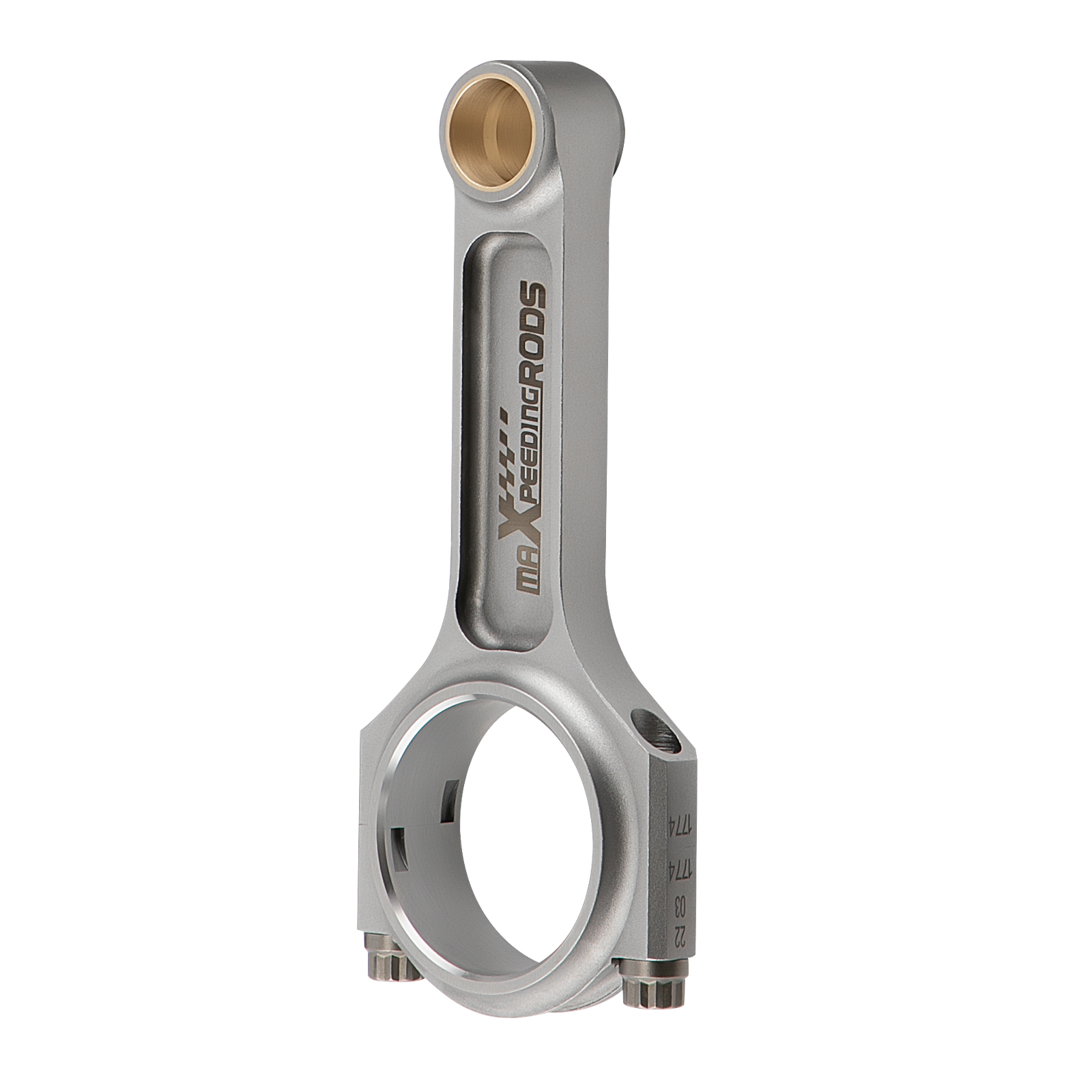

I-Beam Connecting Rods for Honda Civic Acura CRX D16 Engine 5.394" ARP 2000
  • Most

    Competitive Price

  • Manufacturer

    We know our products

  • Easy Return

    Quick, Simple

  • Guaranteed Fitment

    Always the correct part

Description



All modifications must be installed by licensed mechanics and in compliance with your local modification regulations




Application

For Honda Civic CRX D16 ZC SOHC VTEC D Series:


1986–89 for Acura Integra (USA)
1986–89 for Acura Integra (Australia)
1988–1991 for Honda Civic Si, CRX Si
1990-1991 for Civic EX (4dr), Civic Wagon RT4WD
1988–1991 for Civic GTi in New Zealand
1988–1989 for Civic models in Europe (ED4, ED7)
1995 for Civic models in New Zealand (EG4)
1988–1995 for Models in South Africa
1998–2000 for Honda Civic GX
1996–2000 for Honda Civic HX
1996 for Honda Civic EX (sedan Peruvian version)
1996–2000 for Honda Civic VTI
1992–1995 for Honda Civic Si
1992–1995 for Honda Civic EX, EX-V
1992–1995 for Honda Civic ESi (European Market)
1993–1995 for Honda Del Sol Si (US)
1993–1996 for Honda Del Sol ESi (European)
1992-1995 for Honda Civic RTSi
1996–2000 for Honda Civic EX Coupé
1991–1993 for Honda Civic Ferio EJ3
1992–1995 for Honda Civic EJ1
1992–1995  for Honda Domani MA4
1993-1997  for Honda del Sol (Si)



Pin Type: Floating Pin Piston
(Note: Please confirm the dimensions before purchase the connecting Rods)







Specification

*Type: Forged 4340 aircraft chrome moly quality steel for racing

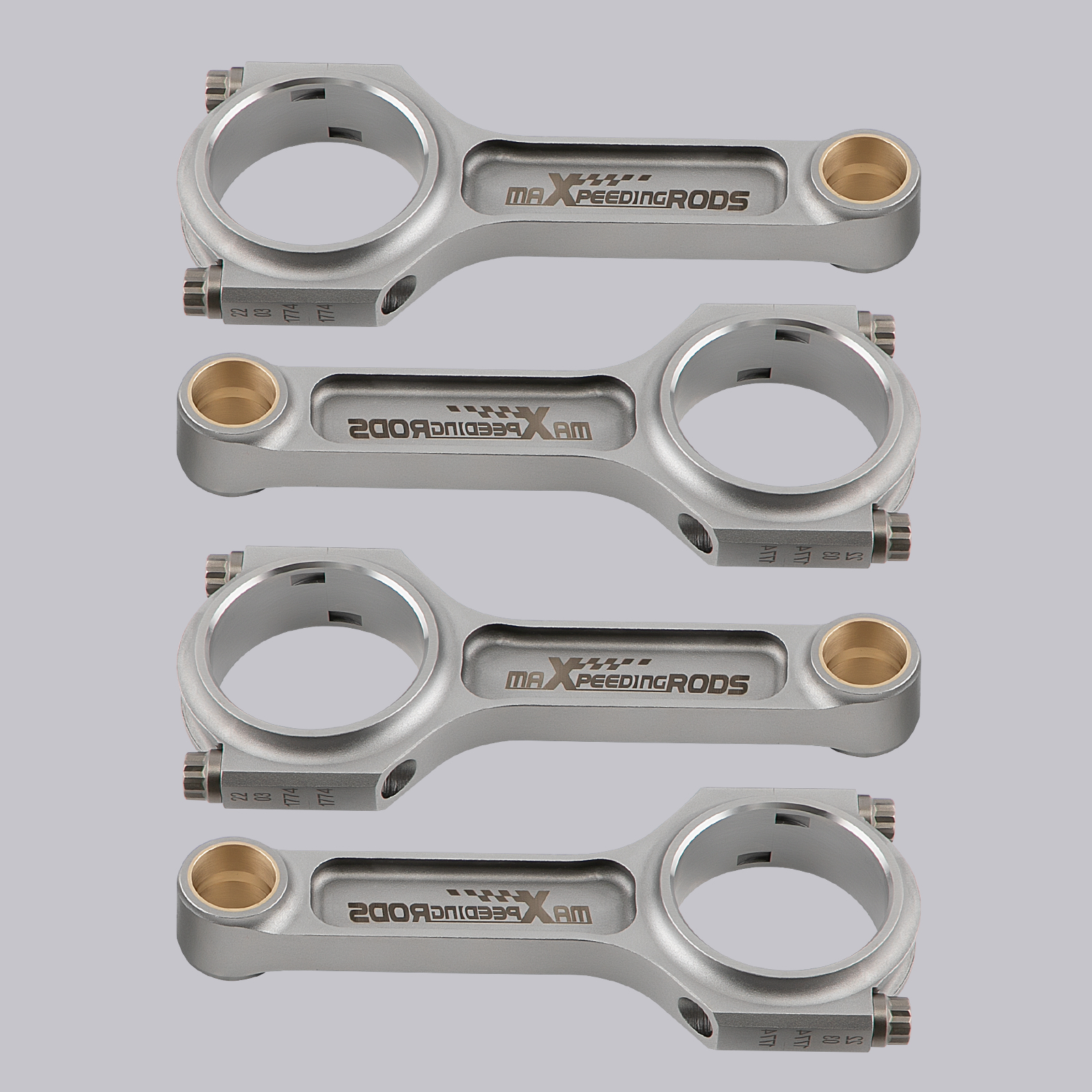

*I-beam Conrods Quantity: 4 Pieces as showing in picture
*Bolts: Including   ARP 2000 3/8" bolts  (Note: Extra cost for upgrading to ARP L19 bolts)
*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
*Advertised Horsepower Rating:200HP/piece
*Top acceleration: 9000rpm
*package size:28CM*21CM*10CM







Dimensions

Center to center length: 137mm/5.394"
Big end diameter: 48mm/1.890"
Small end diameter: 19mm/0.748"
Big end width: 22.8mm/0.898"
Small end width: 18.2mm/0.717"





Feature

1.TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED;
2.Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing;
3.ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade;
4.I-Beam reduce inertial force withstand the high gas pressure;
5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers;
6.High precision CNC machined,Precision rod cap alignment dowels;
7.Bores finished to +/- .01 mm;
8.Balanced to within +/- 1 g per rod;
9. Each rod is magnetic particle tested to ensure free of flaws;
10.Use X-rayed, sonic tested;
11.Custom Service.









Note


*Professional installation is highly recommended ;
*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
