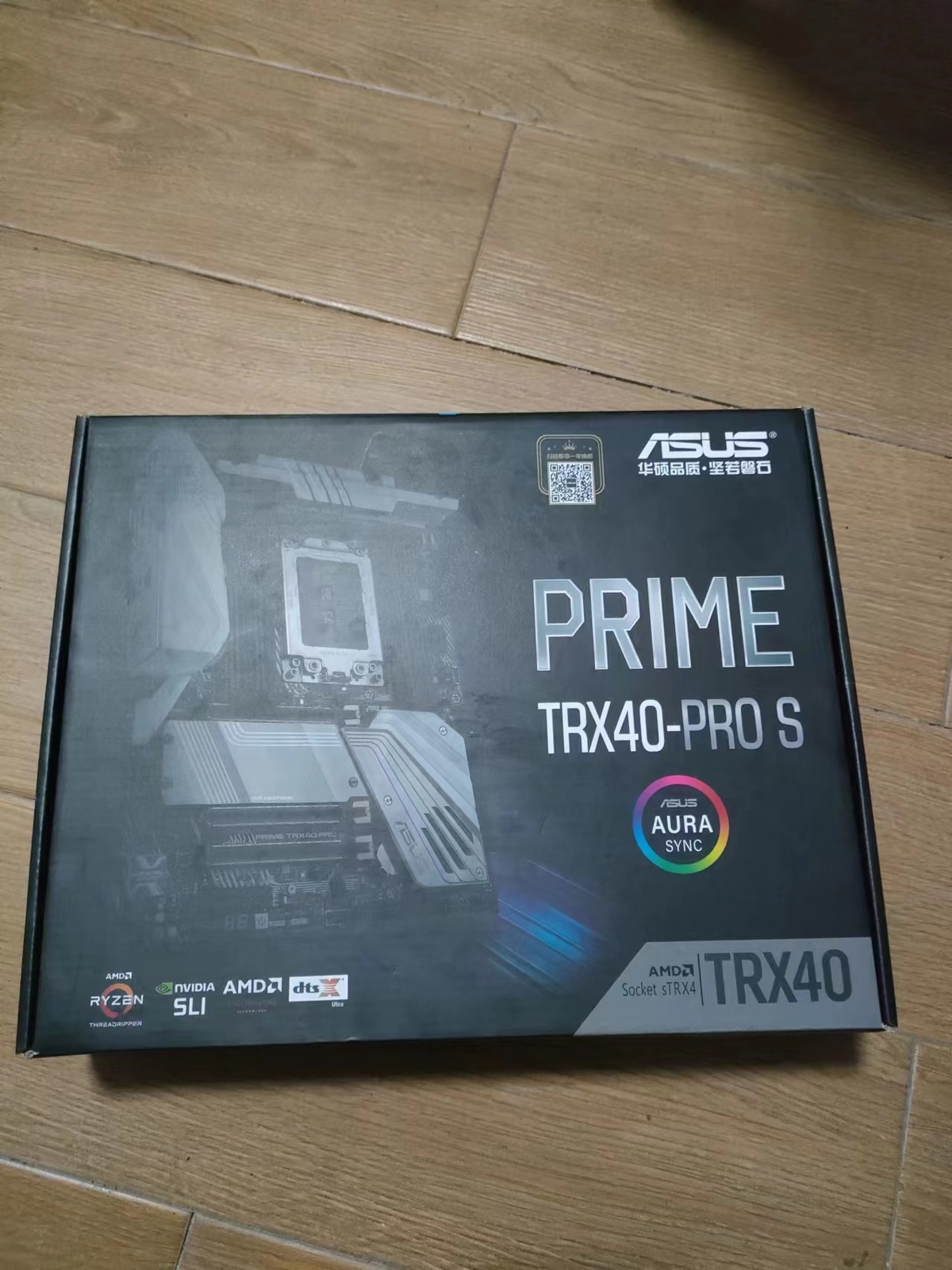

ASUS PRIME TRX40-PRO S Support 3rd Gen AMD Ryzen Threadripper 3960x 3970x 3990x

The buyer is responsible for customs duties!!!



Motherboard chips

Main chipset

AMD TRX40

Chipset description

It is equipped with IAMD TRX40 chipset

Display chips

CPU built-in display chip (CPU support required)

Audio chips

Integrated Realtek ALC S1220 8-channel audio chip

Network card chip

Integrated Intel I211-AT network card



Processor specifications

CPU type

3rd Gen AMD Ryzen Threadripper processors

CPU socket

Socket sTRX4



Memory specifications

Memory type

8×DDR4 DIMM

Maximum memory capacity

256GB

Memory description

Dual-channel DDR4 4600 (OC)/4666 (O.C.) /4400 (OC)/4333 (OC)/4266 (OC)/4133 (OC)/3800 (OC)/3733 (OC)/3466 (OC)/3400 (OC)/3200/2933/2800/2666/2400/2133MHz memory



Storage expansion

PCI-E standard

PCI-E 4.0

PCI-E slots

3rd Gen AMD Ryzen Threadripper Series Desktop Processors:
3× PCIe x16 graphics card slots
AMD TRX40 chip:
1×PCIe x4 slots

Storage interfaces

3× M.2 interface, 8× SATA III interface



I/O interface

USB interface

AMD TRX40 Chipset: 1× USB3.2 Gen2 Front Connection Port (1 Front) AMD Ryzen™ Threadripper Processor: 4× USB3.2 Gen2 Ports (4 Rear, 3× Type-A+1×Type-C)
AMD TRX40 Chipset:


6× USB3.2
Gen 1 connection port (2 rear, 4 front, Type-A) AMD TRX40 Chip:
2× USB 2.0 connection port (2 front) ASMedia USB3.0 Controller: 4× USB3.2 Gen1 connection port (4 rear, Type-A)


GL852G USB Hub:

2× USB2.0 connection port (2 front)

Power connector

One 8-pin, one 24-pin power connector

Other interfaces

1× RJ45 network interface, 5× audio interface, 1× optical S/PDIF digital audio output interface



Plate type

Motherboard form factor

ATX plate type

Dimensions

30.5×24.4cm



Software management

BIOS performance

1x128 Mb Flash ROM, UEFI AMI BIOS，PnP，WfM2.0，SM BIOS 3.2，ACPI 6.2



Other parameters

Multi-graphics technology

Support for NVIDIA Quad-GPU SLI Technology Support for AMD Quad-GPU CrossFireX Technology Support for NVIDIA 2-Way SLI Technology


Support for AMD 2-Way CrossFireX Technology

Power supply mode

16 phases

RAID function

RAID 0,1,10 is supported

Wireless capability

Intel AX200 Wi-Fi 6 wireless card, 802.11a/b/g/n/ac/ax, supports 2.4/5GHz wireless dual band

Bluetooth

Bluetooth 5.0 is supported

Other features:

Powered by 5-fold optimized 5th Gen ASUS Dual Intelligent Processors ASUS SafeSlot ASUS Silent Cooling Solution
Aura RGB Header
Aura lighting syncs with compatible
ASUS
ROG devices



Motherboard accessories

Packing list

Motherboard x1
SATA 6.0Gb/s cable x4
Vertical M.2 Bracket Kit x1
M.2 Screw Pack x2
Random DVD x1
Q-Connector x1
Programmable LED Extension Cable x1
RGB Strip Extension Cable (40 cm) x1
CPU Fan Bracket x1
