Tuya ZigBee 3.0 Smart Gateway Hub – Wireless & Wired Versions

Create a reliable smart home network with the Tuya ZigBee 3.0 Gateway Hub. Designed as the central bridge between compatible ZigBee devices, your WiFi router and the Smart Life/Tuya App, it enables remote control, smart scenes, schedules and whole-home automation from one convenient platform.

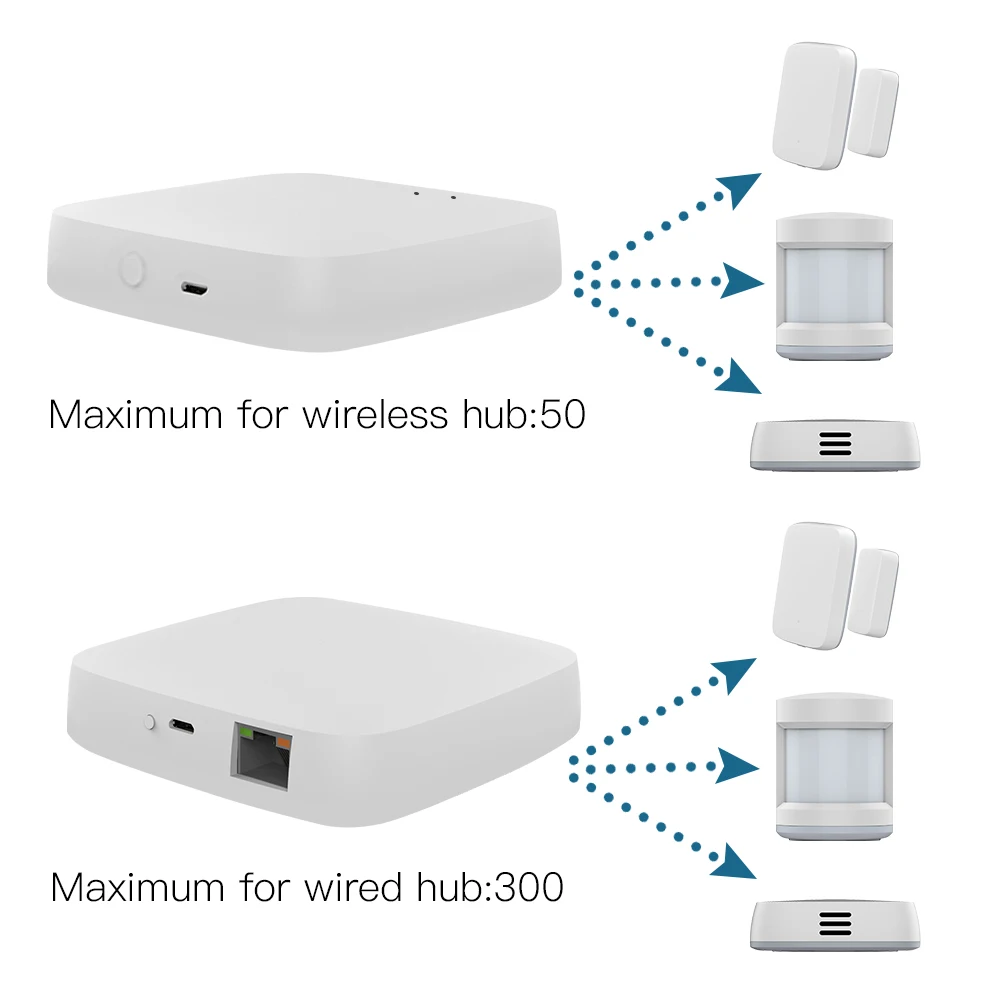

Two versions are available:

• TYGWZE-01N Wireless Gateway: Connects to a 2.4GHz WiFi router and supports up to 50 compatible ZigBee devices.

• TYGWBS-01N Wired Gateway: Connects to the router through an RJ45 Ethernet cable and supports up to 300 compatible ZigBee devices.

Key Features

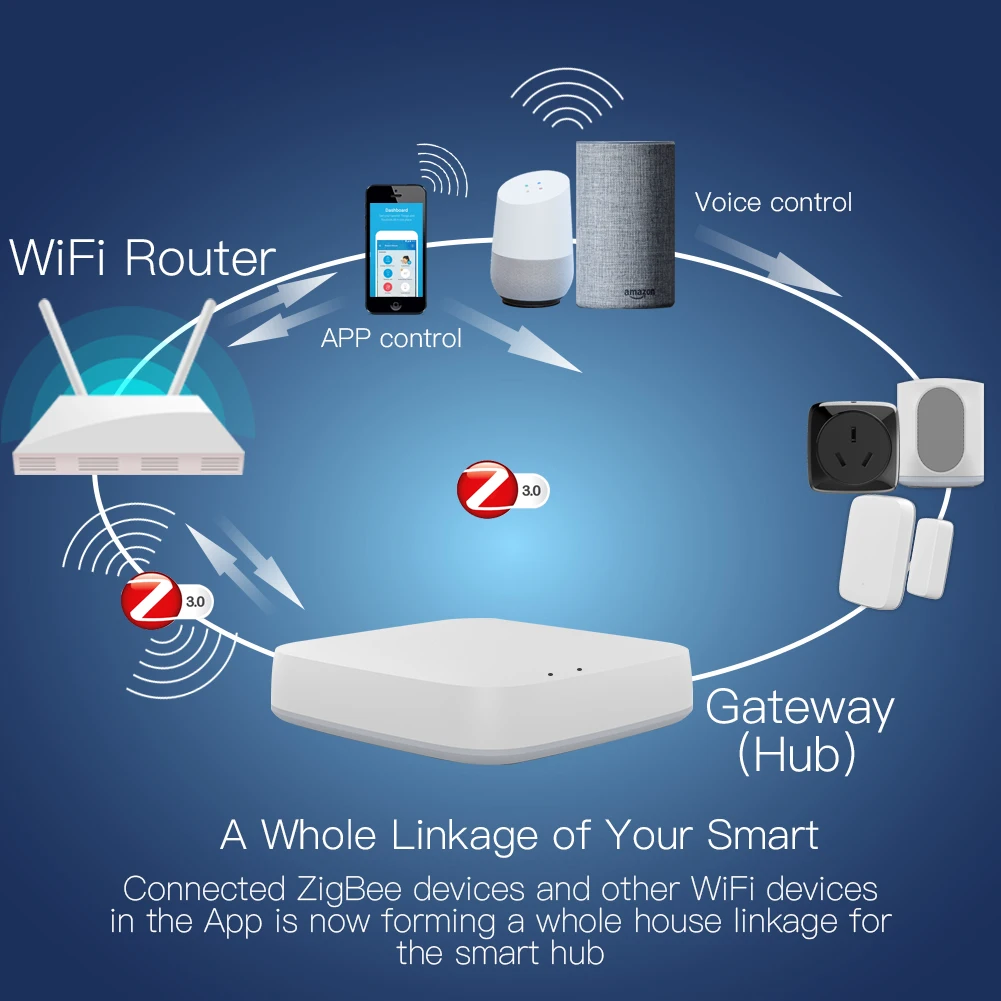

ZigBee 3.0 Control Center
The gateway provides the essential connection between compatible Tuya ZigBee devices and the Smart Life/Tuya App. It is suitable for building a coordinated smart home system with switches, sockets, sensors, lighting and other compatible devices.

Wireless or Wired Connection Options
Choose the version that fits your installation:

• Wireless version for quick 2.4GHz WiFi setup without a network cable

• Wired version with an RJ45 Ethernet connection for stable network communication and greater device capacity

Smart Life and Tuya App Control
Add and manage compatible ZigBee devices from your smartphone. Check device status, create groups, set schedules and build automated scenes according to your daily routine.

Smart Home Automation
Create intelligent linkages between compatible devices. For example, a motion sensor can activate a light, a door sensor can trigger an alert, or a water-leak sensor can send an instant notification through the App.

Remote Access and Instant Alerts
Monitor connected devices and receive supported security or sensor alerts from virtually anywhere with an internet connection.

Alexa and Google Home Compatible
Compatible devices connected through the gateway may support voice control with Amazon Alexa and Google Home. Available voice functions depend on the individual connected device.

USB Type-C Power Input
Both versions feature an upgraded USB Type-C power interface and require a 5V DC 1A power supply.

Compact and Easy to Install
The clean, compact housing fits naturally into home or office environments. Follow the App instructions to connect the gateway and add compatible ZigBee devices—no advanced technical experience is required.

Technical Specifications

• Product: Tuya ZigBee Smart Gateway Hub

• Wireless Model: TYGWZE-01N

• Wired Model: TYGWBS-01N

• App: Smart Life / Tuya App

• ZigBee Protocol: ZigBee / ZigBee 3.0

• Router Frequency: 2.4GHz WiFi

• Wireless Version Capacity: Up to 50 devices

• Wired Version Capacity: Up to 300 devices

• Power Input: USB Type-C, 5V DC 1A

• Wired Connection: RJ45 Ethernet

• Working Temperature: −10°C to 55°C

• Working Humidity: 10%–90% RH, non-condensing

• Voice Platforms: Amazon Alexa and Google Home*

• Indoor Use: Yes

*Voice control availability depends on the functions supported by each connected device.

Compatible Device Types

The gateway can work with compatible Tuya ZigBee and ZigBee 3.0 products, including:

• Smart wall switches

• Smart plugs and sockets

• Door and window sensors

• Motion sensors

• Water-leak sensors

• Temperature and humidity sensors

• Smart lighting products

• Other compatible ZigBee smart devices

Package Contents

TYGWZE-01N Wireless Version

• 1 × Wireless ZigBee Gateway Hub

• 1 × USB Type-C Cable

• 1 × Quick User Guide

TYGWBS-01N Wired Version

• 1 × Wired ZigBee Gateway Hub

• 1 × USB Type-C Cable

• 1 × RJ45 Network Cable

• 1 × Quick User Guide

Important Notes

• This gateway connects compatible ZigBee devices; ordinary WiFi devices cannot be added as ZigBee sub-devices.

• WiFi devices may appear in the same Smart Life/Tuya App and participate in supported automations, but they do not connect to the gateway through ZigBee.

• The wireless version requires a 2.4GHz WiFi network and does not support direct 5GHz WiFi pairing.

• A USB power adapter may not be included; use a suitable 5V DC 1A adapter.

• Device capacity is the maximum supported quantity under suitable network and operating conditions.

• Compatibility should be confirmed before purchasing, especially for non-Tuya ZigBee devices.
