AN8 8AN 16Feet Steel Nylon Braided Oil Fuel Line Hose End Kit

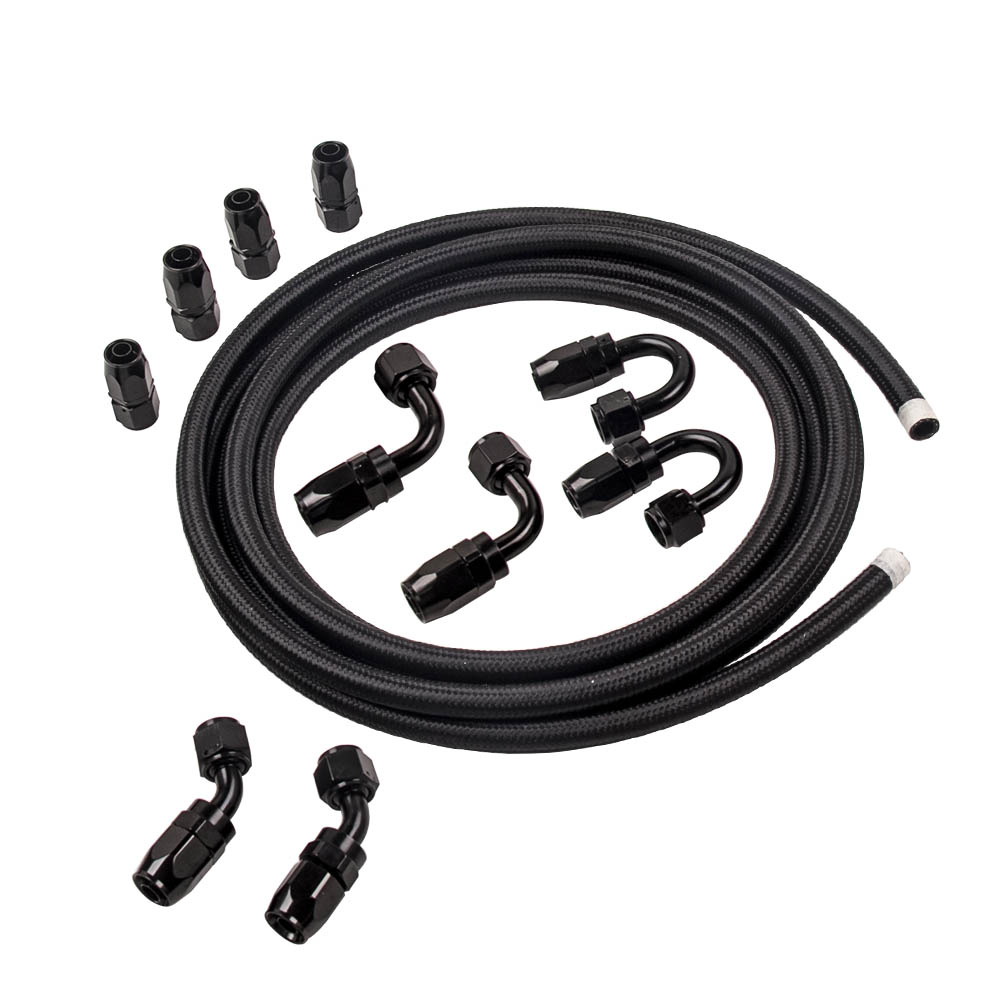

This Kit include :

4 x AN-8 Straight Reusable Swivel Hose End

2 x AN-8 45 Degree Reusable Swivel Hose End

2 x AN-8 90 Degree Reusable Swivel Hose End

2 x AN-8 180 Degree Reusable Swivel Hose End

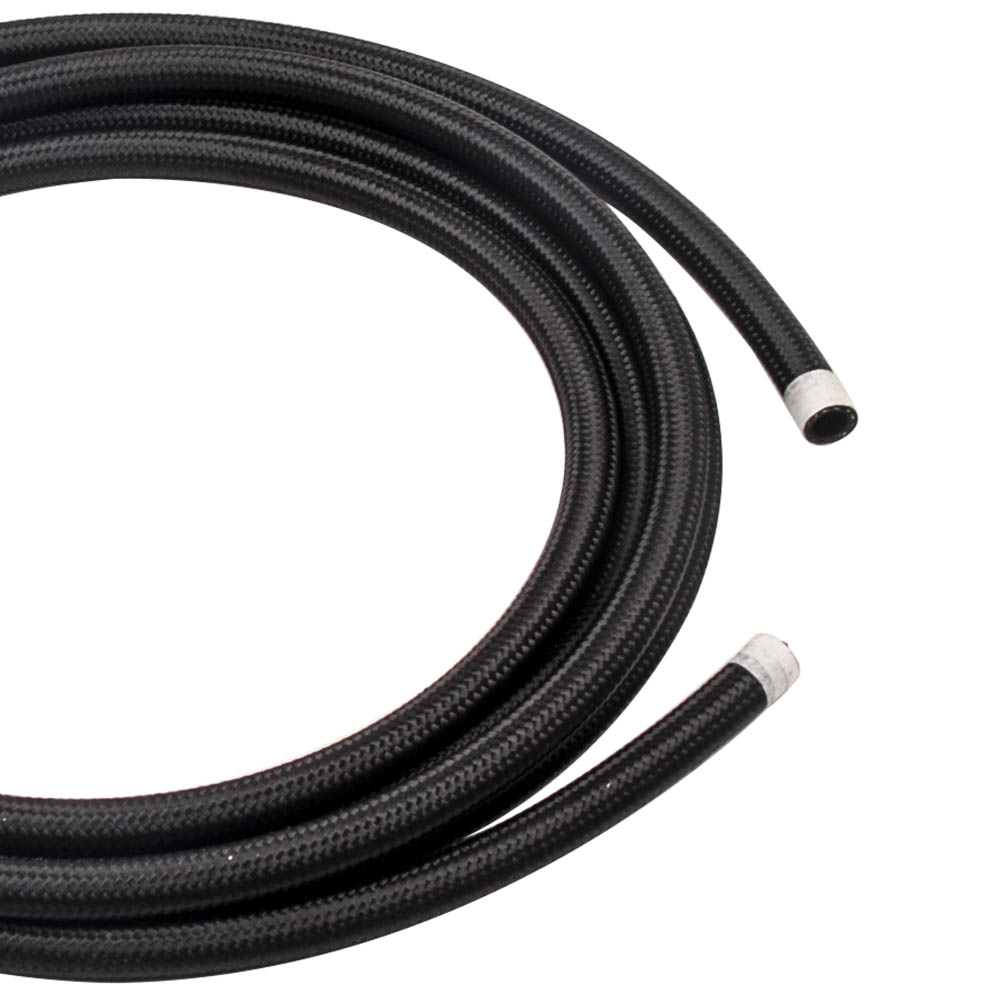

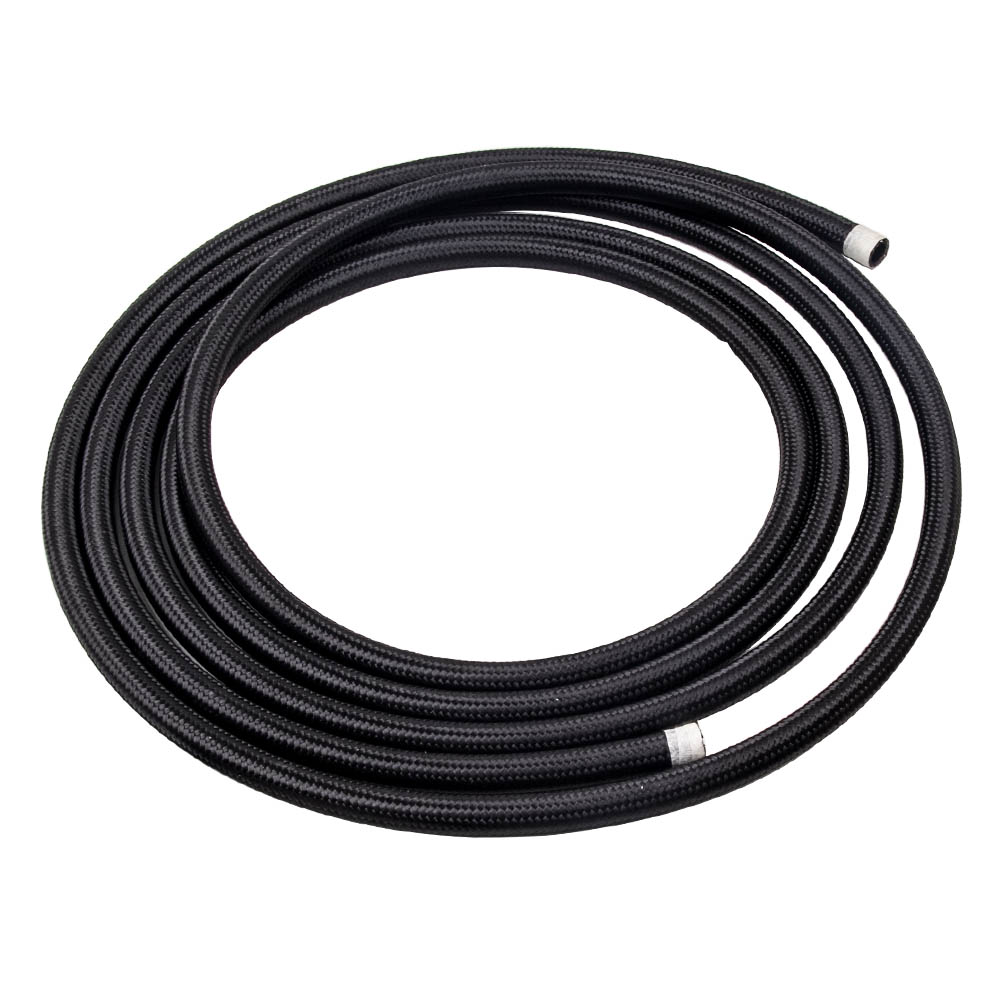

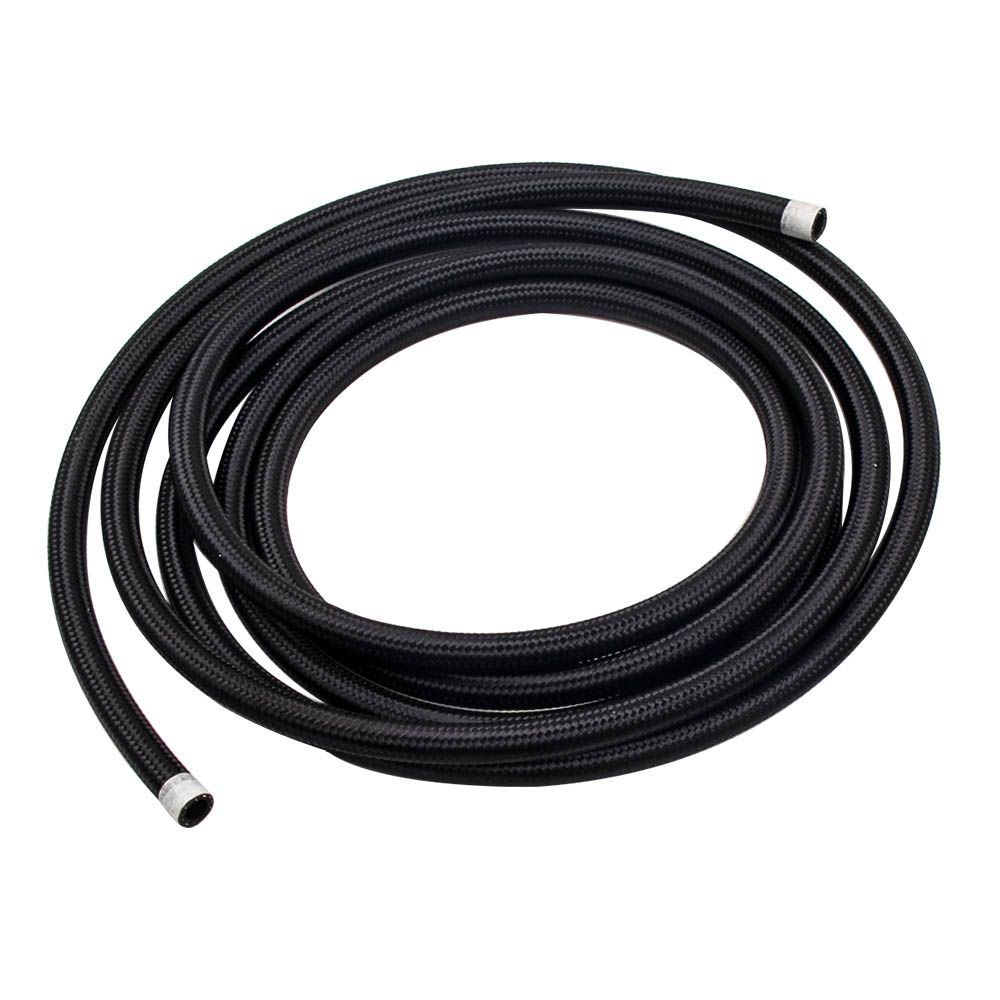

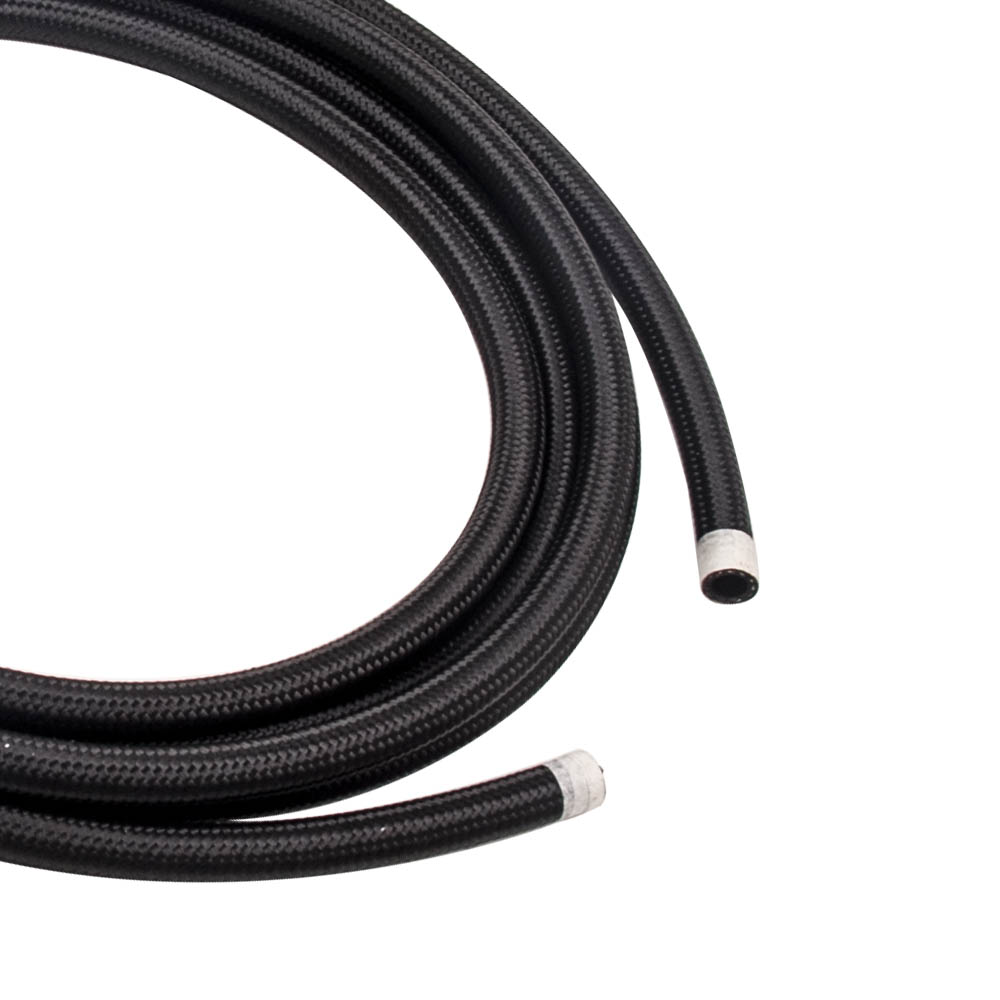

1 x AN-8 Nylon Braided Hose
Hose Length: 5M/16.4 Feet
Hose Diameter: 1.7cm
(You will get exactly the same as picture shows)

Specification:

Fitting Material: Anodize T-6061 Aluminum Alloy

Fitting Size: AN -8 / JIC 8 - 3/4 x 16 UNF

Braided Hose: I.D. = 11.1mm approx - O.D. = 17.2mm approx

Material: Nylon Steel

Working Pressure: 500PSI

Bursting Pressure : 3000PSI

Minimum bending radius: 88.9mm

Temperature range: -40℃ to +160℃

Color: Black

​Warranty: 2 Years

100% Brand New

Features:

Made of 3 Layers:
1.Inner Layer Material: Durable CPE synthetic rubber tube
2.Middle Layer Material:308 Stainless Steel Wire Mesh Sleeve
3.Outer Layer Material : High Quality Braided Nylon.

CNC machined items

​Removable head for both push-on or twist-lock

Polished and anodized for bright appearance and corrosion protection

No leakage under high pressure and temperature

Note:

Professional Installation is Highly Recommended

Installation Instruction is NOT Included
