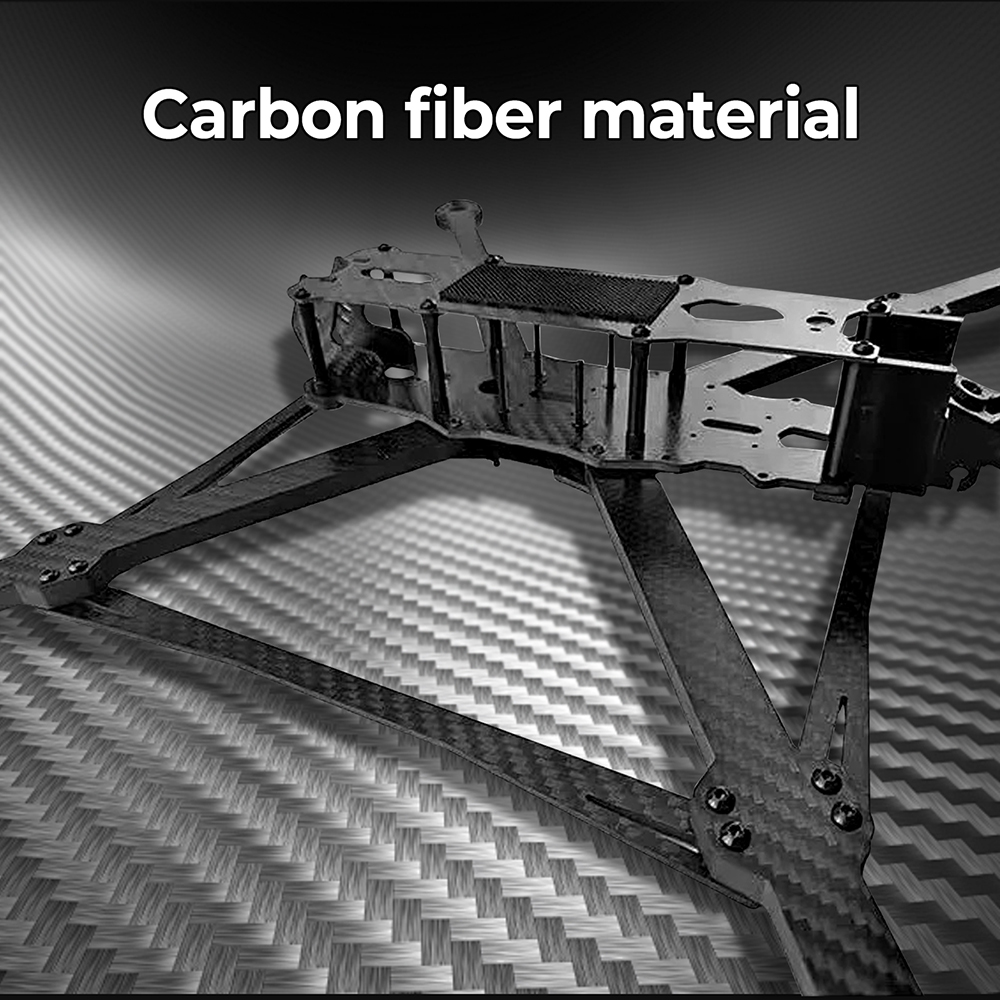

1.Heavy-Duty Carbon Fiber Structure：High-strength carbon fiber with 8.0mm thick arms and multi-plate reinforcement for excellent rigidity and durability.

2. High Payload Capacity：13inch frame: supports 6–8kg payload 15inch frame: supports 8–10kg payload，Ideal for long-range, cinematic and heavy-lift FPV builds.

3. Reinforced Plate Design：3.0mm reinforced bottom & surrounding plates improve torsional stiffness and impact resistance during aggressive flights.

4. Wide Component Compatibility：Supports 20×20mm & 30.5×30.5mm FC/VTX mounting and 21×21mm motor pattern with 4mm motor screws.

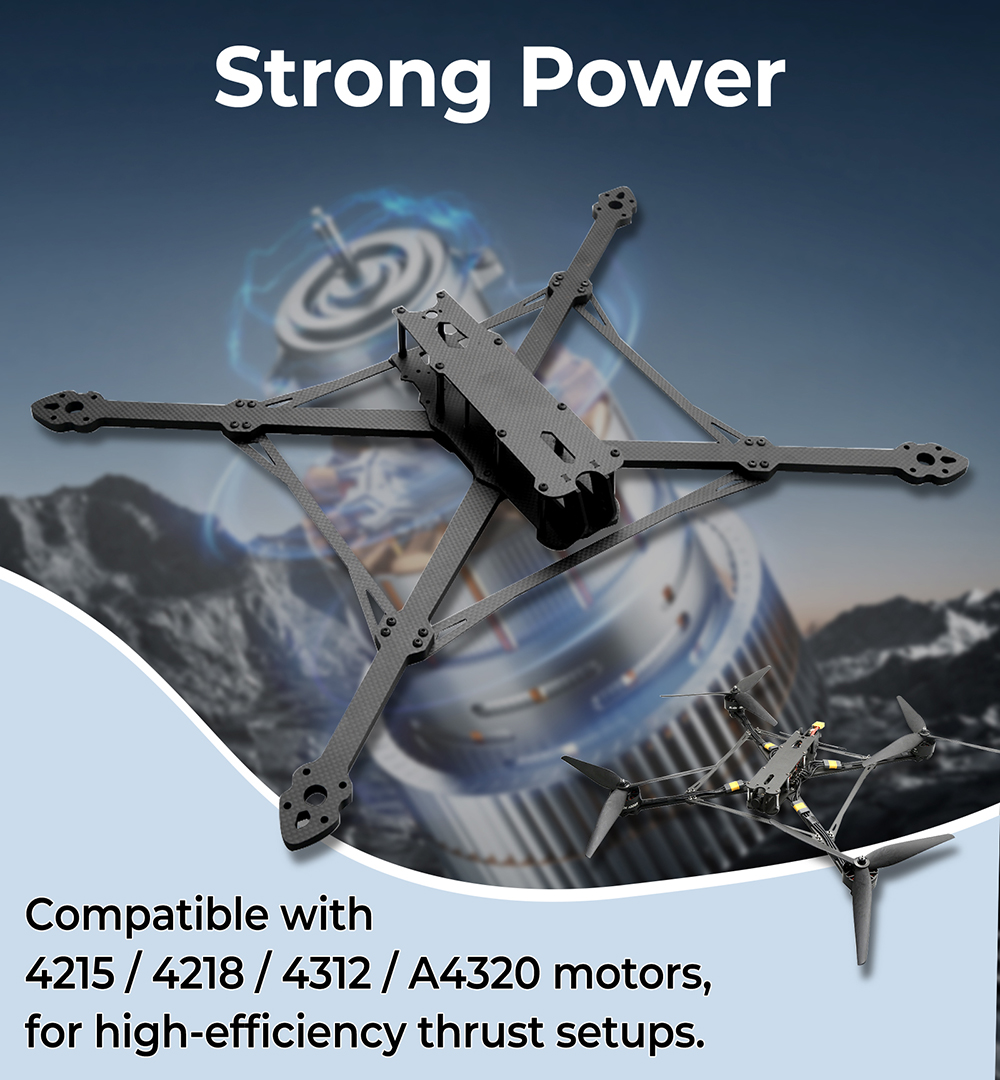

5. Large Prop & Motor Support：Compatible with 13” / 15” propellers and 4215 / 4218 / 4312 / A4320 motors for high-efficiency thrust setups.

Description:

The MARK4 V3 Pro carbon fiber frame kit is designed for FPV freestyle quadcopters, offering a rigid and lightweight structure with 8mm arms, wide electronics compatibility, and support for large motors and propellers.

Specifications:

Product Name: MARK4 V3 Pro Carbon Fiber Drone Frame

Material: Carbon Fiber

13 Inch Version

Wheelbase: 570mm

Weight: 560g

Prop Compatibility: 13 inch

Motor Compatibility: 4215 / 4218 / 4312 / A4320

Payload Capacity:：6–8kg

15 Inch Version

Wheelbase: 680mm

Weight: 590g

Prop Compatibility: 15 inch

Motor Compatibility: 4218 / 4312 / A4320

Payload Capacity：8–10kg

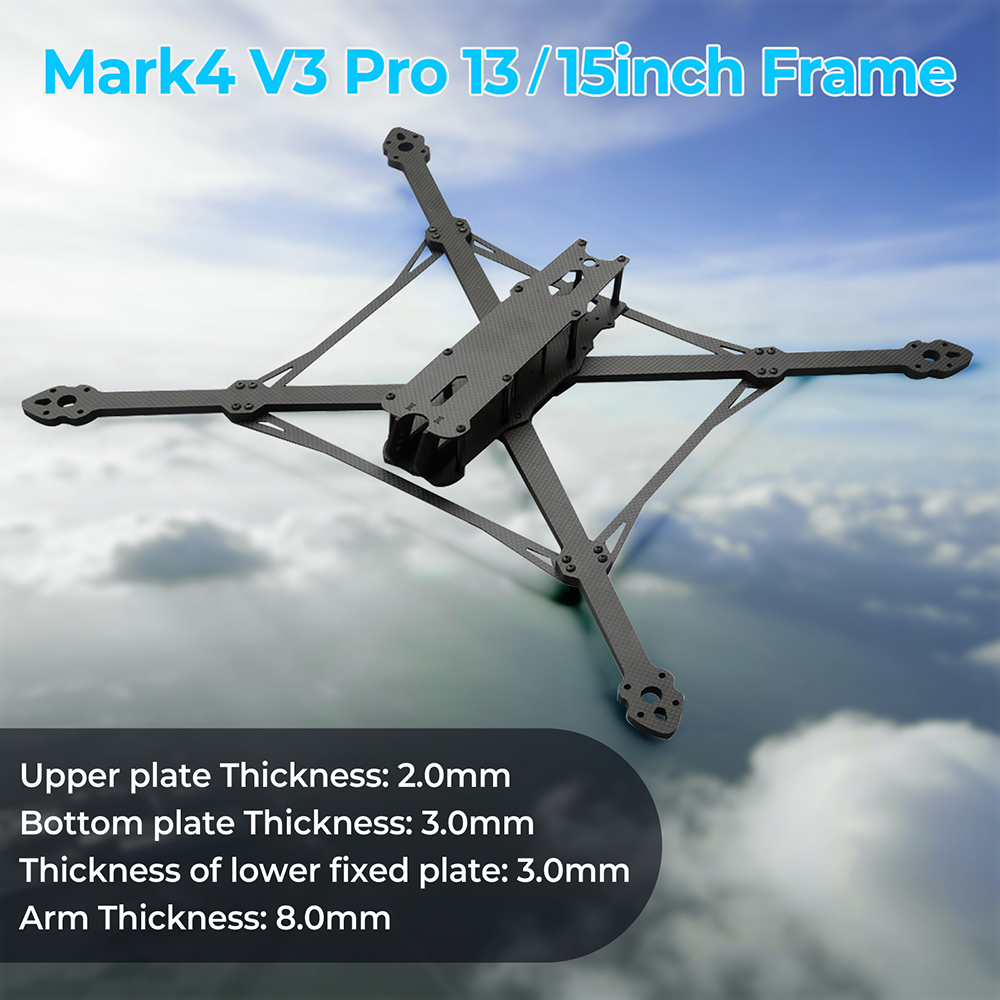

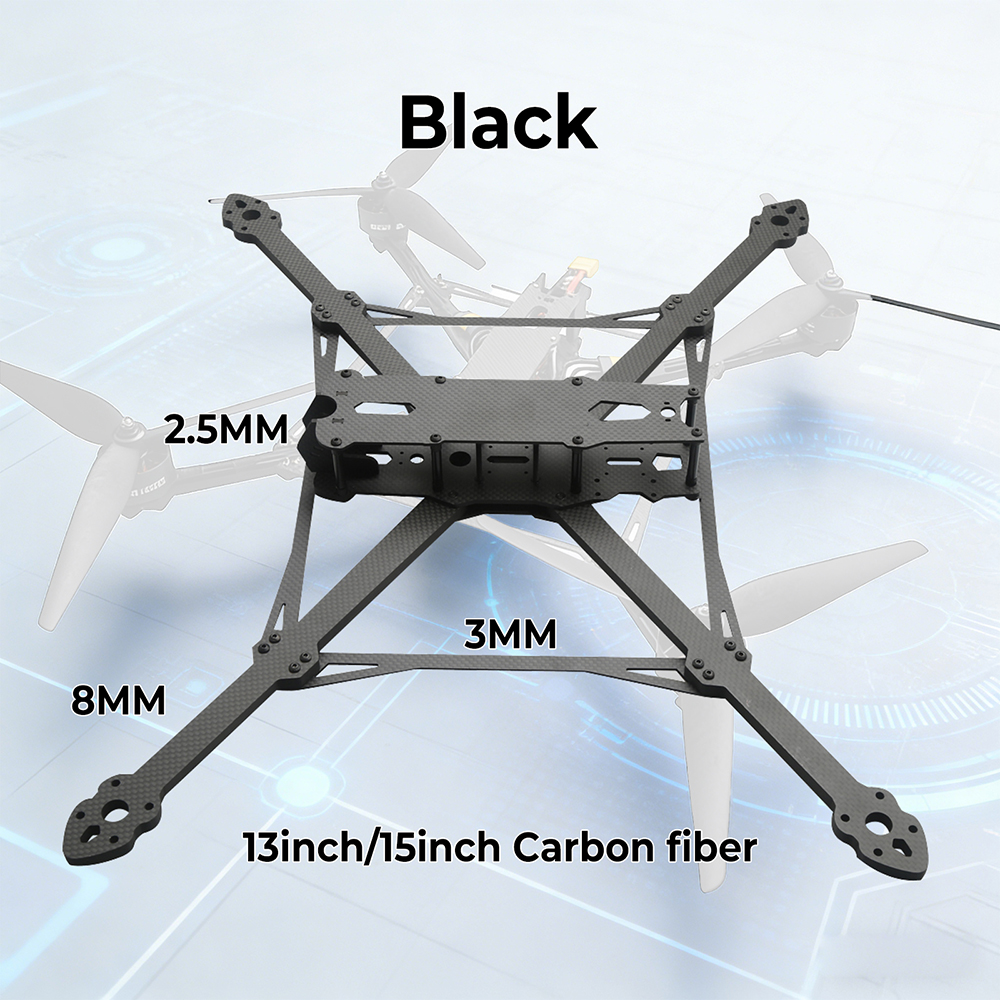

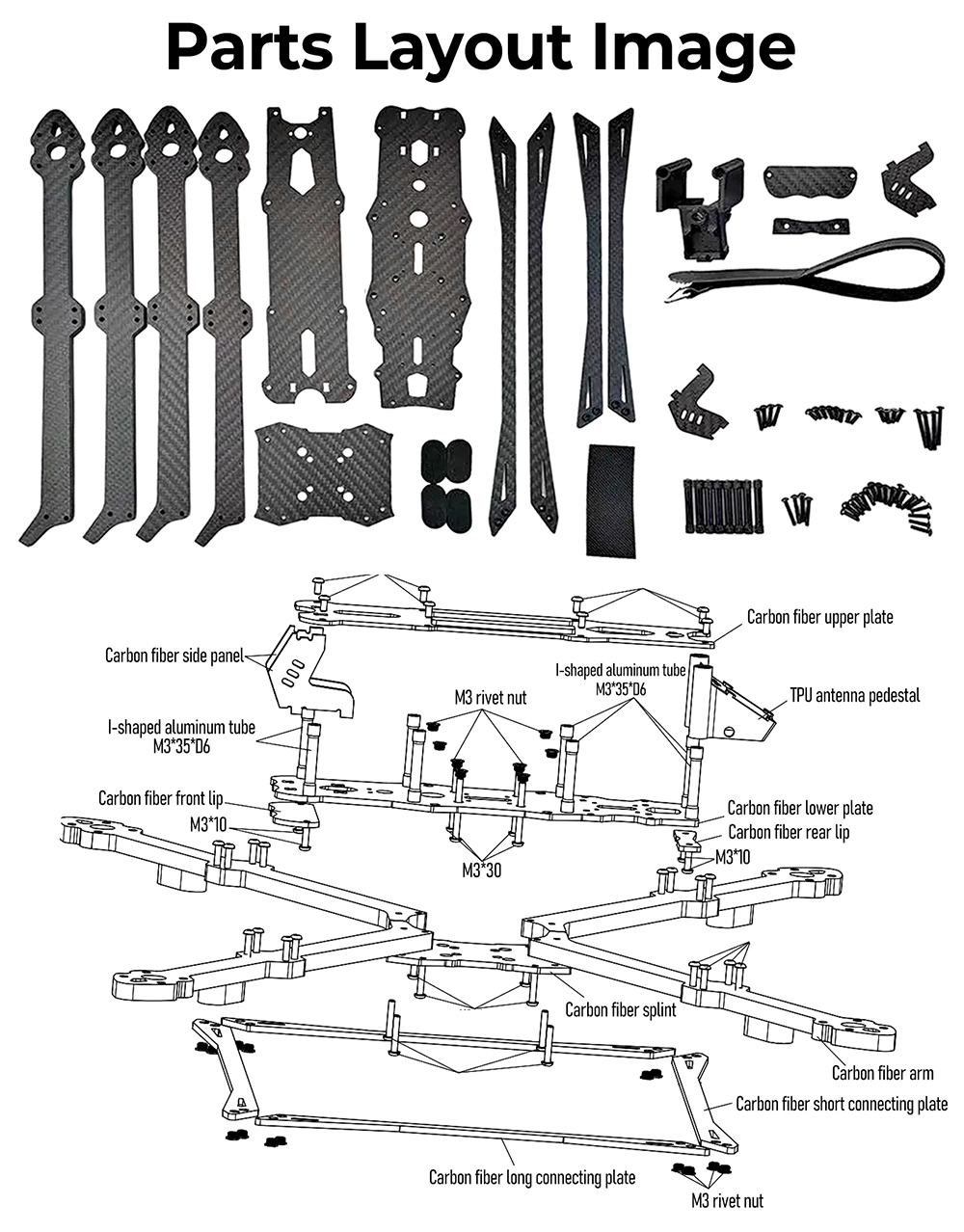

Structure Details

Upper Plate Thickness: 2.0mm

Bottom Plate Thickness: 3.0mm

Lower Fixed Plate Thickness: 3.0mm

Camera Side Plate Thickness: 2.5mm

Front Lip Plate Thickness: 2.5mm

Rear Lip Plate Thickness: 2.5mm

Surrounding Reinforcement Thickness: 3.0mm

Arm Thickness: 8.0mm

Mounting

Camera Mount Spacing: 19mm

FC Mount Spacing: 20×20mm / 30.5×30.5mm

VTX Mount Spacing: 20×20mm / 30.5×30.5mm

Motor Mount Spacing: 21×21mm

Motor Screw Hole Diameter: 4mm

Package contents:

1*Carbon Fiber Frame
