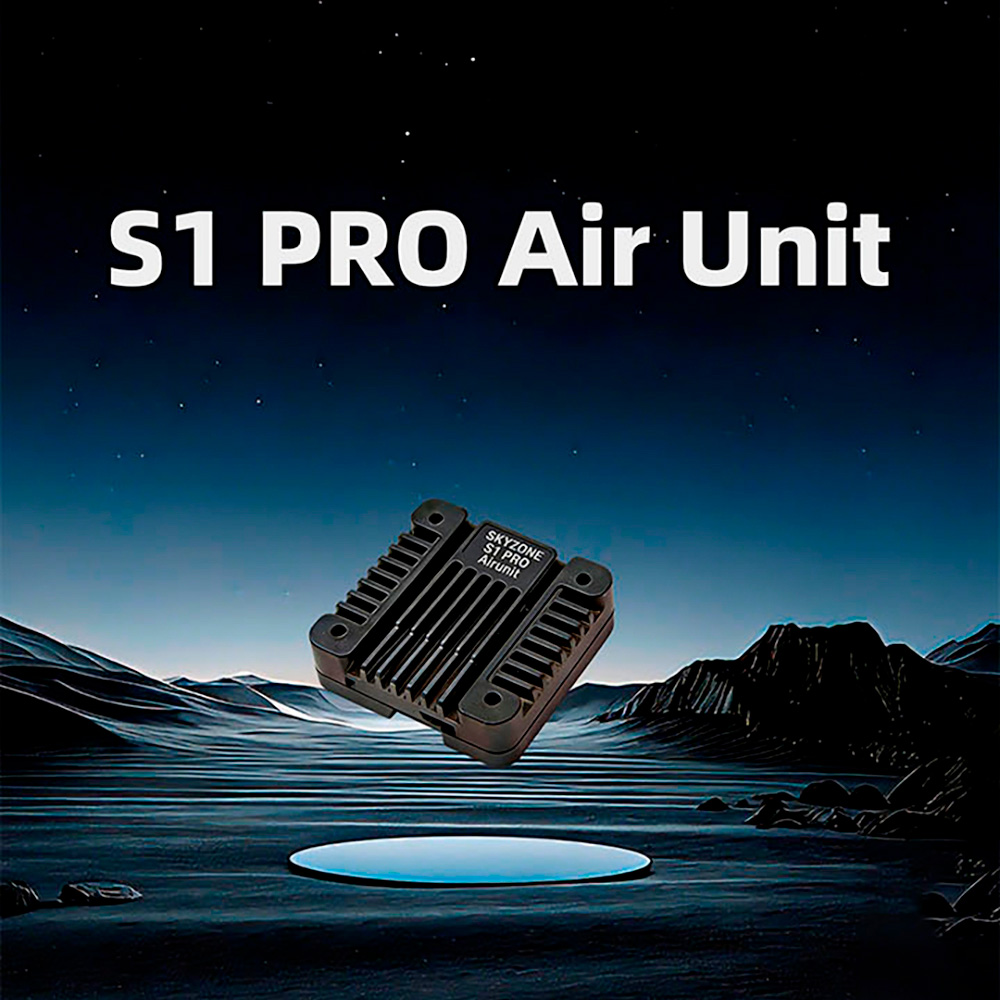

S1 PRO Air Unit Features:
1. S1 PRO is the first digital transmission product launched by SKYZONE in collaboration with the ArtLynk HD digitalecosystem.
2. HD Vision, All in Sight,HD Quality 1080p 60fps An Immersive Visual Feast
3. Details Clearly Visible,Equipped with a 1/1.8inch 1/2.9inch camera sensor, Maintains a certain level of visibility even in low-light environments
4. Ultra-Strong Signal,Uninterrupted Transmission,Equipped with dual high-gain antennas for optimized reception,Adaptively adjusts transmission power<33dBm(FCC)
5. Efficient Heat Dissipation,Stable Operating Condition,Equipped with a CNC aluminum housing,Operates reliably and stably in ambient temperatures up to 60℃

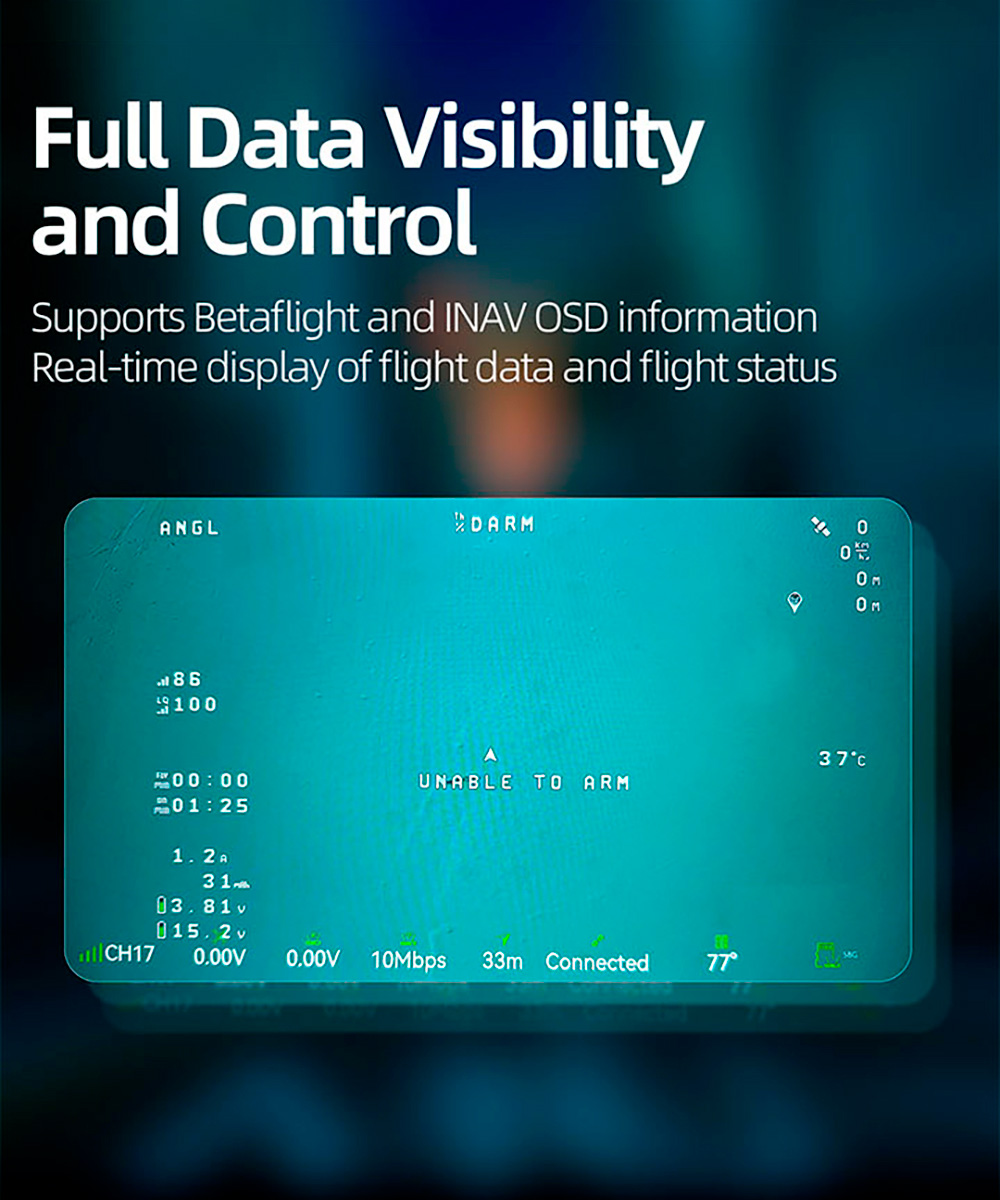

6. Full Data Visibility and Control,Supports Betaflight and INAV OSD information,Real-time display of flight data and flight status

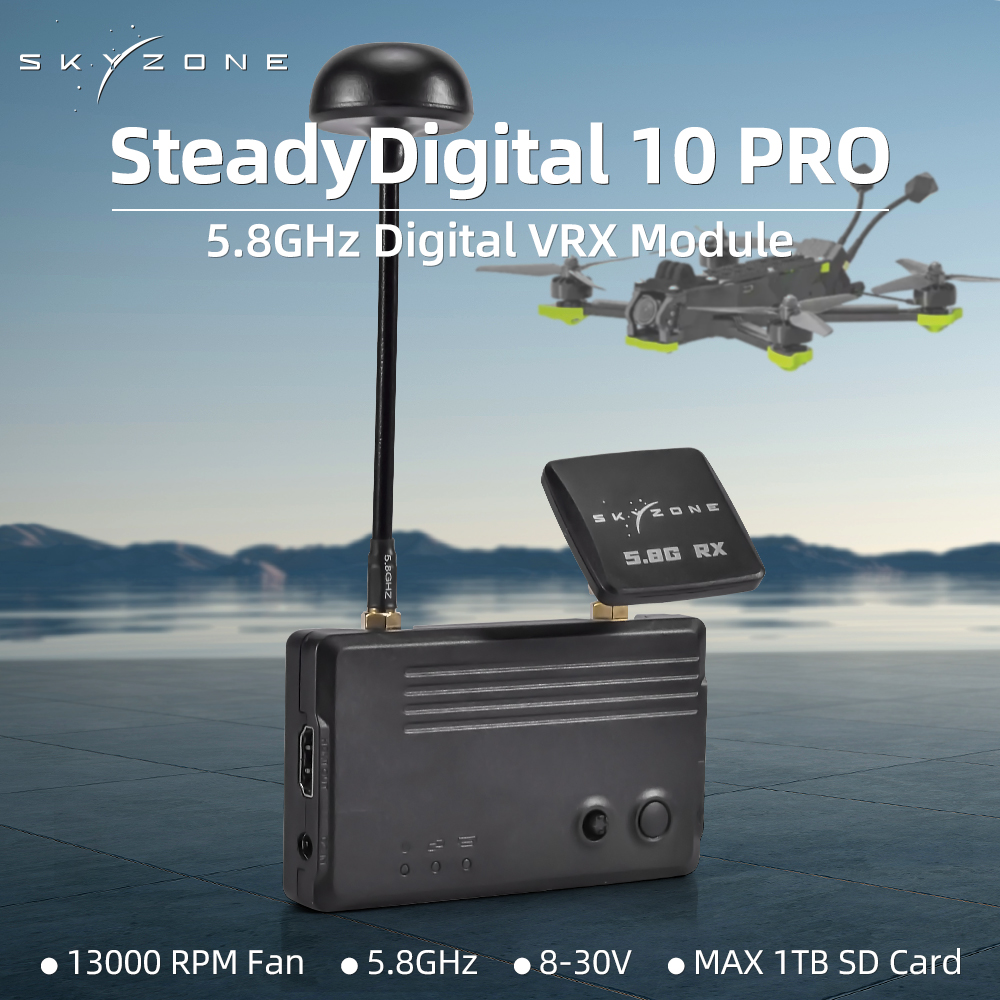

S10P VTX Features:
1. HD Quality 1080p 60fps,Immersive Visual Experience.
2. S1OP VRX Digital Video Transmission Receiver delivers stable signals and high-definition imaging.
3. Multi-Terminal Compatibility,One Device for Multiple Uses HDMI Output, Compatible with Various Display Devices.
4. Five-Way Navigation Button for Simple and Quick Settings,Tri-Color Indicator for Real-Time Status at a Glance.
5.
Standard Equipment Includes Mushroom Antenna +8dBi Patch
Antenna,Optimized Signal Reception,Enables Stable Long-Range
Transmission with Smooth, Clear, and Stable Video.
6.
Equipped with a 13,000 RPM Vortex Fan and Large-Area CNC Heat Sink Fins
Operates Reliably and Stably in Outdoor Ambient Temperatures up to 40℃.
7. Supports Betaflight and INAV OSD Information,Real-Time Flight Data Display for ContinuousSituational Awareness.
Description:
SKYZONE S1 PRO, jointly developed with ArtLynk HD digital ecosystem, features 1080P 60fps HD vision, low-light clear imaging, strong anti-interference dual antennas, efficient CNC aluminum heat dissipation and full OSD flight data display, enabling stable smooth transmission and cross-brand system interconnection, with more matched FPV accessories to be launched later.

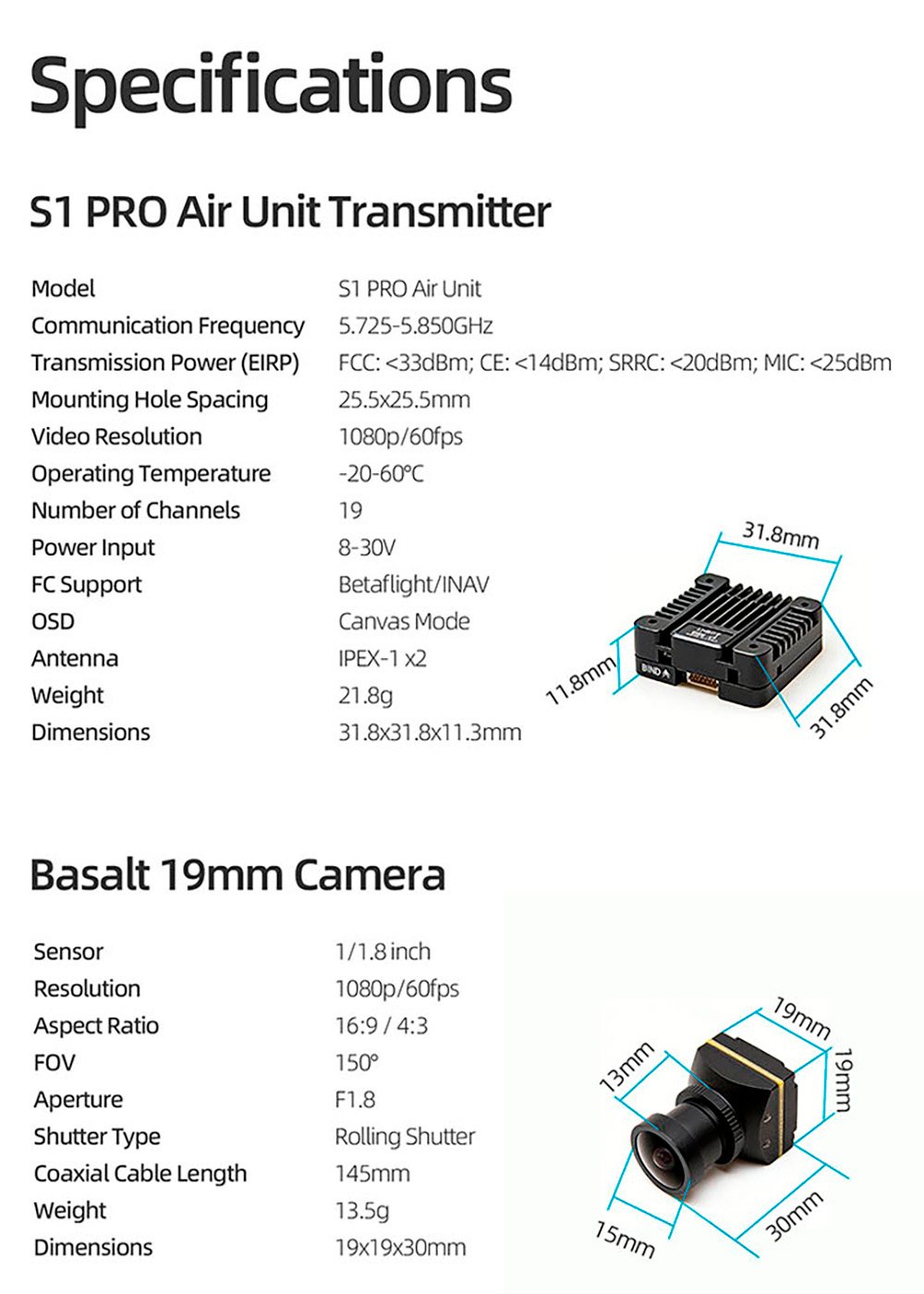

Specifications:
Model: S1 PRO Air Unit
Communication Frequency: 5.725-5.850GHz
Transmission Power(EIRP): FCC:<33dBm; CE:<14dBm; SRRC:<20dBm;MIC:<25dBm
Mounting Hole Spacing: 25.5x25.5mm
Video Resolution: 1080p/60fps
Operating Temperature: -20-60℃
Number of Channels: 19
Power Input: 8-30V
FC Support: Betaflight/INAV
OSD: Canvas Mode
Antenna: IPEX-1x2
Weight: 21.8g
Dimensions: 31.8x31.8x11.3mm
Basalt 19mm Camera
Sensor: 1/1.8inch
Resolution: 1080p/60fps
Aspect Ratio: 16:9/4:3
FOV: 150°
Aperture: F1.8
Shutter Type: Rolling Shutter
Coaxial Cable Length: 145mm
Weight: 13.5g
Dimensions: 19x19x30mm
Suitable for: comprehensive performance standard

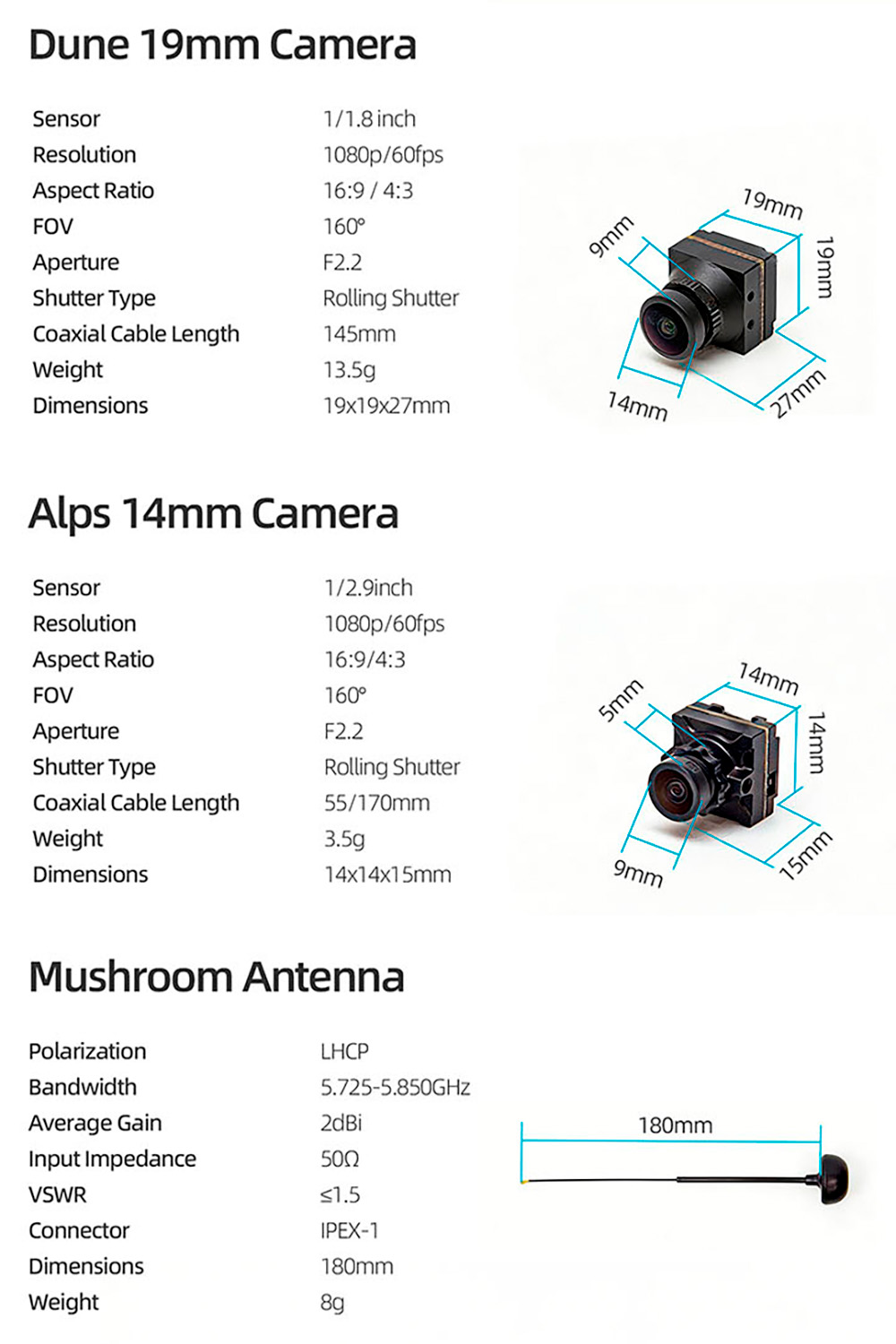

Dune 19mm Camera
Sensor: 1/1.8inch
Resolution: 1080p/60fps
Aspect Ratio: 16:9/4:3
FOV: 160°
Aperture: F2.2
Shutter Type: Rolling Shutter
Coaxial Cable Length: 145mm
Weight: 13.5g
Dimensions: 19x19x27mm
Suitable for: Low light cameras with better nighttime effects
Alps 14mm Camera
Sensor: 1/2.9inch
Resolution: 1080p/60fps
Aspect Ratio: 16:9/4:3
FOV: 160°
Aperture: F2.2
Shutter Type: Rolling Shutter
Coaxial Cable Length: 55/170mm
Weight: 13.5g
Dimensions: 14x14x15mm
Suitable for: 2-3 inch small aircraft
Mushroom Antenna
Polarization: LHCP
Bandwidth: 5.725-5.850GHz
Average Gain: 2dBi
Input Impedance: 50Ω
VSWR: ≤1.5
Connector: IPEX-1
Dimensions: 180mm
Weight: 8g

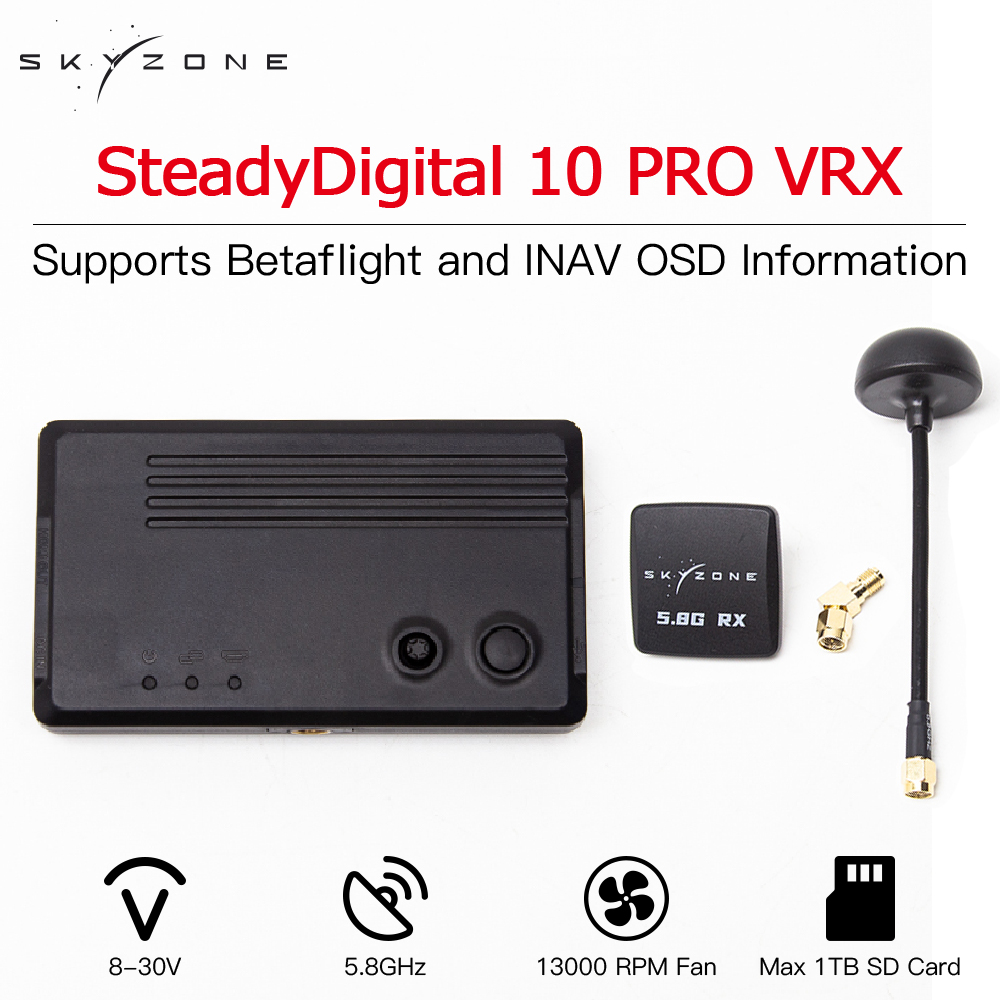

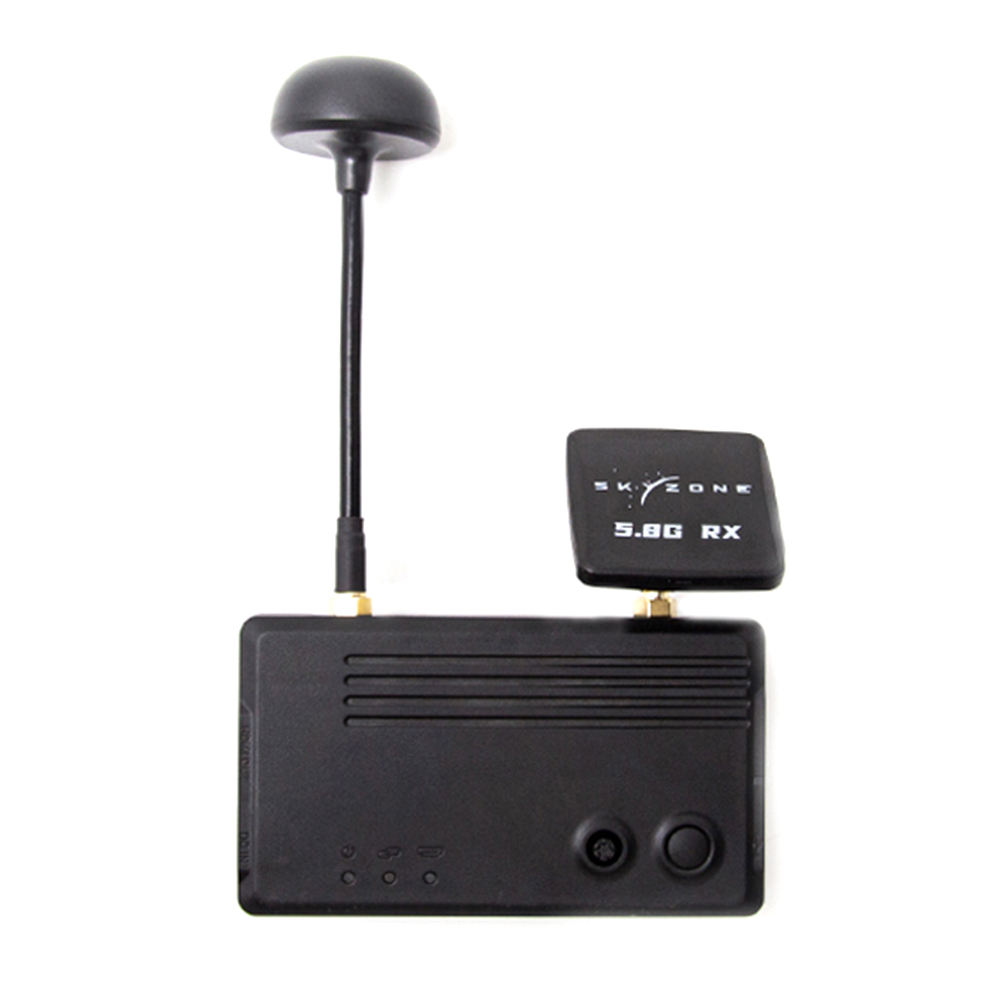

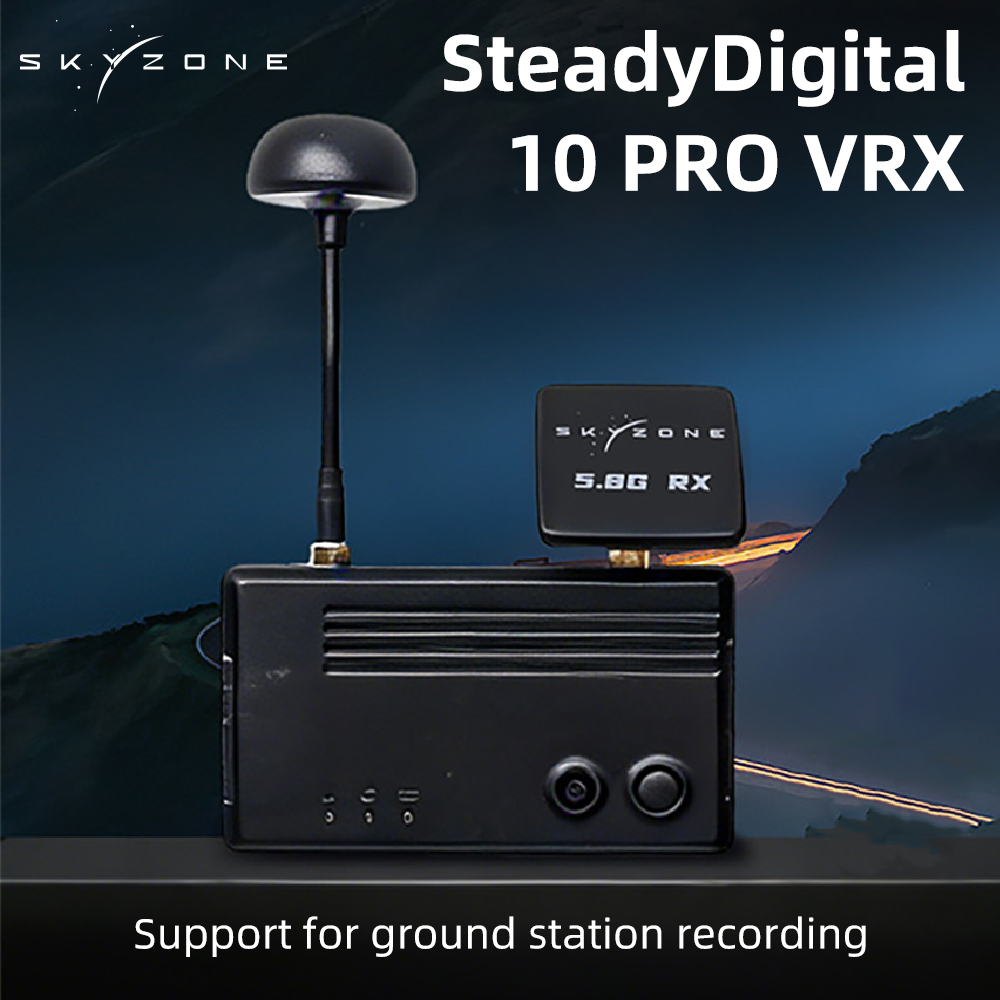

SD10P VRX Specs Table Specifications:
Model: SteadyDigital 10 PRO VRX
Communication Frequency: 5.725-5.850GHz
SD Card Slot: Supports up to 1TB
Type-C: Firmware Upgrade
HDMI: HDMI2.0
Power Input: 8-30V
Weight: 80.1g
Product Dimensions: 104.5*16.5*59mm
Mushroom Antenna Specifications
Polarization: LHCP
Bandwidth: 5.725-5.850GHz
Average Gain: 3.71dBi
Input Impedance: 50Ω
VSWR: ≤1.5
Antenna Connector: SMA-1
Product Weight: 16g
Product Dimensions: 100+26mm
Patch Antenna Specifications
Polarization: Linear Polarization
Bandwidth: 5.725-5.850GHz
Average Gain: 8dBi
Input Impedance: 50Ω
VSWR: ≤1.5
Antenna Connector: SMA-1
Product Weight: 19.1g
Product Dimensions: 40mm

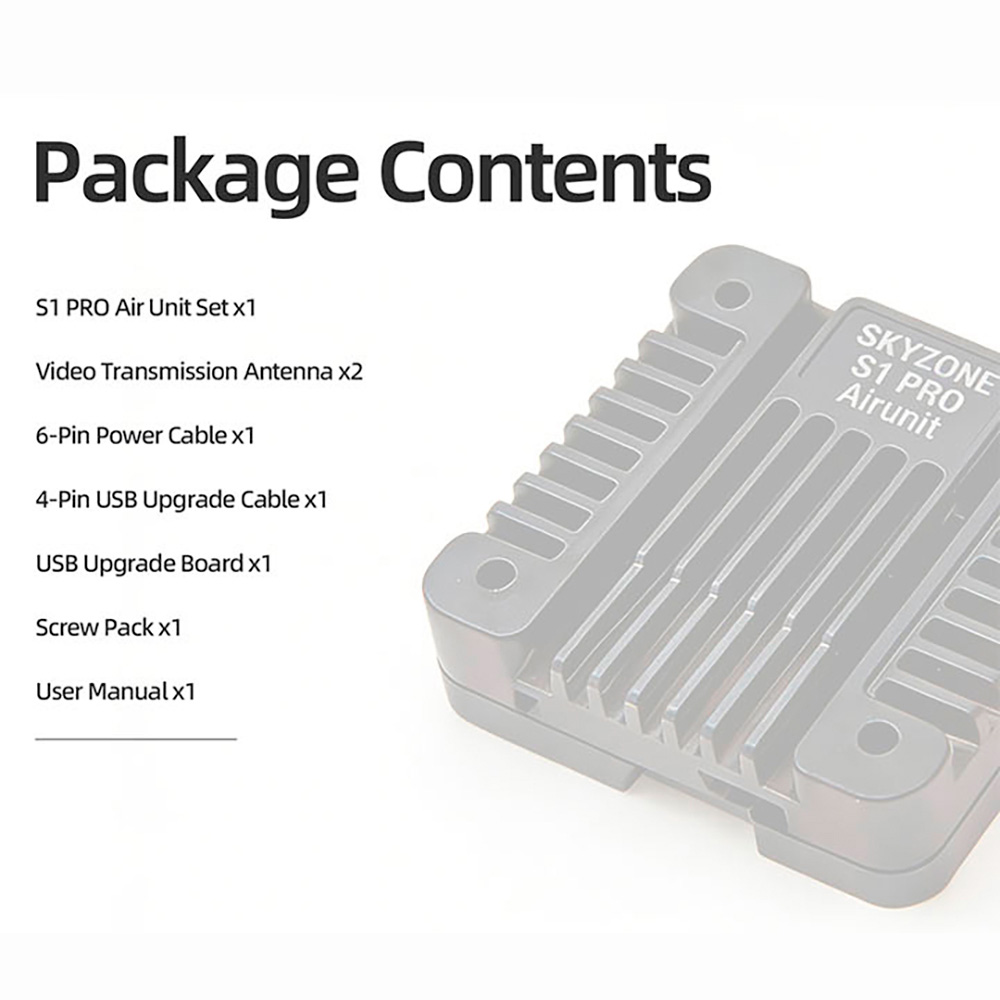

Package contents:
1* S1 PRO Air Unit Set
1* Video Transmission Antenna
1* 6-Pin Power Cable
1* 4-Pin USB Upgrade Cable
1* USB Upgrade Board
1* Screw Pack
1* User Manual
Package contents:
1* SD10P VRX Unit
1* HDMI Ato C Data Cable
1* XT60 to DC5521 Power Cable
1* 5.8GHz SMA Male Mushroom Antenna
1* 5.8GHz SMA Male Patch Antenna
1* Quick Start Guide
1* RMA Information Card
Note:
Only the above package content, other products are not included.
