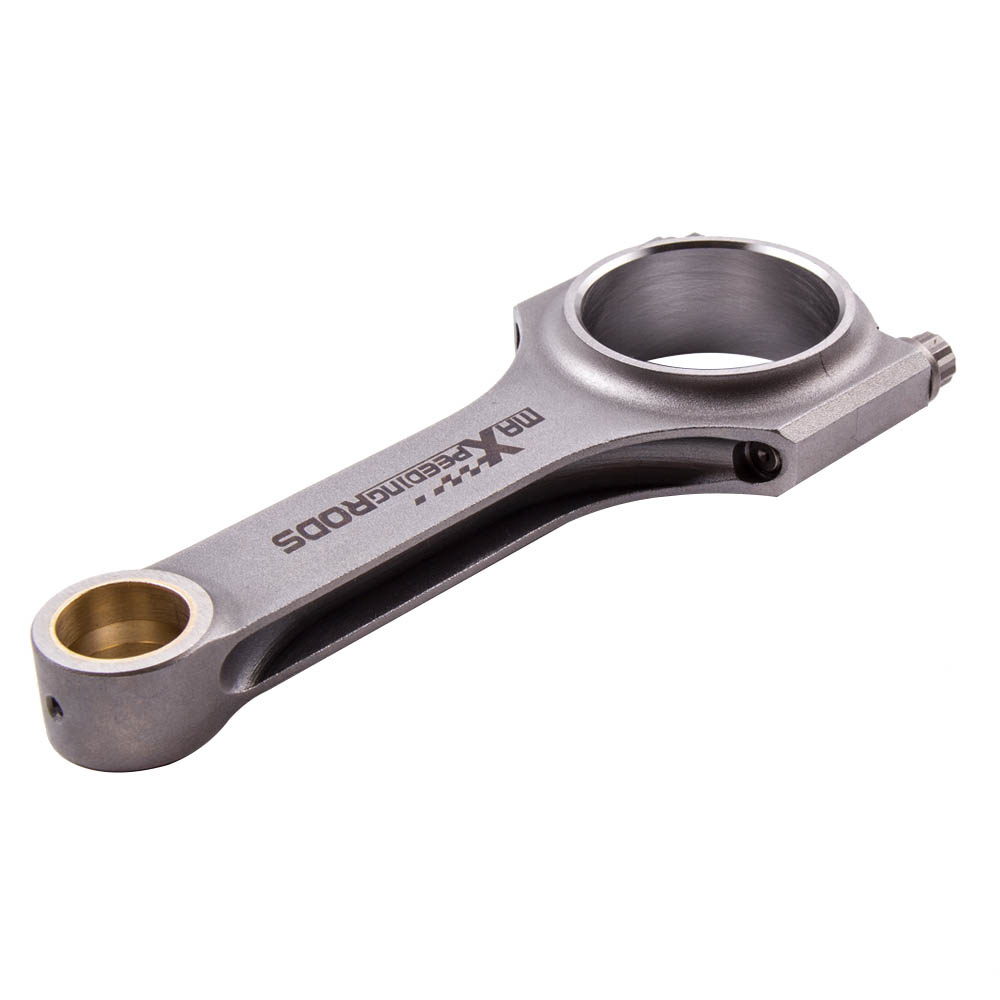

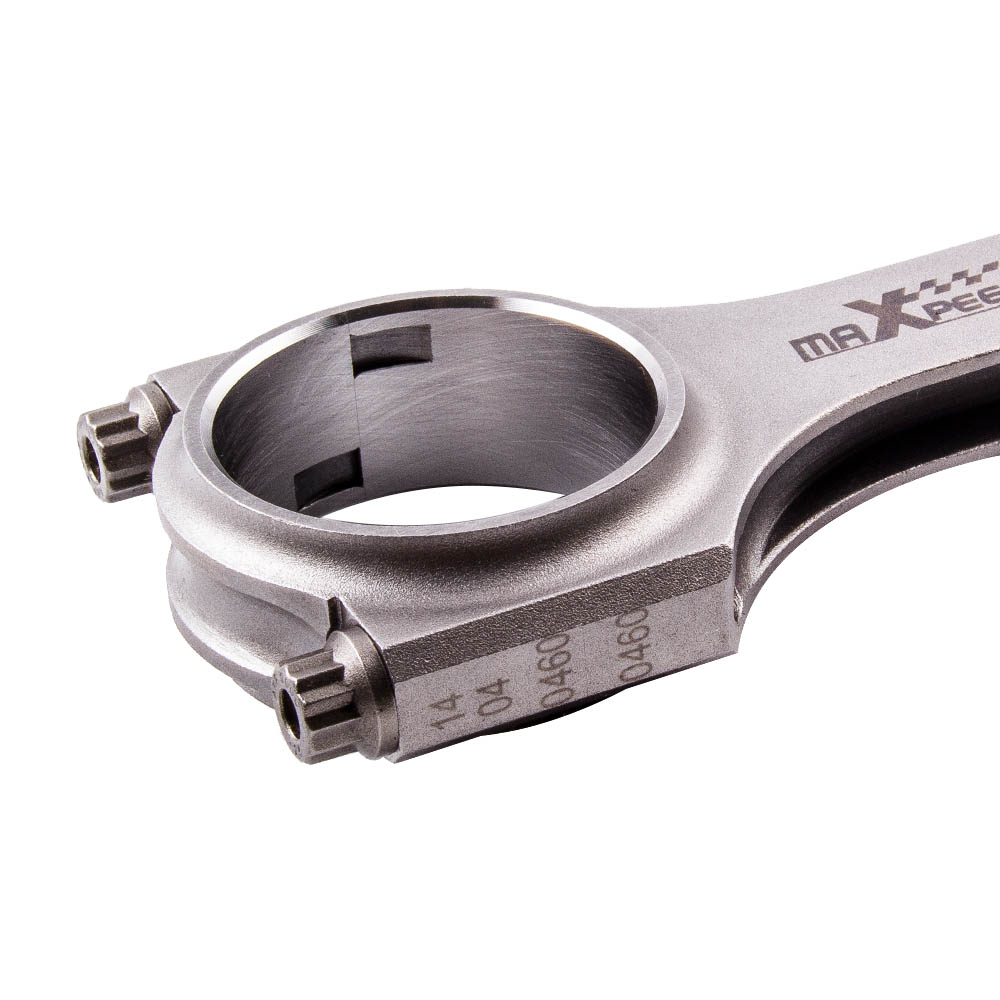

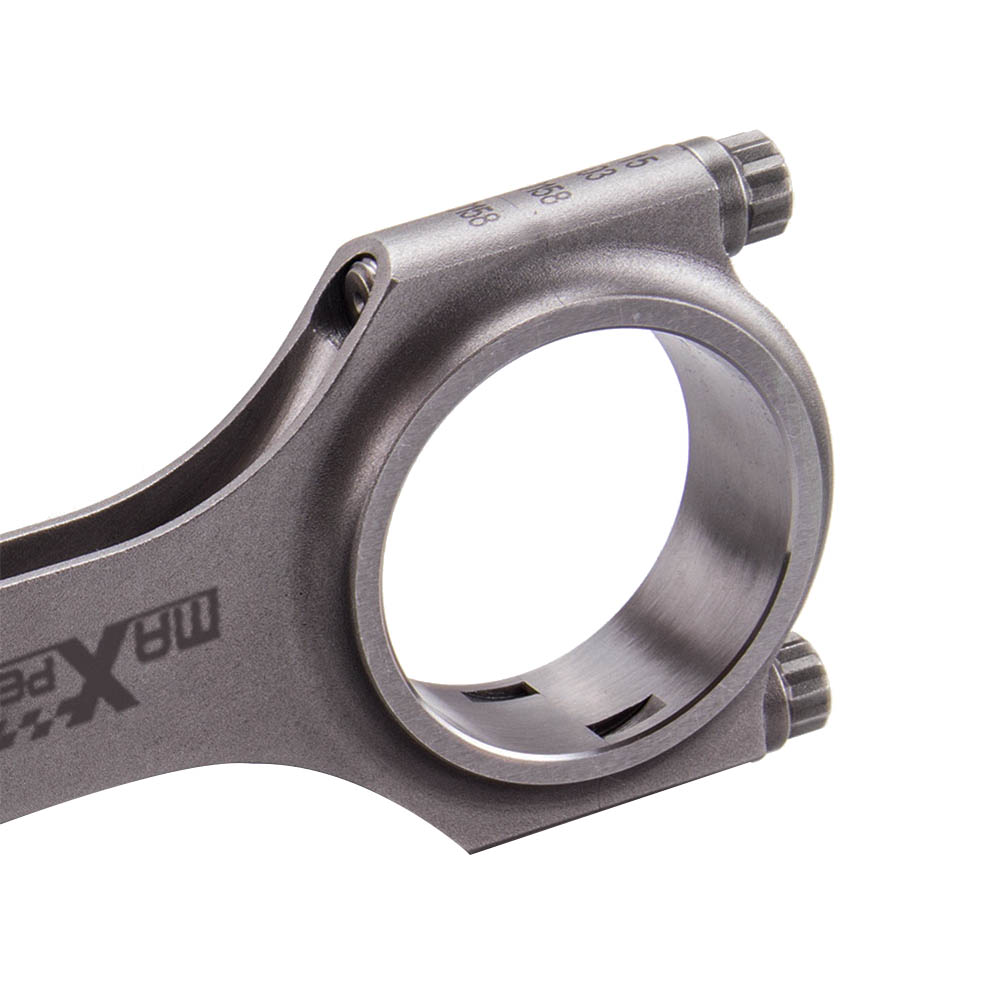

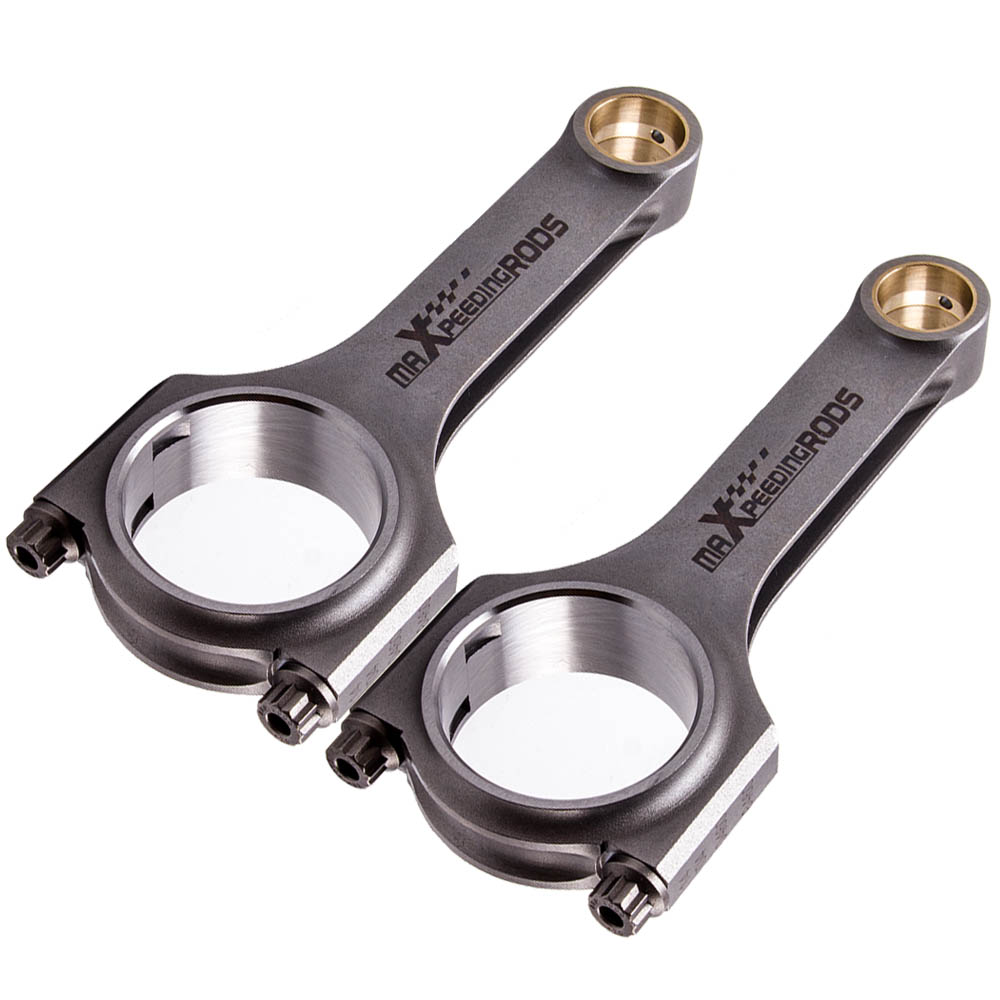

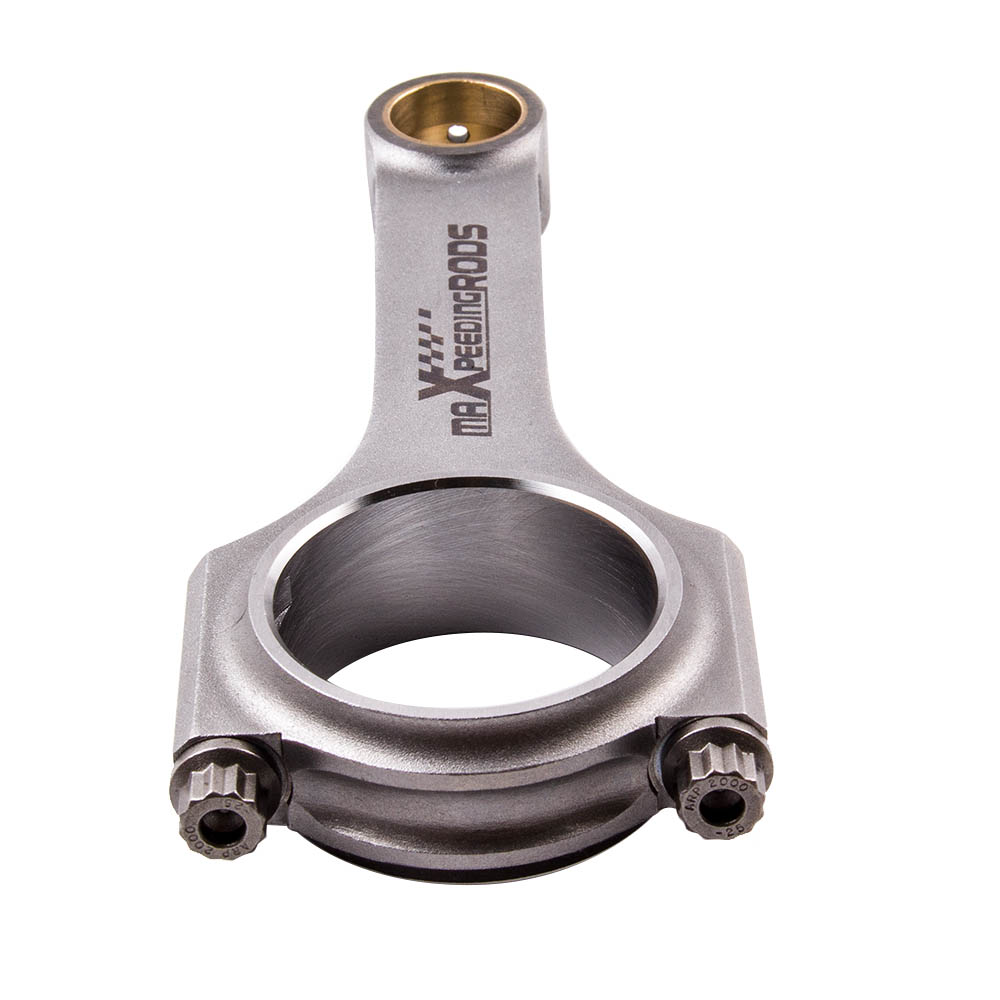

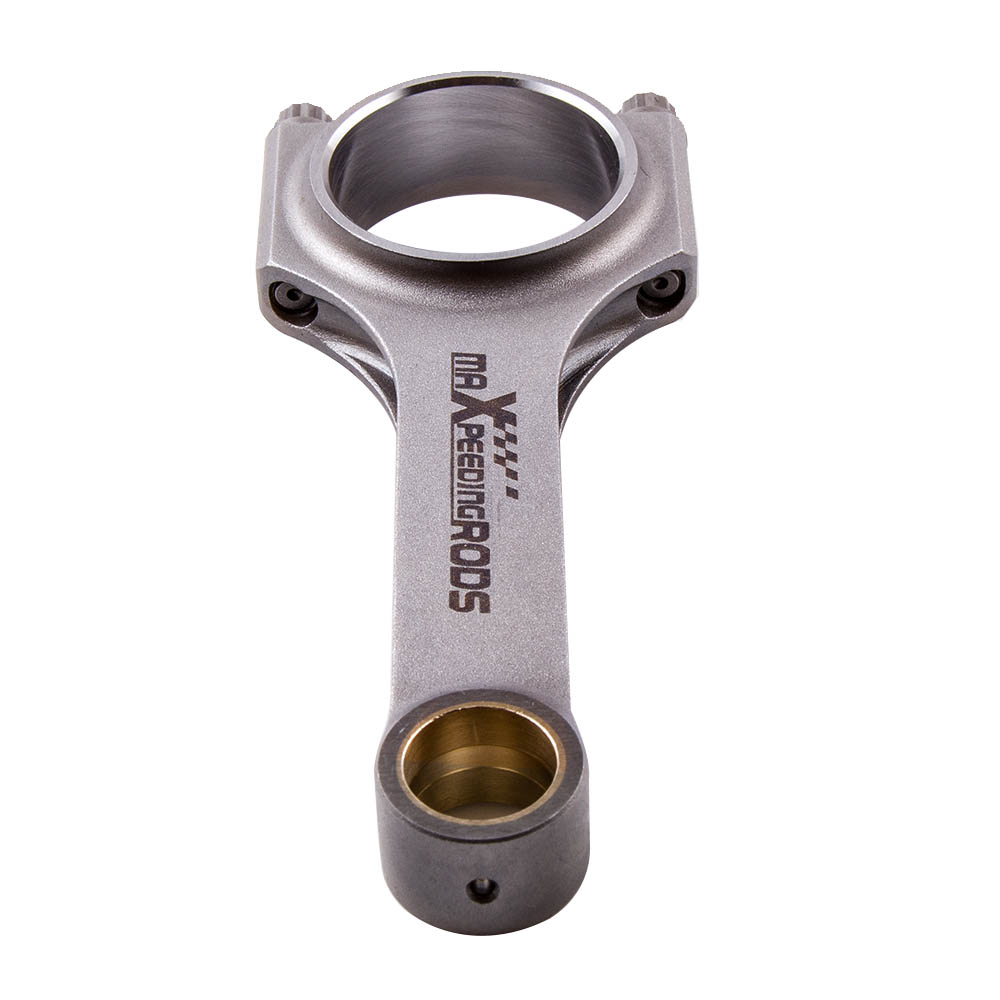

Conrod for Fiat 500 old model 130mm Connecting Rod Bielle Pleuel ARP 2000 Bolts

Images

Conrod for Fiat 500 old model 130mm Connecting Rod Bielle Pleuel ARP 2000 Bolts Conrod for Fiat 500 old model 130mm Connecting Rod Bielle Pleuel ARP 2000 Bolts Conrod for Fiat 500 old model 130mm Connecting Rod Bielle Pleuel ARP 2000 Bolts Conrod for Fiat 500 old model 130mm Connecting Rod Bielle Pleuel ARP 2000 Bolts Conrod for Fiat 500 old model 130mm Connecting Rod Bielle Pleuel ARP 2000 Bolts Conrod for Fiat 500 old model 130mm Connecting Rod Bielle Pleuel ARP 2000 Bolts



All modifications must be installed by licensed mechanics and in compliance with your local modification regulations

​​​​​​​

Application
For Fiat 500 Classic Old Model 2-Cylinder Engine (130mm Bore Size)

Notice：Other options C/C: 118/120/124/126mm




Specification
Beam Style: H-beam Street/Strip

Material: 4340 Chromoly Steel

Finish: Shot-peened

Wrist Pin Style: Floating

Clearanced for Stroker: Yes

Cap Retention Style: Through-bolt

Connecting Rod Bolt Brand: ARP

Connecting Rod Bolt Diameter: 5/16"

Connecting Rod Bolt Material: Alloy Steel

Fastener Yield Strength (psi): 220,000 psi (ARP 2000)

Upgrade Fasteners: ARP L19 (260,000 psi) optional

Connecting Rod Bolt Head Style: 12-point

CNC Machined: High Precision

Rod Cap Alignment: Precision dowels

Bore Tolerance: ±0.005 mm

Balancing: ±1 gram per rod

Weight Matched Set: Yes

Remanufactured: No

Testing: Magnafluxed, X-rayed, Ultrasonically tested

Heat Treated: Yes




Dimension
Connecting Rod Length Center to Center: 130.00mm/5.118in

Approximate Connecting Rod Weight: 421g

Big End Bore Diameter: 47.13mm/1.856in

Pin End Bore Diameter: 20.00mm/0.787in

Big End Width: 24.70mm/0.972in

Small End Width: 18.50mm/0.728in




Performance Ratings
Advertised Horsepower Rating: 200HP/piece

Advertised RPM Rating: 7,000rpm




Packaging
Quantity: Sold as a set of 2

Package Size: 23CM9.5CM7CM
