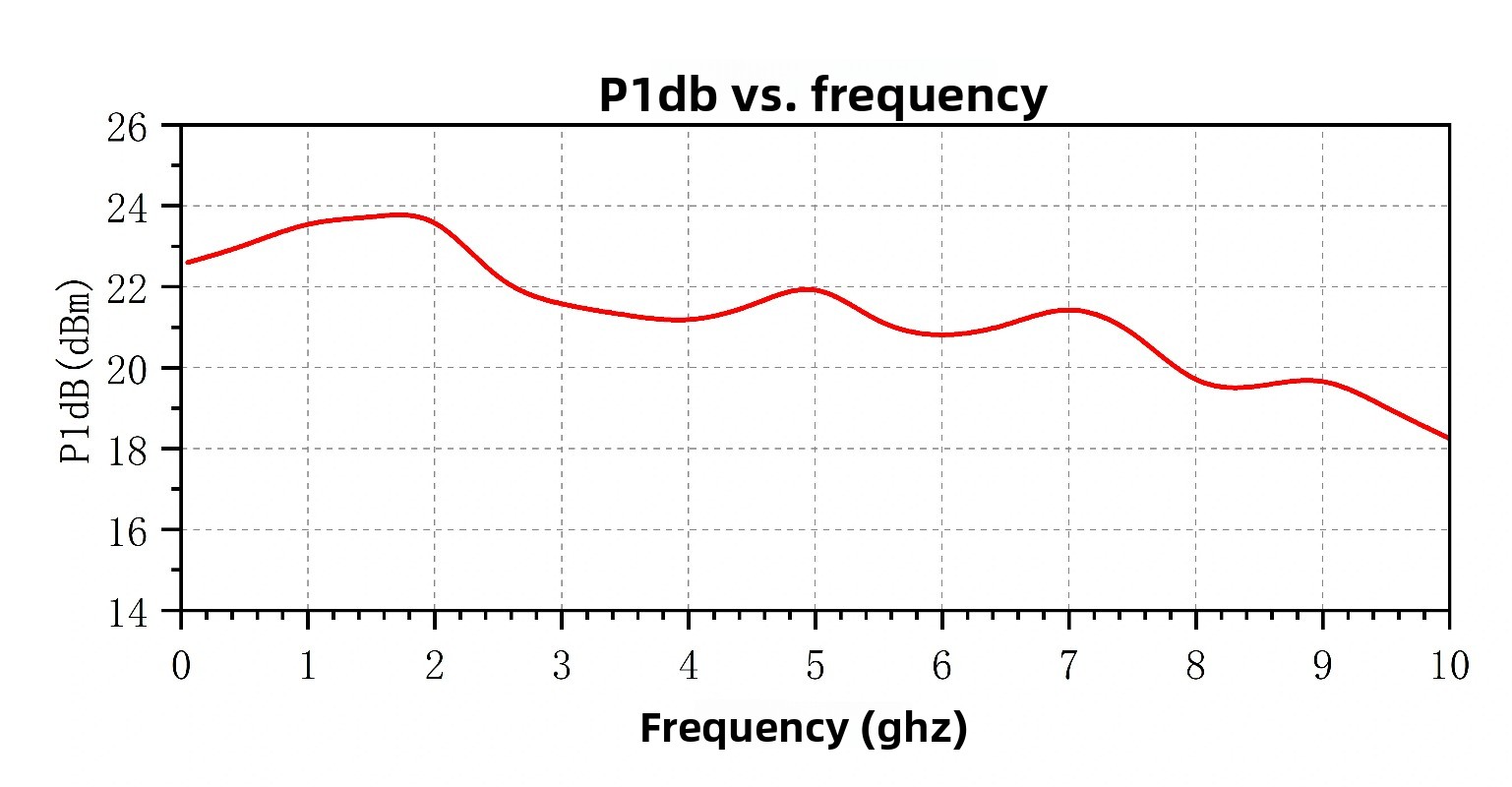

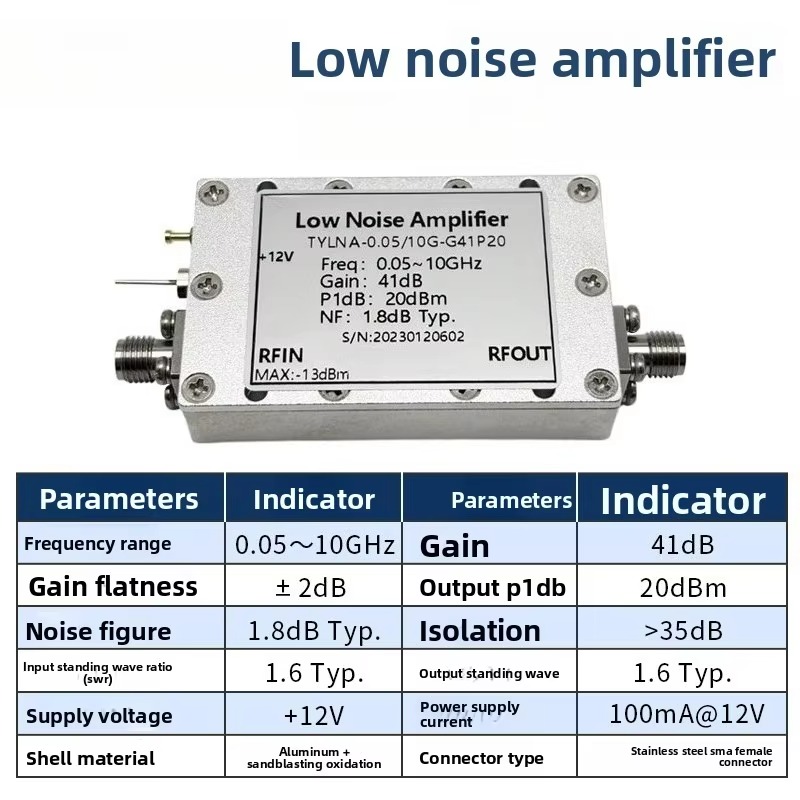

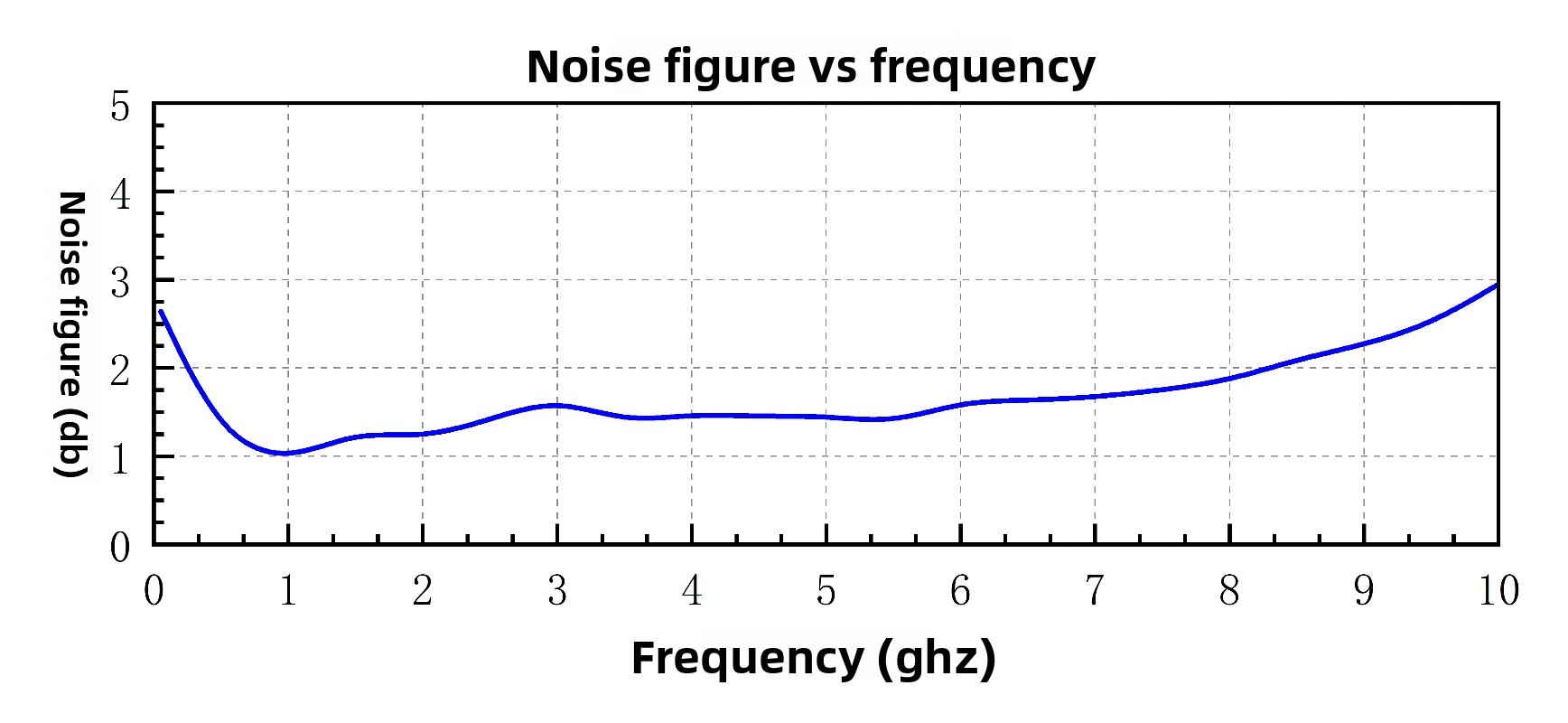

Broadband low noise amplifier, frequency range 0.05~10GHz, typical gain 41dB, typical noise figure 1.8dB, P1dB:20dBm, powered by +12V. Equipped with SMA female connector and metal shielding housing. Suitable for RF receiving front-end, spectrum monitoring, signal detection and microwave test. Custom specifications are available.
