Description

This control system is primarily designed for throttle and gear control on yachts, fishing boats, and other water vehicles. The neutral position is achieved by pulling the hand levers out 30 degrees.

Features

• Dual Function Engine Controls: Dual-lever design operates both throttle and shift — ideal for controlling two engines.

• Replacement Compatibility: Direct replacement for Teleflex Morse MT2 / MT3 single engine controls.

• Throttle-Only Warm-Up: Pull-out handle disengages shift, allowing throttle-only operation for engine warm-up.

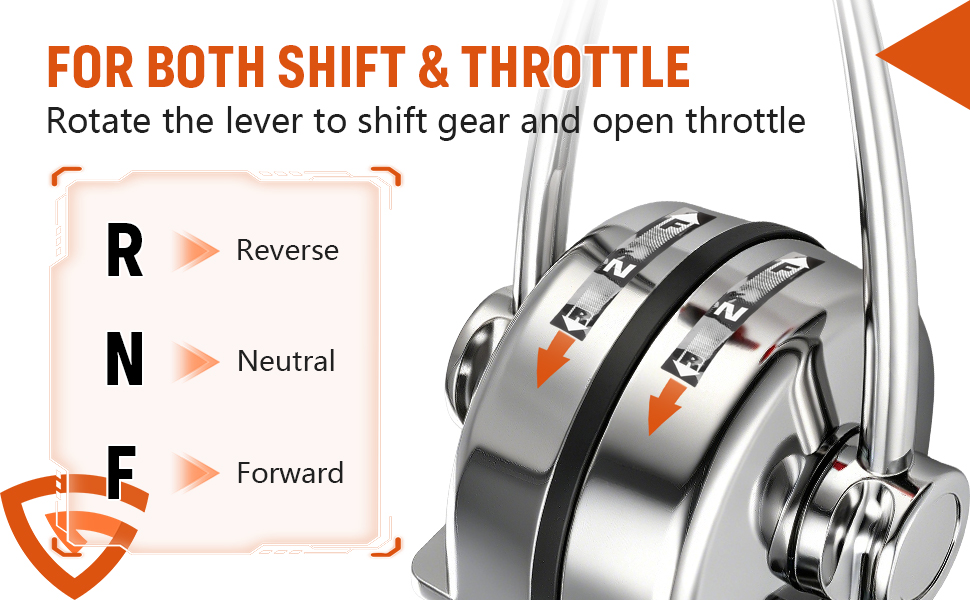

• Dual Action: Throttle and shift functions combined in one lever.

• Neutral Safety Switch Ready: Allows installation of a neutral safety switch (switch not included) to prevent in-gear starting.

• Smooth Operation: Provides smooth shifting and throttling.

• Built-In Friction: Prevents throttle creep during use.

• Wide Cable Compatibility: Works with all 33C style and other engine control cables.

• Versatile Application: Suitable for all boat types with outboard, inboard, or I/O power, gas or diesel engines.

• Certified Safety: Exceeds EN ISO 11547 standards.

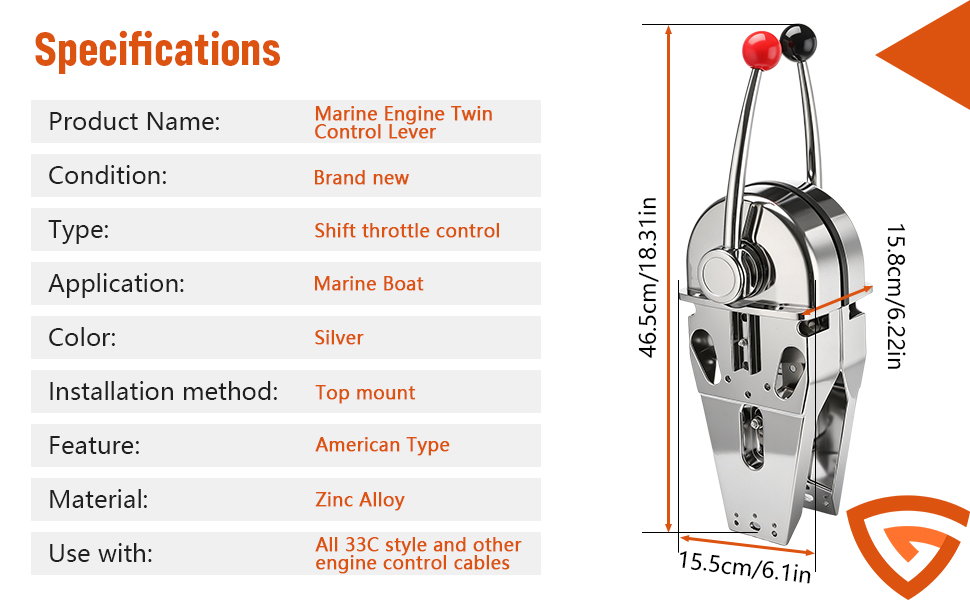

Specifications

• Condition: Brand new

• Material: Zinc Alloy

• Color: Silver

• Style: Modern

• Installation Method: Top mount

• Handle Type: Knob, Lever

• Warranty: 2 years

Package Included

• 1 × Dual control lever

• 1 × Accessory pack (as shown in the picture)

Throttle Opening Steps

1. Remove the lever.

2. Unlock the throttle and pull the flexible shaft.

3. Remove the swivel bracket.

4. Loosen the two (2) hex head screws at the link mechanism and remove the linkage. Ensure the shift arm engagement teeth position remains unchanged.

5. Push the throttle arm toward the housing and rotate it 180 degrees until it bounces back.

6. Use the hex head screw to fasten the connecting rod mechanism to the desired position.

7. Insert the swivel bracket into the appropriate hole.

8. Reinstall the push-pull flexible shaft and handlebar.
