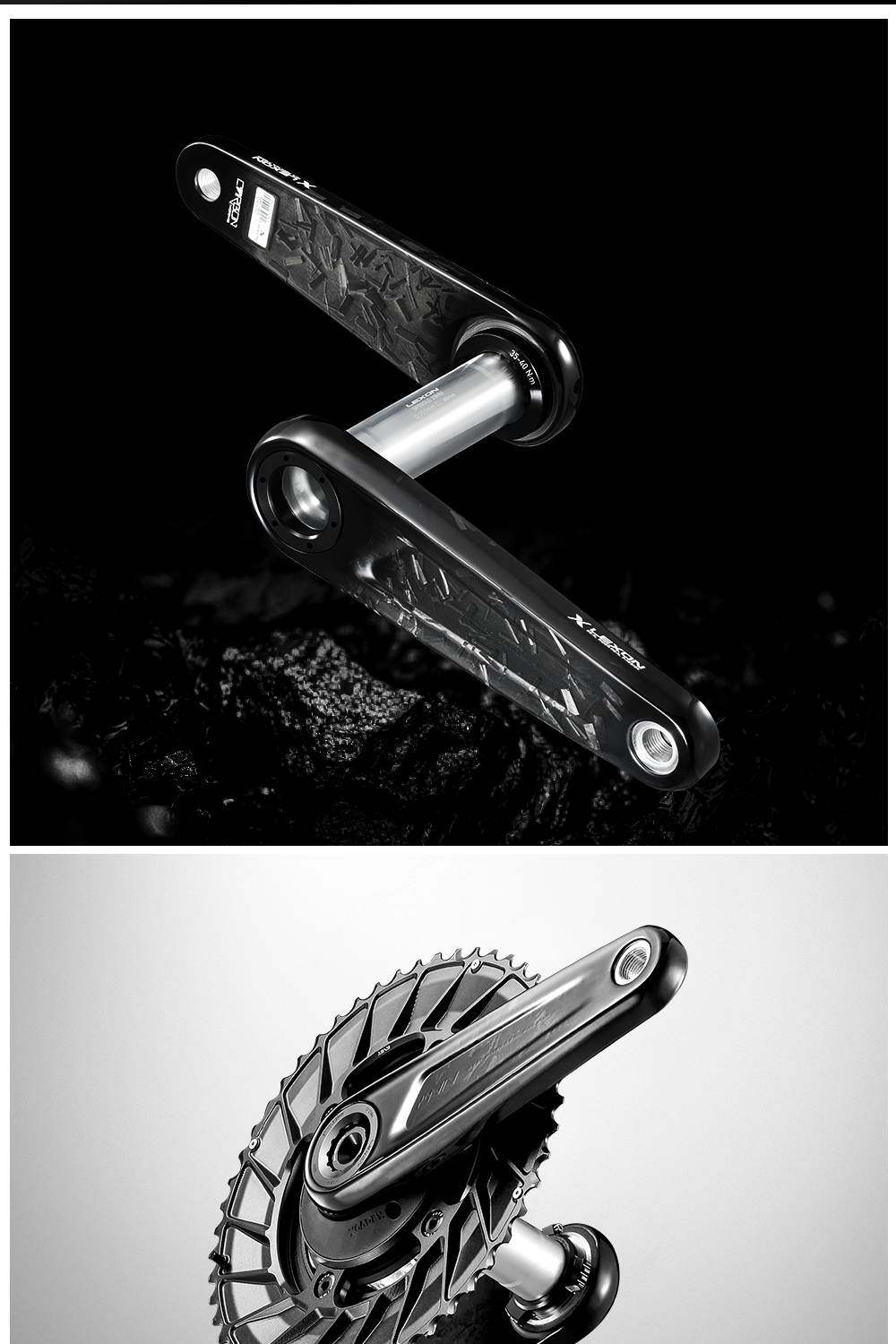

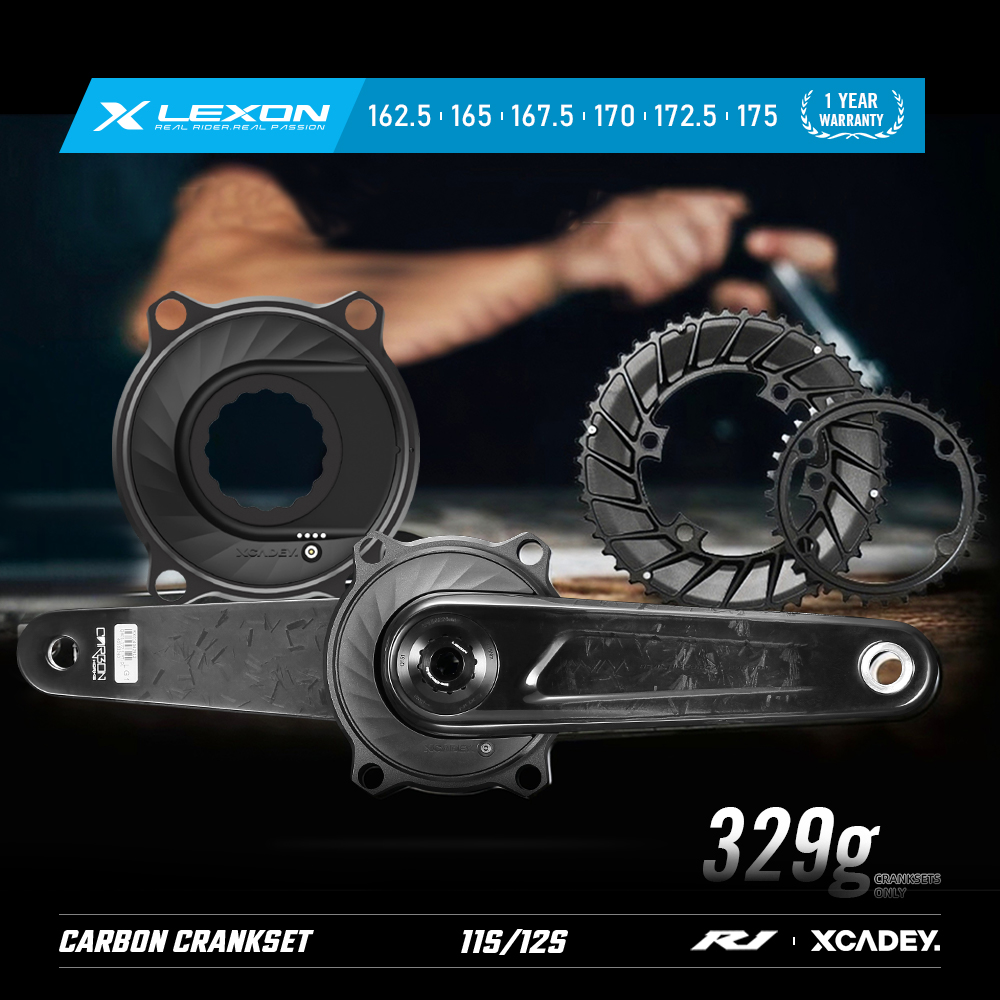

Cranksets Specifics
-
Brand:LEXON
-

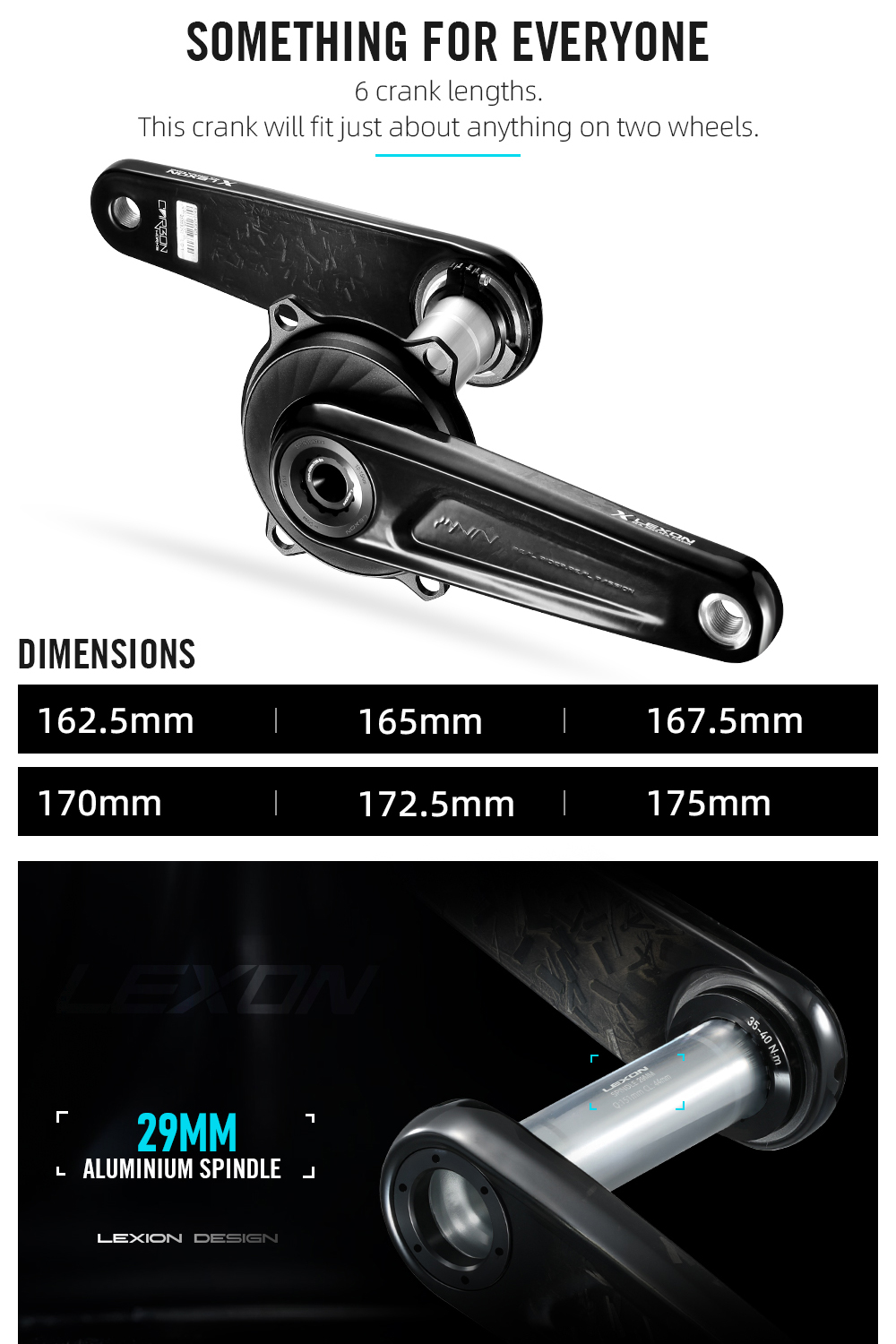

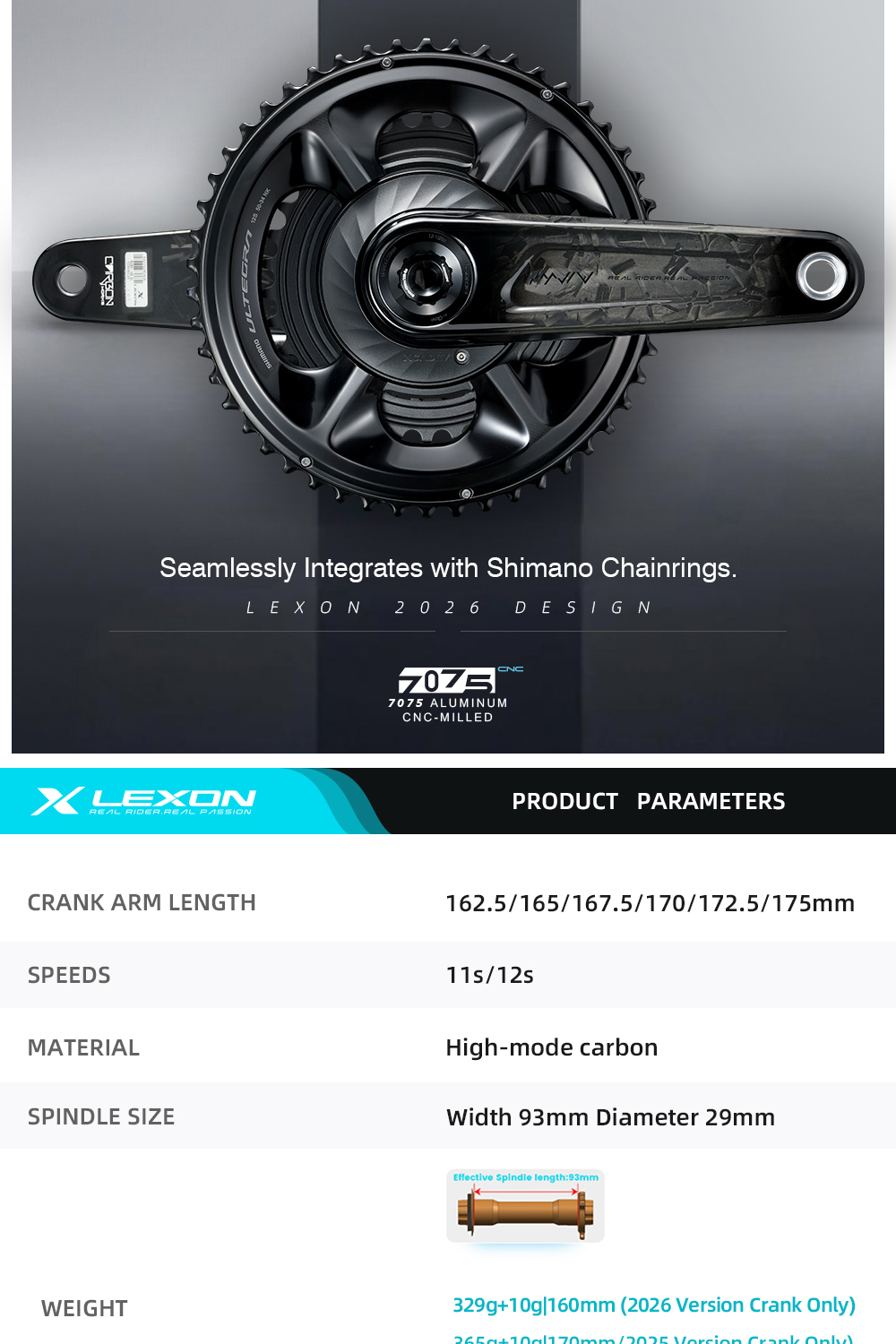

Crank Arm Length: 162.5mm/165mm/167.5mm/170mm/172.5mm/175mm
-
Crankset Speed: 11S/12S
-
Bike Crank Materials: High-Mode Carbon
-

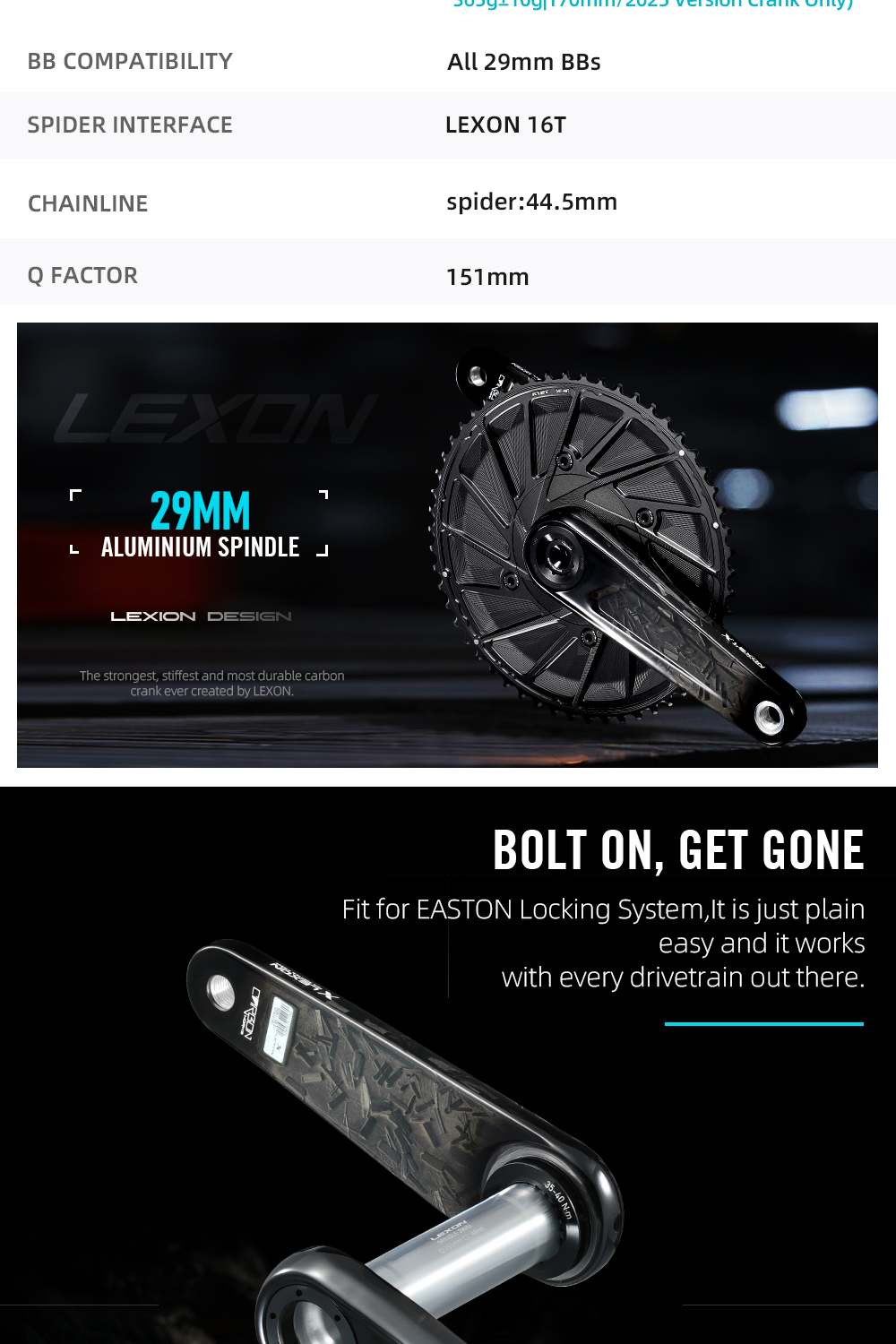

Crank Spindle Size: Width 93mm Diameter 29 mm
-
BB Compatibility: All 29mm BBs
-

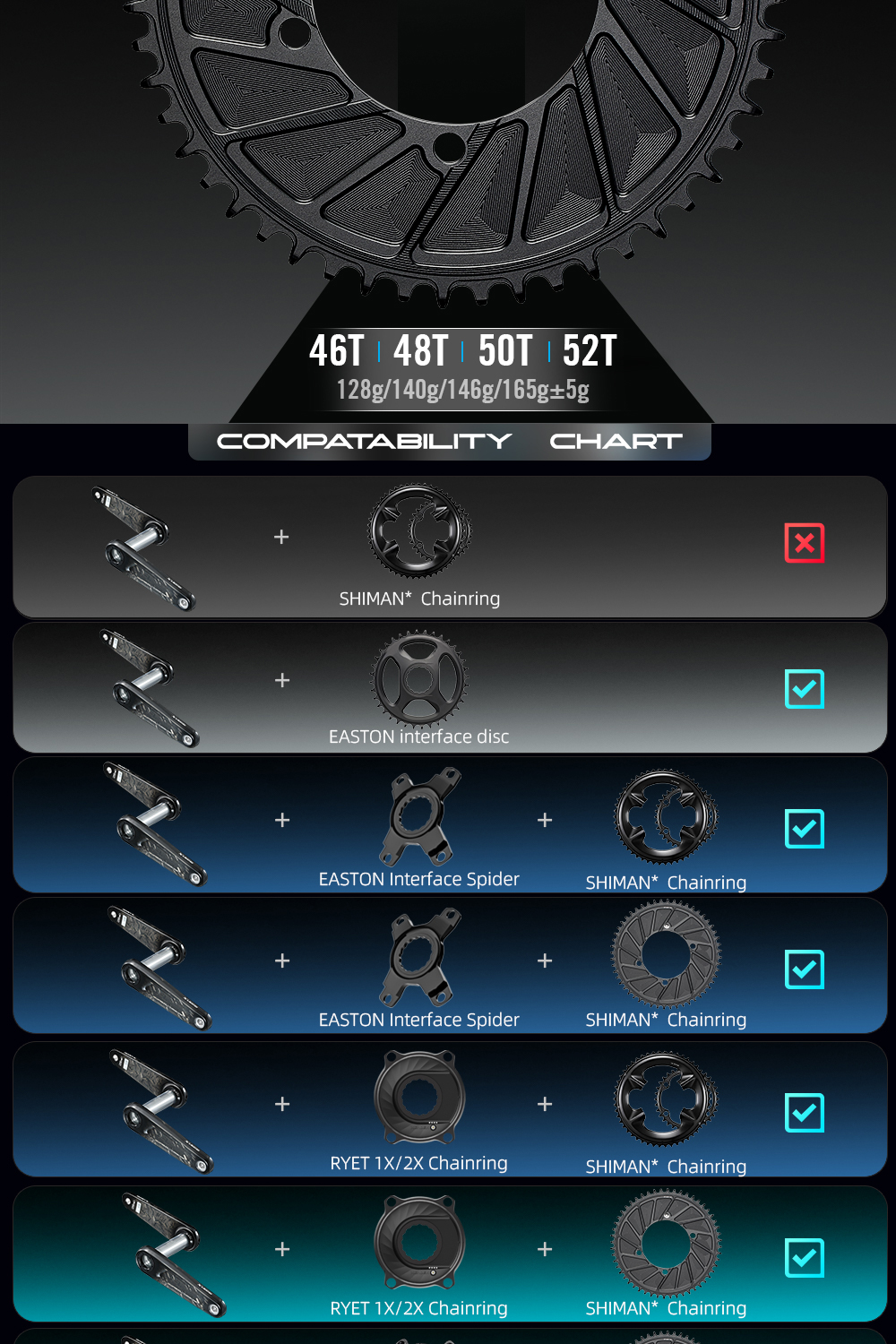

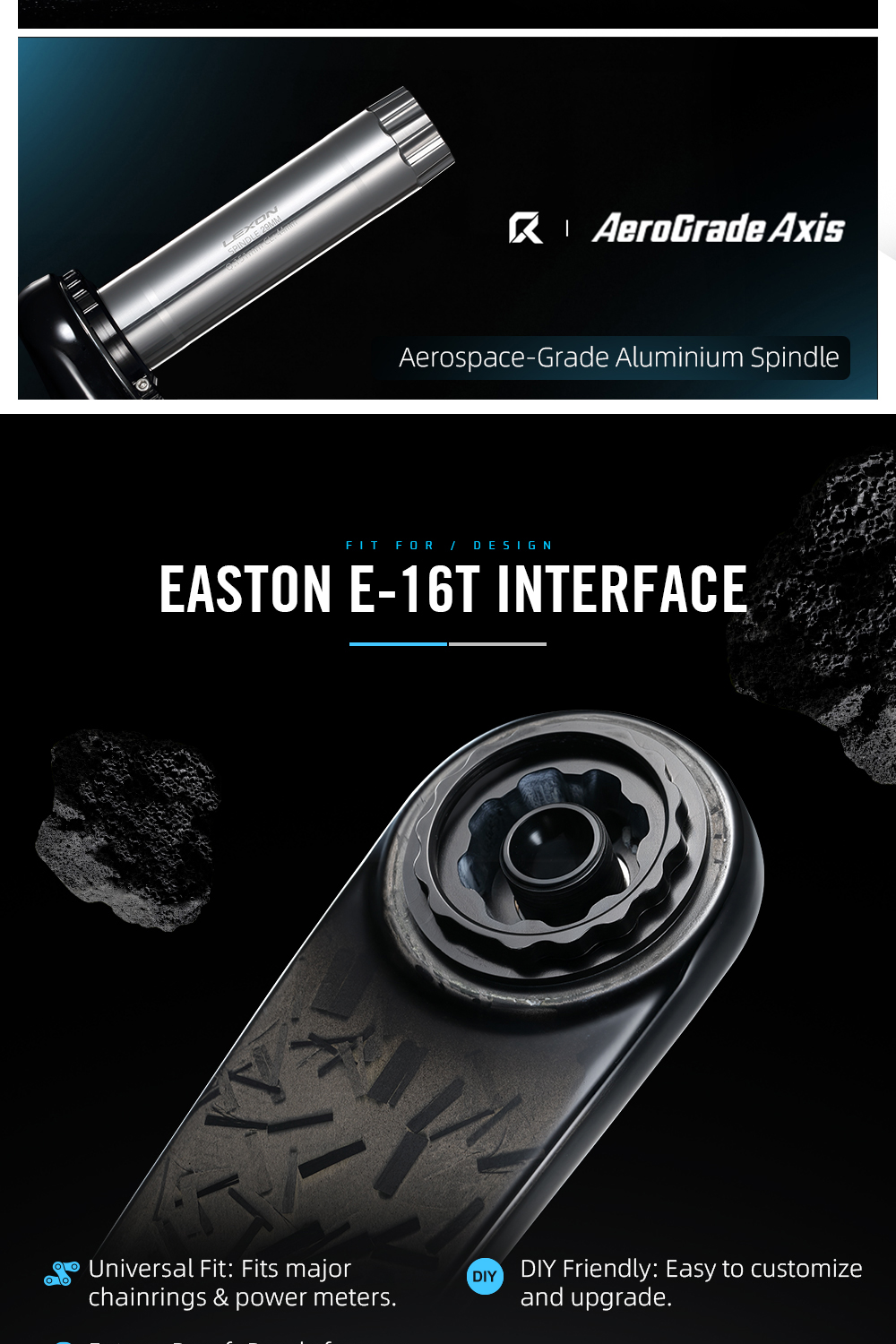

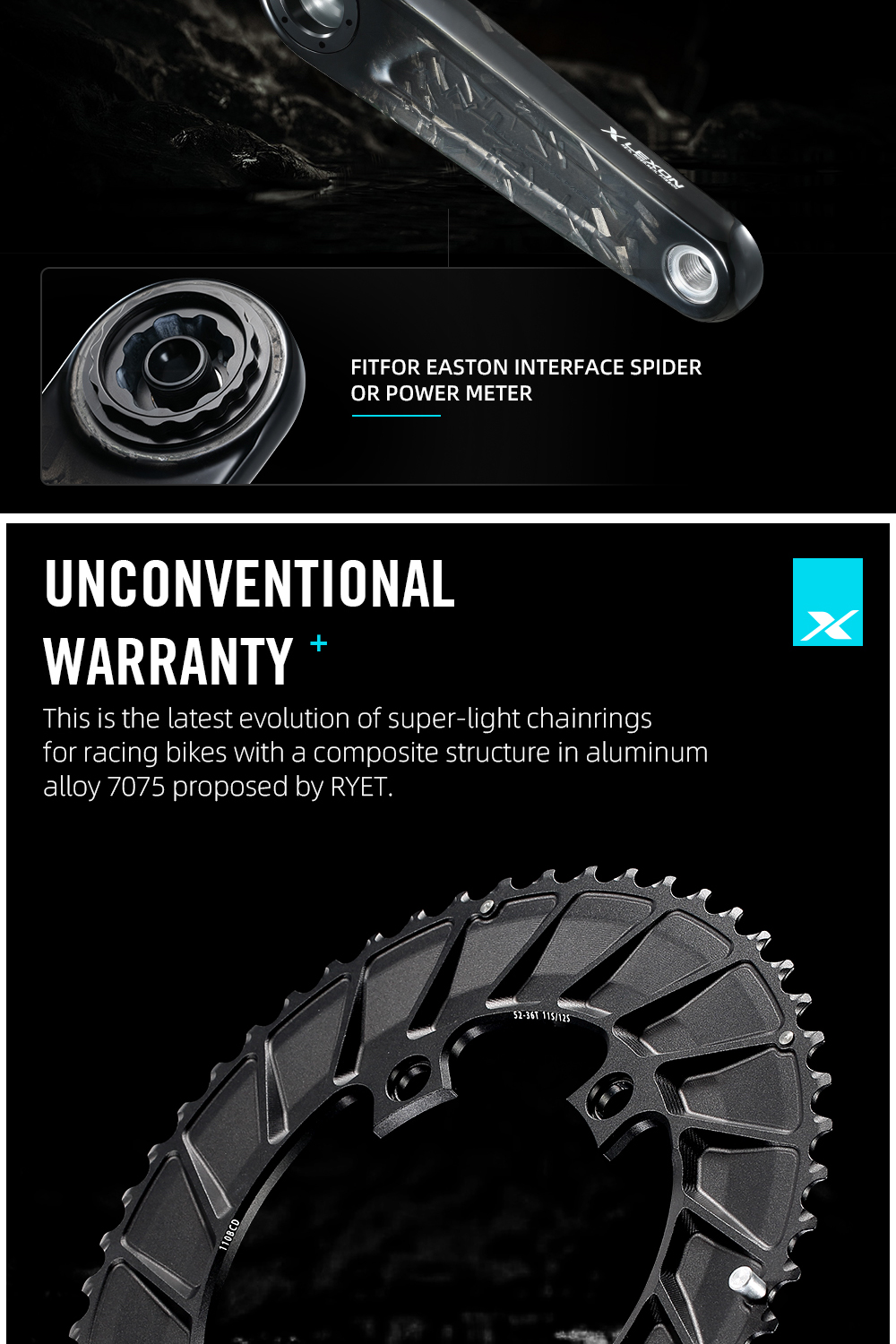

Spider Interface: Fit for Easton Interface
-
Cranksets Chainline: R1/R1S Spider 44.5MM
-
Bike Crank Q Factor: 151mm
-

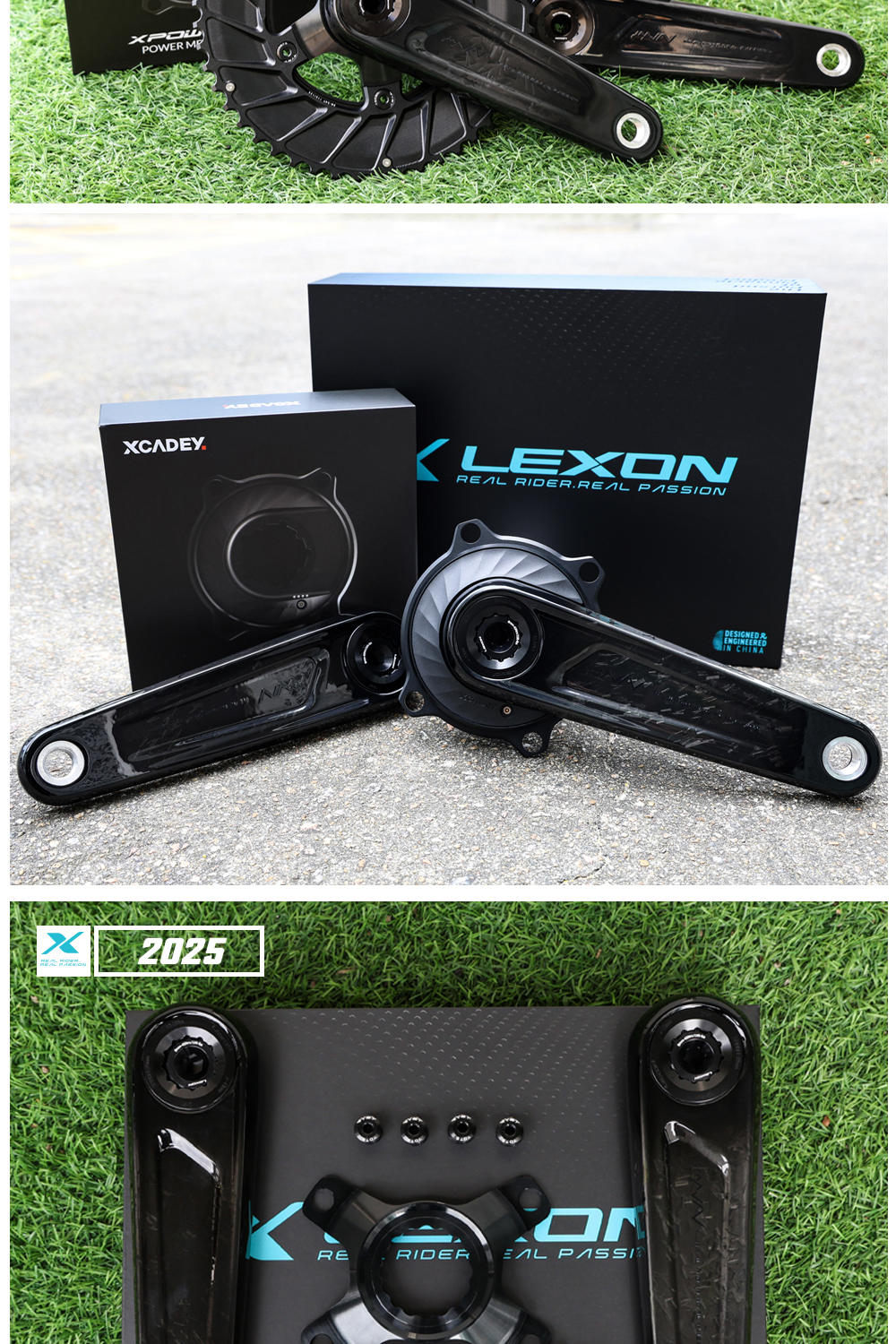

2025 R1: Secure dual-side bolt interface
-
2026 R1S: Single-Side Bolt Fixation
-

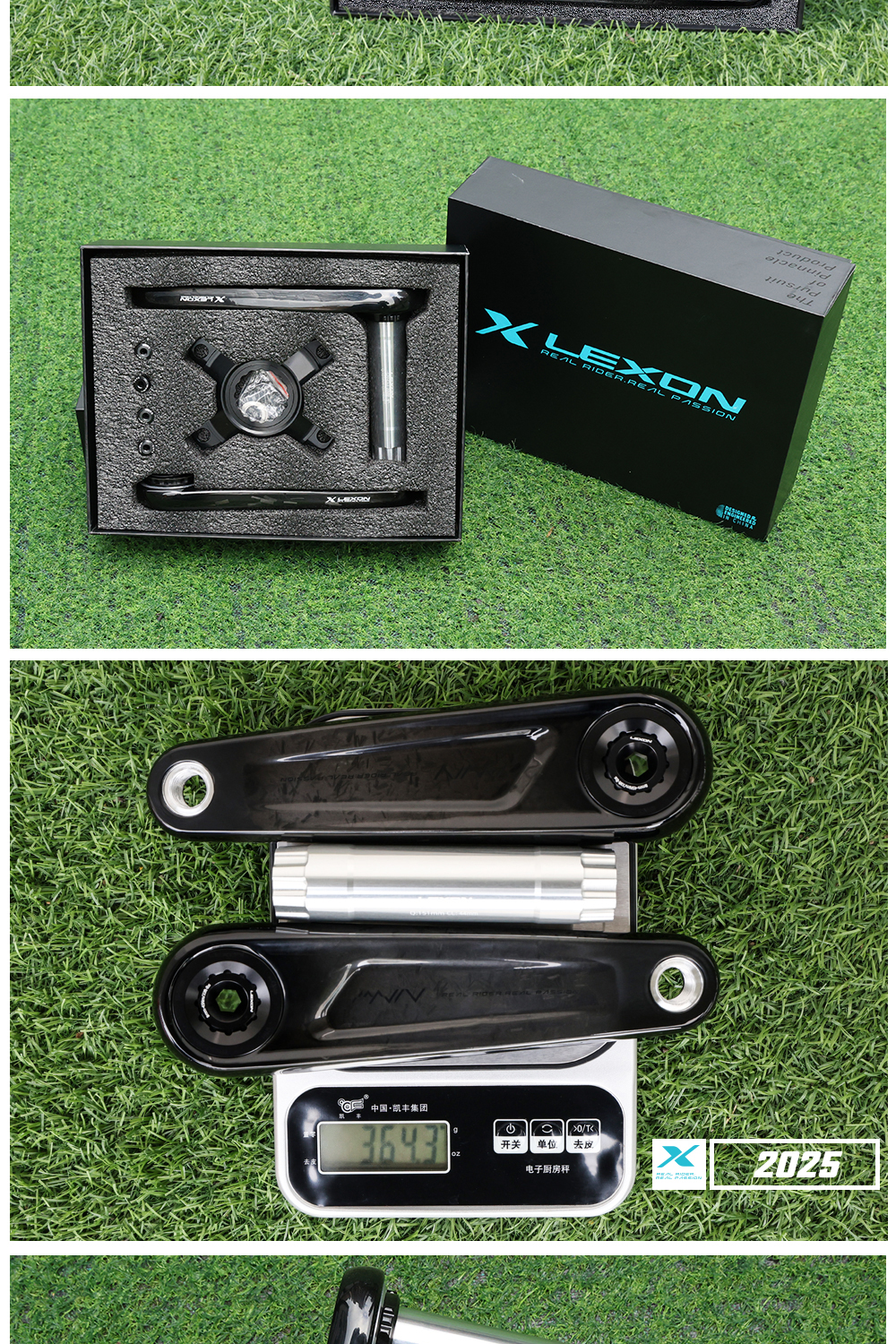

Weight: 2025 R1 365g( 165mm Cranksets only,Spider not included )

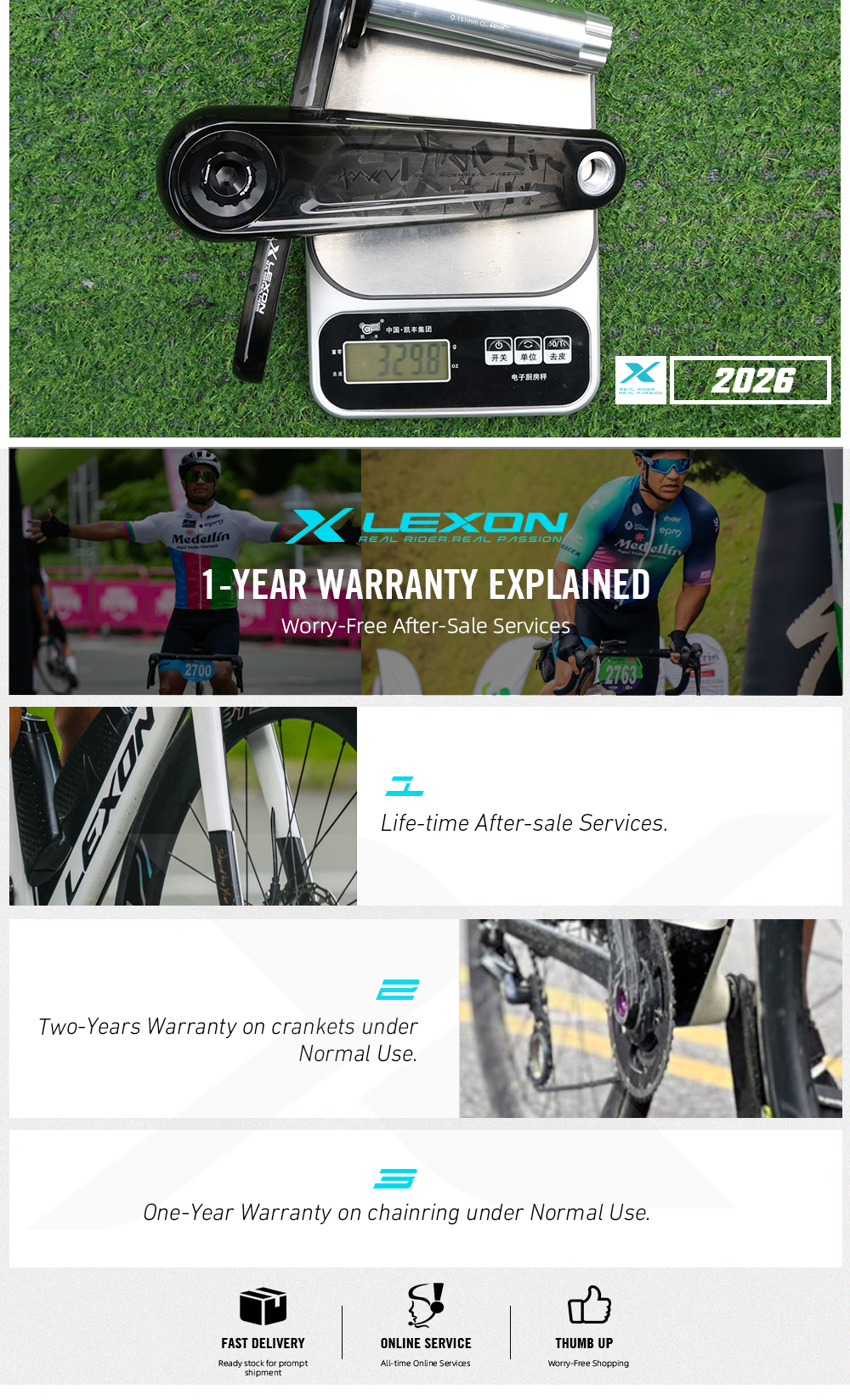

2026 R1S 329g (165mm Cranksets only,Spider not included)

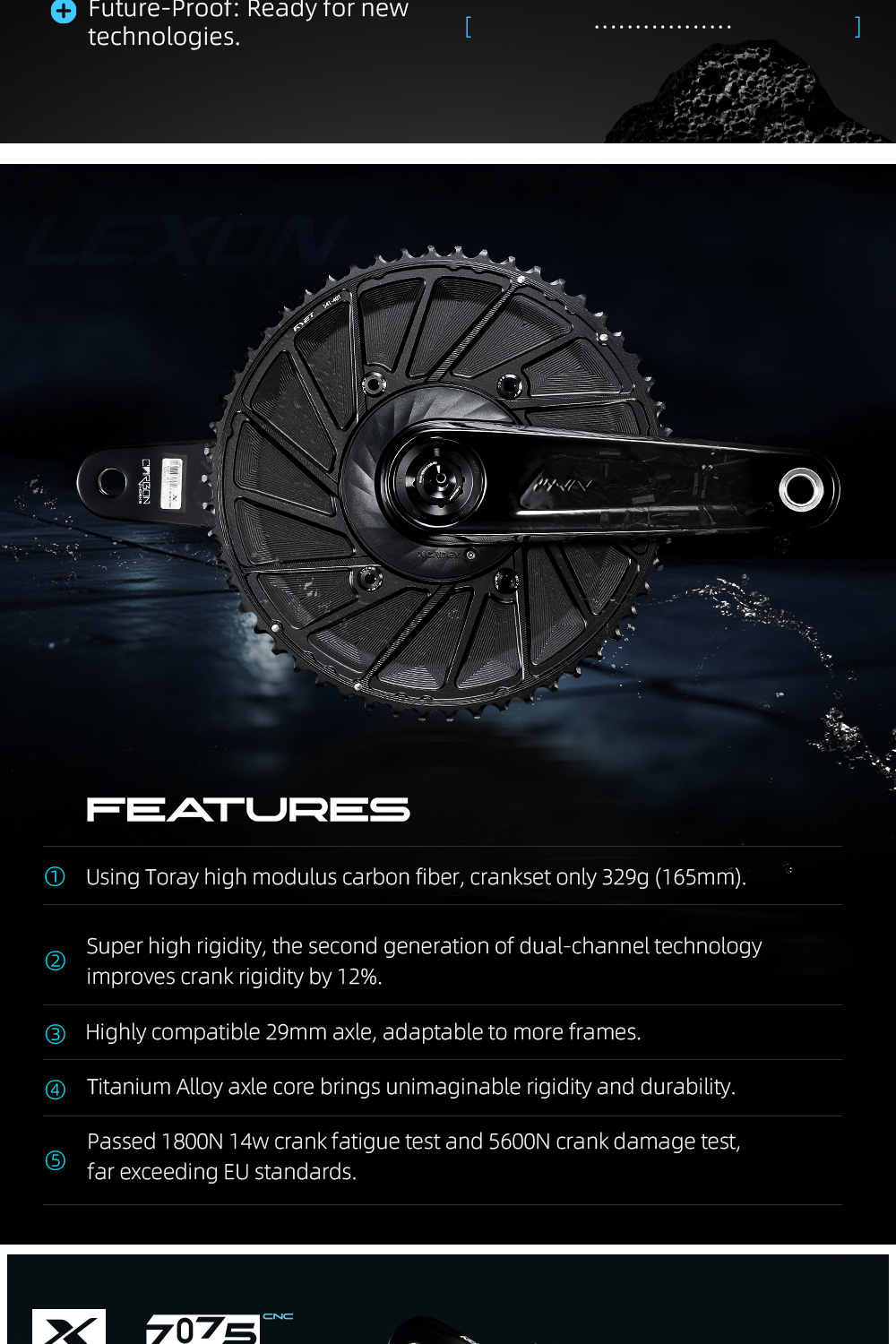

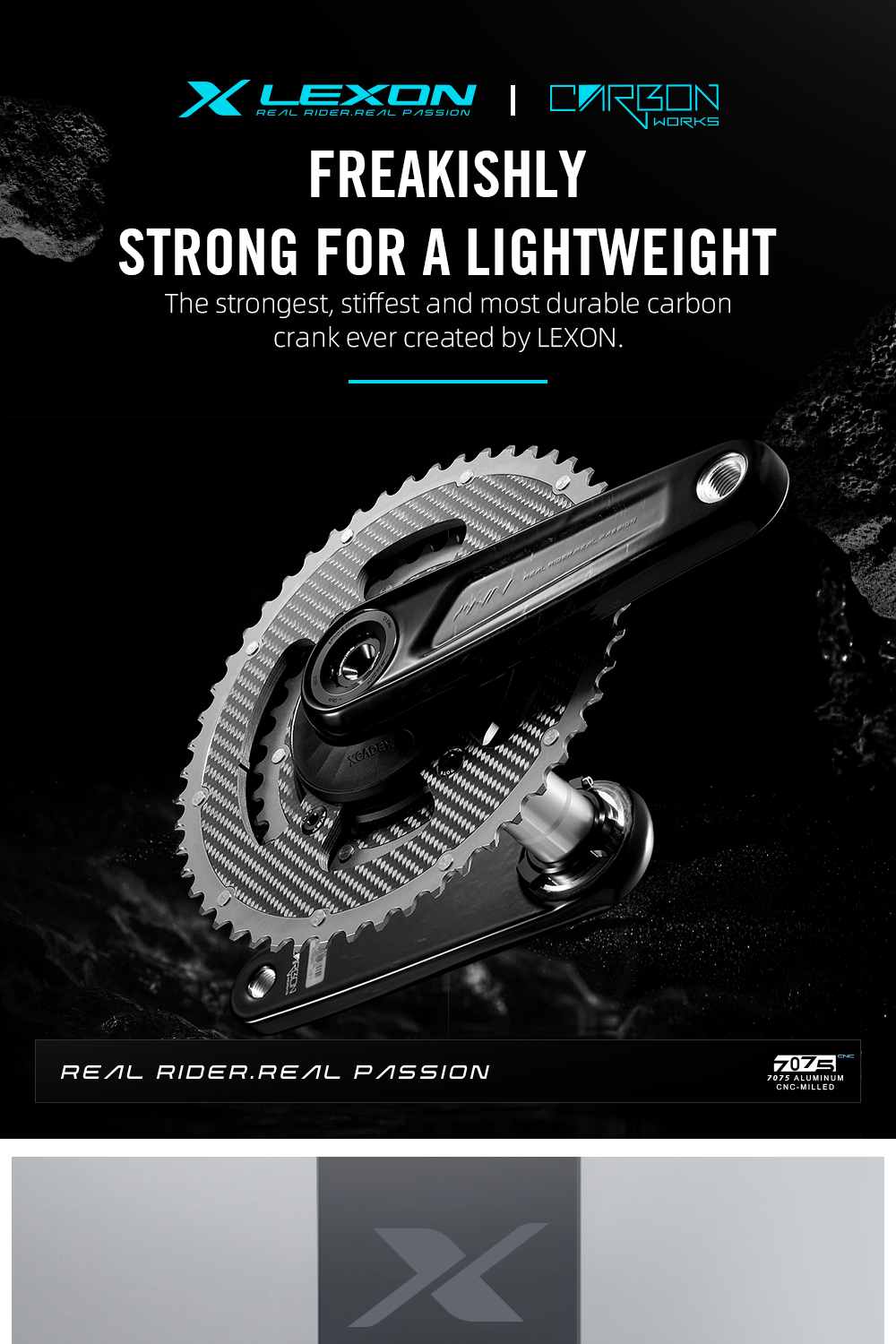

Cranksets Feature
-

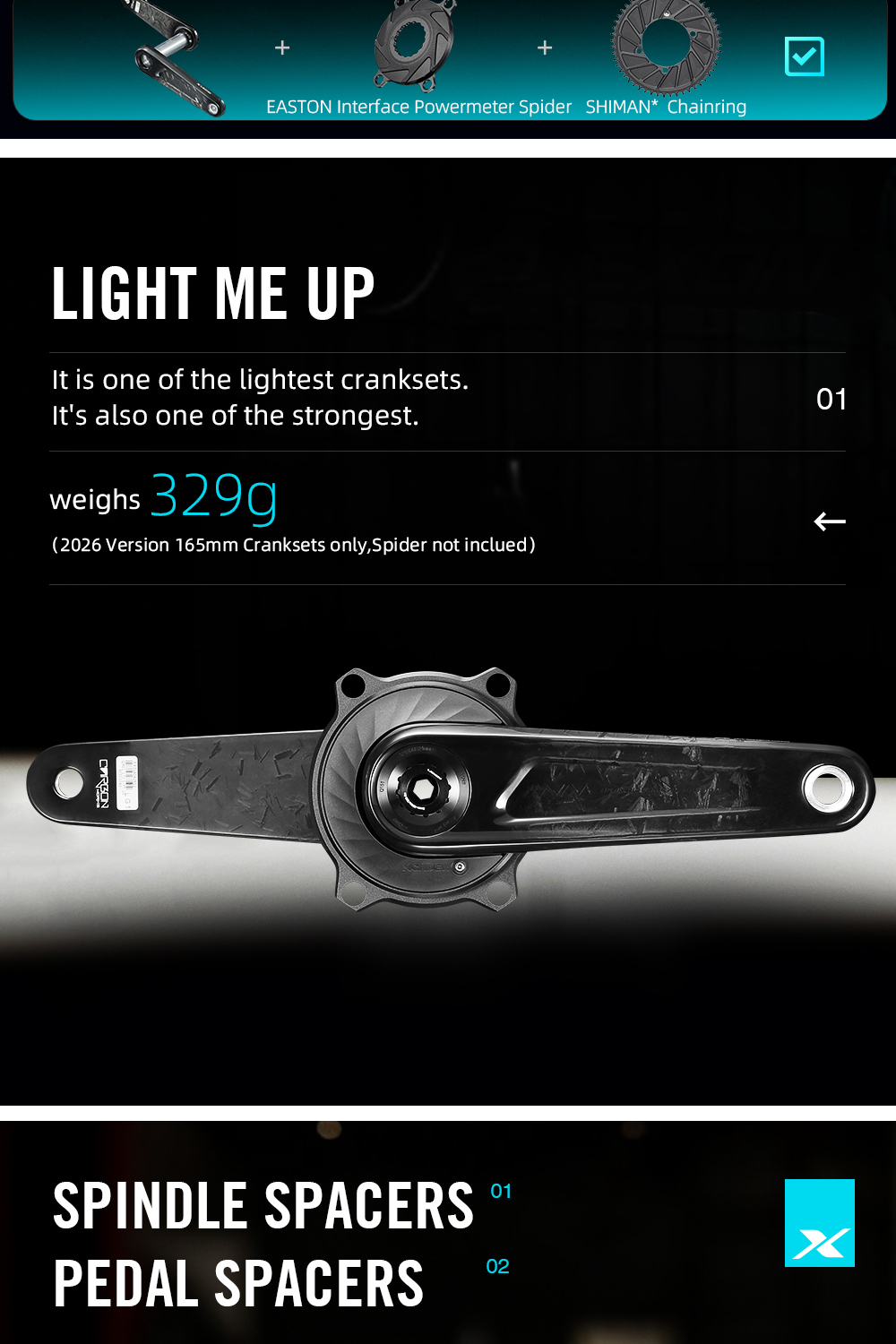

Using Toray high modulus carbon fiber, crankset only 329g (2026 R1S 165mm Cranksets only,Spider not included )
-
Super high rigidity, the second generation of dual-channel technology improves crank rigidity by 12%
-
Highly compatible 29mm axle, adaptable to more frames
-
Cold forged 7075 aluminum alloy axle core brings unimaginable rigidity and durability
-

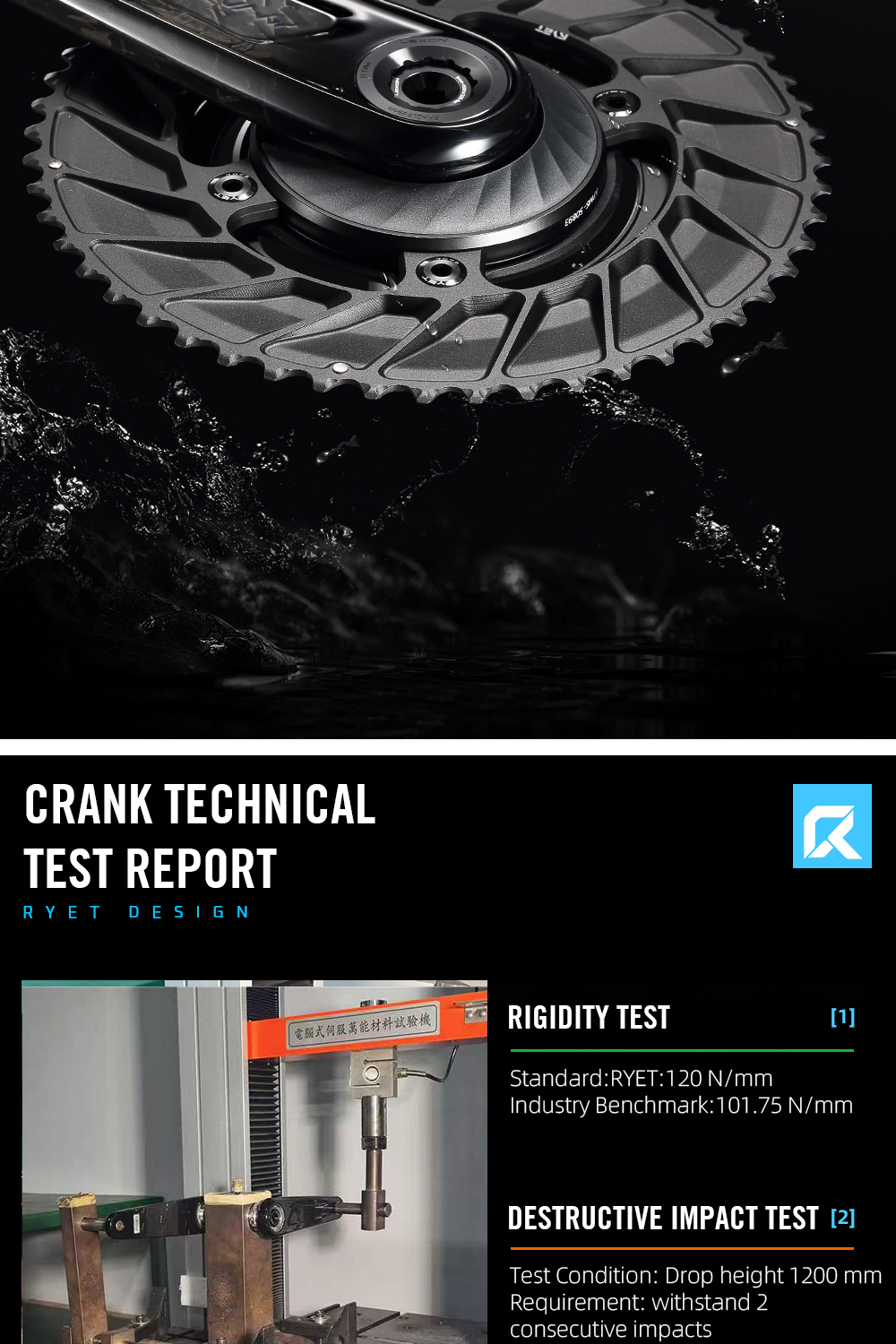

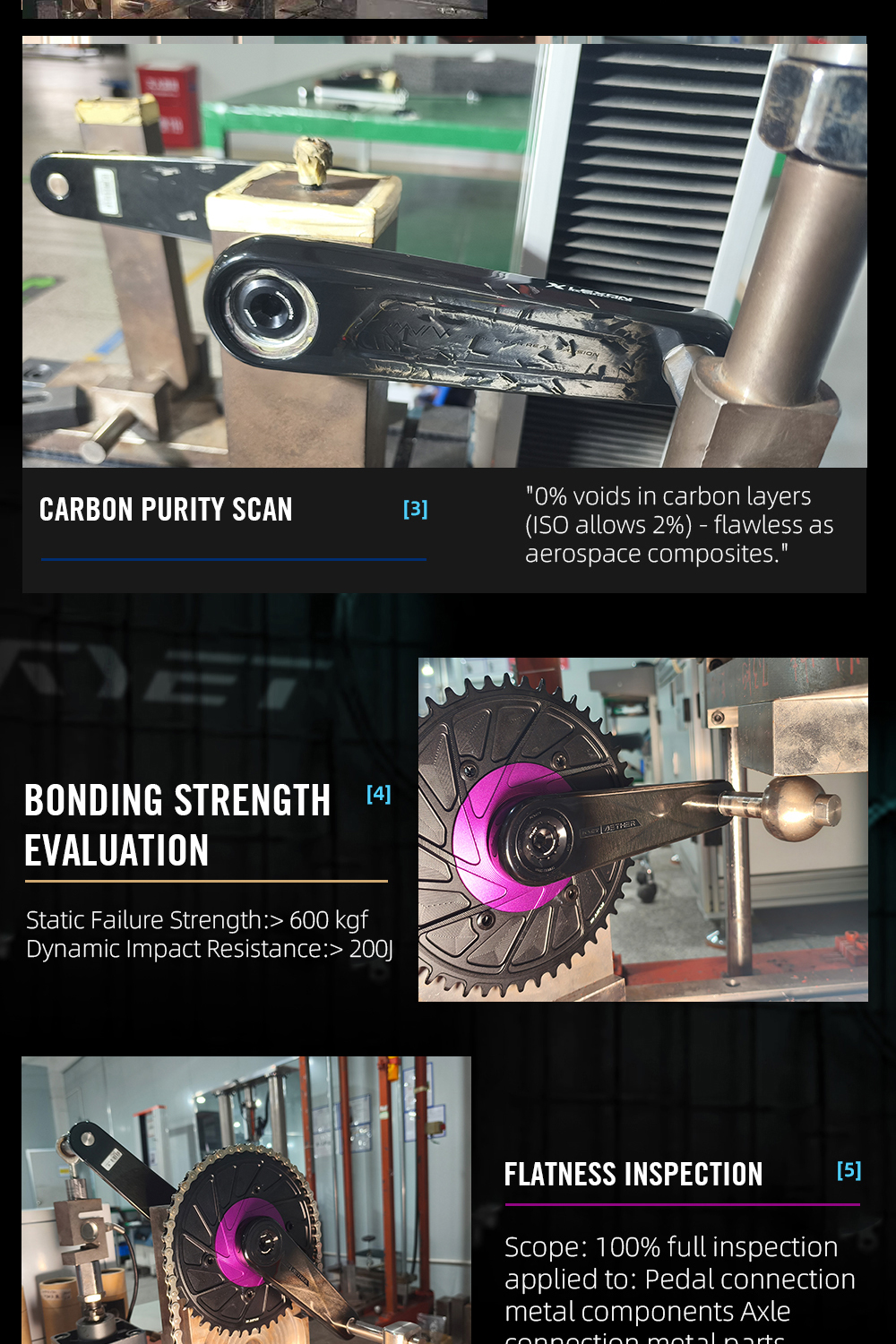

Passed 1800N 14w crank fatigue test and 5600N crank damage test, far exceeding EU standards

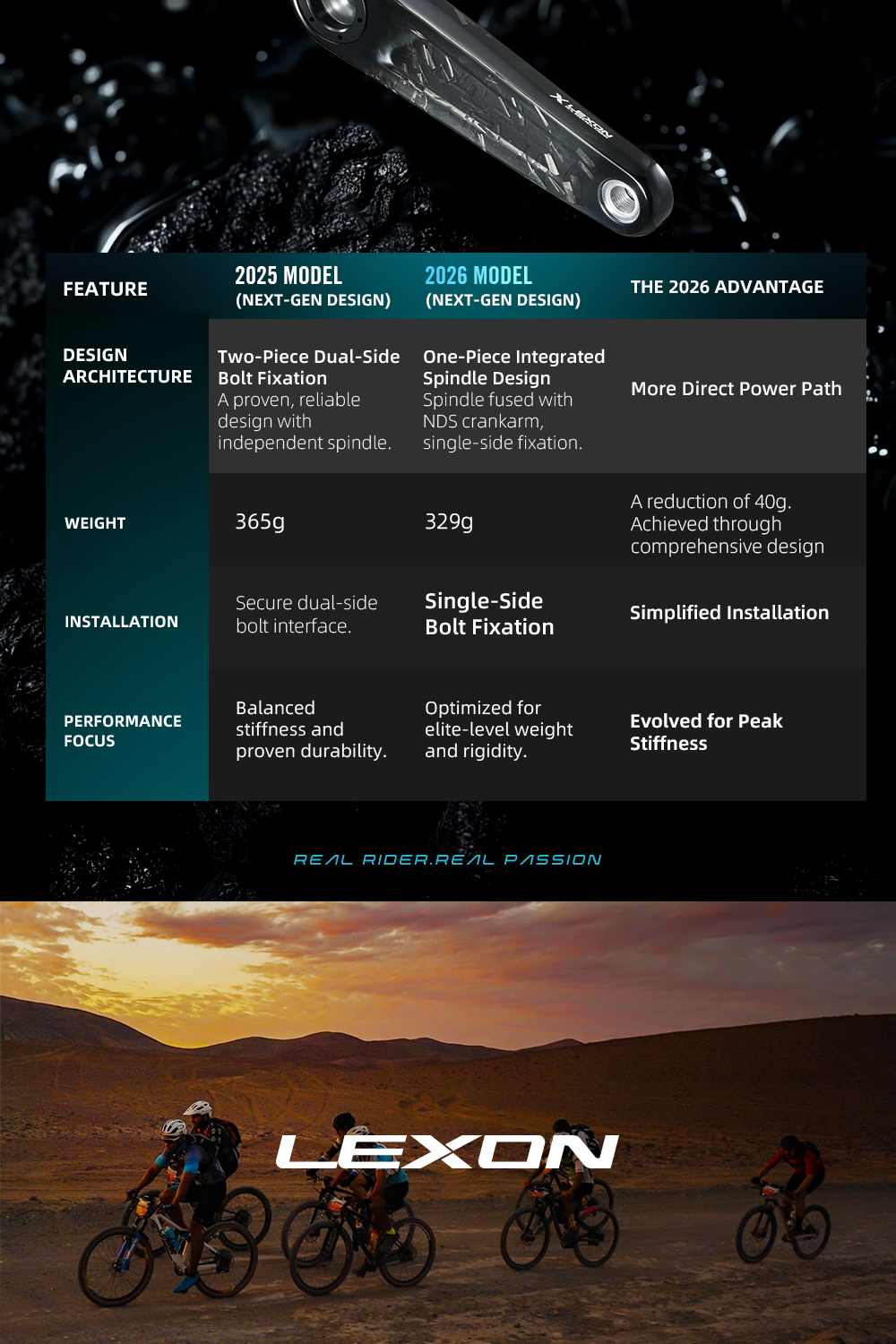

THE 2026 R1S Cranksets ADVANTAGE:
-
More Direct Power Path
-
A reduction of 40g (2026 R1S Weight: 329g) Achieved through comprehensive design
-
Simplified Installation
-
Evolved for Peak Stiffness

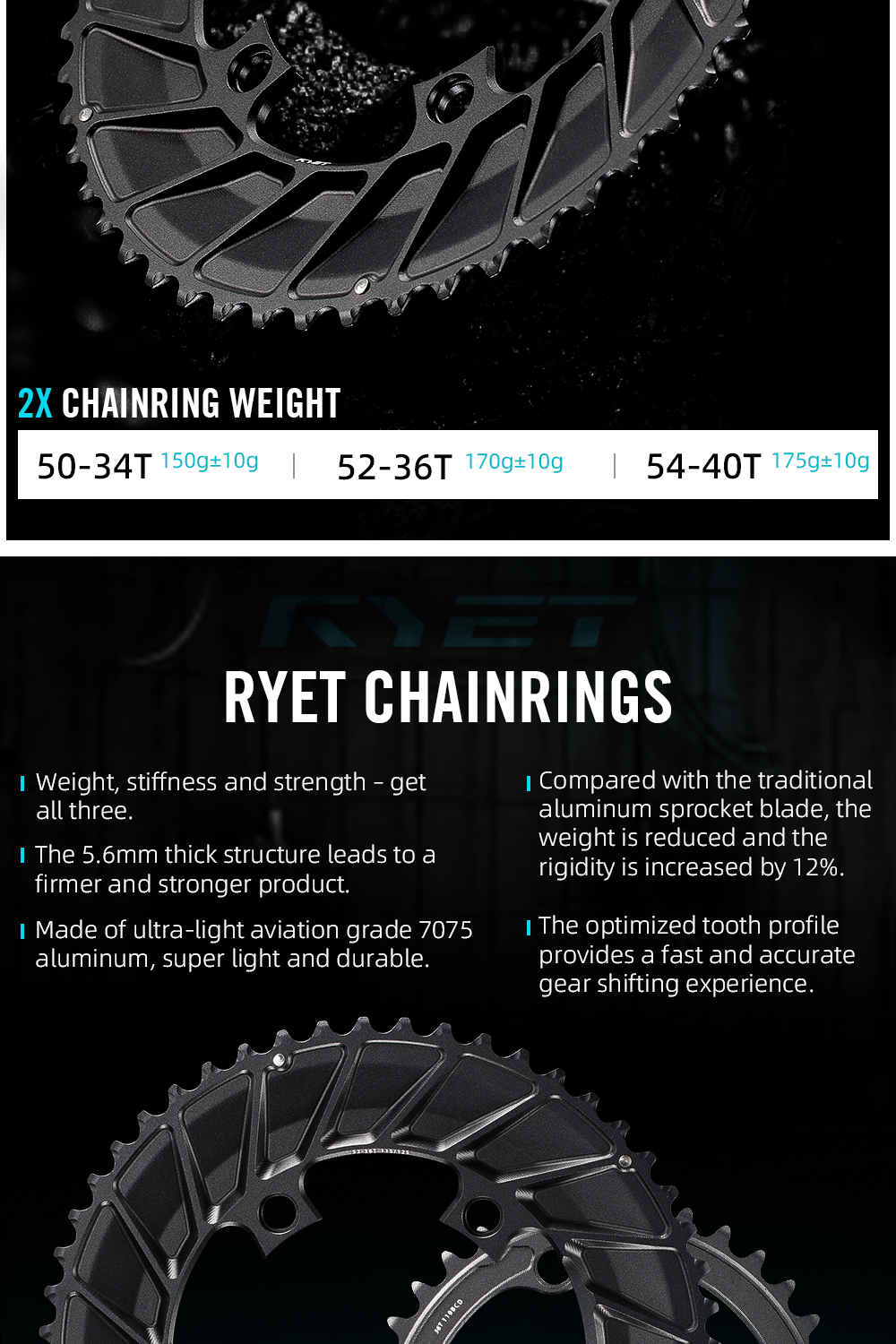

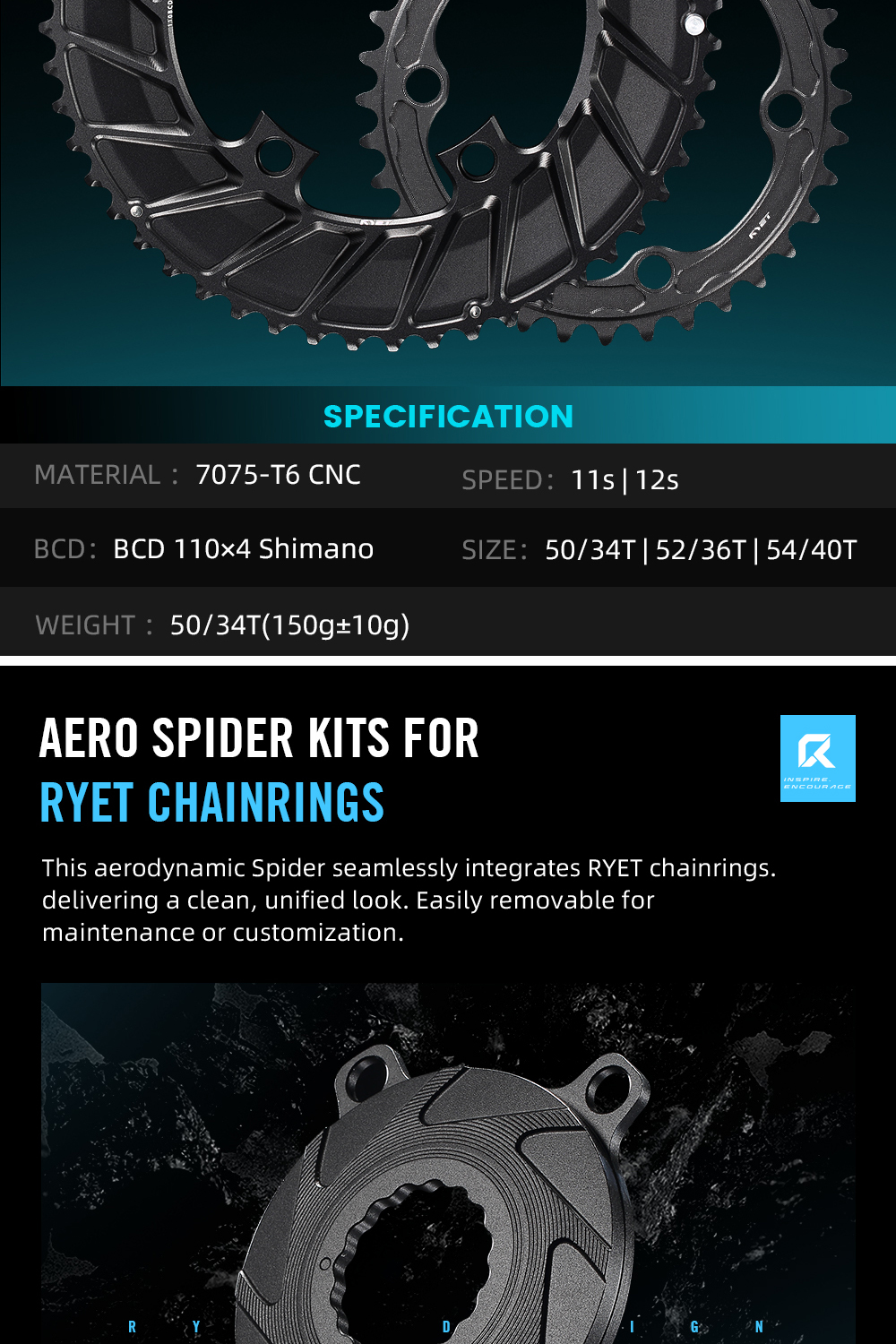

RYET EVO ALLOY CHAINRINGS
-
MATERIAL:AL 7075-T6 CNC
-
SPEED:11s; 12s
-
BCD BCD 110×4 Shimano®
-
Chainring SIZE:50-34T\52-36T \54-40T
-
WEIGHT:50-34T (150g±10g);
52-36T
(170g±10g);
54-40T
(175g±10g)
(Chainring Only) -
Note:Not Fit with SHIMANO Cranksets Directly
*(Use LEXON Chainring Bolt Sets because the Chainring is thicker)
RYET EVO Alloy CHAINRINGS 110×4 BCD
-
Weight, stiffness and strength – get all three
-
The 5.9mm thick structure leads to a firmer and stronger product
-
The combination of high modulus carbon fiber and ultra light 7075 aviation grade aluminum is perfect
-
Compared with the traditional aluminum sprocket blade, the weight is reduced and the rigidity is increased by 31%
-

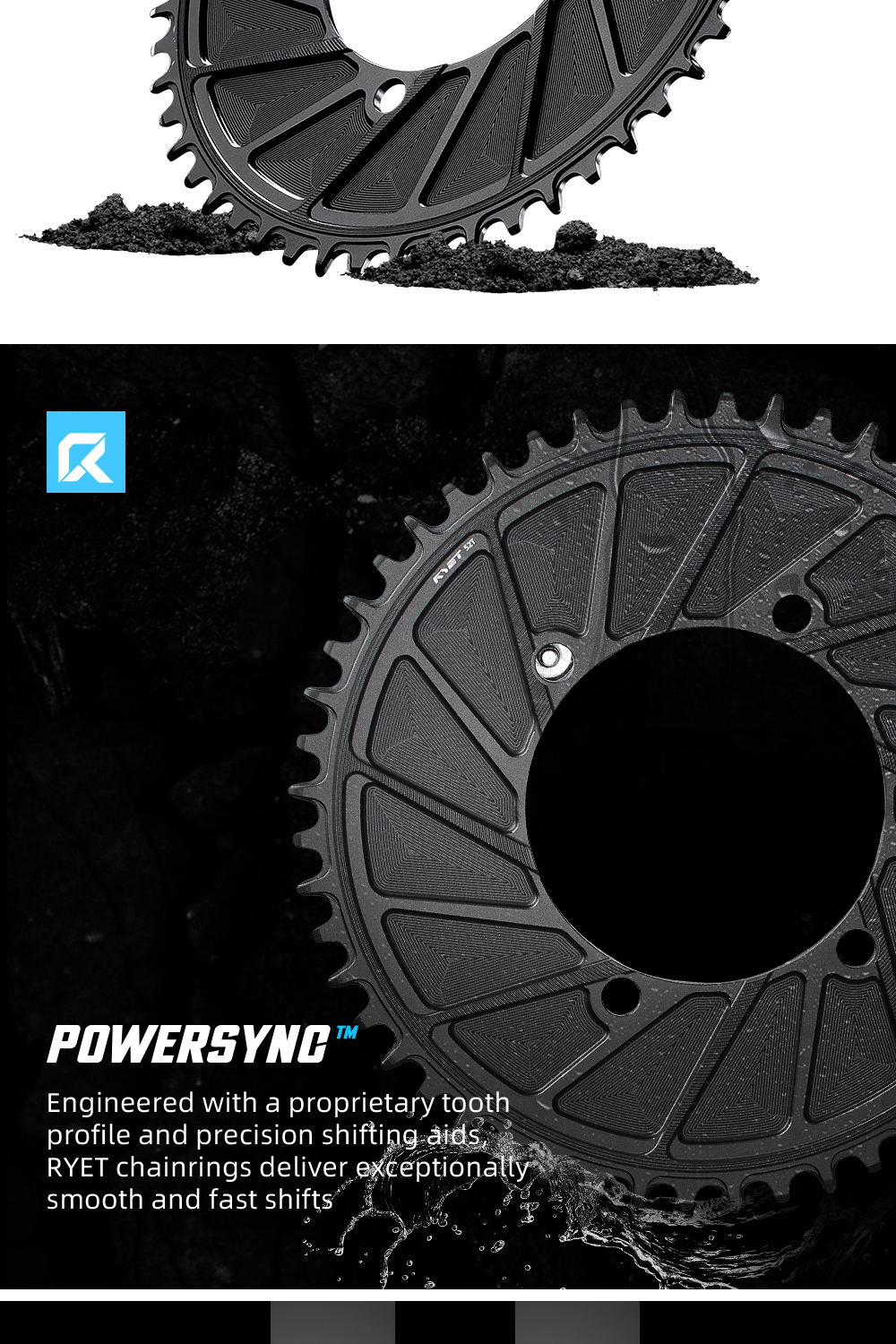

The optimized tooth profile provides a fast and accurate gear shifting experience

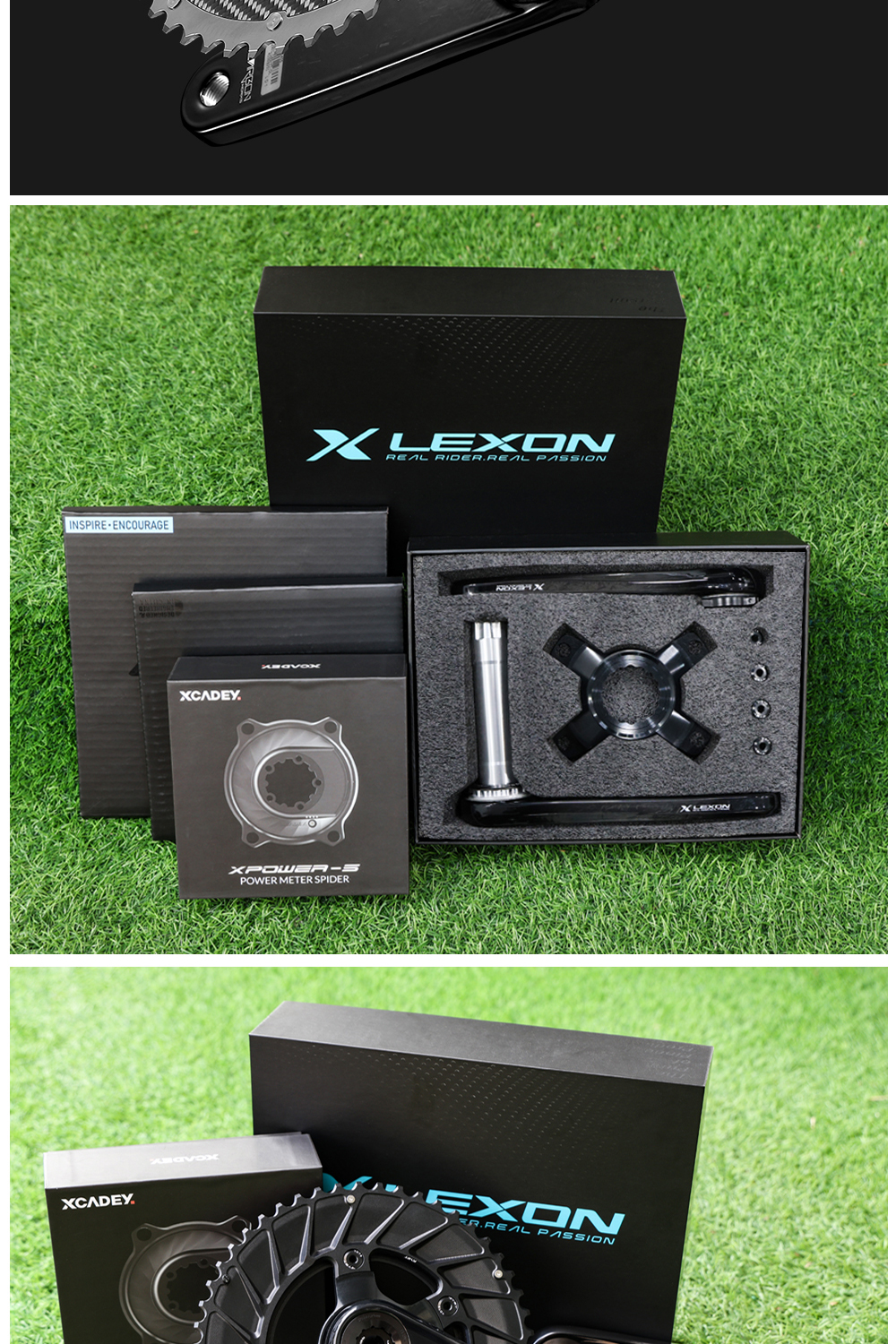

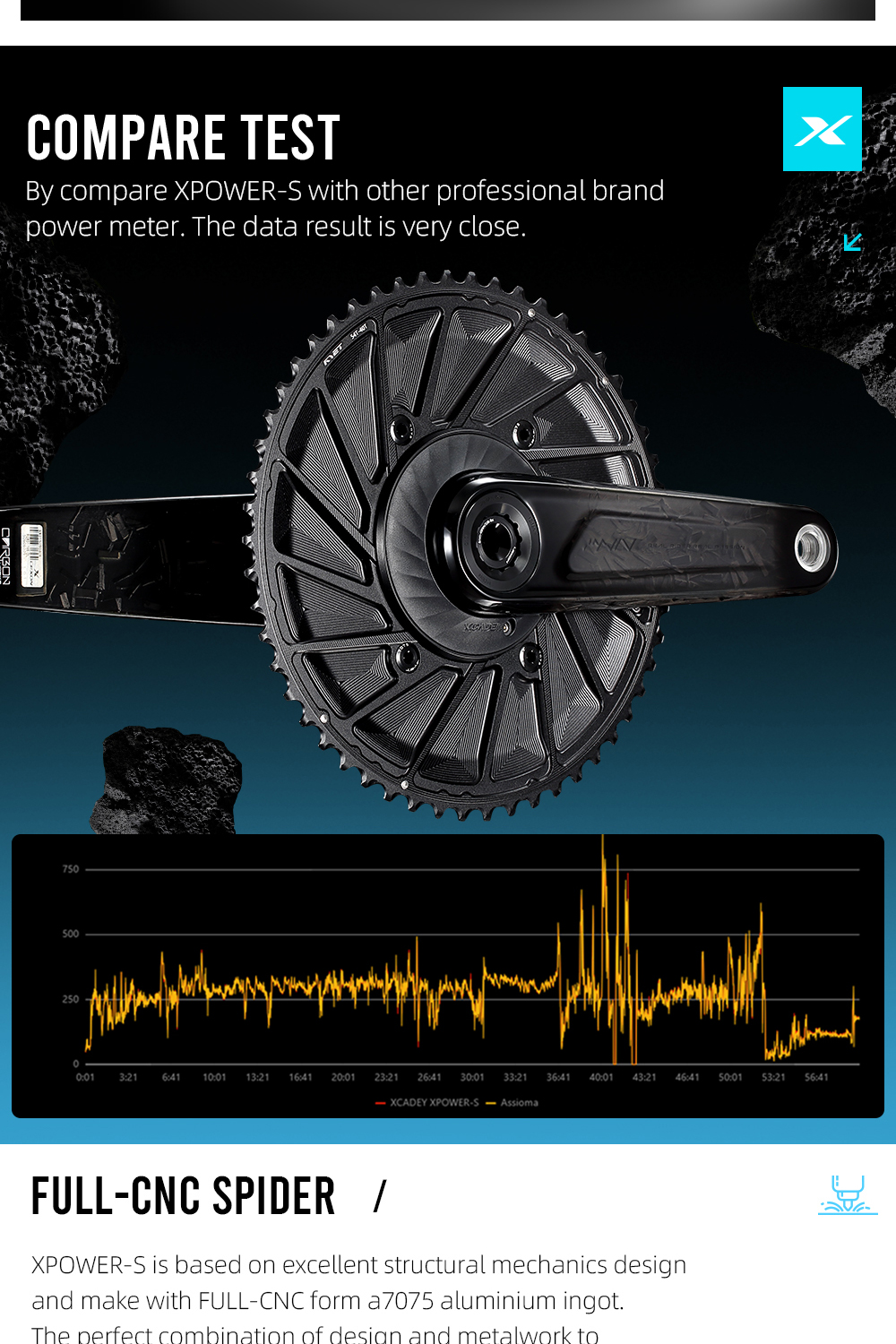

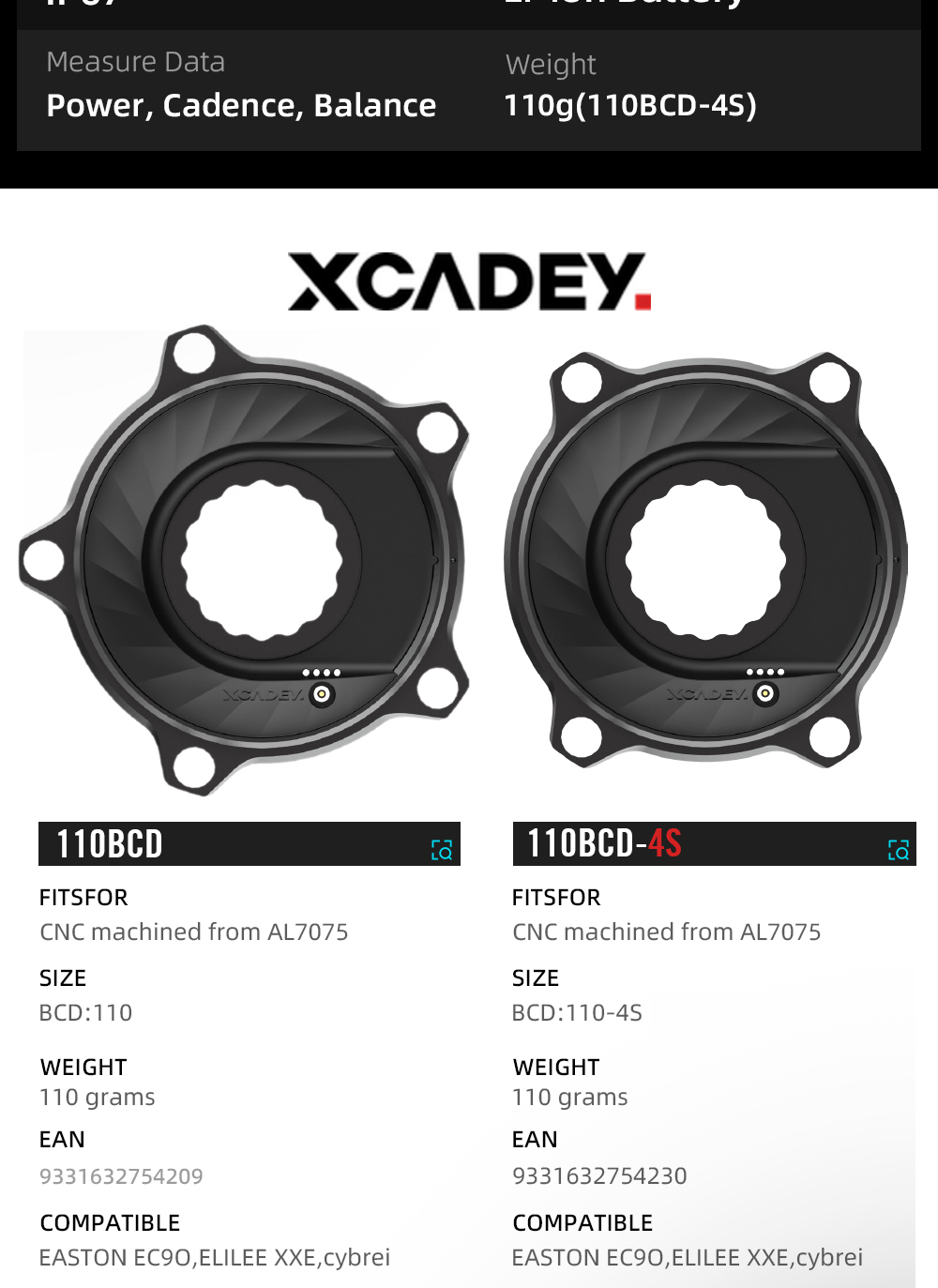

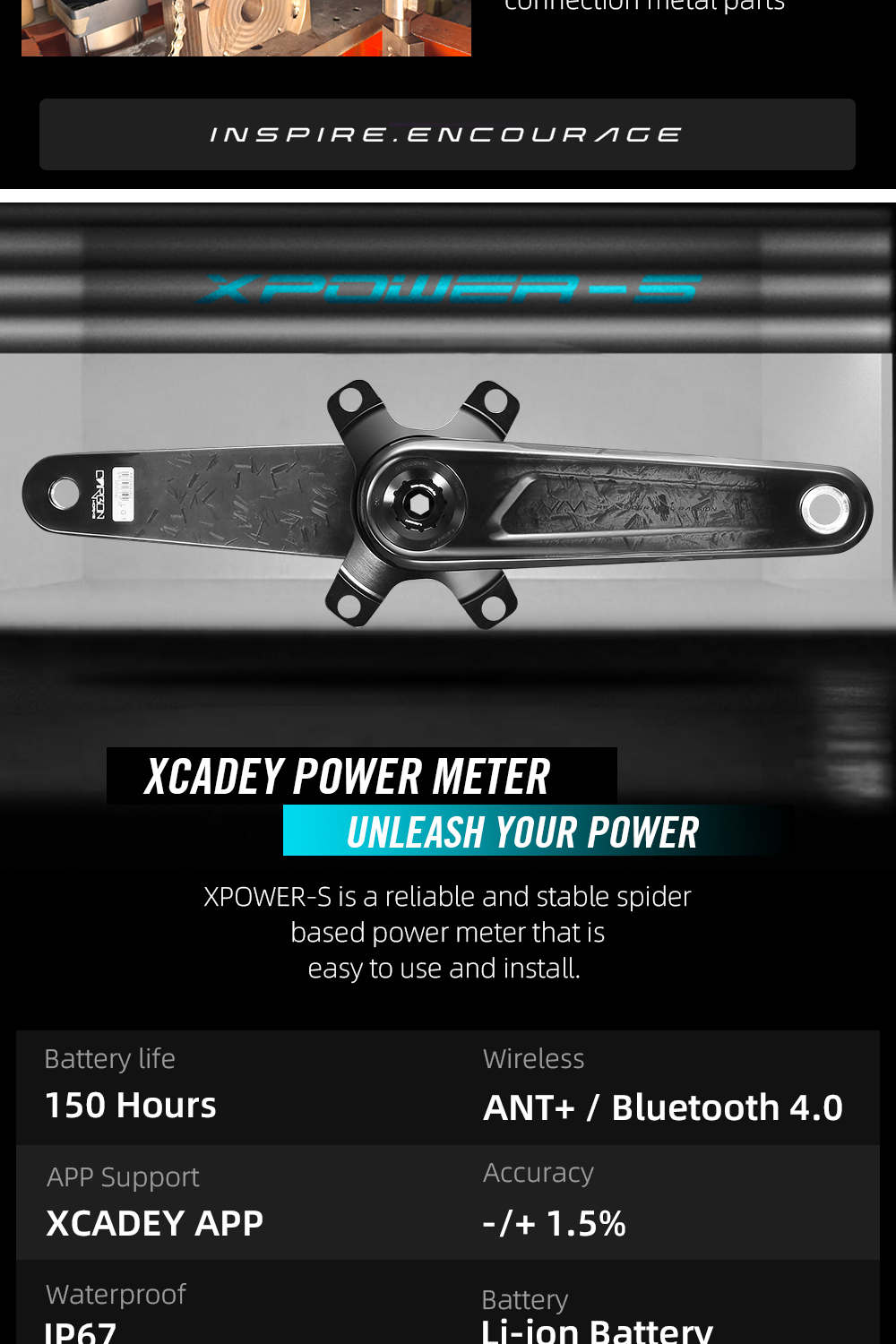

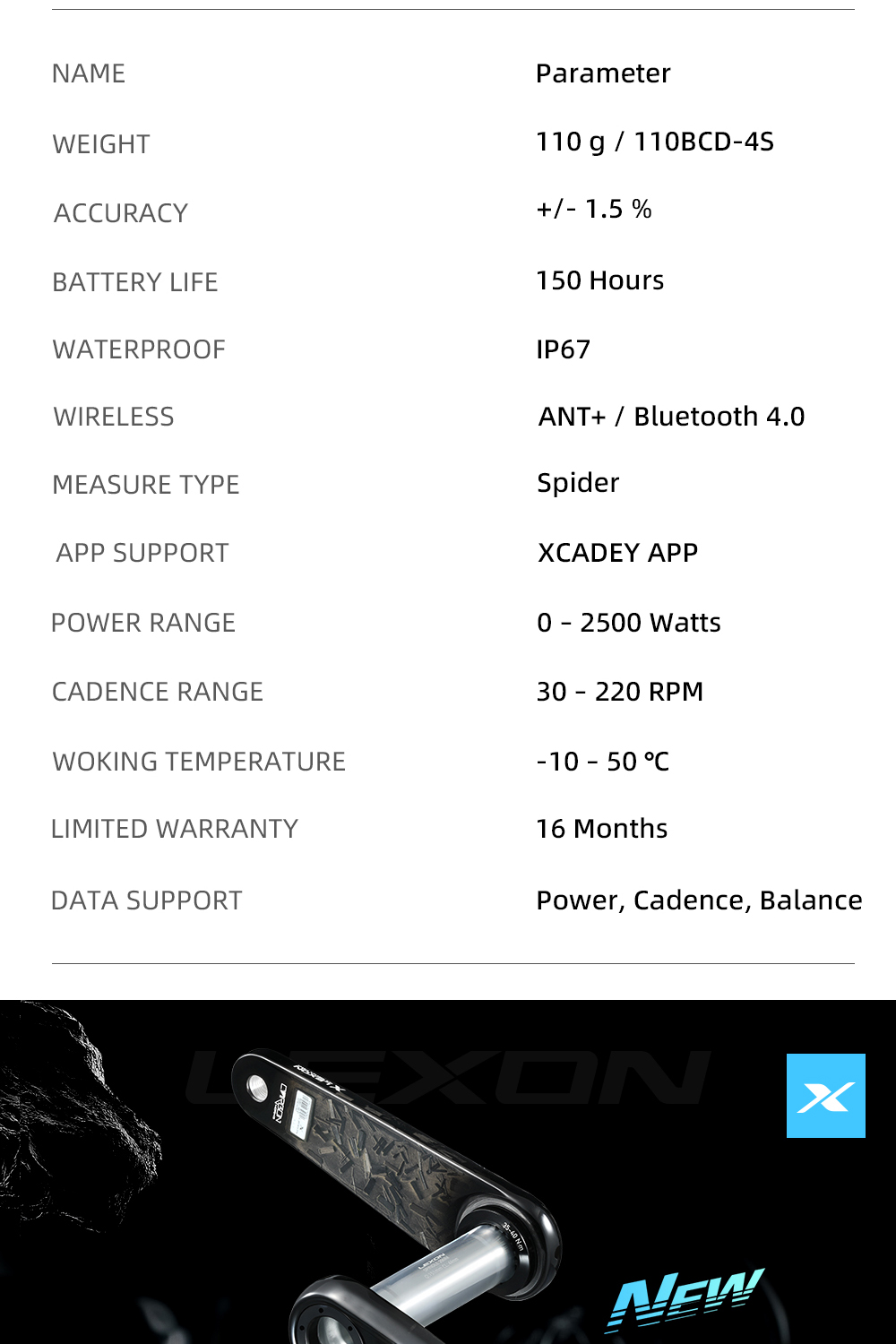

XCDEY EASTON 110BCD-4S
-
CNC machined from AL7075
-
SIZE:BCD 110
-
WEIGHT:110 grams
-
EAN 9331632754230
-
Compatible :EASTON EC9O,ELILEE XXE,cybrei, LEXON,RYET

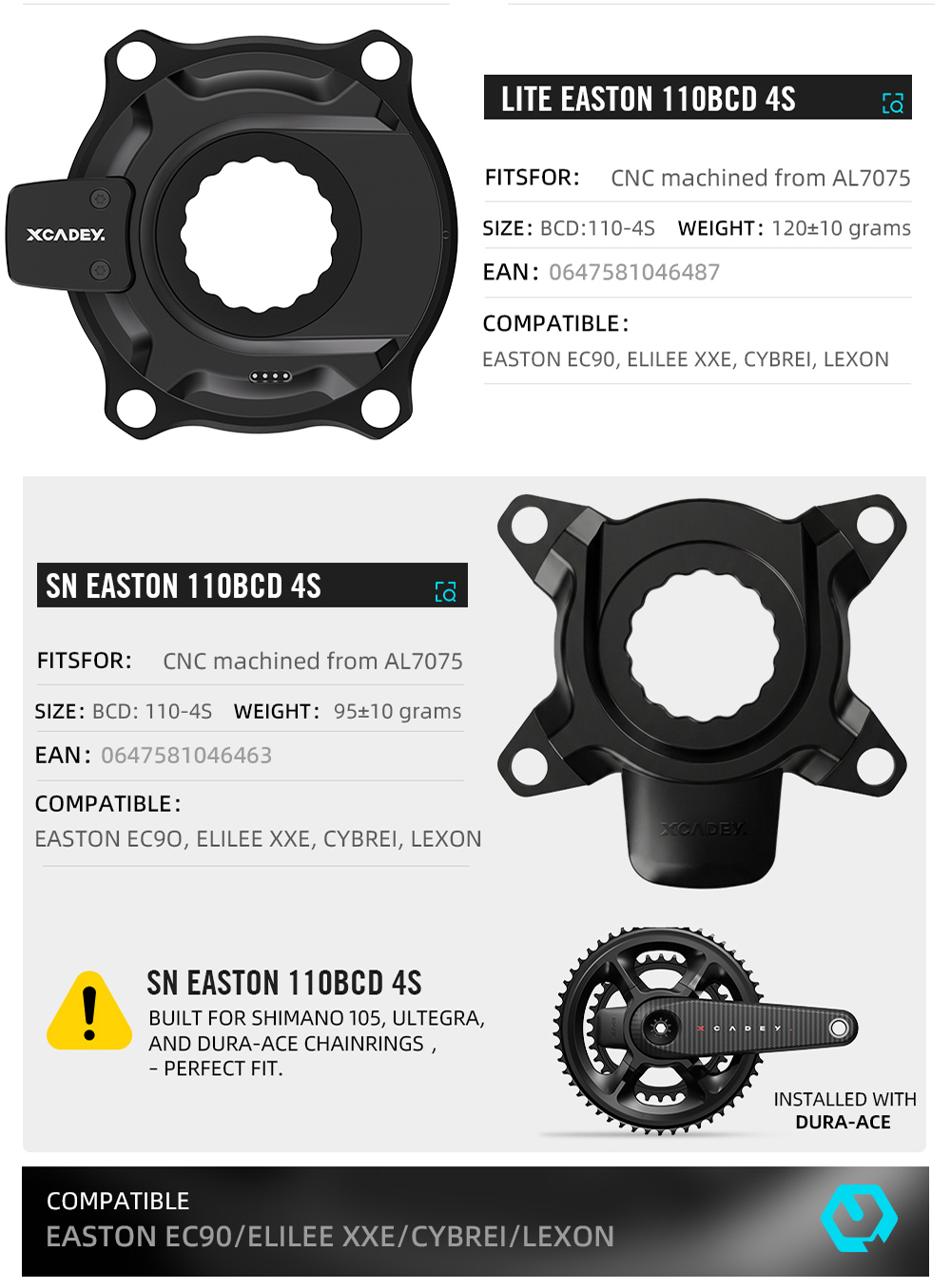

LITE EASTON 110BCD 4S
-
FITSFOR: CNC machined from AL7075
-
SIZE: BCD:110-4S WEIGHT: 120±10 grams
-
EAN: 0647581046487
-
COMPATIBLE:EASTON EC90, ELILEE XXE, CYBREI, LEXON
SN EASTON 110BCD 4S
-
FITSFOR: CNC machined from AL7075
-
SIZE: BCD:110-4S WEIGHT: 95±10 grams
-
EAN: 0647581046463
-
COMPATIBLE:EASTON EC90, ELILEE XXE, CYBREI, LEXON
-
PERFECT FIT.

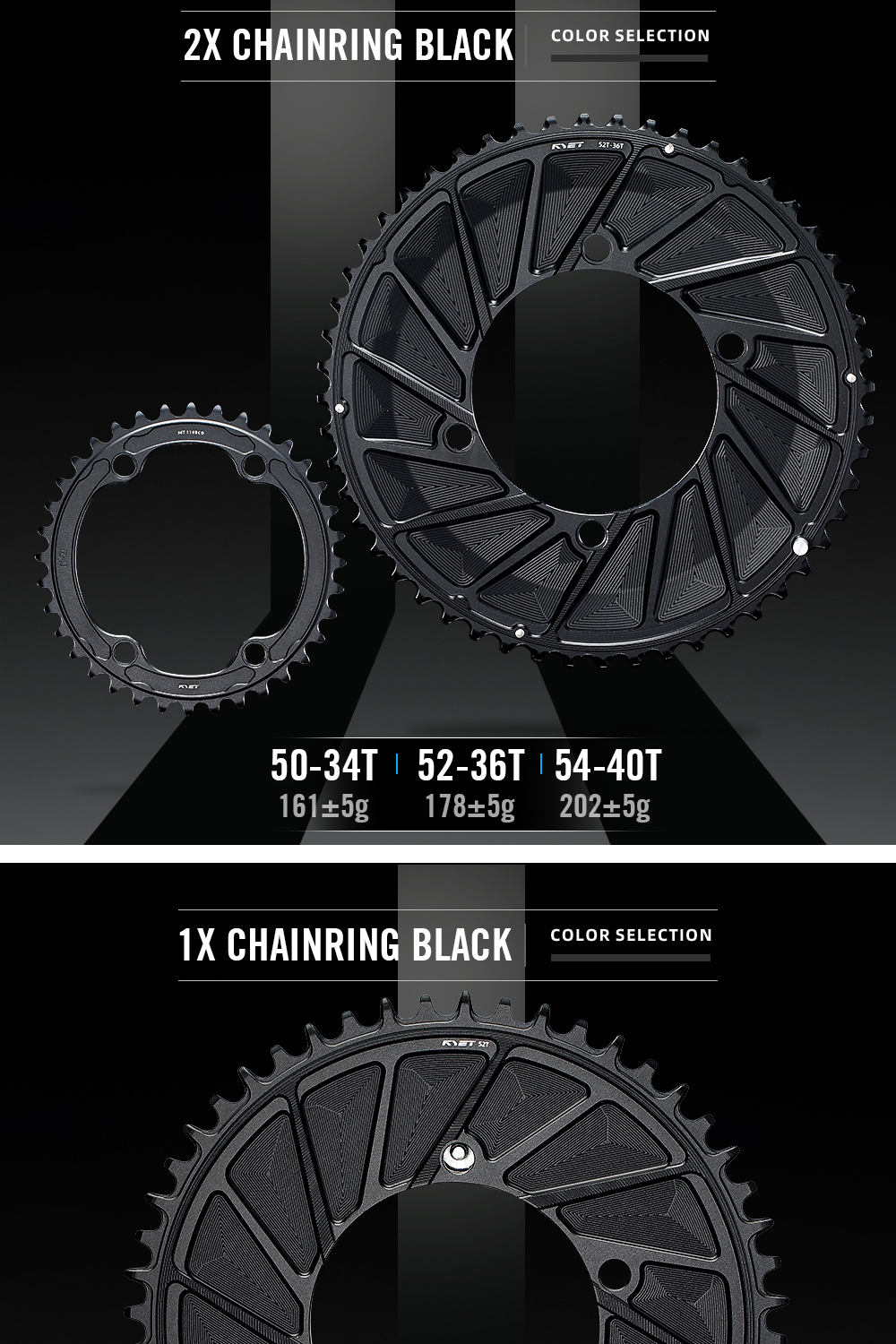

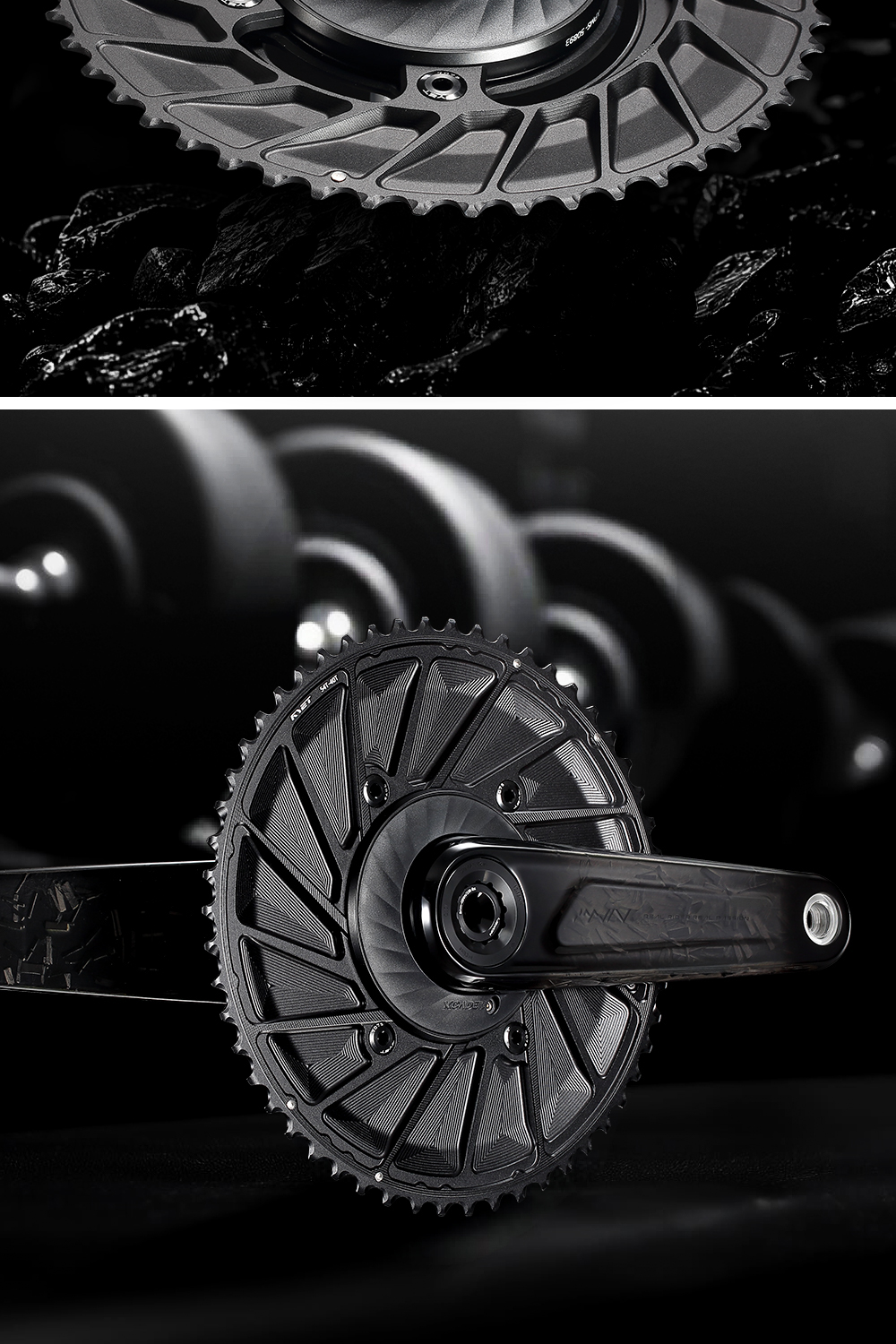

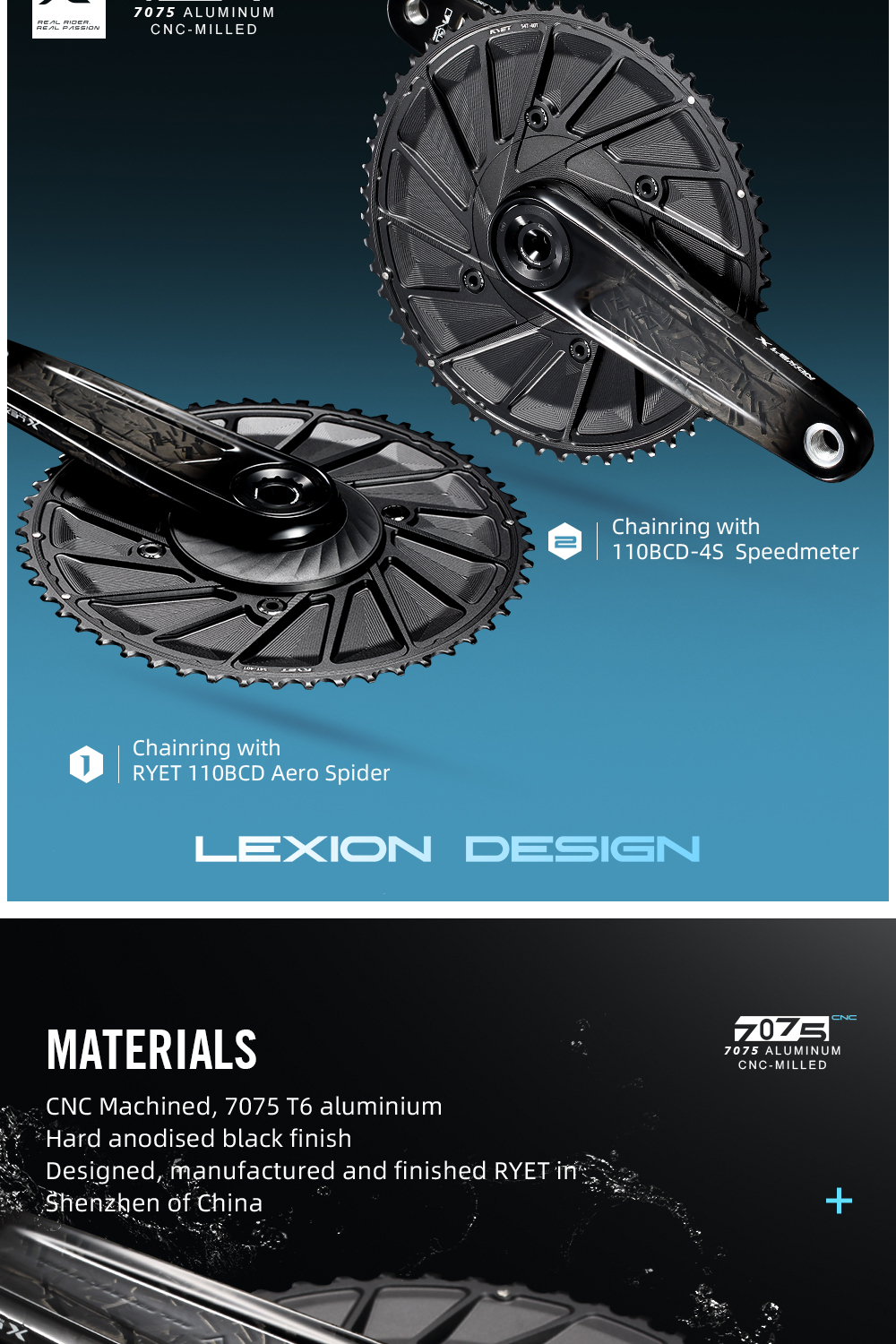

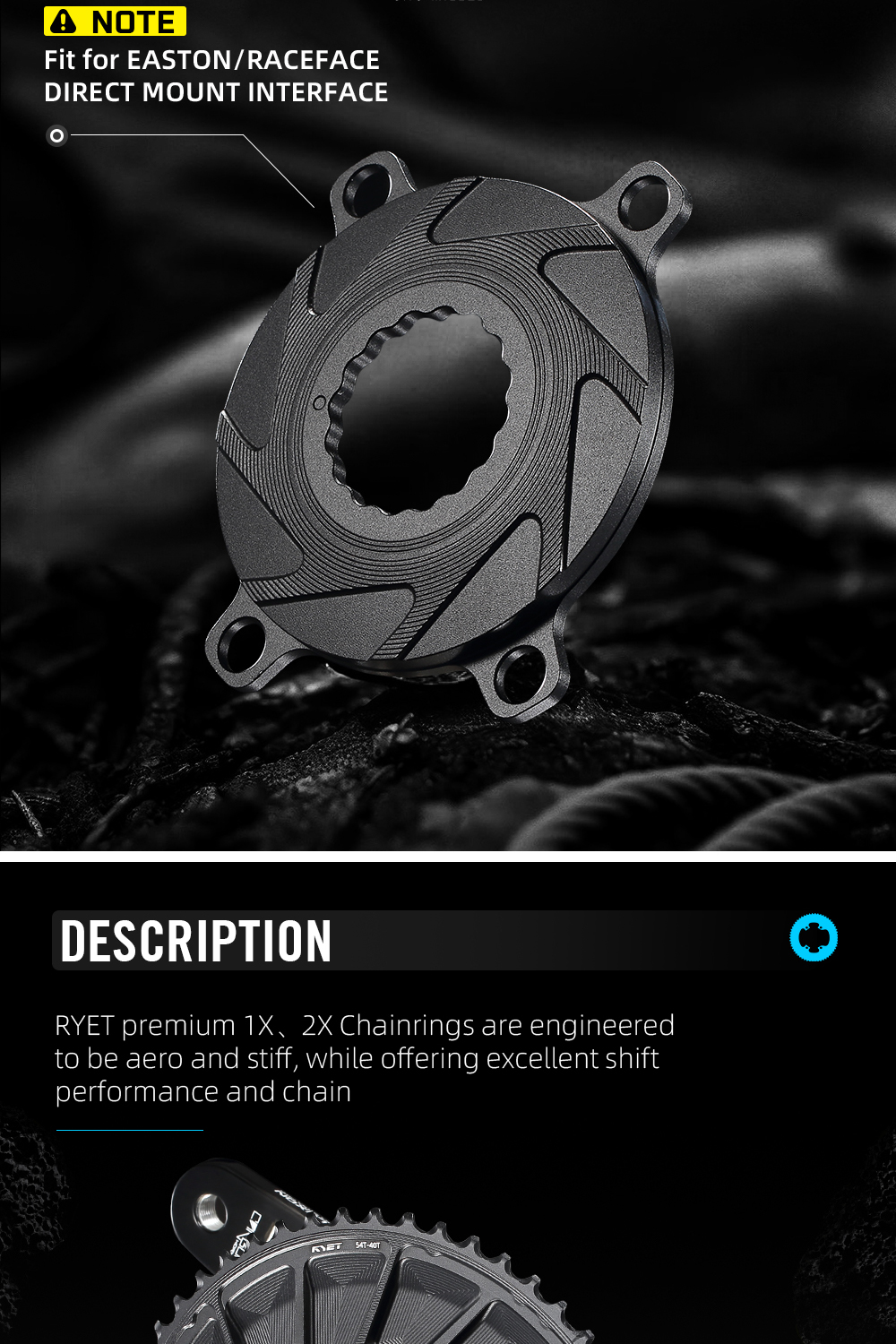

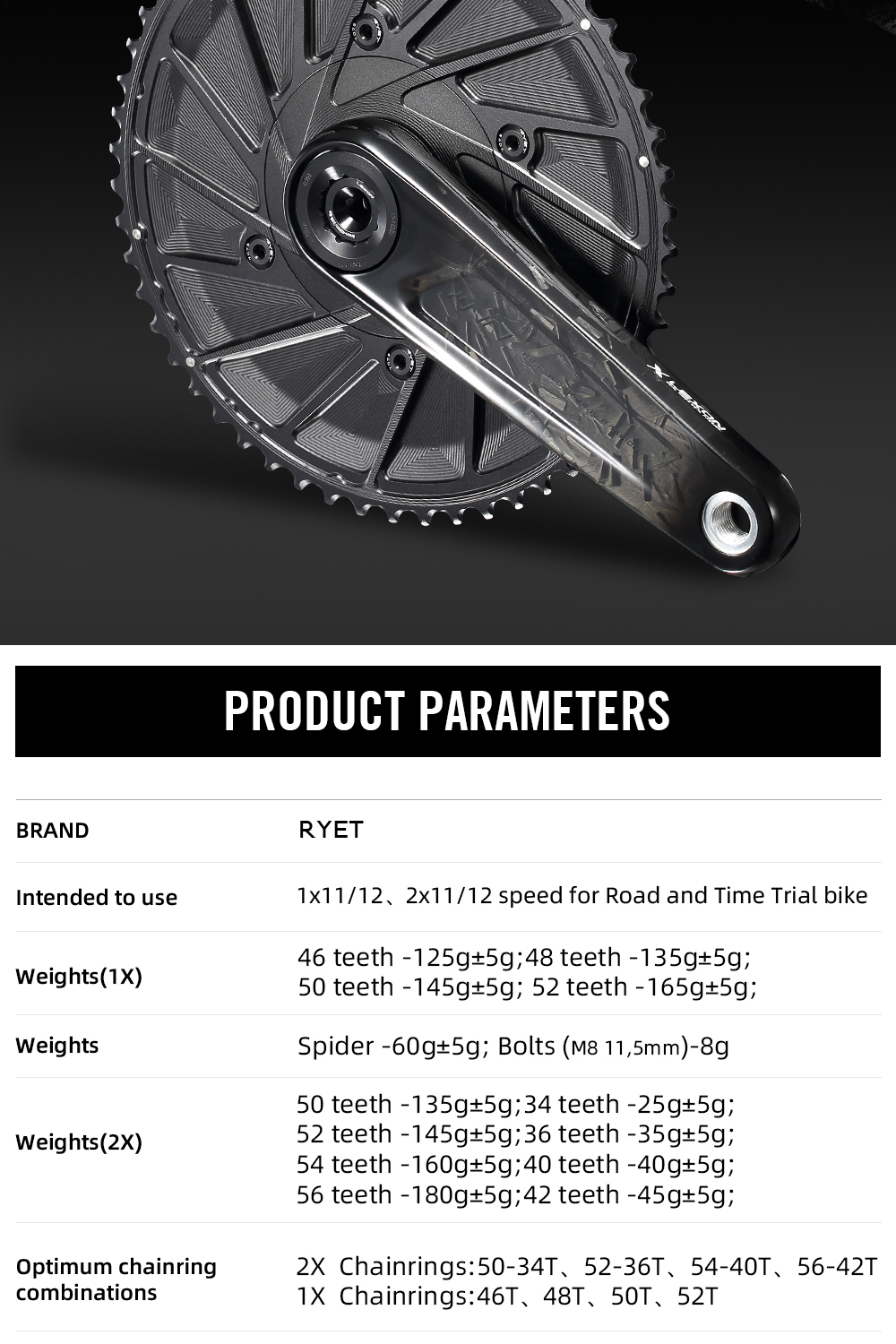

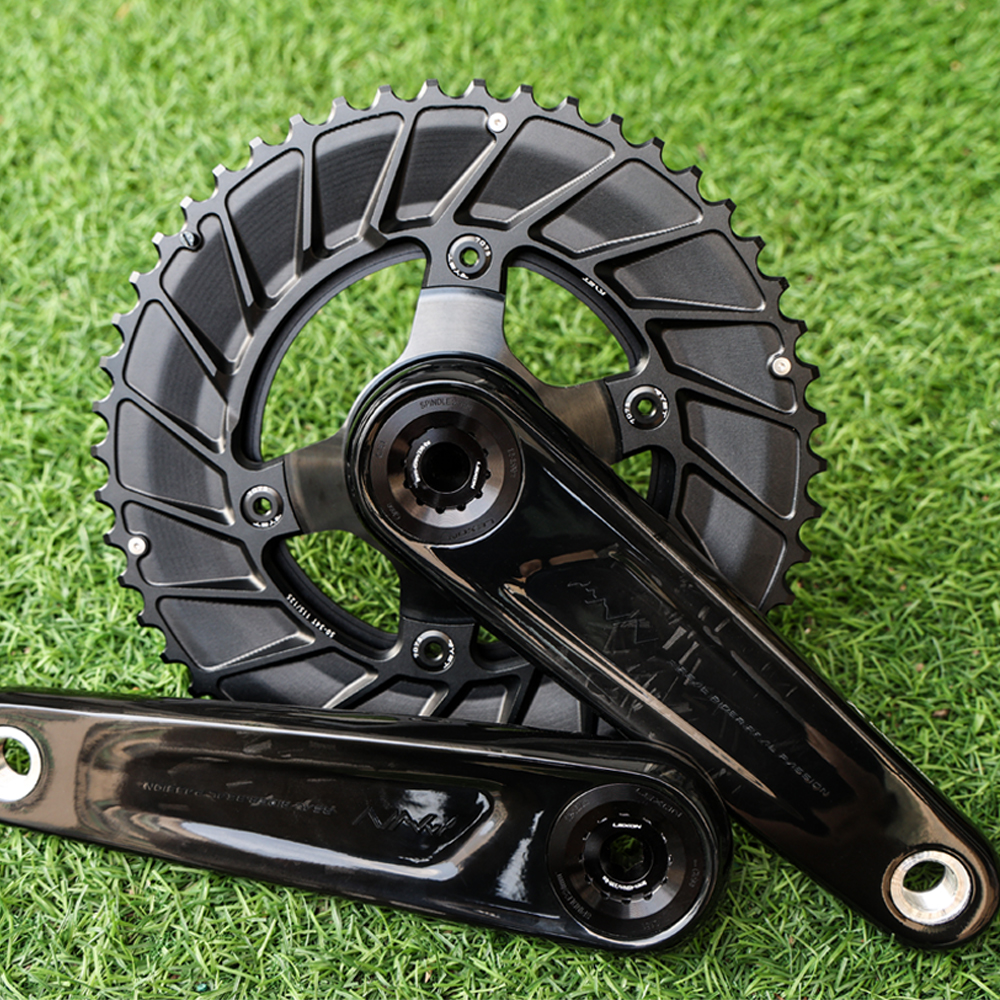

AERO SPIDER 2X/1X CHAINRINGS
-
BRAND: RYET
-
Intended to use :1x11/12、2x11/12 speed for Road 、Gravel and Time Trial bike
-
Weights 1X:
46 teeth-125g±5g;
48 teeth-135g±5g;
50 teeth-145g±5g;
52 teeth-165g±5g;
Spider -60g±5g; Bolts (M8 11,5mm)-8g
-
Weights 2X:
50T-135g±5g；34t-25g±5g
52t-145g±5g；36t-35g±5g
54t-160g±5g；40t-40g±5g
56t-180g±5g；42t-45g±5g
-
Optimum Chainring Combinations
-
2X Chainrings: 50-34T、52-36T、54-40T、56-42T
-
1X Chainrings: 46T、48T、50T、52T
-

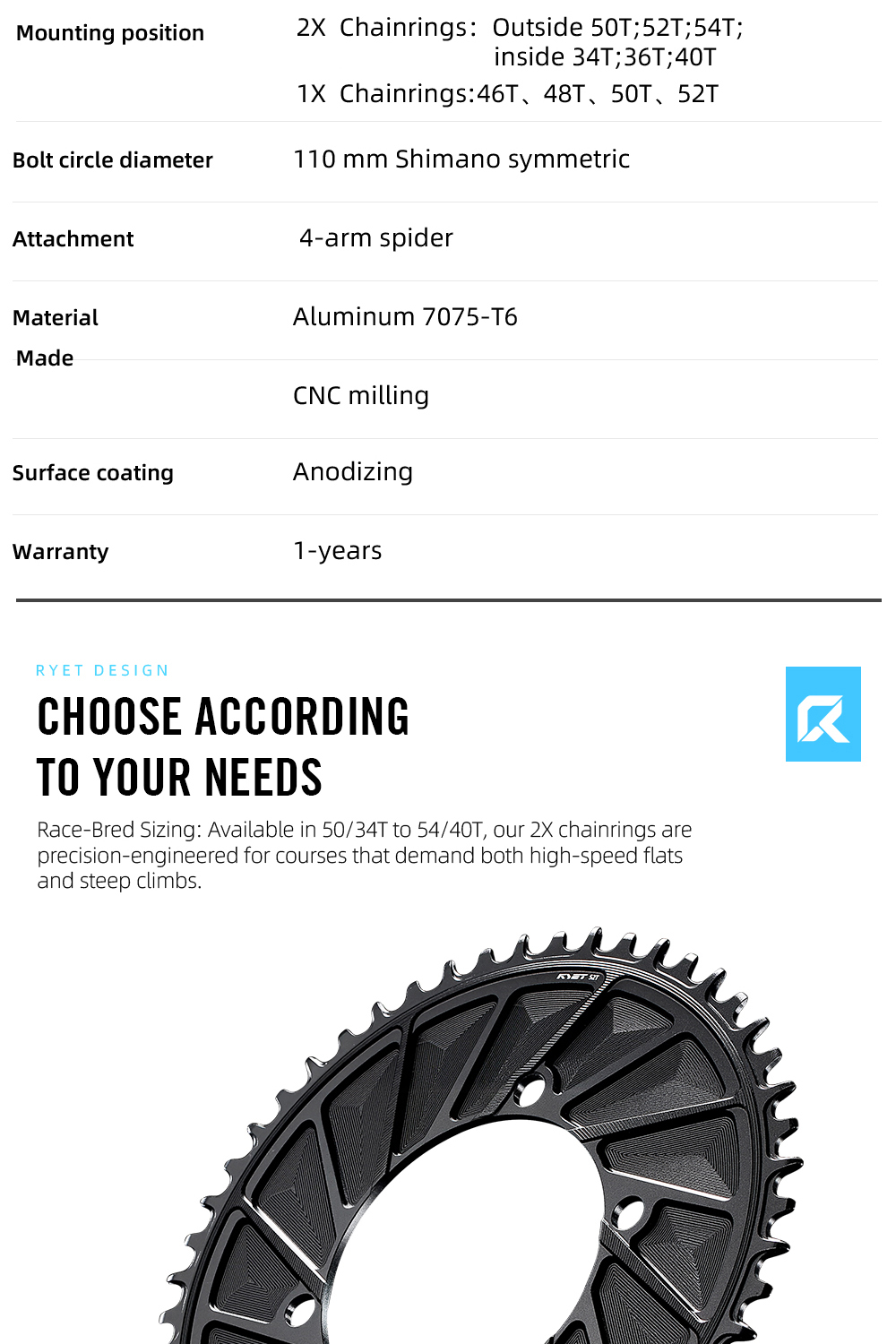

Mounting position :
-
2X Chainrings : Outside 50T; 52T; 54T; 56T ,Inside 34T;36T;40T;42T
-
1X Chainrings:46T、48T、50T、52T
-
Bolt circle diameter:110 mm Shimano symmetric
-
Attachment:4-arm spider
-
Material:Aluminum 7075-T6
-
Made:CNC milling
-
Surface coating:Anodizing Colors
-
Warranty:1-years
Important Notice Before Purchase:
-
Please Double-Check: Ensure the crank model, specifications (e.g., arm length), and compatibility match your bike and needs before ordering.
-
Contact Us for Support: If you have any questions regarding product selection or compatibility, please contact our customer service team prior to purchase.
