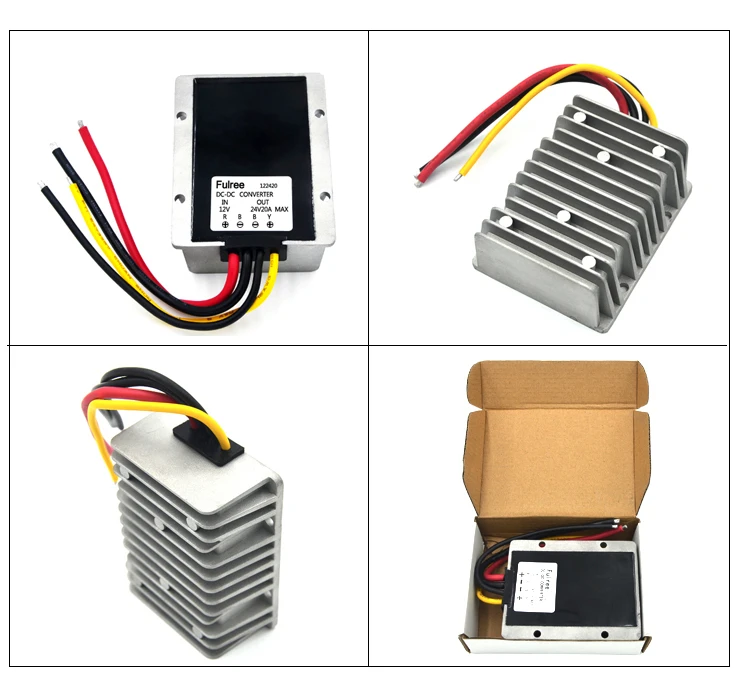

Product Name

Fulree DC DC Converter 12V to 24V 20A 480W

Model No.

F12S24V20A6L

Module Properties

non-isolated buck module

Rectification

synchronous rectification

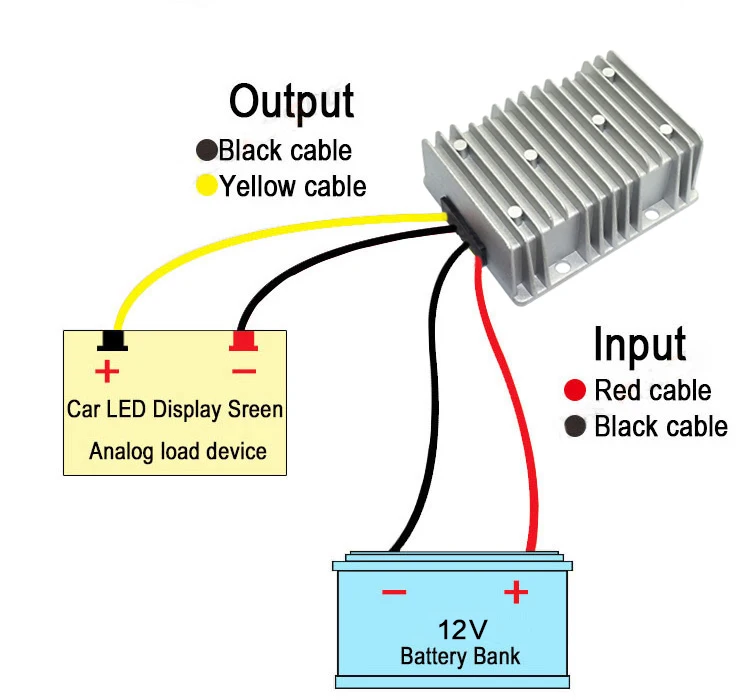

Input (cable length: 12cm)

Input Voltage

DC 12V

Input Voltage Range

DC 10-23V

Output(cable length: 12cm)

Output Voltage

DC24V±1V

Output Current

0~20A Maxauto-adaptive

Output Power

480W Max

Conversion Efficiency

>93%

Voltage regulation

±3%

Load regulation

± 2%

Ripple (Full load test)

< 180mV

No-load current

<45mA

Working Temperature

-40~80℃( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)

Waterproof Rating

IP68

Protection

Over-current protection / Overheating protection / Over-voltage protection / waterproof IP68 design, anti-shock protection

Application

mobile phone, car camera, Electric motors, Trucks, Golf Carts, Forklift, Solar Panel Power System, water pumps, industrial equipment and so on.

Case Material

Die-casting aluminum alloy

Product Size (L x W x H)

100*80*39mm

Product Weight

500g

Warranty

12 months

Cooling Way

Free air convection

OEM&ODM Service

Acceptable
