All modifications must be installed by licensed mechanics and in compliance with your local modification regulations

​​​​​​​

Application:

• for Checy Silverado (All Cabs) 2WD/4WD 2007-2013
• for GMC Sierra (All Cabs) 2WD/4WD 2007-2013

Note: When using 17" rims, it is required to trim the lower ball joint stud and modify the lower ball joint nut.
Does Not Fit HD Models;

Specification:

• Product type: Lowering shock Kit
• Drop height: Front 3" & Rear 5" Drop

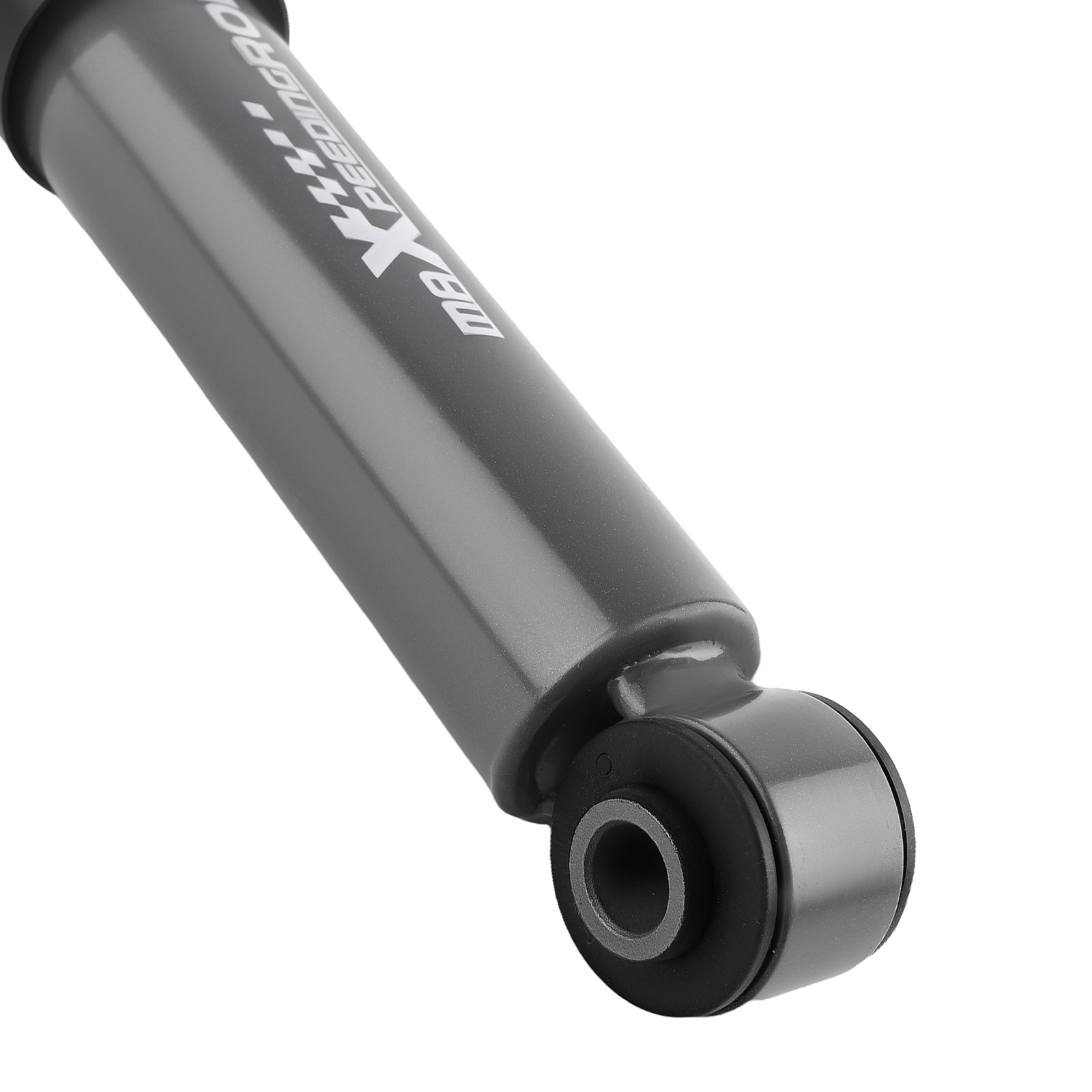

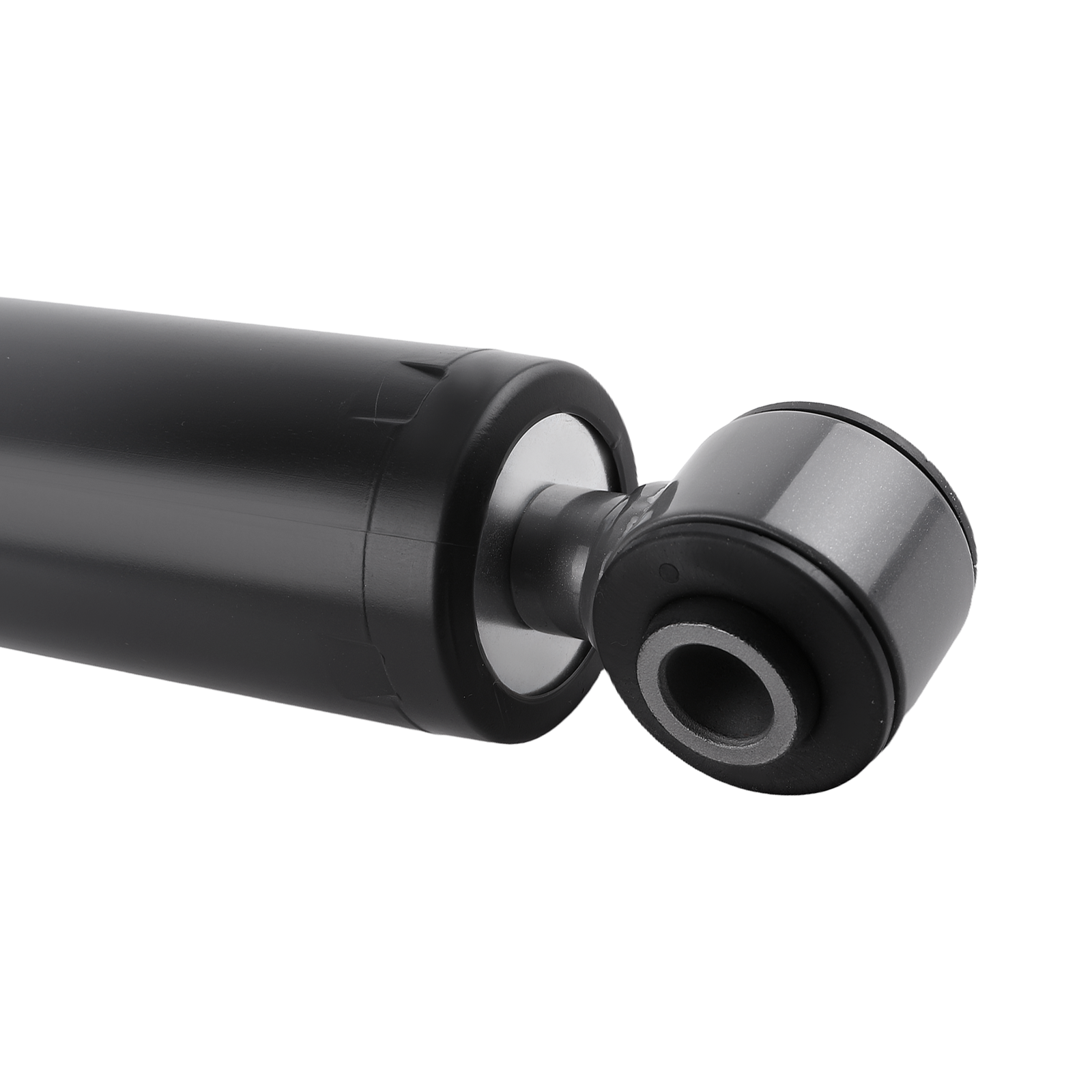

Shock

• Material: High Tensile Strength Carbon Steel
• Finish: Powder coated
• Bushing material:Rubber
• Diameter of piston rod:12.5mm/ 0.49inch
• Piston diameter:30mm/ 1.18inch
• Outer cylinder diameter: 45mm/ 1.77inch
• Extended length:465mm/ 18.31inch
• Collapsed length:315mm/ 12.40inch
• Travel range:150mm/ 5.91inch
• Nitrogen charged:Yes
• Dust cover equipped:Yes

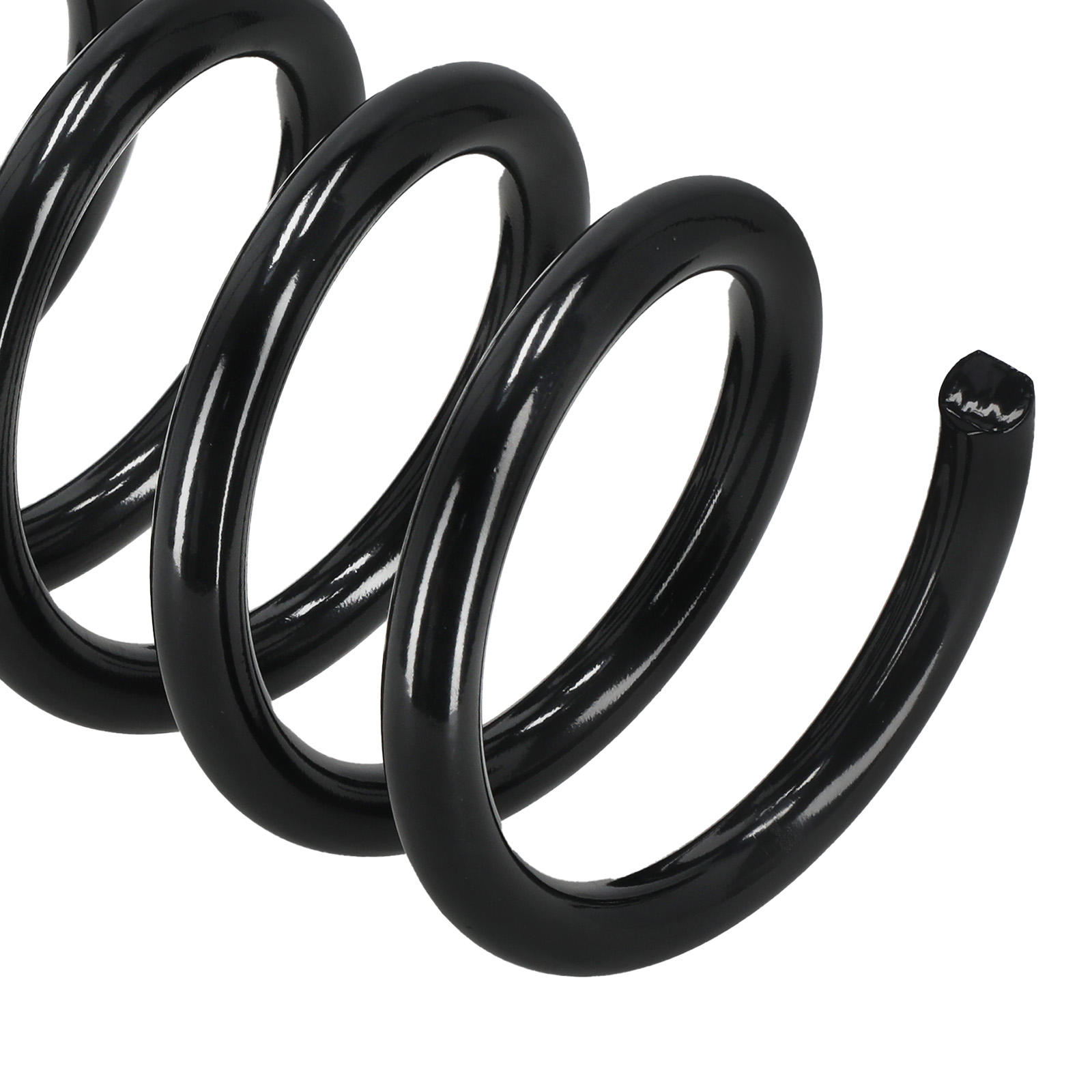

Coil Spring:

• Material: (55CrSi) Steel
• Finish: powder-coated
• Spring Length: 307 mm
• Spring rate: 10 kg/mm (559.97lb/in)

Feature

• *High-pressure nitrogen charged twin-tube shock absorber with high durability.
• *Rubber bushings for better absorption.
• *Powder coated surface：provides superior corrosion resistance.
• *12.5mm Chromed Hardened Piston Rod.
• *30mm Diameter Sintered Iron Piston.
• *45mm Shock Body helps Heat dissipation.
• *Precision Welding.
• *Easy bolt-on installation
• *High Tensile Strength Carbon Steel for optimal durability and fitment.
• *Dust cover helps protect product.
• Chromium-silicon cold-wound structure with high tensile strength and resilience
• Powder coating for corrosion resistance

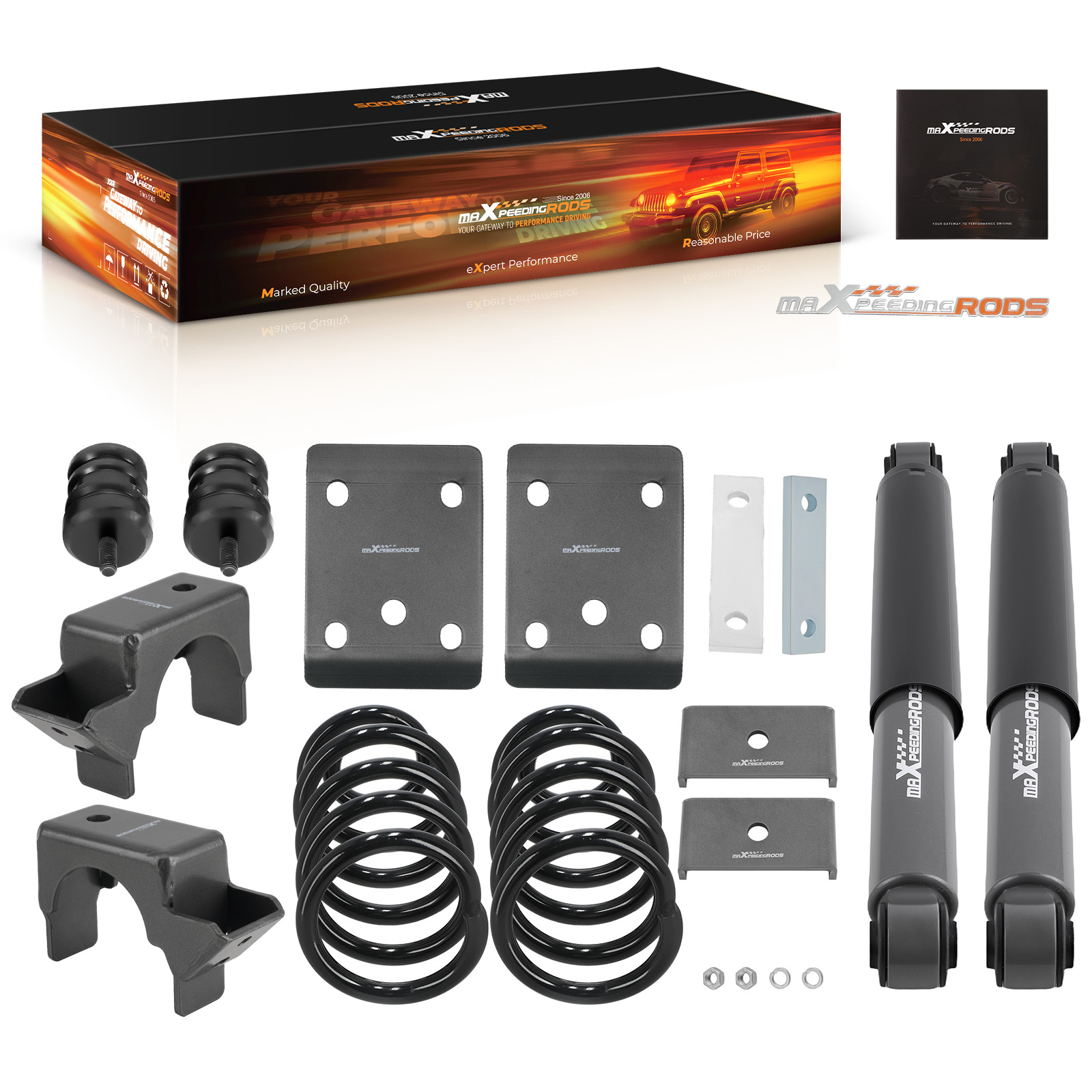

Package Includes:

• 2x Rear shocks
• 2x Front Lowering Coils

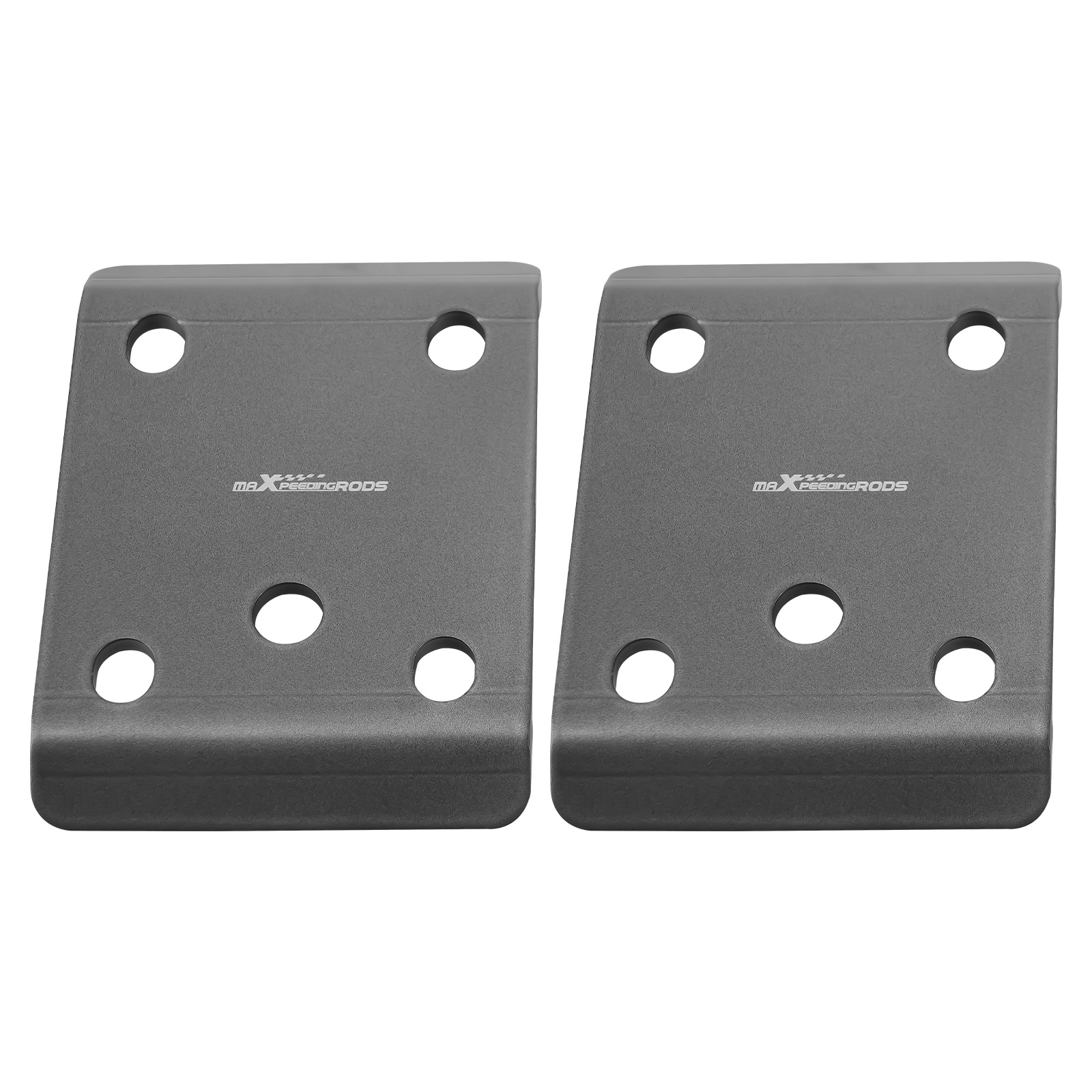

• 1 Set of  Rear Flip Kit
