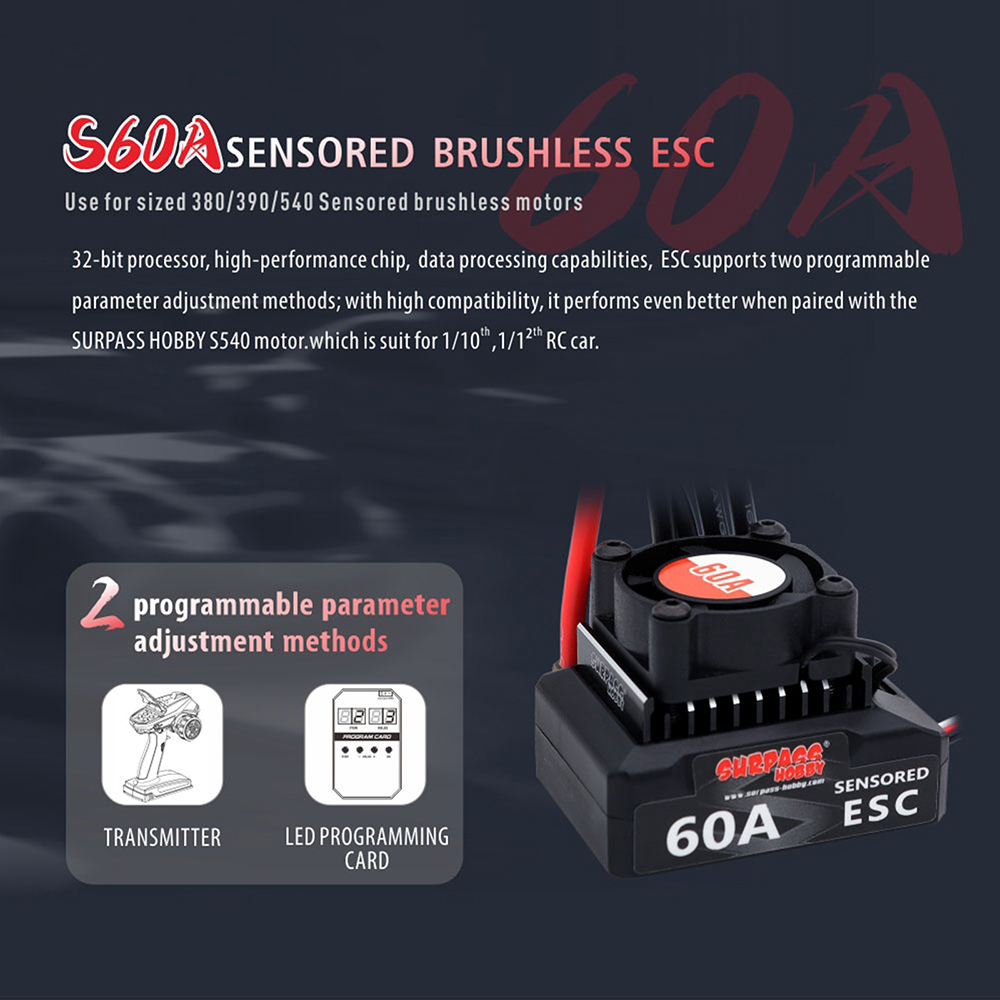

ESC Features:
1. 32-bit processor, data processing capabilities strong.
2. Supports two programmable parameter adjustment methods.

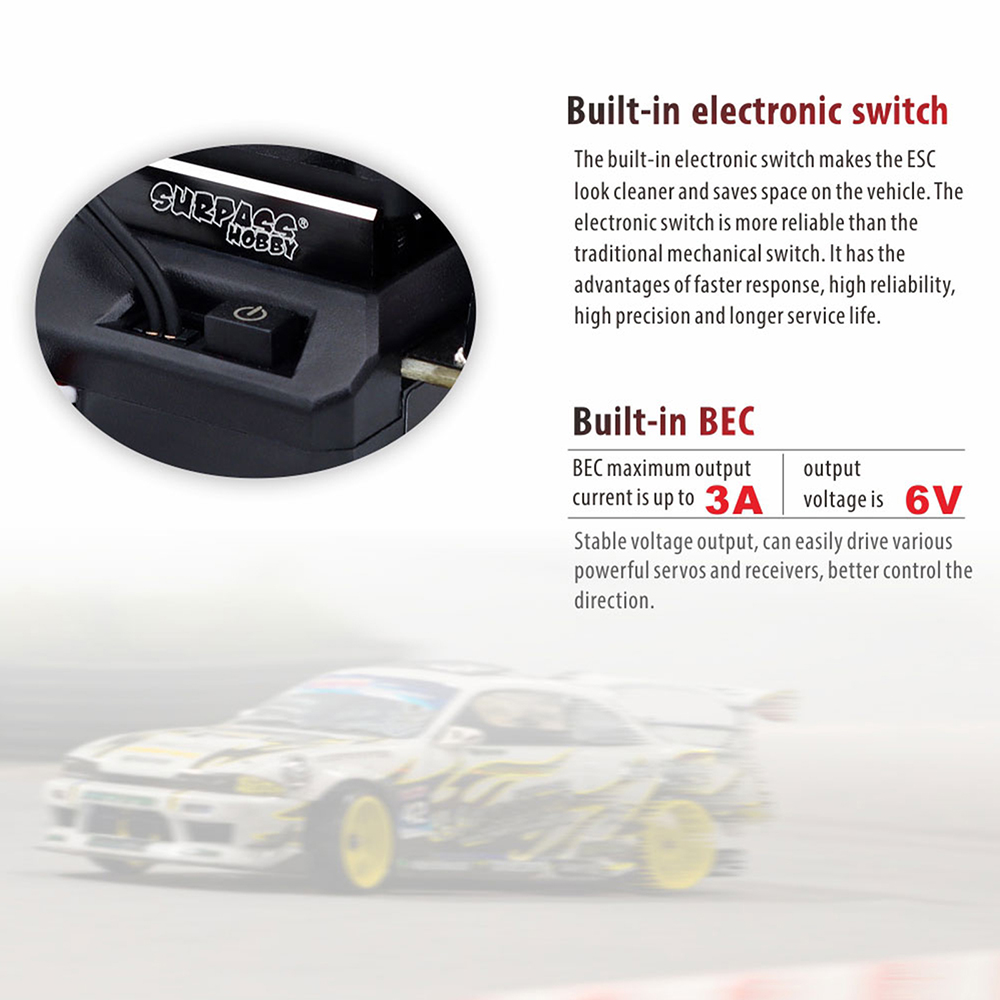

3. Built-in 3A/6V BEC.
4. Adjustable throttle and brake PWM frequency.
5.With High-performing Removable cooling fan(23000rpm/7.2V).
6. Suitable for 1/10",1/12 RC car.

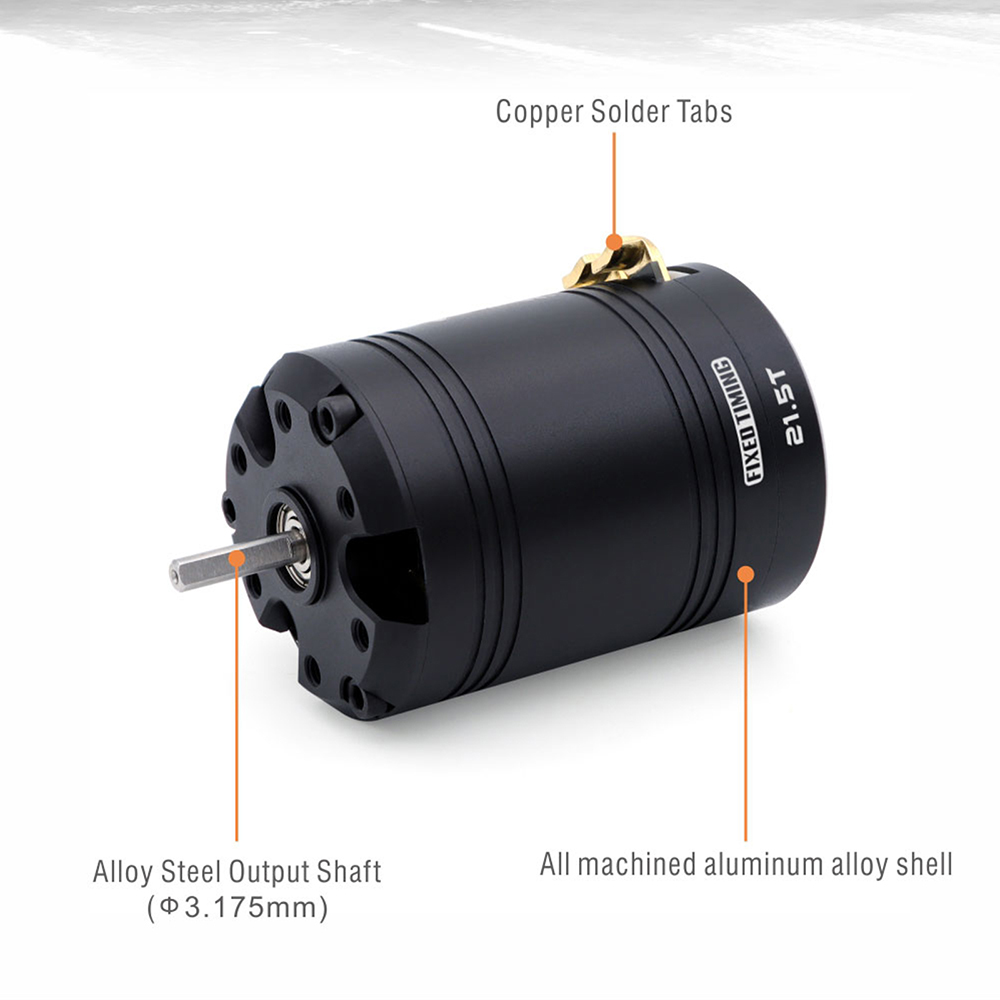

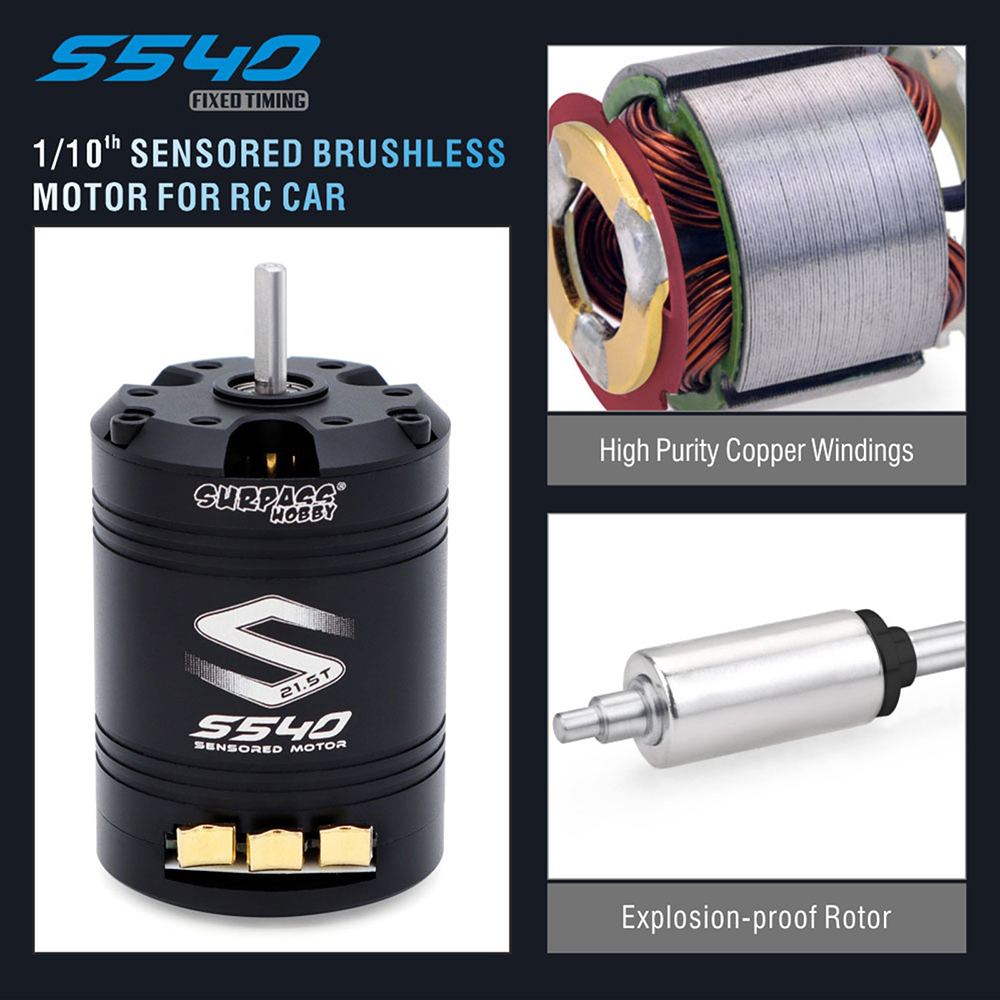

Motor Features:
1. All machined aluminum alloy shell.
2. High temperature resistant copper wire, stable performance.
3. High-precision bearing, smooth and wear-resistant.
4. 0.35mm silicon steel sheet high grade, low heatgeneration and high efficiency.
5. Suitable for 1/10" RC Car.
Description:
SURPASSHOBBY Brushless Motor ESC Combo High efficiency output, stable performance;Ready for welding, convenient and fast,Suitable For 1/10 RC Cars

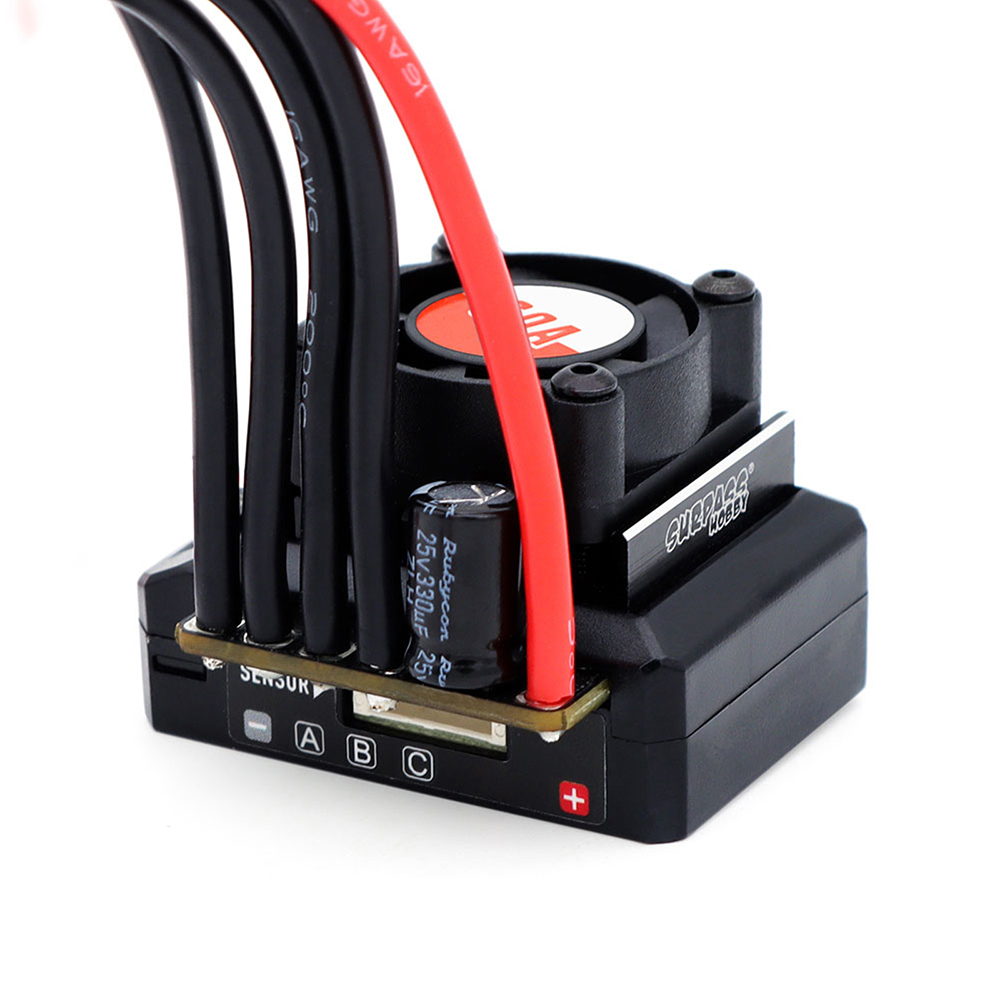

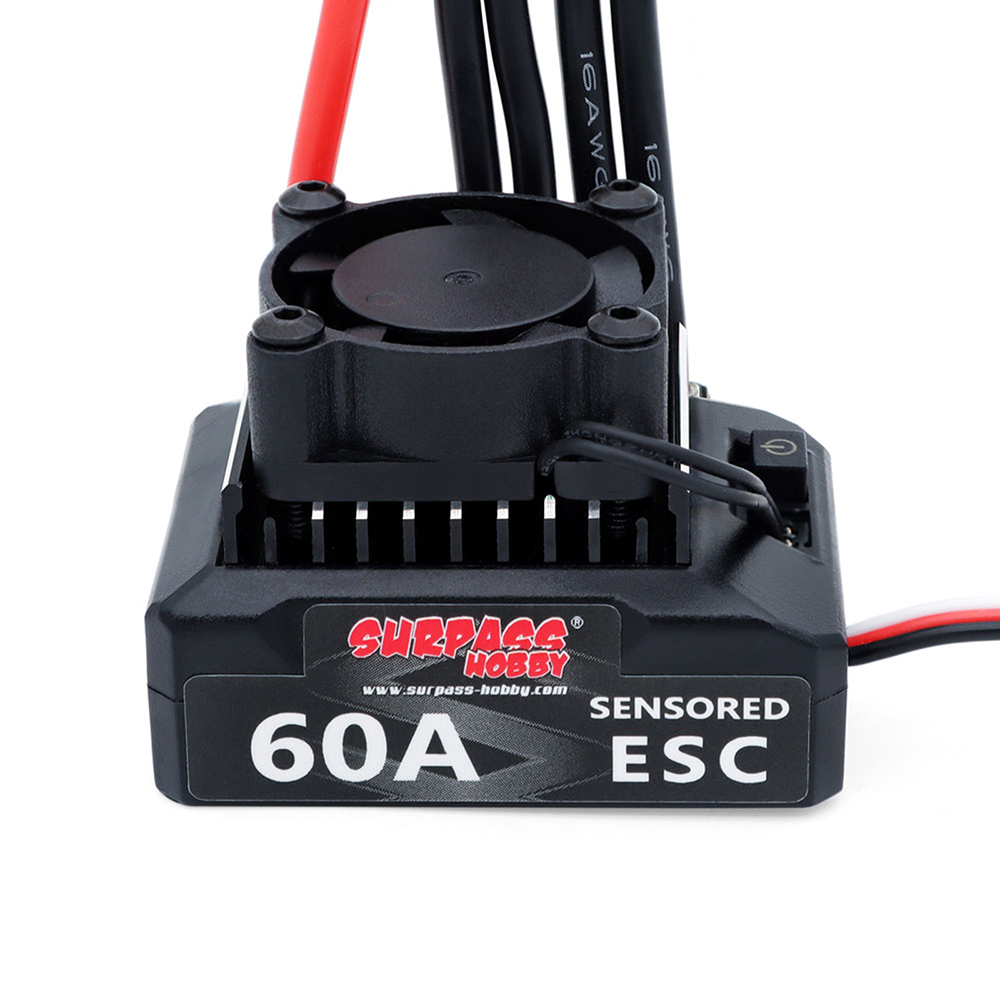

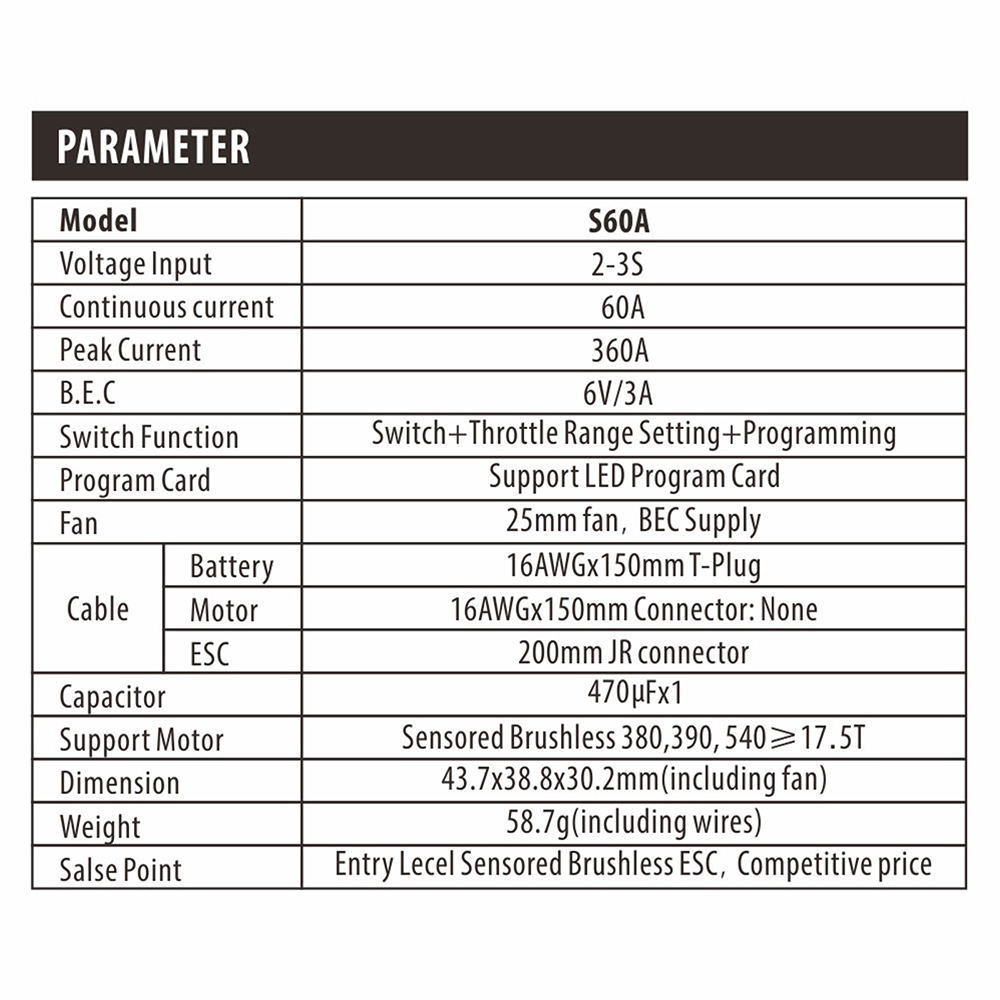

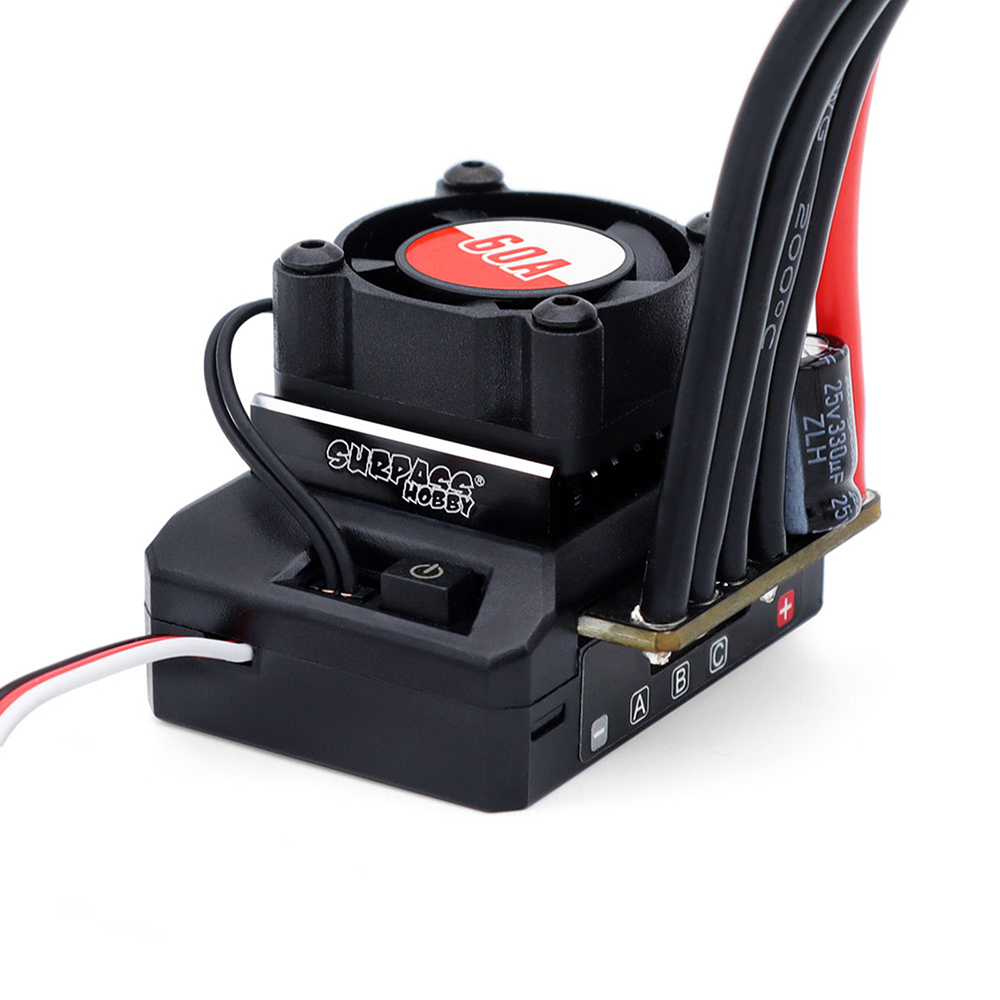

S60A ESC Specifications:
Model: S60A
Voltage input: 2-3S
Continuous current: 60A
Peak Current: 360A
B.E.C: 6V/3A
Switch Function: Switch+Throttle Range Setting+Programming
Fan: 25mm
Capacitor: 470μFx1
Cable: 16AWGx150mmT-Plug
Motor: Sensored Brushless 380,390,540>17.5T
Dimension: 43.7x38.8x30.2mm(including fan)

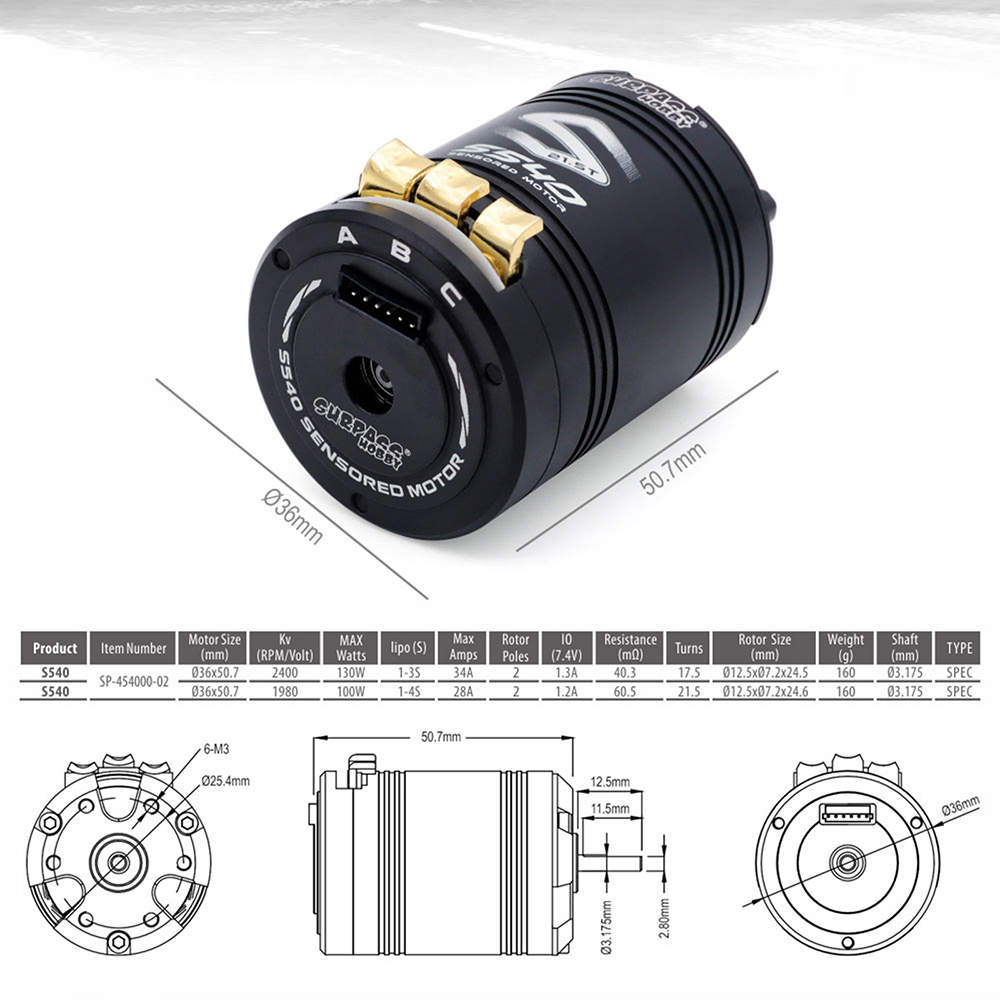

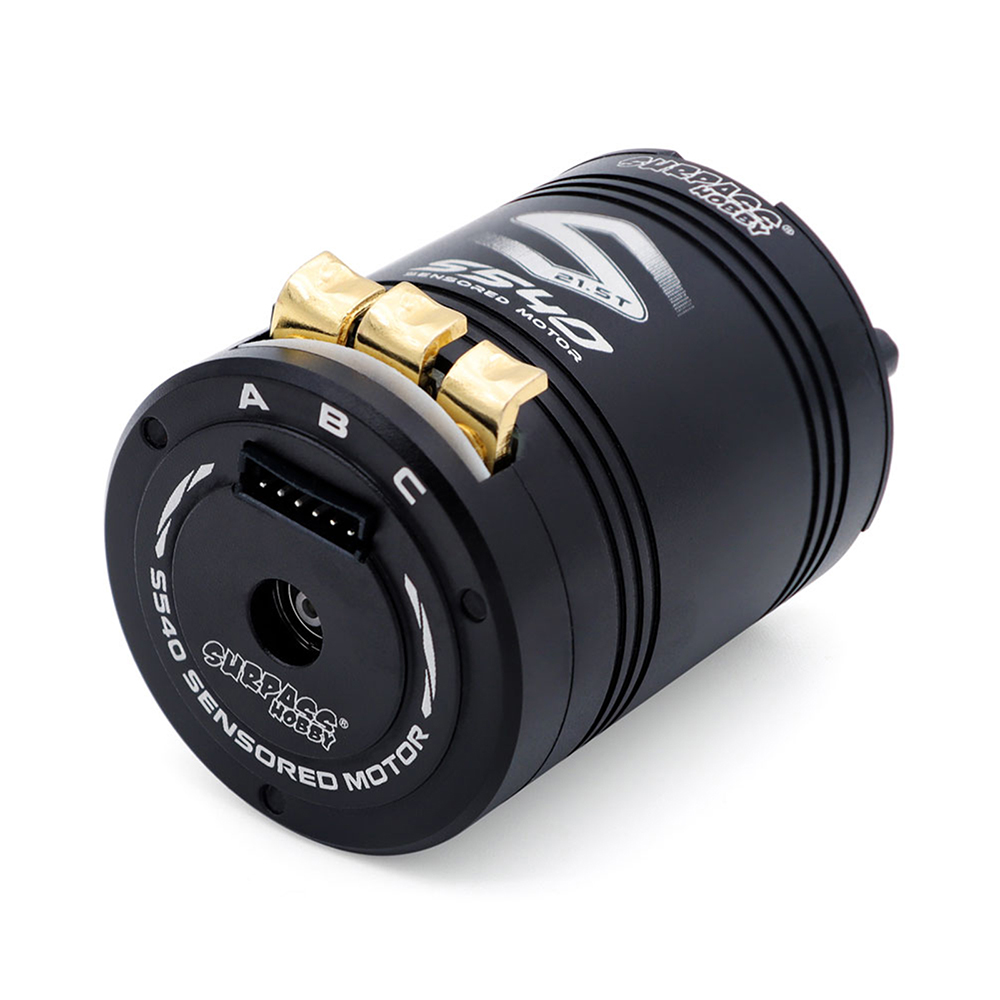

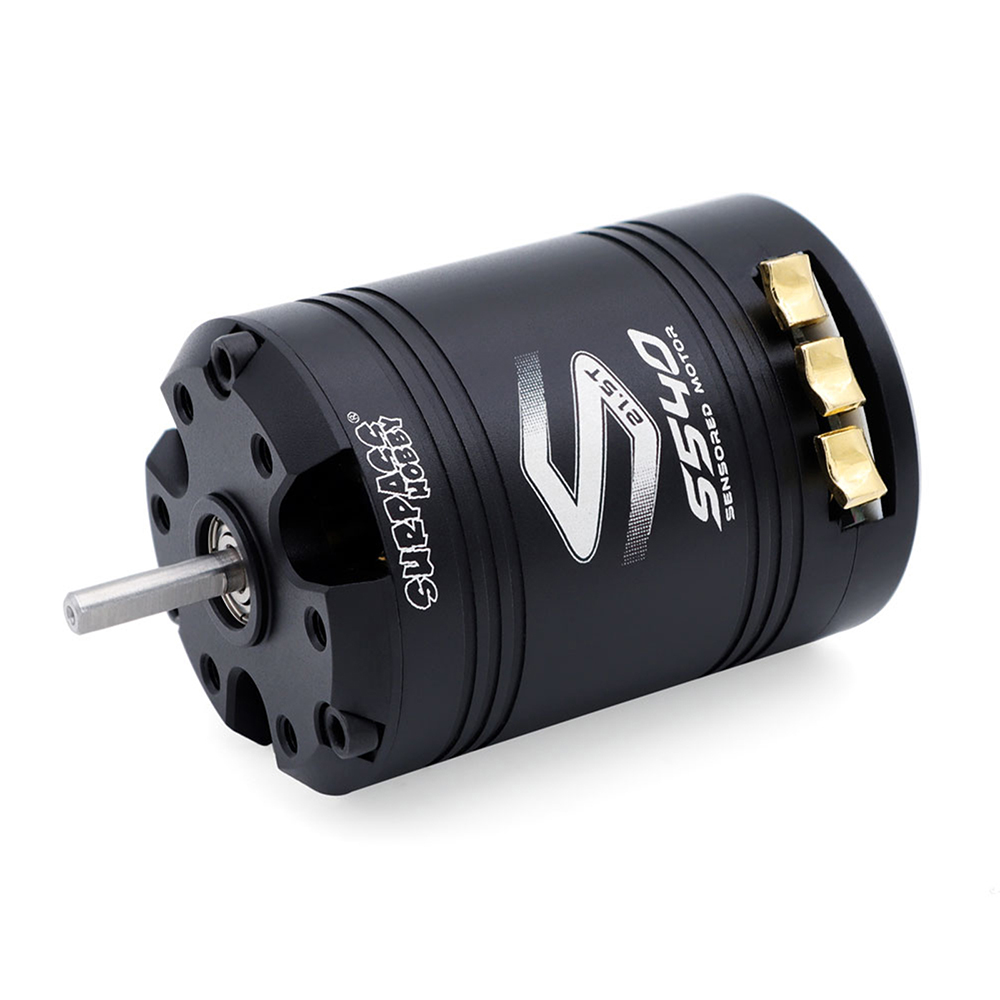

S540-2400KV Motor Specifications:
KV(RPM/Volt): 2400KV
MAX Watts: 130W
lipo (S): 1-3S
Max Amps: 34A
Rotor Poles: 2
Resistance: 40.3
TurnS: 17.5
Shaft(mm): 3.175MM

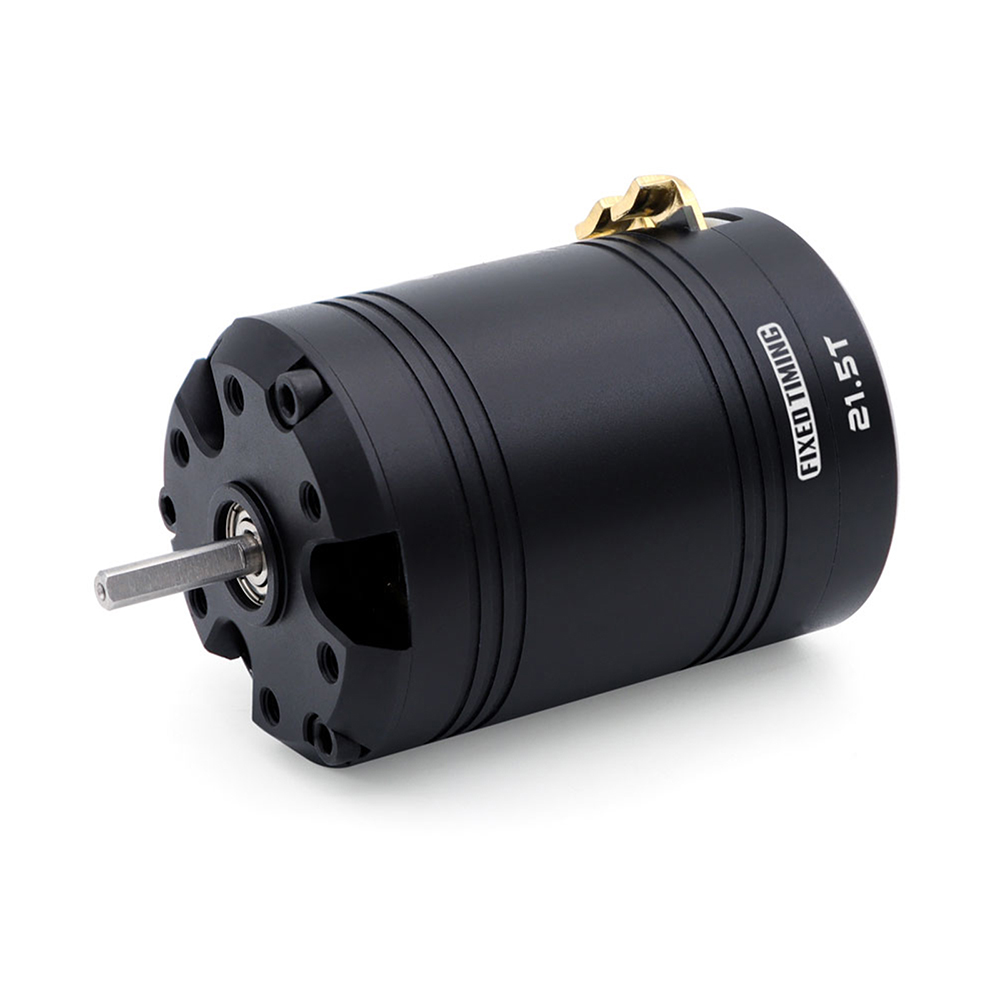

S540-1980KV Motor Specifications:
KV: 1980KV
MAX Watts: 100W
lipo (S): 1-4S
Max Amps: 28A
Rotor Poles: 2
Resistance: 60.5
TurnS: 21.5
Shaft(mm): 3.175MM
Package contents:
1* S540 Brushless Motor
1* S60A ESC
Only the above package content, other products are not included.
