Specifications:

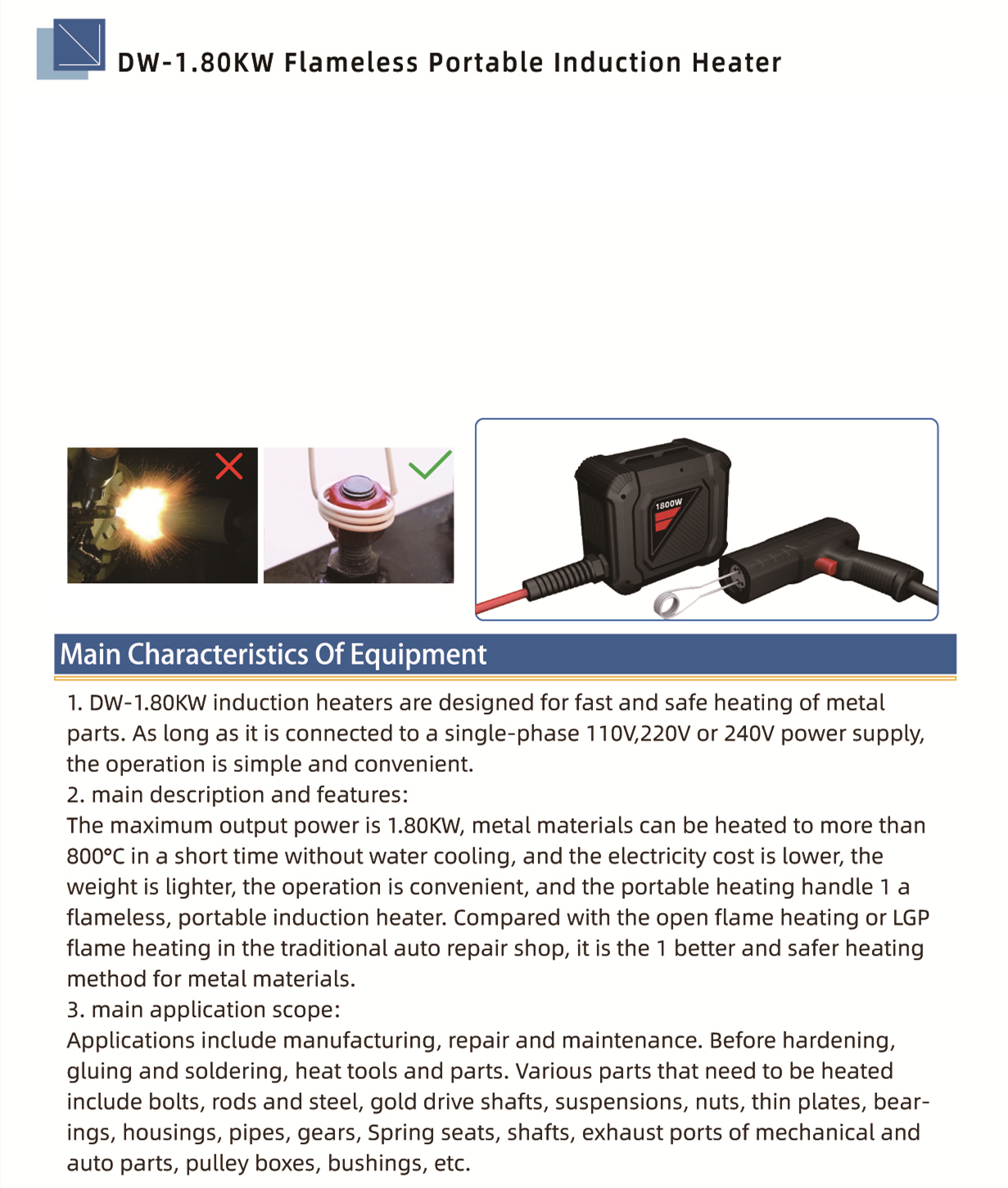

Main Characteristics Of Equipment

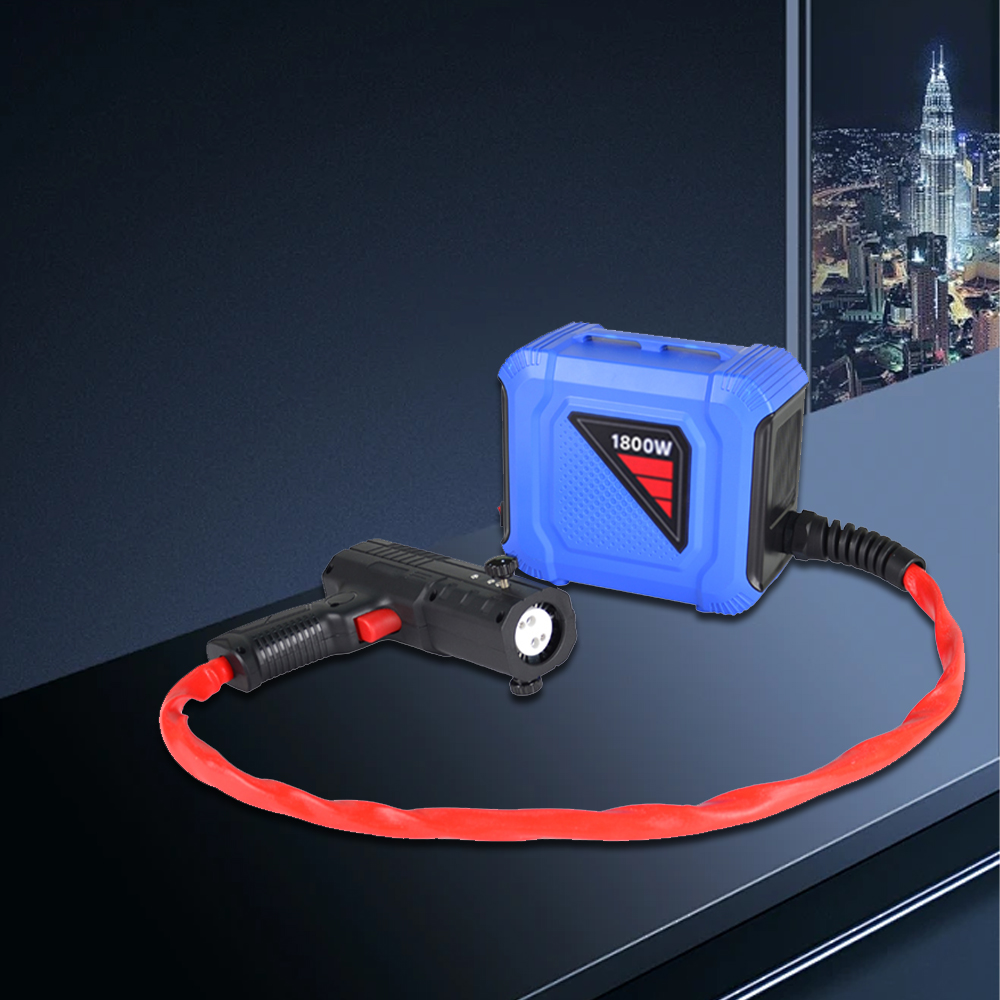

1. DW-1.80KW induction heaters are designed for fast and safe heating of metalparts. As long as it is connected to a single-phase 220V or 240V power supply, the operation is simple and convenient.
2. main description and features:The maximum output power is 1.80KW, metal materials can be heated to more than 800°C in a short time without water cooling, and the electricity cost is lower, the weight is lighter, the operation is convenient, and the portable heating handle 1 a flameless, portable induction heater. Compared with the open flame heating or LGP flame heating in the traditional auto repair shop, it is the 1 better and safer heating method for metal materials.
3. main application scope:Applications include manufacturing, repair and maintenance. Before hardening, gluing and soldering, heat tools and parts.
Various parts that need to be heated include bolts, rods and steel, gold drive shafts, suspensions, nuts, thin plates, bearings, housings, pipes, gears, Spring seats, shafts, exhaust ports of mechanical and auto parts, pulley boxes, bushings, etc.

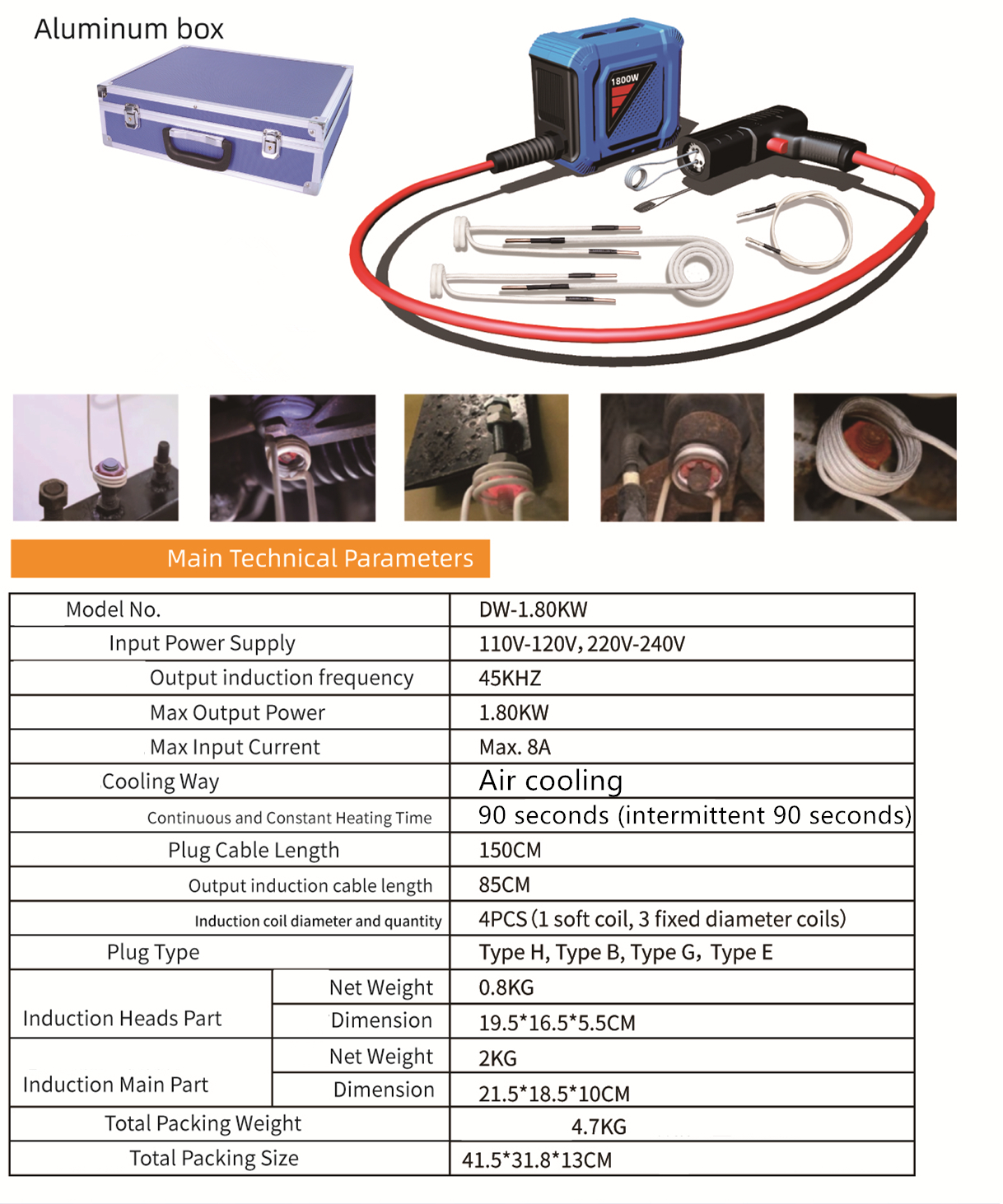

Model No.: DW-1.80KW
Input Power Supply: 220V-240V
Output induction frequency: 45KHZ
Max Output Power: 1.80KW
Max Input Current: Max. 8A
Cooling Way: Air cooling
Continuous and Constant Heating Time: 90 seconds (intermittent 90 seconds)
Plug Cable Length: 150CM
Output induction cable length: 85CM
Induction coil diameter and quantity: 4PCS (1 soft coil, 3 fixed diameter coils)
Plug Type: Type H, Type B, Type G, Type E
Induction Heads Part
Net Weight: 0.8KG
Dimension: 19.5*16.5*5.5CM
Induction Main Part
Net Weight: 2KG
Dimension: 21.5*18.5*10CM
Total Packing Weight: 4.7KG
Total Packing Size: 41.5*31.8*13CM

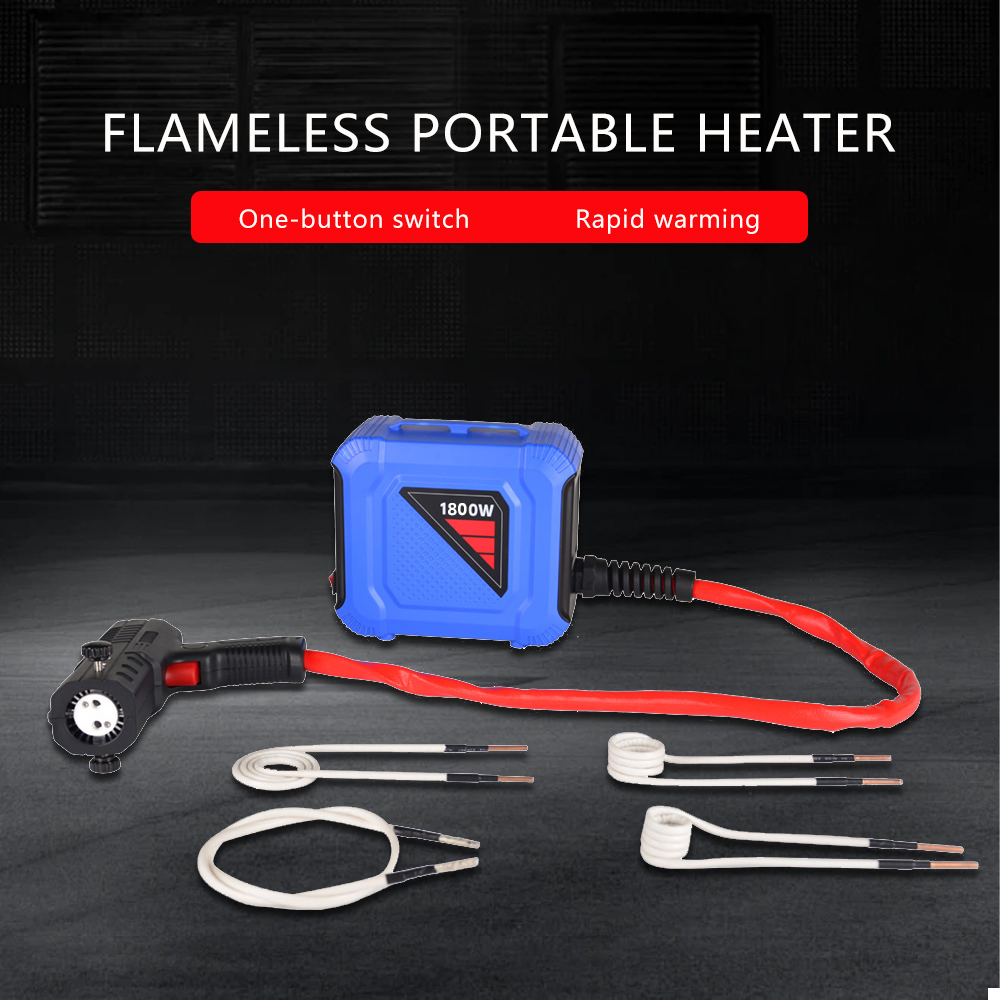

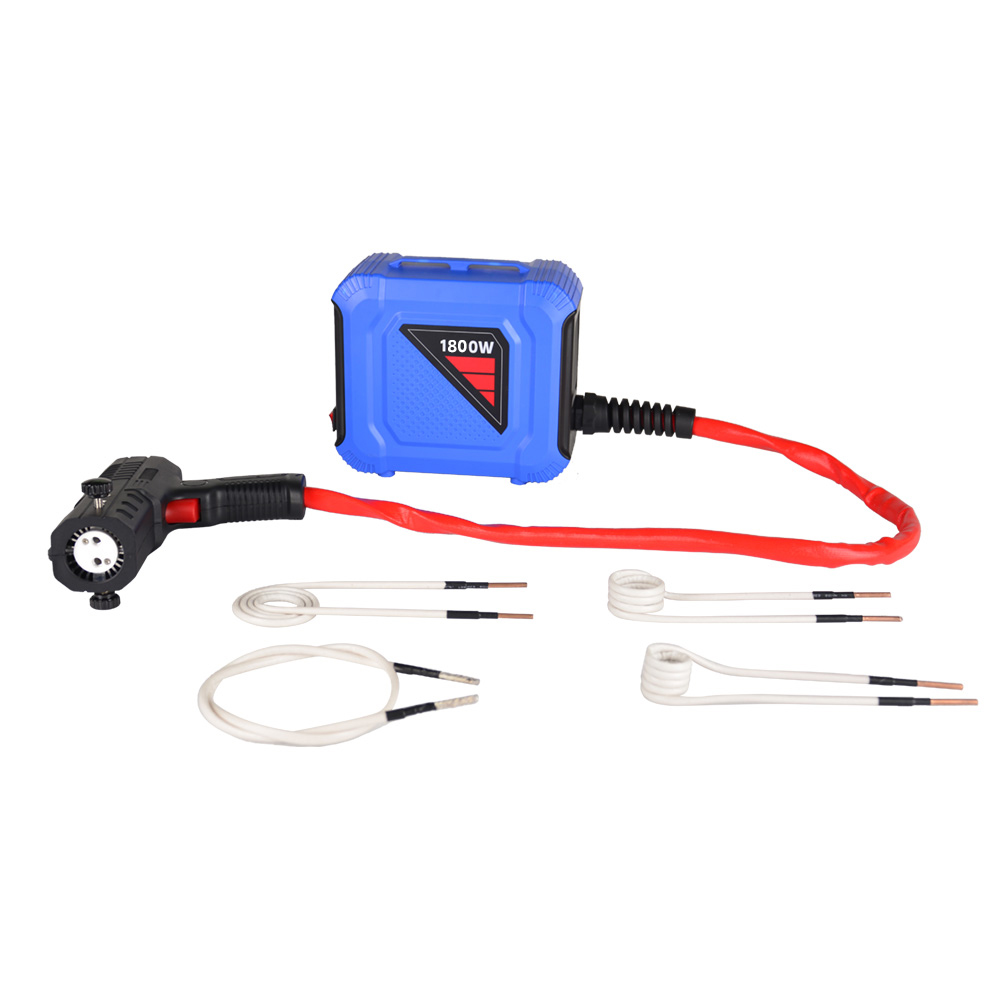

Package included:
1 x Magnetic Induction Heater( UK Plug)
3 x Coils
1 x spare lines(can change shape)
1 x English Manual

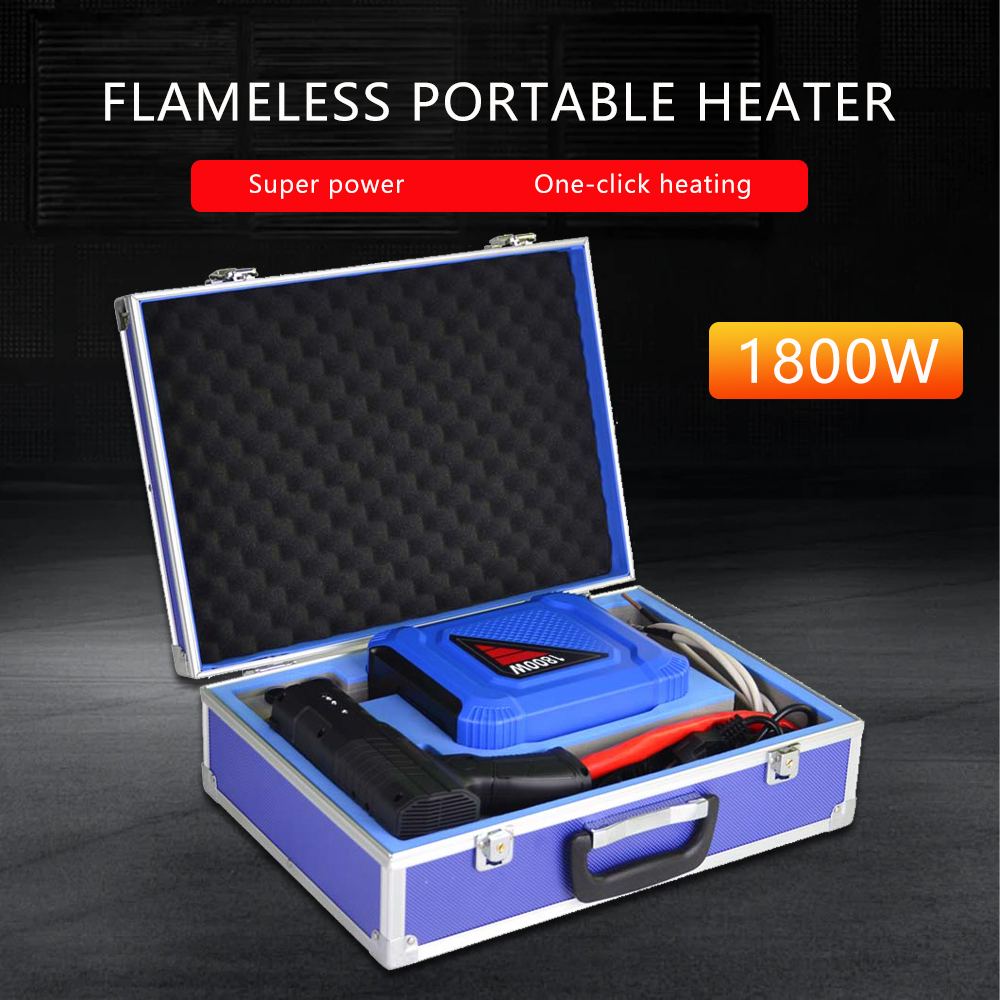

1 x Tool Box
