Hubbell Medium Support Grip Single Eye Lace-Up 1.00-1.24" Bronze/Tin 02205010

Responsive image

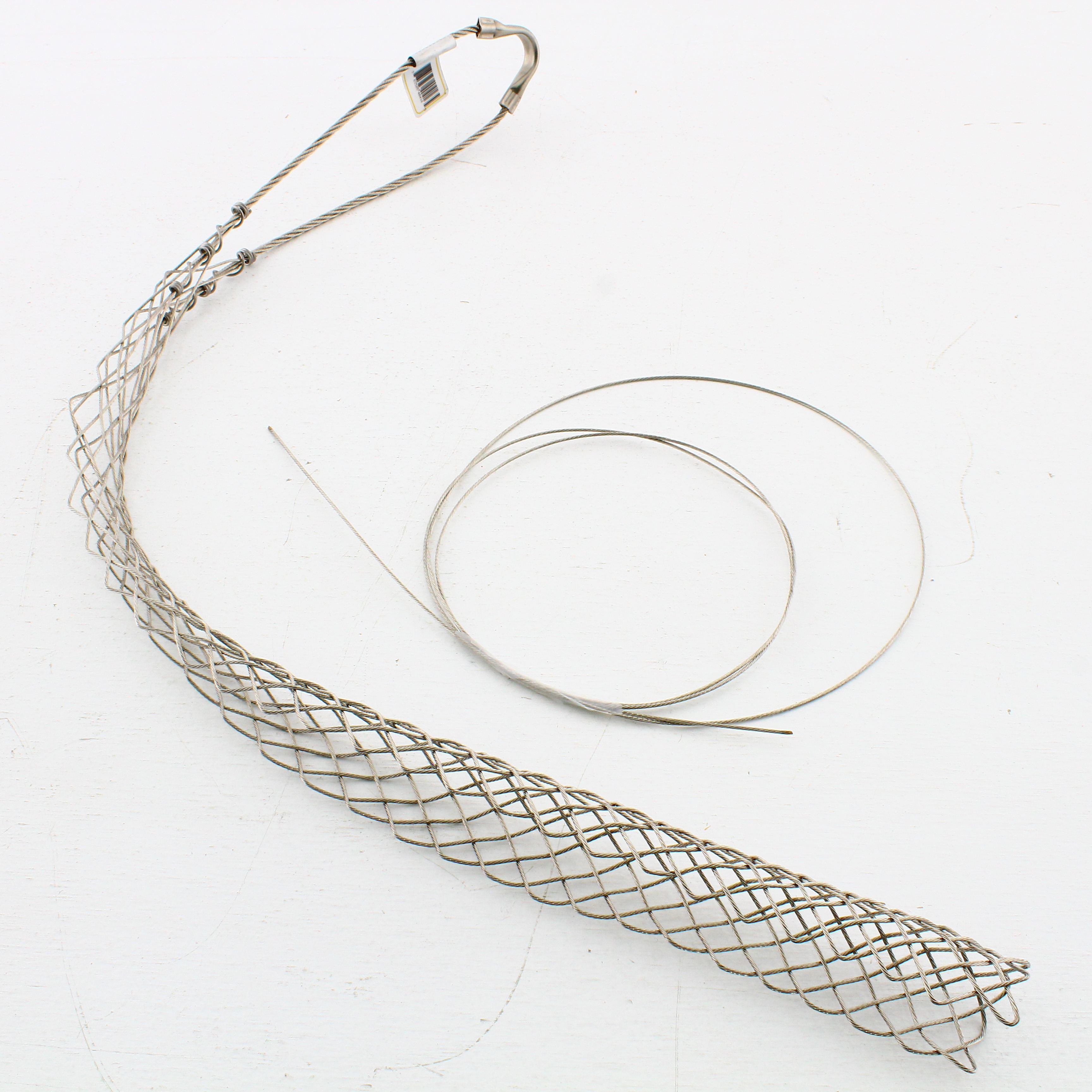

Hubbell 02205010 medium duty cable support grip. Used to hold the weight of electrical cable as it hangs in a vertical, sloping, or horizontal position. Electrical cable must be supported, or its dead weight can cause excessive strain or pullout at the connections resulting in power failure. Support grips also absorb additional strain from flexure, vibration, expansion, and contraction. Features include:

  • Cable diameter range: 1.00"-1.24"
  • Approximate breaking strength: 1610 lbs.
  • Working load: 161 lbs.
  • Eye length: 9"
  • Wire mesh length: 22"
  • Made of high grade, non-magnetic tin-coated bronze strand
  • Split grip to wrap around cable mid-span
  • For permanent support when cable end is not available.
  • Positive action mesh grip
  • Strand equalizer positions wires for equal loading throughout the entire grip length

This is New Old Stock and is returnable for any reason. (SKU # HUB02205010-EA; Weight: 0.4500 lbs.)
