LAUNCH X-431 PROG5 IMMO Progarmmer 3-in-1 IMMO Device for European Vehicles, Supports Key Matching, Key Progarmming, E-CU/TCU Cloning & Writing
Product Introduction:
LAUNCH G5 immobilizer progarmmer is a professional 3-in-1 IMMO device for European vehicles, integrating advanced key matching, universal remote key progarmming, and comprehensive E-CU/TCU (Engine and Transmission) cloning and writing functions. It serves as a significant upgrade over the previous G3 model, offering enhanced coverage for immobilizer progarmming and module cloning.
This integrated design not only significantly improves working efficiency but also reduces the number of devices that technicians need to carry and operate, thereby streamlining the entire workflow for greater simplicity and productivity. The device is particularly well-suited for tackling immobilizer system issues on European vehicle models.
Important Note:The product does not come with IMMO software and only supports basic IMMO functions for European vehicles. To work on other vehicle brands, please purchase an additional IMMO software license.
Immobilizer Cloning and Key Progarmming Software:
E-CU Cloning PC Tool: Performs reading, writing, and cloning of engine and transmission E-CUs via computer.
IMMO PROG (Tablet): Enables reading, writing, and cloning of engine and transmission E-CUs through the tablet device.
Key Progarmmer: Reads key data, generates new keys, and unlo-cks existing keys.
LAUNCH X-431 PROG5 HIGHLIGHTS:
1.Supports Engine and Gearbox E-CU cloning for 12,000+ vehicle models.
2.Supports 3,000+ chips, including encrypted RH850/V850 and BMS reading and writing.
3.Built-in K-ey Progarmming function supporting K-ey Reading and Generation NEW
4.Supports ID48/96 Key Chip Cloning NEW
5.Supports more Engine & Transmission E-CU Cloning NEW
6.Expanded Range of Chip Read/Write NEW
7.Use with PC Software for E-CU Cloning and Data Verification NEW
8.Full for V-W/for AUDI Anti-theft System Support
9.Comprehensive for BMW Anti-theft System Support
10.for Mercedes-Benz FBS3 Clearing, Replacement, and Progarmming, as well as FBS4 Cloning
11.for Porsche k-ey matching, EC-U/Gearbox cloning, and battery repair
Notice:
1. The LAUNCH X431 G5 can connect directly to the computer; a PC Adapter is no longer needed.
2. The X431 G5 can be used with the X431 PAD series (X431 PAD V ELITE, PAD VII ELITE, PAD IX), as well as comprehensive diagnostic tools such as PRO3 V+ ELITE/ PRO3S+ ELITE.
3. The product does not come with IMMO software and only supports basic IMMO functions for European vehicles. To work on other vehicle brands, please purchase an additional IMMO software license.
4. One Year Free Update.
European Vehicle Immobilizer Functions: Supports key matching, immobilizer module erasing/rewriting, and immobilizer module replacement.
In addition to its core functions, the G5 Immobilizer Progarmmer continuously receives firmware and software updates to introduce new features, keeping pace with the rapid evolution of automotive technology. Recent additions include:
For V-o-lks-wagen: Instrument cluster V850 support
For V-o-lks-wagen: Instrument cluster RH850 support
For BMW: Engine ISN code reading
For Mercedes-Benz: Transmission OBD cloning and gear selector module cloning
ID46 and ID48 transponder chip cloning
Fully supports for Vo-lksw-a-gen/for Audi anti-theft systems:
Supports platforms including 3rd/4th/5th generation and M-Q-B;
Supports key addition, key loss recovery, and anti-theft component replacement functions; Supports engine replacement and matching functions, and supports cloning of various engine/transmission types;
Supports M-Q-B ELV, for Audi 5th generation BCM2 encrypted data reading and parsing, and cloning functions for SIMOS18 series engines
Fully supports for BMW anti-theft systems:
Supports CAS1/2/3/3+ and CAS4/4+ cloning functions;
CAS4/4+ and FEM/BDC replacement; for B-MW G chassis key matching;
FRM module repair; transmission data erasure and engine replacement.
Supports for Mercedes-Benz vehicles:
Supports for Mercedes-Benz FBS3, enabling data erasure, replacement, and cloning of various types of steering lo-c-ks, ignition coils, engines, transmissions, and shift modules;
Supports cloning functions for various FBS4 engines and transmissions, including DSM/FDCT/VGS4NAG2/VGSNAG3, allowing for data erasure and personalization without opening the casing.
Supports for Porsche vehicles:
Supports key matching, front and rear E-C-U cloning, and various types of engine and transmission cloning, as well as battery repair for Porsche vehicles from 2011-2017.
LAUNCH X431 G5 Product Specifications:

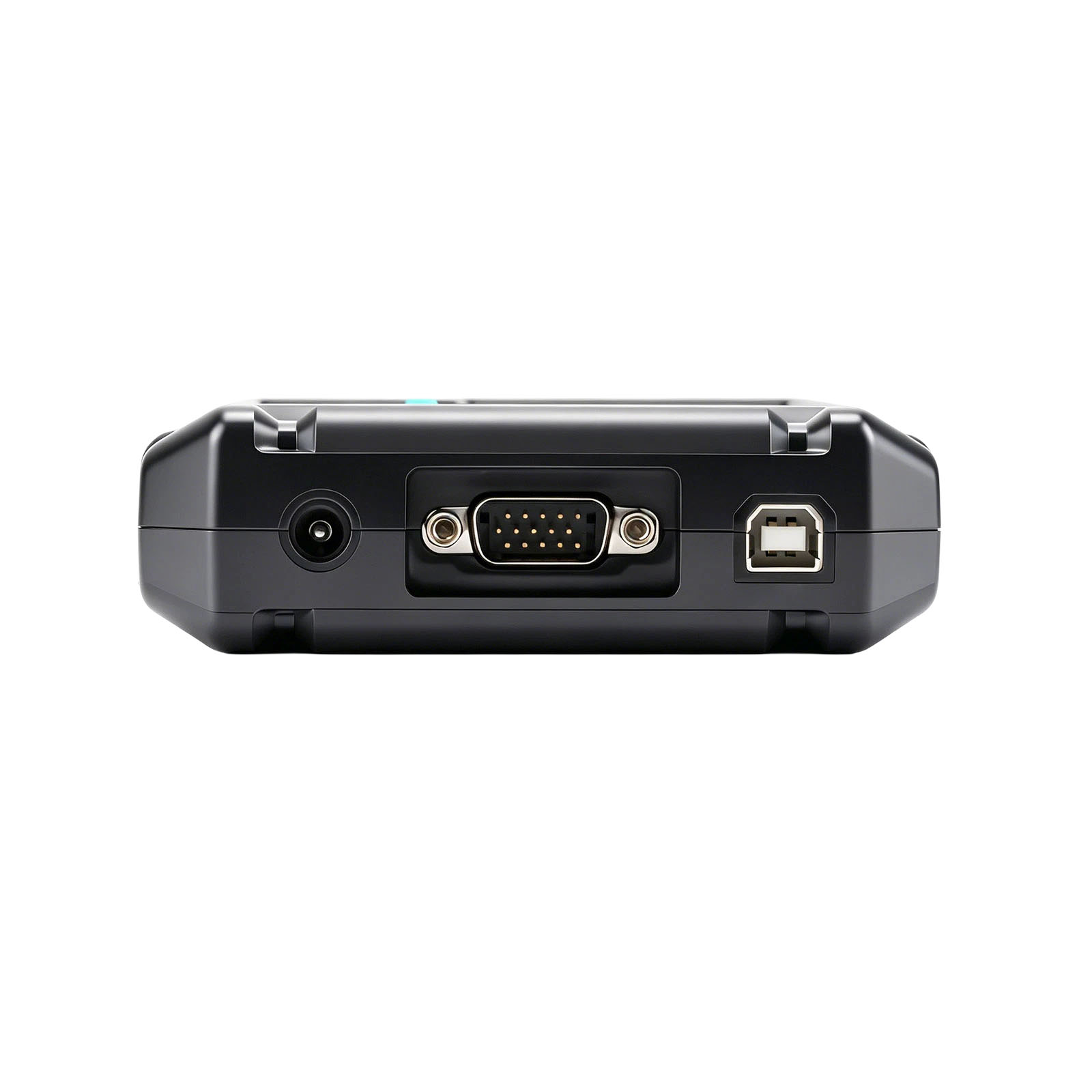

Interface: DB26/DB15
Input Voltage: DC14V
Input Current: 500MA
Operating Temperature: 0 – 50 degrees Celsius
Storage Temperature: -20 – 70 degrees Celsius

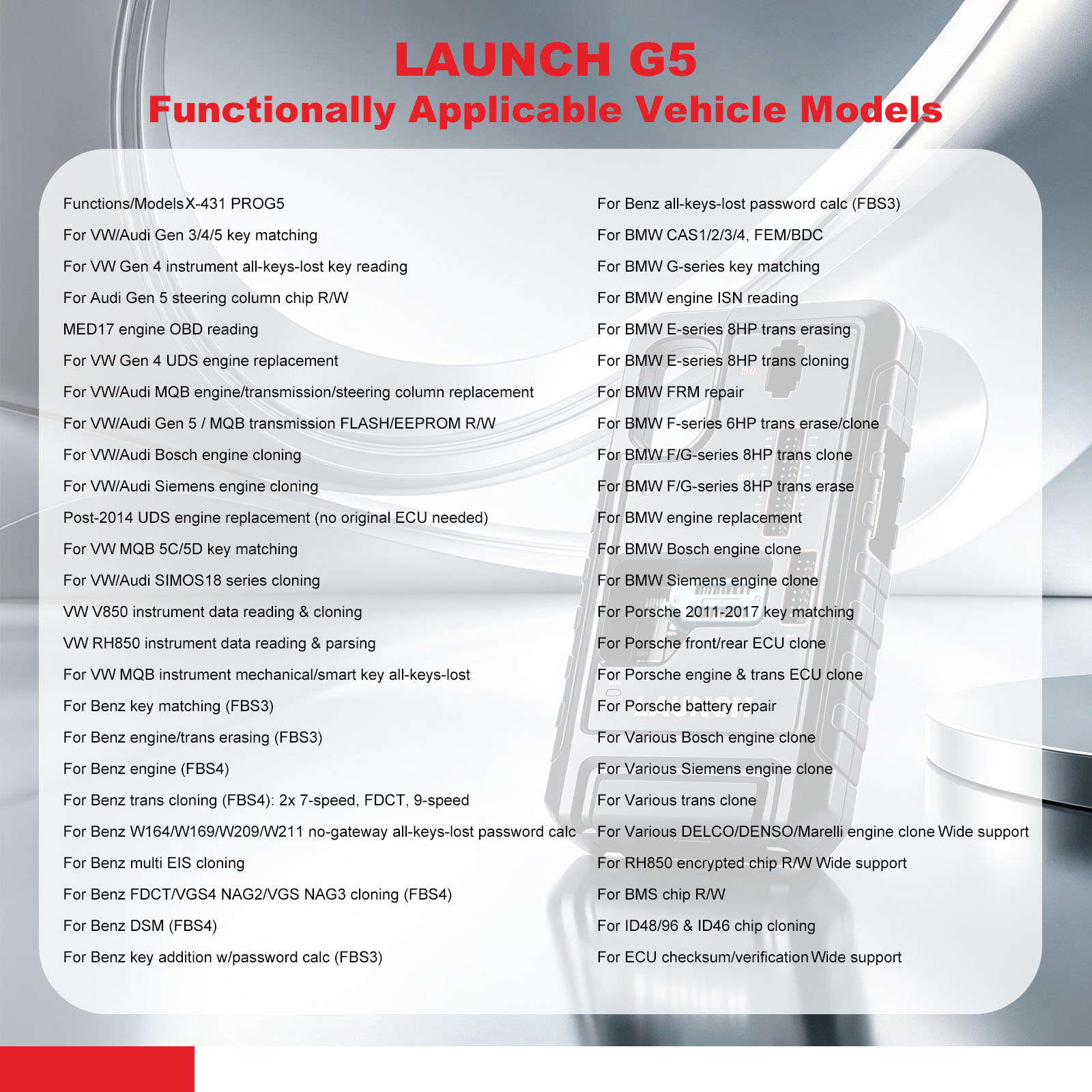

Product Functions:Comparison Between X-431 PROG5 and X-431 PROG3
| Functions/Models | X-431 PROG5 | X-431 PROG3 |
| For V.W/Audi Gen 3/4/5 key matching | Yes | Yes |
| For V.W Gen 4 instrument all-keys-lost key reading | Yes | Yes |
| For Audi Gen 5 steering column chip R/W | Yes | Yes |
| MED17 engine OBD reading | Yes | Yes |
| For V.W Gen 4 UDS engine replacement | Yes | Yes |
| For V.W/Audi MQB engine/transmission/steering column replacement | Yes | Yes |
| For V.W/Audi Gen 5 / MQB transmission FLASH/EEPROM R/W | Yes | Yes |
| For V.W/Audi Bo-sch engine cloning | Yes | Yes |
| For V.W/Audi S-iemens engine cloning | Yes | Yes |
| For Post-2014 UDS engine replacement (no original E-CU needed) | Yes | Yes |
| For V.W MQB 5C/5D key matching | Yes | No |
| For V.W/Audi SIMOS18 series cloning | Yes | No |
| For V.W V850 instrument data reading & cloning | Yes | Limited support |
| For V.W RH850 instrument data reading & parsing | Yes | Limited support |
| For V.W MQB instrument mechanical/smart key all-keys-lost (read/write/parse engine & trans data) | Yes | Limited support |
| For Benz key matching (FBS3) | Yes | Yes |
| For Benz engine/trans erasing (FBS3) | Yes | Yes |
| For Benz engine (FBS4) | Yes | Yes |
| For Benz trans cloning (FBS4): 2x 7-speed, FDCT, 9-speed | Yes | Yes |
| For Benz W164/W169/W209/W211 no-gateway all-keys-lost password calc (FBS3) | Yes | No |
| For Benz multi EIS cloning | Yes | Limited support |
| For Benz FDCT/VGS4 NAG2/VGS NAG3 cloning (FBS4) | Yes | No |
| For Benz DSM (FBS4) | Yes | No |
| For Benz key addition w/password calc (FBS3) | Yes | Yes |
| For Benz all-keys-lost password calc (FBS3) | Yes | Yes |
| For BMW CAS1/2/3/4, FEM/BDC | Yes | Yes |
| For BMW G-series key matching | Yes | Yes |
| For BMW engine ISN reading | Yes | Limited support |
| For BMW E-series 8HP trans erasing | Yes | Yes |
| For BMW E-series 8HP trans cloning | Yes | Yes |
| For BMW FRM repair | Yes | Yes |
| For BMW F-series 6HP trans erase/clone | Yes | Yes |
| For BMW F/G-series 8HP trans clone | Yes | Yes |
| For BMW F/G-series 8HP trans erase | Yes | Yes |
| For BMW engine replacement | Yes | Yes |
| For BMW Bo-sch engine clone | Yes | Yes |
| For BMW S-iemens engine clone | Yes | Yes |
| For Porsche 2011-2017 key matching | Yes | Yes |
| For Porsche front/rear E-CU clone | Yes | Yes |
| For Porsche engine & trans E-CU clone | Yes | Yes |
| For Porsche battery repair | Yes | Yes |
| For Various Bo-sch engine clone | Yes | Yes |
| For Various S-iemens engine clone | Yes | Yes |
| For Various trans clone | Yes | Yes |
| For Various D-ELCO/D-ENSO/M-arelli engine clone | Wide support | Yes |
| For RH850 encrypted chip R/W | Wide support | Yes |
| For BMS chip R/W | Yes | No |
| For ID48/96 & ID46 chip cloning | Yes | No |
| For E-CU checksum/verification | Wide support | Yes |
