Features:

100% brand new and high quality;
Each page c ontains a path limit switch. When the telescopic rod moves up or down, the power supply is automatically cut off, the motor does not run idle. Turn off the power supply, it can be stopped at any position with self-locking function;

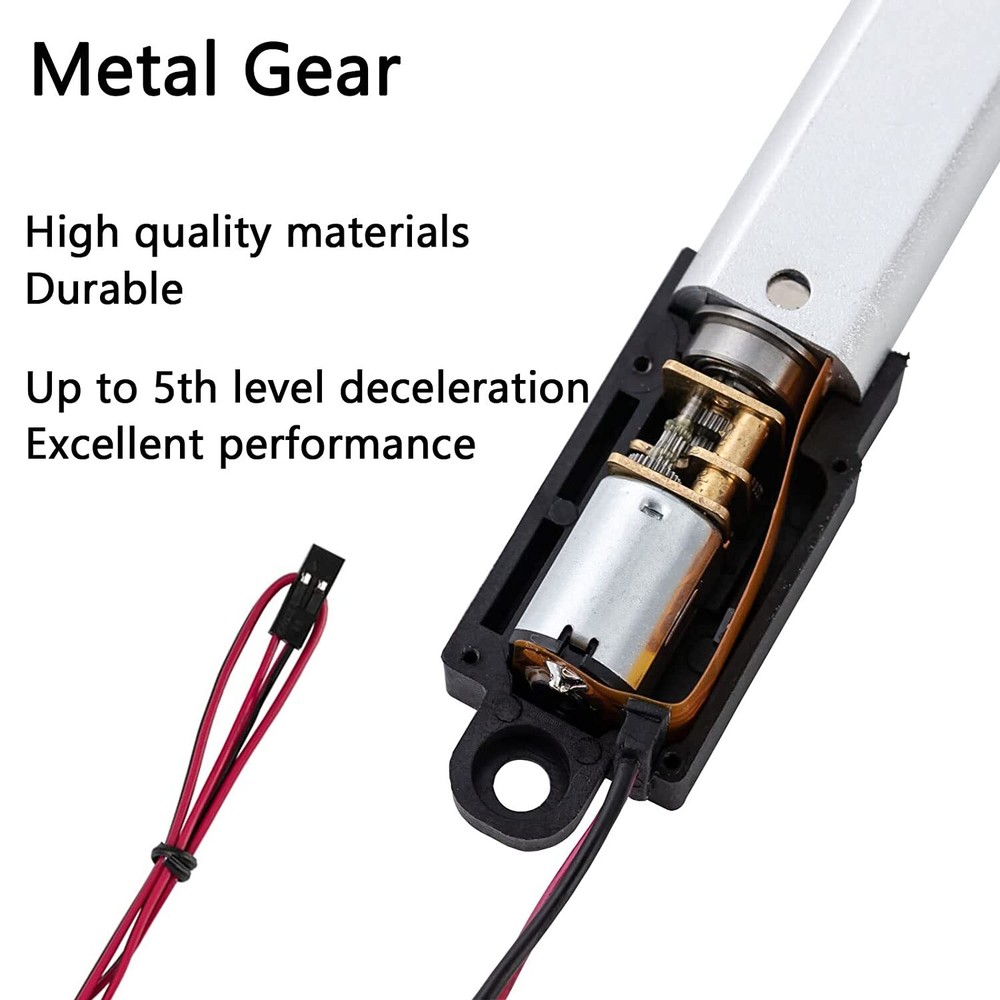

Driven by a DC motor with screw drive. The telescopic rod can only be retracted without rotation;
The engine has plus and minus. For example, if the positive electrode is stretched and the negative electrode shrinks, the telescopic direction of the rod can be changed by changing it;
ambient temperature -10 °C to +50 °C;
Standard protection class: IP54;
Low noise design, noise level below 50 dB;
Product features: drive other objects for pushing, pulling, lifting and falling;
Product applications: TV lift tables, massage beds, electric beds, medical chairs, electrical appliances, micro appliances, electric sofas, camera f rames, cameras and more;

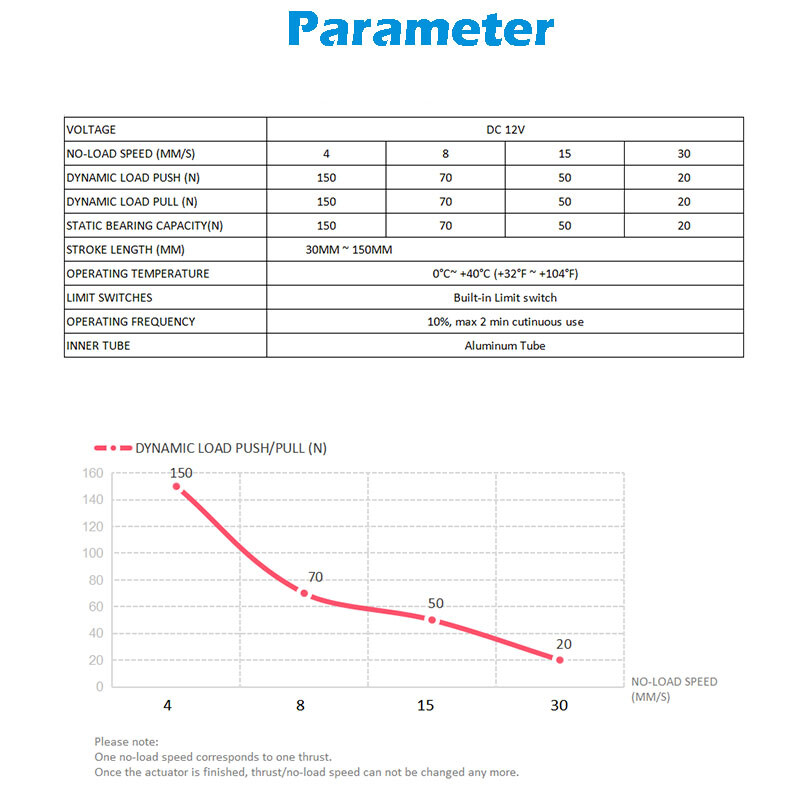

Specifica tions :

Input: DC12V, 0.25A, 3W
stroke length: 1.18"/30 mm, 2"/50 mm, 4"/100 mm 6"/150mm (optional);
Low noise: The low noise design, noise level below 50 dB;
Operating frequency: 10%;
Material: aluminium alloy housing;
Protection class: IP54, protection against dust, water and corrosion, suitable for outdoor use. Internal limit switch, automatic shutdown when reached when engine idle.

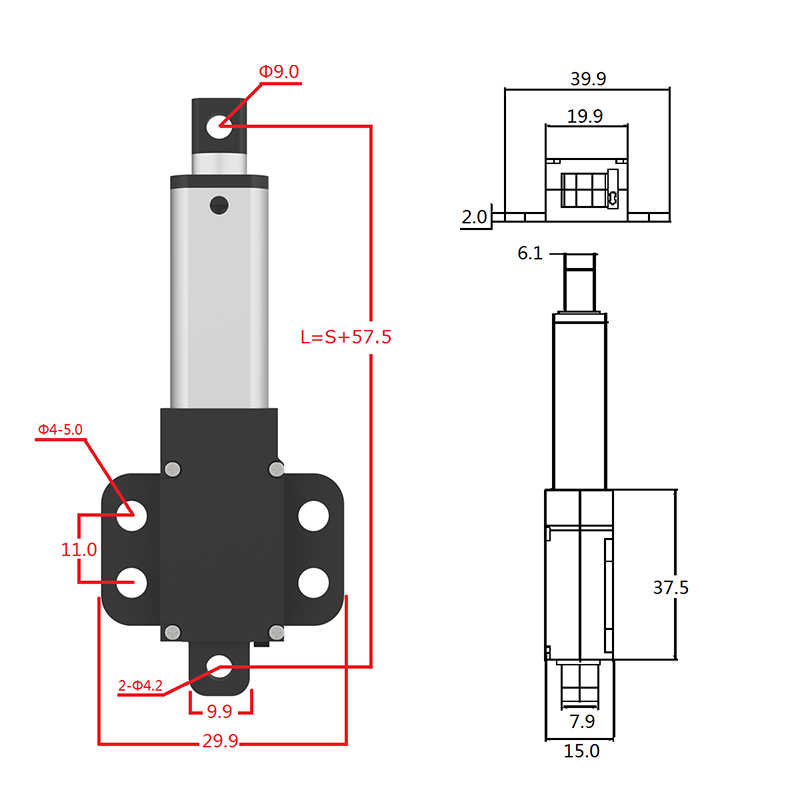

Drawing About Stroke Length (mm)

L(mm) means installation size/initial length, S(mm) means stroke length.
L = S + 57.5mm
For example, when s (stroke length) = 30mm, then L (installation size) will equal 104.5mm.
The length after telescopic rod comes = L + S = 134.5mm

Package:

1 pc Linearmotor

1 set Brackets
