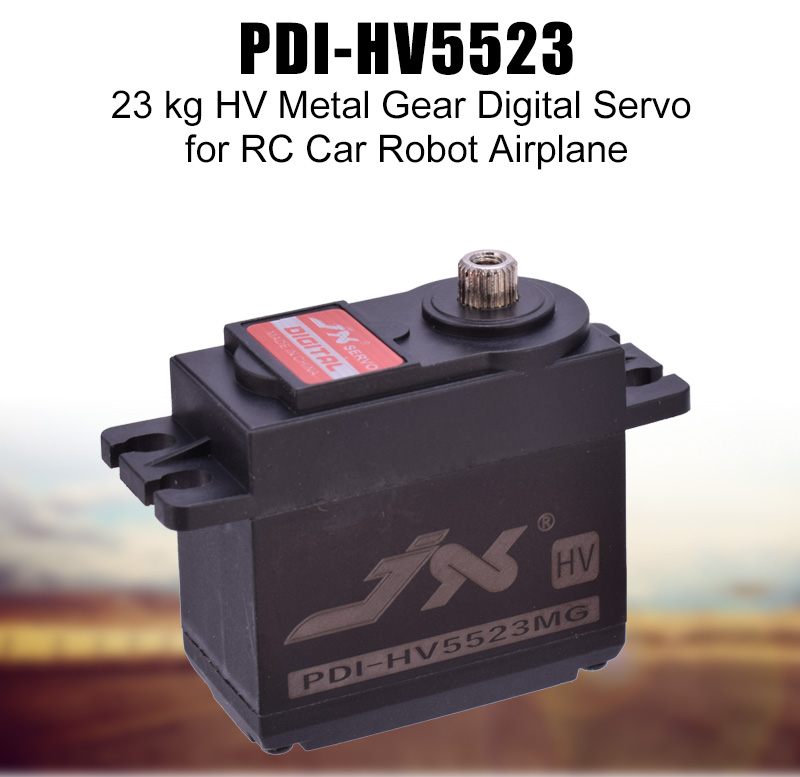

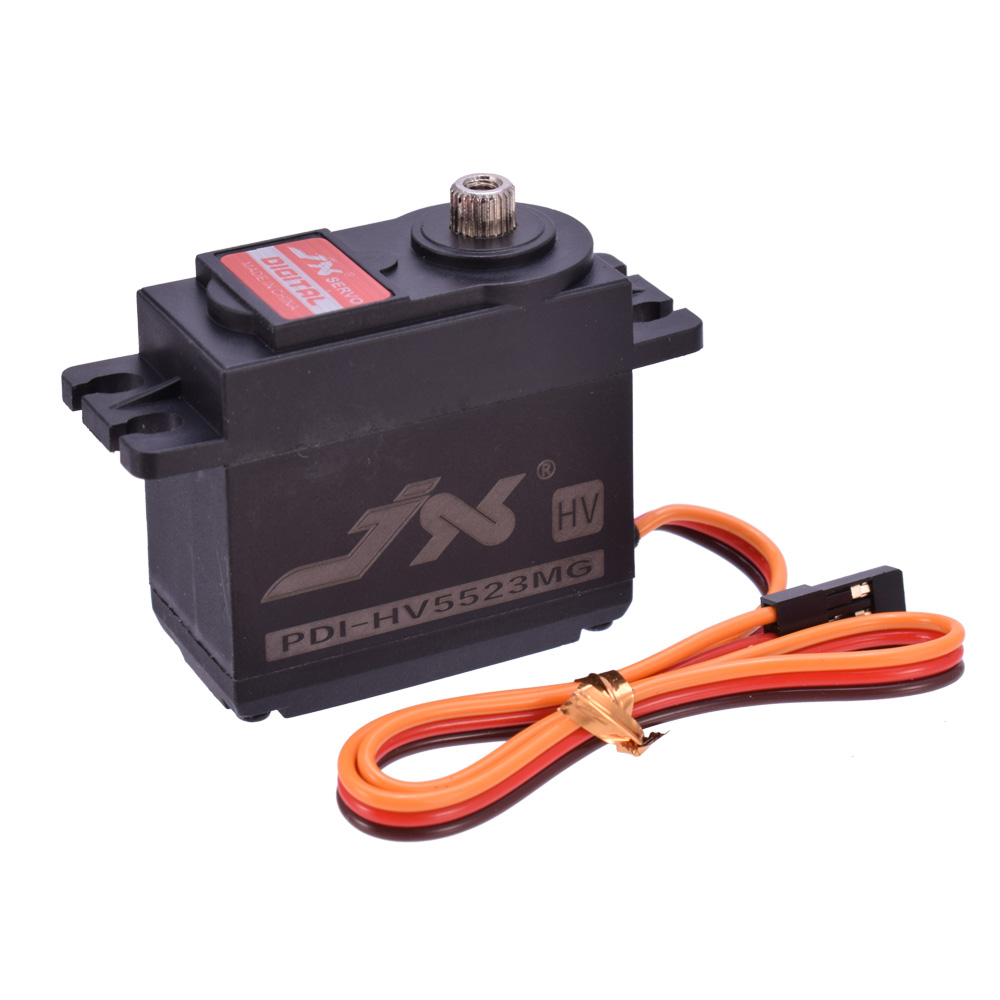

JX PDI-HV5523 HV High Voltage 23kg Metal Gear Digital Core Servo with High Torque for RC Car Robot Airplane Drone
Features:
1.Digital high voltage servo better than analog servo.2.Sensitive response and high torque up to 23kg.cm (8.4V).
3.High-precision steel gears with hard anodizing and CNC aluminium middle hull support a long service life.
4.Suitable for RC Car Robot Airplane.
5.Maximum angle range up to 300°.
Descriptions:
1.This is digital high voltage servo that is suitable for RC car robot airplane
2.With high quality ball bearing, large torque and metal gears, it is a good choice for RC fans.
Brand: JX
Model: PDI-HV5523
Motor: High quality core motor
Control system: PWM control
Dead band: 2μs 1520μs/330hz
Operating Speed (6.0V): 0.18 sec/60°
Operating Speed (8.4V): 0.16 sec/60°
Stall Torque (6.0V): 19.2kg.cm
Stall Torque (8.4V): 23 kg.cm
Connector Wire Length: JR 265 mm
Bearing: 2BB
Application: RC Car Robot Airplane
Package information:
Package size: 130*100*80mm/5.12 *3.94 *3.15 in
Package weight: 300g /10.58 oz
Brand gift box package
Note:
There may be some deviation due to manual measurement.
