Todas las modificaciones deben ser instaladas por mecánicos autorizados y de conformidad con las normativas locales de modificación.
application
specification
exhaust inlet (turbo manifold) flange: t3 flange
exhaust outlet flange: 6-bolt flange
turbine
turbine inducer diameter: 64.4mm
turbine exducer diameter: 47.9mm
turbine trim: 55.3
turbine a/r: 0.63
compressor
compressor inducer diameter: 52.7 mm
compressor exducer diameter: 76mm
compressor trim: 48.1
compressor a/r: 0.5
internal wastegate: yes
bearing: wet float
cooling type: water + oil
warranty: 2 years for any manufacture defects
oil inlet: m12*1.25 side hole: m8*1.25
oil return: 18/ side hole: m8*1.25 / center-center: 50.8
water hole: m18*1.5
horse power: boost horse power up to 500bhp

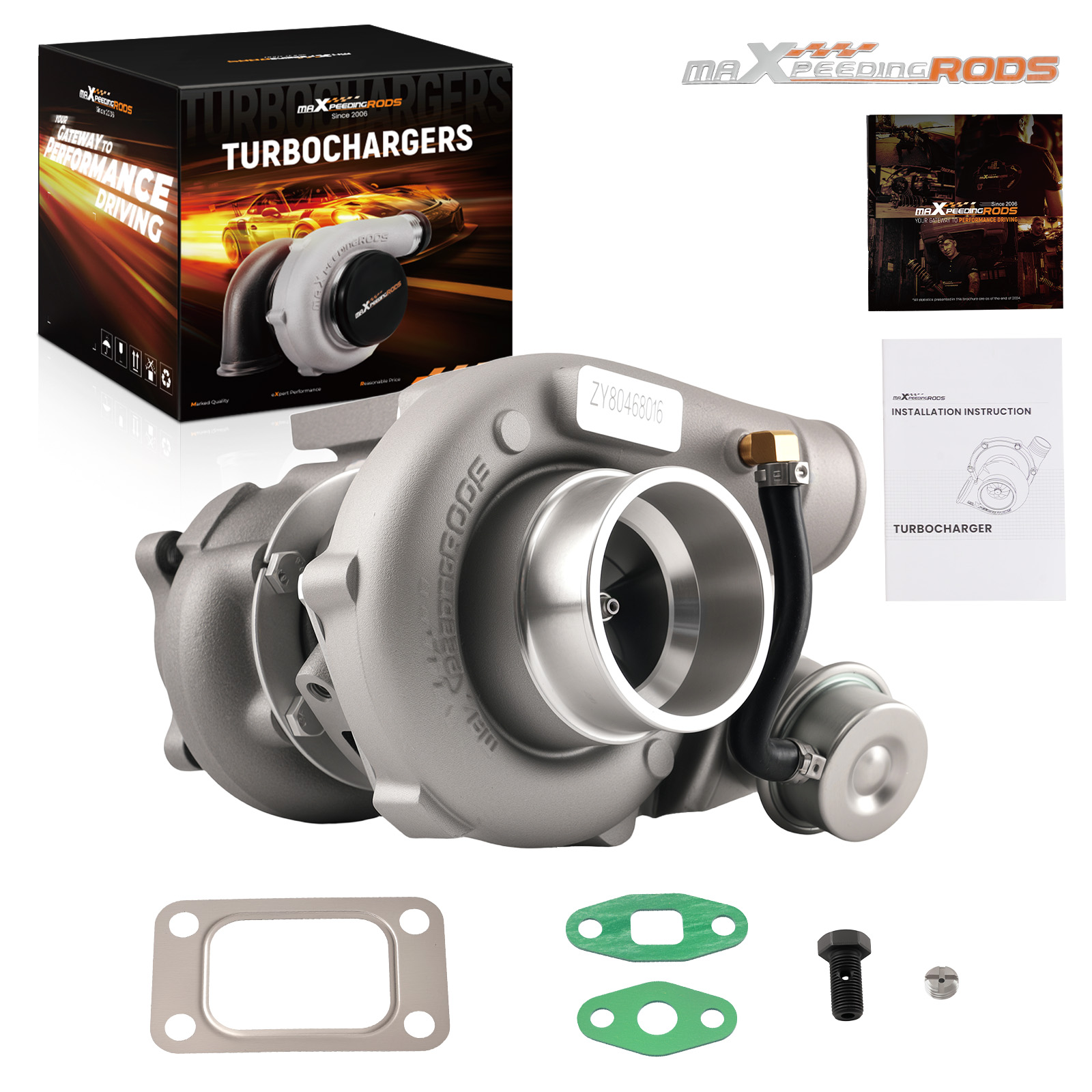

accessories: you will get exactly as picture shown
material feature
1. turbine housing: ductile iron qt450-10 shell with high-temperature resistance up to 700 degrees celsius
2. steel turbine wheel: made from the special k418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 degrees celsius
3. compressor housing: zl104 aluminum with lightweight
4. compressor wheel/blades: cast aluminium with good gas tightness and corrosion resistance
product :
1. rich experience in turbo production and own factory
2. quality assurance
3. high rotor
4. high-speed oil seal ring
5. strict quality inspection
6. precision clearance
7. high-speed accessories
* please check the specifications carefully before buying. .
* this is universal application turbo, so modification might be required for some vehicles
* professional installation is highly recommended(no instruction included)
* before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
how to identify your turbocharger:
if you are not sure fitment for your old turbo , please let us know this information:
1 . the oem code information from your original turbo nameplate
2 . the engine code & kw , hp , year for your car
3 . the photos of your complete turbo
4 . please note that the registration number cannot identify your turbocharger
