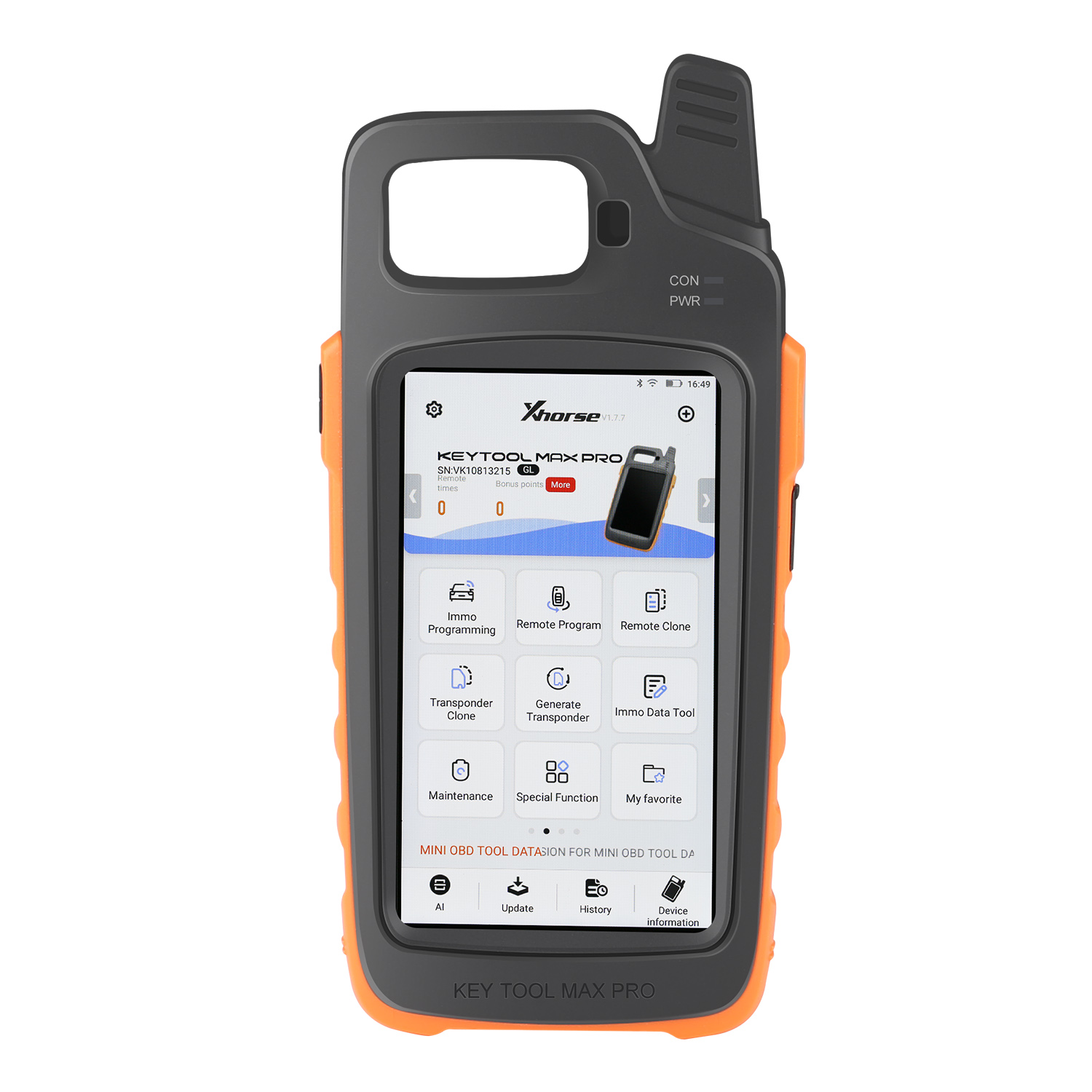

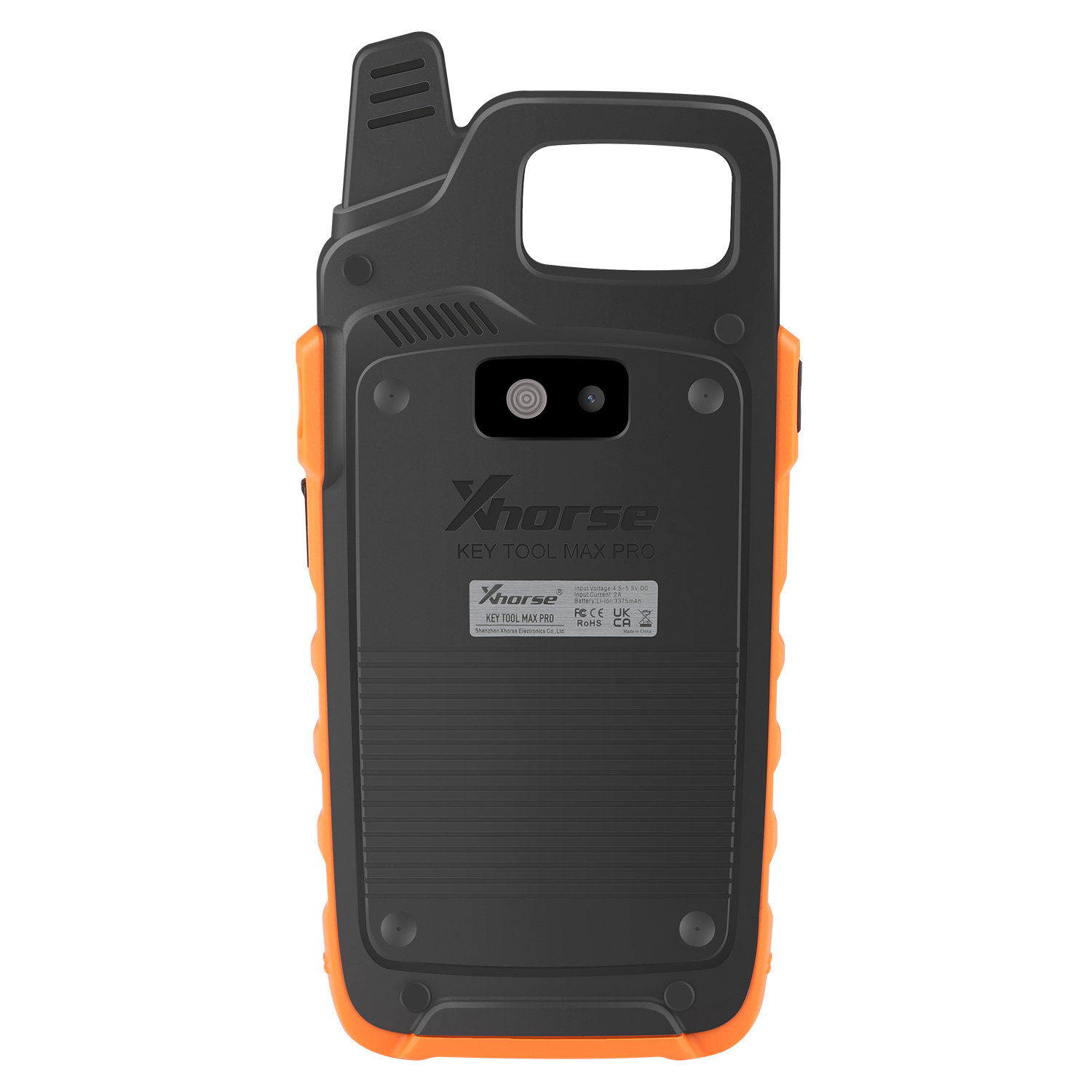

Xhorse VVDI Key Tool Max PRO Combines Key Tool Max and Mini OBD Tool Functions

KEY TOOL MAX PRO, a real small tablet, with built-in OBD function, easy to carry, remote control matching tool!  It supports various OBD functions such as vehicle diagnosis, IMMO progarm, throttle progarm, TPMS, and maintenance light reset. As well as new functions: BMW CAS3 k-ey progarmming, battery voltage measurement, leakage current measurement!

Key Tool Max Pro newly supports TPMS generation and progarmming, providing free upgrade service. Just update your device to get the powerful function combination of IMMO and TPMS to start your new business!

TPMS Function:

• Support XTPMS progarmming, up to 20 sensors simultaneously
• Reprogarm XTPMS sensor (Xhorse TPMS Sensor please more time)
• Activate original TPMS and XTPMS sensor (315Mhz, 433Mhz)
• Copy and change sensor ID
• Read TPMS data like tire pressure, temperature, battery, etc.
• Support OBD reading, writing, read & clear DTCs
• Compatible with multiple car models, more models coming soon

Key Tool Max Pro Highlights:

1. Cover Key Tool Max+Mini OBD Tool remote/transponder immo functions

2. Add New BMW CAS3 and Toyota Models, and partial Toyota models k-e-y progarmming (Corolla, Highlander, Camry, REIZ, VIOS, LEVIN, CROWN, RAV4, Hiraks, Lexus, PRADO/LAND CRUISER PRADO/LAND CRUISER

*Currently not supported: 8A-A9 type all k-e-y lost, 4A/8A-AA type add/all k-e-y lost)

3. Xhorse App language on phone has no limitation. But Key Tool Max Pro language only English.

4. How to get ID48 96bit transponder clone function?

Use VVDI Max Pro to generate new vvdi remote key 10pcs, after collect points, 2 hours later, server will open ID48 96bit function automatically. Please note all brand new remotes.

5. Built-in CAN_FD Module

6. Supports Toyota H all k-e-ys lost with 8A AKL adapter

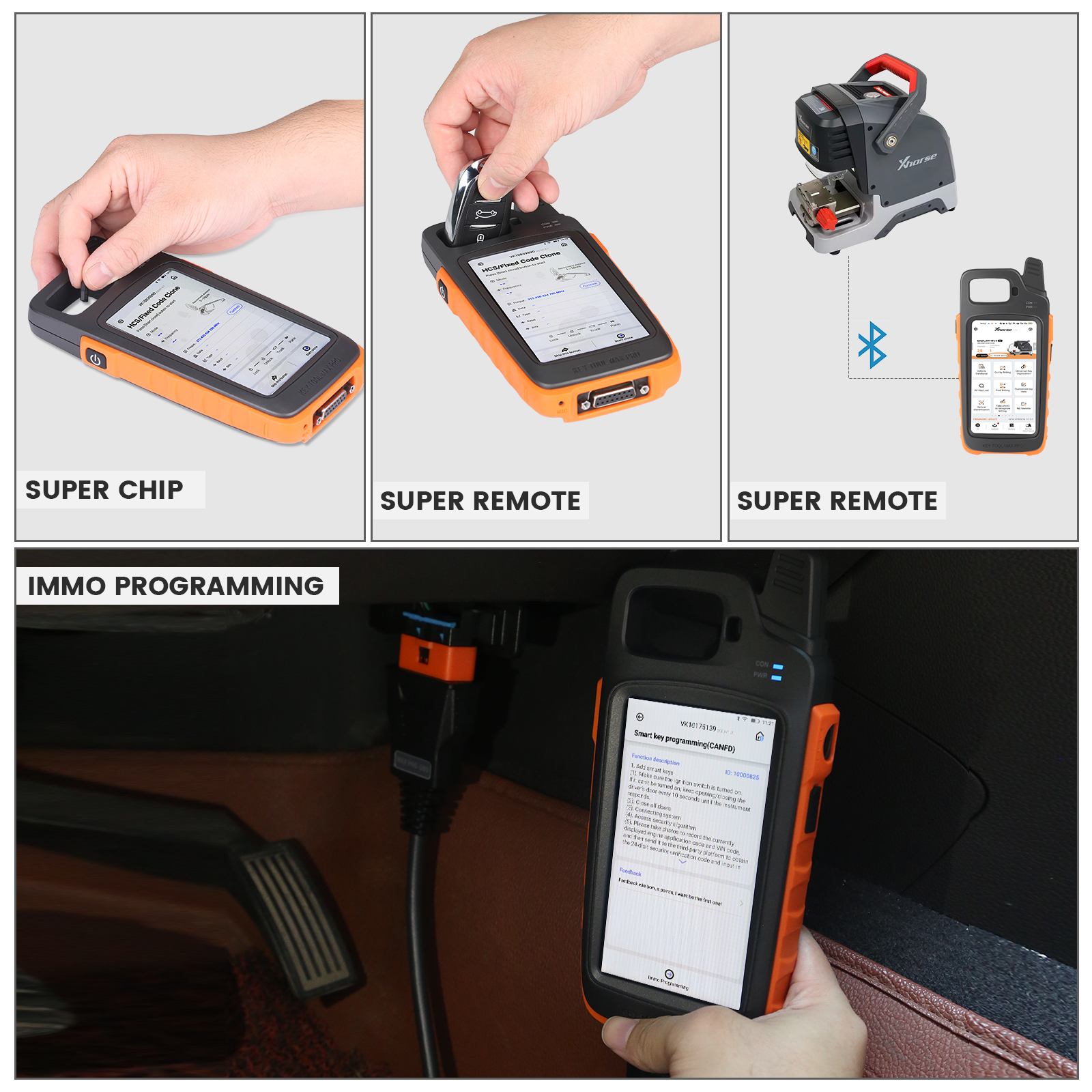

7. Control Xhorse Condor/ Dolphin k-e-y c-u-t-t-ing machine

8. Support TPMS Function ,TPMS progarmming and activation (June 2023)

Key Tool Max Pro Features:

Key Tool Max Pro designed with lo-cksm.iths in mind this device has all the staple featues of Xhorse's excellent VVDI Key Tool range including transponder cloning & generation, RF testing and remote renewal. It also opens up the world of the Xhorse Super Chip and Xhorse Universal Remotes; increasing your vehicle coverage immensely.

This new device comes complete with an OBD cable allowing prog.armming directly through the Key Tool Max Pro rather than needing a separate prog.armmer. It also means the device receives power over OBD so you don't need to worry about losing charge on the job!

Key Tool Max Pro Functions list:

1.Immo Prog.armming

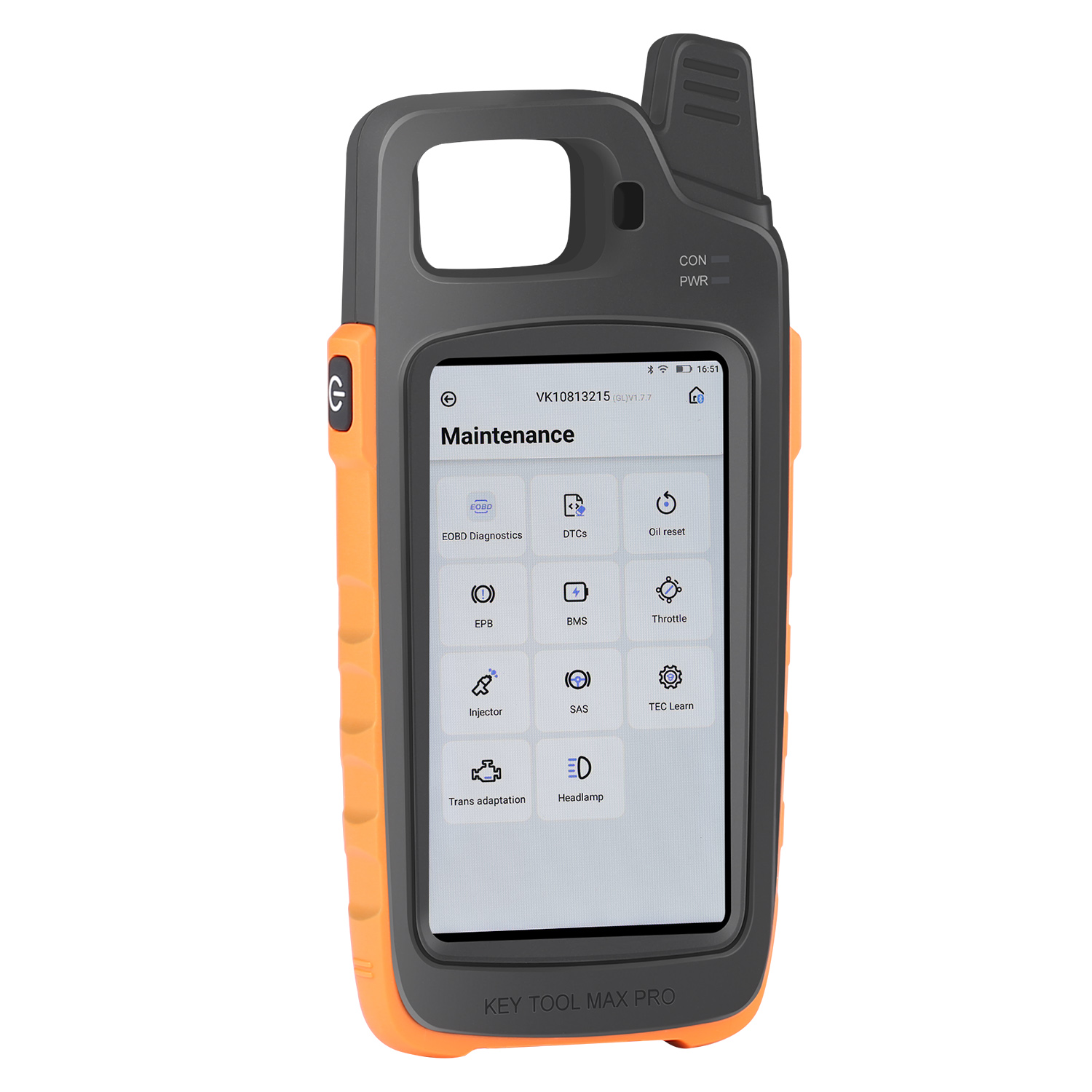

2.Vehicle Maintenance

3.Service Light Reset

4.Remote Signal Detection

5.Remote Battery Voltage Detection

6.Generate Wired/Wireless Remotes and Smart Keys

7.Progarm / Clone Transponders Using Xhorse Super Chips

8.Generate Special Transponders

9.Renew Remotes

10.Recognize and Clone Access Cards

11.Generate and Clone Fixed Code Garage Remotes

12.Frequency Detection and Remote Cloning

13.Control Xhorse Ke/y Machines


NEW - For BMW CAS3\For Toyota Models Prog.armming

To make it a more powerful and competitive tool, KEY TOOL MAX PRO is projected to add prog.armming feature of BMW CAS3 and some Toyota models soon. Like always, Xhorse offers continuous upgrades on this very new machine and more can be expected!

It Support BMW CAS3+and Lower Modules

CAS1 IMMO system

EWS IMMO system

CAS2 IMMO system

ECU ISN

CAS3/CAS3+IMMO system

Instrument mileage repair

Newly Added OBD Module

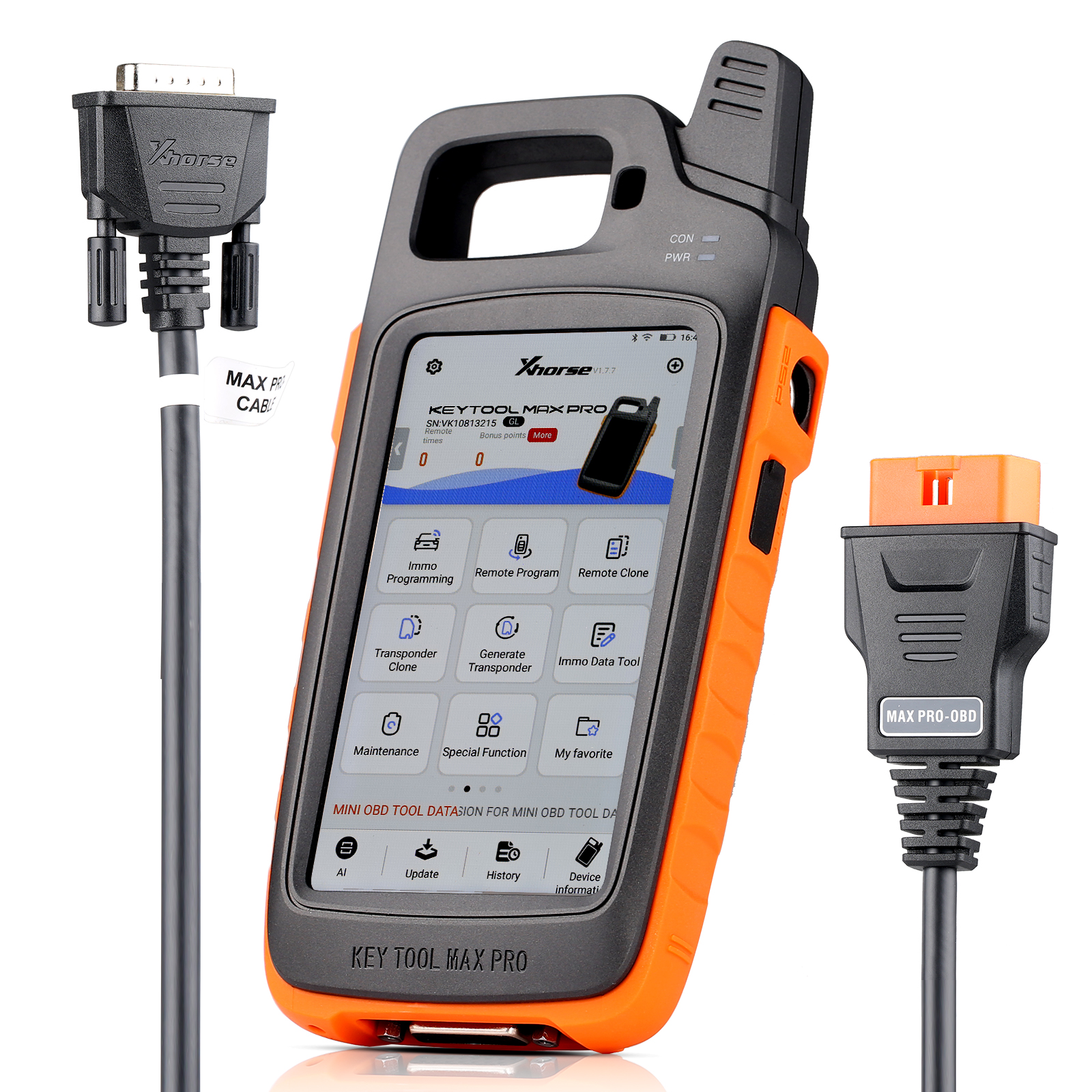

KEY TOOL MAX and MINI OBD TOOL used to be a great combination, enabling users to finish various works via wireless connection. Now, MAX PRO comes with an OBD cable which could connect it to vehicle OBDⅡ port, which means you don't need to purchase MINI OBD TOOL for immo prog.armming and other functions. Meanwhile, wire connection usually can be highly secure and reliable with low risk.

Built-in CAN_FD Module, Expanded Function:

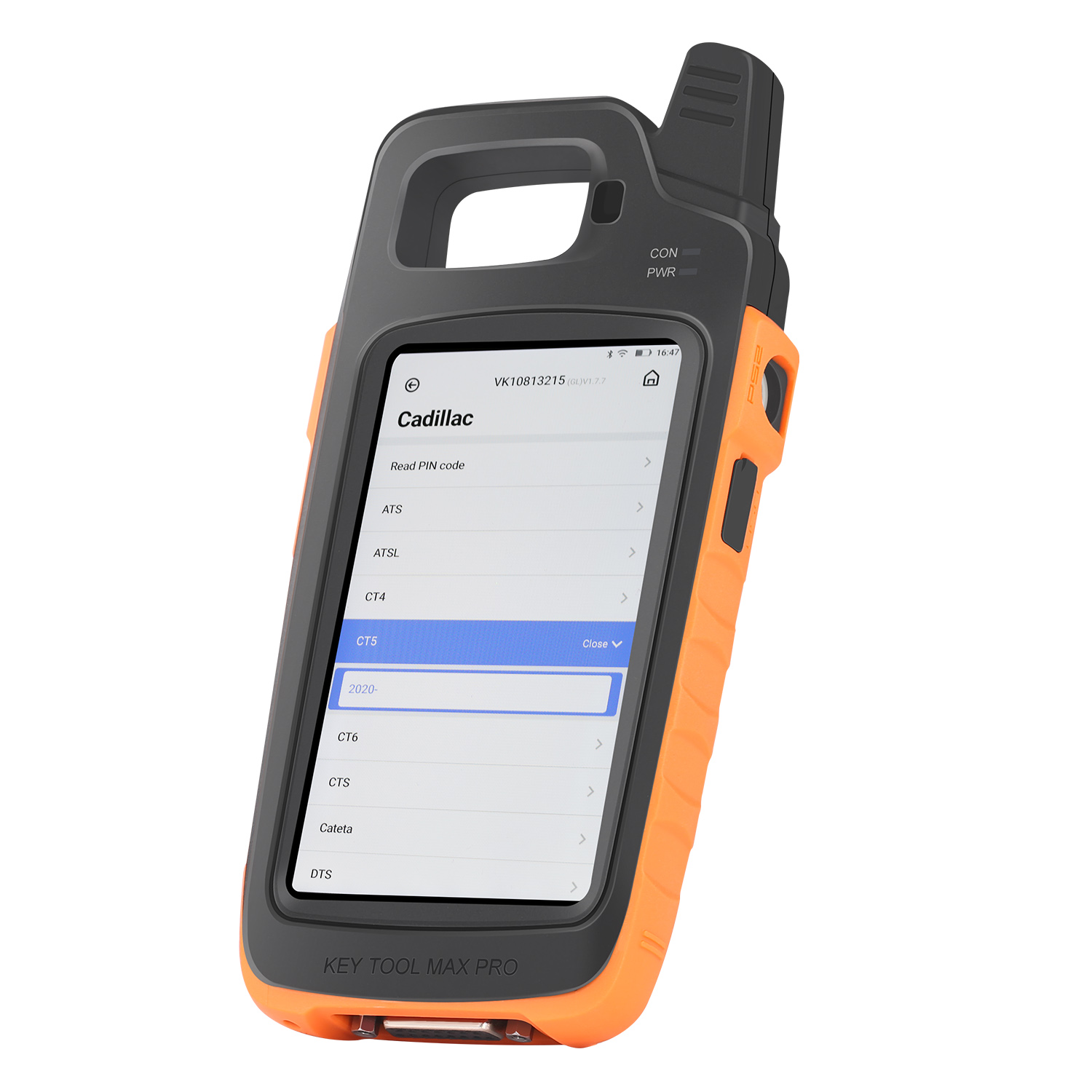

Concerning immo progarmming, MAX PRO is designed with a CAN_FD module, making it possible to complete immo prog.armming for various CAN_FD models such as Cadillac CT4/CT5, Buick GL8, Encore, etc. Of particular note, Xhorse offers continuous upgrades for free and car models supported keep increasing for your convenience.

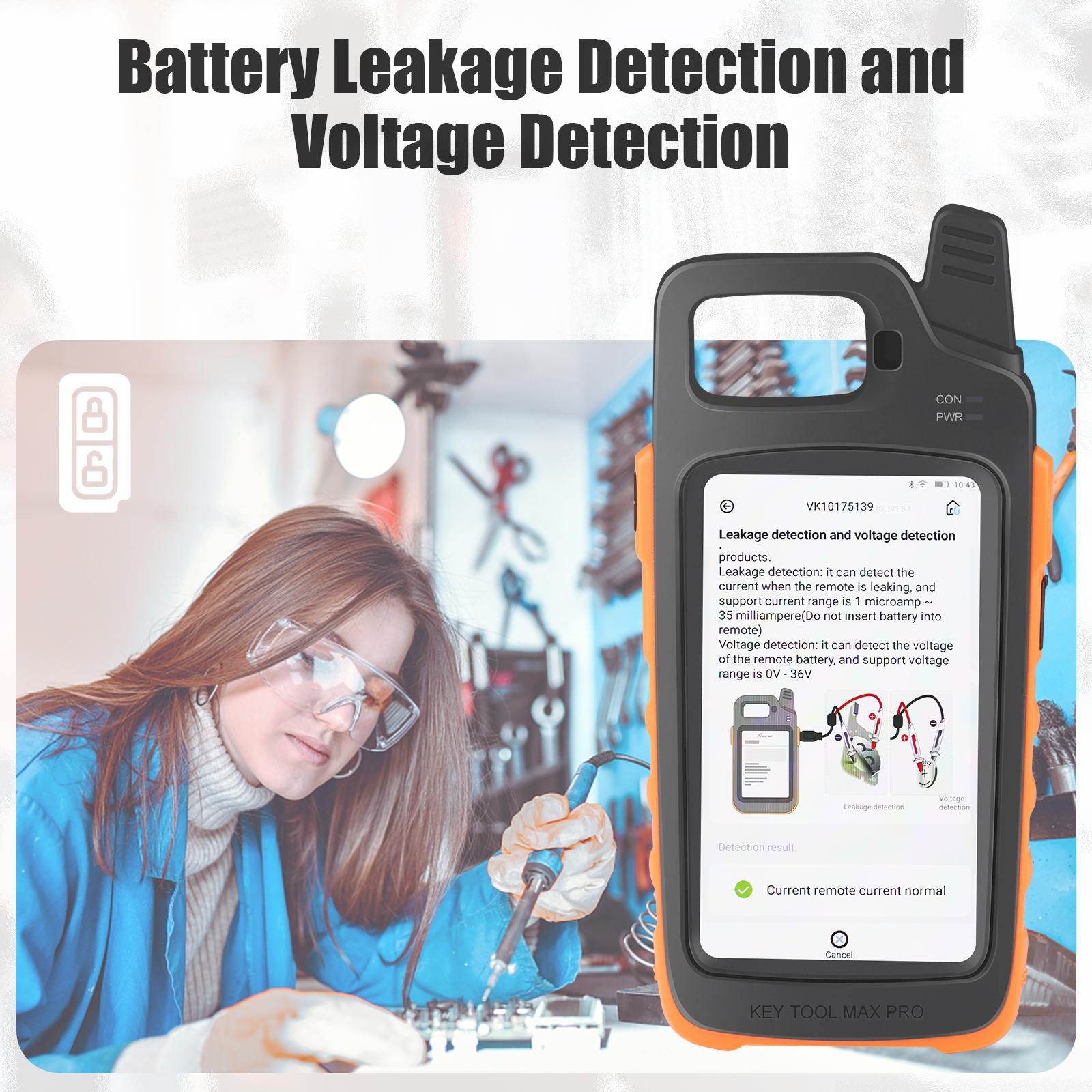

Read Voltage and Leakage Current:

This function is only used for leakage detection and voltage detection of remote, please do not use it for detection of other products.

Leakage detection: it can detect the current when the remote is leaking, and support current range is 1 microamp~35 milliampere(Do not insert battery into remote)

Voltage detection: it can detect the voltage of the remote battery,and support voltage range is 0V-36V




Battery Test Module

Combining the needs of automotive lo-cks.miths with our innovations, KEY TOOL MAX PRO features a new battery test module. By simply connecting to the leakage detection cable, users can test whether a remote battery is having electric leakage (range: 1μA~35μA) and detect the voltage of a remote battery (range: 0V~36V).

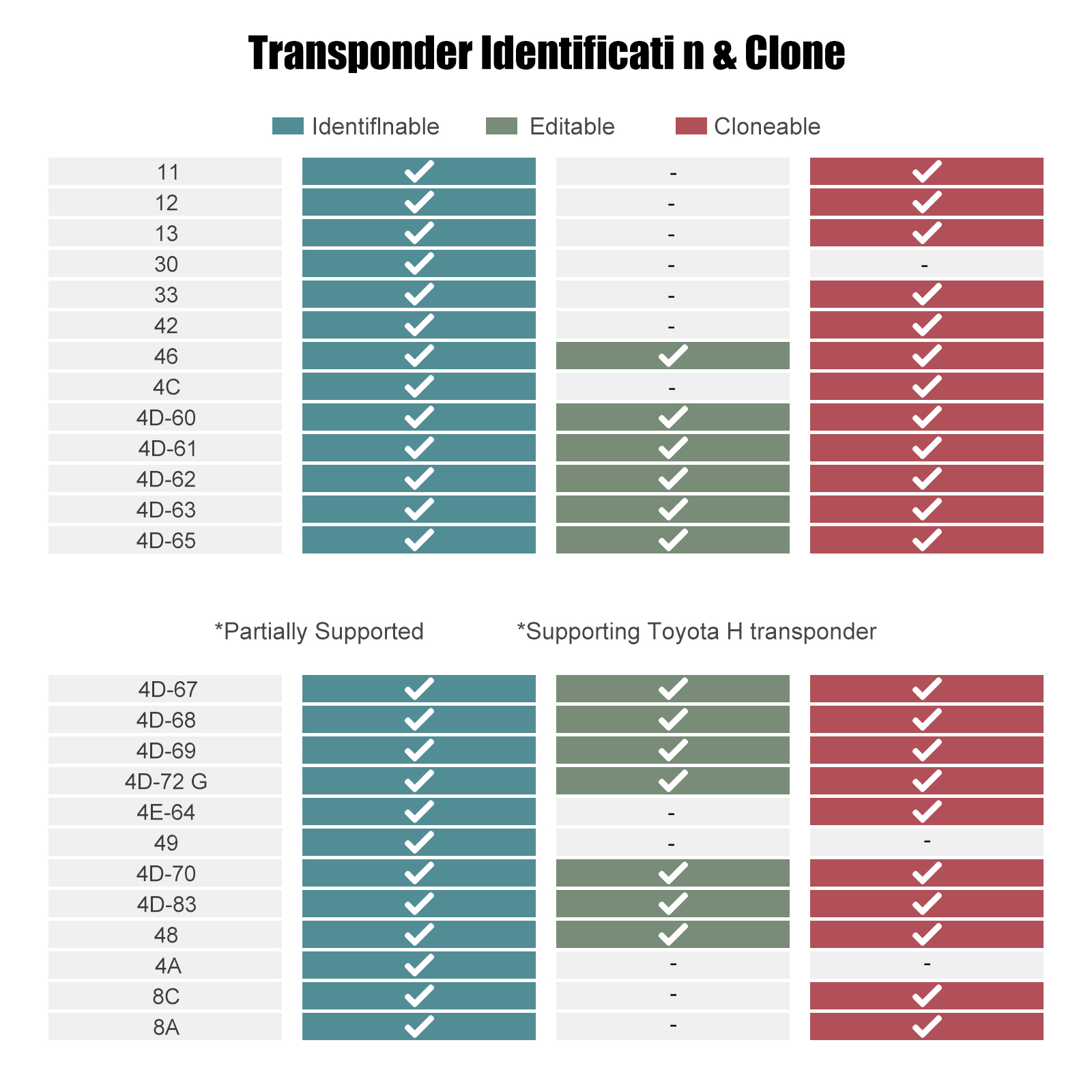

Transponder Identification & CloneKey Tool Max Pro VS Key Tool Max

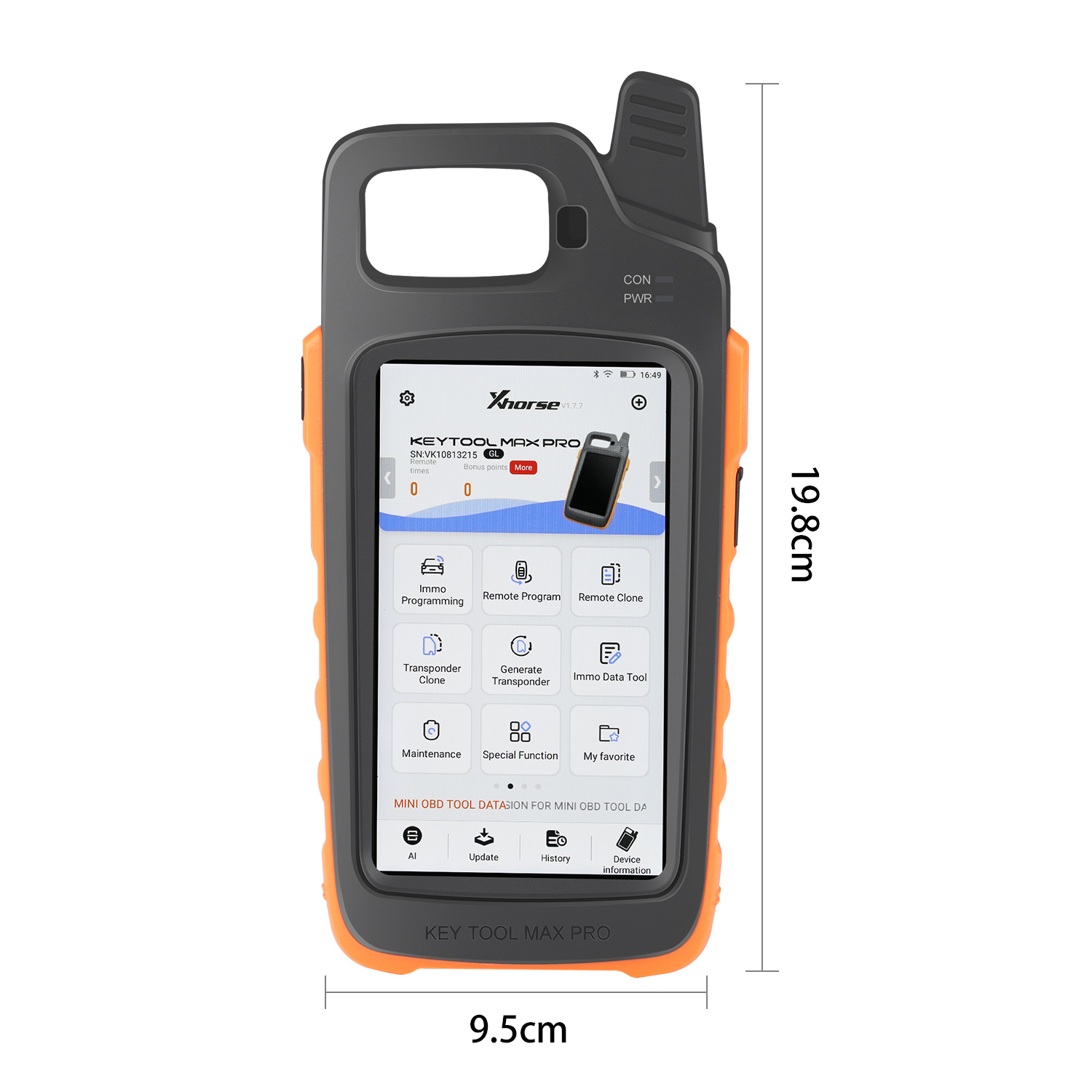

KeyTool Max Pro Specifications:

Battery: 3375mAh

Standby: >5 Days

Inoput: 1.5A

Light: >400nits

Screen Resolution: 1280*720P

Camera: 800W

WiFi& Bluetooth: 802.11a/g/g/n/ac & 4.2 BLE

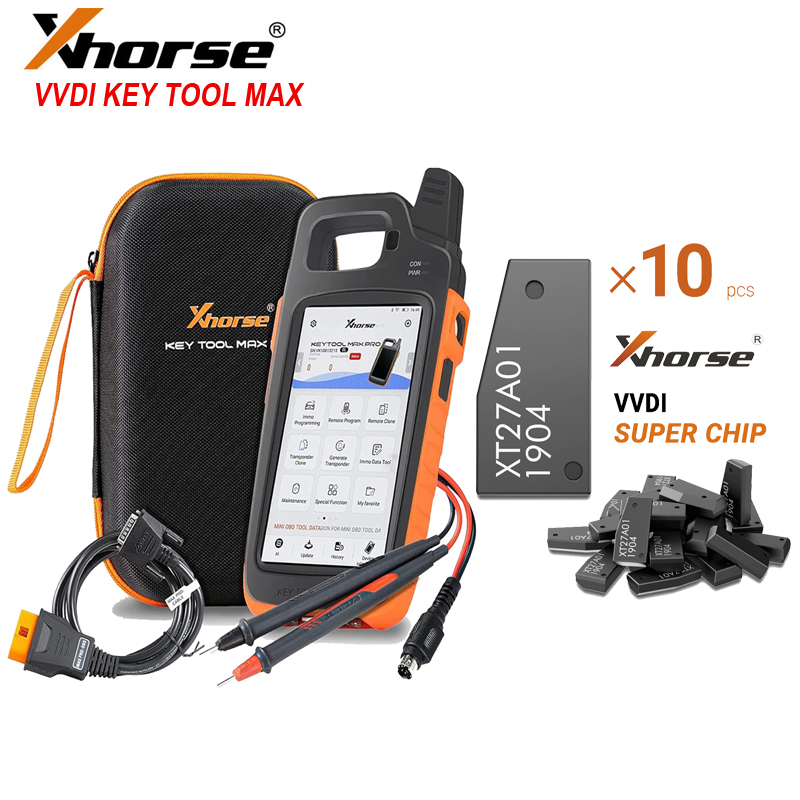

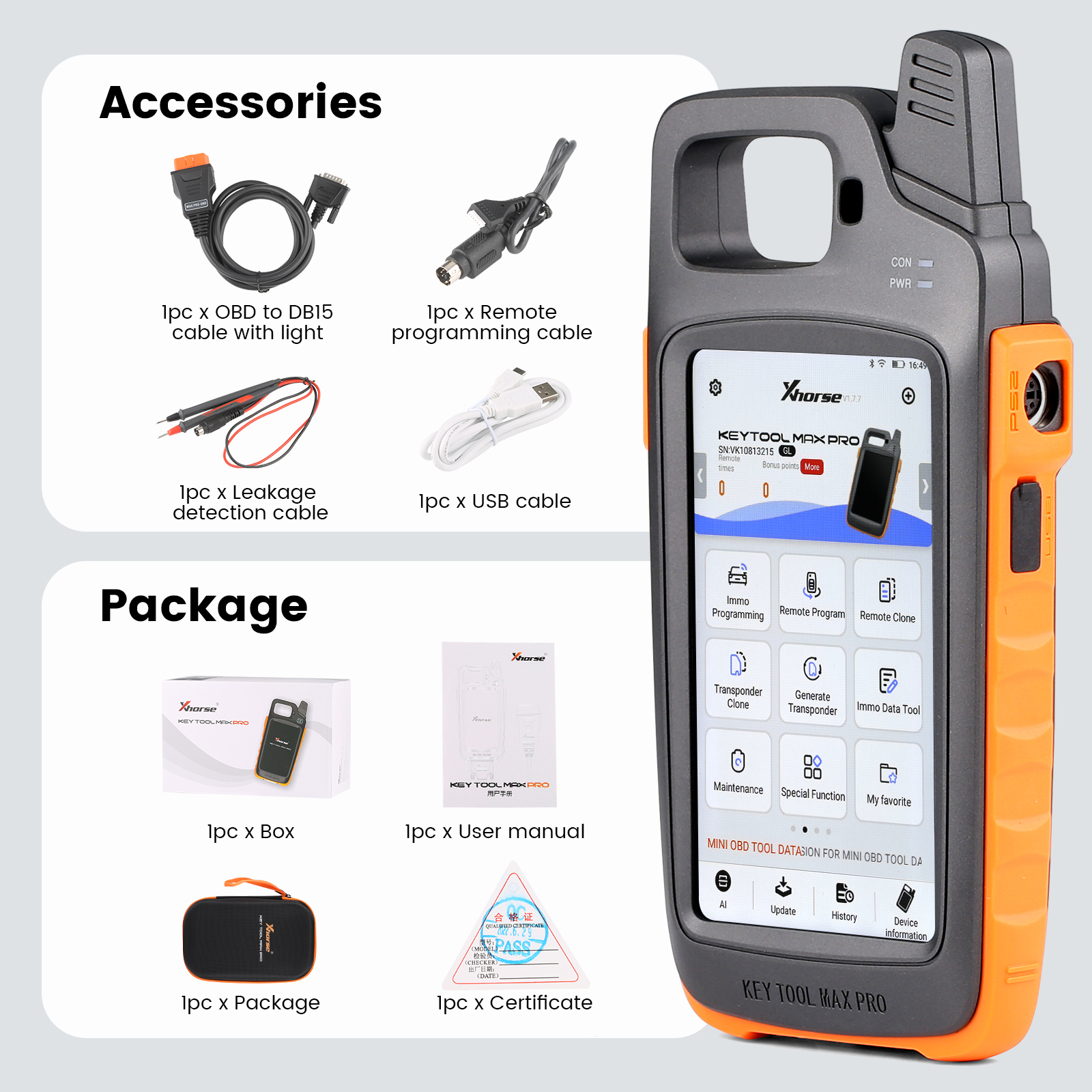

KEY TOOL MAX PRO Package List:

1pc x KEY TOOL MAX PRO deivce

1pc x OBD to DB15 cable with light

1pc x Remote prog.armming cable

1pc x Leakage detection cable

1pc x USB cable

1pc x User Manual

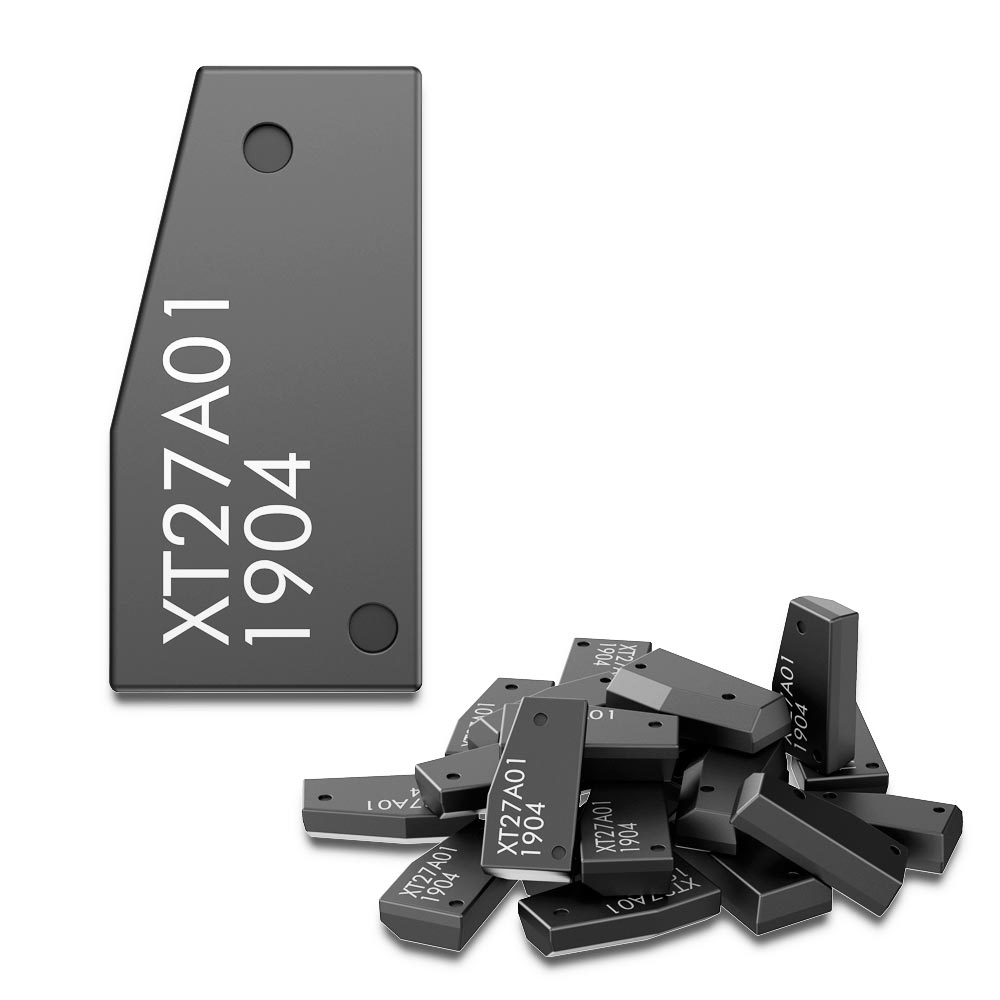

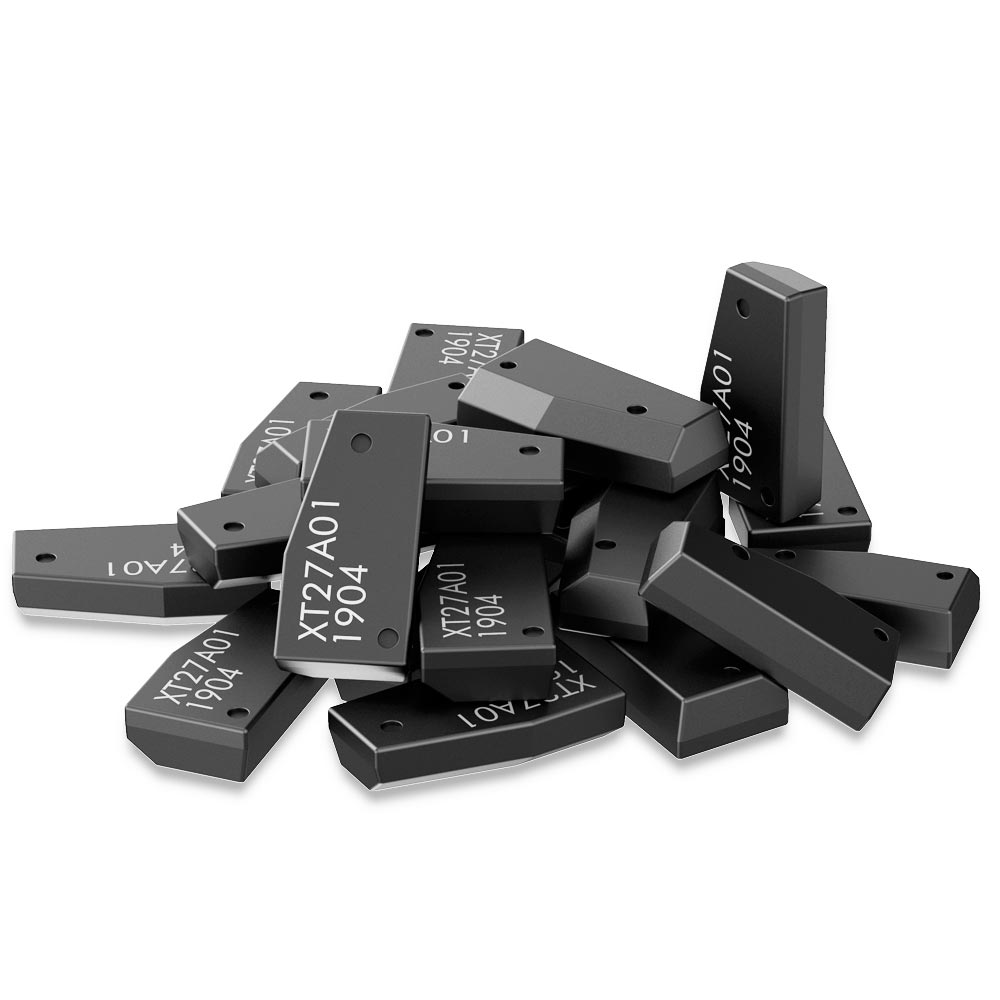

Xhorse VVDI Super Chip XT27A01 XT27A66 Transp-onder for VVDI2 VVDI Mini Key Tool

The all-new VVDI Super Chip is a virtually universal transponder chip that, when paired with the VVDI2, Mini K-e-y Tool or VVDI K-e-y Tool, has the ability to be converted into a wide variety of automotive transponder chips.

Super Chip highlights:

1. Xhorse original from the Xhorse manufacturer, can rewrite

2. Support Vvdi2,vvdi k-e-y tool,mini k-e-y tool,k-e-y tool max,k-e-y tool plus

3. Support lots of car k-e-y chips

VVDI Super Chip Features:

Reuable

Never Lo--c-k

One for all

Powerful

Convenient

VVDI Super Chip Compatibility:

VVDI2  or newer version

VVDI K-E-Y TOOL

VVDI MINI K-E-Y TOOL

VVDI K-e-y Tool Max

VVDI Super Chip Function:

Can be used as the chips below for auto k-e-y pr0garmming:

chip 7935 33 40 41 42 43 44

chip 7930 46

chip 7930 47

chip 7930 4D chip on board

chip 7930 45 chip on board

chip 7937 46 chip on board

chip 7947 47 chip on board

chip 4D   60 63 70 80 83 82G 67

chip 4E 64

chip 4C

chip 8C

chip 8A Fit For Toyota H chip/Hyundai

chip 43 Fit For V-A-G/Honda

chip 8E Fit For Audi/Honda

chip T3 Fit ForBuick model

chip T1/T2/T3

Chip Cloning Process:

How to Use VVDI Super Chip & VVDI Mini K-e-y Tool Clone Toyota Scion Special G chip:

Put the original car k-e-y into the coil for identification.

Read out the original for Toyota G key info, tap “Clone” (Transponder). Then tap “Recognize”.

Please take out the original Toyota G k-e-y and put into the Xhorse VVDI Super chip.

Waiting for writing data.

Successfully copy.

Package List:

10pcs x Xhorse VVDI Super Chip
