Product Description
Please Note:

The Item Ship to Buyers from  United Kingdom (Only take 2-5 Days for Delivery).

If you need to return the item for some reasons, please contact us via eBay message at the first time to get the RMA#,and return address instead of sending back directly without permission,thank you!

Product description

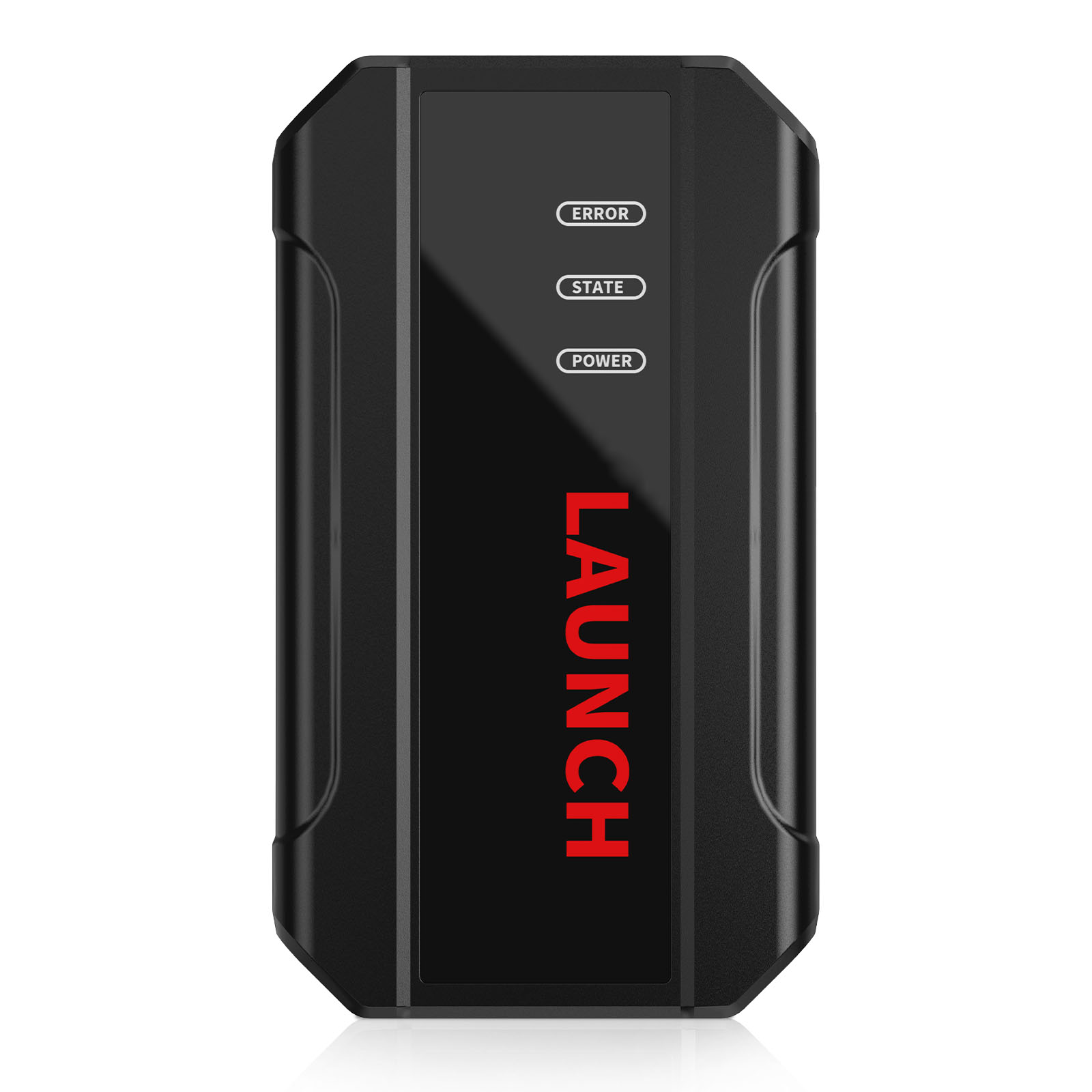

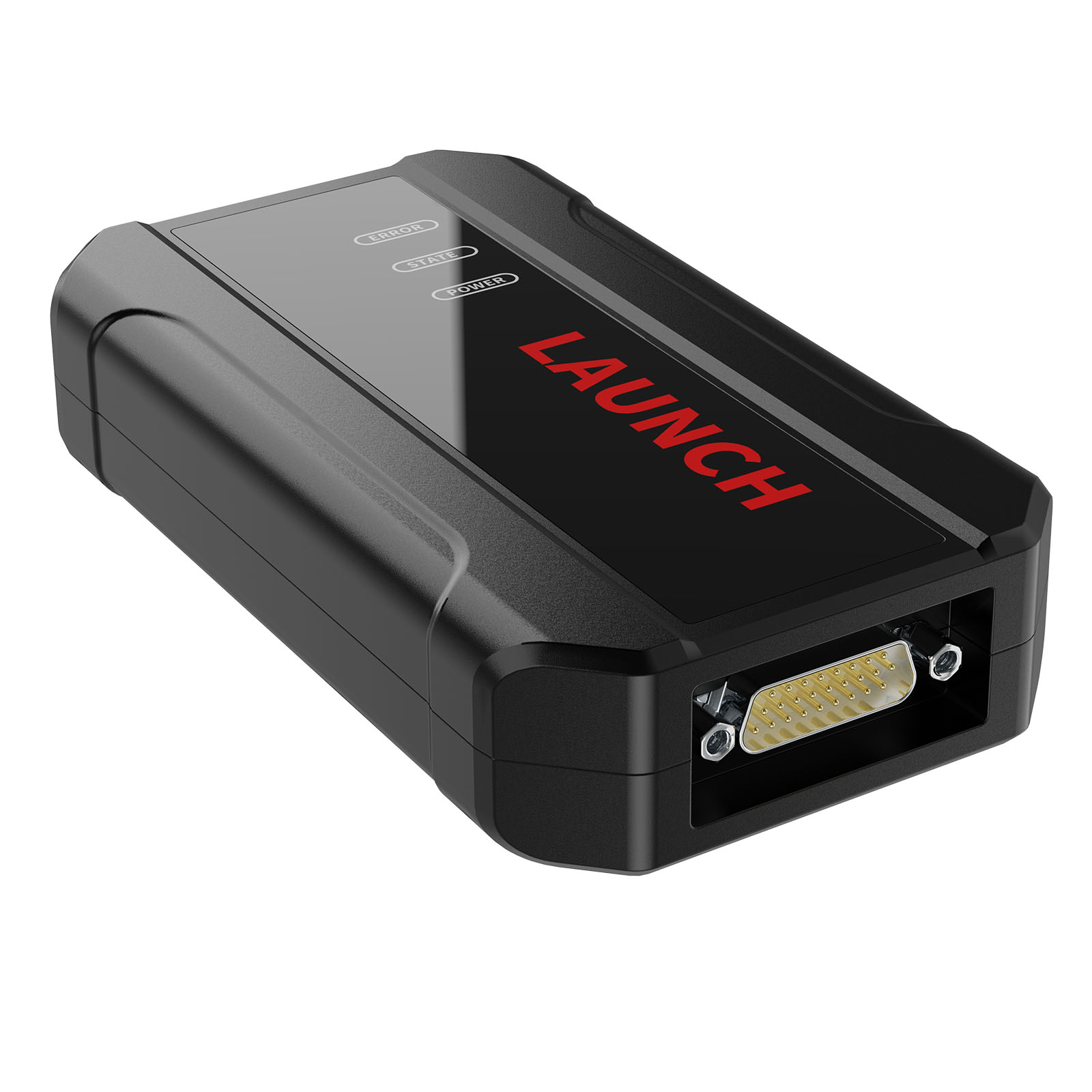

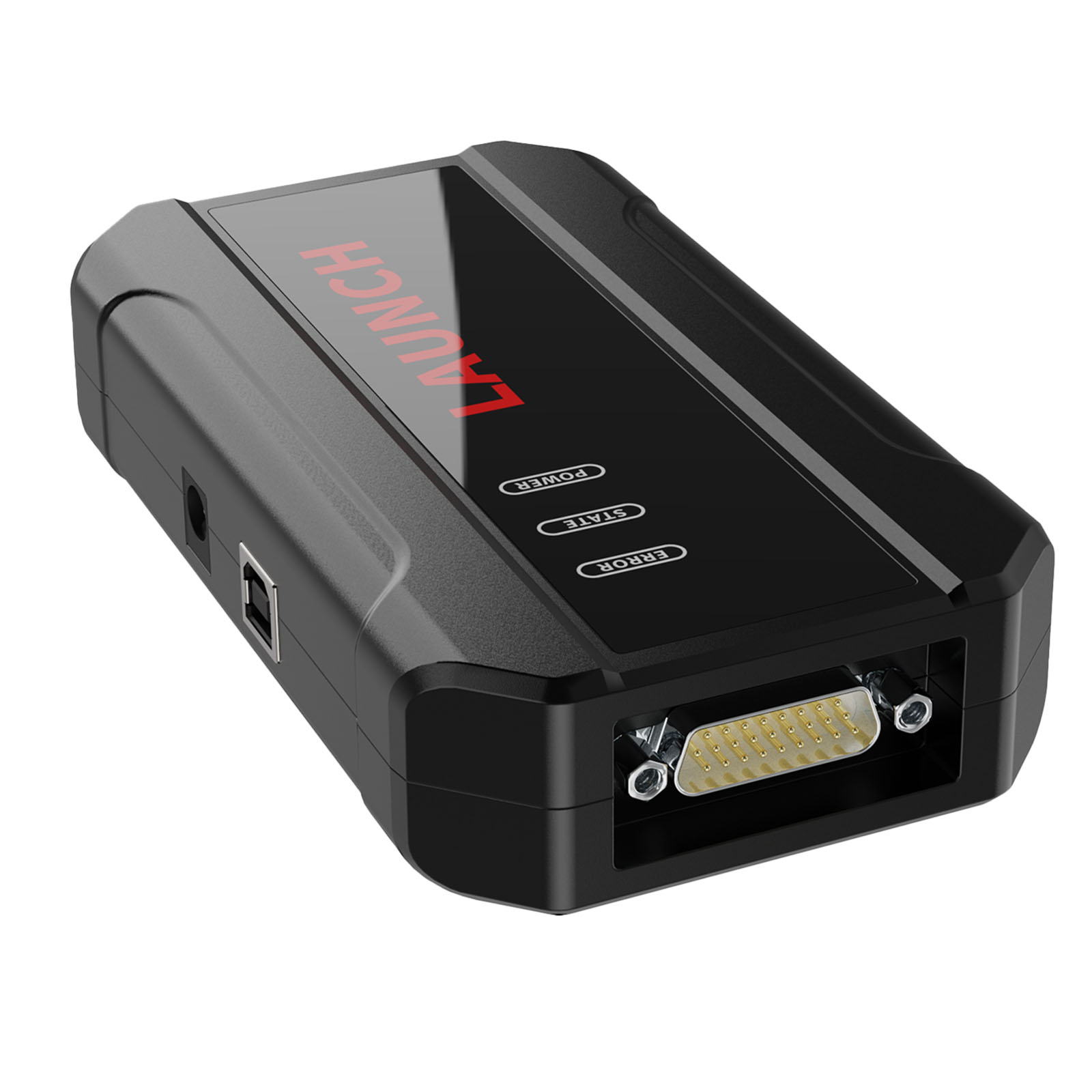

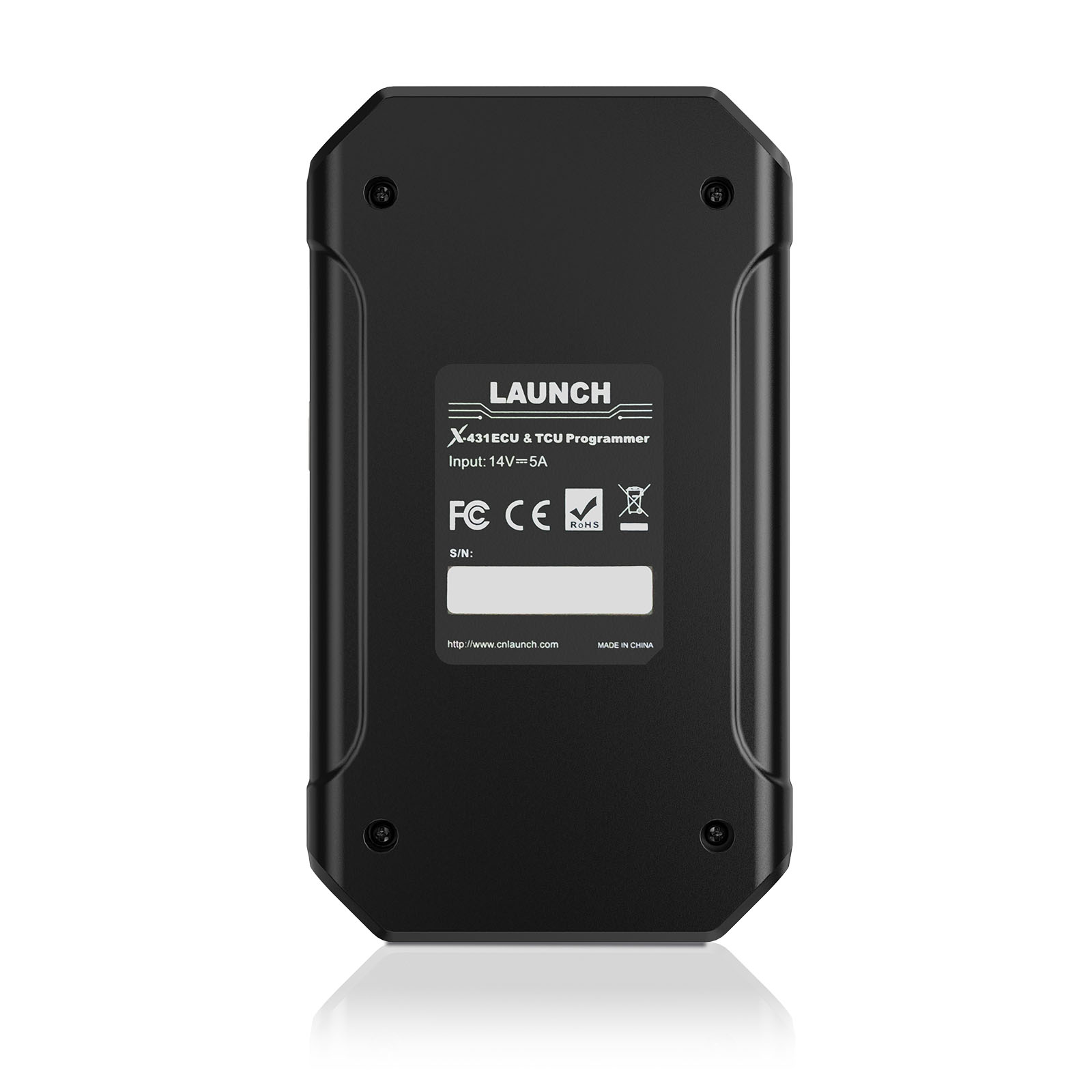

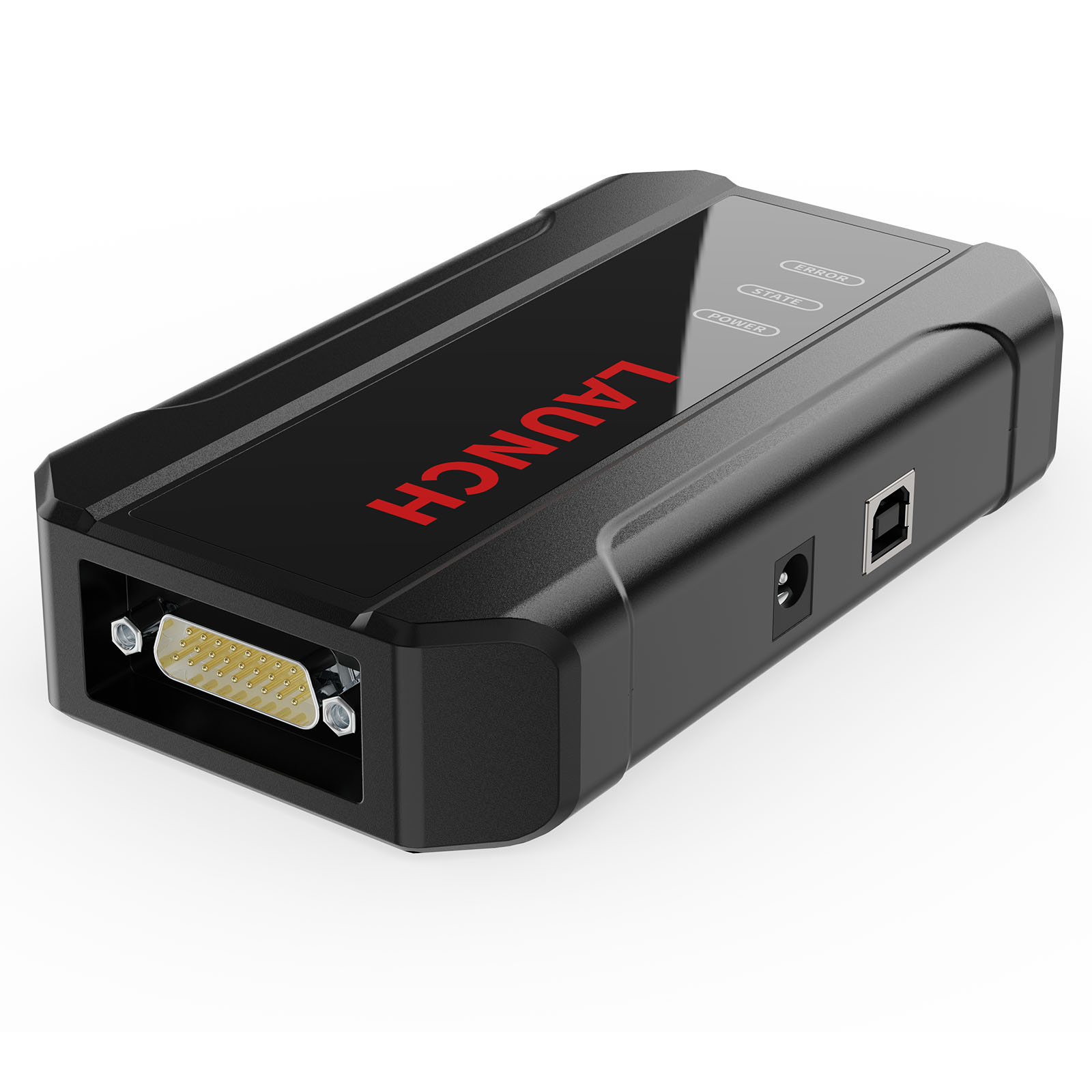

LAUNCH X431 E-C-U & TCU Progarmmer 2D Menu E-C-U Data Reading/Writing

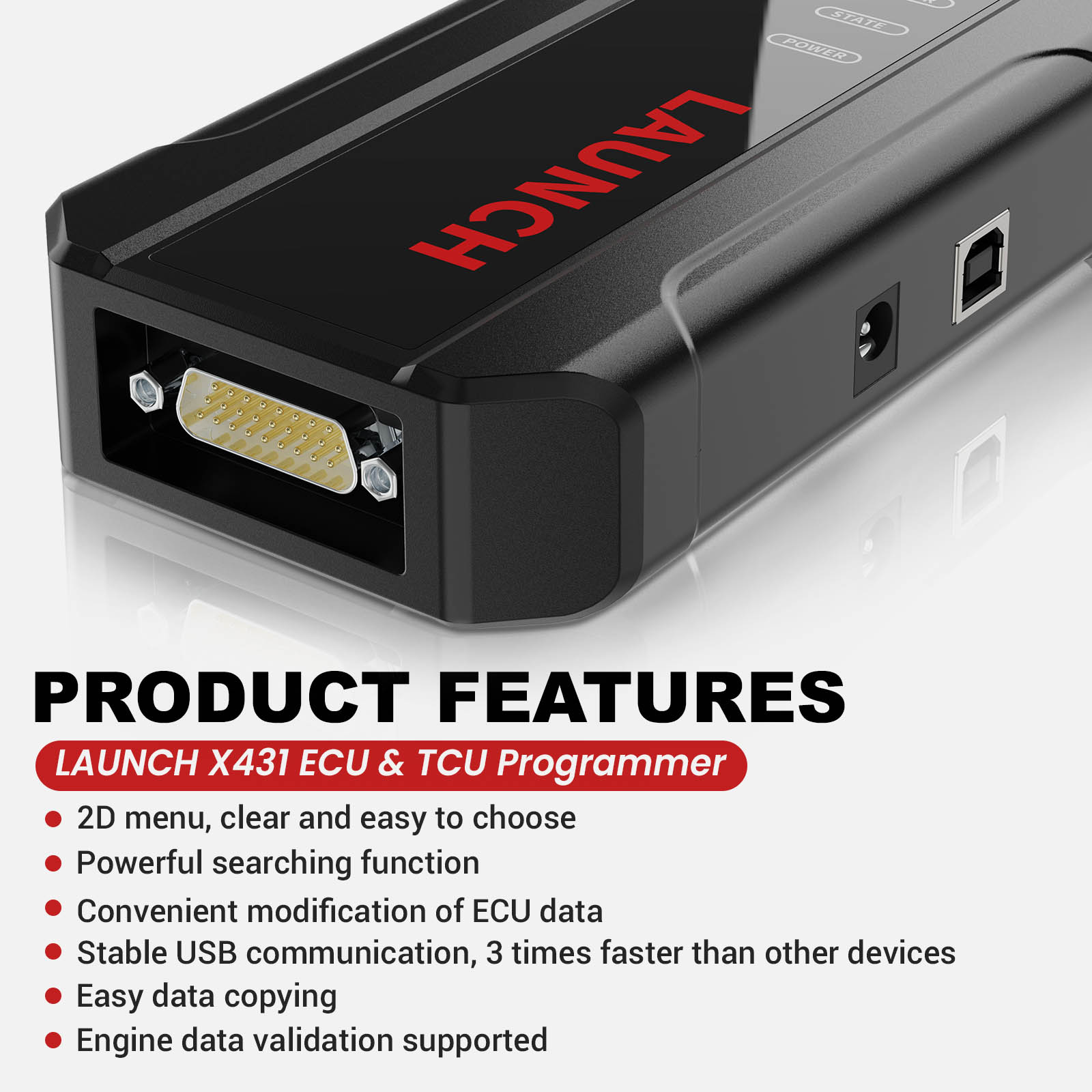

Product Features:

1. 2D menu, clear and easy to choose

2. Powerful search function

3. Convenient modification of E-C-U data

4. USB communication, with a speed more than three times that of Android devices, making it more stable

5. Easy to copy data

6. Support engine data validation function

7. One year free update


Software download : Download on the Launch official website.







PC Software Description:


Firstly, connect the X-431 E-C-U&TCU Progarmmer to the computer with a hole wire.

Then, click to enter the software. The serial number will be automatically recognized from the X-431 E-C-U&TCU Progarmmer, and the activation code needs to be obtained from the envelope bar of the X-431 E-C-U&TCU Progarmmer.

Click [Activate] to activate (only activate once, no need to activate again later), as shown in Figure 1.

Without connection, you cannot access the software, as shown in Figure 2.






I.E-C-U Data Reading/Writing

1. Obtain the related E-C-U.

(1) Method 1: Obtain the desired E-C-U type through brand > model > engine > E-C-U in turn, as shown in Figure 3.


(2) Method 2: Query the desired E-C-U by entering a value in the search box. The search categories includeB-osch number and Search, as shown in Figure 4. For example, search for the MED17.5.25 engine by Search, as shown in Figure 5.







2. Click [Direct Connection Diagram] to obtain the E-C-U connection diagram, as shown in Figure 6.





3. Connection: Connect the E-C-U and PCBOX according to the information provided in the connection diagram. The physical connection diagram of MED17.5.25 (using the BENCH mode line) is shown in Figure 7, and the physical connection diagram using the gearbox adapter is shown in Figure 8.





4. Read the chip ID, as shown in Figure 9.





5. Back up the EEPROM data and save it, as shown in Figure 10 (the figure shows the save page of the read data).





6. Back up the FLASH data and save it, as shown in Figure 11 (the figure shows the process of reading FLASH data).





7. Restore EEPROM/FLASH data, as shown in Figure 12 (the figure shows the file selection page).





II. Data Processing


1. Click the [Data Processing] button on the main page, as shown in Figure 13, and select [IMMO Off and File Verification] ([DTC Shield] is not currently supported), as shown in Figure 14.



2. File verification and IMMO off (process: select file > connect network to obtain > save file), as shown in Figure 15.

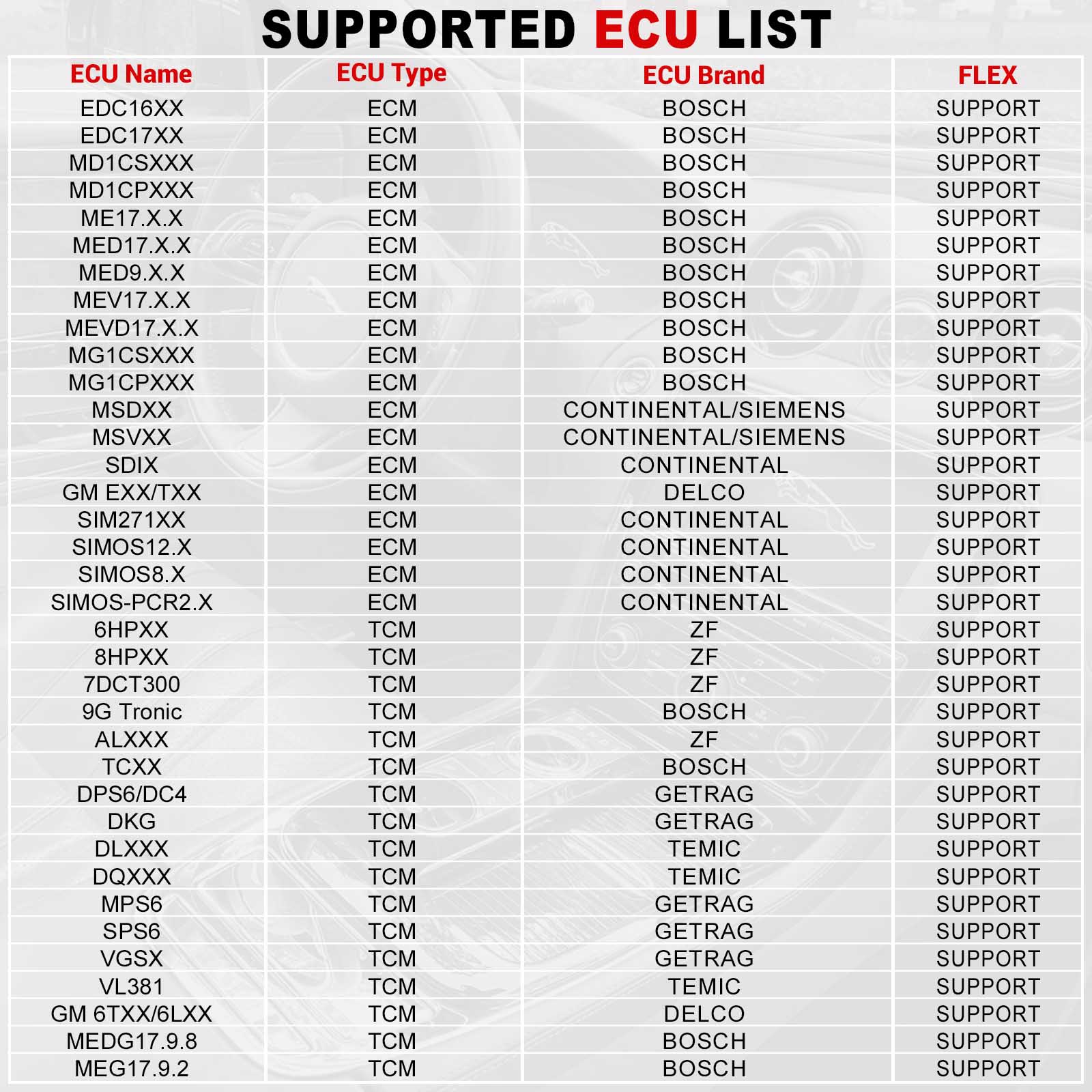

Support list June 2023:

E-C-U Name

E-C-U Type

E-C-U Brand

FLEX

EDC16XX

ECM

B-osch

Support

EDC17XX

ECM

B-osch

Support

MD1CSXXX

ECM

B-osch

Support

MD1CPXXX

ECM

B-osch

Support

ME17.X.X

ECM

B-osch

Support

MED17.X.X

ECM

B-osch

Support

MED9.X.X

ECM

B-osch

Support

MEV17.X.X

ECM

B-osch

Support

MEVD17.X.X

ECM

B-osch

Support

MG1CSXXX

ECM

B-osch

Support

MG1CPXXX

ECM

B-osch

Support

MSDXX

ECM

Continental/SIEMENS

Support

MSVXX

ECM

Continental/SIEMENS

Support

SDIX

ECM

Continental

Support

GM EXX/TXX

ECM

DELCO

Support

SIM271XX

ECM

Continental

Support

SIMOS12.X

ECM

Continental

Support

SIMOS8.X

ECM

Continental

Support

SIMOS-PCR2.X

ECM

Continental

Support

6HPXX

TCM

ZF

Support

8HPXX

TCM

ZF

Support

7DCT300

TCM

ZF

Support

9G Tronic

TCM

B-osch

Support

ALXXX

TCM

ZF

Support

TCXX

TCM

B-osch

Support

DPS6/DC4

TCM

GETRAG

Support

DKG

TCM

GETRAG

Support

DLXXX

TCM

Temic

Support

DQXXX

TCM

Temic

Support

MPS6

TCM

GETRAG

Support

SPS6

TCM

GETRAG

Support

VGSX

TCM

GETRAG

Support

VL381

TCM

Temic

Support

GM 6TXX/6LXX

TCM

DELCO

Support

MEDG17.9.8

TCM

B-osch

Support

MEG17.9.2

TCM

B-osch

Support

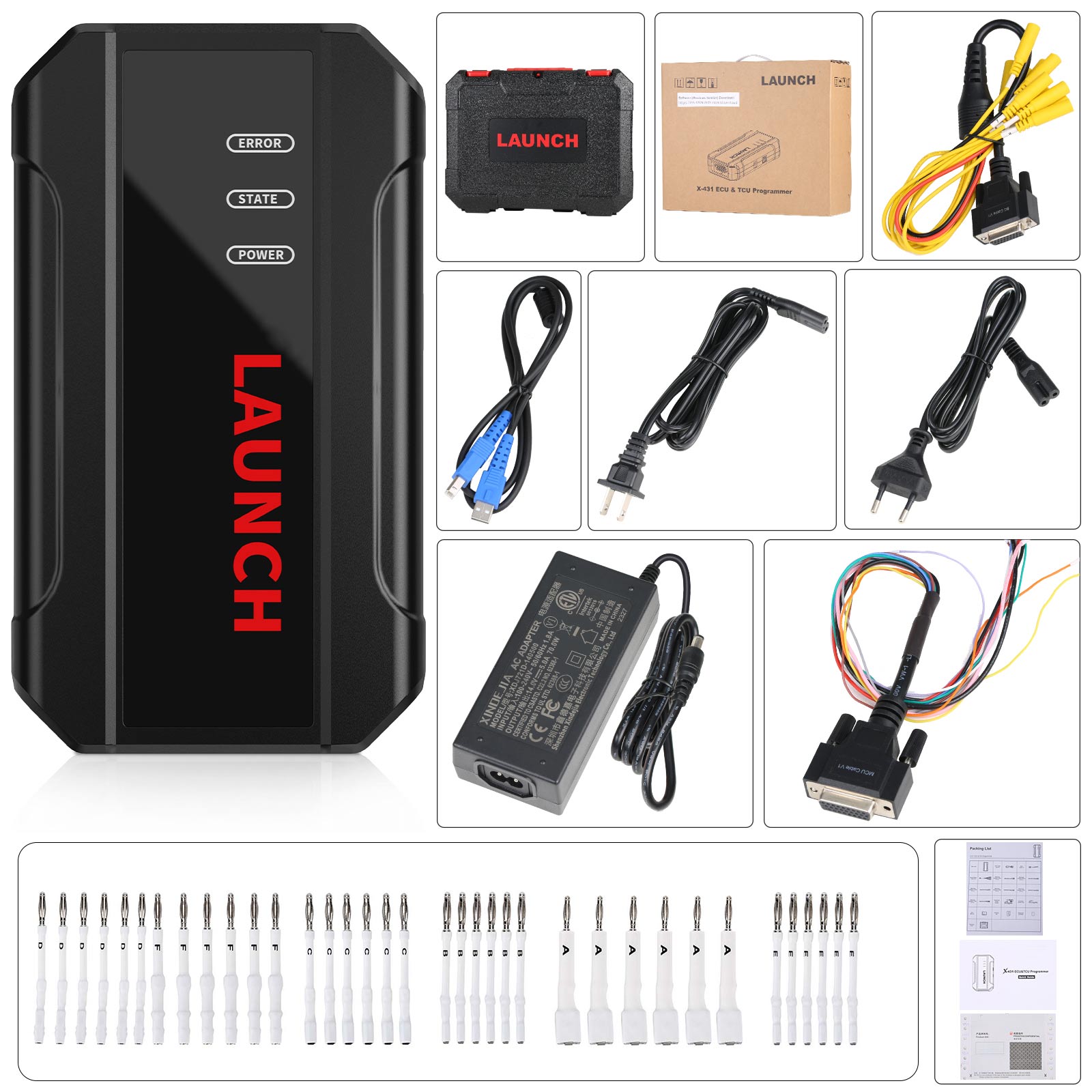

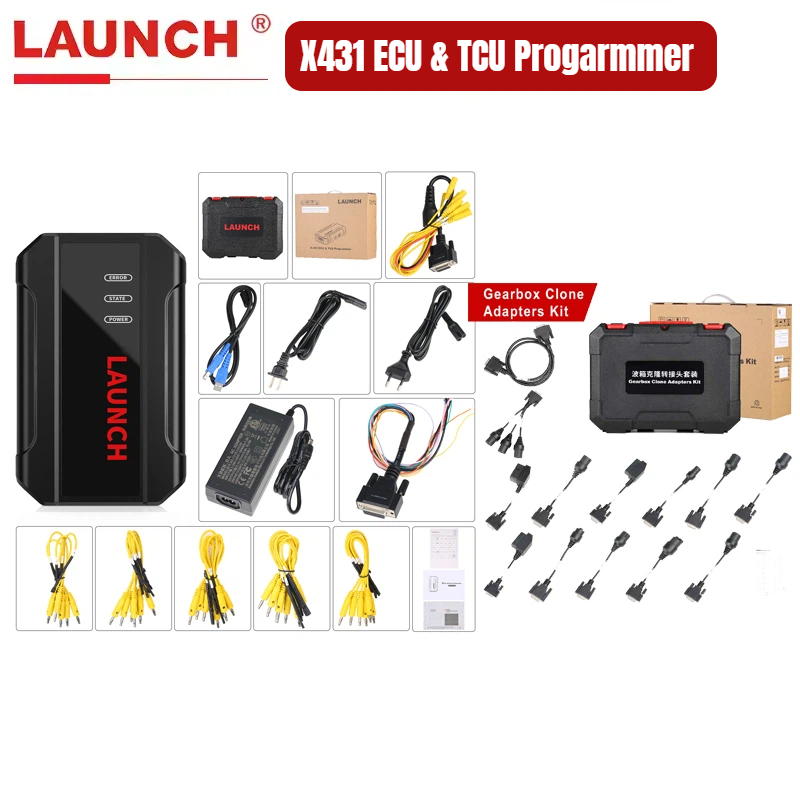

Package includes:

1pc x main unit

1pc x USB cable

1pc x MCU cable V1

1pc x Bench Mode Cable V2.0
2pcs x Bench Extension Cables

6pcs x Matching adapters A

6pcs x Matching adapters B

6pcs x Matching adapters C

6pcs x Matching adapters D

6pcs x Matching adapters E

6pcs x Matching adapters F

1pc x switching power adapter

1pc x European power cord

1pc x user manual

1pc x packing list

1pc x password envelope

1pc x carrying case

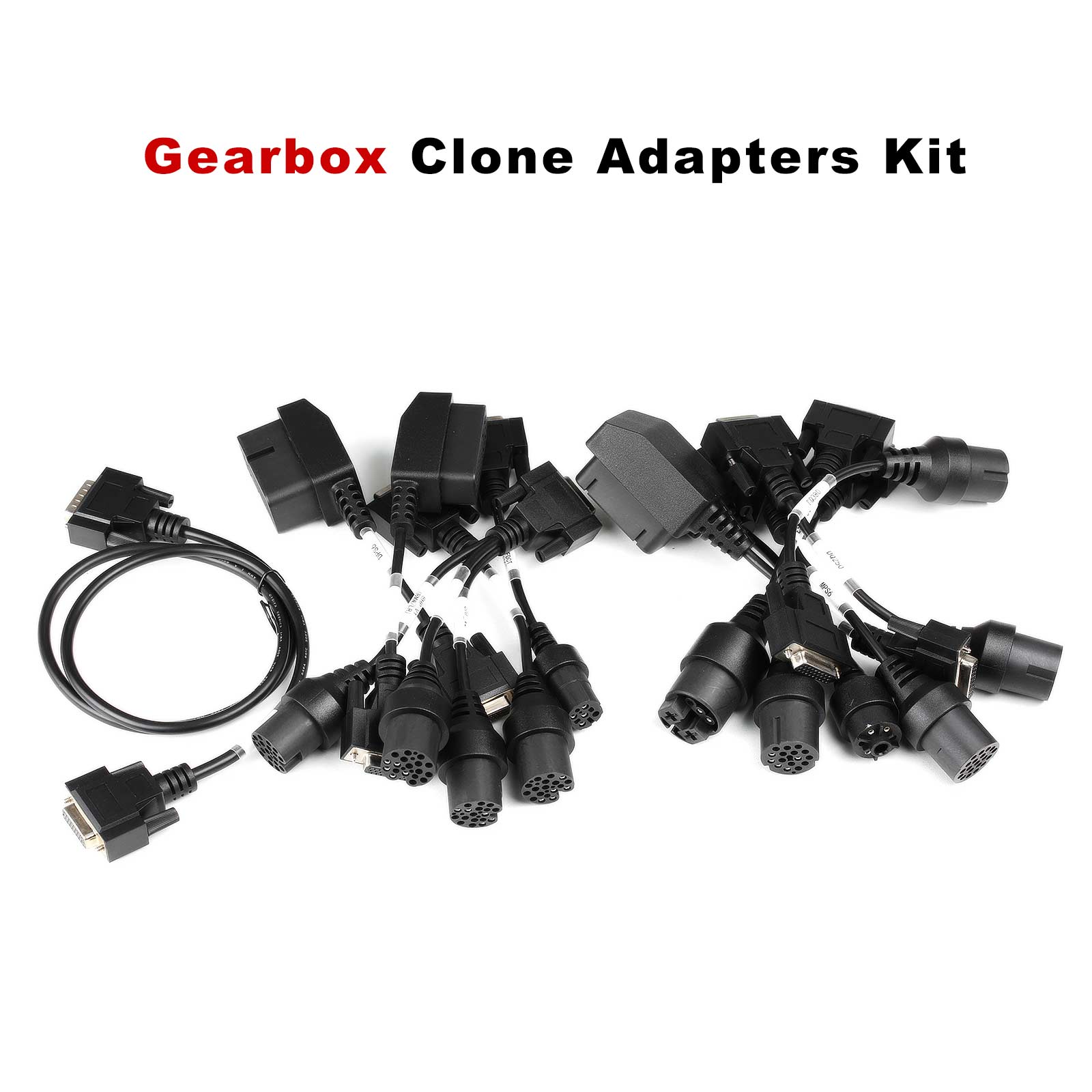

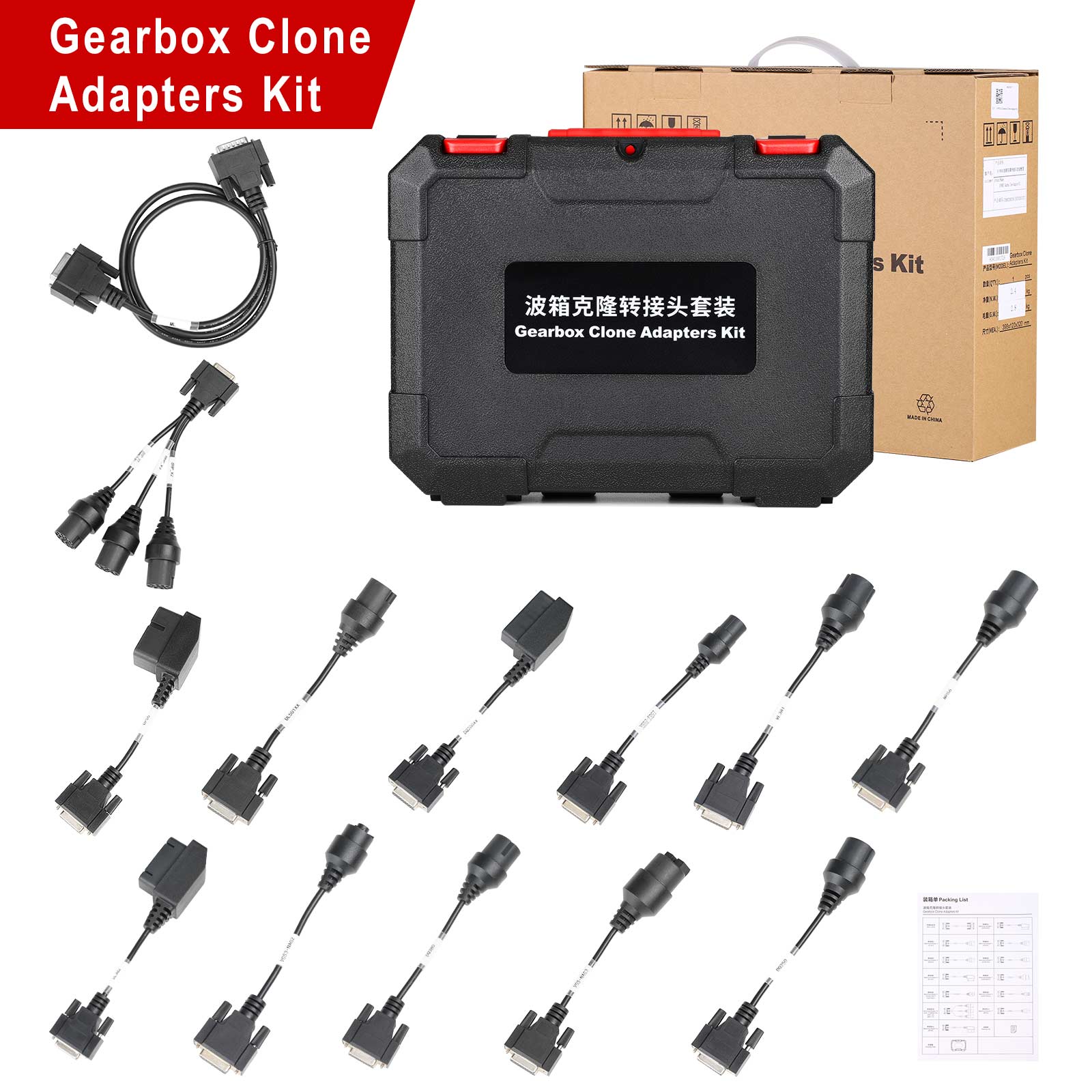

Launch X431 E-C-U Programmer Gearbox Connectors Package, E-C-U Module Cloning Device


The Launch X431 X-PROG3 gearbox clone adapters kit can save the time for customers who use jumper wires to connect to the E-C-U. They only need to find the corresponding cable and plug it into the corresponding E-C-U to clone directly.


Compatible device: X-prog3, X431 E-C-U programmer, PC Adapter for X-prog3

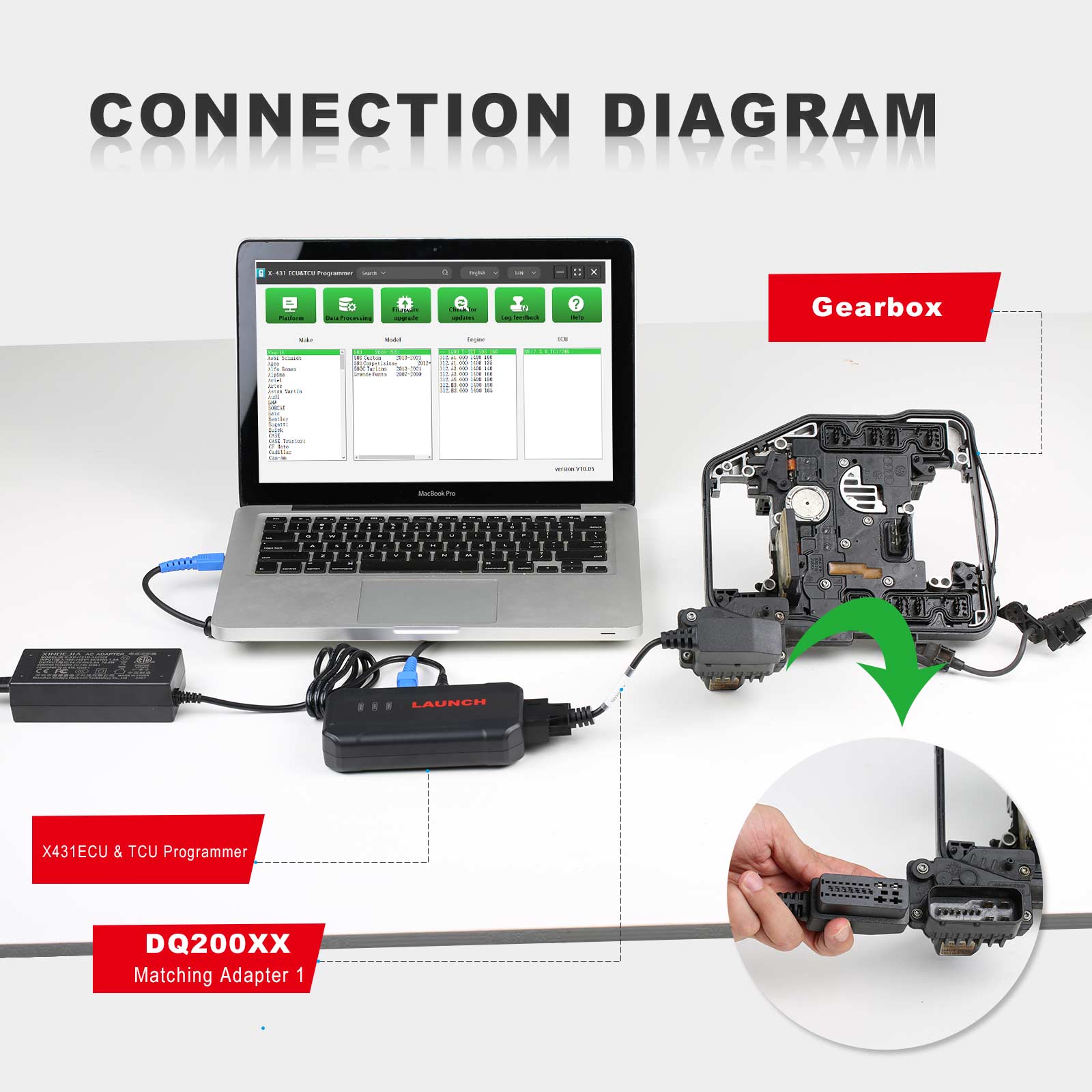

Connection Diagram:


X-prog3 connection


X431 E-C-U Programmer connection


X prog3 PC Adapter Connection

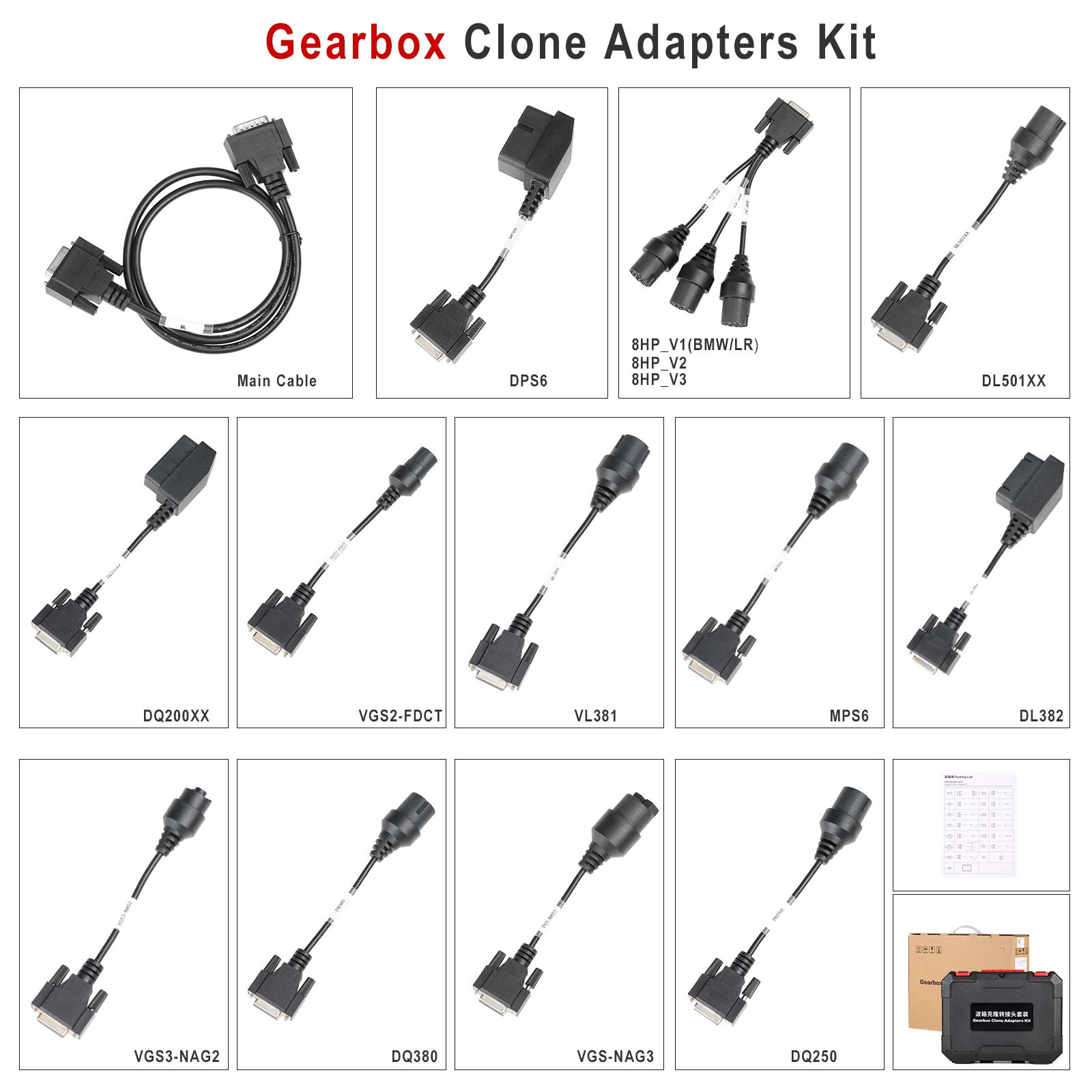

Launch X431 E-C-U Module Cloning Device Connectors Package


Accessory
Name

Material
code

function


1

X-PROG3 Adapter Cable 1 (DQ200XX)

307110077

Used to connect the DQ200XX gearbox, and available models include For V-W, For Audi, etc.

2

X-PROG3 Adapter Cable 2 (VL381)

307110078

Used to connect the VL381 gearbox, and available models include For V-W, For Audi, etc.

3

X-PROG3 Adapter Cable 3 (DQ380)

307110079

Used to connect the DQ380/DQ381/DQ500 gearbox, and available models include For V-W, For Audi, etc.

4

X-PROG3 Adapter Cable 4 (DQ250)

307110080

Used to connect the DQ250 gearbox, and available models include For V-W, For Audi, etc.

5

X-PROG3 Adapter Cable 5 (DL501)

307110081

Used to connect the DL501XX gearbox, and available models include For V-W, For Audi, For Porsche, etc.



6

X-PROG3 Adapter Cable 6 (DL382)

307110082

Used to connect the DL382 gearbox, and available models include For V-W, For Audi, etc.

7

X-PROG3 Adapter Cable 7 (VGS-NAG3)

307110083

Used to connect the VGS-NAG3 gearbox, and available models include For Benz, For Nissan, etc.

8

X-PROG3 Adapter Cable 8 (VGS2-FDCT/VGS-FDCT)

307110084

Used to connect the VGS-FDCT/VGS2-FDCT gearbox, and available models include For Benz, For Infiniti, etc.

9

X-PROG3 Adapter Cable 9 (VGS3-NAG2)

307110085

Used to connect the VGS3-NAG2 gearbox, and available models include For Benz, etc.

10

X-PROG3 Adapter Cable 10 (8HP_V1(BMW/LR)/8HP_V2/8HP_V3)

307110086

Used to connect the 8HPXX/AL450/AL551/AL552 gearbox, and available models include For BMW, For Land Rover, For Jaguar, For Dodge, For Alpina, For Chrysler, For Rolls Royce, For Alfa Romeo, For Aston Martin, For Great Wall, For Jeep, For Lamborghini, For Maserati, For Iveco, etc.

11

X-PROG3 Adapter Cable 11 (MPS6)

307110087

Used to connect the MPS6/MPS6_GEN3 gearbox, and available models include For Ford, For R-enault, For Chrysler, For Dodge, For Land Rover, For Volvo, etc.

12

X-PROG3 Adapter Cable 12 (DPS6)

307110088

Used to connect the DPS6 gearbox, and available models include For Ford, etc.

13

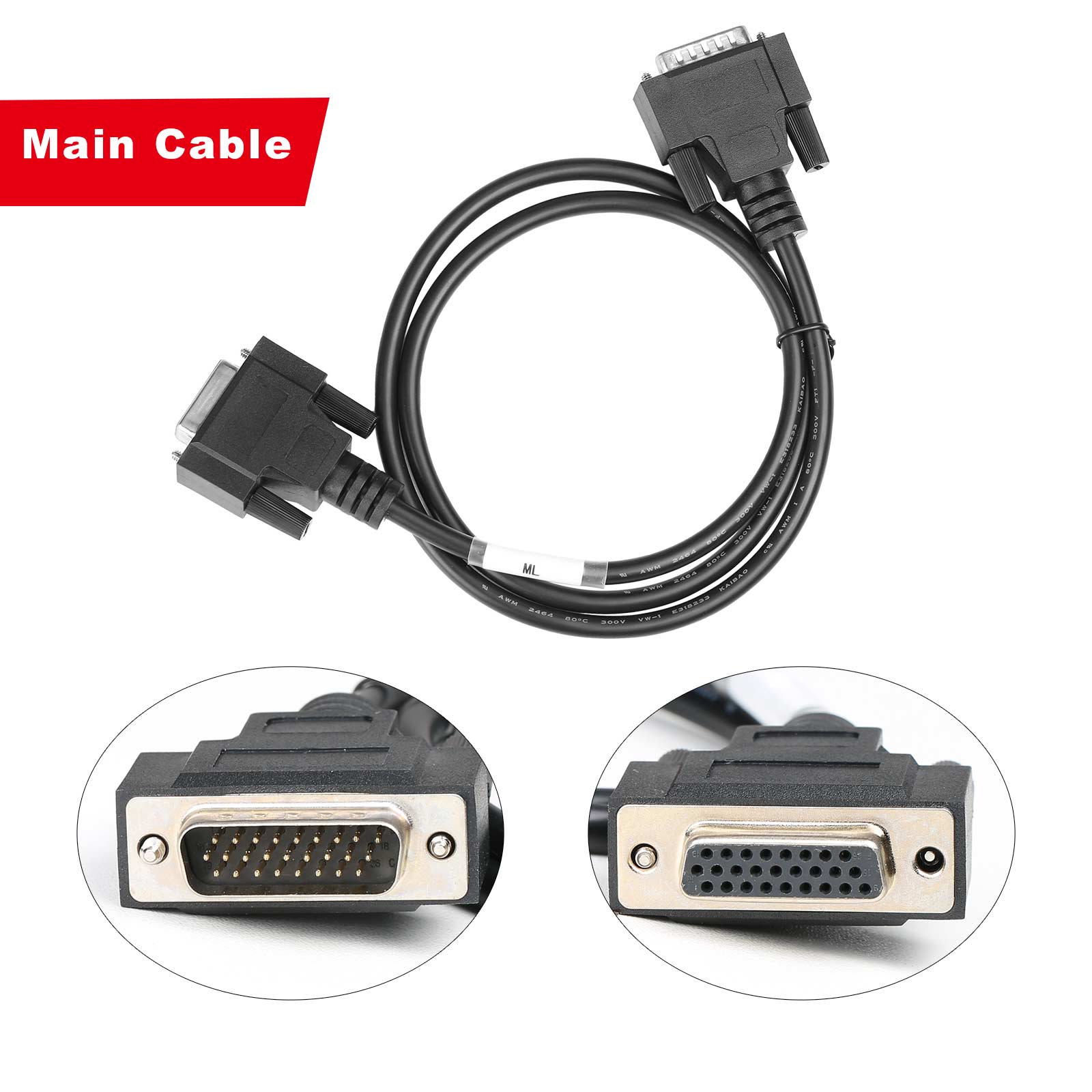

X-PROG3 Adapter Cable Main Line (ML)

307110089

The extension wire of the gearbox harness, with one end connected to the immobilizer programmer and the other end connected to the gearbox harness
