Speedometer Koso RX4 Unlimited LCD display
- Art. ID.: 1133351
- Art. No.: KO-BA081010
- Manufacturer: Koso
General
-
Approvalwith approval
-
TypeAuxiliary instrument, Speedometer, Tachometer
Description

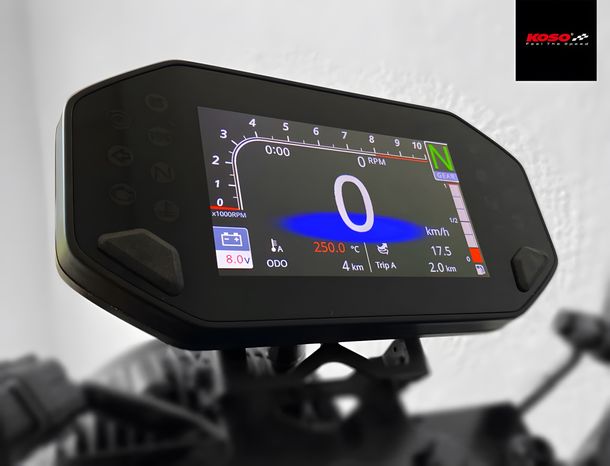

RX-4 | Multifunction TFT Meter
With speedometer, odometer, trip meter, operating hour counter, voltmeter, clock, and stopwatch, as well as multiple warning lights, the new universal version of the RX-4 offers you all the information you need for your next ride.
This multifunction meter allows you to connect your mobile phone via the Bluetooth® option for a unique experience unlike any standard meter. You can see your incoming calls, your music playback information, and much more. With its easy-to-use and large display features, the RX-4 is the perfect meter to give any type of motorcycle a modern look.
Speedometer
- R: 0 - 225 MPH (0 - 360 km/h)
- U: 1 MPH or km/h (alternative)
Odometer (internal and external)
- R: 0 - 999,999 miles (km)
- U: 1 mile (km)
Trip Meter 1, 2
- R: 0 - 9,999.9 miles (km)
- U: 0.1 mile (km)
Low fuel mileage
- R: 0 - 999 miles (km)
- U: 1 mile (km)
Oil Maintenance
- R: 300 - 10,000 miles (500 - 16,000 km), OFF
- U: 100 mile (km)
- Value will decrease automatically
- Warning range: Text will turn red as the value is 0 mile (km) and below.
Max. speed record
- R: 0 - 225 MPH (0 - 360 km/h)
- U: 1 MPH or km/h (alternative)
Gear indicator
- R: N, 1 - 6
Max. gear indicator
- R: N, 1 - 6
Tachometer
- R:
• 0 - 10,000 RPM
• 0 - 12,500 RPM
• 0 - 15,000 RPM
• 0 - 18,000 RPM
Shift light
- R:
• 1000 - 10,000 RPM
• 1000 - 12,500 RPM
• 1000 - 15,000 RPM
• 1000 - 18,000 RPM
U:
• 100 RPM
Max. RPM
- R:
• 0 - 10,000 RPM
• 0 - 12,500 RPM
• 0 - 15,000 RPM
• 0 - 18,000 RPM
Overheat warning A, B setting
- R: 60 - 250°C (140 - 482°F), when setting value is reached, the color of the number turns to red and flashes.
- U: 1°C (°F)
Max. temperature A, B record
- R: 0.0 - 250.0˚C (32.0 - 482.0˚F), may return to zero manually.
- U: 0.1˚C (˚F)
Fuel meter
- R: 6 levels
- U: 1 level = 16.6%
Fuel warning setting
- R: 0 - 3/6, when setting value is reached or below, warning light will illuminate.
- U: 1
A/F ratio meter
- R: 12.1 - 17.5
- U: 0.1
Fuel gauge resistance (Ω)
- R: 100 Ω, 250 Ω, 270 Ω, 390 Ω, 510 Ω, 1200 Ω, SW, learning mode, OFF
Clock
- R: 12 H or 24 H format
Volt meter
- R: DC 8.0 - 18.0V
- U: DC 0.1V
Low voltage warning
- R: DC 8.0 - 13.0V
- U: DC 0.1V
D: LO ≤ value, numbers will turn red and blink.
High voltage warning
- R: DC 13.1 - 18.0V
- U: DC 0.1V
- D: HI ≥ value, numbers will turn red and blink.
Target speed
- R: 0 - 225 MPH (0 - 360 km/h)
- U: 5 km/h (MPH)
Target distance
- R: 1/32 - 30/32 mile (50 - 1,500m)
- U: 1/32 mile (50m)
Top speed
- D: Speed: 0 - 225 MPH (0 - 360 km/h)
- Distance: 0 - 999m (0 - 3,280 feet)
- RPM: 0 - 10,000 RPM/ 0 - 12,500 RPM/ 0 - 15,000 RPM/ 0 - 18,000 RPM
- Time: 0 - 9:59”99
Bluetooth® connection status Operating system
- iOS: iOS 5.0 and above
- Android: Android 9 and above
Phone battery
- R: 3 segments
Incoming phone call
- D:
• Name or number up to 12 letters
• “…” displayed if > 12 letters
• “Unknown” displayed when there is no name
• iOS – shows either name or number of the incoming call
• Android – shows number only
Incoming online App call
- D:
• Name up to 12 letters
• “…” displayed if > 12 letters
• “Unknown” displayed when there is no name
App:
LINE, WeChat, WhatsApp
Operating system:
■ iOS: supported
□ Android: not supported
Music playing info
D:
- Song 15 letters / “…” if > 15 letters
- Artist 18 letters / “…” if > 18 letters
- Total song time: 00:00 ~ 9:59:59
- Operating system (for total time):
- iOS: supported
- Android: not supported
- Current playing time: 00:00 ~ 9:59:59
- Operating system (for current time):
- iOS: supported
- Android: not supported
Note: The model list is a universal list, therefore please check for compatibility before purchasing.
