Product Description

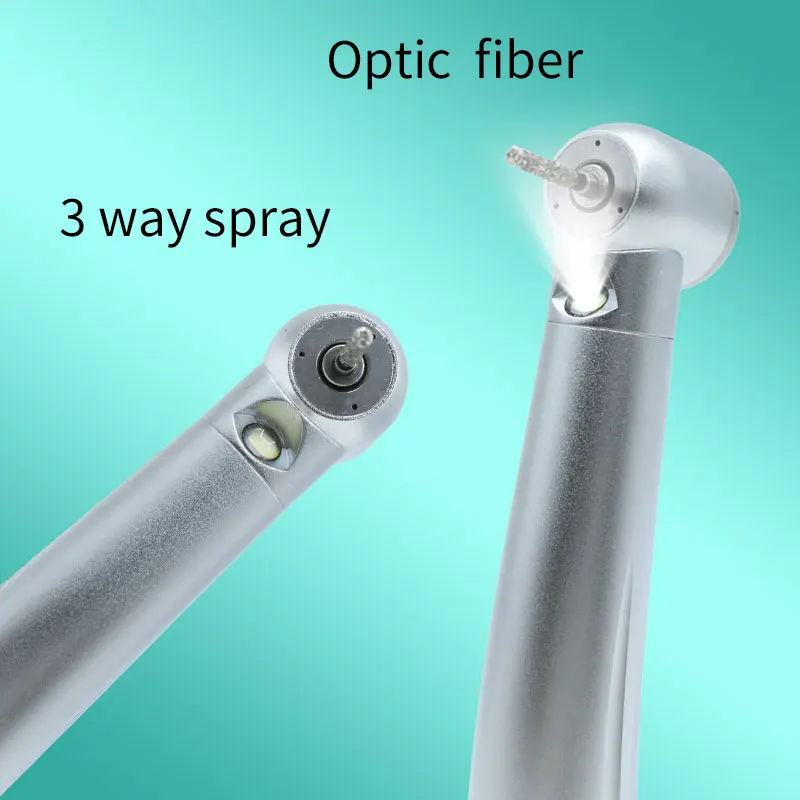

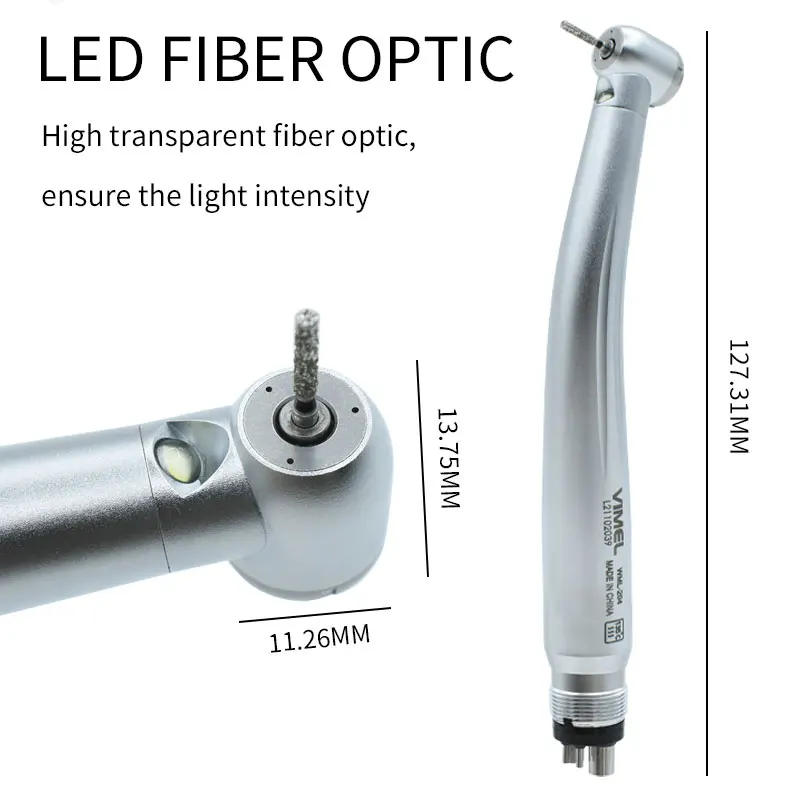

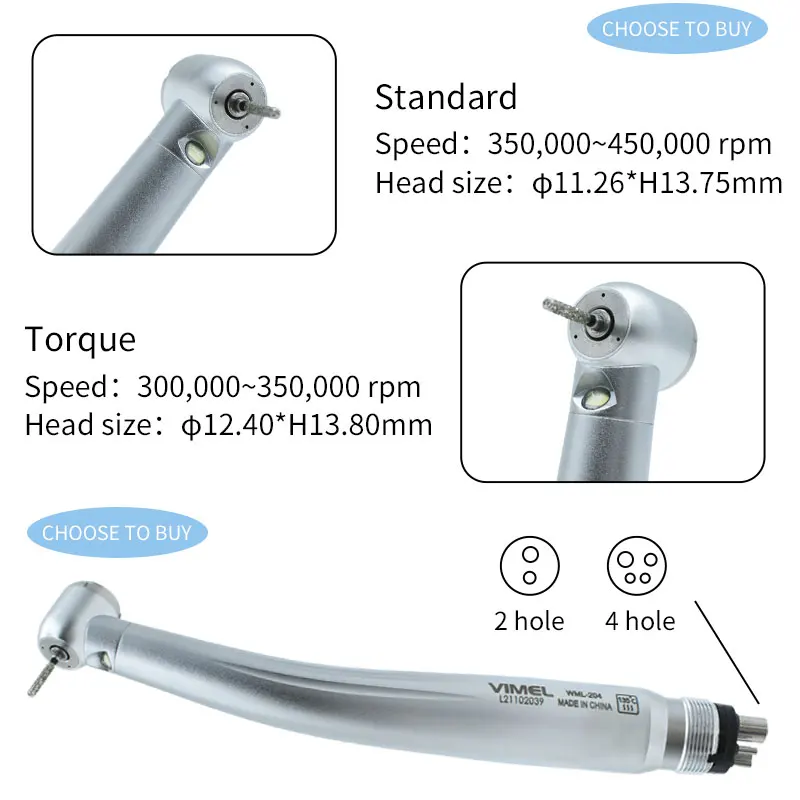

 Dental VIMEL Max LED High Speed Handpiece

Speed Standard ≥35,000RP
MTorque ≥28,000RPM
Cartridge Ceramic Bearing
Chuck Type Push Button
Applicable Burs 1.59-1.60mm
Working Pressure 0.25Mpa-0.3Mpa(Recommended 0.25Mpa)
Clamping Force 25-45N
Motor Speed 35,000-40,000RPMNoise≤70dB

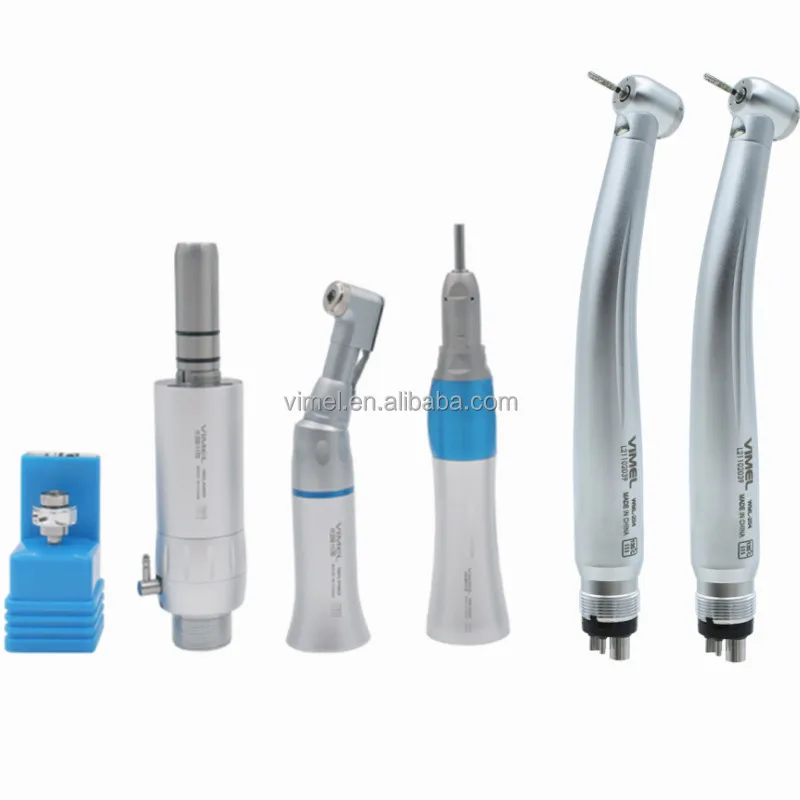

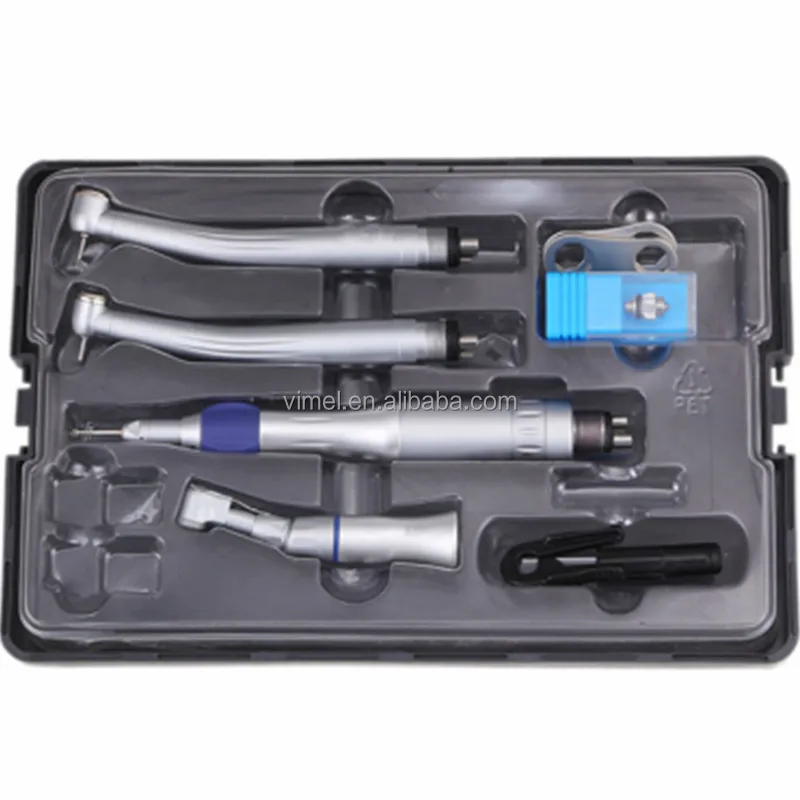

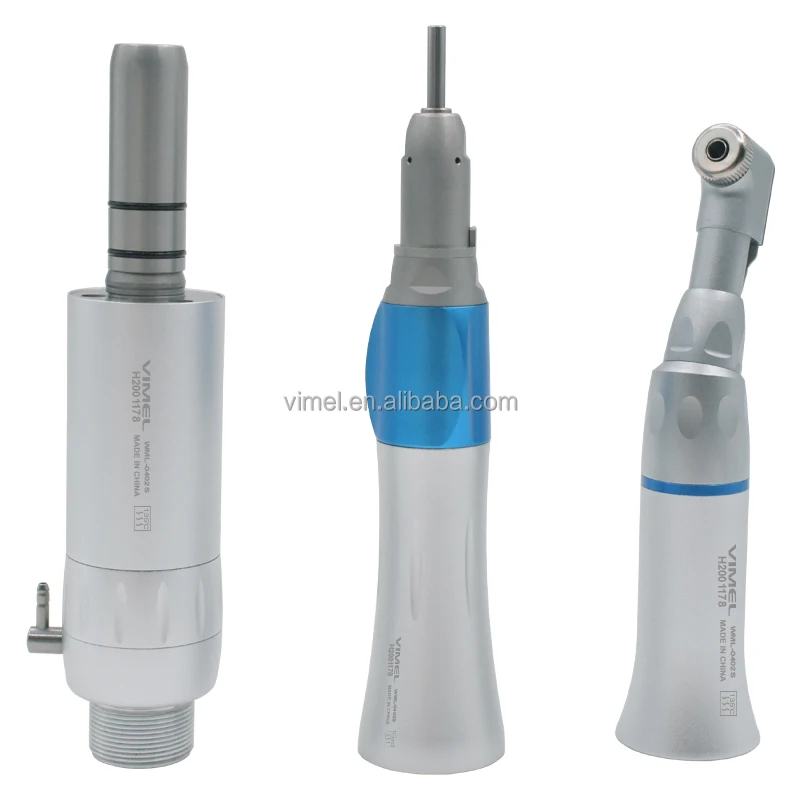

Low Speed Handpiece(Contra Angle+straight Handpiece+Air Motor):
- E-type connector
- Wrench type
- Precise technology, Steady, no vibration while revolving, offering a steady operation.
- Suitable for any E-type handpiece accords with ISO standard
- 135°C Autoclavable, suitable for both steam and chemical autoclave

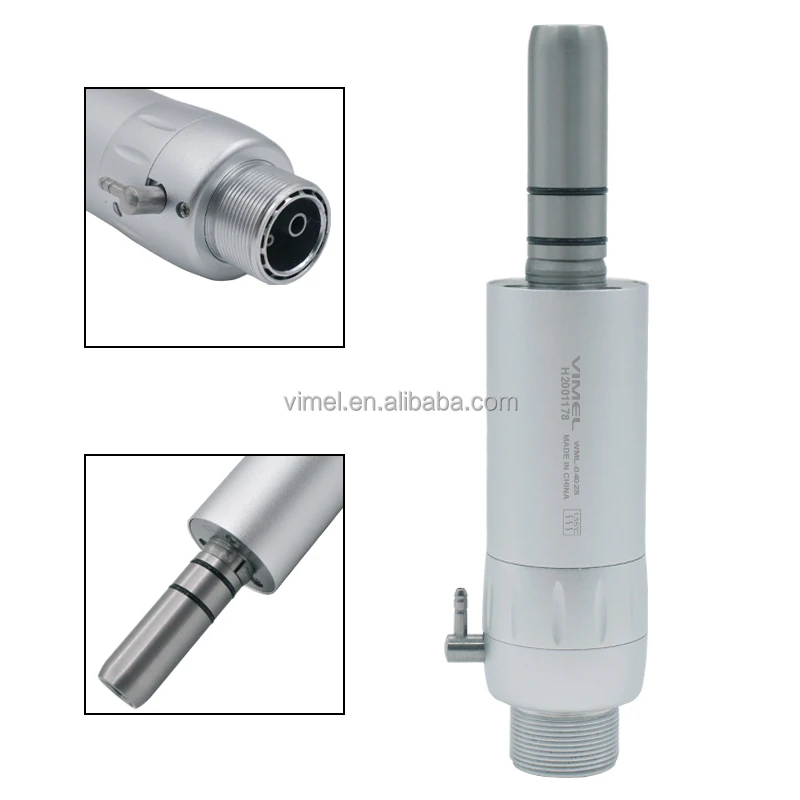

Air Motor
- Supply air pressure: 245-392KPa (2.5-4kgf/CM2)
- 1:1 Direct Drive
- Borden 2 Hole / Midwest 4 Hole
- Max speed 20,000 min-1

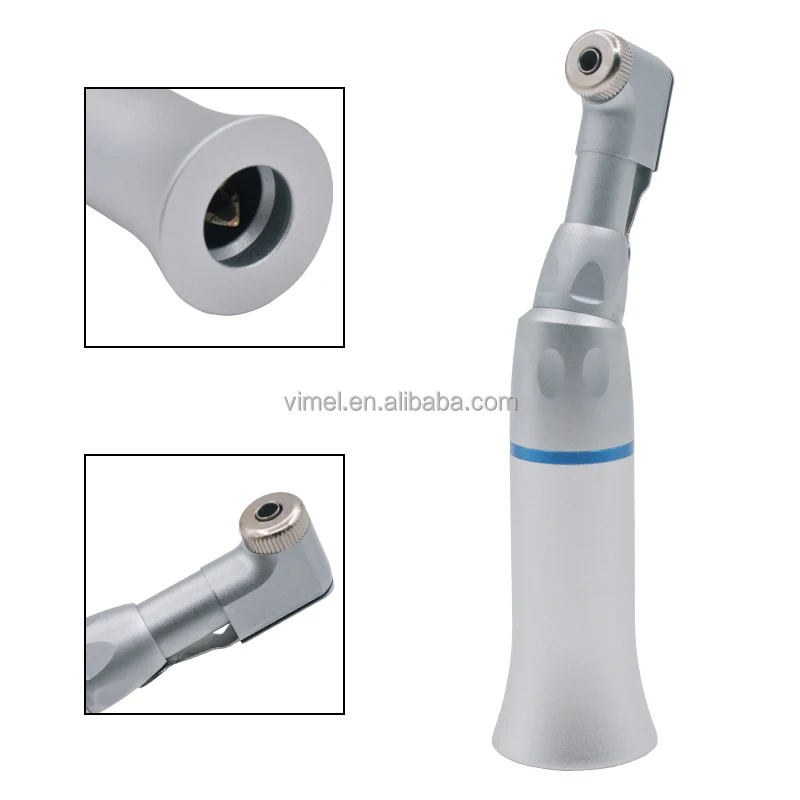

Contra angle handpiece:
- Low Speed 22,000-27,000 rpm.
- The shank of the instrument mounted therein is 2.35 mm
- Fastening of the instruments with a turning latch
- Autoclavable 135°C
- For any lab or E-type motors

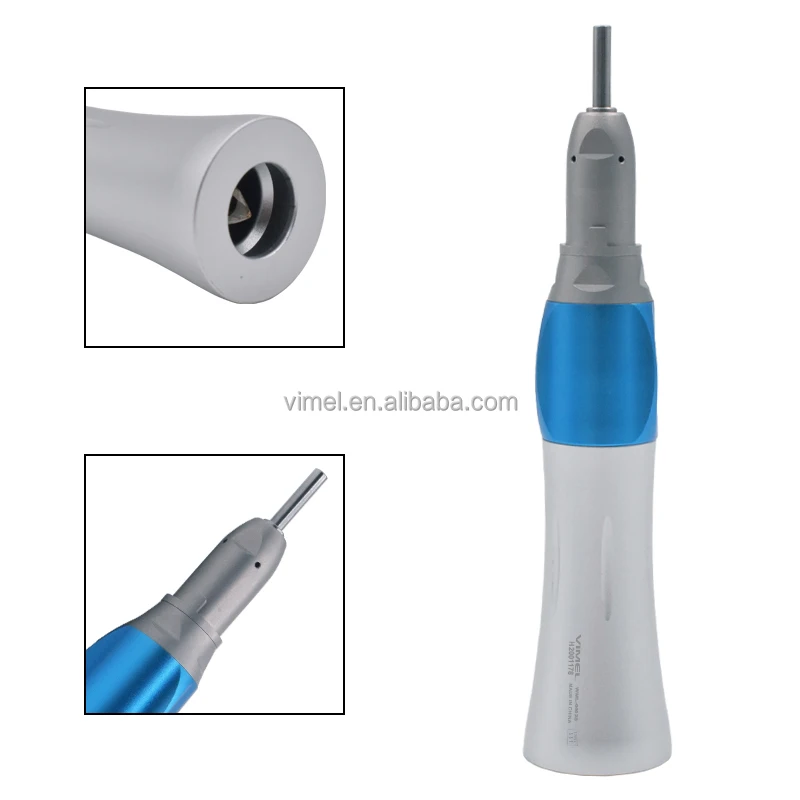

Straight Nosecone:
- Working pressure: 0.3MPa
- 0.25MPa(Measure meter is installed at the end of air motor to measure the air pressure).
- Revolution: about 22000-27000r/min (adjustable between clockwise or anticlockwise)
- Noise: ≤68dB
- Air consumption: about 56L/min
- Ratio: 1:1
- Max speed of contra angle: 25000rpm/min.
